NOTE:
The heated seats may also be adjusted in the
lower display. For additional information,
refer to “Heater and air conditioner (auto-
matic)” in the “Monitor, climate, audio,
phone and voice recognition” section of this
manual.
WARNING
When this switch is activated the following
systems (if so equipped) are turned off and
will not work.
∙ Distance Control Assist (DCA)
∙ Blind Spot Intervention (BSI)
∙ Lane Departure Prevention (LDP)
The dynamic driver assistance switch is used
to turn on and off the following systems (Dis-
tance Control Assist (DCA) , Blind Spot Inter-
vention® (BSI), and Lane Departure Preven-
tion (LDP)) that are activated (if so equipped)
using the settings menu in the lower display. When the dynamic driver assistance switch is
turned off, the indicator on the switch is off.
The indicator will also be off if the system is
deactivated using the settings menu.
The DCA system brakes and moves the ac-
celerator pedal upward according to the dis-
tance from and the relative speed of the ve-
hicle ahead to help assist the driver in
maintaining a following distance. For addi-
tional information, refer to “Distance Control
Assist (DCA)” in the “Starting and driving”
section of this manual.
The BSI system helps alert the driver of other
vehicles in adjacent lanes when changing
lanes, and helps assist the driver to return the
vehicles to the center of the traveling lane.
For additional information, refer to “Blind
Spot Intervention® (BSI)” in the “Starting and
driving” section of this manual.
The LDP system warns the driver with a
warning indicator in the vehicle information
display and a steering wheel vibration, and
helps assist the driver to return the vehicle to
the center of the traveling lane by applying
the brakes to the left or right wheels individu-
ally (for a short period of time). For additional
information, refer to “Lane Departure Pre-
vention (LDP)” in the “Starting and driving”
section of this manual
LIC3828

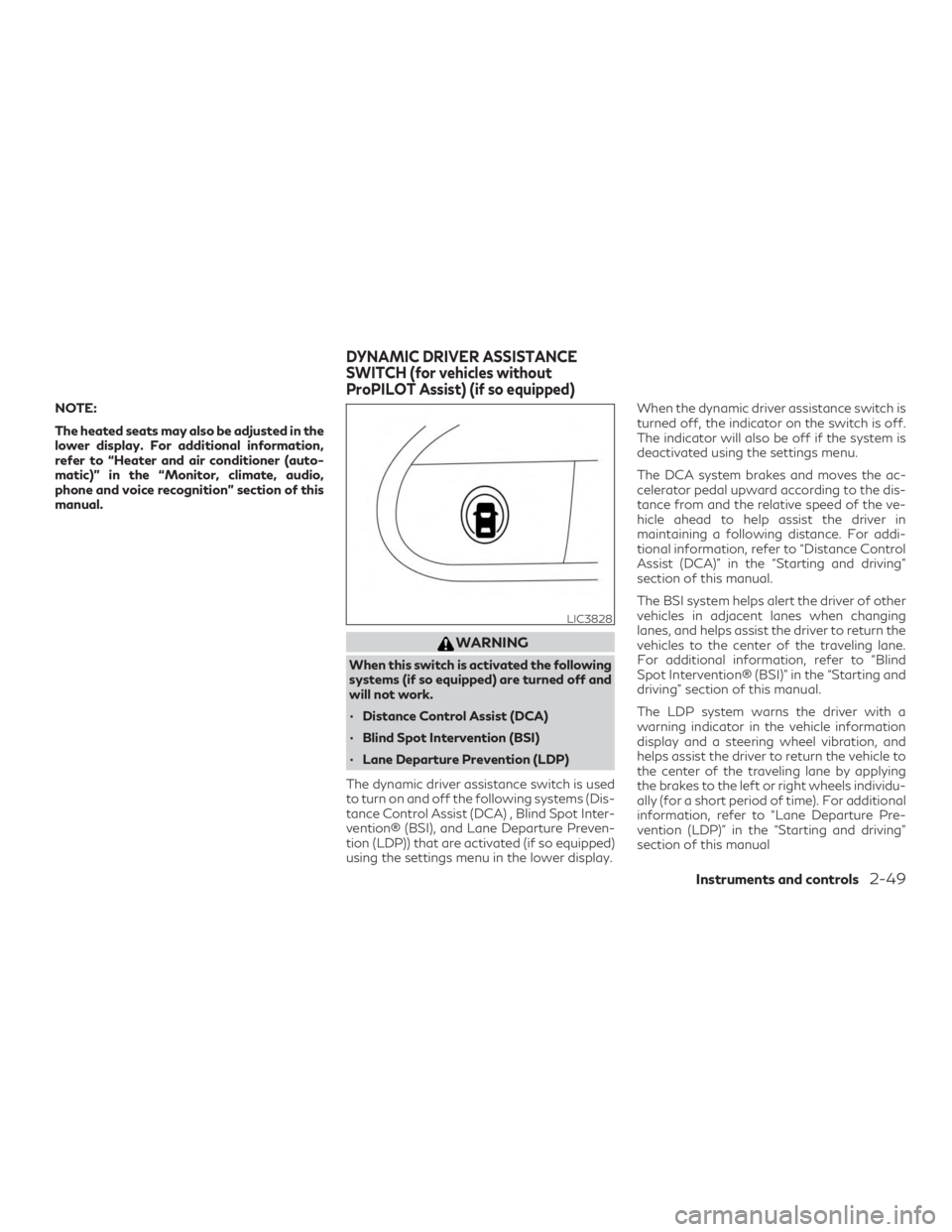

DYNAMIC DRIVER ASSISTANCE
SWITCH (for vehicles without
ProPILOT Assist) (if so equipped)
Instruments and controls2-49

For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual and
“Log-in function” in this section.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when you the
vehicle is engaged in the P (Park) position.
This allows the driver to get into and out of
the driver’s seat more easily.
The driver’s seat will slide backward and the
steering column will move up:∙ When the driver’s door is opened with the ignition switch placed in the OFF posi-
tion.
∙ When the ignition is switched OFF with the driver’s door open.
The driver’s seat and steering wheel will re-
turn to the previous position: ∙ When the ignition is switched ON while the vehicle is engaged in the P (Park)
position. The entry/exit function can be adjusted or
canceled through “Vehicle Settings” in the
lower touch-screen display by performing the
following:
∙ Switch the Lift Steering Wheel on Exit from ON to OFF.
∙ Switch the Slide Driver Seat Back on Exit from ON to OFF.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.
∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key.
3-40Pre-driving checks and adjustments

3. Place the ignition switch in the ON posi-tion. The settings linked to the Intelligent
Key will start.
For additional information on using the cli-
mate control system, refer to “Heater and air
conditioner (automatic)” in the “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual.
For additional information, refer to the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual
or the separate INFINITI InTouch™ Owner’s
Manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 4 mph (7 km/h).
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while the au-
tomatic drive positioner is operating. ∙ When the seat has already been moved
to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-41

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-12
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-18
How to switch the display ...................4-20
Around View® Monitor settings .............4-20
Adjusting the screen ......................... 4-21
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera Aiding Sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar System Operation ....................4-25
Turning ON and OFF the sonar function .....4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-28
Moving Object Detection (MOD)
(if so equipped) ................................. 4-29
MOD system operation ......................4-30
Turning MOD on and off ....................4-33
MOD system limitations .....................4-33
System maintenance ........................ 4-34
Vents .......................................... 4-35
Heater and air conditioner (automatic) ..........4-36
Automatic operation ........................ 4-37
Manual operation ........................... 4-38
Operating tips ............................... 4-39
CLIMATE setting screen .....................4-40
Rear climate control

(if so equipped) .........4-42
Heater and air conditioner settings ..............4-43
Servicing air conditioner ........................ 4-43
USB/iPod® charging ports .....................4-44
Antenna ....................................... 4-44
Car phone or CB radio .......................... 4-45

Refer to the INFINITI InTouchTMOwner’s
Manual that includes the following informa-
tion.
∙ INFINITI InTouch
TMServices
∙ Navigation system (if so equipped)
∙ Audio system
∙ Bluetooth® Hands-Free Phone system
∙ Viewing information
∙ Other settings
∙ Voice recognition (if so equipped)
∙ General system information
INFINITI INTOUCHTMOWNER’S
MANUAL
4-2Monitor, climate, audio, phone and voice recognition systems

ADJUSTING THE SCREEN
The RearView Monitor settings can be
changed with the following procedure on the
upper display.1. Press the MENU button while the Rear- View Monitor screen is shown on the
upper display.
2. Touch the “Settings” key and then the “Camera/Sonar” key.
3. Touch the “Display” key. Select a pre- ferred item, “Brightness”, “Tint”, “Color”,
“Contrast” and “Black Level” of the Rear-
View Monitor and adjust the value by
touching the “+” or “-” key. Touch “Reset Settings” to return all settings
to default.
You can also press the
button and ei-
ther turn or move the INFINITI controller to
adjust the day/night settings. Pressing
the
button again will switch the screen
to AUTO mode. While the adjustment screen
is shown on the upper display you can also
touch either “+” or “-” key.
The upper and lower display screens can be
turned on or off by pressing and holding
the
button.
NOTE:
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.
HOW TO TURN ON AND OFF
PREDICTED COURSE LINES
To toggle on and off the predicted course
lines while in the P (Park) position: 1. Press the MENU button.
2. Touch the “Settings” key.
3. Touch the “Camera/Sonar” key.
4. Touch the “Camera” key. 5. Touch the “Predicted Course Lines” key
to turn the feature on or off.
When the predicted course lines are
turned on, the indicator light is on.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
RearView Monitor. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ The system cannot completely eliminateblind spots and may not show every
object.
∙ Underneath the bumper and the corner areas of the bumper cannot be viewed on
the RearView Monitor because of its
monitoring range limitation. The system
will not show small objects below the
bumper, and may not show objects close
to the bumper or on the ground.
∙ Objects viewed in the RearView Monitor differ from actual distance because a
wide-angle lens is used.
LHA4243
Monitor, climate, audio, phone and voice recognition systems4-9

4. Maneuver the steering wheel to makethe vehicle width guide lines
Dparallel
to the parking space
Cwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space completely, press the Park button lo-
cated near the shift lever to place the
vehicle in the P (Park) position and apply
the parking brake.
HOW TO SWITCH THE DISPLAY
With the ignition switch in the ON position,
press the
CAMERA button or with the
engine running, move the shift lever to the R
(Reverse) position to operate the Around
View® Monitor.
The Around View® Monitor displays differ-
ent split screen views depending on the posi-
tion of the shift lever. When activating the
Around View® Monitor, the guide lines, the
icons and the messages may not be displayed
immediately. Press the
CAMERA but-
ton or touch the “Change View” key to switch
between the available views.
If the shift lever is in the R (Reverse) position,
the available views are:
∙ Rear view/bird’s-eye view split screen ∙ Rear view/front-side view split screen
∙ Rear-wide view
If the shift lever is in the P (Park) position, the
available views are: ∙ Front view/bird’s-eye view split screen
∙ Front view/front-side view split screen
∙ Front-wide view
If the shift lever is in the D (Drive) position, the
only available views are: ∙ Front view/bird’s-eye view split screen
∙ Front view/front-side view split screen
∙ Front-wide view
The display will switch from the Around
View® Monitor screen when: ∙ The shift lever is in the D (Drive) position and the vehicle speed increases above
approximately 6 mph (10 km/h).
∙ A different screen is selected.
AROUND VIEW® MONITOR
SETTINGS
To set up the Around View® Monitor to your
preferred settings, press the MENU button,
select the “Settings” key, then select the
“Camera/Sonar” key on the lower display
then select the “Camera” key.
For additional information about the sonar,
refer to “Camera aiding sonar (parking sen-
sor)” in this section. For information about the
Display screen adjustment, refer to “Adjust-
ing the screen” in this section.
Designs and items displayed on the screen
may vary depending on model.
LHA4265
4-20Monitor, climate, audio, phone and voice recognition systems

Back-up Collision Intervention:
Turns ON or OFF the Backup Collision Inter-
vention (BCI) system. For additional informa-
tion, refer to “Backup Collision Intervention
(BCI)” in the “Starting and driving” section of
this manual.
Moving Object Detection (MOD):
When this item is turned to ON, the MOD is
activated. When this item is turned to OFF
(indicator turns off), the MOD system is de-
activated.MOD Volume:
Adjusts the MOD volume between High, Mid
or Low by touching the “+” or “-” key on the
display screen. This feature is only available
when “Moving Object Detection” is on.
Non-viewable Area Reminder:
With this item turned to ON, the non-
viewable area is highlighted in yellow for
seven seconds after the bird’s-eye view is
displayed. It will only be shown the first time
after the ignition switch is placed in the ON
position.
Predicted Course Lines:
When this item is turned to ON, the predicted
course lines are displayed in the front view,
rear view and bird’s-eye view.
Automatic Display with Sonar:
When this item is turned to ON, the camera
view is automatically shown on the display in
the case that the distance to the objects
measured by the sonar is becoming short.ADJUSTING THE SCREEN
The Around View® Monitor settings can be
changed with the following procedure on the
upper display.
1. Press the MENU button while the Around View® Monitor screen is shown
on the upper display.
2. Touch the “Settings” key and then the “Camera/Sonar” key.
3. Touch the “Display” key. Select a pre- ferred item, “Brightness”, “Tint”, “Color”,
“Contrast” and “Black Level” of the
Around View® Monitor and adjust the
value by touching the “+” or “-” key.
LHA4557LHA4629
Monitor, climate, audio, phone and voice recognition systems4-21

Touch “Reset Settings” to return all settings
to default.
You can also press and hold
the
CAMERA button and either turn or
move the INFINITI controller to the left or the
right to adjust the day/night settings. Press-
ing and holding the
CAMERA button
again will switch the screen to AUTO mode.
While the adjustment screen is shown on the
upper display you can also touch either “+” or
“-” key.
NOTE:
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the Around
View® Monitor while the vehicle is moving.
Make sure the parking brake is firmly ap-
plied.
AROUND VIEW® MONITOR
SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
Around View® Monitor. Failure to operate
the vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Do not use the Around View® Monitor with the outside mirrors in the stored po-
sition, and make sure that the liftgate is
securely closed when operating the ve-
hicle using the Around View® Monitor.
∙ The apparent distance between objects viewed on the Around View® Monitor
differs from the actual distance.
∙ The cameras are installed on the front grille, the outside mirrors and above the
rear license plate. Do not put anything on
the vehicle that covers the cameras.
∙ When washing the vehicle with high pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.
LHA4348
4-22Monitor, climate, audio, phone and voice recognition systems

The tone will stop when the object is no
longer near the vehicle.
TURNING ON AND OFF THE
SONAR FUNCTION
When the “” keyAis selected, the indi-
cator
Bwill turn off and the sonar will be
turned off temporarily. The Moving Object
Detection (MOD) system will also be turned
off at the same time. For additional informa-
tion, refer to “Moving Object Detection
(MOD) in this section. When the “
” key
Ais selected again, the indicator will turn on
and the sonar will turn back on.
In the below cases, the sonar will be turned
back on automatically: ∙ When the shift lever is placed in the “R”
(Reverse) position.
∙ When the
CAMERA button is
pressed and a screen other than the cam-
era view is shown on the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h).
∙ When the ignition switch is placed in the “OFF” position and turned back to the
“ON” position again.
To prevent the sonar system from activating
altogether, use the “Sonar” menu. For addi-
tional information, refer to “Sonar function
settings” in this section.
LHA4559LHA4273
4-26Monitor, climate, audio, phone and voice recognition systems
