∙ Make sure to place the shift lever in the P(Park) position and apply the parking
brake when parking your vehicle, riding
on or off the vehicle, or loading luggage.
Failure to do so could cause the vehicle to
move or roll away unexpectedly and re-
sult in serious personal injury or property
damage.
CAUTION
∙ If any of the following conditions occur,the automatic brake hold function may
not function. Have the system checked
promptly. It is recommended that you
visit an INFINITI retailer for this service.
– A warning message appears in the ve- hicle information display.
– The indicator light on the automatic brake hold switch does not illuminate
when the switch is pushed.
∙ The automatic brake hold function will not be activated if the Vehicle Dynamic
Control (VDC) OFF indicator light, elec-
tronic parking brake warning light or
master warning light illuminate and the
chassis control system fault message ap-
pears in the vehicle information display. ∙ To maintain the braking force to keep the
vehicle to a standstill, a noise may be
heard. This is not a malfunction.
HOW TO ACTIVATE/
DEACTIVATE THE AUTOMATIC
BRAKE HOLD FUNCTION
For additional information on activating and
deactivating the automatic brake hold func-
tion, refer to the instructions outlined in this
section.
How to activate the automatic
brake hold function
1. With the ignition switch in the ON posi- tion, push the automatic brake hold
switch
1. The indicator light on the au-
tomatic brake hold switch
2illuminates.
LSD2916
Starting and driving5-27

–The braking force is applied by the
automatic brake hold function for
3 minutes or longer
– The driver’s seat belt is unfastened
– The ignition switch is placed in the
OFF position
– If a malfunction occurs in the auto-
matic brake hold function
∙ When the vehicle stops, but the brake
force is not automatically applied, de-
press the brake pedal firmly until the au-
tomatic brake hold indicator light
(green) illuminates.
Automatic brake hold function
display
The automatic brake hold function status can
be checked in the “Chassis Control” mode in
the vehicle information display. For additional
information, refer to “Vehicle information
display” in the “Instruments and controls” sec-
tion of this manual. Four driving modes can be selected by using
the Drive Mode Selector switch: STAN-
DARD, SPORT, ECO and PERSONAL.
NOTE:
∙ When the Drive Mode Selector switch
selects a mode, the mode may not switch
quickly. This is not a malfunction.
∙ Select the STANDARD mode center for
normal driving.
STANDARD MODE
STANDARD mode is recommended for nor-
mal driving. Push the Drive Mode Selector
switch until “STANDARD” appears in the ve-
hicle information display. STANDARD mode
will also be displayed in the upper display.
SPORT MODE
The SPORT mode adjusts the engine and
transmission to enhance performance. Push
the Drive Mode Selector switch to the
SPORT position. “SPORT” appears in the ve-
hicle information display. SPORT mode will
also be displayed in the upper display.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
PERSONAL MODE
PERSONAL mode is used for adjusting the
steering mode and drive modes. Turn the
PERSONAL mode off for normal driving.
Push the Drive Mode Selector switch until
“PERSONAL” appears in the vehicle informa-
tion display. PERSONAL mode will also be
displayed in the upper display. For additional
information, refer to the INFINITI InTouch™
Owner’s Manual.
Drive Mode Selector switch
LSD2917
INFINITI DRIVE MODE SELECTOR
Starting and driving5-29

How to set the PERSONAL mode
Perform the following steps to set the PER-
SONAL mode:1. Press the MENU button
1and select
“Infiniti Drive Mode Selector” on the
lower display.
2. Select “Engine/Transmission,” “Steer- ing,” “Active Trace Control” or “Active
Engine Brake” and select each item. (See
“Engine/Transmission,” “Steering,” “Ac-
tive Trace Control” or “Active Engine
Brake” about the feature of each item.) 3. Select “Back” or press the MENU button
to finish the PERSONAL mode setting.
Engine/Transmission:
“Engine/Transmission” can be set to “Stan-
dard,” “Sport” or “Eco.”
Steering (models with Direct Adaptive
Steering®):
Four combinations of steering mode and
steering response can be set.
Mode Response
Sport Dynamic+
Dynamic
Default
Standard Default
Steering (models without Direct Adaptive
Steering):
“Steering” can be set to “Sport” or “Standard.”
Active Trace Control:
“Active Trace Control” can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, refer to “Active Trace Control” in this
section. Active Engine Brake:
“Active Engine Brake” can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, refer to “Active Engine Brake” in this
section.
Reset Settings:
Select “Reset Settings” and select “OK” to
restore all the PERSONAL mode settings to
default.
ECO MODE
The ECO mode adjusts the engine and trans-
mission to enhance fuel economy.
NOTE:
Selecting this drive mode will not necessarily
improve fuel economy as many driving fac-
tors influence its effectiveness.
Operation
Push the Drive Mode Selector switch to the
ECO position. “ECO” appears in the vehicle
information display and the ECO drive indi-
cator light illuminates on the instrument
panel. ECO mode will also be displayed in the
upper display.
LSD2982
5-30Starting and driving

Setting ECO pedal reaction force1. Press the MENU
1button and select
“Settings” in the lower display.
2. Select “Drive Mode Enhancement.”
3. Select “ECO Pedal” and then select ei- ther “OFF,” “Soft” or “Standard” in the
lower display. When the ECO pedal sys-
tem is turned off, the accelerator will
operate normally.
LSD2965LSD2695LSD2696
5-32Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the LDW system
could result in serious injury or death.
∙ This system is only a warning device toinform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It is
the driver’s responsibility to stay alert,
drive safely, keep the vehicle in the trav-
eling lane, and be in control of the vehicle
at all times. The LDW system will operate when the ve-
hicle is driven at speeds of approximately
37 mph (60 km/h) and above, and only when
the lane markings are clearly visible on the
road.
The LDW system monitors the lane markers
on the traveling lane using the camera unit
1
located above the inside mirror.
The LDW system warns the driver with an
indicator in the vehicle information display
and the steering wheel will vibrate, indicating
that the vehicle is beginning to leave the driv-
ing lane. For additional information, refer to
“LDW system operation” in this section.
LSD2823
LANE DEPARTURE WARNING (LDW)
(if so equipped)
Starting and driving5-33

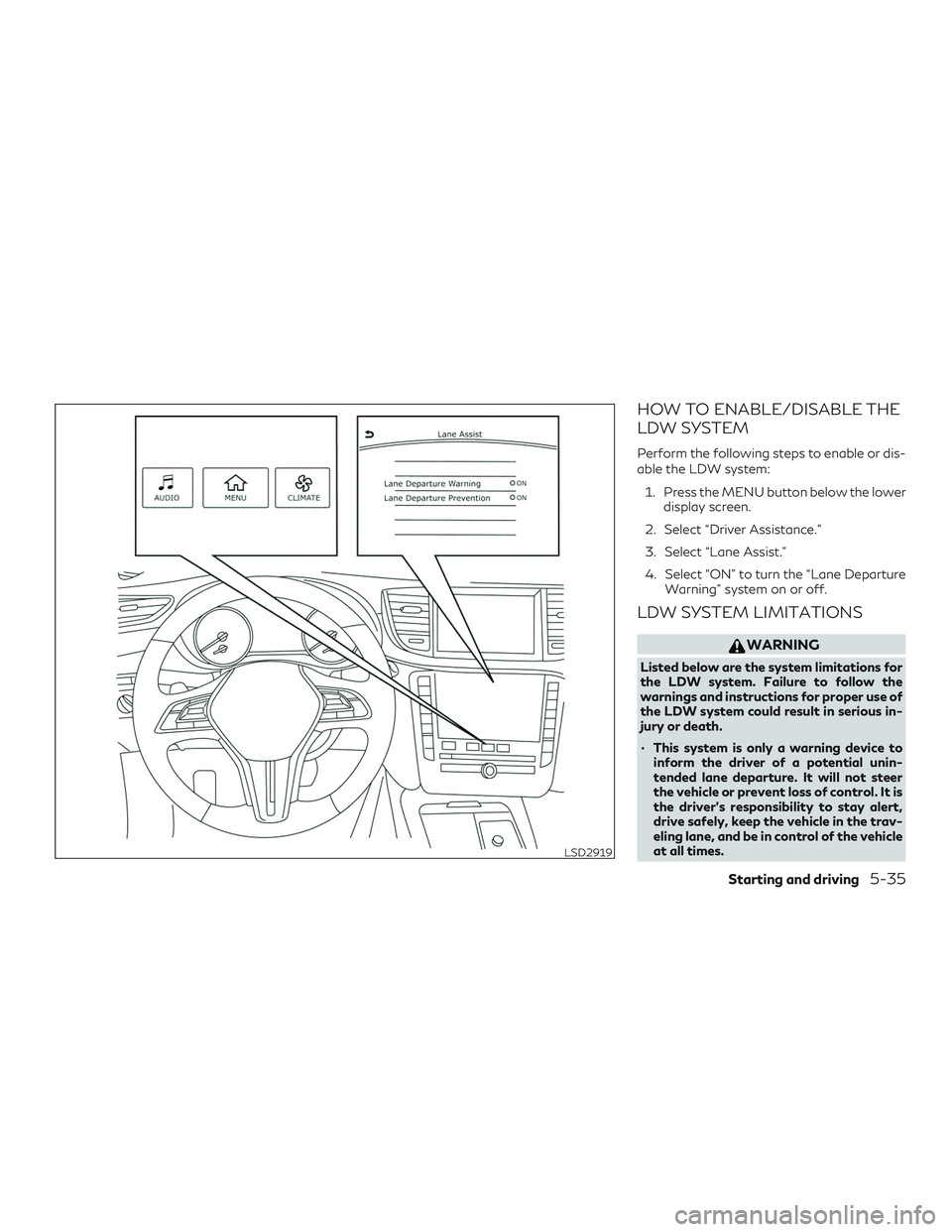

HOW TO ENABLE/DISABLE THE
LDW SYSTEM
Perform the following steps to enable or dis-
able the LDW system:1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Lane Assist.”
4. Select “ON” to turn the “Lane Departure Warning” system on or off.
LDW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the LDW system. Failure to follow the
warnings and instructions for proper use of
the LDW system could result in serious in-
jury or death.
∙ This system is only a warning device toinform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It is
the driver’s responsibility to stay alert,
drive safely, keep the vehicle in the trav-
eling lane, and be in control of the vehicle
at all times.
LSD2919
Starting and driving5-35

∙ The system will not operate at speeds be-low approximately 37 mph (60 km/h) or
if it cannot detect lane markers.
∙ Do not use the LDW system under the following conditions as it may not func-
tion properly:
– During bad weather (rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow.
– When driving on winding or uneven roads.
– When there is a lane closure due to road repairs.
– When driving in a makeshift or tempo- rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, nonstandard wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
– When you are towing a trailer or other vehicle. The system may not function properly under
the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where the discontinued lane markers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDW system
could detect these items as lane markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker.
∙ When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow, dirt or an object ad- heres to the windshield in front of the
lane camera unit. ∙ When the headlights are not bright due to
dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
SYSTEM TEMPORARILY
UNAVAILABLE
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then started, the
LDW system may be deactivated automati-
cally and the following message will appear in
the vehicle information display: “Not avail-
able: High Camera Temp.”
When the interior temperature is reduced, the
LDW system will resume operating auto-
matically.
5-36Starting and driving

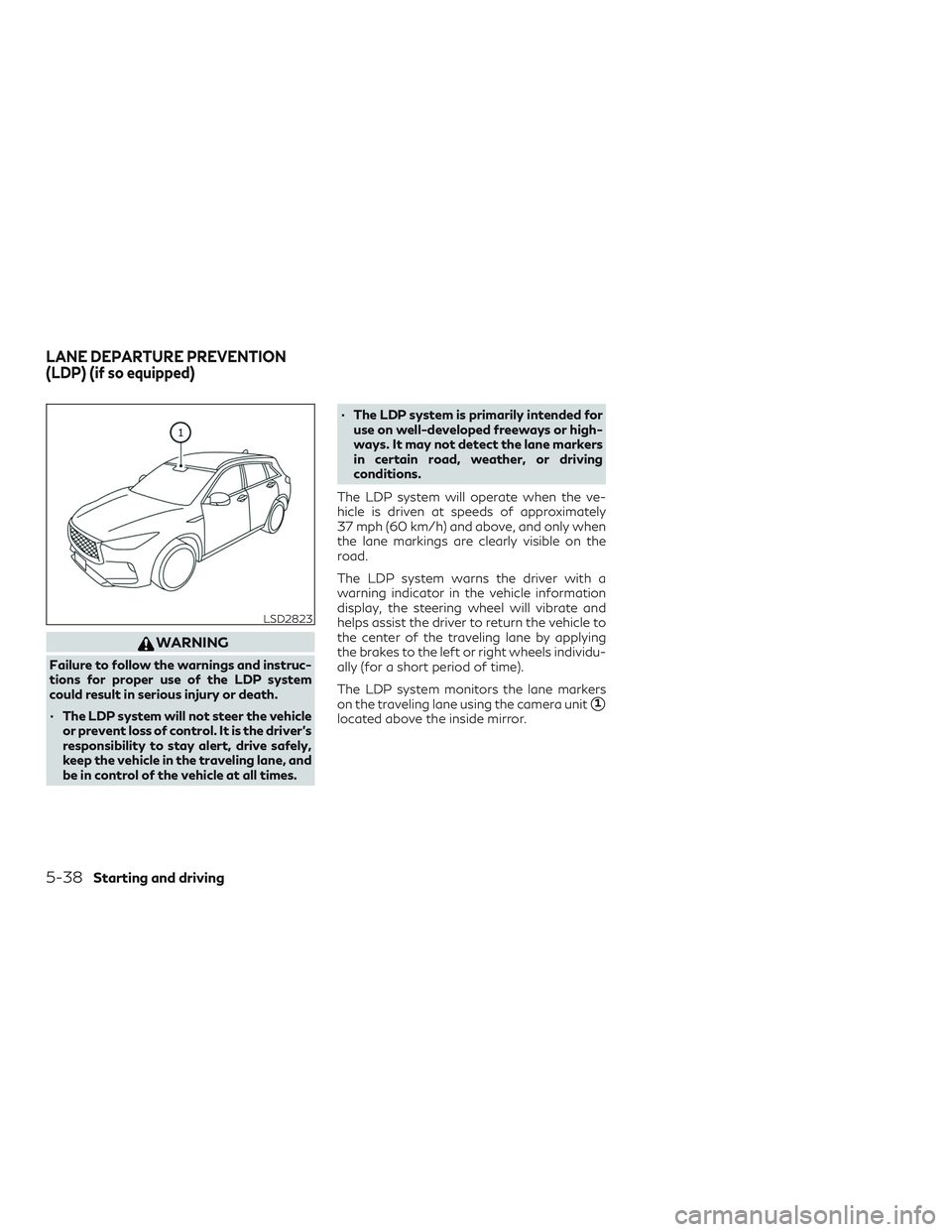

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the LDP system
could result in serious injury or death.
∙ The LDP system will not steer the vehicleor prevent loss of control. It is the driver’s
responsibility to stay alert, drive safely,
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times. ∙ The LDP system is primarily intended for
use on well-developed freeways or high-
ways. It may not detect the lane markers
in certain road, weather, or driving
conditions.
The LDP system will operate when the ve-
hicle is driven at speeds of approximately
37 mph (60 km/h) and above, and only when
the lane markings are clearly visible on the
road.
The LDP system warns the driver with a
warning indicator in the vehicle information
display, the steering wheel will vibrate and
helps assist the driver to return the vehicle to
the center of the traveling lane by applying
the brakes to the left or right wheels individu-
ally (for a short period of time).
The LDP system monitors the lane markers
on the traveling lane using the camera unit
1
located above the inside mirror.
LSD2823
LANE DEPARTURE PREVENTION
(LDP) (if so equipped)
5-38Starting and driving

1. LDP indicator
2. Lower display buttons
3. Dynamic driver assistance switch (forvehicles without ProPILOT Assist)
4. ProPILOT Assist switch (for vehicles with ProPILOT Assist)
LDP SYSTEM OPERATION
The LDP system operates above approxi-
mately 37 mph (60 km/h). When the vehicle
approaches either the left or the right side of
the traveling lane, the steering wheel will vi-
brate and the LDP indicator (orange) on the
instrument panel will blink to alert the driver.
Then, the LDP system will automatically ap-
ply the brakes for a short period of time to
help assist the driver to return the vehicle to
the center of the traveling lane.
To turn on the LDP system, push the dynamic
driver assistance switch (for vehicles without
ProPILOT Assist) or the ProPILOT Assist
switch (for vehicles with ProPILOT Assist) on
the steering wheel after starting the engine.
The LDP indicator (green) on the instrument
panel will illuminate. Push the dynamic driver
assistance switch (for vehicles without Pro-
PILOT Assist) or the ProPILOT Assist switch
(for vehicles with ProPILOT Assist) on the
steering wheel again to turn off the LDP
system. The LDP indicator will turn off.
LSD3140
Starting and driving5-39

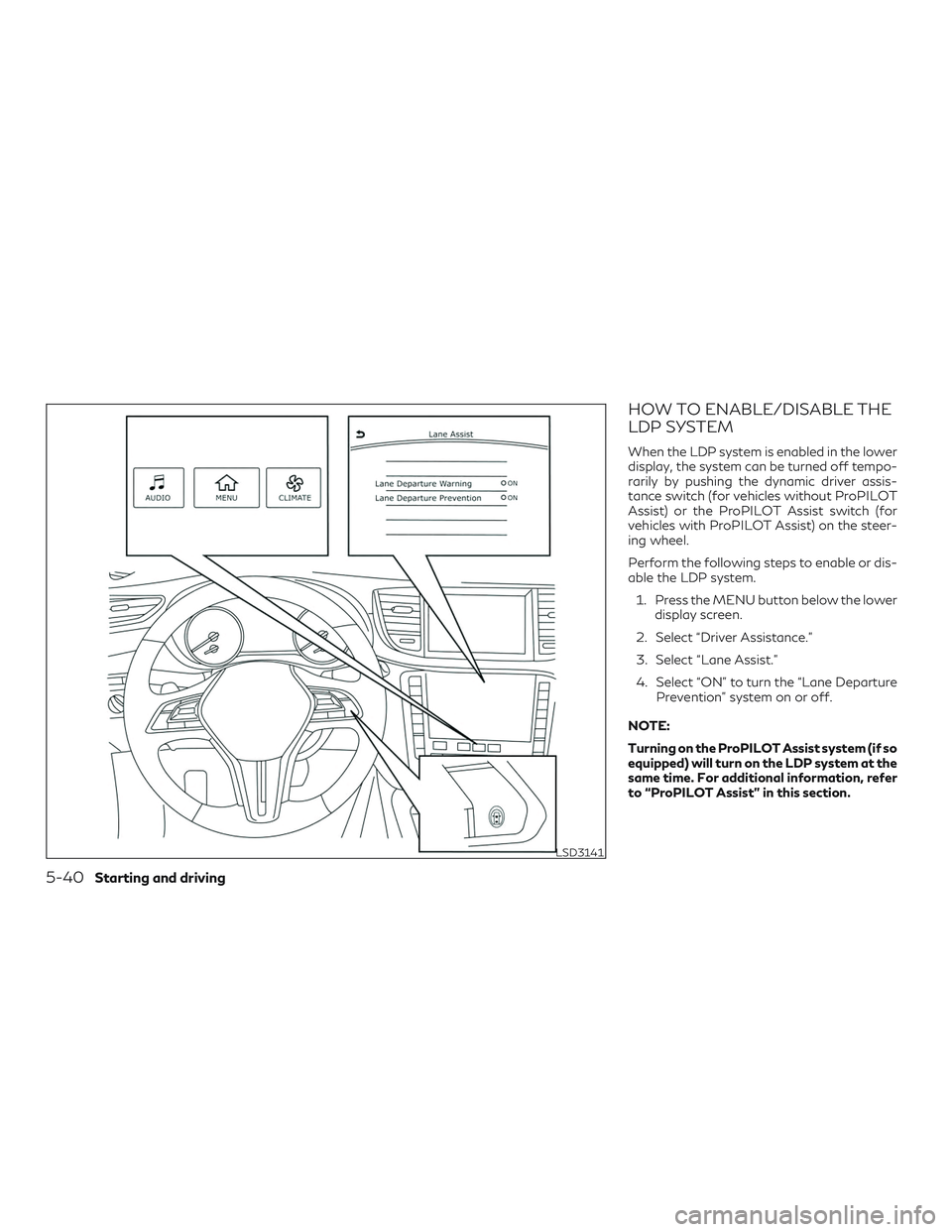

HOW TO ENABLE/DISABLE THE
LDP SYSTEM
When the LDP system is enabled in the lower
display, the system can be turned off tempo-
rarily by pushing the dynamic driver assis-
tance switch (for vehicles without ProPILOT
Assist) or the ProPILOT Assist switch (for
vehicles with ProPILOT Assist) on the steer-
ing wheel.
Perform the following steps to enable or dis-
able the LDP system.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Lane Assist.”
4. Select “ON” to turn the “Lane Departure Prevention” system on or off.
NOTE:
Turning on the ProPILOT Assist system (if so
equipped) will turn on the LDP system at the
same time. For additional information, refer
to “ProPILOT Assist” in this section.
LSD3141
5-40Starting and driving
