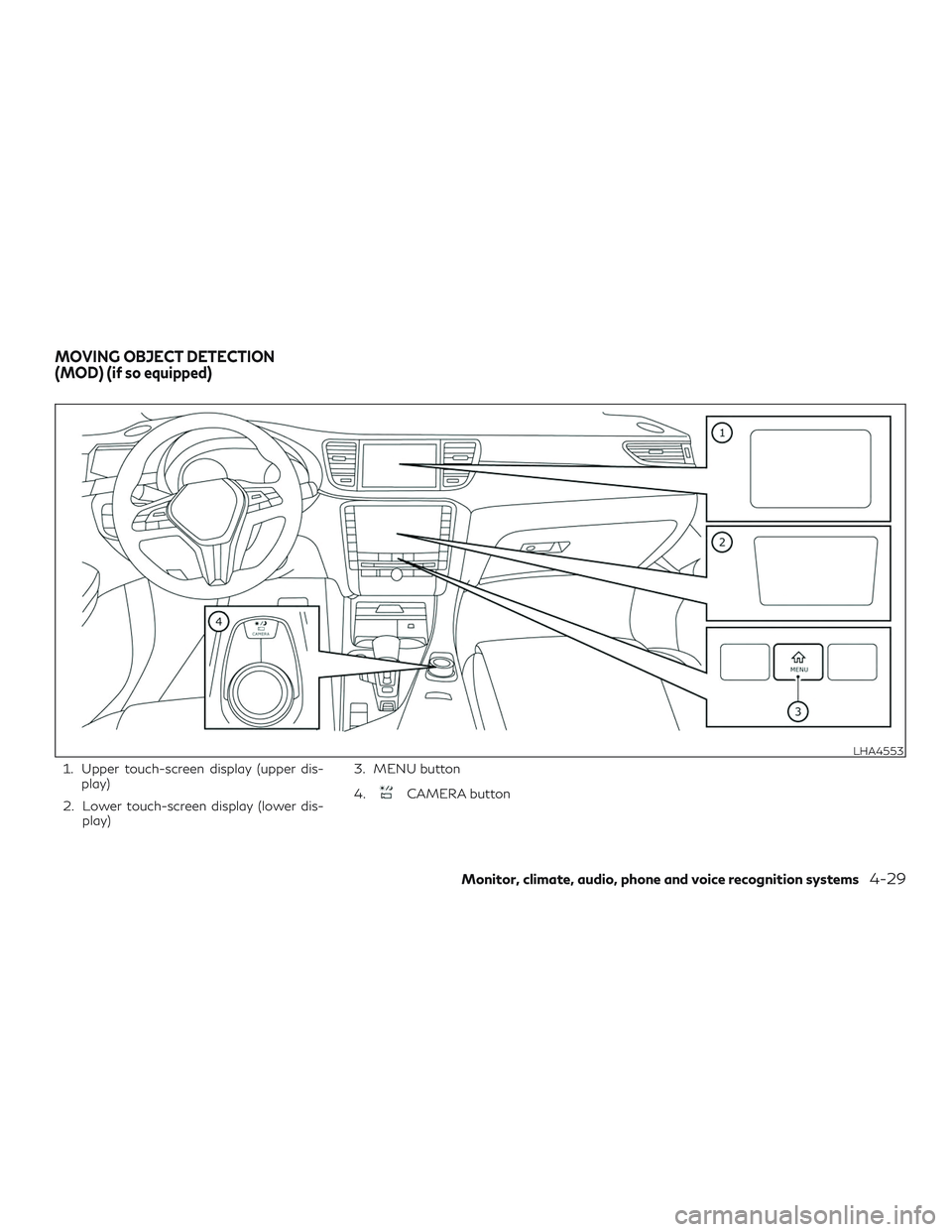

1. Upper touch-screen display (upper dis-play)
2. Lower touch-screen display (lower dis- play) 3. MENU button
4.
CAMERA button
LHA4553
MOVING OBJECT DETECTION
(MOD) (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-29

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Moving
Object Detection system could result in
serious injury or death.
∙ The MOD system is not a substitute for proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
∙ The system is deactivated at speeds above 6 mph (10 km/h). It is reactivated
at lower speeds.
∙ The MOD system is not designed to de- tect surrounding stationary objects.
The MOD system can inform the driver of
moving objects near the vehicle when back-
ing out of garages, maneuvering in parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.
MOD SYSTEM OPERATION
The MOD system will turn on automatically
under the following conditions:
∙ When the shift lever is in the R (Reverse) position. When activating the Around
View® Monitor, the guide lines, the icons
and the messages may not be displayed
immediately.
∙ When the
CAMERA button is
pressed to activate the camera view on
the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h) and the
camera screen is shown in the upper dis-
play. The MOD system operates in the following
conditions when the camera view is dis-
played:
∙ When the shift lever is in the P (Park) or N (Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the out-
side mirrors are moving in or out, in the
stowed position, or if either front door is
opened.
Front and bird’s-eye views
LHA4572
4-30Monitor, climate, audio, phone and voice recognition systems

∙ When the shift lever is in the D (Drive)position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the front view or front-wide view. ∙ When the shift lever is in the R (Reverse)
position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the rear view or rear-wide view. When
activating the Around View® Monitor,
the guide lines, the icons and the mes-
sages may not be displayed immediately.
The MOD system will not operate if the
liftgate is open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this
view. NOTE:
If the vehicle is equipped with Backup Colli-
sion Intervention (BCI) system, a “
” key
5may be displayed on the Around View®
Monitor screen when the shift lever is in the
R (Reverse) position. When activating the
Around View® Monitor, the guide lines, the
icons and the messages may not be displayed
immediately. For additional information, re-
fer to “Backup Collision Intervention (BCI)”
in the “Starting and driving” section of this
manual.

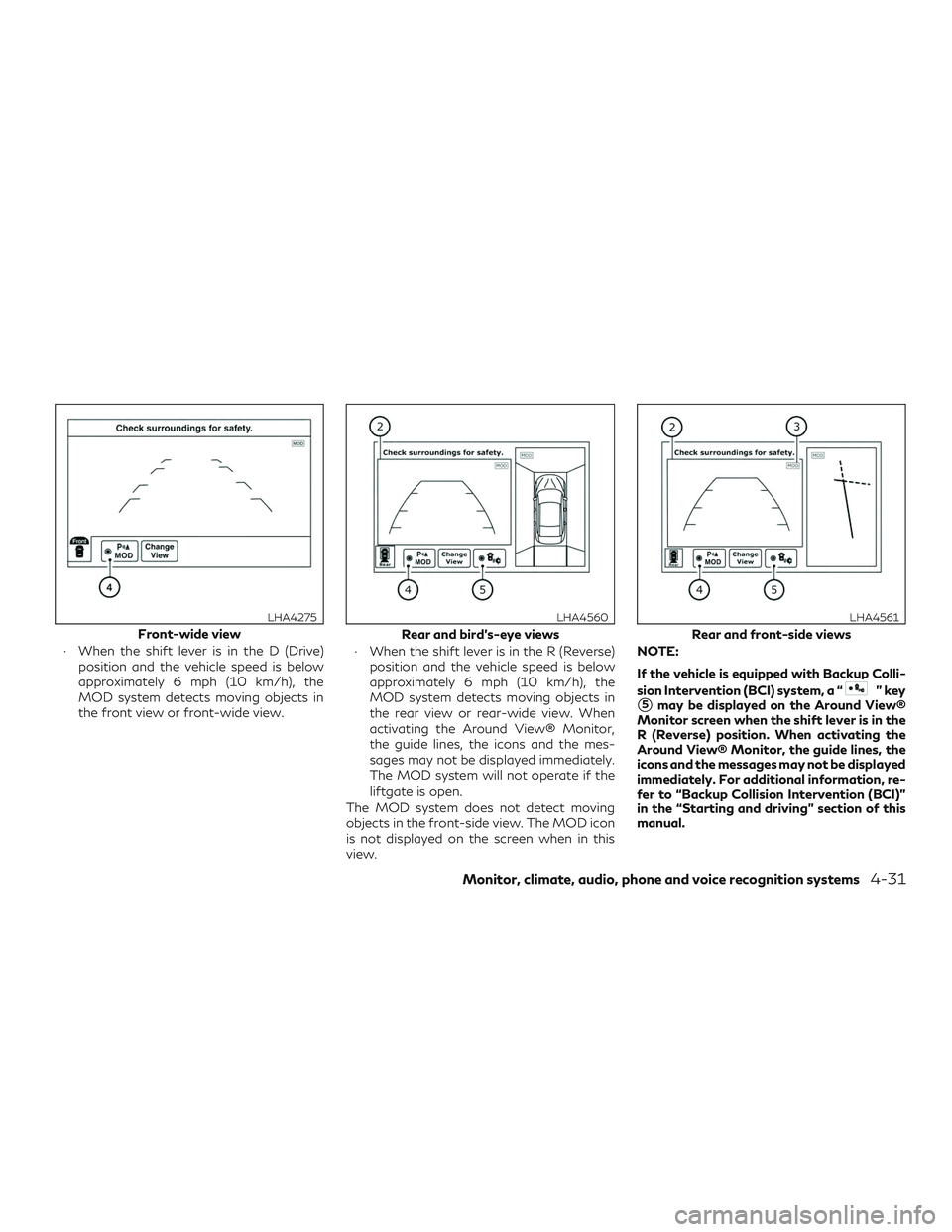

Front-wide view
LHA4275
Rear and bird’s-eye views
LHA4560
Rear and front-side views
LHA4561
Monitor, climate, audio, phone and voice recognition systems4-31

When the MOD system detects moving ob-
jects near the vehicle, a yellow frame will be
displayed on the view where the objects are
detected. While the MOD system continues
to detect moving objects, the yellow frame
continues to be displayed.
NOTE:
While the sonar/BCI chime (if so equipped) is
beeping, the MOD system does not chime.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving ob-
jects are detected. The yellow frame
2is displayed on each
view in the front view and rear view modes.
A blue MOD icon
3is displayed in the view
where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.

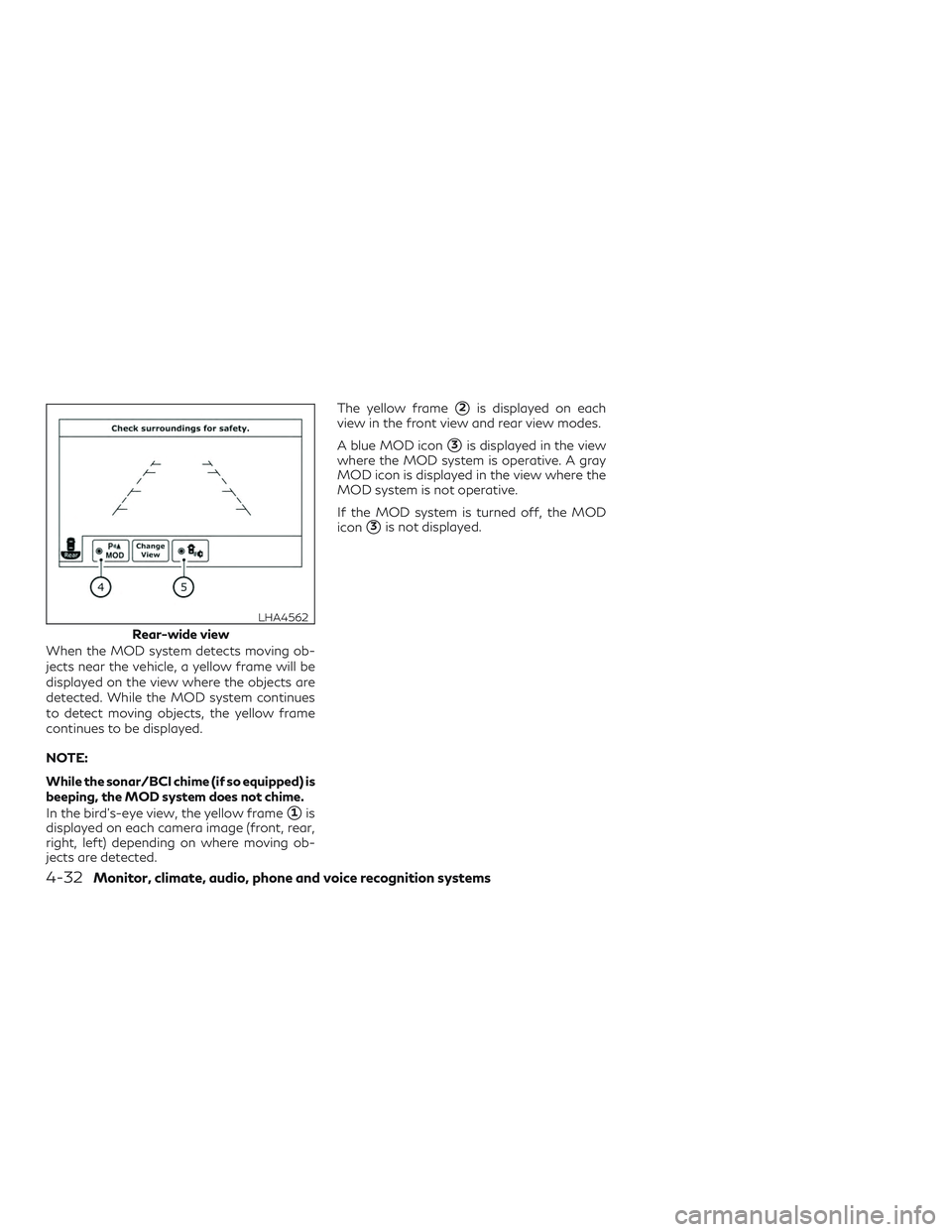

Rear-wide view
LHA4562
4-32Monitor, climate, audio, phone and voice recognition systems

TURNING MOD ON AND OFF
1. Press the Menu button beneath thelower display.
2. Select the “Settings” key
3. Select the “Camera/Sonar’ key
4. Select the “Camera” key
5. Select “Moving Object Detection” on the menu screen to switch between ON and
OFF.
You can also turn MOD on and off by touch-
ing the “
” key4on the upper display.
When the sonar or MOD system is com-
pletely turned off from the setting menu, the
“
” or “MOD” will disappear from the
“
” key. The “” key will disappear
from the screen when both of the systems
are completely turned off from the setting
menu.
MOD Volume:
Select either the “+” or “-” key on the menu
screen to adjust the volume level of the MOD
warning sound.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
∙ Do not use the MOD system when tow- ing a trailer. The system may not function
properly.
∙ Excessive noise (for example, audio sys- tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
∙ The MOD system performance will be limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light.
– When strong light such as another ve- hicle’s headlight or sunlight is present.
– When camera orientation is not in its usual position, such as when a mirror is
folded. – When there is dirt, water drops or
snow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
∙ The MOD system might detect flowing water droplets on the camera lens, white
smoke from the muffler, moving shad-
ows, etc.
∙ The MOD system may not function prop- erly depending on the speed, direction,
distance or shape of the moving objects.
∙ If your vehicle sustains damage to the parts where the camera is installed, leav-
ing it misaligned or bent, the sensing zone
may be altered and the MOD system may
not detect objects properly.
∙ When the temperature is extremely high or low, the screen may not display objects
clearly. This is not a malfunction.
NOTE:
The blue MOD icon will change to orange if
one of the following has occurred: ∙ When the system is malfunctioning.
∙ When the component temperature reaches a high level (icon will blink).
Monitor, climate, audio, phone and voice recognition systems4-33

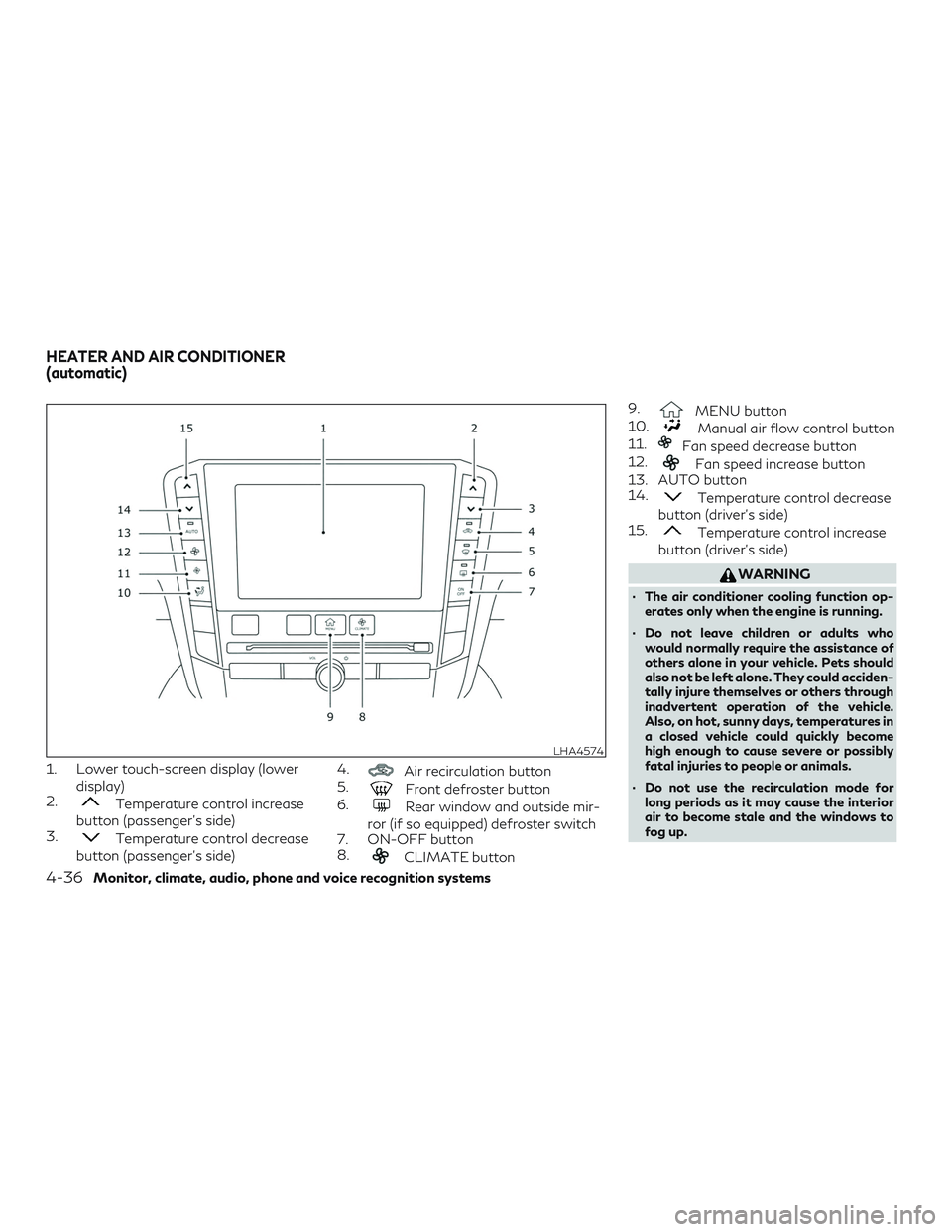

1. Lower touch-screen display (lowerdisplay)
2.
Temperature control increase
button (passenger’s side)
3.
Temperature control decrease
button (passenger’s side) 4.
Air recirculation button
5.
Front defroster button
6.
Rear window and outside mir-
ror (if so equipped) defroster switch
7. ON-OFF button
8.
CLIMATE button 9.
MENU button
10.
Manual air flow control button
11.
Fan speed decrease button
12.
Fan speed increase button
13. AUTO button
14.
Temperature control decrease
button (driver’s side)
15.
Temperature control increase
button (driver’s side)
WARNING
∙ The air conditioner cooling function op- erates only when the engine is running.
∙ Do not leave children or adults who would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acciden-
tally injure themselves or others through
inadvertent operation of the vehicle.
Also, on hot, sunny days, temperatures in
a closed vehicle could quickly become
high enough to cause severe or possibly
fatal injuries to people or animals.
∙ Do not use the recirculation mode for long periods as it may cause the interior
air to become stale and the windows to
fog up.
LHA4574
HEATER AND AIR CONDITIONER
(automatic)
4-36Monitor, climate, audio, phone and voice recognition systems

Start the engine and operate the controls to
activate the air conditioner.
NOTE:∙ Odors from inside and outside the vehicle can build up in the air conditioner unit.
Odor can enter the passenger compart-
ment through the vents.
∙ When parking, set the heater and air con- ditioner controls to turn off air recircula-
tion to allow fresh air into the passenger
compartment. This should help reduce
odors inside the vehicle.
AUTOMATIC OPERATION
Press the AUTO button to set the automatic
control mode that keeps the air distribution,
temperature and the fan speed automati-
cally.
Cooling and/or dehumidified
heating (AUTO)
This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution, air
intake control, and fan speed are also con-
trolled automatically. 1. Press the
CLIMATE button on the
lower display menu. The CLIMATE
screen will display on the lower display.
2. Press the AUTO button on. (The indica- tor on the button will illuminate and
AUTO will be displayed on the CLIMATE
screen.)
3. Press the
temperature con-
trol buttons on the driver’s side to set the
desired temperature.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution, air intake con-
trol and fan speed are also controlled
automatically.
∙ A visible mist may be seen coming from the vents in hot, humid conditions as the
air is cooled rapidly. This does not indi-
cate a malfunction.
Dehumidified defrosting or
defogging
1. Press thefront defroster button
on. (The indicator light on the button will
come on.) 2. Operate the
temperature
control buttons to set the desired tem-
perature.
∙ To quickly remove ice from the outside of the windows, use the
fan speed
control button or the
key to set the
fan speed to maximum.
∙ As soon as possible after the windshield is clean, press the AUTO button to return
to the automatic mode.
∙ When the
front defroster button is
pressed, the air conditioner will auto-
matically be turned on at outside tem-
peratures approximately 32°F (0°C) to
defog the windshield. The air recirculate
mode automatically turns off, allowing
outside air to be drawn into the passen-
ger compartment to further improve the
defogging performance.
Remote Engine Start with
Intelligent Climate Control (if so
equipped)
Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is activated
depending on outside and cabin tempera-
Monitor, climate, audio, phone and voice recognition systems4-37

tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is turned on. In Remote
Engine Start defrosting mode, the rear win-
dow defroster, heated seat (if so equipped)
and heated steering wheel (if so equipped)
may be activated automatically. In Remote
Engine Start cooling mode, the climate con-
trolled seat (if so equipped) may be activated
automatically.
Voice Recognition logic (if so
equipped)
When the climate control system is on, the
fan speed may be automatically lowered so
that commands are more easily recognized.
Fan speed can be adjusted using the
fan
speed decrease and
increase buttons, if
desired.
MANUAL OPERATION
Fan speed control
Press thefan speed increase andfan speed decrease buttons to manually con-
trol the fan speed. Fan speed can also be
controlled by touching the
orkeys
on the lower display.
Press the AUTO button to return to auto-
matic control of the fan speed.
Temperature control
Press thetemperature control
buttons up or down to set the desired tem-
perature.
The temperature can be set within the fol-
lowing range:
∙ For U.S.: 60 to 90ºF (16 to 32ºC)
∙ For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to re-
circulate interior air inside the vehicle.
The
indicator light on the button will
come on.
The air recirculation cannot be activated
when the air conditioner is in the
front
defrosting mode.
When the outside temperature exceeds 70°F
(21°C), the air conditioning system may de-
fault to air recirculation mode automatically
to reduce overall power consumption. To exit
air recirculation mode, deselect the
air
recirculation button (indicator will turn off) to
enter fresh air mode.
Automatic intake air control
In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, press the
air recirculation
button. To return to the automatic control
mode, press and hold the
air recircula-
tion button for about 2 seconds. The indica-
tor light will flash twice, and then the intake
air will be controlled automatically.
Air flow control
Press thebutton to manually control
air flow. Pressing the button repeatedly will
cycle through the available modes and dis-
play the corresponding icon on the lower dis-
play. Air flow can also be controlled by touch-
ing the
key on the lower display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from footoutlets.
— Air flows from defroster andfoot outlets.
To turn system off
Press the ON-OFF button.
4-38Monitor, climate, audio, phone and voice recognition systems

CLIMATE button
Press theCLIMATE button to show the
CLIMATE screen on the lower display.
Rear window and outside mirror (if
so equipped) defroster switch
For additional information, refer to “Rear
window defroster, outside mirror defroster,
and wiper deicer (if so equipped) switch” in
the “Instruments and controls” section of this
manual.
OPERATING TIPS
The sensors,AandBon the instrument
panel, help the system maintain a constant
temperature. Do not put anything on or
around these sensors. ∙ When the engine coolant temperature
and outside air temperature are low, the
air may flow from defroster or foot out-
lets to initialize automatic heating mode.
This is not a malfunction. After the cool-
ant temperature warms up, air will flow
normally from the foot outlets.
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.
LHA4686
Monitor, climate, audio, phone and voice recognition systems4-39

CLIMATE SETTING SCREEN
Climate control settings can be changed on
the screen.
Available setting items may vary depending
on models and specifications.
Press the
CLIMATE button on the
lower display menu. The CLIMATE screen
will display on the lower display.
Heating (A/C off)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode. 1. Press the
CLIMATE button.
2. If the Climate system is off, press the ON-OFF button to turn the system on.
3. If the
A/C indicator is on, touch
the
A/C key to turn the A/C off.
4. Press the
temperature con-
trol buttons on the driver’s side to set the
desired temperature.
∙ When in AUTO mode, the temperature of the passenger compartment will be
maintained automatically. Air flow distri-
bution and fan speed are also controlled
automatically.
∙ Do not set the temperature lower than the outside air temperature or the system
may not work properly.
∙ This procedure is not recommended if windows fog up.
When the outside temperature decreases to
approximately 32°F (0°C), the A/C function
does not activate even if the
A/C indi-
cator light illuminates.
Air conditioning (A/C)
Touch theA/C key to turn the A/C
mode on or off. Turn on the A/C mode for effective cooling and dehumidifying. When
the A/C indicator light is on, the A/C mode is
on.
Sync mode setting
The driver’s, passenger’s and rear (if so
equipped) temperature setpoints can be syn-
chronized using the
SYNC key on the
lower display. When the key is touched, tem-
perature settings become synchronized and
the SYNC indicator turns on.
∙ If the driver’s side temperature buttons are pressed, the driver’s side, passenger’s
side, and rear (if so equipped) tempera-
ture settings will update simultaneously.
∙ If the passenger’s side or rear (if so equipped) temperature buttons are
pressed, Sync mode will exit, the indicator
light will go off, and the temperature will
update based on the button pressed.
Driver’s side temperature will remain the
same until manually changed.
Steering wheel heater (if so
equipped)
Touch theSteering Heater key on the
CLIMATE screen on the lower display to turn
the steering wheel heater on or off. When the
steering wheel heater is on, the indicator light
is on.
LHA4579
4-40Monitor, climate, audio, phone and voice recognition systems
