sensor INFINITI QX50 2019 Owners Manual

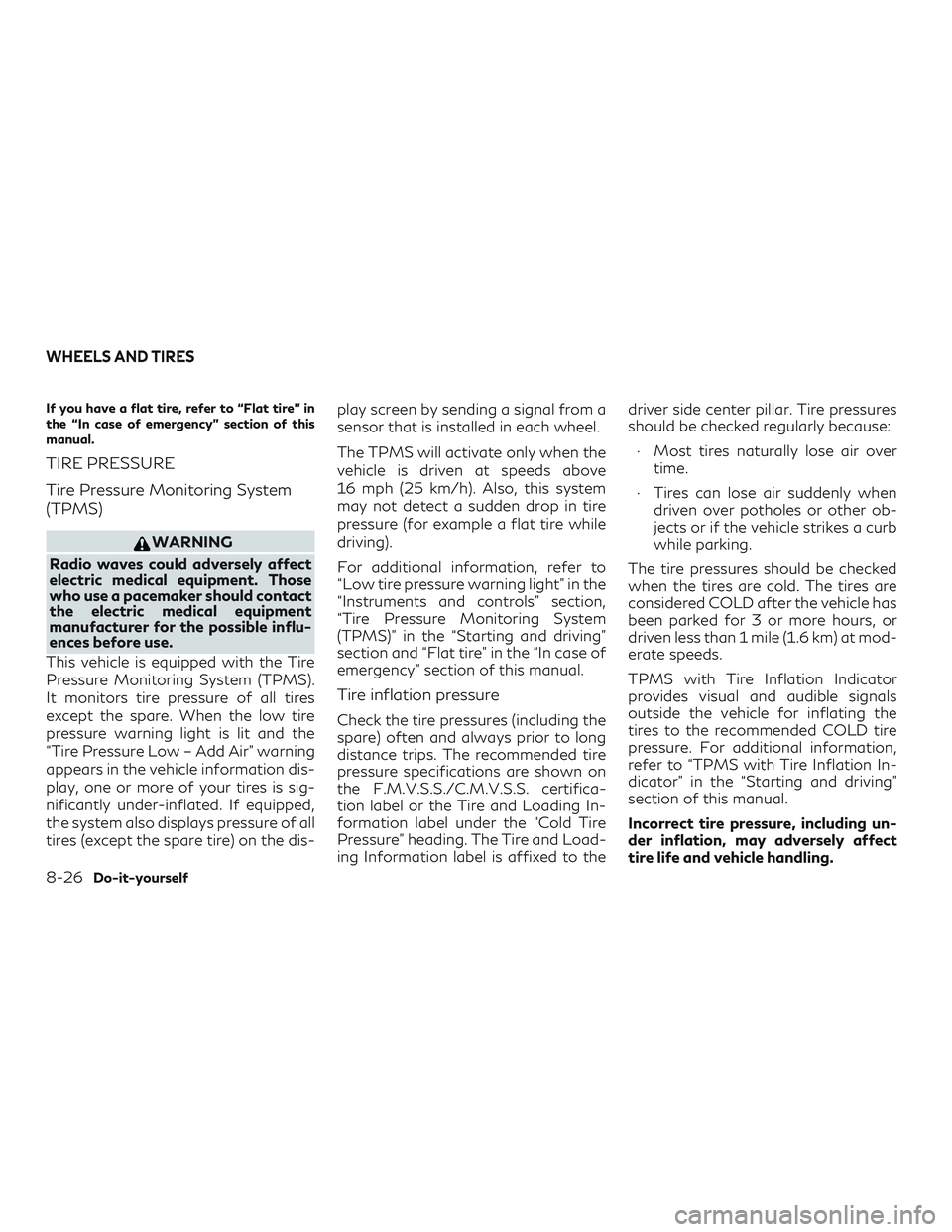

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
WARNING
Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
“Tire Pressure Low – Add Air” warning
appears in the vehicle information dis-
play, one or more of your tires is sig-
nificantly under-inflated. If equipped,
the system also displays pressure of all
tires (except the spare tire) on the dis- play screen by sending a signal from a
sensor that is installed in each wheel.
The TPMS will activate only when the
vehicle is driven at speeds above
16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).
For additional information, refer to
“Low tire pressure warning light” in the
“Instruments and controls” section,
“Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving”
section and “Flat tire” in the “In case of
emergency” section of this manual.
Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on
the F.M.V.S.S./C.M.V.S.S. certifica-
tion label or the Tire and Loading In-
formation label under the “Cold Tire
Pressure” heading. The Tire and Load-
ing Information label is affixed to thedriver side center pillar. Tire pressures
should be checked regularly because:
∙ Most tires naturally lose air over time.
∙ Tires can lose air suddenly when driven over potholes or other ob-
jects or if the vehicle strikes a curb
while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. For additional information,
refer to “TPMS with Tire Inflation In-
dicator” in the “Starting and driving”
section of this manual.
Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WHEELS AND TIRES
8-26Do-it-yourself

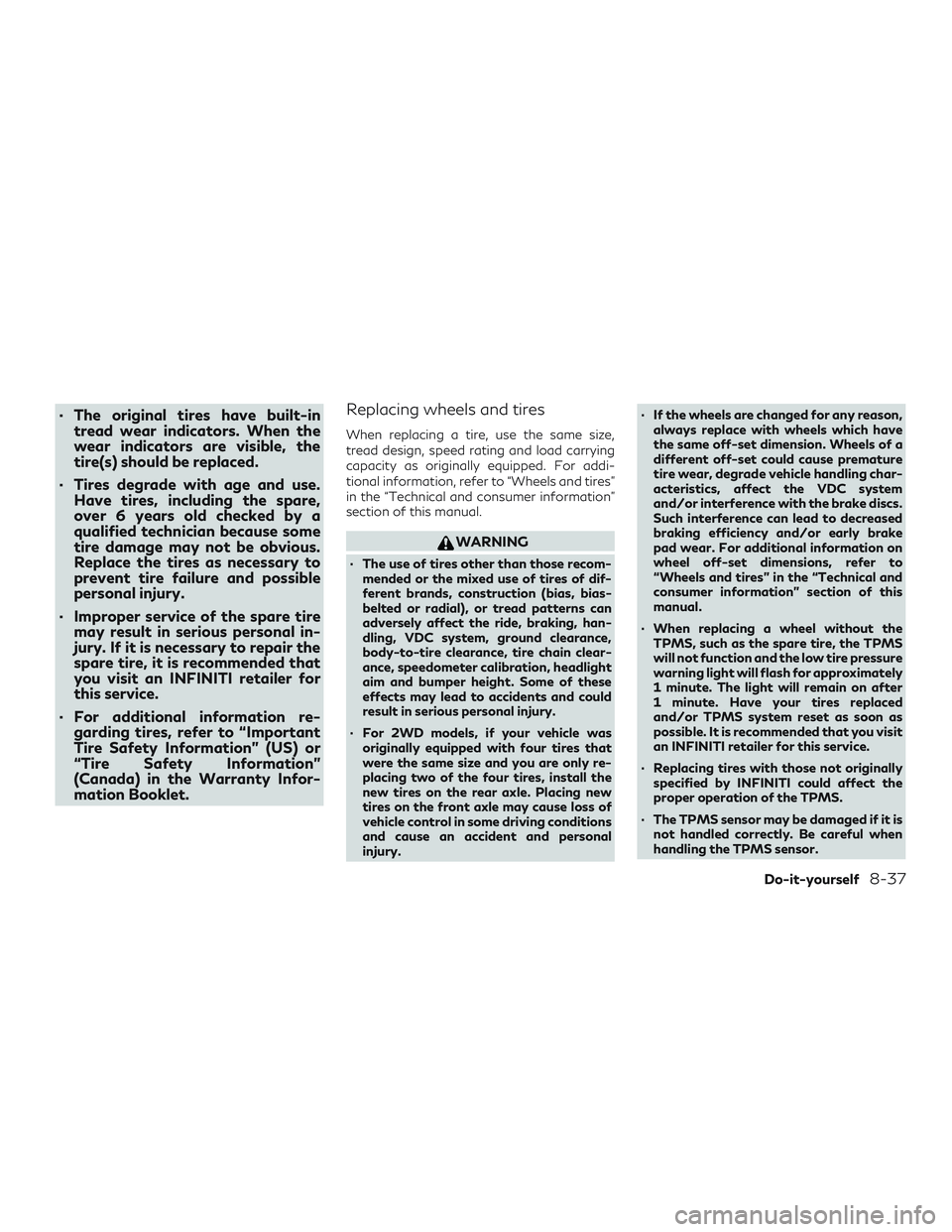

∙ The original tires have built-intread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
∙ Tires degrade with age and use. Have tires, including the spare,
over 6 years old checked by a
qualified technician because some
tire damage may not be obvious.
Replace the tires as necessary to
prevent tire failure and possible
personal injury.
∙ Improper service of the spare tire may result in serious personal in-
jury. If it is necessary to repair the
spare tire, it is recommended that
you visit an INFINITI retailer for
this service.
∙ For additional information re- garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. For addi-
tional information, refer to “Wheels and tires”
in the “Technical and consumer information”
section of this manual.
WARNING
∙ The use of tires other than those recom-
mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can
adversely affect the ride, braking, han-
dling, VDC system, ground clearance,
body-to-tire clearance, tire chain clear-
ance, speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and could
result in serious personal injury.
∙ For 2WD models, if your vehicle was originally equipped with four tires that
were the same size and you are only re-
placing two of the four tires, install the
new tires on the rear axle. Placing new
tires on the front axle may cause loss of
vehicle control in some driving conditions
and cause an accident and personal
injury. ∙ If the wheels are changed for any reason,
always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics, affect the VDC system
and/or interference with the brake discs.
Such interference can lead to decreased
braking efficiency and/or early brake
pad wear. For additional information on
wheel off-set dimensions, refer to
“Wheels and tires” in the “Technical and
consumer information” section of this
manual.
∙ When replacing a wheel without the TPMS, such as the spare tire, the TPMS
will not function and the low tire pressure
warning light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for this service.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ The TPMS sensor may be damaged if it is not handled correctly. Be careful when
handling the TPMS sensor.
Do-it-yourself8-37

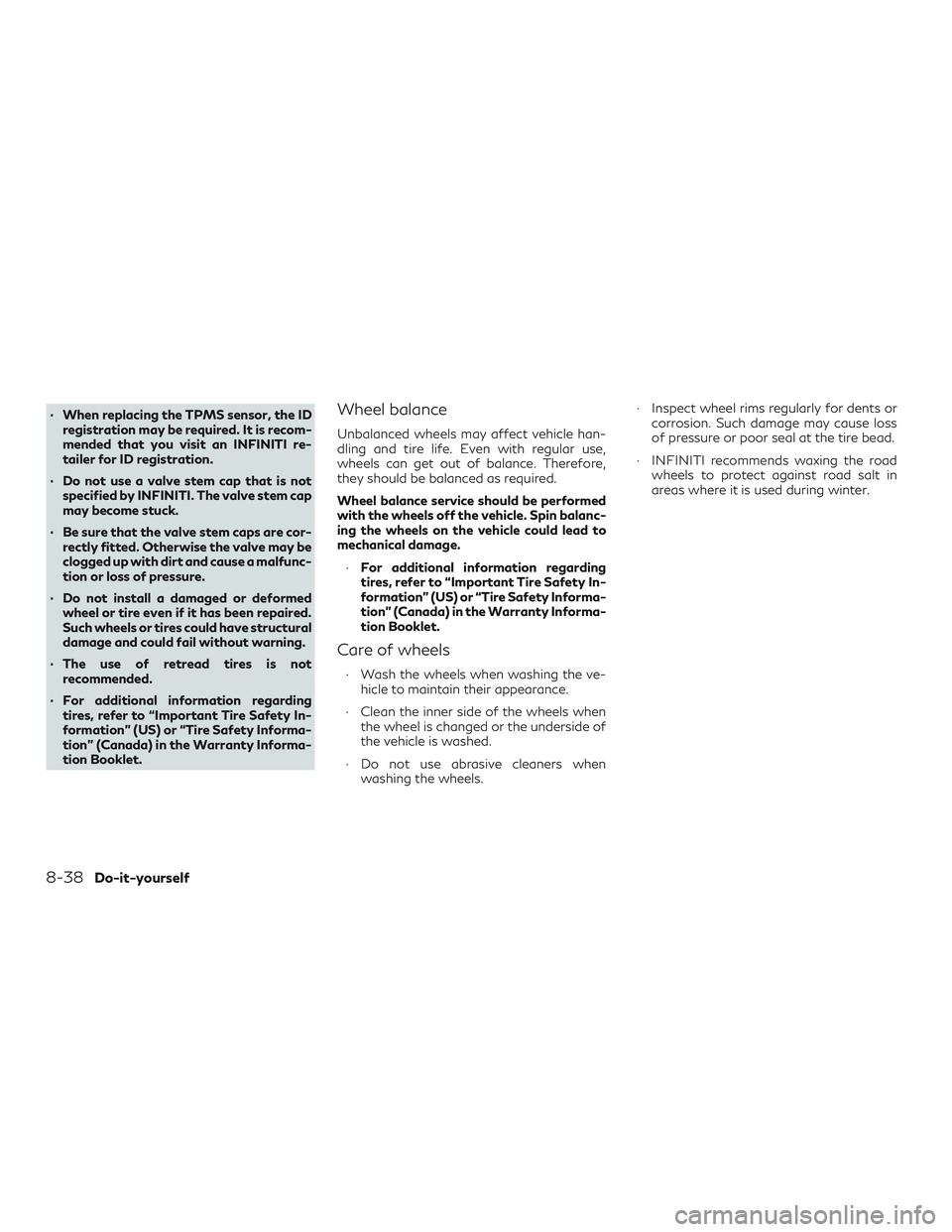

∙ When replacing the TPMS sensor, the IDregistration may be required. It is recom-
mended that you visit an INFINITI re-
tailer for ID registration.
∙ Do not use a valve stem cap that is not specified by INFINITI. The valve stem cap
may become stuck.
∙ Be sure that the valve stem caps are cor- rectly fitted. Otherwise the valve may be
clogged up with dirt and cause a malfunc-
tion or loss of pressure.
∙ Do not install a damaged or deformed wheel or tire even if it has been repaired.
Such wheels or tires could have structural
damage and could fail without warning.
∙ The use of retread tires is not recommended.
∙ For additional information regarding tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.Wheel balance
Unbalanced wheels may affect vehicle han-
dling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balanc-
ing the wheels on the vehicle could lead to
mechanical damage.
∙ For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
Care of wheels
∙ Wash the wheels when washing the ve-
hicle to maintain their appearance.
∙ Clean the inner side of the wheels when the wheel is changed or the underside of
the vehicle is washed.
∙ Do not use abrasive cleaners when washing the wheels. ∙ Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss
of pressure or poor seal at the tire bead.
∙ INFINITI recommends waxing the road wheels to protect against road salt in
areas where it is used during winter.
8-38Do-it-yourself

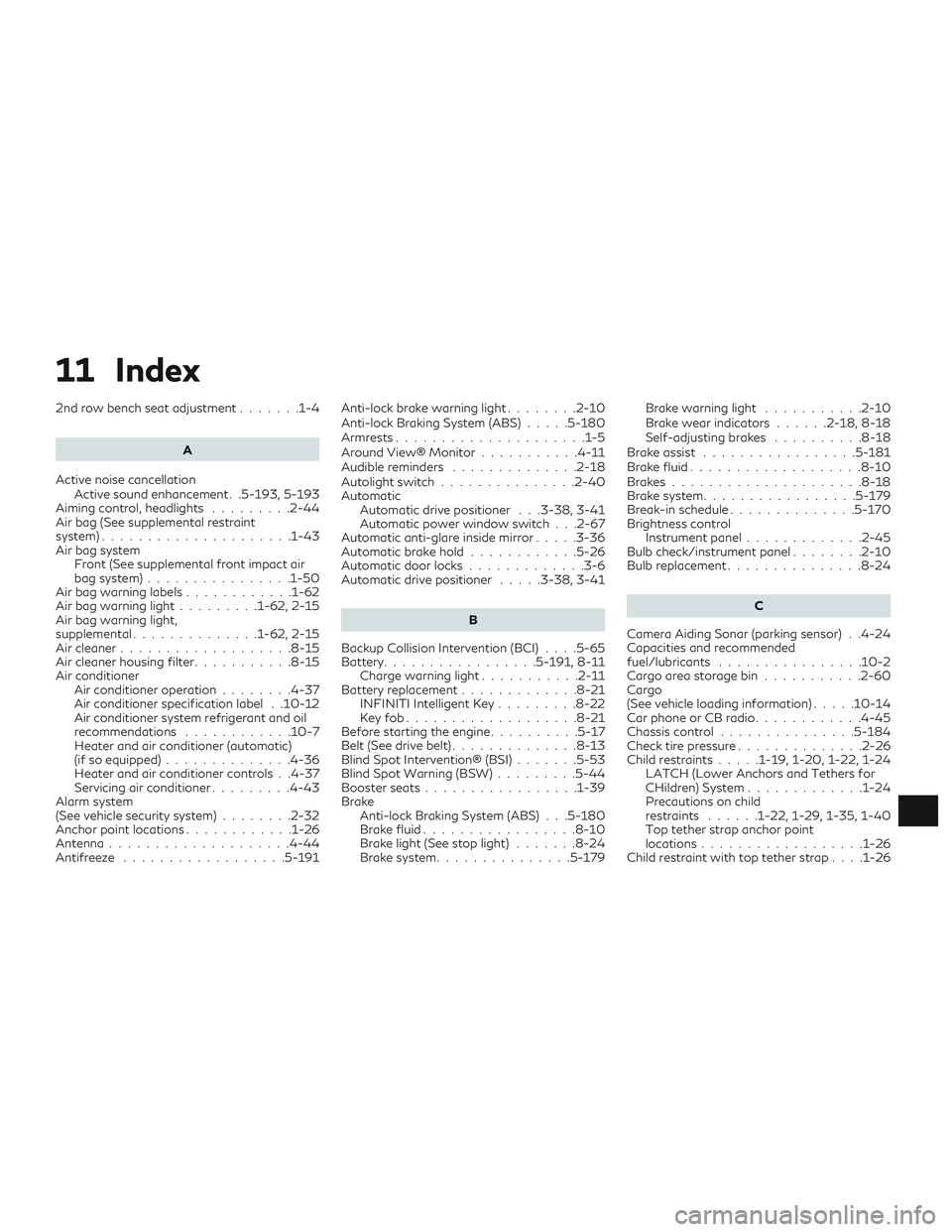

11 Index
2nd row bench seat adjustment.......1-4
A
Active noise cancellation Active sound enhancement . .5-193, 5-193
Aiming control, headlights .........2-44
Air bag (See supplemental restraint
system).....................1-43
Air bag system Front (See supplemental front impact air
bag system) ................1-50
Air bag warning labels ............1-62
Airbagwarninglight.........1-62,2-15
Air bag warning light,
supplemental ..............1-62,2-15
Air cleaner ...................8-15
Air cleaner housing filter ...........8-15
Air conditioner Air conditioner operation ........4-37
Air conditioner specification label . .10-12
Air conditioner system refrigerant and oil
recommendations ............10-7
Heater and air conditioner (automatic)
(if so equipped) ..............4-36
Heater and air conditioner controls . .4-37
Servicing air conditioner .........4-43
Alarm system
(See vehicle security system) ........2-32
Anchor point locations ............1-26
Antenna ....................4-44
Antifreeze ..................5-191 Anti-lock brake warning light
........2-10
Anti-lock Braking System (ABS) .....5-180
Armrests.....................1-5
Around View® Monitor ...........4-11
Audible reminders ..............2-18
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-38, 3-41
Automatic power window switch . . .2-67
Automatic anti-glare inside mirror .....3-36
Automaticbrakehold ............5-26
Automatic door locks .............3-6
Automatic drive positioner .....3-38,3-41
B
Backup Collision Intervention (BCI) ....5-65
Battery.................5- 191, 8-11
Charge warning light ...........2-11
Battery replacement .............8-21
INFINITI Intelligent Key .........8-22
Keyfob...................8-21
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-13
Blind Spot Intervention® (BSI) .......5-53
Blind Spot Warning (BSW) .........5-44
Boosterseats.................1-39
Brake Anti-lock Braking System (ABS) . . .5-180
Brakefluid.................8-10
Brakelight(Seestoplight) .......8-24
Brake system ...............5-179 Brakewarninglight ...........2-10
Brake wear indicators
......2-18,8-18
Self-adjusting brakes ..........8-18
Brakeassist .................5-181
Brakefluid...................8-10
Brakes.....................8-18
Brake system ................. 5-179
Break-in schedule ..............5-170
Brightness control Instrument panel .............2-45
Bulb check/instrument panel ........2-10
Bulb replacement ............... 8-24
C
Camera Aiding Sonar (parking sensor) . .4-24
Capacities and recommended
fuel/lubricants ................10-2
Cargoareastoragebin...........2-60
Cargo
(See vehicle loading information) .....10-14
Car phone or CB radio ............4-45
Chassis

control ...............5-184
Check tire pressure .............. 2-26
Child restraints .....1-19,1-20, 1-22, 1-24
LATCH (Lower Anchors and Tethers for
CHildren) System .............1-24
Precautions on child
restraints ......1-22,1-29,1 -35, 1-40
Top tether strap anchor point
locations..................1-26
Child restraint with top tether strap ....1-26

Changing engine oil.............8-7
Changing engine oil filter .........8-8
Checking engine oil level ..........8-6
Engine oil ...................8-6
Engine oil and oil filter
recommendation ..............10-6
Engine oil viscosity ............10-6
Outside mirrors .................3-37
Overhead sunglasses holder .........2-57
Overheat If your vehicle overheats ..........6-7
Owner's manual order form ........10-33
Owner's manual/service manual order
information..................10-33
P
Parking Parking/parking on hills .........5-176
Parkingbrake ..........2-11,2-15,2-16
Personal lights .................2-72
Power Power door locks ..............3-6
Power outlet ................2-53
Power rear windows ...........2-67
Power steering system .....5-176, 5-176
Power windows ..............2-66
Rear power windows ...........2-67
Power outlet ..................2-53
Power steering ...........5- 176, 5-176
Precautions Maintenance precautions .........8-2
On-pavement and off-road driving
precautions..................5-9 Precautions on booster
seats..........1-22,1-29,1-35,1-40
Precautions on child
restraints
.......1-22,1-29,1-35,1-40
Precautionsonseatbeltusage .....1-11
Precautions on supplemental restraint
system ....................1-43
Precautions when starting and
driving .................5-4,5-11
Predictive Forward Collision Warning
(PFCW) ....................5-159
ProPILOT Assist ...............5-108
Push starting ...................6-7
R
Radio Car phone or CB radio ..........4-45
Rainsensor...................2-36
Readiness for inspection maintenance (I/M)
test.......................10-31
Rear Cross Traffic Alert (RCTA) .......5-74
Rear power windows .............2-67
Rearview mirror ................3-36
RearView Monitor ...............4-3
Rear window and outside mirror defroster
switch......................2-39
Rear window wiper and washer
switches .....................2-37
Recommended Fluids .............10-2
Recorders Event Data ................10-32
Refrigerant recommendation ........10-7
Registering a vehicle in another
country ....................10-10 Remote Engine Start
.........3-21, 5-18
Reporting safety defects (US only) . . . .10-30
Roadside assistance program .........6-2
Roof rack ................2-61, 2-62
S
Safety Child safety rear door lock .........3-7
Child seat belts . . .1-22, 1-29, 1-35, 1-40
Reporting safety defects (US only) . .10-30
Seat adjustment F
ront power seat adjustment .......1-3
Second row bench seats ..........1-4
Seatback pockets ...............2-55
Seat belt Childsafety.................1-19
Infantsandsmallchildren ........1-20
Injured Person ...............1-14
Largerchildren...............1-20
Precautionsonseatbeltusage .....1-11
Pregnant women .............1-14
Seat belt extenders ............1-18
Seat belt maintenance ..........1-19
Seat belts ...............1-11,7-6
Three-point type with retractor .....1-14
Seat belt extenders ..............1-18
Seat belt warning light .........1-14,2-15
Seats 2nd row bench seat adjustment .....1-4
Adjustment ..................1-2
Armrests ...................1-5
Automatic drive positioner ....3-38, 3-41
Front seats ..................1-2
Heatedseats................ 2-48
11-5
