When the lower display is used to turn off the
system, the VDC system still operates to pre-
vent one drive wheel from slipping by trans-
ferring power to a non-slipping drive wheel.
The
indicator flashes if this occurs. All
other VDC functions are off and the
indicator will not flash.
The VDC system is automatically reset to on
when the ignition switch is placed in the OFF
position then back to the ON position.
The computer has a built-in diagnostic fea-
ture that tests the system each time you start
the engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a clunk noise and/or
feel a pulsation in the brake pedal. This is
normal and is not an indication of a malfunc-
tion.
WARNING
∙ The VDC system is designed to help the driver maintain controllability but does
not prevent accidents due to abrupt
steering operation at high speeds or by
careless or dangerous driving techniques.
Reduce vehicle speed and be especially
careful when driving and cornering on
slippery surfaces and always drive
carefully. ∙ Do not modify the vehicle’s suspension. If
suspension parts such as shock absorb-
ers, struts, springs, stabilizer bars, bush-
ings and wheels are not INFINITI recom-
mended for your vehicle or are extremely
deteriorated, the VDC system may not
operate properly. This could adversely
affect vehicle handling performance, and
the
indicator may flash or both
the
andindicator lights may
illuminate.
∙ If brake related parts such as brake pads, rotors and calipers are not INFINITI rec-
ommended or are extremely deterio-
rated, the VDC system may not operate
properly and both the
and
the
indicator lights may illuminate.
∙ If engine control related parts are not INFINITI recommended or are extremely
deteriorated, both the
andindicator lights may illuminate. ∙ When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly
and the
indicator may flash or both
the
andindicator lights may
illuminate. Do not drive on these types of
roads.
∙ When driving on an unstable surface such as a turntable, ferry, elevator or ramp,
the
indicator may flash or both
the
andindicator lights may
illuminate. This is not a malfunction. Re-
start the engine after driving onto a
stable surface.
∙ If wheels or tires other than the INFINITI recommended ones are used, the VDC
system may not operate properly and
the
indicator may flash or both
the
andindicator lights may
illuminate.
∙ The VDC system is not a substitute for winter tires or tire chains on a snow cov-
ered road.
5-182Starting and driving

BRAKE FORCE DISTRIBUTION
During braking while driving through turns,
the system optimizes the distribution of force
to each of the four wheels depending on the
radius of the turn.
WARNING
∙ The VDC system is designed to help thedriver maintain controllability but does
not prevent accidents due to abrupt
steering operation at high speeds or by
careless or dangerous driving techniques.
Reduce vehicle speed and be especially
careful when driving and cornering on
slippery surfaces and always drive
carefully.
∙ Do not modify the vehicle’s suspension. If suspension parts such as shock absorb-
ers, struts, springs, stabilizer bars, bush-
ings and wheels are not INFINITI recom-
mended for your vehicle or are extremely
deteriorated, the VDC system may not
operate properly. This could adversely
affect vehicle handling performance, and
the
indicator may flash or both
the
andindicator lights may
illuminate. ∙ If brake related parts such as brake pads,
rotors and calipers are not INFINITI rec-
ommended or are extremely deterio-
rated, the VDC system may not operate
properly and both the
and
the
indicator lights may illuminate.
∙ If engine control related parts are not INFINITI recommended or are extremely
deteriorated, both the
andindicator lights may illuminate.
∙ When driving on extremely inclined sur- faces such as higher banked corners, the
VDC system may not operate properly
and the
indicator may flash or both
the
andindicator lights may
illuminate. Do not drive on these types of
roads.
∙ When driving on an unstable surface such as a turntable, ferry, elevator or ramp,
the
indicator may flash or both
the
andindicator lights may
illuminate. This is not a malfunction. Re-
start the engine after driving onto a
stable surface. ∙ If wheels or tires other than the INFINITI
recommended ones are used, the VDC
system may not operate properly and
the
indicator may flash or both
the
andindicator lights may
illuminate.
∙ The VDC system is not a substitute for winter tires or tire chains on a snow cov-
ered road.
Starting and driving5-183

The chassis control is an electric control mod-
ule that includes the following functions:∙ Active Trace Control
∙ Active Engine Brake
∙ Active Ride Control
ACTIVE TRACE CONTROL
This system senses driving based on the driv-
er’s steering and acceleration/braking pat-
terns, and controls brake pressure at indi-
vidual wheels to help smooth vehicle
response.
When the lower display is used to turn off the
VDC system, the Active Trace Control sys-
tem is also turned off.
If the Active Trace Control is not functioning
properly, the FEB with Pedestrian Detection
system warning indicator light illuminates in
the instrument panel.
The Active Trace Control can be set to on
(enabled) or off (disabled) through the lower
display “Infiniti Drive Mode Selector” menu
option.
ACTIVE ENGINE BRAKE
The Active Engine Brake function adds subtle
deceleration by controlling Continuously
Variable Transmission (CVT) gear ratio, de-
pending on the cornering condition calcu-
lated from the driver’s steering input and plu-
ral sensors. This benefit is for easier
traceability and less workload of adjusting
speed with braking at corners.
The Active Engine Brake also enhances brak-
ing feel by adding subtle deceleration with
CVT gear ratio control according to the driv-
er’s brake pedal operation
The Active Engine Brake can be set to on
(enabled) or off (disabled) through the lower
display “Infiniti Drive Mode Selector” menu
option.
CHASSIS CONTROL
5-184Starting and driving

When the Active Engine Brake is operated at
corners and the “Chassis Control” mode is
selected in the lower display, the Active En-
gine Brake graphics are shown in the vehicle
information display.
If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Engine Brake is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.WARNING
The Active Engine Brake may not be effec-
tive depending on the driving condition. Al-
ways drive carefully and attentively.
When the Active Engine Brake is operating,
the needle of the tachometer will rise up and
you may hear an engine noise. This is normal
and indicates that the Active Engine Brake is
operating properly.
ACTIVE RIDE CONTROL
This system senses upper body motion
(based on wheel speed information) and con-
trols engine torque and four wheel brake
pressure. This will enhance ride comfort in an
effort to restrain uncomfortable upper body
movement when passing over undulated
road surfaces. This system comes into effect
above 25 mph (40 km/h).
When the lower display is used to turn off the
VDC system, the Active Ride Control is also
turned off.
If the Integrated Dynamics-control Module
warning message appears in the vehicle in-
formation display, it may indicate that the
Active Ride Control is not functioning prop-
erly. Have the system checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
When the Active Ride Control is operating,
you may hear noise and sense slight decel-
eration. This is normal and indicates that the
Active Ride Control is operating properly.
LSD2185
Starting and driving5-185

Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the sonar sensors.
Do not strike or damage the area around the
sonar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the sonar sensors is damaged due to a colli-
sion.FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock be-
comes frozen, heat the key before inserting it
into the key hole, or use the INFINITI Intelli-
gent Key.
ANTIFREEZE
In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper winter
protection. For additional information, refer
to “Engine cooling system” in the “Do-it-
yourself” section of this manual.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, refer to “Battery” in the “Do-it-
yourself” section of this manual.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
anti-freeze, drain the cooling system, includ-
ing the engine block. Refill before operating
the vehicle. For additional information, refer
to “Changing engine coolant” in the “Do-it-
yourself” section of this manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry
pavement. However, the performance of
these tires will be substantially reduced
in snowy and icy conditions. If you oper-
ate your vehicle on snowy or icy roads,
INFINITI recommends the use of MUD &
SNOW or ALL SEASON TIRES on all
four wheels. It is recommended that you
visit an INFINITI retailer for the tire type,
size, speed rating and availability infor-
mation.
2. For additional traction on icy roads, studded tires may be used. However,
some U.S. states and Canadian prov-
inces prohibit their use. Check local,
state and provincial laws before install-
ing studded tires.
COLD WEATHER DRIVING
Starting and driving5-191

Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires.3. Tire chains may be used. For additional information, refer to “Tire chains” in the
“Do-it-yourself” section of this manual.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during winter:
∙ A scraper and stiff-bristled brush to re- move ice and snow from the windows
and wiper blades.
∙ A sturdy, flat board to be placed under the jack to give it firm support.
∙ A shovel to dig the vehicle out of snow- drifts.
∙ Extra washer fluid to refill the windshield-washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
∙ Wet ice (32°F, 0°C and freezing rain),very cold snow or ice can be slick and very
hard to drive on. The vehicle will have
much less traction or “grip” under these
conditions. Try to avoid driving on wet
ice until the road is salted or sanded.
∙ Whatever the condition, drive with cau- tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction.
∙ Allow more stopping distance under these conditions. Braking should be
started sooner than on dry pavement.
∙ Allow greater following distances on slippery roads.
∙ Watch for slippery spots (glare ice). These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.
∙ Do not use the cruise control on slippery roads. ∙ Snow can trap dangerous exhaust gases
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.
ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist with
cold temperature starting.
The engine block heater should be used when
the outside temperature is 20°F (-7°C) or
lower.
WARNING
∙ Do not use your engine block heater withan ungrounded electrical system or a
2-pronged adapter. You can be seriously
injured by an electrical shock if you use an
ungrounded connection.
∙ Disconnect and properly store the engine block heater cord before starting the en-
gine. Damage to the cord could result in
an electrical shock and can cause serious
injury.
5-192Starting and driving

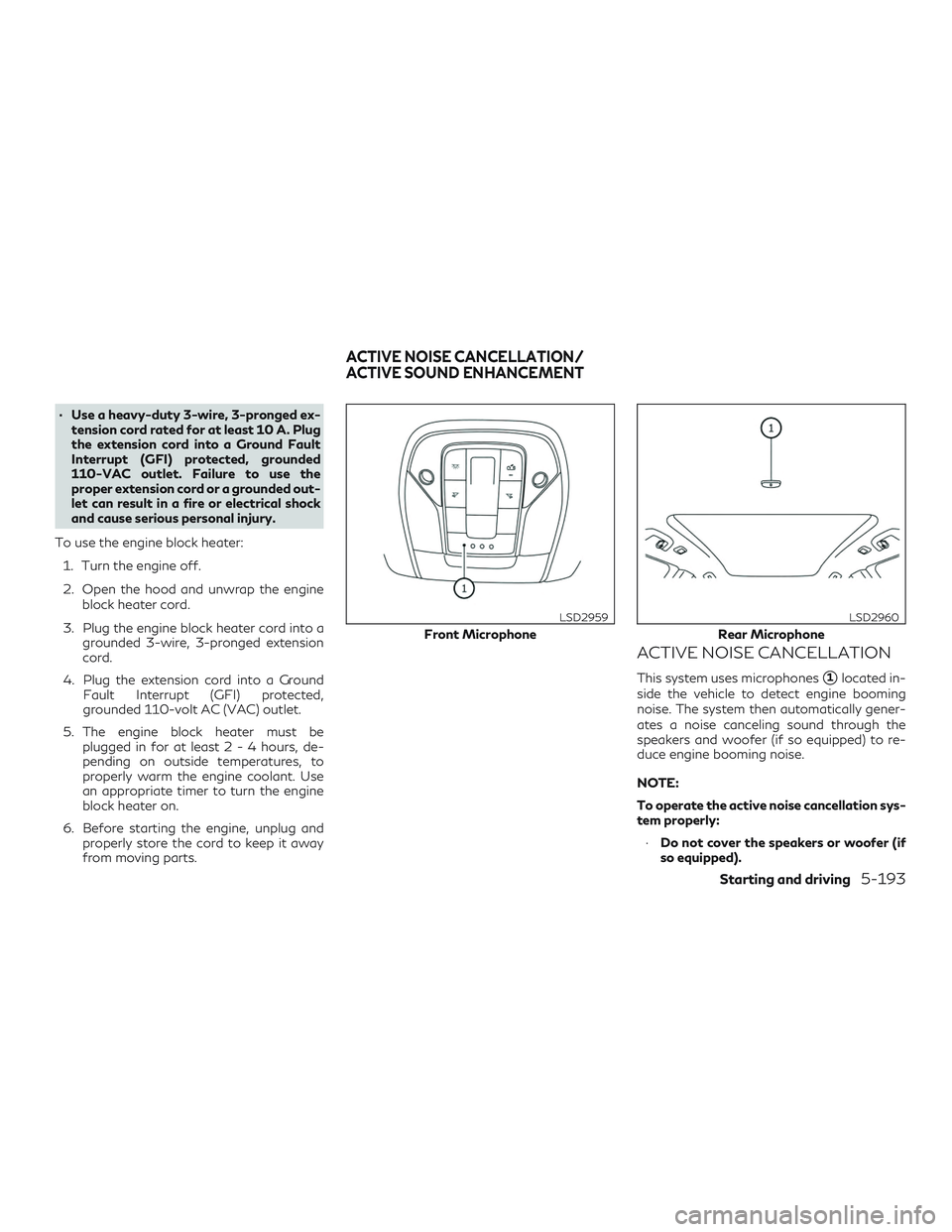

∙ Use a heavy-duty 3-wire, 3-pronged ex-tension cord rated for at least 10 A. Plug
the extension cord into a Ground Fault
Interrupt (GFI) protected, grounded
110-VAC outlet. Failure to use the
proper extension cord or a grounded out-
let can result in a fire or electrical shock
and cause serious personal injury.
To use the engine block heater: 1. Turn the engine off.
2. Open the hood and unwrap the engine block heater cord.
3. Plug the engine block heater cord into a grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground Fault Interrupt (GFI) protected,
grounded 110-volt AC (VAC) outlet.
5. The engine block heater must be plugged in for at least2-4hours, de-
pending on outside temperatures, to
properly warm the engine coolant. Use
an appropriate timer to turn the engine
block heater on.
6. Before starting the engine, unplug and properly store the cord to keep it away
from moving parts.
ACTIVE NOISE CANCELLATION
This system uses microphones1located in-
side the vehicle to detect engine booming
noise. The system then automatically gener-
ates a noise canceling sound through the
speakers and woofer (if so equipped) to re-
duce engine booming noise.
NOTE:
To operate the active noise cancellation sys-
tem properly:
∙ Do not cover the speakers or woofer (if
so equipped).
Front Microphone
LSD2959
Rear Microphone
LSD2960
ACTIVE NOISE CANCELLATION/
ACTIVE SOUND ENHANCEMENT
Starting and driving5-193

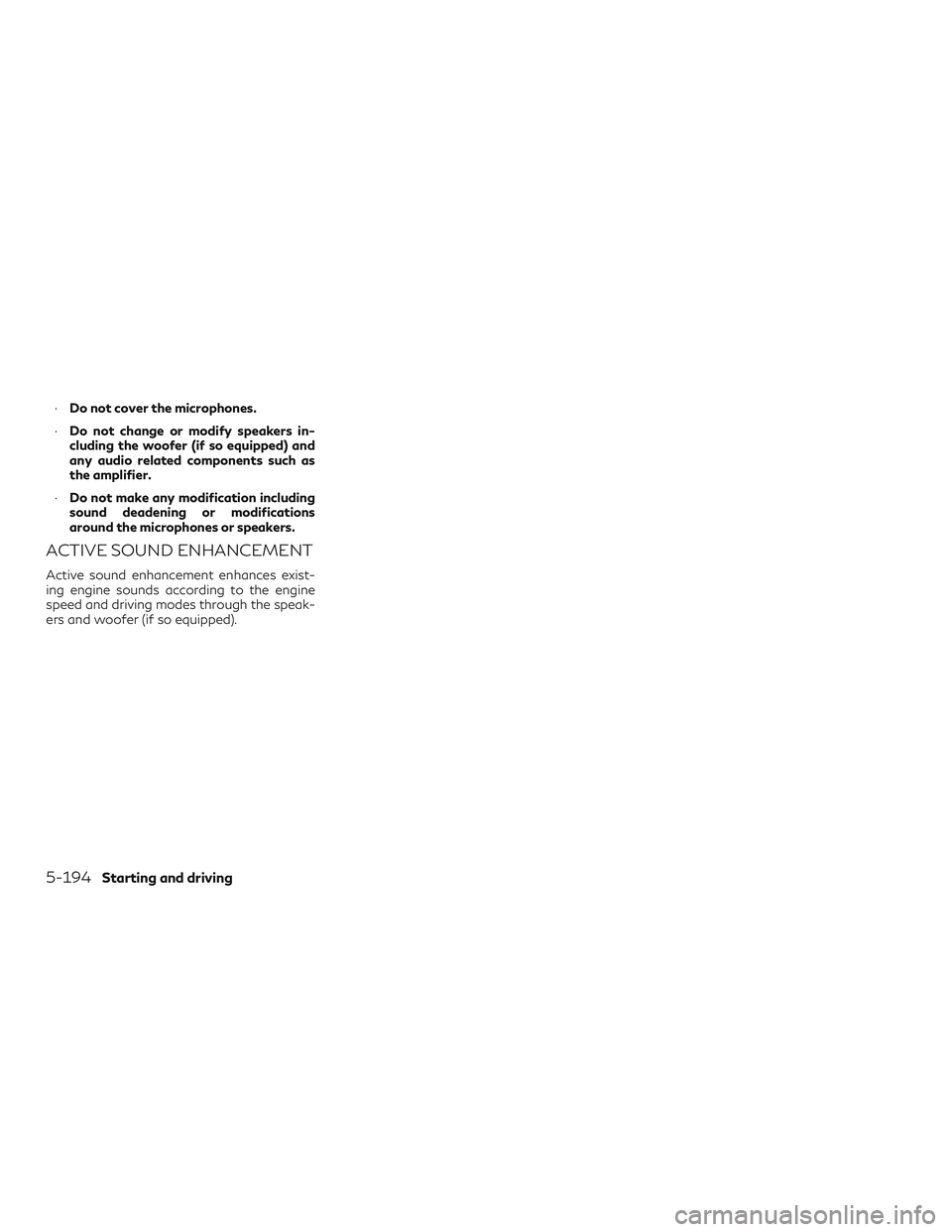

∙Do not cover the microphones.
∙ Do not change or modify speakers in-
cluding the woofer (if so equipped) and
any audio related components such as
the amplifier.
∙ Do not make any modification including
sound deadening or modifications
around the microphones or speakers.
ACTIVE SOUND ENHANCEMENT
Active sound enhancement enhances exist-
ing engine sounds according to the engine
speed and driving modes through the speak-
ers and woofer (if so equipped).
5-194Starting and driving

6 In case of emergency
Hazard warning flasher switch....................6-2
Roadside assistance program .....................6-2
Emergency engine shut off .......................6-3
Flat tire ..........................................6-3
Tire Pressure Monitoring System (TPMS) .......6-3
Run-flat tires ..................................6-4 Jump starting
....................................6-5
Push starting .....................................6-7
If your vehicle overheats ..........................6-7
Towing your vehicle ..............................6-8
Towing recommended by INFINITI .............6-8
Vehicle recovery (freeing a stuck vehicle) ......6-11

To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
– Rapidly push the push-button ignitionswitch three consecutive times in less than
1.5 seconds, or
– Push and hold the push-button ignition switch for more than 2 seconds.TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires. When the low tire pres-
sure warning light is lit, and the “Tire Pressure
Low - Add Air” warning appears in the vehicle
information display, one or more of your tires
is significantly under-inflated. The system
also displays pressure of all tires (except the
spare tire) on the vehicle information display
screen by sending a signal from a sensor that
is installed in each wheel. If the vehicle is
being driven with low tire pressure, the TPMS
will activate and warn you of it by the low tire
pressure warning light. This system will acti-
vate only when the vehicle is driven at speeds
above 16 mph (25 km/h). For additional in-
formation, refer to “Warning lights, indicator
lights and audible reminders” in the “Instru-
ments and controls” section and “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting and driving” sections of this manual.
WARNING
∙ Radio waves could adversely affect elec-tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
∙ If the low tire pressure warning light illu- minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
OFF. If you have a flat tire, replace it with
a replacement tire as soon as possible.
EMERGENCY ENGINE SHUT OFF FLAT TIRE
In case of emergency6-3
