INFINITI QX50 2019 User Guide

1. Engine hood (P. 3-24)
2. Wiper and washer switch (P. 2-35)Wiper blades (P. 8-16)
3. Windshield (P. 8-16)
4. Power windows (P. 2-66)
5. Door locks (P. 3-4) INFINITI Intelligent Key (P. 3-7)
Keys (P. 3-2)
6. Mirrors (P. 3-36) Side camera (if so equipped)
(P. 4-11)
7. Tire pressure (P. 8-26) Flat tire (P. 6-3)
Tire chains (P. 8-26)
8. Replacing bulbs (P. 8-23) Headlight switch (P. 2-39)
Turn signal switch (P. 2-39)
LED Daytime Running Lights (DRL)
system (P. 2-39)
9. Fog light switch (if so equipped)
(P. 2-39)
10. Sonar sensors (if so equipped)
(P. 5-186)
11. Front camera (if so equipped)
(P. 4-11)
See the page number indicated in parenthe-
ses for operating details.
LIC3787
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear wiper and washer switch(P. 2-35)
2. Liftgate release (P. 3-24) Rearview camera (P. 4-3)
3. Sonar sensors (if so equipped)
(P. 5-186)
4. Replacing bulbs (P. 8-23)
5. Fuel-filler cap (P. 3-31) Fuel recommendation (P. 10-2)
Fuel-filler door (P. 3-31)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in paren-
theses for operating details.
LIC3788
EXTERIOR REAR
0-4Illustrated table of contents

1. Moonroof (if so equipped) (P. 2-68)
2. Sun visors (P. 3-35)
3. Map lights (P. 2-71)
4. Sunglasses storage (P. 2-55)
5. Rearview mirror (P. 3-36)
6. Glove box (P. 2-55)
7. Console box (P. 2-55)
8. Cup holders (P. 2-55)
Refer to the page number indicated in paren-
theses for operating details.
LIC3789
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-35)
2. Bluetooth® Hands-Free PhoneSystem*
Steering wheel switch for audio
control*
Center display multi-function
control buttons*
Control panel and vehicle informa-
tion display switches (P. 2-20)
3. High beam/turn signal switch
(P. 2-45)
Paddle shifters (P. 5-19)
4. Driver supplemental air bag
(P. 1-43)
Horn (P. 2-46)
5. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-9)
Vehicle information display (P. 2-19)
6. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
7. Automatic heater and air condition-
ing controls (P. 4-36)
Driver side climate controlled seat
switches (if so equipped) (P. 2-47)
Driver side heated seat switches
(if so equipped) (P. 2-48)
LIC3793
INSTRUMENT PANEL
0-6Illustrated table of contents

8. Upper and lower displays*Navigation system* (if so equipped)
9. Automatic heater and air condition-
ing controls (P. 4-36)
Passenger side climate controlled
seat switches (if so equipped)
(P. 2-47)
Passenger side heated seat
switches (if so equipped) (P. 2-48)
Rear window defroster, outside
mirror defroster, and wiper deicer
(if so equipped) switch (P. 2-39)
10. Front passenger supplemental air
bag (P. 1-43)
11. Glove box (P. 2-55)
12. Audio system controls* Front passenger air bag status light
(P. 1-43)
13. INFINITI controller*
14. Power outlet (P. 2-53) USB charging port (P. 4-44)
Cup holders (P. 2-55)
Storage (P. 2-55)
15. Shift lever (P. 5-19)
16. Push-button ignition switch
(P. 5-13)
Electronic parking brake switch
(P. 5-24) 17. Hazard warning flasher switch
(P. 6-2)
18. ProPILOT Assist Switch
(if so equipped) (P. 5-108)
Cruise control switches
(if so equipped) (P. 5-82)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-84)
Distance control switch
(if so equipped) (P. 5-84)
Control panel and vehicle informa-
tion display switches (P. 2-20)
19. Tilt and telescopic steering wheel
control (P. 3-34)
20. Hood release (P. 3-24)
21. Trip reset switch (P. 2-4) Instrument brightness control
(P. 2-39)
Front and rear sonar system
(if so equipped) (P. 5-186)
Steering assist switch (for vehicles
with ProPILOT Assist) (if so
equipped) (P. 2-50)
Dynamic driver assistance switch
(for vehicles without ProPILOT
Assist) (if so equipped) (P. 2-49)
Liftgate release switch (P. 3-24)
Headlight switch (P. 2-39) Fog light switch (if so equipped)
(P. 2-46)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-51)
*: Refer to the separate INFINITI InTouchTM
Owner’s Manual.
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

KR20DDET engine
1. Engine coolant reservoir (P. 8-4)
2. Drive belt location (P. 8-13)
3. Air filter (P. 8-15)
4. Brake fluid reservoir (P. 8-10)
5. Battery (P. 8-11)
6. Fuse/Fusible link box (P. 8-19)
7. Windshield-washer fluid reservoir(P. 8-10)
8. Engine oil filler cap (P. 8-6)
9. Engine oil dipstick (P. 8-6)
Refer to the page number indicated in paren-
theses for operating details.
LDI3173
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-10
or
Brake warning
light (red)
2-10
Charge warning
light 2-11
Electric shift con-
trol system warn-
ing light2-11
or
Electronic parking
brake warning
light (yellow) (if so
equipped)2-11
Warning
light Name Page
Forward Emer-
gency Braking
(FEB) with Pedes-
trian Detection
system warning
light 2-11
Low tire pressure
warning light
2-12
Master warning
light2-13
Oil pressure warn-
ing light2-14
Power steering
warning light2-14
Seat belt warning
light and chime 2-15
Supplemental air
bag warning light2-15
Indicator
light Name Page
Automatic brake
hold indicator light
(if so equipped) 2-15
Eco drive indicator
light
2-16
or
Electronic parking
brake indicator
light (red) (if so
equipped)2-16
Front fog light in-
dicator light
(green) (if so
equipped)2-16
Front passenger
air bag status light
2-16
High beam assist
indicator light
(green) (if so
equipped)2-16
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

Indicatorlight Name Page
High beam indica-
tor light (blue) 2-16
Malfunction Indi-
cator Light (MIL)2-16
Security indicator
light 2-17
Side light and
headlight indicator
light (green)2-18
Slip indicator light 2-18
Turn signal/hazard
indicator lights
2-18
Vehicle Dynamic
Control (VDC)
OFF indicator light2-18
0-10Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment ..................1-3
Rear bench seat adjustment ...................1-4
Armrests ......................................1-5
Flexible seating ...............................1-5
Head restraints/headrests ........................1-7
Adjustable head restraint/headrest
components ..................................1-8
Non-adjustable head restraint/headrest
components ..................................1-8
Remove .......................................1-8
Install .........................................1-9
Adjust ........................................1-9
Seat belts ....................................... 1-11
Precautions on seat belt usage ...............1-11
Seat belt warning light .......................1-14
Pregnant women ............................. 1-14
Injured persons ............................... 1-14
Three-point type seat belt with retractor ......1-14
Seat belt extenders ........................... 1-18
Seat belt maintenance ........................ 1-19Child safety
..................................... 1-19
Infants ...................................... 1-20
Small children ............................... 1-20
Larger children .............................. 1-20
Child restraints .................................. 1-22
Precautions on child restraints ................1-22
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-24
Rear-facing child restraint installation
using LATCH ................................ 1-27
Rear-facing child restraint installation
using the seat belts .......................... 1-29
Forward-facing child restraint installation
using LATCH ................................ 1-31
Forward-facing child restraint installation
using the seat belts .......................... 1-35
Booster seats ............................... 1-39
Supplemental Restraint System (SRS) ...........1-43
Precautions on SRS ......................... 1-43
Supplemental air bag warning labels .........1-62
Supplemental air bag warning light ...........1-62

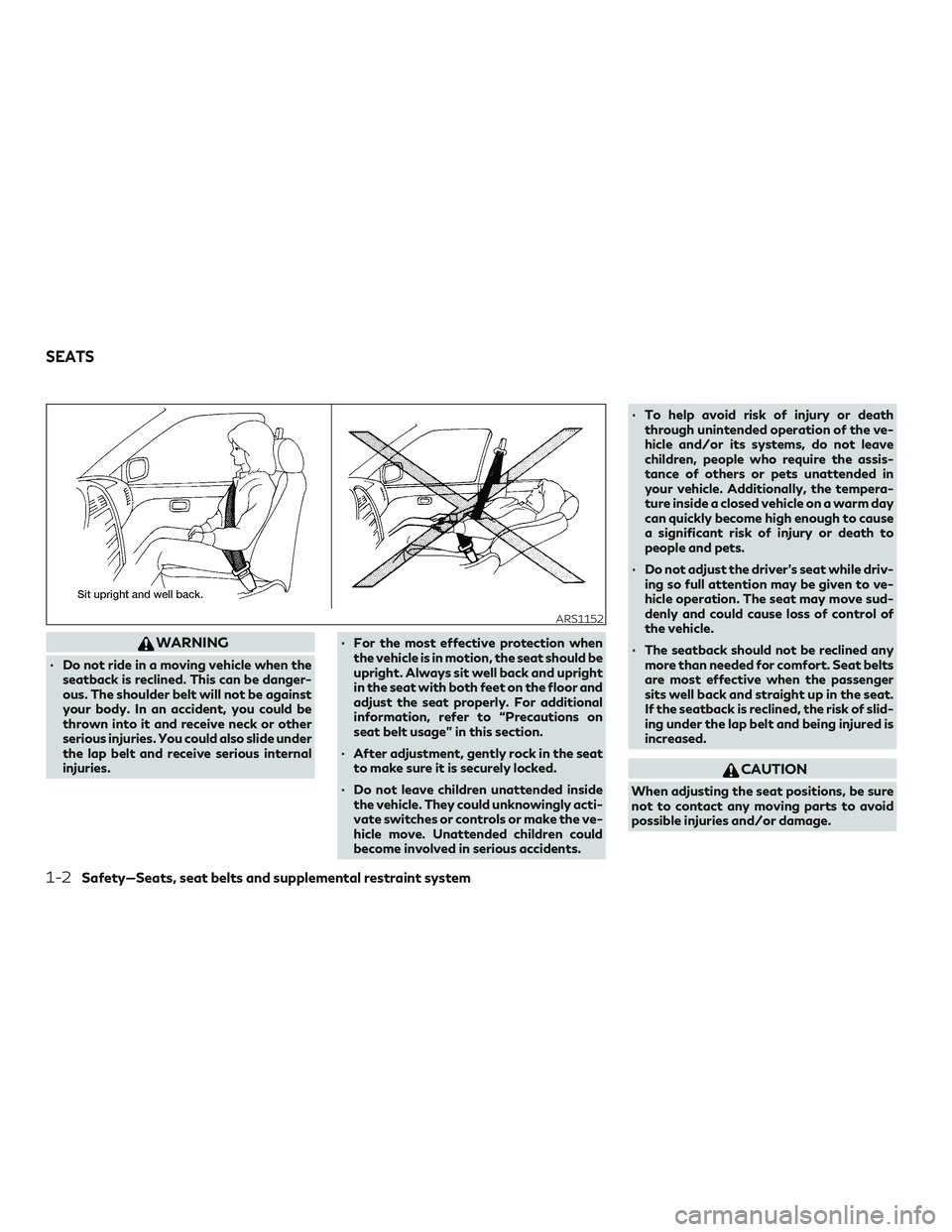

WARNING
∙ Do not ride in a moving vehicle when theseatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries. ∙ For the most effective protection when
the vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat with both feet on the floor and
adjust the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.
∙ After adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not leave children unattended inside the vehicle. They could unknowingly acti-
vate switches or controls or make the ve-
hicle move. Unattended children could
become involved in serious accidents. ∙ To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
∙ Do not adjust the driver’s seat while driv- ing so full attention may be given to ve-
hicle operation. The seat may move sud-
denly and could cause loss of control of
the vehicle.
∙ The seatback should not be reclined any more than needed for comfort. Seat belts
are most effective when the passenger
sits well back and straight up in the seat.
If the seatback is reclined, the risk of slid-
ing under the lap belt and being injured is
increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
