clock INFINITI QX50 2019 Owners Manual

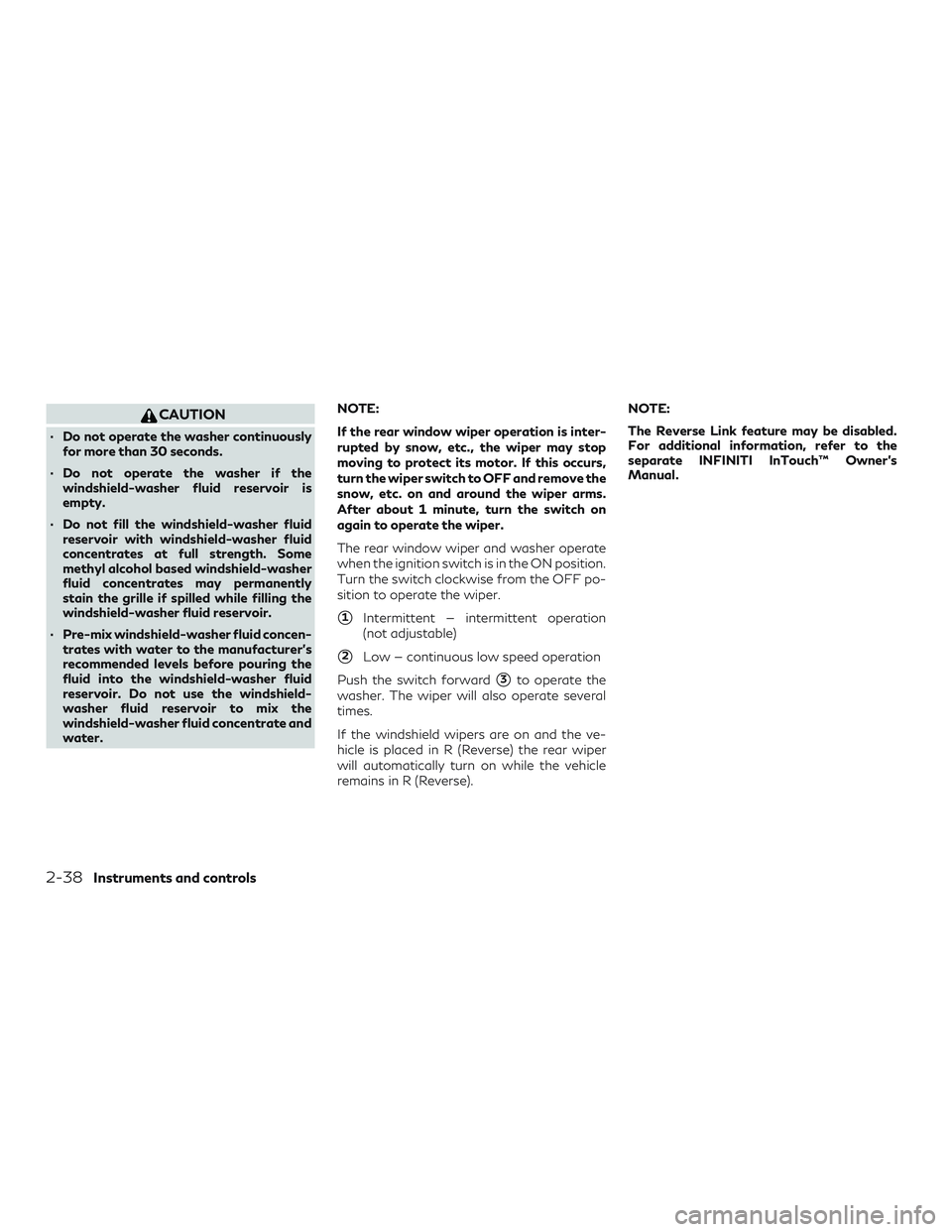

CAUTION
∙ Do not operate the washer continuouslyfor more than 30 seconds.
∙ Do not operate the washer if the windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid concen- trates with water to the manufacturer’s
recommended levels before pouring the
fluid into the windshield-washer fluid
reservoir. Do not use the windshield-
washer fluid reservoir to mix the
windshield-washer fluid concentrate and
water. NOTE:
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper.
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF po-
sition to operate the wiper.
1Intermittent — intermittent operation
(not adjustable)
2Low — continuous low speed operation
Push the switch forward
3to operate the
washer. The wiper will also operate several
times.
If the windshield wipers are on and the ve-
hicle is placed in R (Reverse) the rear wiper
will automatically turn on while the vehicle
remains in R (Reverse). NOTE:
The Reverse Link feature may be disabled.
For additional information, refer to the
separate INFINITI InTouch™ Owner’s
Manual.
2-38Instruments and controls

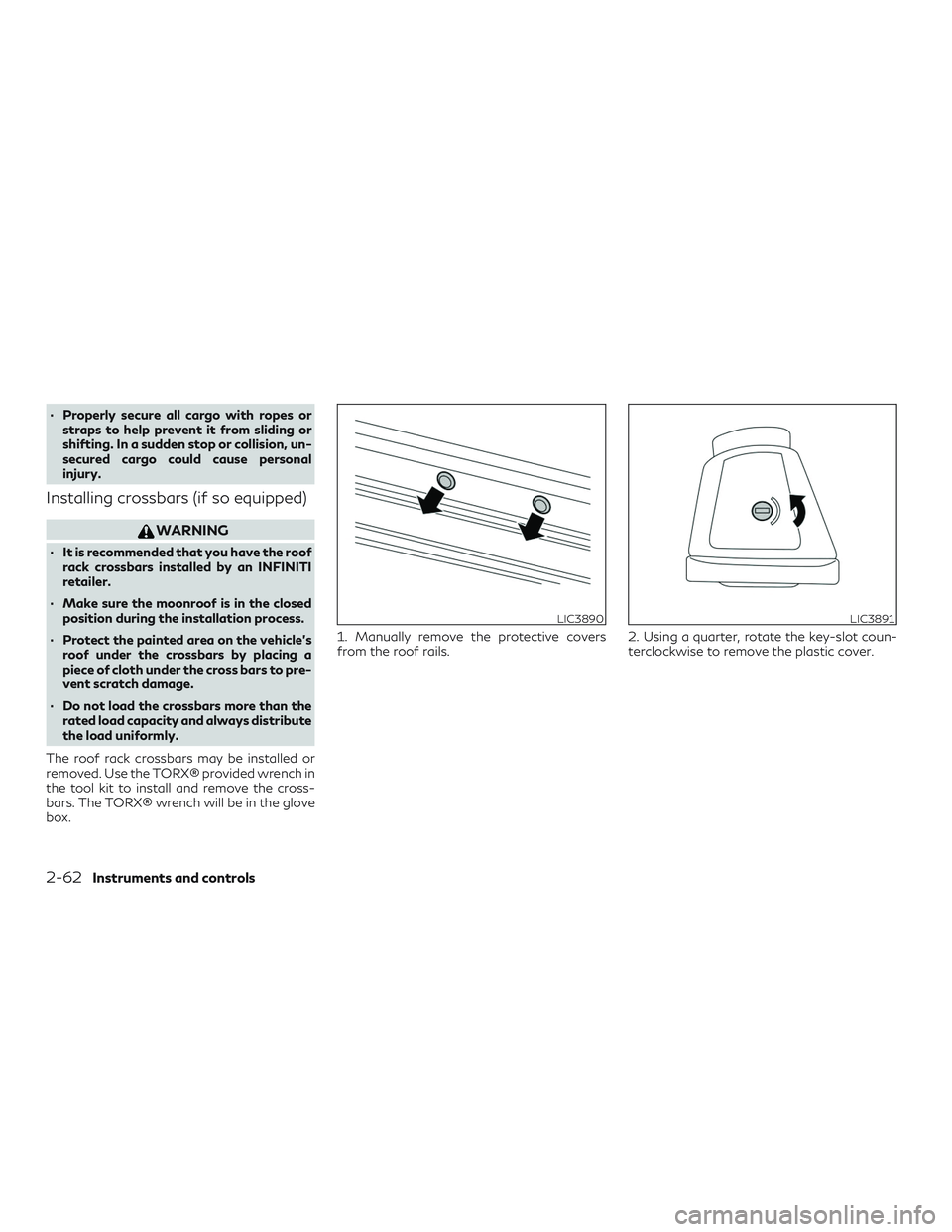

∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
Installing crossbars (if so equipped)
WARNING
∙ It is recommended that you have the roofrack crossbars installed by an INFINITI
retailer.
∙ Make sure the moonroof is in the closed position during the installation process.
∙ Protect the painted area on the vehicle’s roof under the crossbars by placing a
piece of cloth under the cross bars to pre-
vent scratch damage.
∙ Do not load the crossbars more than the rated load capacity and always distribute
the load uniformly.
The roof rack crossbars may be installed or
removed. Use the TORX® provided wrench in
the tool kit to install and remove the cross-
bars. The TORX® wrench will be in the glove
box. 1. Manually remove the protective covers
from the roof rails.
2. Using a quarter, rotate the key-slot coun-
terclockwise to remove the plastic cover.
LIC3890LIC3891
2-62Instruments and controls

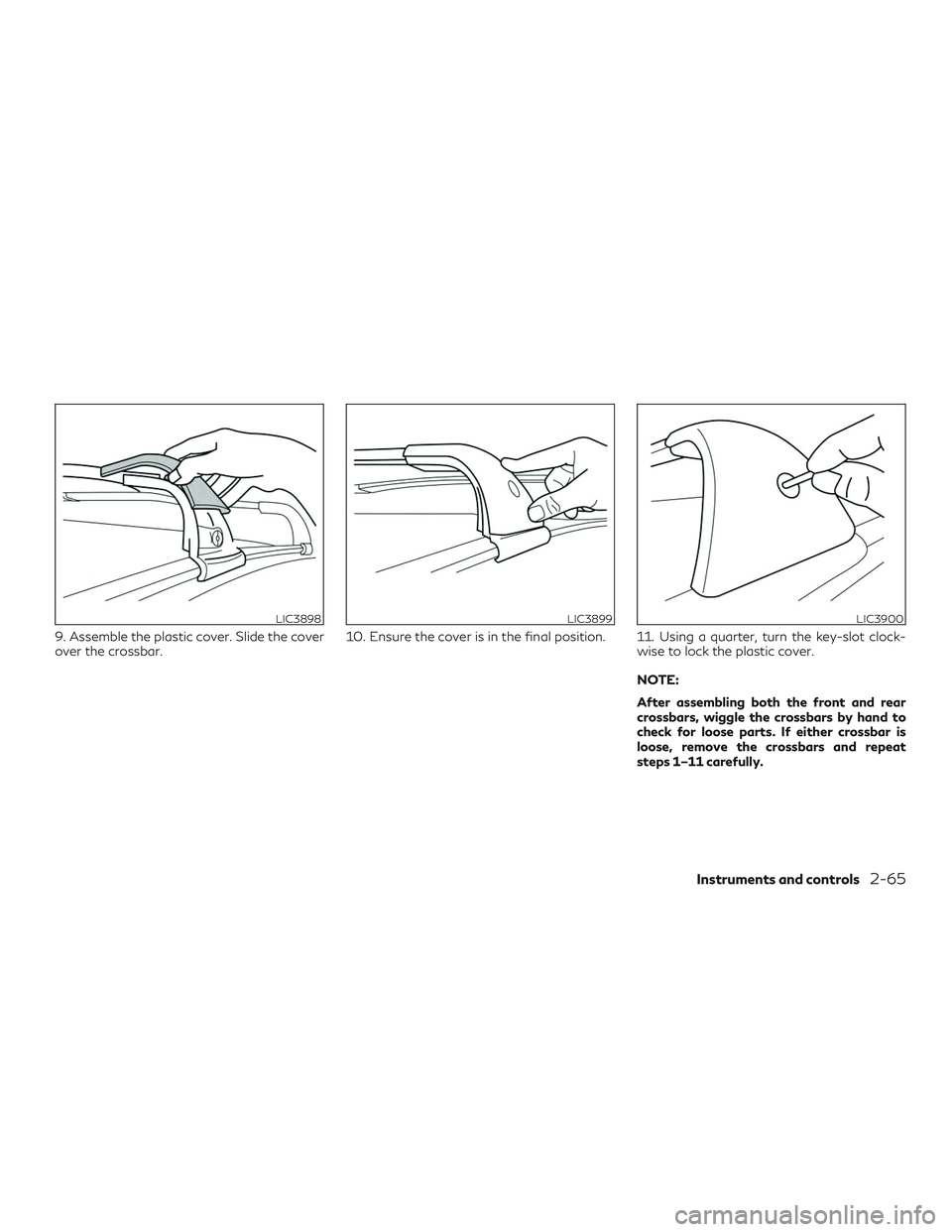

9. Assemble the plastic cover. Slide the cover
over the crossbar.10. Ensure the cover is in the final position. 11. Using a quarter, turn the key-slot clock-
wise to lock the plastic cover.
NOTE:
After assembling both the front and rear
crossbars, wiggle the crossbars by hand to
check for loose parts. If either crossbar is
loose, remove the crossbars and repeat
steps 1–11 carefully.
LIC3898LIC3899LIC3900
Instruments and controls2-65

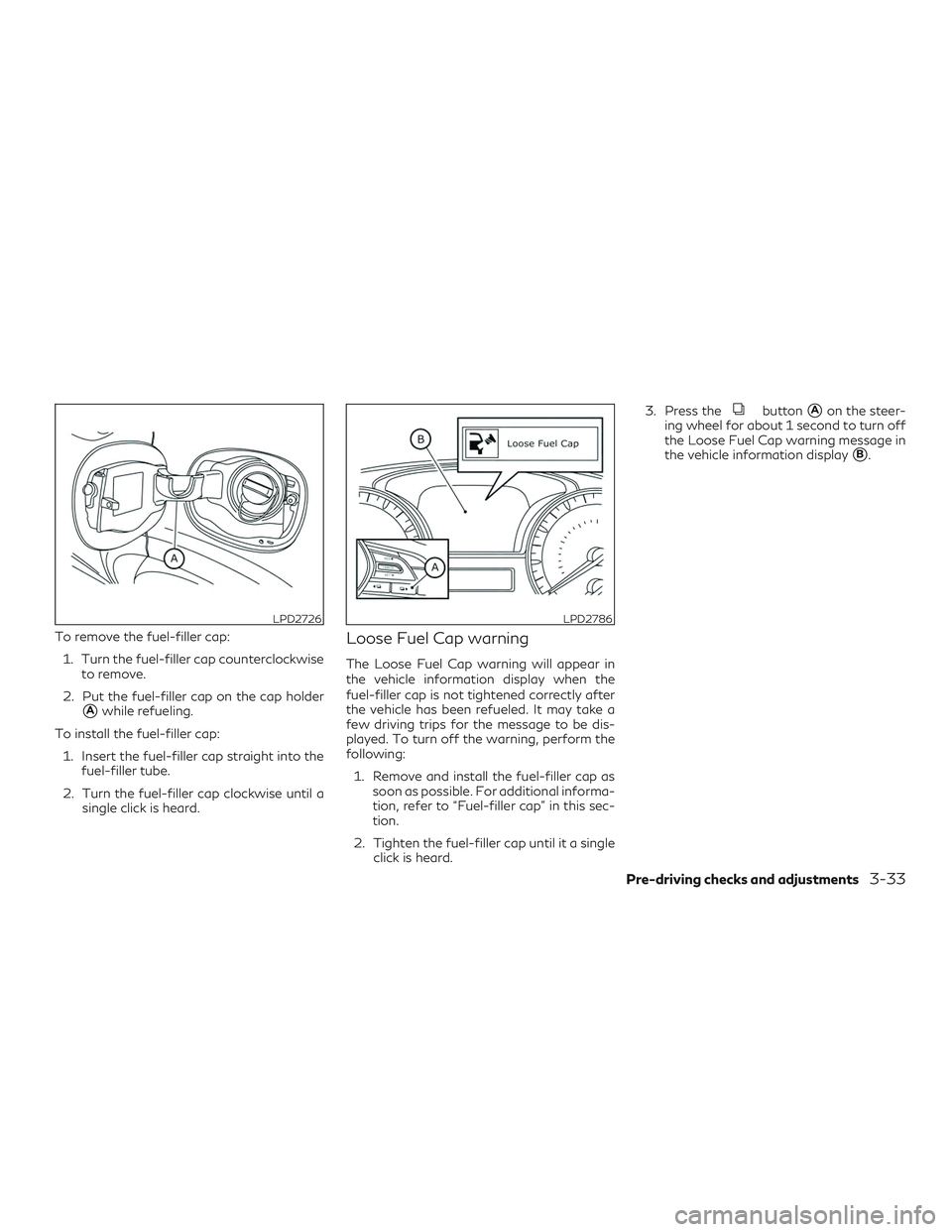

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
Awhile refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning
The Loose Fuel Cap warning will appear in
the vehicle information display when the
fuel-filler cap is not tightened correctly after
the vehicle has been refueled. It may take a
few driving trips for the message to be dis-
played. To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap as soon as possible. For additional informa-
tion, refer to “Fuel-filler cap” in this sec-
tion.
2. Tighten the fuel-filler cap until it a single click is heard. 3. Press the
buttonAon the steer-
ing wheel for about 1 second to turn off
the Loose Fuel Cap warning message in
the vehicle information display
B.
LPD2726LPD2786
Pre-driving checks and adjustments3-33

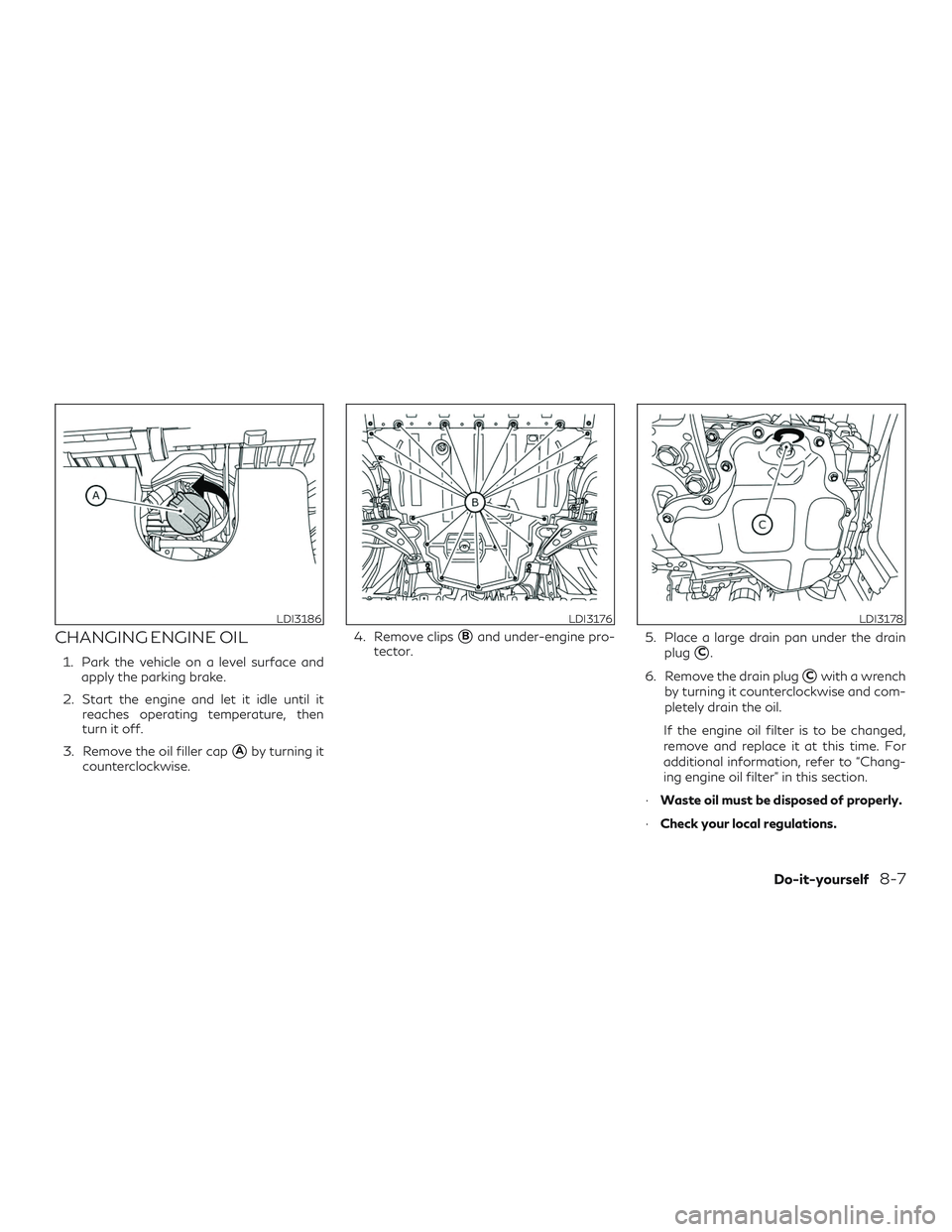

CHANGING ENGINE OIL
1. Park the vehicle on a level surface andapply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature, then
turn it off.
3. Remove the oil filler cap
Aby turning it
counterclockwise. 4. Remove clips
Band under-engine pro-
tector. 5. Place a large drain pan under the drain
plug
C.
6. Remove the drain plug
Cwith a wrench
by turning it counterclockwise and com-
pletely drain the oil.
If the engine oil filter is to be changed,
remove and replace it at this time. For
additional information, refer to “Chang-
ing engine oil filter” in this section.
∙ Waste oil must be disposed of properly.
∙ Check your local regulations.
LDI3186LDI3176LDI3178
Do-it-yourself8-7

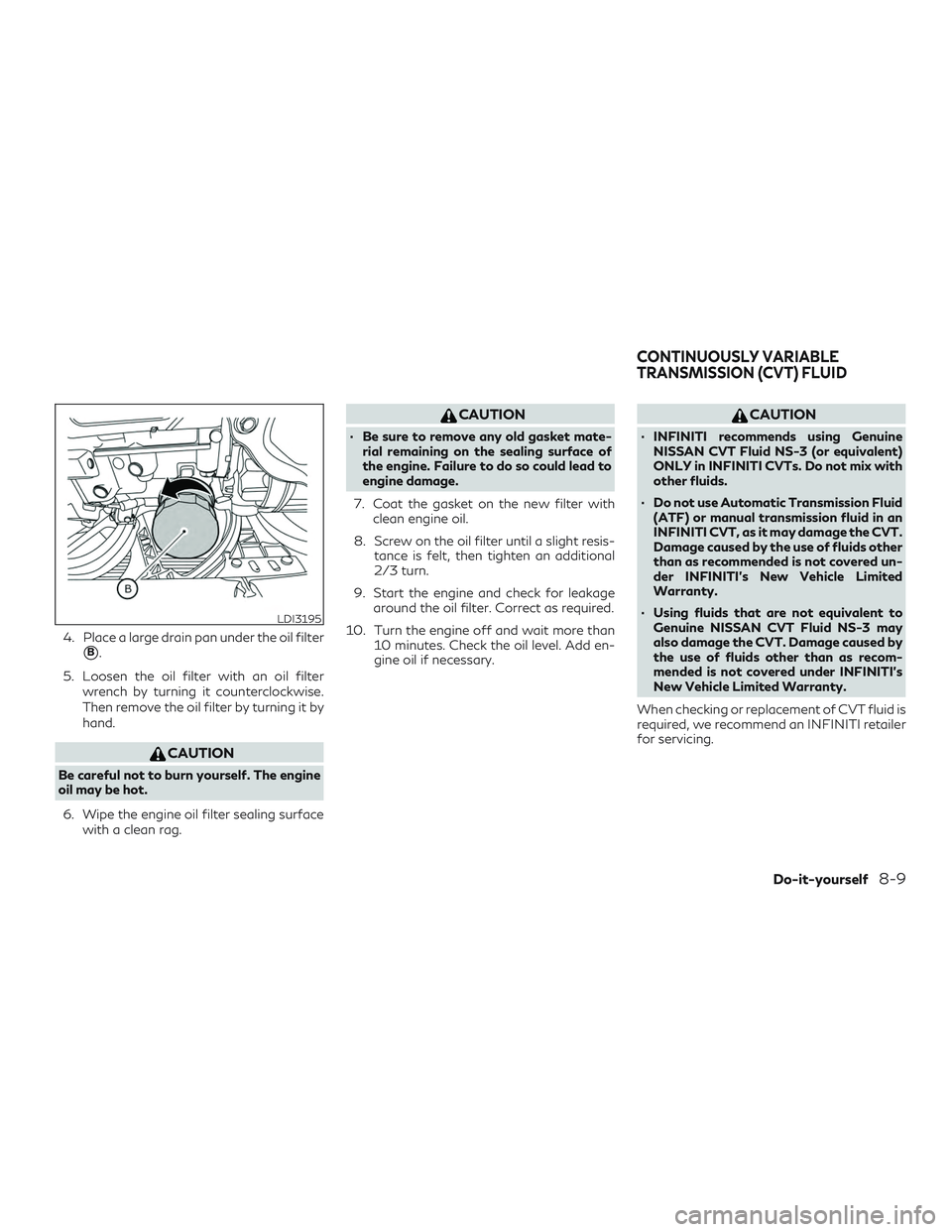

4. Place a large drain pan under the oil filter
B.
5. Loosen the oil filter with an oil filter wrench by turning it counterclockwise.
Then remove the oil filter by turning it by
hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
6. Wipe the engine oil filter sealing surface with a clean rag.
CAUTION
∙ Be sure to remove any old gasket mate-rial remaining on the sealing surface of
the engine. Failure to do so could lead to
engine damage.
7. Coat the gasket on the new filter with clean engine oil.
8. Screw on the oil filter until a slight resis- tance is felt, then tighten an additional
2/3 turn.
9. Start the engine and check for leakage around the oil filter. Correct as required.
10. Turn the engine off and wait more than 10 minutes. Check the oil level. Add en-
gine oil if necessary.
CAUTION
∙ INFINITI recommends using GenuineNISSAN CVT Fluid NS-3 (or equivalent)
ONLY in INFINITI CVTs. Do not mix with
other fluids.
∙ Do not use Automatic Transmission Fluid (ATF) or manual transmission fluid in an
INFINITI CVT, as it may damage the CVT.
Damage caused by the use of fluids other
than as recommended is not covered un-
der INFINITI’s New Vehicle Limited
Warranty.
∙ Using fluids that are not equivalent to Genuine NISSAN CVT Fluid NS-3 may
also damage the CVT. Damage caused by
the use of fluids other than as recom-
mended is not covered under INFINITI’s
New Vehicle Limited Warranty.
When checking or replacement of CVT fluid is
required, we recommend an INFINITI retailer
for servicing.
LDI3195
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) FLUID
Do-it-yourself8-9
