INFINITI QX50 2019 Owners Manual

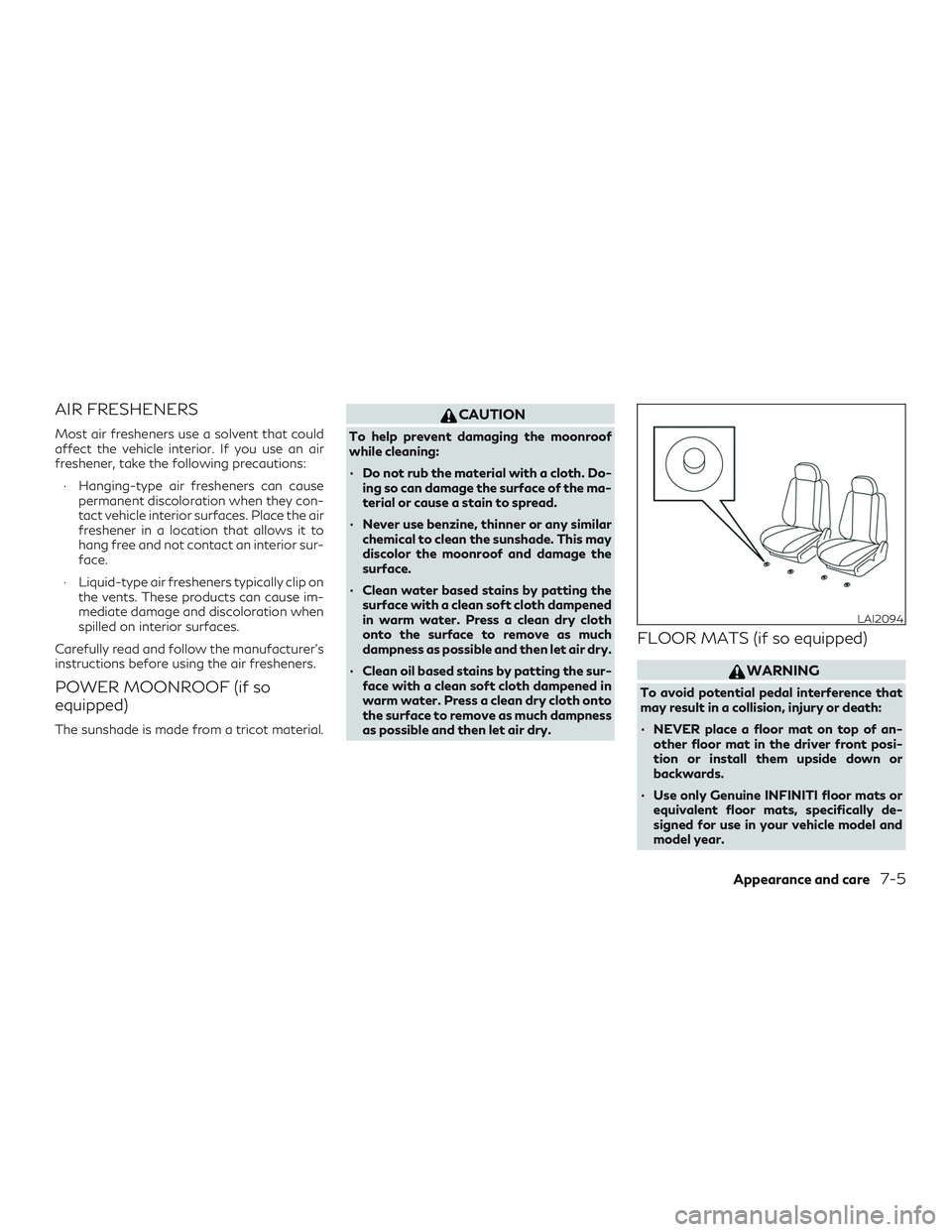

AIR FRESHENERS
Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:∙ Hanging-type air fresheners can cause permanent discoloration when they con-
tact vehicle interior surfaces. Place the air
freshener in a location that allows it to
hang free and not contact an interior sur-
face.
∙ Liquid-type air fresheners typically clip on the vents. These products can cause im-
mediate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer’s
instructions before using the air fresheners.
POWER MOONROOF (if so
equipped)
The sunshade is made from a tricot material.
CAUTION
To help prevent damaging the moonroof
while cleaning:
∙ Do not rub the material with a cloth. Do- ing so can damage the surface of the ma-
terial or cause a stain to spread.
∙ Never use benzine, thinner or any similar chemical to clean the sunshade. This may
discolor the moonroof and damage the
surface.
∙ Clean water based stains by patting the surface with a clean soft cloth dampened
in warm water. Press a clean dry cloth
onto the surface to remove as much
dampness as possible and then let air dry.
∙ Clean oil based stains by patting the sur- face with a clean soft cloth dampened in
warm water. Press a clean dry cloth onto
the surface to remove as much dampness
as possible and then let air dry.
FLOOR MATS (if so equipped)
WARNING
To avoid potential pedal interference that
may result in a collision, injury or death:
∙ NEVER place a floor mat on top of an-other floor mat in the driver front posi-
tion or install them upside down or
backwards.
∙ Use only Genuine INFINITI floor mats or equivalent floor mats, specifically de-
signed for use in your vehicle model and
model year.
LAI2094
Appearance and care7-5

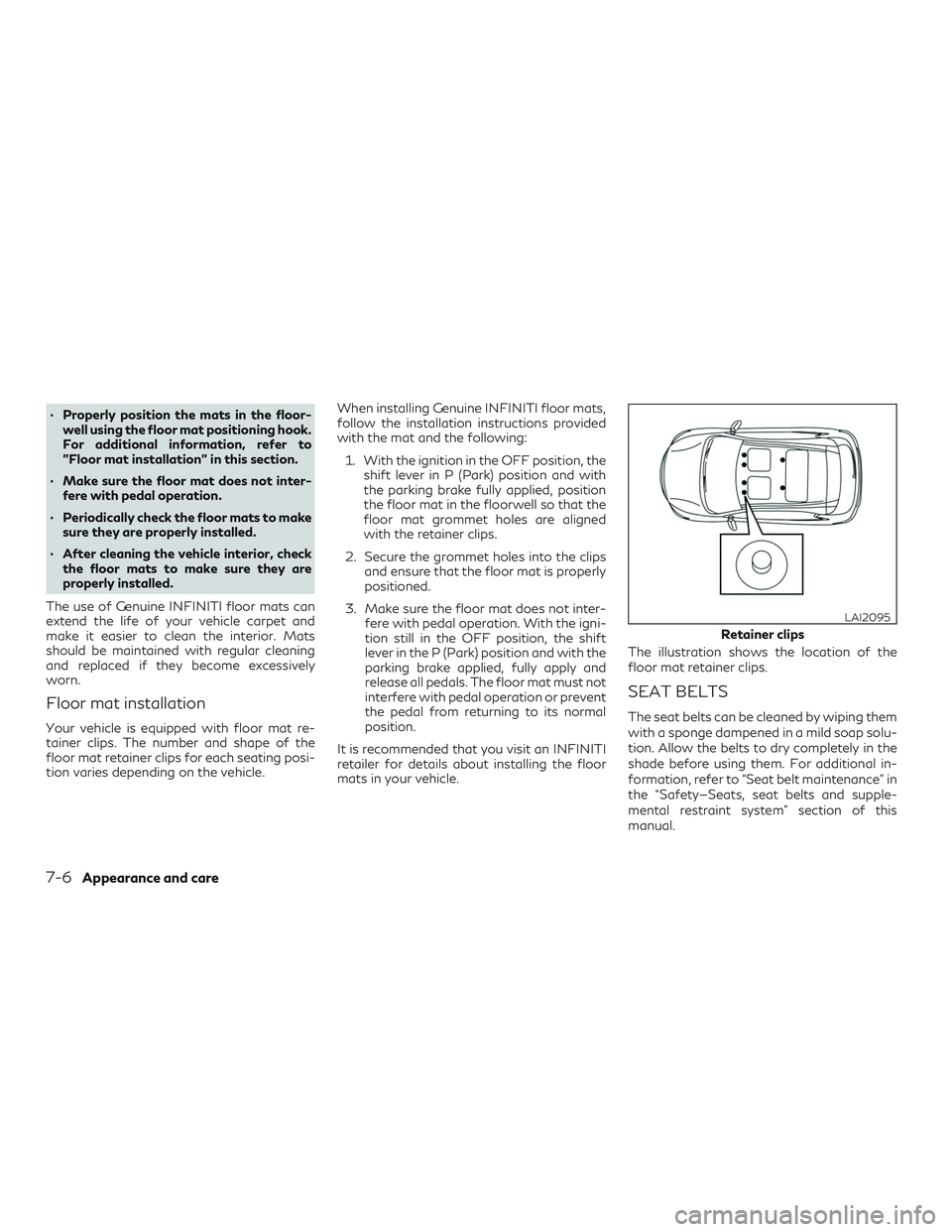

∙ Properly position the mats in the floor-well using the floor mat positioning hook.
For additional information, refer to
"Floor mat installation" in this section.
∙ Make sure the floor mat does not inter- fere with pedal operation.
∙ Periodically check the floor mats to make sure they are properly installed.
∙ After cleaning the vehicle interior, check the floor mats to make sure they are
properly installed.
The use of Genuine INFINITI floor mats can
extend the life of your vehicle carpet and
make it easier to clean the interior. Mats
should be maintained with regular cleaning
and replaced if they become excessively
worn.
Floor mat installation
Your vehicle is equipped with floor mat re-
tainer clips. The number and shape of the
floor mat retainer clips for each seating posi-
tion varies depending on the vehicle. When installing Genuine INFINITI floor mats,
follow the installation instructions provided
with the mat and the following:
1. With the ignition in the OFF position, the shift lever in P (Park) position and with
the parking brake fully applied, position
the floor mat in the floorwell so that the
floor mat grommet holes are aligned
with the retainer clips.
2. Secure the grommet holes into the clips and ensure that the floor mat is properly
positioned.
3. Make sure the floor mat does not inter- fere with pedal operation. With the igni-
tion still in the OFF position, the shift
lever in the P (Park) position and with the
parking brake applied, fully apply and
release all pedals. The floor mat must not
interfere with pedal operation or prevent
the pedal from returning to its normal
position.
It is recommended that you visit an INFINITI
retailer for details about installing the floor
mats in your vehicle. The illustration shows the location of the
floor mat retainer clips.
SEAT BELTS
The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solu-
tion. Allow the belts to dry completely in the
shade before using them. For additional in-
formation, refer to “Seat belt maintenance” in
the “Safety—Seats, seat belts and supple-
mental restraint system” section of this
manual.
Retainer clips
LAI2095
7-6Appearance and care

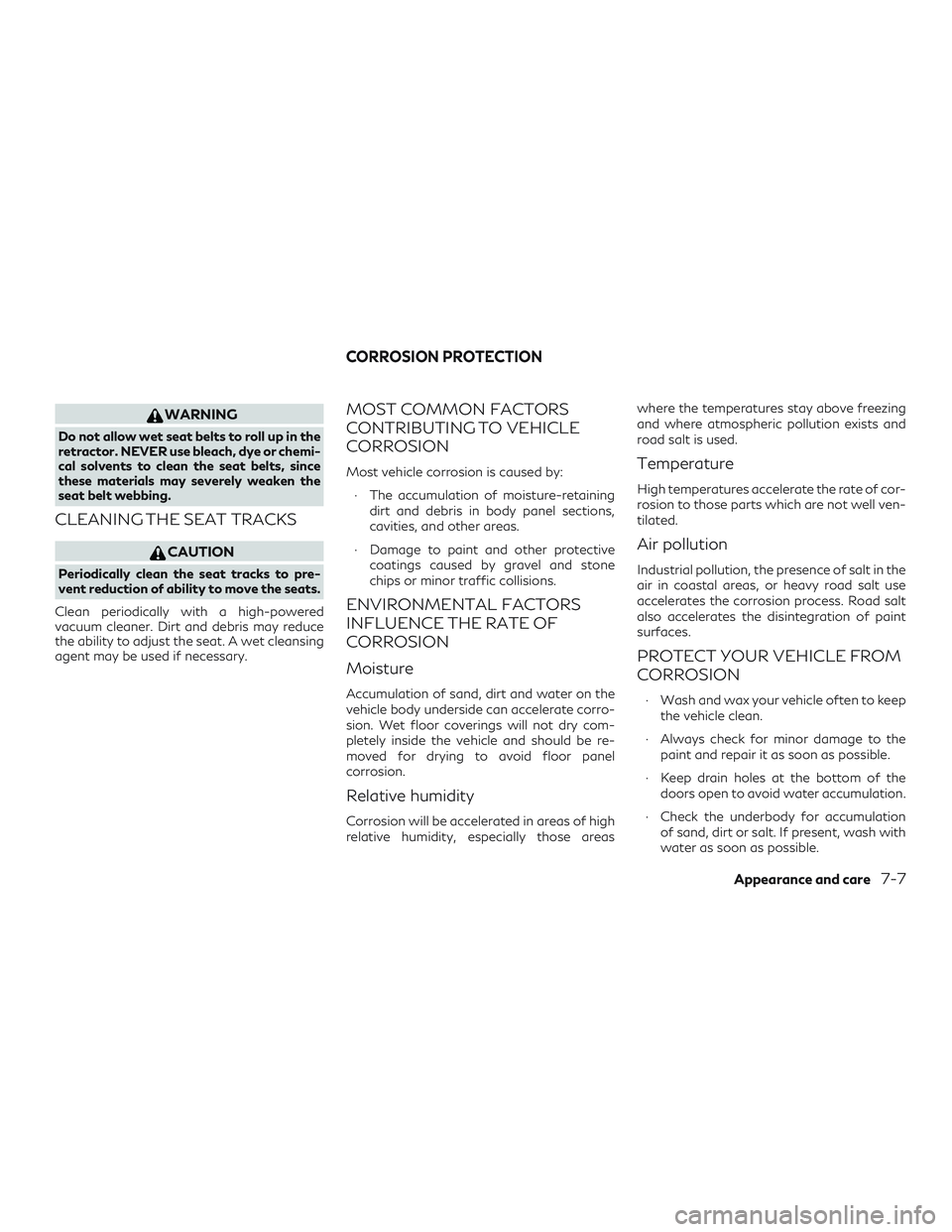

WARNING
Do not allow wet seat belts to roll up in the
retractor. NEVER use bleach, dye or chemi-
cal solvents to clean the seat belts, since
these materials may severely weaken the
seat belt webbing.
CLEANING THE SEAT TRACKS
CAUTION
Periodically clean the seat tracks to pre-
vent reduction of ability to move the seats.
Clean periodically with a high-powered
vacuum cleaner. Dirt and debris may reduce
the ability to adjust the seat. A wet cleansing
agent may be used if necessary.
MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION
Most vehicle corrosion is caused by:
∙ The accumulation of moisture-retaining dirt and debris in body panel sections,
cavities, and other areas.
∙ Damage to paint and other protective coatings caused by gravel and stone
chips or minor traffic collisions.
ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION
Moisture
Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry com-
pletely inside the vehicle and should be re-
moved for drying to avoid floor panel
corrosion.
Relative humidity
Corrosion will be accelerated in areas of high
relative humidity, especially those areas where the temperatures stay above freezing
and where atmospheric pollution exists and
road salt is used.
Temperature
High temperatures accelerate the rate of cor-
rosion to those parts which are not well ven-
tilated.
Air pollution
Industrial pollution, the presence of salt in the
air in coastal areas, or heavy road salt use
accelerates the corrosion process. Road salt
also accelerates the disintegration of paint
surfaces.
PROTECT YOUR VEHICLE FROM
CORROSION
∙ Wash and wax your vehicle often to keep
the vehicle clean.
∙ Always check for minor damage to the paint and repair it as soon as possible.
∙ Keep drain holes at the bottom of the doors open to avoid water accumulation.
∙ Check the underbody for accumulation of sand, dirt or salt. If present, wash with
water as soon as possible.
CORROSION PROTECTION
Appearance and care7-7

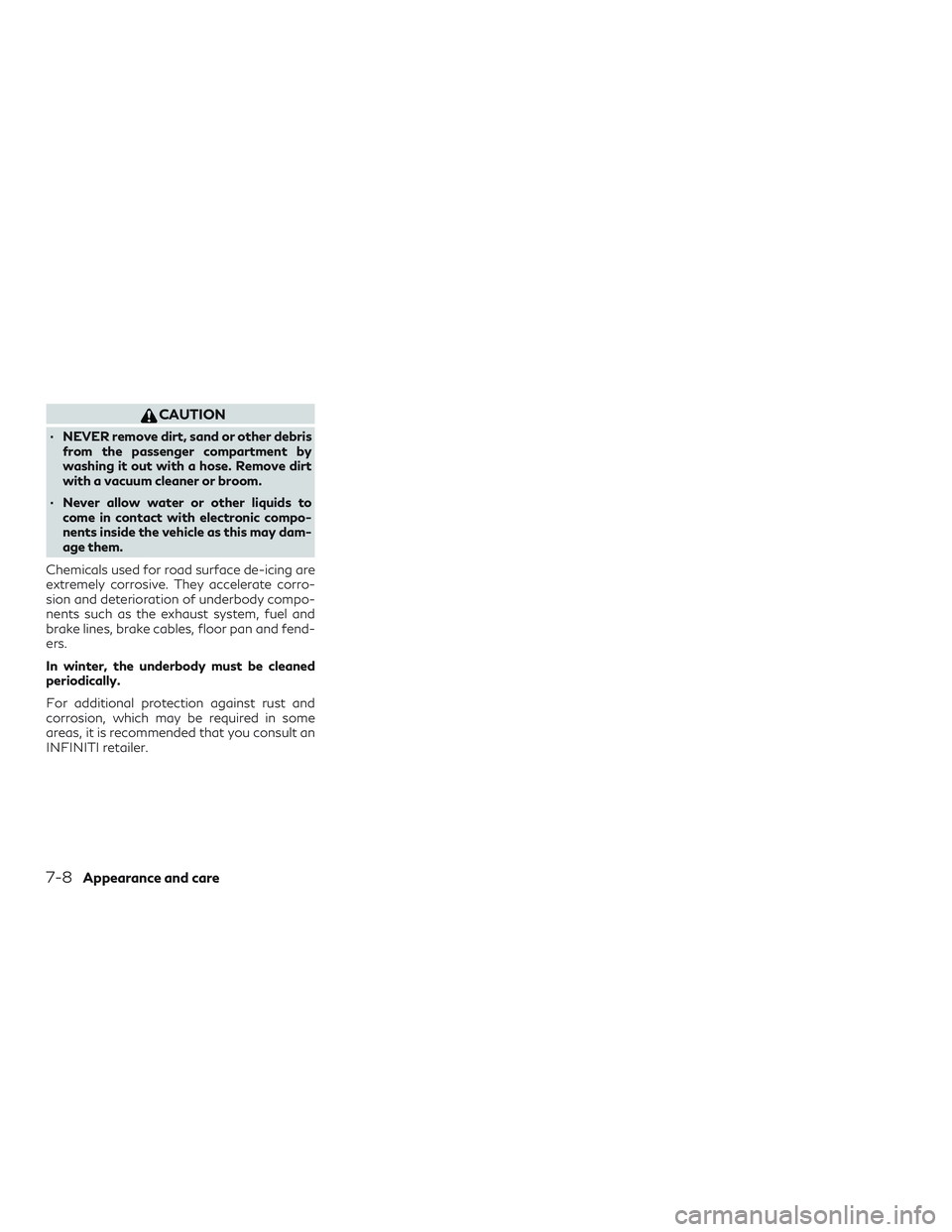

CAUTION
∙ NEVER remove dirt, sand or other debrisfrom the passenger compartment by
washing it out with a hose. Remove dirt
with a vacuum cleaner or broom.
∙ Never allow water or other liquids to come in contact with electronic compo-
nents inside the vehicle as this may dam-
age them.
Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corro-
sion and deterioration of underbody compo-
nents such as the exhaust system, fuel and
brake lines, brake cables, floor pan and fend-
ers.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some
areas, it is recommended that you consult an
INFINITI retailer.
7-8Appearance and care

8 Do-it-yourself
Maintenance precautions.........................8-2
Engine compartment check locations ..............8-3
Engine cooling system ........................... 8-4
Checking engine coolant level ..................8-5
Changing engine coolant ......................8-5
Engine oil ........................................8-6
Checking engine oil level .......................8-6
Changing engine oil ...........................8-7
Changing engine oil filter ..................... 8-8
Continuously Variable Transmission (CVT) fluid ....8-9
Brake fluid ..................................... 8-10
Windshield-washer fluid ........................ 8-10
Windshield-washer fluid reservoir ............8-10
Battery ......................................... 8-11
Jump starting ............................... 8-12
Variable voltage control system .................8-13
Drive belt ...................................... 8-13
Spark plugs .................................... 8-14
Replacing spark plugs ....................... 8-14
Air cleaner ..................................... 8-15In-cabin microfilter
.......................... 8-15
Windshield wiper blades ........................ 8-16
Cleaning .................................... 8-16
Replacing ................................... 8-16
Brakes ......................................... 8-18
Fuses .......................................... 8-19
Engine compartment ........................ 8-19
Passenger compartment .....................8-20
Battery replacement ............................ 8-21
INFINITI Intelligent Key ......................8-22
Lights ......................................... 8-23
Headlights .................................. 8-23
Fog lights (if so equipped) ...................8-23
Exterior and interior lights ...................8-24
Wheels and tires ............................... 8-26
Tire pressure ................................ 8-26
Tire labeling ................................. 8-30
Types of tires ............................... 8-32
Tire
chains .................................. 8-35
Changing wheels and tires ...................8-36

When performing any inspection or mainte-
nance work on your vehicle, always take care
to prevent serious accidental injury to your-
self or damage to the vehicle. The following
are general precautions which should be
closely observed.
WARNING
∙ Park the vehicle on a level surface, applythe parking brake securely and block the
wheels to prevent the vehicle from mov-
ing. Move the shift lever to P (Park).
∙ Be sure the ignition switch is in the OFF or LOCK position when performing any
parts replacement or repairs.
∙ If you must work with the engine running, keep your hands, clothing, hair and tools
away from moving fans, belts and any
other moving parts.
∙ It is advisable to secure or remove any loose clothing and remove any jewelry,
such as rings, watches, etc. before work-
ing on your vehicle.
∙ Always wear eye protection whenever you work on your vehicle. ∙ Your vehicle is equipped with an auto-
matic engine cooling fan. It may come on
at any time without warning, even if the
ignition switch is in the OFF position and
the engine is not running. To avoid injury,
always disconnect the negative battery
cable before working near the fan.
∙ If you must run the engine in an enclosed space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
∙ Never get under the vehicle while it is supported only by a jack. If it is necessary
to work under the vehicle, support it with
safety stands.
∙ Keep smoking materials, flame and sparks away from the fuel tank and
battery.
∙ Because the fuel lines on gasoline engine models are under high pressure even
when the engine is off, it is recommended
that you visit an INFINITI retailer for ser-
vice of the fuel filter or fuel lines.
CAUTION
∙ Do not work under the hood while theengine is hot. Turn the engine off and
wait until it cools down. ∙ Avoid contact with used engine oil and
coolant. Improperly disposed engine oil,
engine coolant and/or other vehicle flu-
ids can damage the environment. Always
conform to local regulations for disposal
of vehicle fluid.
∙ Never leave the engine or Continuously Variable Transmission (CVT) related
component harnesses disconnected
while the ignition switch is in the ON
position.
∙ Never connect or disconnect the battery or any transistorized component while
the ignition switch is in the ON position.
This “Do-it-yourself” section gives instruc-
tions regarding only those items which are
relatively easy for an owner to perform.
A Genuine INFINITI service manual is also
available. For additional information, refer to
“Owner’s Manual/Service Manual order in-
formation” in the “Technical and consumer
information” section of this manual.
You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could af-
fect warranty coverage. If in doubt about any
servicing, it is recommended that you have it
done by an INFINITI retailer.
MAINTENANCE PRECAUTIONS
8-2Do-it-yourself

KR20DDET engine
1. Engine coolant reservoir
2. Drive belt location
3. Air filter
4. Brake fluid reservoir
5. Battery
6. Fuse/Fusible link box
7. Windshield-washer fluid reservoir
8. Engine oil filler cap
9. Engine oil dipstick
LDI3173
ENGINE COMPARTMENT CHECK
LOCATIONS
Do-it-yourself8-3

The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life
Antifreeze/Coolant (blue) and 50% water to
provide year-round antifreeze and coolant
protection. The antifreeze solution contains
rust and corrosion inhibitors. Additional en-
gine cooling system additives are not neces-
sary.
WARNING
∙ Never remove the radiator or coolantreservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused by
high pressure fluid escaping from the ra-
diator. For additional information on
precautions, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this manual.
∙ The radiator is equipped with a pressure type radiator cap. To prevent engine
damage, use only a Genuine NISSAN ra-
diator cap.
CAUTION
∙ Never use any cooling system additivessuch as radiator sealer. Additives may
clog the cooling system and cause dam-
age to the engine, transmission and/or
cooling system.
∙ When adding or replacing coolant, be sure to use only Genuine NISSAN Long
Life Antifreeze/Coolant (blue) or
equivalent. Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is pre-diluted
to provide antifreeze protection to -34°
F (-37° C). If additional freeze protection
is needed due to weather where you op-
erate your vehicle, add Genuine NISSAN
Long Life Antifreeze/Coolant (blue) con-
centrate following the directions on the
container. If an equivalent coolant other
than Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is used, follow
the coolant manufacturer’s instructions
to maintain minimum antifreeze protec-
tion to -34° F (-37° C). The use of other
types of coolant solutions other than
Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent
may damage the engine cooling system. ∙ The life expectancy of the factory-fill
coolant is 105,000 miles (168,000 km)
or 7 years. Mixing any other type of cool-
ant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue), including
Genuine NISSAN Long Life
Antifreeze/Coolant (green), or the use of
non-distilled water will reduce the life
expectancy of the factory-fill coolant.
For additional information, refer to the
“Maintenance and schedules” section of
this manual.
ENGINE COOLING SYSTEM
8-4Do-it-yourself

CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir when
the engine is cold. If the coolant level is below
the MIN level
B, add coolant to the MAX
level
A. If the reservoir is empty, check the
coolant level in the radiator when the engine
is cold. If there is insufficient coolant in the
radiator, fill the radiator with coolant up to
the filler opening and also add it to the reser-
voir up to the MAX level
A. This vehicle contains Genuine NISSAN Long
Life Antifreeze/Coolant (blue). The life ex-
pectancy of the factory-fill coolant is
105,000 miles (168,000 km) or 7 years.
Mixing any other type of coolant or the use of
non-distilled water will reduce the life expec-
tancy of the factory-fill coolant. For addi-
tional information, refer to the "Maintenance
and schedules" section of this manual.
If the cooling system frequently requires
coolant, have it checked. It is recommended
that you visit an INFINITI retailer for this
service.
For additional information on the location of
the engine coolant reservoir, refer to “Engine
compartment check locations” in this section.
CHANGING ENGINE COOLANT
An INFINITI retailer can change the engine
coolant. The service procedure can be found
in the INFINITI Service Manual.
Improper servicing can result in reduced
heater performance and engine overheating.
WARNING
∙ To avoid the danger of being scalded,
never change the coolant when the en-
gine is hot.
∙ Never remove the radiator or engine coolant reservoir cap when the engine is
hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.
∙ Avoid direct skin contact with used cool- ant. If skin contact is made, wash thor-
oughly with soap or hand cleaner as soon
as possible.
∙ Keep coolant out of the reach of children and pets.
Engine coolant must be disposed of properly.
Check your local regulations.
LDI3157
Do-it-yourself8-5

CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature.
3. Turn off the engine. Wait more than
10 minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way. 5. Remove the dipstick again and check the
oil level. It should be between the H
(High) and L (Low) marksB. This is the
normal operating oil level range. If the oil
level is below the L (Low) mark
A, re-
move the oil filler cap and pour recom-
mended oil through the opening. Do not
fill oil level above H (High) mark
C.
6. Recheck the oil level with the dipstick.
It is normal to add some oil between oil main-
tenance intervals or during the break-in pe-
riod, depending on the severity of operating
conditions.
CAUTION
Oil level should be checked regularly. Oper-
ating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by warranty.
LDI3158LDI0371
ENGINE OIL
8-6Do-it-yourself
