∙The radar sensors may be blocked by tem-
porary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors.
∙ Do not attach stickers (including trans-parent material), install accessories or
apply additional paint near the camera
unit or radar sensors.
∙ Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.
∙ Do not strike or damage the area around the radar sensors. Do not touch the cam-
era lens or remove the screw located on
the camera unit. It is recommended that
you visit an INFINITI retailer if the camera
unit and/or area around the radar sen-
sors is damaged due to a collision.
Radio frequency statement
For USA
FCC: OAYSRR3B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada
Applicable law: Canada 310
This device complies with industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration of the device.
Frequency bands: 24.05–24.25GHz
Output power: less than 20 milliwatts
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the RCTA system
could result in serious injury or death.
∙ The RCTA system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When backing out of a
parking space, always use the side and
rear mirrors and turn and look in the di-
rection your vehicle will move. Never rely
solely on the RCTA system.
The RCTA system will assist you when back-
ing out from a parking space. When the ve-
hicle is in reverse, the system is designed to
detect other vehicles approaching from the
right or left of the vehicle. If the system de-
tects cross traffic, it will alert you.
REAR CROSS TRAFFIC ALERT
(RCTA)
Starting and driving5-67

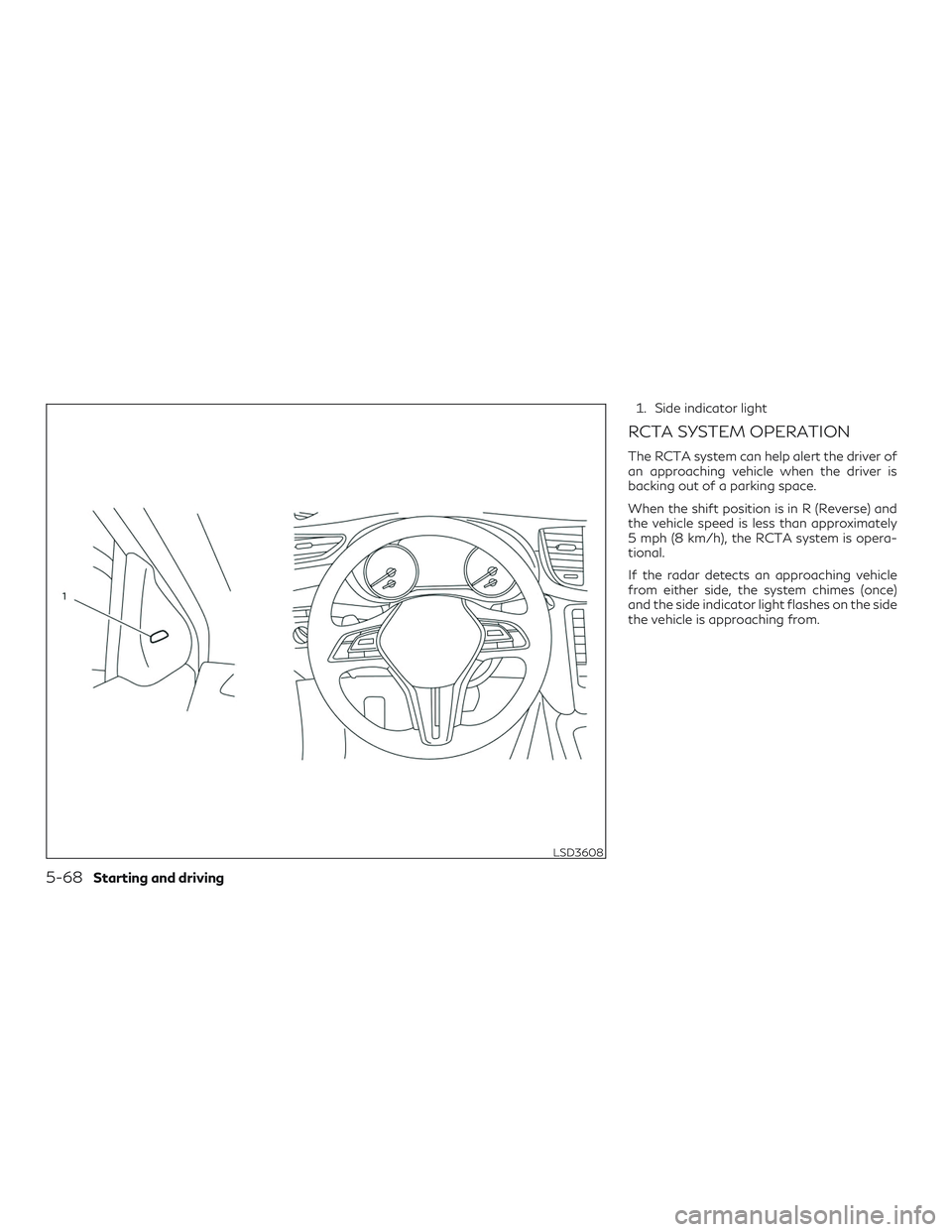

1. Side indicator light
RCTA SYSTEM OPERATION
The RCTA system can help alert the driver of
an approaching vehicle when the driver is
backing out of a parking space.
When the shift position is in R (Reverse) and
the vehicle speed is less than approximately
5 mph (8 km/h), the RCTA system is opera-
tional.
If the radar detects an approaching vehicle
from either side, the system chimes (once)
and the side indicator light flashes on the side
the vehicle is approaching from.
LSD3608
5-68Starting and driving

The RCTA system uses radar sensors1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle.
The radar sensors
1can detect an ap-
proaching vehicle from up to approximately
66 ft (20 m) away.
LSD2216LSD2920
Starting and driving5-69

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or dis-
able the RCTA system.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
NOTE: ∙ The RCTA system is integrated into the
BSW system. There is not a separate se-
lection in the vehicle information display
for the RCTA system. When the BSW is
disabled, the RCTA system is also dis-
abled.
∙ When enabling/disabling the system,
the system setting will be retained even
if the engine is restarted.
LSD2922
5-70Starting and driving

RCTA SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the RCTA system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Always check surroundings and turn tocheck what is behind you before backing
up. The radar sensors detect approaching
(moving) vehicles. The radar sensors can-
not detect every object such as:
– Pedestrians, bicycles, motorcycles, animals or child-operated toy vehicles
– A vehicle that is passing at speeds greater than approximately 19 mph
(30 km/h)
– A vehicle that is passing at speeds lower than approximately 5 mph
(8 km/h)
∙ The radar sensors may not detect ap- proaching vehicles in certain situations:
– Illustration
A: When a vehicle parked
next to you obstructs the beam of the
radar sensor.
– Illustration
B: When the vehicle is
parked in an angled parking space.
LSD3195
Starting and driving5-71

– IllustrationC: When the vehicle is
parked on inclined ground.
– Illustration
D: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration
E: When the angle
formed by your vehicle and approach-
ing vehicle is small.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/snow/dirt build-up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles.
∙ Excessive noise (e.g., audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard. NOTE:
In the case of several vehicles approaching in
a row (Illustration 1) or in the opposite direc-
tion (Illustration 2), a chime may not be
sounded by the RCTA system after the first
vehicle passes the sensors.
Illustration 1
LSD2043
Illustration 2
LSD2044
5-72Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear in the vehicle informa-
tion display.
The systems are not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
When the above conditions no longer exist,
the system will resume automatically.
LSD3609
Starting and driving5-73

Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The system malfunc-
tion warning message will appear in the ve-
hicle information display.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
FCC ID: OAYSRR3B
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2920
5-74Starting and driving

For Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
Frequency bands: 24.05 – 24.25GHz
Output power: less than 20 milliwatts
PRECAUTIONS ON CRUISE
CONTROL
1. RES+ switch
2. SET– switch
3. Cruise control
switch
4. CANCEL switch
∙ If the cruise control system malfunctions, it will cancel automatically.
The
indicator in the vehicle infor-
mation display will blink to warn the
driver. ∙ If the engine coolant temperature be-
comes excessively high, the cruise control
system will be canceled automatically.
∙ If the
indicator blinks, turn the
Cruise control
switch off and have
the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
∙
Theindicator may sometimes blink
when the Cruise control
switch is
turned on while pushing the RES+, SET– or
CANCEL switch. To properly set the cruise
control system, perform the steps below.
WARNING
Do not use the cruise control when driving
under the following conditions:
∙ When it is not possible to keep the vehicle at a set speed
∙ In heavy traffic or in traffic that varies in speed
∙ On winding or hilly roads
∙ On slippery roads (rain, snow, ice, etc.)
∙ In very windy areas
Doing so could cause a loss of vehicle con-
trol and result in an accident.
LSD2929
CRUISE CONTROL (if so equipped)
Starting and driving5-75

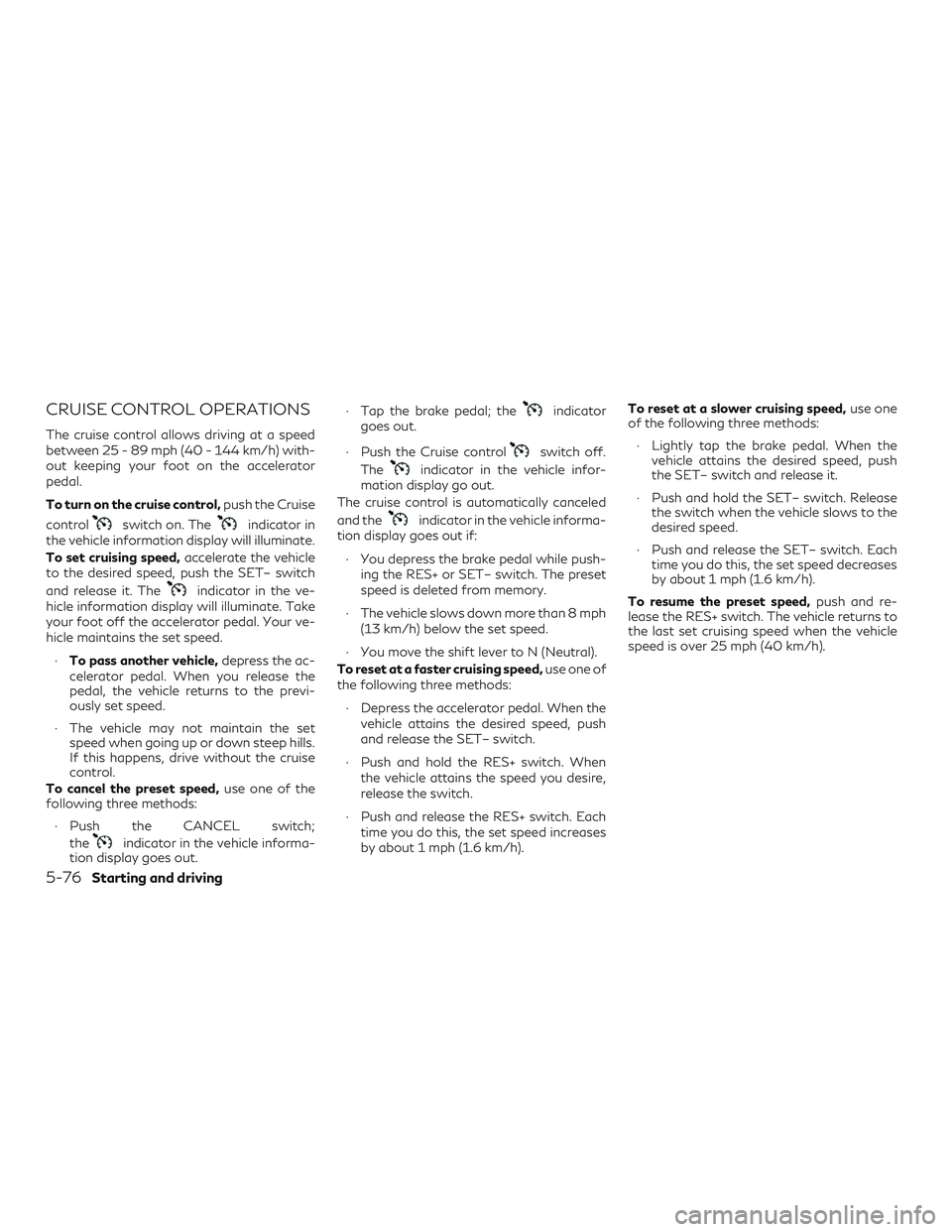

CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed
between 25 - 89 mph (40 - 144 km/h) with-
out keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the Cruise
control
switch on. Theindicator in
the vehicle information display will illuminate.
To set cruising speed, accelerate the vehicle
to the desired speed, push the SET– switch
and release it. The
indicator in the ve-
hicle information display will illuminate. Take
your foot off the accelerator pedal. Your ve-
hicle maintains the set speed.
∙ To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previ-
ously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep hills.
If this happens, drive without the cruise
control.
To cancel the preset speed, use one of the
following three methods:
∙ Push the CANCEL switch; the
indicator in the vehicle informa-
tion display goes out. ∙ Tap the brake pedal; the
indicator
goes out.
∙ Push the Cruise control
switch off.
The
indicator in the vehicle infor-
mation display go out.
The cruise control is automatically canceled
and the
indicator in the vehicle informa-
tion display goes out if:
∙ You depress the brake pedal while push- ing the RES+ or SET– switch. The preset
speed is deleted from memory.
∙ The vehicle slows down more than 8 mph (13 km/h) below the set speed.
∙ You move the shift lever to N (Neutral).
To reset at a faster cruising speed, use one of
the following three methods:
∙ Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET– switch.
∙ Push and hold the RES+ switch. When the vehicle attains the speed you desire,
release the switch.
∙ Push and release the RES+ switch. Each time you do this, the set speed increases
by about 1 mph (1.6 km/h). To reset at a slower cruising speed,
use one
of the following three methods:
∙ Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET– switch and release it.
∙ Push and hold the SET– switch. Release the switch when the vehicle slows to the
desired speed.
∙ Push and release the SET– switch. Each time you do this, the set speed decreases
by about 1 mph (1.6 km/h).
To resume the preset speed, push and re-
lease the RES+ switch. The vehicle returns to
the last set cruising speed when the vehicle
speed is over 25 mph (40 km/h).
5-76Starting and driving
