To reset at a slower cruising speed,use one
of the following methods:
∙ Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET– switch and release it.
∙ Push and hold the SET– switch. The set vehicle speed will decrease by approxi-
mately 5 mph (5 km/h).
∙ Push, then quickly release the SET– switch. Each time you do this, the set
speed will decrease by approximately
1 mph (1 km/h).
To resume the preset speed, push and re-
lease the RES+ switch. The vehicle will re-
sume the last set cruising speed when the
vehicle speed is over 20 mph (30 km/h).
How to change the set distance to
the vehicle ahead
The distance to the vehicle ahead can be
selected at any time depending on the traffic
conditions.
Each time the distance
switchAis
pushed, the set distance will change to long,
middle, short and back to long again, in that
sequence.
Distance Approximate distance at
60 mph (100 km/h) [ft (m)]
1. Long 200 (60)
2. Middle 150 (45)
3. Short 100 (30)
∙ The distance to the vehicle ahead will change according to the vehicle speed.
The higher the vehicle speed, the longer
the distance.
∙ The distance setting will remain at the current setting even if the engine is re-
started.
LSD3056LSD2752
Starting and driving5-87

Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and ICC sys-
tem display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:∙ The chime sounds.
∙ The vehicle ahead detection indicator blinks.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are: ∙ When the vehicles are traveling at the same speed and the distance between
vehicles is not changing.
∙ When the vehicle ahead is traveling faster and the distance between vehicles
is increasing.
∙ When a vehicle cuts in near your vehicle.
The warning chime will not sound when: ∙ The vehicle approaches other vehicles that are parked or moving slowly.
∙ The accelerator pedal is depressed, over- riding the system. NOTE:
The approach warning chime may sound and
the system display may blink when the ICC
sensor detects objects on the side of the ve-
hicle or on the side of the road. This may
cause the ICC system to decelerate or accel-
erate the vehicle. The ICC sensor may detect
these objects when the vehicle is driven on
winding roads, narrow roads, hilly roads, or
when entering or exiting a curve. In these
cases you will have to manually control the
proper distance ahead of your vehicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driv-
ing position in the lane) or traffic or vehicle
condition (for example, if a vehicle is being
driven with some damage).
Acceleration when passing
When the ICC system is engaged above
44 mph and following a slower vehicle (be-
low ICC set speed), and the turn signal is
activated to the left, the ICC system will au-
tomatically start to accelerate the vehicle to
help initiate passing on the left and will begin
to reduce the distance to vehicle directly
ahead. Only the left side turn signal operates
this feature. As the driver steers the vehicle
and moves into the passing lane, if no vehicle
is detected ahead the ICC system will con- tinue to accelerate to the ICC system set
speed. If another vehicle is detected ahead,
then the vehicle will accelerate up to the fol-
lowing speed of that vehicle. If the vehicle is
not steered into the left lane to pass, the
acceleration will stop after a short time and
regain the set following distance. Accelera-
tion can be stopped at any point by depress-
ing the brake pedal or the CANCEL switch on
the steering wheel.
WARNING
In order to reduce the risk of a collision that
may result in serious injury or death, please
be aware of the following:
∙ This function is only activated with the
left turn signal and will briefly accelerate
the vehicle even if a lane change is not
initiated. This can include non-passing
situations such as left side exits.
∙ Ensure that when passing another ve- hicle, the adjacent lane is clear before ini-
tiating the pass. Sudden changes in traf-
fic may occur while passing- always
manually steer or brake as needed- never
solely rely on the system.
5-88Starting and driving

Automatic cancellation
A chime sounds under the following condi-
tions and the control is automatically can-
celed:∙ When the vehicle ahead is not detected and your vehicle is traveling below the
speed of 15 mph (25 km/h)
∙ When the system judges the vehicle is at a standstill
∙ When the shift lever is not in the D (Drive) position or Manual mode
∙ When the electronic parking brake sys- tem is applied
∙ When the VDC system is turned off
∙ When VDC operates
∙ When distance measurement becomes impaired due to adhesion of dirt or ob-
struction to the sensor
∙ When a wheel slips
∙ When the radar signal is temporarily in- terrupted
VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
LIMITATIONS
WARNING
Listed below are the system limitations for
the ICC system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ The ICC system is primarily intended foruse on straight, dry, open roads with light
traffic. It is not advisable to use the ICC
system in city traffic or congested areas.
∙ The ICC system will not adapt automati- cally to road conditions. This system
should be used in evenly flowing traffic.
Do not use the system on roads with
sharp curves, or on icy roads, in heavy
rain or in fog. ∙ As there is a performance limit to the dis-
tance control function, never rely solely
on the ICC system. This system does not
correct careless, inattentive or absent-
minded driving, or overcome poor visibil-
ity in rain, fog, or other bad weather. De-
celerate the vehicle speed by depressing
the brake pedal, depending on the dis-
tance to the vehicle ahead and the sur-
rounding circumstances in order to main-
tain a safe distance between vehicles.
∙ If the vehicle ahead comes to a stop, the vehicle decelerates to a standstill within
the limitations of the system. The system
will cancel once it judges that the vehicle
has come to a standstill and sound a
warning chime. To prevent the vehicle
from moving, the driver must depress the
brake pedal.
∙ Always pay attention to the operation of the vehicle and be ready to manually con-
trol the proper following distance. The
ICC system may not be able to maintain
the selected distance between vehicles
(following distance) or selected vehicle
speed under some circumstances.
Starting and driving5-89

∙ The system may not detect the vehicle infront of you in certain road or weather
conditions. To avoid accidents, never use
the ICC system under the following
conditions:
– On roads where the traffic is heavy or there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the bumper around the distance sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed
and frequent braking may result in
overheating the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it diffi- cult to keep a proper distance be-
tween vehicles because of frequent
acceleration or deceleration
– Interference by other radar sources
∙ Do not use the ICC system if you are tow- ing a trailer. The system may not detect a
vehicle ahead. ∙ In some road or traffic conditions, a ve-
hicle or object can unexpectedly come
into the sensor detection zone and cause
automatic braking. Always stay alert and
avoid using the ICC system where not
recommended in this warning section.
The radar sensor will not detect the following
objects: ∙ Stationary and slow moving vehicles
∙ Pedestrians or objects in the roadway
∙ Oncoming vehicles in the same lane
∙ Motorcycles traveling offset in the travel lane
The sensor generally detects the signals re-
turned from the vehicle ahead. Therefore, if
the sensor cannot detect the reflection from
the vehicle ahead, the ICC system may not
maintain the selected distance.
The following are some conditions in which the
sensor cannot properly detect a vehicle ahead
and the system may not operate properly:
∙ When snow or road spray from traveling vehicles reduces the sensor’s detection.
∙ When your vehicle is towing a trailer, etc.
∙ When excessively heavy baggage is loaded in the rear seat or cargo area of
your vehicle. The ICC system is designed to automatically
check the sensor’s operation within the limi-
tations of the system.
When the sensor is covered with dirt or is
obstructed, the system will automatically be
canceled. If the sensor is covered with ice, a
transparent or translucent vinyl bag, etc., the
ICC system may not detect them. In these
instances, the vehicle-to-vehicle distance
control mode may not cancel and may not be
able to maintain the selected following dis-
tance from the vehicle ahead. Be sure to
check and clean the sensor regularly.

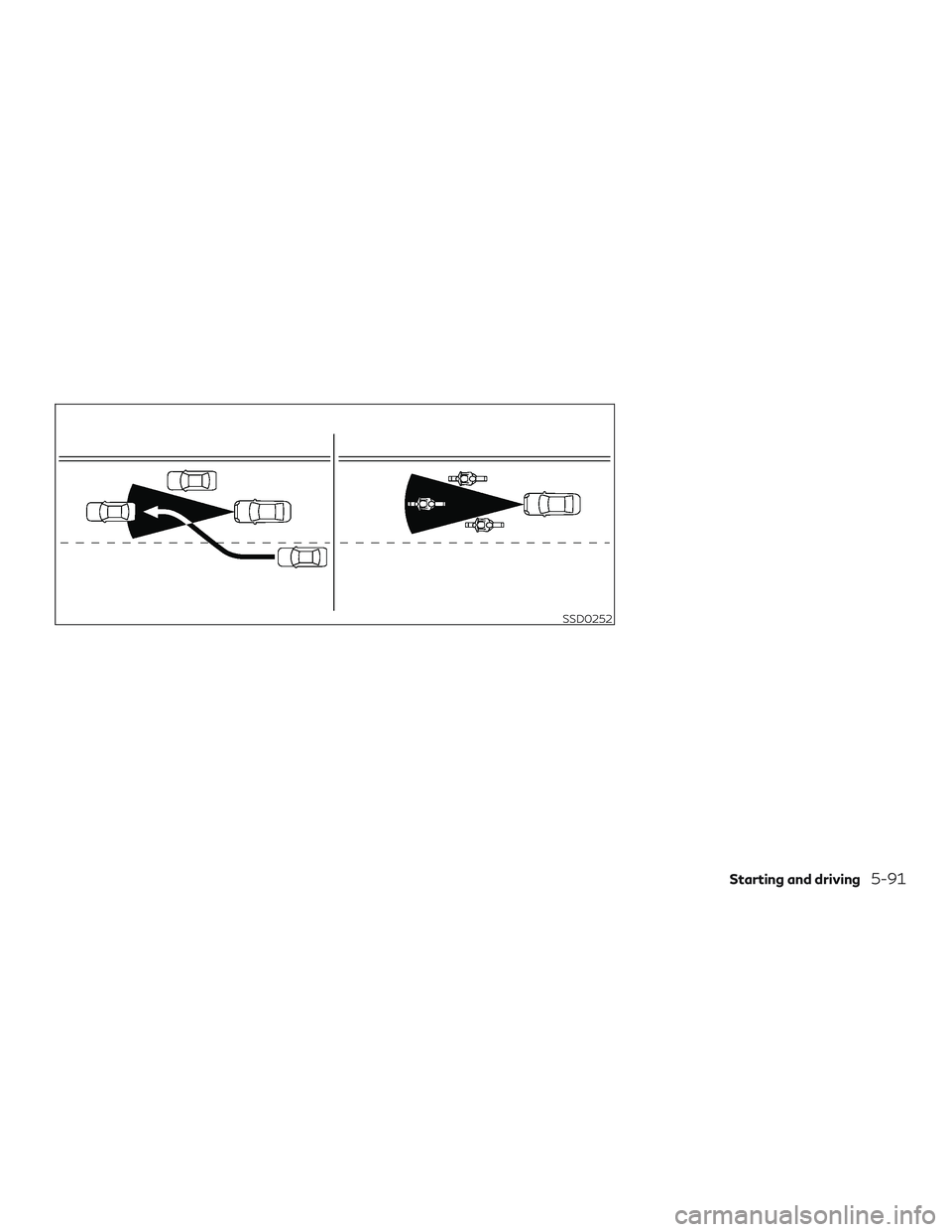

The detection zone of the radar sensor is
limited. A vehicle ahead must be in the detec-
tion zone for the vehicle-to-vehicle distance
detection mode to maintain the selected dis-
tance from the vehicle ahead.
A vehicle ahead may move outside of the
detection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the centerline of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane.
If this occurs, the ICC system may warn you
by blinking the system indicator and sound-
ing the chime. The driver may have to manu-
ally control the proper distance away from
vehicle traveling ahead.
5-90Starting and driving

SSD0252
Starting and driving5-91

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar sen-
sor may detect vehicles in a different lane, or
may temporarily not detect a vehicle traveling
ahead. This may cause the radar system to
decelerate or accelerate the vehicle.
The detection of vehicles may also be af-
fected by vehicle operation (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition.If this occurs, the ICC system may warn you
by blinking the system indicator and sound-
ing the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.
SSD0253
5-92Starting and driving

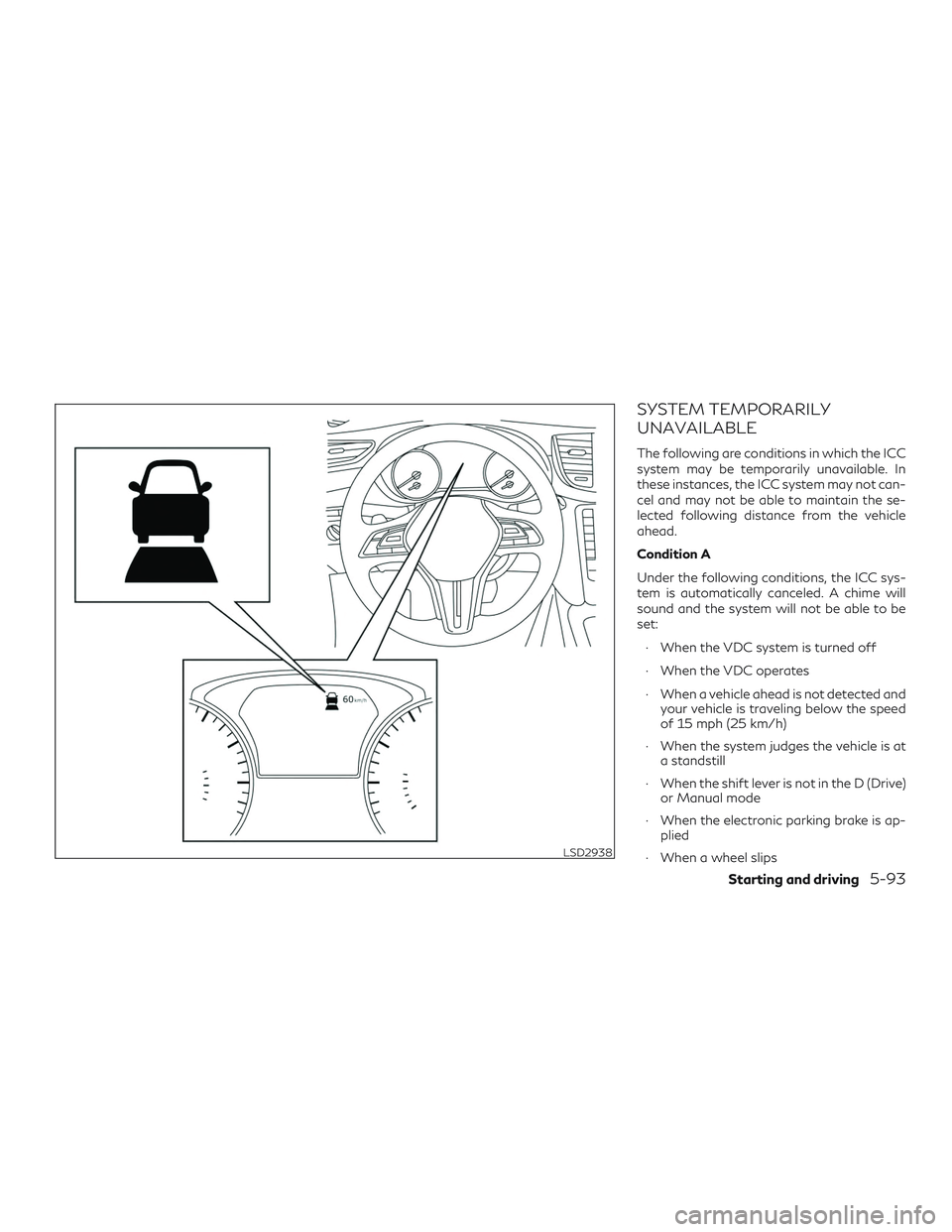

SYSTEM TEMPORARILY
UNAVAILABLE
The following are conditions in which the ICC
system may be temporarily unavailable. In
these instances, the ICC system may not can-
cel and may not be able to maintain the se-
lected following distance from the vehicle
ahead.
Condition A
Under the following conditions, the ICC sys-
tem is automatically canceled. A chime will
sound and the system will not be able to be
set:∙ When the VDC system is turned off
∙ When the VDC operates
∙ When a vehicle ahead is not detected and your vehicle is traveling below the speed
of 15 mph (25 km/h)
∙ When the system judges the vehicle is at a standstill
∙ When the shift lever is not in the D (Drive) or Manual mode
∙ When the electronic parking brake is ap- plied
∙ When a wheel slips
LSD2938
Starting and driving5-93

∙ When the radar signal is temporarily in-terrupted
Action to take
When the conditions listed above are no lon-
ger present, turn the system off using the ICC
switch. Turn the ICC system back on to use
the system.
Condition B
When the radar sensor area of the front
bumper is covered with dirt or is obstructed,
the ICC system will automatically be can-
celed.
The chime will sound and the “Unavailable:
Front Radar Blocked” warning message will
appear in the vehicle information display. Action to take
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Unavailable: Front Radar
Blocked” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls), the system may illuminate the ICC
system warning (yellow) and display the “Un-
available: Front Radar Blocked” message.
Action to take
When the conditions listed above are no lon-
ger present, turn the ICC system back on to
use the system.
Condition C
When the ICC system is not operating prop-
erly, a chime sounds and the ICC system
warning light (orange) will come on.
LSD2985
5-94Starting and driving

Action to take
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.SYSTEM MAINTENANCE
The sensor for the ICC systemAis located
on the front of the vehicle.
To keep the ICC system operating properly,
be sure to observe the following:
∙ Always keep the sensor area clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the sensor. This could cause failure
or malfunction. ∙ Do not attach metallic objects near the
sensor area (brush guard, etc.) This could
cause failure or malfunction.
∙ Do not alter, remove, or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
Radio frequency statement
For USA/Canada
Model: ARS4–A
IC: 4135A-ARS4A
FCC ID: OAYARS4A
This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s):
Operation is subject to the following two
conditions:
1. This device may not cause harmful inter- ference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
LSD2833LSD2981
Starting and driving5-95

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:1. L’appareil ne doit pas produire de brouil- lage, et
2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Radio Frequency Radiation Exposure Infor-
mation:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.
The transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.
Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps. FCC Notice
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE
This mode allows driving at a speed between
25 to 90 mph (40 to 144 km/h) without
keeping your foot on the accelerator pedal.
WARNING
∙ In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the presence
of the vehicle ahead nor the vehicle-to-
vehicle distance is detected.
∙ Pay special attention to the distance be- tween your vehicle and the vehicle ahead
of you or a collision could occur.
∙ Always confirm the setting in the ICC system display.
∙ Do not use the conventional (fixed speed) cruise control mode when driving under
the following conditions: – When it is not possible to keep the ve-
hicle at a set speed
– In heavy traffic or in traffic that varies in speed
– On winding or hilly roads
– On slippery roads (rain, snow, ice, etc.)
– In very windy areas
∙ Doing so could cause a loss of vehicle con- trol and result in an accident.
5-96Starting and driving
