INFINITI QX50 2020 Owners Manual

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ICC system could
result in serious injury or death.
∙ The ICC system is only an aid to assist thedriver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely,
and be in control of the vehicle at all
times.
∙ Always observe posted speed limits and do not set the speed over them.
∙ Always drive carefully and attentively when using the ICC system. Read and un-
derstand the Owner’s Manual thor-
oughly before using the ICC system. To
avoid serious injury or death, do not rely
on the system to prevent accidents or to
control the vehicle’s speed in emergency
situations. Do not use the ICC system ex-
cept in appropriate road and traffic
conditions.

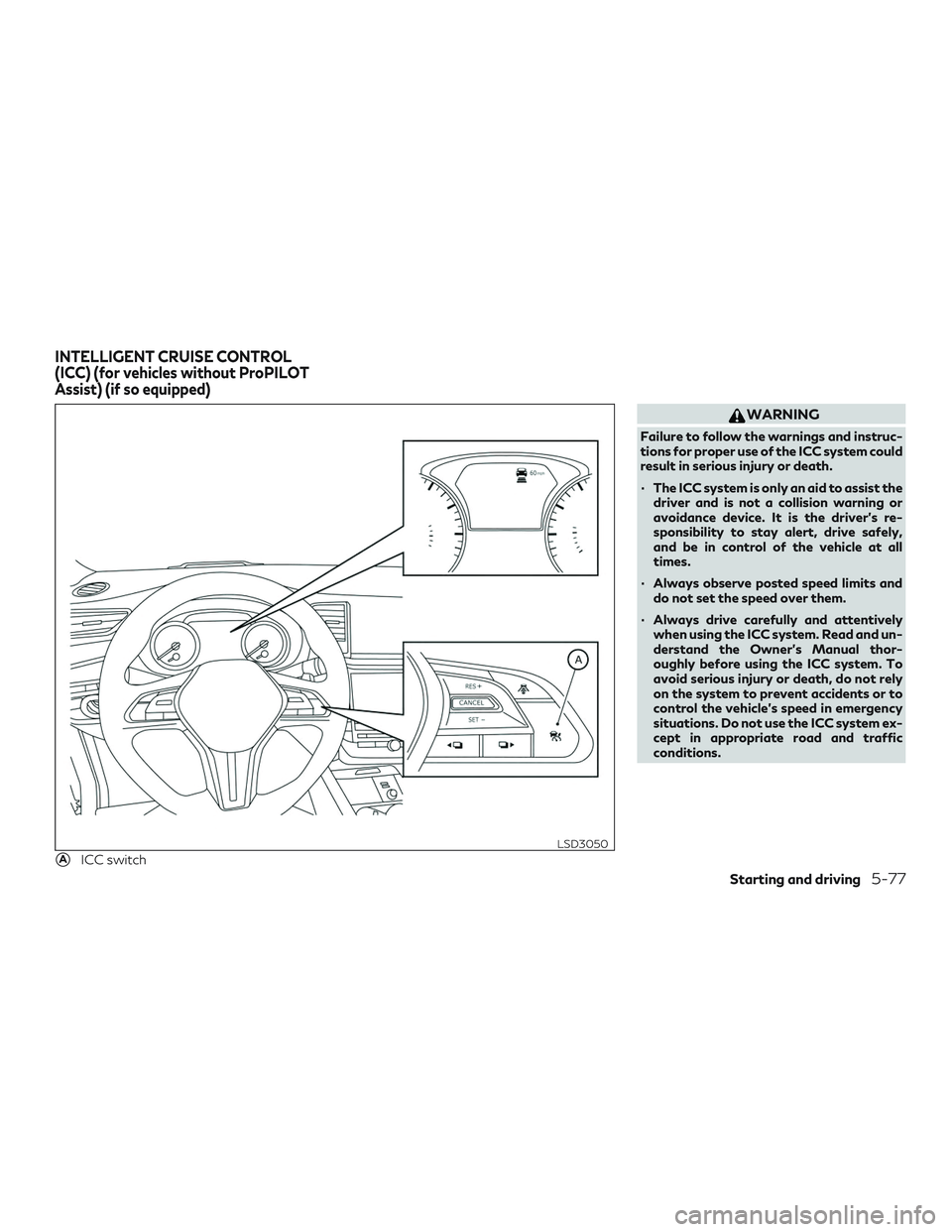

AICC switch
LSD3050
INTELLIGENT CRUISE CONTROL
(ICC) (for vehicles without ProPILOT
Assist) (if so equipped)
Starting and driving5-77

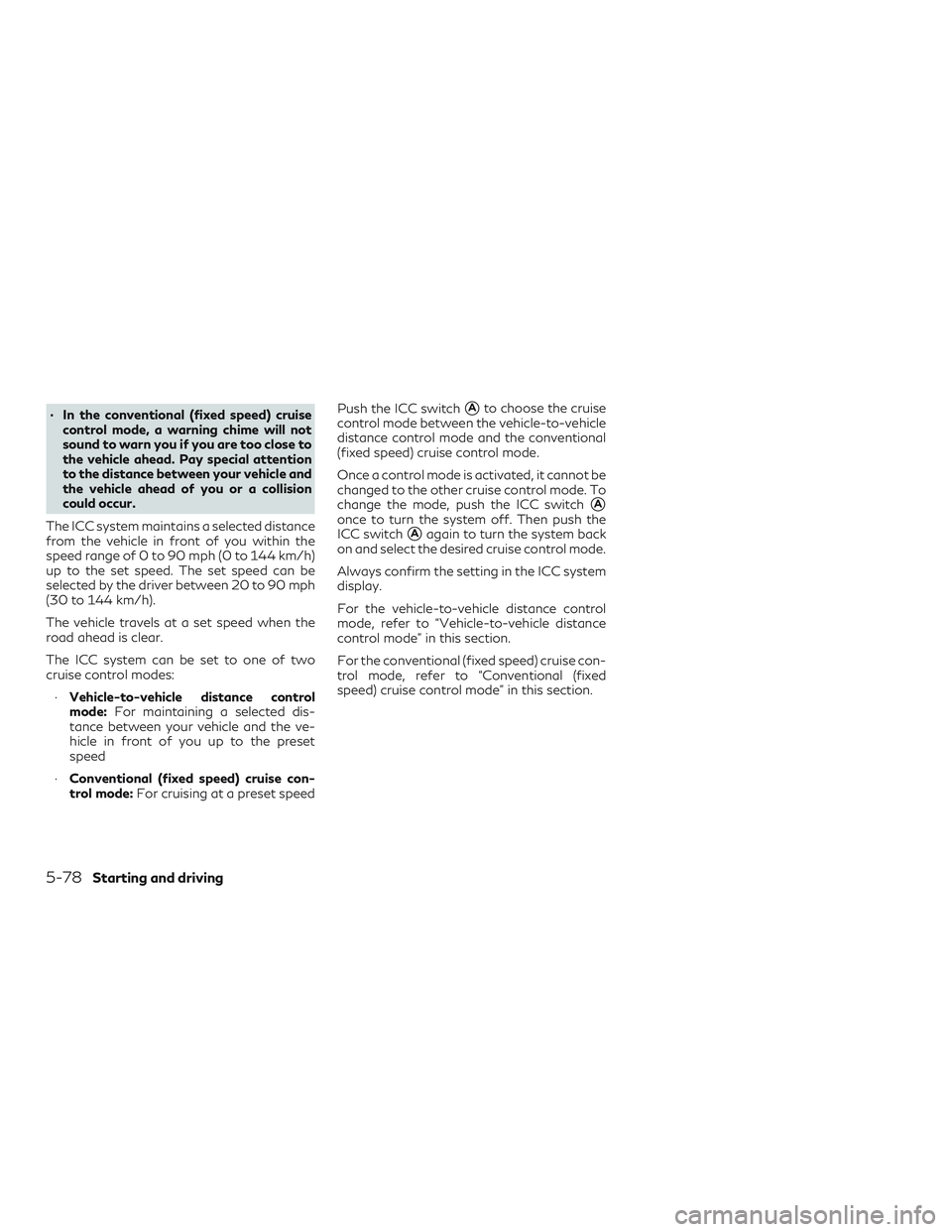

∙ In the conventional (fixed speed) cruisecontrol mode, a warning chime will not
sound to warn you if you are too close to
the vehicle ahead. Pay special attention
to the distance between your vehicle and
the vehicle ahead of you or a collision
could occur.
The ICC system maintains a selected distance
from the vehicle in front of you within the
speed range of 0 to 90 mph (0 to 144 km/h)
up to the set speed. The set speed can be
selected by the driver between 20 to 90 mph
(30 to 144 km/h).
The vehicle travels at a set speed when the
road ahead is clear.
The ICC system can be set to one of two
cruise control modes: ∙ Vehicle-to-vehicle distance control
mode: For maintaining a selected dis-
tance between your vehicle and the ve-
hicle in front of you up to the preset
speed
∙ Conventional (fixed speed) cruise con-
trol mode: For cruising at a preset speed Push the ICC switchAto choose the cruise
control mode between the vehicle-to-vehicle
distance control mode and the conventional
(fixed speed) cruise control mode.
Once a control mode is activated, it cannot be
changed to the other cruise control mode. To
change the mode, push the ICC switch
A
once to turn the system off. Then push the
ICC switch
Aagain to turn the system back
on and select the desired cruise control mode.
Always confirm the setting in the ICC system
display.
For the vehicle-to-vehicle distance control
mode, refer to “Vehicle-to-vehicle distance
control mode” in this section.
For the conventional (fixed speed) cruise con-
trol mode, refer to “Conventional (fixed
speed) cruise control mode” in this section.
5-78Starting and driving

HOW TO SELECT THE CRUISE
CONTROL MODE
Selecting the vehicle-to-vehicle distance
control mode:To choose the vehicle-to-
vehicle distance control mode
1, quickly
push and release the ICC switch
A.
Selecting the conventional (fixed speed)
cruise control mode: To choose the conven-
tional (fixed speed) cruise control mode
2,
push and hold the ICC switch
Afor longer
than approximately 1.5 seconds. For addi-
tional information, refer to “Conventional
(fixed speed) cruise control mode” in this sec-
tion.
VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
In the vehicle-to-vehicle distance control
mode, the ICC system automatically main-
tains a selected distance from the vehicle
traveling in front of you according to that
vehicle’s speed (up to the set speed), or at the
set speed when the road ahead is clear.
The ICC system is intended to enhance the
operation of the vehicle when following a
vehicle traveling in the same lane and direc-
tion.
If the radar sensor
Bdetects a slower mov-
ing vehicle ahead, the system will reduce the
LSD3051LSD2932
Starting and driving5-79

vehicle speed so that your vehicle follows the
vehicle in front at the selected distance.
The system automatically controls the
throttle and applies the brakes (up to ap-
proximately 40% of vehicle braking power) if
necessary.
The detection range of the sensor is approxi-
mately 650 ft (200 m) ahead.
LSD3052
5-80Starting and driving

VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
OPERATION
The vehicle-to-vehicle distance control mode
is designed to maintain a selected distance
from the vehicle in front of you and can re-
duce the speed to match a slower vehicle
ahead. The system will decelerate the vehicle
as necessary and if the vehicle ahead comes
to a stop, the vehicle decelerates to a stand-
still. However, the ICC system can only apply
up to 40% of the vehicle’s total braking
power.
This system should only be used when traffic
conditions allow vehicle speeds to remain
fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because
the ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and blink the
system display to notify the driver to take
necessary action.
The system will cancel and a warning chime
will sound if the speed is below approxi-
mately 15 mph (25 km/h) and a vehicle is notdetected ahead. The system will also disen-
gage when the vehicle goes above the maxi-
mum set speed.
For additional information, refer to “Ap-
proach warning” in this section.
The following items are controlled in the
vehicle-to-vehicle distance control mode:
∙ When there are no vehicles traveling ahead, the vehicle-to-vehicle distance
control mode maintains the speed set by
the driver. The set speed range is be-
tween approximately 20 and 90 mph (30
and 144 km/h).
∙ When there is a vehicle traveling ahead, the vehicle-to-vehicle distance control
mode adjusts the speed to maintain the
distance, selected by the driver, from the
vehicle ahead. If the vehicle ahead comes
to a stop, the vehicle decelerates to a
standstill within the limitations of the sys-
tem. The system will cancel once it judges
a standstill with a warning chime.
∙ When the vehicle traveling ahead has moved out from its lane of travel, the
vehicle-to-vehicle distance control mode
accelerates and maintains vehicle speed
up to the set speed. The ICC system does not control vehicle
speed or warn you when you approach sta-
tionary and slow moving vehicles. You must
pay attention to vehicle operation to main-
tain proper distance from vehicles ahead
when approaching toll gates or traffic con-
gestion.
Starting and driving5-81

When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system will adjust the speed
to maintain the distance, selected by the
driver, from the vehicle ahead. If the vehicle
ahead changes lanes or exits the freeway, the
ICC system will accelerate and maintain the
speed up to the set speed. Pay attention to
the driving operation to maintain control of
the vehicle as it accelerates to the set speed.
The vehicle may not maintain the set speed
on winding or hilly roads. If this occurs, you
will have to manually control the vehicle
speed.Normally when controlling the distance to a
vehicle ahead, this system automatically ac-
celerates or decelerates your vehicle accord-
ing to the speed of the vehicle ahead. De-
press the accelerator to properly accelerate
your vehicle when acceleration is required for
a lane change. Depress the brake pedal when
deceleration is required to maintain a safe
distance to the vehicle ahead due to its sud-
den braking or if a vehicle cuts in. Always stay
alert when using the ICC system.VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
SWITCHES
The system is operated by the ICC switch and
four control switches, all mounted on the
steering wheel.
1. RES+ switch:
Resumes set speed or increases speed
incrementally.
SSD0254LSD3053
5-82Starting and driving

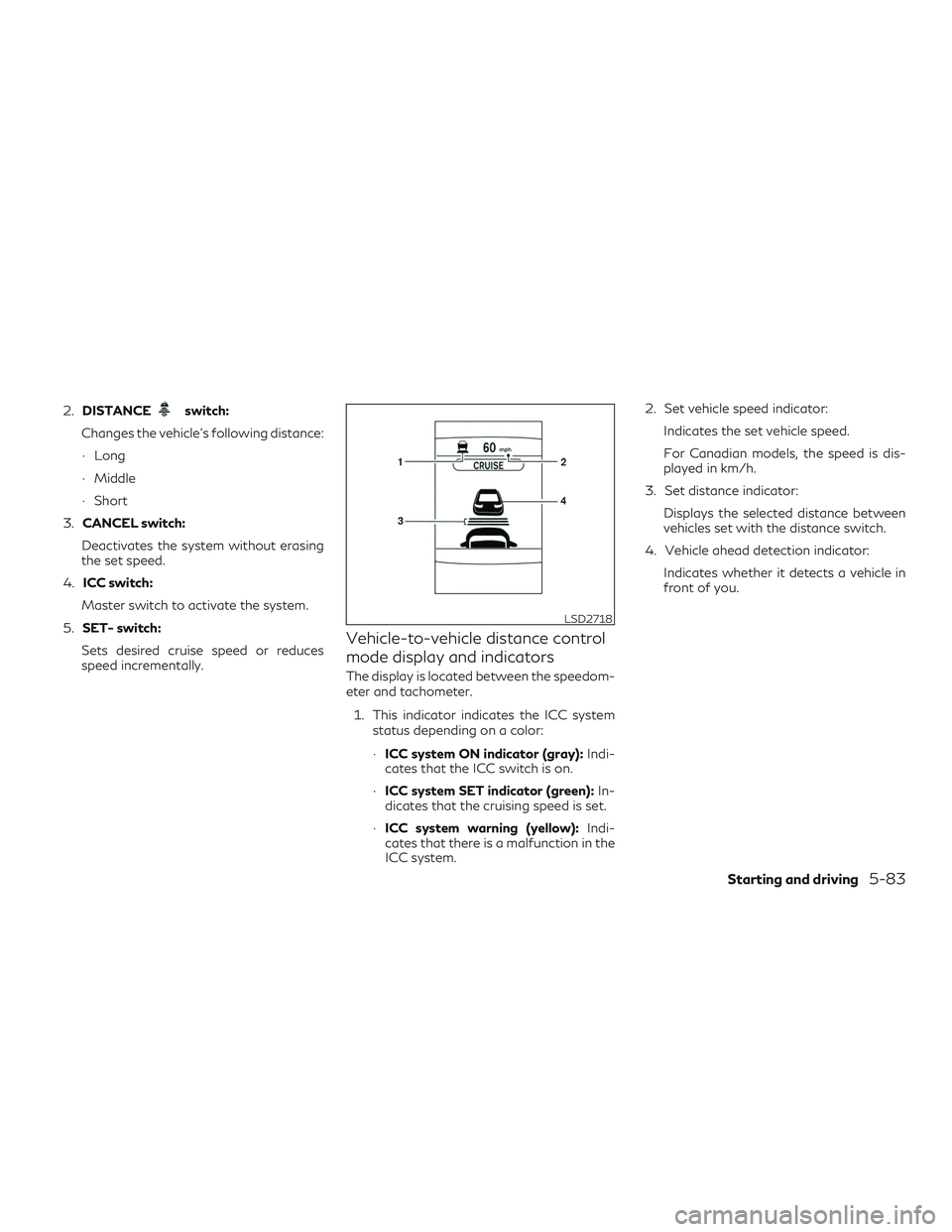

2.DISTANCEswitch:
Changes the vehicle’s following distance:
∙ Long
∙ Middle
∙ Short
3. CANCEL switch:
Deactivates the system without erasing
the set speed.
4. ICC switch:
Master switch to activate the system.
5. SET- switch:
Sets desired cruise speed or reduces
speed incrementally.
Vehicle-to-vehicle distance control
mode display and indicators
The display is located between the speedom-
eter and tachometer.
1. This indicator indicates the ICC system status depending on a color:
∙ ICC system ON indicator (gray): Indi-
cates that the ICC switch is on.
∙ ICC system SET indicator (green): In-
dicates that the cruising speed is set.
∙ ICC system warning (yellow): Indi-
cates that there is a malfunction in the
ICC system. 2. Set vehicle speed indicator:
Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
3. Set distance indicator: Displays the selected distance between
vehicles set with the distance switch.
4. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in
front of you.
LSD2718
Starting and driving5-83

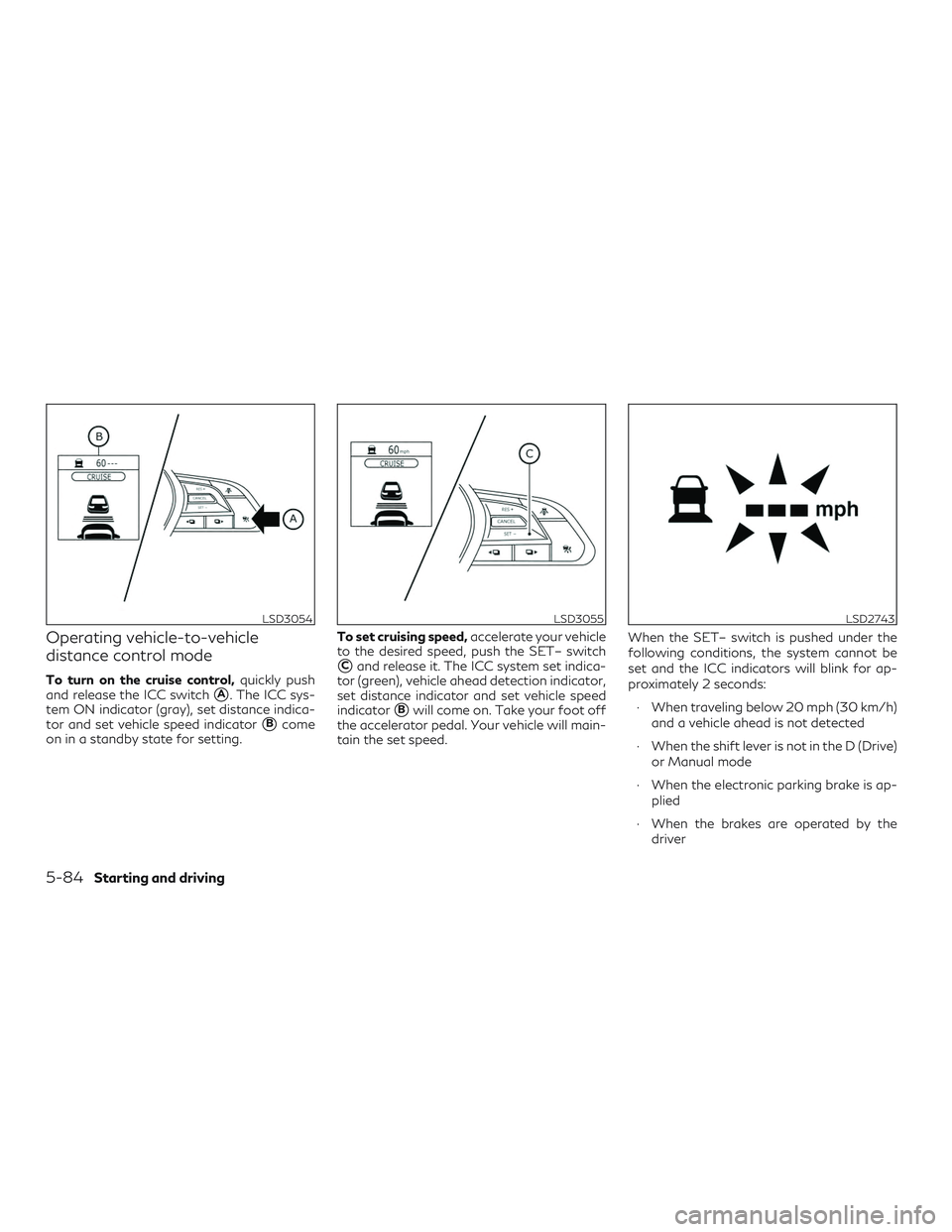

Operating vehicle-to-vehicle
distance control mode
To turn on the cruise control,quickly push
and release the ICC switch
A. The ICC sys-
tem ON indicator (gray), set distance indica-
tor and set vehicle speed indicator
Bcome
on in a standby state for setting. To set cruising speed,
accelerate your vehicle
to the desired speed, push the SET– switch
Cand release it. The ICC system set indica-
tor (green), vehicle ahead detection indicator,
set distance indicator and set vehicle speed
indicator
Bwill come on. Take your foot off
the accelerator pedal. Your vehicle will main-
tain the set speed. When the SET– switch is pushed under the
following conditions, the system cannot be
set and the ICC indicators will blink for ap-
proximately 2 seconds:
∙ When traveling below 20 mph (30 km/h) and a vehicle ahead is not detected
∙ When the shift lever is not in the D (Drive) or Manual mode
∙ When the electronic parking brake is ap- plied
∙ When the brakes are operated by the driver
LSD3054LSD3055LSD2743
5-84Starting and driving

When the SET– switch is pushed under the
following conditions, the system cannot be
set.
A warning chime will sound and a message
will pop up:∙ When the VDC system is off (To use the ICC system, turn on the VDC system.
Push the ICC switch to turn off the ICC
system and reset the ICC switch by push-
ing the ICC switch again.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When VDC is operating
∙ When a wheel is slipping (To use the ICC system, make sure the wheels are no lon-
ger slipping.)
1System set display with vehicle ahead
2System set display without vehicle ahead
The driver sets the desired vehicle speed
based on the road conditions. The ICC sys-
tem maintains the set vehicle speed, similar to
standard cruise control, as long as no vehicle
is detected in the lane ahead. The ICC system
displays the set speed.
Vehicle detected ahead
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by
controlling the throttle and applying the
brakes to match the speed of a slower vehicle ahead. The system then controls the vehicle
speed based on the speed of the vehicle
ahead to maintain the driver selected dis-
tance.
NOTE:
∙ The stop lights of the vehicle come on
when braking is performed by the ICC
system.
∙ When the brake operates, a noise may be
heard. This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected
When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the set
speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator turns off.
If a vehicle ahead appears during accelera-
tion to the set vehicle speed or any time the
ICC system is in operation, the system con-
trols the distance to that vehicle.
LSD2719
Starting and driving5-85

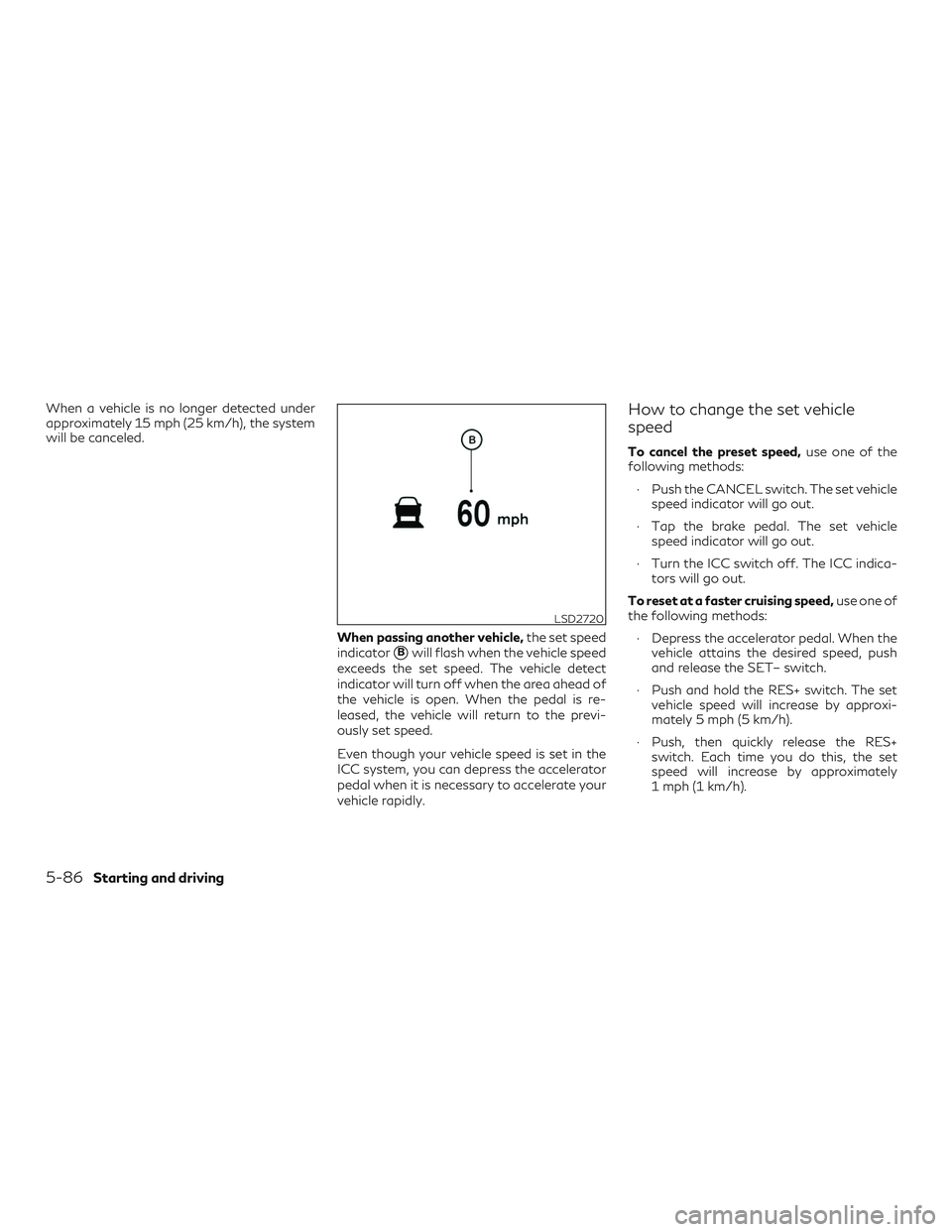

When a vehicle is no longer detected under
approximately 15 mph (25 km/h), the system
will be canceled.When passing another vehicle,the set speed
indicator
Bwill flash when the vehicle speed
exceeds the set speed. The vehicle detect
indicator will turn off when the area ahead of
the vehicle is open. When the pedal is re-
leased, the vehicle will return to the previ-
ously set speed.
Even though your vehicle speed is set in the
ICC system, you can depress the accelerator
pedal when it is necessary to accelerate your
vehicle rapidly.
How to change the set vehicle
speed
To cancel the preset speed, use one of the
following methods:
∙ Push the CANCEL switch. The set vehicle speed indicator will go out.
∙ Tap the brake pedal. The set vehicle speed indicator will go out.
∙ Turn the ICC switch off. The ICC indica- tors will go out.
To reset at a faster cruising speed, use one of
the following methods:
∙ Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET– switch.
∙ Push and hold the RES+ switch. The set vehicle speed will increase by approxi-
mately 5 mph (5 km/h).
∙ Push, then quickly release the RES+ switch. Each time you do this, the set
speed will increase by approximately
1 mph (1 km/h).
LSD2720
5-86Starting and driving
