INFINITI QX50 2020 Owners Manual

Acceleration when passing
When the ICC system is engaged above
44 mph and following a slower vehicle (be-
low ICC set speed), and the turn signal is
activated to the left, the ICC system will au-
tomatically start to accelerate the vehicle to
help initiate passing on the left and will begin
to reduce the distance to vehicle directly
ahead. Only the left side turn signal operates
this feature. As the driver steers the vehicle
and moves into the passing lane, if no vehicle
is detected ahead the ICC system will con-
tinue to accelerate to the ICC system set
speed. If another vehicle is detected ahead,
then the vehicle will accelerate up to the fol-
lowing speed of that vehicle. If the vehicle is
not steered into the left lane to pass, the
acceleration will stop after a short time and
regain the set following distance. Accelera-
tion can be stopped at any point by depress-
ing the brake pedal or the CANCEL switch on
the steering wheel.
WARNING
In order to reduce the risk of a collision that
may result in serious injury or death, please
be aware of the following:
∙ This function is only activated with theleft turn signal and will briefly accelerate
the vehicle even if a lane change is not
initiated. This can include non-passing
situations such as left side exits.
∙ Ensure that when passing another ve- hicle, the adjacent lane is clear before ini-
tiating the pass. Sudden changes in traf-
fic may occur while passing- always
manually steer or brake as needed- never
solely rely on the system.
ICC system limitations
WARNING
Listed below are the system limitations for
the ICC system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death:
∙ The ICC system is primarily intended foruse on straight, dry, open roads with light
traffic. It is not advisable to use the ICC
system in city traffic or congested areas. ∙ The ICC system will not adapt automati-
cally to road conditions. This system
should be used in evenly flowing traffic.
Do not use the system on roads with
sharp curves or on icy roads, in heavy rain
or in fog.
∙ As there is a performance limit to the dis- tance control function, never rely solely
on the ICC system. This system does not
correct careless, inattentive or absent-
minded driving or overcome poor visibil-
ity in rain, fog, or other bad weather. De-
celerate the vehicle speed by depressing
the brake pedal, depending on the dis-
tance to the vehicle ahead and the sur-
rounding circumstances in order to main-
tain a safe distance between vehicles.
∙ When the ICC system automatically brings the car to a stop, your vehicle can
automatically accelerate if the vehicle is
stopped for less than approximately
3 seconds. Be prepared to stop your ve-
hicle if necessary.
Starting and driving5-117

∙ Always pay attention to the operation ofthe vehicle and be ready to manually con-
trol the proper following distance. The
ICC system may not be able to maintain
the selected distance between vehicles
(following distance) or selected vehicle
speed under some circumstances.
∙ The system may not detect the vehicle in front of you in certain road or weather
conditions. To avoid accidents, never use
the ICC system under the following
conditions:
– On roads with heavy, high-speed traf- fic or sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the bumper around the distance sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed
and frequent braking may result in
overheating the brakes)
– On repeated uphill and downhill roads – When traffic conditions make it diffi-
cult to keep a proper distance be-
tween vehicles because of frequent
acceleration or deceleration
– Interference by other radar sources.
∙ Do not use the ICC system if you are tow- ing a trailer. The system may not detect a
vehicle ahead.
∙ In some road or traffic conditions, a ve- hicle or object can unexpectedly come
into the sensor detection zone and cause
automatic braking. Always stay alert and
avoid using the ICC system where not
recommended in this warning section.
The ICC system will not detect the following
objects: ∙ Stationary or slow moving vehicles
∙ Pedestrians or objects in the roadway
∙ Oncoming vehicles in the same lane
∙ Motorcycles traveling offset in the travel lane The following are some conditions in which
the radar sensor cannot properly detect a
vehicle ahead and the system may not oper-
ate properly:
∙ When the sensor detection is reduced (conditions such as rain, snow, fog, dust
storms, sandstorms, and road spray from
other vehicles)
∙ Driving on a steep downhill slope or roads with sharp curves
∙ Driving on a bumpy road surface, such as an uneven dirt road
∙ If dirt, ice, snow or other material is cov- ering the radar sensor area
∙ A complicated-shaped vehicle such as a car carrier trailer or flatbed truck/trailer is
near the vehicle ahead.
∙ Interference by other radar sources
∙ When your vehicle is towing a trailer, etc.
∙ When excessively heavy baggage is loaded in the rear seat or cargo area of
your vehicle.
The ICC system is designed to automatically
check the radar sensor’s operation within the
limitations of the system.
5-118Starting and driving

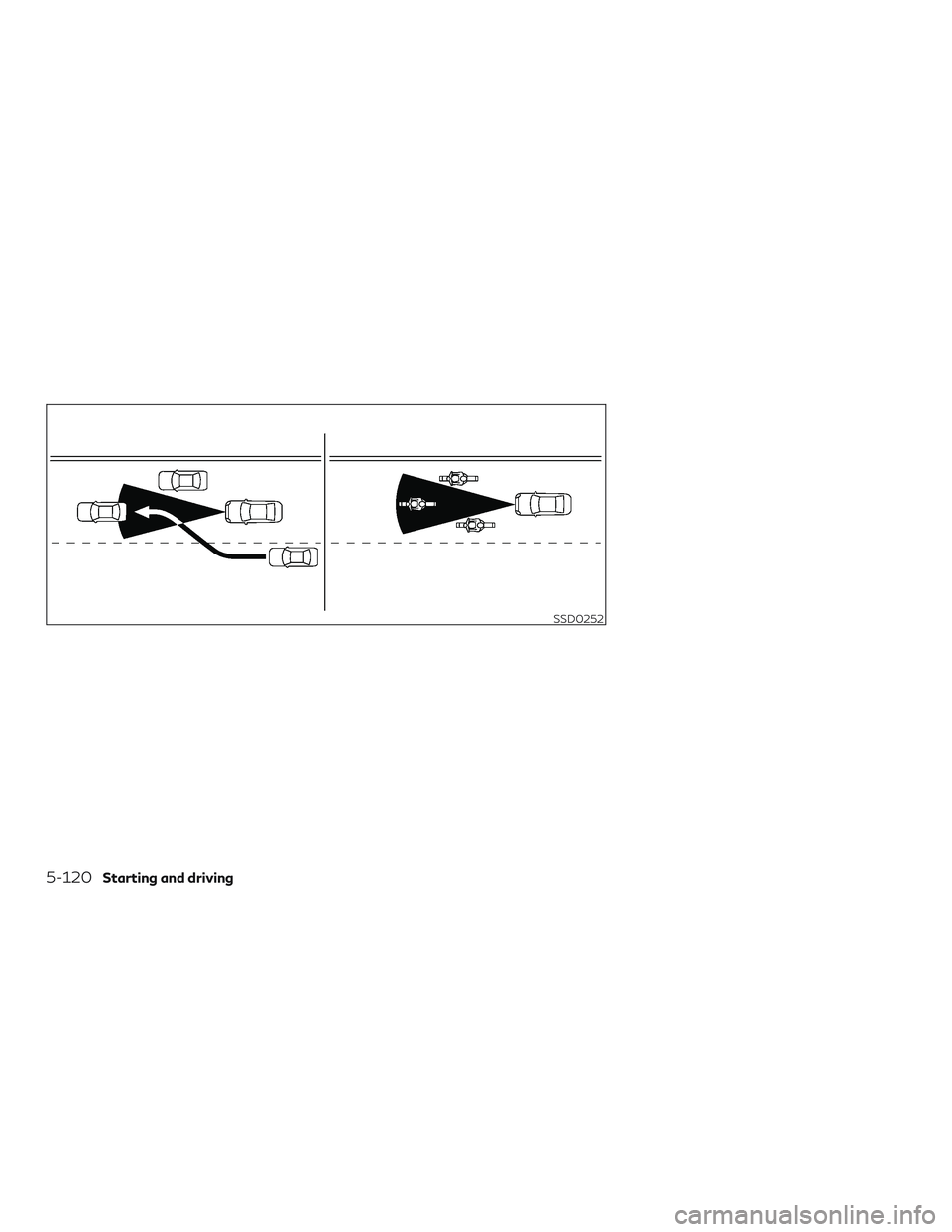

The detection zone of the radar sensor is
limited. A vehicle ahead must be in the detec-
tion zone for the ICC system to maintain the
selected distance from the vehicle ahead. A
vehicle ahead may move outside of the de-
tection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the center line of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane.
If this occurs, the ICC system may warn you
by blinking the system indicator and sounding
the chime. The driver may have to manually
control the proper distance away from the
vehicle traveling ahead.
The ICC system (with ProPILOT Assist) uses
a multi-sensing front camera. The following
are some conditions in which the camera may
not properly detect a vehicle and detection of
a vehicle ahead may be delayed:∙ Poor visibility (conditions such as rain, snow, fog, dust storms, sandstorms, and
road spray from other vehicles)
∙ The camera area of the windshield is fogged up or covered with dirt, water
drops, ice, snow, etc. ∙ Strong light (for example, sunlight or high
beams from oncoming vehicles) enters
the front camera
∙ A sudden change in brightness occurs (for example, when the vehicle enters or
exits a tunnel or shaded area or lightning
flashes)
Starting and driving5-119

SSD0252
5-120Starting and driving

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar sen-
sor may detect vehicles in a different lane, or
may temporarily not detect a vehicle traveling
ahead. This may cause the radar system to
decelerate or accelerate the vehicle.
The detection of vehicles may also be af-
fected by vehicle operation (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition.If this occurs, the ICC system may warn you
by blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.
Automatic cancellation
The following are conditions in which the ICC
system may be temporarily unavailable. In
these instances, the ICC system may not can-
cel and may not be able to maintain the se-
lected following distance from the vehicle
ahead.Condition A
Under the following conditions, the ICC sys-
tem is automatically canceled. A chime will
sound and the system will not be able to be
set:
∙ Any door is open.
∙ The driver’s seat belt is not fastened.
∙ The vehicle ahead is not detected and your vehicle is traveling below the speed
of 15 mph (25 km/h).
∙ Your vehicle has been stopped by the ICC system for approximately 3 minutes or
longer.
∙ The shift lever is not in the D (Drive) po- sition or manual shift mode.
∙ The electronic parking brake is applied.
∙ The VDC system is turned off.
∙ The Forward Emergency Braking with Pedestrian Detection applies harder
braking.
∙ VDC (including the traction control sys- tem) operates.
∙ A wheel slips.
SSD0253
Starting and driving5-121

∙ When distance measurement becomesimpaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in- terrupted.
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off using the
ProPILOT Assist switch. Turn the ProPILOT
Assist system back on to use the system.
NOTE:
When the ICC system is canceled under the
following conditions at a standstill, the elec-
tronic parking brake is automatically acti-
vated: ∙ Any door is open.
∙ The driver’s seat belt is not fastened.
∙ Your vehicle has been stopped by the ICC
system for approximately 3 minutes or
longer.
∙ The shift lever is not in the D (Drive) po-
sition or manual shift mode.
∙ The VDC system is turned off. ∙
When distance measurement becomes
impaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in-
terrupted.
Condition B
When the radar sensor of the front bumper is
covered with dirt or is obstructed, the ICC
system will automatically be canceled.
The chime will sound and the “Unavailable:
Front Radar Blocked” warning message will
appear in the vehicle information display.
Action to take:
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Unavailable: Front Radar
Blocked” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service. Condition C
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls), the system may illuminate the
system warning light and display the “Un-
available: Front Radar Blocked” message.
Action to take:
When the above driving conditions no longer
exist, turn the system back on.
ICC system malfunction
If the ICC system malfunctions, it will be
turned off automatically, a chime will sound,
and the speed control status warning (or-
ange) will illuminate.
Action to take:
If the warning light comes on, stop the vehicle
in a safe place. Turn the engine off, restart
the engine and set the ICC system again. If it
is not possible to set the ICC system or the
indicator stays on, it may be a malfunction.
Although the normal driving can be contin-
ued, the ICC system should be inspected. It is
recommended that you visit an INFINITI re-
tailer for this service.
5-122Starting and driving

ICC sensor maintenance
The radar sensor is located on the front of the
vehicle.
To keep the ICC system operating properly,
be sure to observe the following:∙ Always keep the sensor area clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the sensor. This could cause failure
or malfunction.
∙ Do not attach metallic objects near the sensor area (brush guard, etc.). This could
cause failure or malfunction.
∙ Do not alter, remove, or paint the front bumper.
Before customizing or restoring the front
bumper, it is recommended that you visit an
INFINITI retailer.
The camera sensor is located above the in-
side mirror. To keep the proper operation of the systems
and prevent a system malfunction, be sure to
observe the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the camera unit.
∙ Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.
∙ Do not strike or damage the areas around the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit.
If the camera unit is damaged due to an
accident, it is recommended that you visit an
INFINITI retailer.
STEERING ASSIST
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the Steering Assist
could result in serious injury or death. ∙ The Steering Assist is not a replacement
for proper driving procedures and is not
designed to correct careless, inattentive
or absent-minded driving. The Steering
Assist will not always steer the vehicle to
keep it in the lane. It is not designed to
prevent loss of control. It is the driver’s
responsibility to stay alert, drive safely,
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times.
∙ As there is a performance limit to the Steering Assist’s capability, never rely
solely on the system. The Steering Assist
does not function in all driving, traffic,
weather, and road conditions. Always
drive safely, pay attention to the opera-
tion of the vehicle, and manually control
your vehicle appropriately.
∙ The Steering Assist is intended for use on well-developed freeways or highways
with gentle (moderate) curves. To avoid
risk of an accident, do not use this system
on local or non-highway roads.
∙ The Steering Assist only steers the ve- hicle to maintain its position in the center
of a lane. The vehicle will not steer to
avoid objects in the road in front of the
vehicle or to avoid a vehicle moving into
your lane.
Starting and driving5-123

∙ It is the driver’s responsibility to stayalert, drive safely, keep the vehicle in the
traveling lane, and be in control of the
vehicle at all times. Never take your
hands off the steering wheel when driv-
ing. Always keep your hands on the
steering wheel and drive your vehicle
safely.
∙ Always drive carefully and attentively when using the Steering Assist. Read and
understand the Owner’s Manual thor-
oughly before using the Steering Assist.
To avoid serious injury or death, do not
rely on the system to prevent accidents
or to control the vehicle’s speed in emer-
gency situations. Do not use the Steering
Assist except in appropriate road and
traffic conditions.
Steering Assist operation
The Steering Assist controls the steering sys-
tem to help keep your vehicle near the center
of the lane when driving. The Steering Assist
is combined with the Intelligent Cruise Con-
trol (ICC) system. For additional information,
refer to “Intelligent Cruise Control (ICC) (with
ProPILOT Assist)” in this section. The Steering Assist can be activated when
the following conditions are met:
∙ The ICC system is activated.
∙ Lane markers on both sides are clearly detected.
∙ A vehicle ahead is detected (when the vehicle is driven at speeds under 37 mph
[60 km/h])
∙ The driver grips the steering wheel.
∙ The vehicle is driven at the center of the lane.
∙ The turn signals are not operated.
∙ The windshield wiper is not operated in the high (HI) speed operation (the steer-
ing assist function is disabled after the
wiper operates for approximately
10 seconds).
Steering Assist display and
indicators
1Steering Assist status indicator/
warning
Displays the status of the Steering Assist
by the color of the indicator/warning
∙ Steering Assist indicator (gray): Steer- ing Assist standby
∙ Steering Assist indicator (green): Steering Assist active
∙ Steering Assist indicator (yellow): Steering Assist malfunction
LSD3621
5-124Starting and driving

2Steering Assist indicatorIndicates the status of the Steering As-
sist by the color of the indicator
∙ Steering Assist indicator (gray): Steer- ing Assist standby
∙ Steering Assist indicator (green): Steering Assist active
3Lane marker indicator
Indicates whether the system detects
the lane marker
∙ Lane marker indicator (gray): Lane markers not detected
∙ Lane marker indicator (green): Lane markers detected
∙ Lane marker indicator (yellow): Lane departure is detected
When the Steering Assist is in operation, the
Steering Assist status indicator
1, the Steer-
ing Assist indicator
2, and the lane marker
indicator
3on the vehicle information dis-
play turn green. A chime sounds when the
Steering Assist initially activates. When the Steering Assist deactivates, the
Steering Assist status indicator
1, the Steer-
ing Assist indicator
2, and the lane marker
indicator
3on the vehicle information dis-
play turn gray and a chime sounds twice.
Lane Departure Prevention (LDP)
When a curve or strong cross wind exceeds
the capabilities of the Steering Assist and
your vehicle approaches either the left or the
right side of the traveling lane, a warning
chime sounds and the LDP indicator light
(orange) on the instrument panel flashes to
alert the driver. Then, the LDP system auto-
matically applies the brakes for a short period
of time to help assist the driver to return the
vehicle to the center of the traveling lane. This
action is in addition to any Steering Assist
actions.
Starting and driving5-125

Hands on detection
When the Steering Assist is activated, it
monitors the driver’s steering wheel opera-
tion.
If the steering wheel is not operated or the
driver takes his/her hands off the steering
wheel for a period of time, the warning (1)
appears in the vehicle information display.
If the driver does not operate the steering
wheel after the warning has been displayed,
an audible alert sounds and the warning
flashes in the vehicle information display, fol-
lowed by a quick brake application to request
the driver to take control of the vehicle again.
If the driver still does not respond, the ProPI-
LOT Assist turns on the hazard flasher and
slows the vehicle to a complete stop.
The driver can cancel the deceleration at any
time by steering, braking, accelerating, or op-
erating the ProPILOT Assist switch.
LSD3622
5-126Starting and driving
