INFINITI QX50 2021 Owner's Manual

•Heavy loading of the crossbars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
• Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the
crossbars.
CAUTION
• Use care when placing or removing items
from the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.
Do not apply any load directly to the roof side
rails
OA. CrossbarsOBmust be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle.
INFINITI accessory crossbars may be avail-
able through an INFINITI retailer. It is recom-
mended that you visit an INFINITI retailer for
additional information. The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the crossbars load capacity.
Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear).
For additional information regarding GVWR
and GAWR, refer to:
• F.M.V.S.S. or C.M.V.S.S. certification label
(located on the driver’s door pillar).
Installing crossbars (if so equipped)
WARNING
• It is recommended that you have the roof
rack crossbars installed by an INFINITI
retailer.
• Make sure the moonroof (if so equipped)
is in the closed position during the instal-
lation process.
• Protect the painted area on the vehicle’s
roof under the crossbars by placing a
piece of cloth under the cross bars to pre-
vent scratch damage.
• Do not load the crossbars more than the
rated load capacity and always distrib-
ute the load uniformly. The roof rack crossbars may be installed or
removed. Use an L shaped allen key to install
and remove the crossbars.
Instruments and controls2-57

1. Manually remove the protective covers
from the roof side rails.2. Using an allen key, unturn the screw to
remove the plastic cover.3. Use an allen key to loosen the clamp screw.
LIC3890LIC4561LIC4593
2-58Instruments and controls

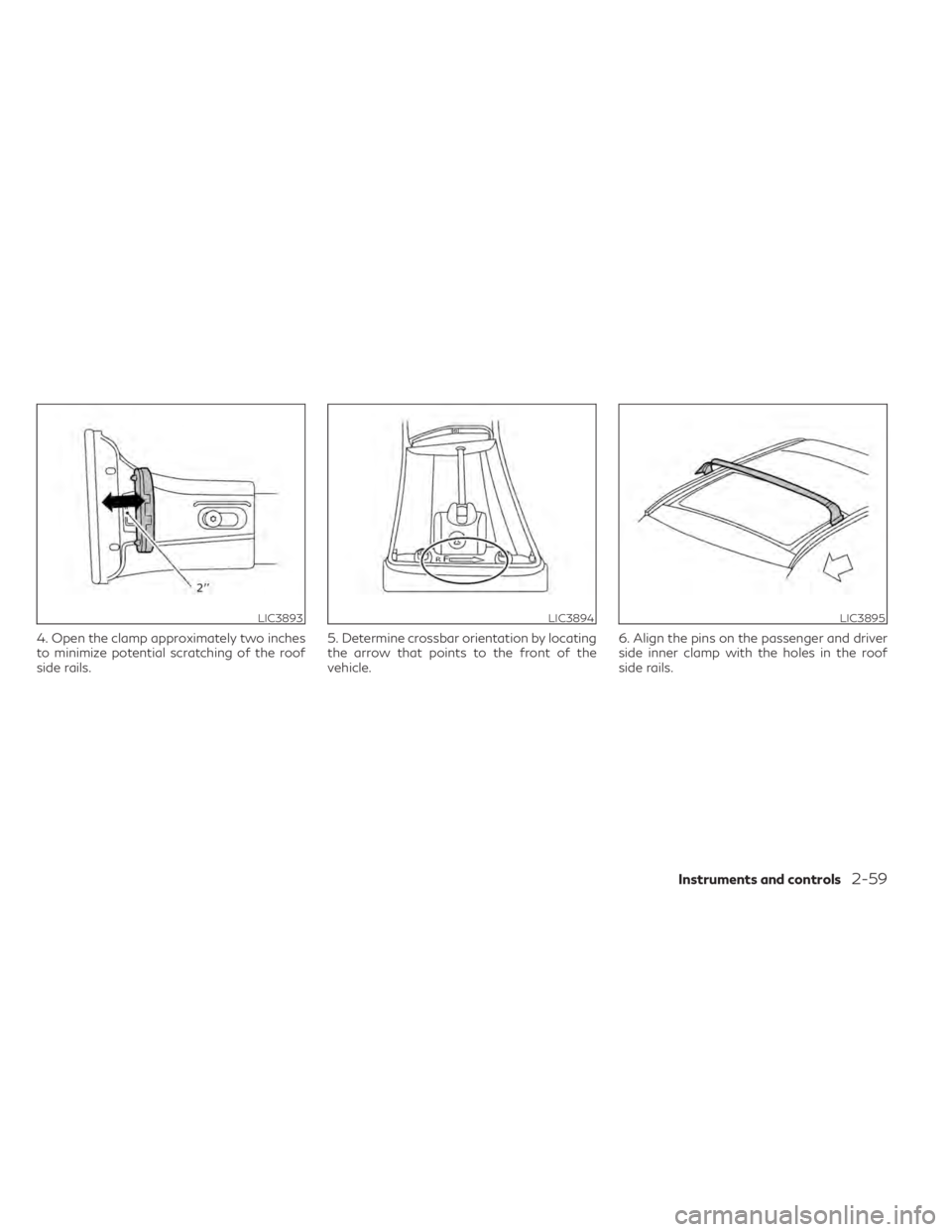

4. Open the clamp approximately two inches
to minimize potential scratching of the roof
side rails.5. Determine crossbar orientation by locating
the arrow that points to the front of the
vehicle.6. Align the pins on the passenger and driver
side inner clamp with the holes in the roof
side rails.
LIC3893LIC3894LIC3895
Instruments and controls2-59

7. While holding the inner clamp, use an allen
key to tighten the clamping screw.8. Tighten both the driver and passenger side
clamping screw.
NOTE:
Using an allen key, tighten to 10 N•m
(7.4 ft.-lbs.).9. Tighten both the driver and passenger side
shoulder screw.
NOTE:
Using an allen key, tighten to 10 N•m
(7.4 ft.-lbs.).
LIC4594LIC4595LIC4562
2-60Instruments and controls

10. Assemble the plastic cover. Slide the
cover over the crossbar.11. Ensure the cover is in the final position. 12. Using an allen key, tighten the screw to
assemble plastic cover.
Using a torque wrench, tighten to 2 N•m
(1.48 ft.-lbs.).
NOTE:
After assembling both the front and rear
crossbars, wiggle the crossbars by hand to
check for loose parts. If either crossbar is
loose, remove the crossbars and repeat steps
1–12 carefully.
To remove crossbars, reverse the installa-
tion steps.
LIC3898LIC3899LIC4596
Instruments and controls2-61

CARGO COVER (if so equipped)
WARNING
• Do not place objects on the cargo cover
while the vehicle is parked or in motion,
no matter how small. The object on the
cargo cover could cause an injury in an
accident or sudden stop, and/or the
cargo cover can become damaged.
• Do not leave the cargo cover in the ve-
hicle with it disengaged from the holder.
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury. •
Properly secure cargo and do not allow it
to contact the top tether strap when it is
attached to the top tether anchor. Cargo
that is not properly secured or cargo that
contacts the top tether strap may dam-
age the top tether strap during a colli-
sion. If the cargo cover contacts the top
tether strap when it is attached to the
top tether anchor, remove the cargo
cover from the vehicle or secure it on the
cargo floor below its attachment loca-
tion. If the cargo cover is not removed, it
may damage the top tether strap during
a collision. Your child could be seriously
injured or killed in a collision if the child
restraint top tether strap is damaged.
The cargo cover keeps the luggage compart-
ment contents hidden from the outside.
To close the cargo cover, remove the cover
from the grooves
O1and retract.
To open the cargo cover, extend the cover
into the grooves
O1to lock into place.
LIC3971
2-62Instruments and controls

POWER WINDOWS
WARNING
• Make sure that all passengers have their
hands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
The power windows operate when the igni-
tion switch is placed in the ON position or for
a period of time after the ignition switch is
placed in the OFF position. If the driver's or
passenger's door is opened during this period
of time, the power to the windows is
canceled.
Driver's side power window switch
The driver's side control panel is equipped
with switches to open or close the front and
rear passenger windows. The window can be partially opened by push-
ing the switch
OAdown lightly until the de-
sired window position is reached. To close
the window partially, pull the switch
OBup
until the desired window position is reached.
Locking passengers' windows
When the window lock buttonOCis de-
pressed, only the driver's side window can be
opened or closed. Press it again to cancel the
window lock function.
SIC4352
1. Driver side automatic switch
2. Front passenger side automatic switch
3. Left rear passenger automatic switch
4. Right rear passenger automatic switch
5. Window lock button
WINDOWS
Instruments and controls2-63

Front passenger's power window
switch
The passenger's window switch operates
only the corresponding passenger's window.
To open the window partially, push the
switch down lightly until the desired window
position is reached. To close the window par-
tially, pull the switch up until the desired win-
dow position is reached.
Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
partially open the window, push the switch
down lightly until the desired window posi-
tion is reached. To partially close the window,
pull the switch up lightly until the desired
window position is reached.
Automatic operation
To fully open a window equipped with auto-
matic operation, push the window switch
down to the second detent and release it; it
need not be held. The window automatically
opens all the way. To stop the window, lift
the switch up while the window is opening.
To fully close a window equipped with auto-
matic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.
SIC4353LIC0410LIC0410
2-64Instruments and controls

Auto-reverse function
The auto-reverse function can be activated
when a window is closed by automatic
operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the window.
If the vehicle's battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate prop-
erly. If this occurs, it is recommended that you
visit an INFINITI retailer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught
in a window equipped with automatic opera-
tion as it is closing, the window will be imme-
diately lowered.
REAR DOOR SUNSHADE (if so
equipped)
The rear door sunshade is located within the
rear doors at the base of the window.
• To raise the sunshade, pull up the center tab
O1.
• Hook the sunshade slots onto the tabs ex- tending from the top of the window frame
O2.
CAUTION
• Do not release the rear door sunshade
during operation. This could damage the
sunshade or cause injury.
• Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. This
could cause improper operation or could
damage the sunshade.
• Do not place objects on or near the rear
sunshade. This could cause improper op-
eration or could damage the sunshade.
NOTE:
To avoid damage to the sunshade, please
note the following:
• Do not pull or push the sunshade, other than upwards.
• Do not pull or push the sunshade with the sunshade hung on the hooks.
• Do not allow liquids or objects on the stor- ing area of the sunshade.
LIC4169
Instruments and controls2-65

POWER MOONROOF
The front moonroof is a power moonroof,
the rear moonroof is fixed glass. The power
moonroof will only operate when the ignition
switch is placed in the ON position. The
moonroof is operational for a period of time,
even if the ignition switch is placed in the OFF
position. If the driver's door or the front pas-
senger's door is opened during this period of
time, the power to the moonroof is canceled.
Sliding the moonroof
To slide the moonroof:
• To fully open the moonroof, push theswitch
O1toward the open position until it
reaches the second detent. If the switch
O1
is pushed to the first detent, only the sun-
shade will open.
• To fully close the moonroof, push the switch
O2toward the close position until it
reaches the second detent. If the switch
O2
is pushed to the first detent, the moonroof
will close but the sunshade will remain
open.
• To stop the moonroof during operation, push the
O1,O2orO3switch to the desired
position.
Tilting the moonroof
To tilt up, push the moonroof switchO3.To
tilt down the moonroof, push the switch
O3,
or the switch
O2to the first detent. When the
switch
O2is pushed to the second detent, the
moonroof will tilt down and the sunshade will
close.
Resetting the moonroof switch
If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system.
1. If the moonroof and sunshade are open, close them fully by repeatedly pushing the
moonroof switch to the close
O2position.
2. Push and hold the moonroof switch to the close position
O2at the first detent.
3. After holding the switch for 10 seconds, the moonroof and sunshade move slightly
to the closed position and then move back
a little.
4. The moonroof and sunshade will fully open and then fully close automatically.
5. Release the switch. Check if the moonroof switch operates normally.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Auto-reverse function
(when closing or tilting down the
moonroof)
The auto-reverse function can be activated
when the moonroof and sunshade are closed
LIC3912
MOONROOF (if so equipped)
2-66Instruments and controls
