odometer INFINITI QX50 2021 Owner's Manual

INFINITI CARES...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:
For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792 The Consumer Affairs Department will ask
for the following information:
– Your name, address, and telephone
number
– Vehicle identification number (on dash panel)
– Date of purchase
– Current odometer reading
– Your INFINITI retailer's name
– Your comments or questions
OR You can write to INFINITI with the informa-
tion on the left at:
For U.S. customers
INFINITI Division
Nissan North America, Inc. Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com
If you prefer, visit us at:
www.infinitiUSA.com (for U.S. customers)
or
www.infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.

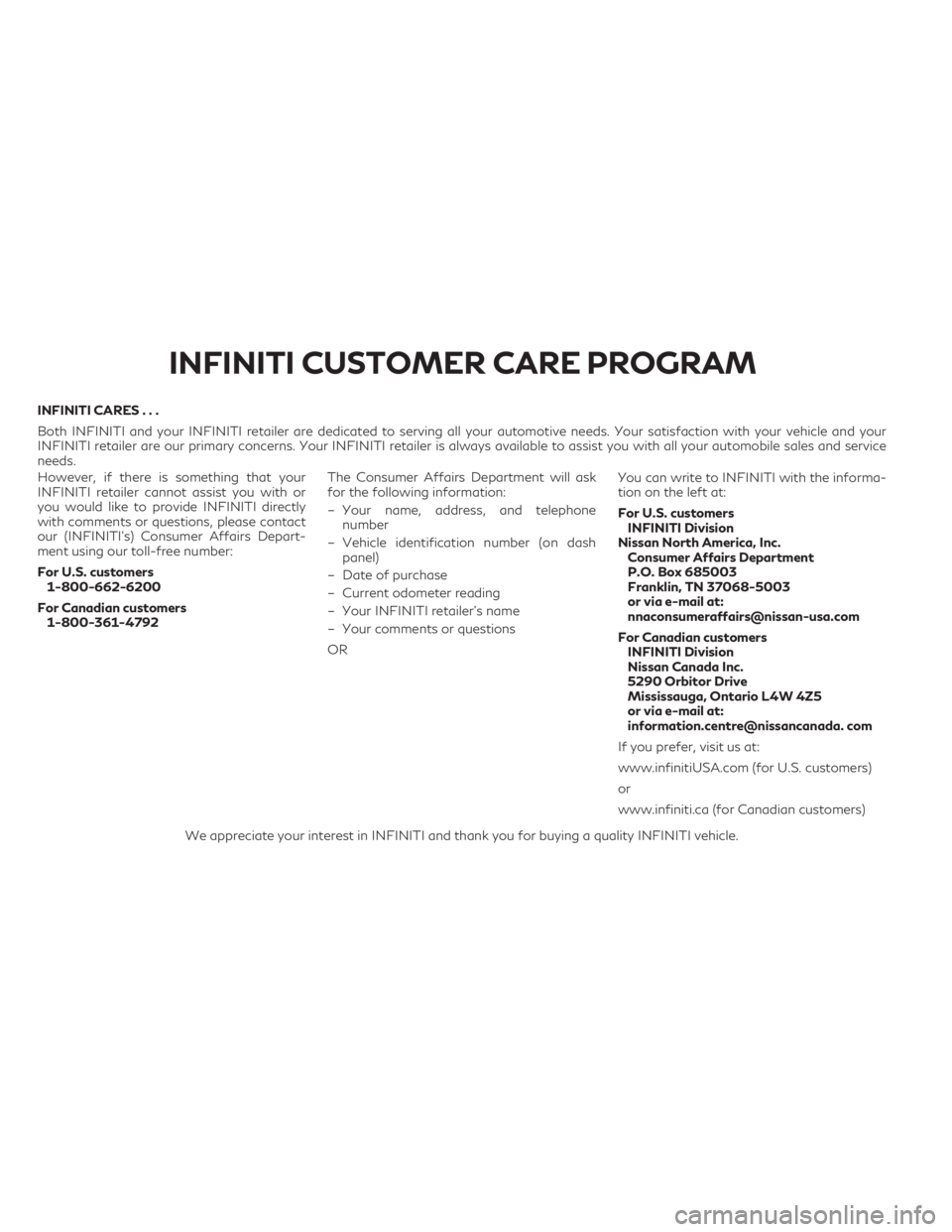

INFINITI CUSTOMER CARE PROGRAM

2 Instruments and controls
Instrument panel.................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer ...................2-4
Tachometer ..................................2-6
Engine coolant temperature gauge ............2-6
Fuel gauge ...................................2-7
Distance To Empty (DTE) .....................2-7
Variable Compression Turbo ..................2-8
Warning lights, indicator lights and audible
reminders ........................................2-9
Checking lights .............................. 2-10
Warning/Indicator lights (red) ...............2-10
Warning/Indicator lights (yellow) ............2-13
Warning/Indicator lights (other) ..............2-17
Audible reminders ........................... 2-18
Vehicle information display .....................2-19
How to use the vehicle information
display ...................................... 2-19
Startup display .............................. 2-20
Resetting the trip computer .................2-20
Oil control system ........................... 2-20
Vehicle information display warnings and
indicators .................................... 2-21
Security systems ............................... 2-29
Vehicle security system ......................2-29
INFINITI Vehicle Immobilizer System .........2-30 Wiper and washer switch
......................2-32
Switch operation ............................ 2-32
Rain-sensing auto wiper system
(if so equipped) ............................. 2-33
Rear switch operation ....................... 2-34
Rear window defroster, outside mirror
defroster (if so equipped), and wiper deicer
(if so equipped) switch ......................... 2-35
Headlight switch ............................... 2-36
Headlight control switch ....................2-36
LED Daytime Running Lights (DRL)
system ..................................... 2-40
Instrument brightness control ................2-41
Turn signal switch ........................... 2-41
Fog light switch (if so equipped) .............2-42
Horn .......................................... 2-42
Climate controlled seat switches
(if so equipped) ................................
2-42
Heated

seats (if so equipped) ...................2-43
Steering Assist switch (for vehicles with
ProPILOT Assist) (if so equipped) ...............2-45
Front and rear sonar system switch
(if so equipped) ................................ 2-45
Head Up Display (HUD) (if so equipped) .........2-46
HowtousetheHUD........................ 2-46

1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Twin trip odometer
Transmission position indicator 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND
ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster. The
odometer is located within the vehicle infor-
mation display.
LIC4174
METERS AND GAUGES
2-4Instruments and controls

Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer and the twin trip odometerO1
are displayed in the vehicle information dis-
play when the ignition switch is placed in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance
of individual trips.
Changing the display
Push the TRIP RESET switchO2on the left
side of the steering column to change the
display as follows:
Trip
→ Trip→Odometer Mile-
age →Trip
Resetting the trip odometer
Pushing the TRIP RESET switchO2for more
than 1 second resets the currently displayed
trip odometer to zero.
LIC3847LIC3848
Instruments and controls2-5

Tire rotation:Rotate tires at the specified
interval shown in the maintenance schedule.
When rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission fluid/oil, differential oil and
transfer case oil: Visually inspect for signs of
leakage at specified intervals.
Replace at specified intervals. To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 90,000 miles (144,000
km)/144 months. For most people, the
odometer reading will indicate when service
is needed. However, if you drive very little,
your vehicle should be serviced at the regular
time intervals shown in the schedule.
After 90,000 miles (144,000 km)/144
months, continue maintenance at the same
mileage/time intervals.
ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS
Additional maintenance items for severe op-
erating conditions
should be performed on
vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following
conditions:
• Repeated short trips of less than 5 miles (8 km). • Repeated short trips of less than 10 miles
(16 km) with outside temperatures remain-
ing below freezing.
• Operating in hot weather in stop-and-go “rush hour” traffic.
• Extensive idling and/or low speed driving for long distances, such as police, taxi or
door-to-door delivery use.
• Driving in dusty conditions.
• Driving on rough, muddy or salt spread roads.
• Towing a trailer, using a camper or using a car-top carrier.
If your vehicle is mainly operated under the
severe conditions, follow the severe mainte-
nance intervals shown in the maintenance
schedule.
MAINTENANCE SCHEDULES
Maintenance and schedules9-7

Engine coolant................8-4Engine oil.................. .8-6Windshield-washer fluid.........8-11Fog light switch................2-42Forward Emergency Braking (FEB) with
Pedestrian Detection system. . .2-13, 5-123Front air bag system
(See supplemental restraint system). . . .1-48Front and rear sonar system........5-160Front and rear sonar system switch. . . .2-45Front power seat adjustment.........1-3Front seats................... .1-2Front-door pocket..............2-50Fuel
Capacities and recommended
fuel/lubricants
.............. .10-2Fuel economy...............5-145Fuel gauge................. .2-7Fuel octane rating.............10-5Fuel recommendation...........10-3Fuel-filler door and cap..........3-28Loose fuel cap warning..........2-22Fuel efficient driving tips..........5-144Fuel gauge................... .2-7Fuel-filler door.................3-28Fuses..................... .8-20Fusible links..................8-21
G
Garage door opener, HomeLink® Universal
Transceiver.......2-70, 2-72, 2-73, 2-74Gas cap.................... .3-28
Gauge
Engine coolant temperature gauge. . . .2-6Fuel gauge................. .2-7Odometer.................. .2-5Speedometer.................2-5Tachometer................. .2-6Trip odometer................2-5General maintenance..............9-2Glove box................... .2-52Glove box lock.................2-52Grocery hooks.................2-56
H
Hazard warning flasher switch........6-2Head restraints.................1-7Head Up Display (HUD)...........2-46Headlight aiming control...........2-40Headlight and turn signal switch......2-36Headlight switch.............. .2-36Headlights.................. .8-24Headlights, aiming control..........2-40Heated seats..................2-43Heater
Heater and air conditioner (automatic)
(if so equipped)
.............. .4-34Heater and air conditioner controls. . .4-35Heater operation..............4-36Heater and air conditioner (automatic). .4-34Heater and air conditioner settings.....4-41Hill start assist system...........5-159HomeLink® Universal
Transceiver.......2-70, 2-72, 2-73, 2-74
Hood..................... .3-21Hook
Luggage hook.............. .2-55Horn...................... .2-42
I
Ignition switch
Push-button ignition switch.......5-13Immobilizer system............. .5-16Important vehicle information label. . . .10-11In-cabin microfilter..............8-16Increasing fuel economy..........5-145Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
............... .2-9, 2-10INFINITI Drive Mode Selector.......5-28INFINITI Intelligent Key System. . . .3-2, 3-6INFINITI InTouch™ Owner's Manual. . . .4-2INFINITI Vehicle Immobilizer
System..............2-30, 3-4, 5-16Inside automatic anti-glare mirror. . . . .3-34Instrument brightness control........2-41Instrument panel.............0-6, 2-2Instrument panel dimmer switch......2-41Intelligent All-Wheel Drive (AWD). . . .5-146Intelligent Cruise Control (ICC)
(for vehicles with ProPILOT Assist). . . .5-87Intelligent Key system
Key operating range............ .3-8Key operation............... .3-9Mechanical key................3-3Remote keyless entry operation.....3-13
11-3

MirrorAutomatic anti-glare inside mirror. . .3-34Outside mirrors.............. .3-34Rearview................. .3-33Vanity mirror................3-33Mirrors.................... .3-33Moonroof................2-66, 7-5Moving Object Detection (MOD)......4-28
O
Octane rating (See fuel octane rating). . .10-5Odometer................... .2-5Oil
Capacities and recommended
fuel/lubricants
.............. .10-2Changing engine oil.............8-6Changing engine oil filter..........8-6Checking engine oil level..........8-6Engine oil.................. .8-6Engine oil and oil filter
recommendation..............10-6Engine oil viscosity.............10-6Outside mirrors............... .3-34Overhead sunglasses holder.........2-53Overheat
If your vehicle overheats..........6-7Owner's manual order form........10-33Owner's manual/service manual order
information................. .10-33
P
Parking
Parking/parking on hills.........5-148Parking brake..........2-11, 2-13, 2-17Personal lights................ .2-69Power
Power door locks............. .3-5Power outlet............... .2-48Power rear windows...........2-64Power steering system. . . .5-149, 5-150Power windows............. .2-63Rear power windows...........2-64Power outlet................. .2-48Power steering...........5-149, 5-150Precautions
Maintenance precautions.........8-2On-pavement and off-road driving
precautions................. .5-8Precautions on booster
seats.........1-22, 1-29, 1-34, 1-38Precautions on child
restraints.......1-22, 1-29, 1-34, 1-38Precautions on seat belt usage......1-11Precautions on supplemental restraint
system................... .1-41Precautions when starting and
driving.................5-4, 5-10Predictive Forward Collision Warning
(PFCW)................... .5-133ProPILOT Assist................5-77Push starting.................. .6-7
R
Radio
Car phone or CB radio..........4-43Rain sensor.................. .2-33Readiness for inspection maintenance (I/M)
test..................... .10-32Rear Automatic Braking (RAB)......5-118Rear Cross Traffic Alert (RCTA).......5-67Rear Door Alert................2-23Rear power sunshade............2-65Rear power windows............ .2-64Rear window defroster, outside mirror
defroster, and wiper deicer switch.....2-35Rear window wiper and washer
switches................... .2-34Rearview mirror................3-33RearView Monitor...............4-3Recommended Fluids.............10-2Recorders
Event Data............... .10-32Refrigerant recommendation........10-7Registering a vehicle in another
country................... .10-10Remote Engine Start.........3-18, 5-17Reporting safety defects (US only). . . .10-31Roadside assistance program.........6-2Roof rack................2-56, 2-57
S
Safety
Child safety rear door lock.........3-6
11-5

Child seat belts. . .1-22, 1-29, 1-34, 1-38Reporting safety defects (US only). .10-31SeatMemory seat........... .3-36, 3-38Seat adjustment
Front power seat adjustment.......1-3Second row bench seats..........1-4Seat beltChild safety................ .1-20Infants and small children........1-20Injured person................1-14Larger children...............1-21Precautions on seat belt usage......1-11Pregnant women..............1-14Seat belt extenders............1-19Seat belt maintenance...........1-19Seat belts.............. .1-11, 7-7Three-point type with retractor.....1-15Seat belt extenders..............1-19Seat belt warning light........1-14, 2-12Seatback pockets.............. .2-51Seats
2nd row bench seat adjustment......1-4Adjustment................. .1-2Armrests................... .1-5Front seats..................1-2Heated seats................2-43Seats/floor mats................7-6Security indicator light............2-12Security system
(INFINITI vehicle immobilizer system),
engine start
..........2-30, 3-4, 5-16Security systemsVehicle security system..........2-29
Self-adjusting brakes............ .8-19Service manual order form.........10-33Servicing air conditioner...........4-42Spark plug replacement...........8-15Spark plugs.................. .8-15Specifications.................10-8Speedometer................. .2-5Speedometer and odometer.........2-4SRS warning label...............1-60Stability control...............5-154Standard maintenance.............9-9Starting
Before starting the engine........5-16Jump starting............ .6-5, 8-14Precautions when starting and
driving................ .5-4, 5-10Push starting.................6-7Starting the engine.............5-16Starting the engine............. .5-16Steering
Power steering system. . . .5-149, 5-150Steering Assist switch
(for vehicles with ProPILOT Assist). . . .2-45Steering wheel................ .3-31Stop light................... .8-25Storage.................... .2-50Storage tray..............2-51, 2-52Sun visors................... .3-32Sunglasses case................2-53Sunglasses holder...............2-53Sunroof................. .2-66, 7-5Supplemental air bag warning labels. . . .1-60Supplemental air bag warning
light.................. .1-61, 2-12
Supplemental front impact air bag
system.................... .1-48Supplemental restraint system
Information and warning labels.....1-60Precautions on supplemental restraint
system................... .1-41Supplemental restraint system
(Supplemental air bag system)........1-41Switch
Autolight switch............. .2-36Automatic power window switch. . . .2-64Fog light switch..............2-42Hazard warning flasher switch......6-2Headlight aiming control.........2-40Headlight and turn signal switch. . . .2-36Instrument brightness control......2-41Power door lock switch...........3-5Rear window wiper and washer
switches.................. .2-34Turn signal switch.............2-41
T
Tachometer.................. .2-6Temperature gauge
Engine coolant temperature gauge. . . .2-6Theft(INFINITI vehicle immobilizer system),
engine start
..........2-30, 3-4, 5-16Three-way catalyst.............. .5-4Tire
Flat tire................... .6-3Tire and Loading Information label. .10-12
11-6

Tire chains.................8-36Tire pressure................8-27Tire rotation................8-36Types of tires................8-33Uniform tire quality grading......10-29Wheel/tire size...............10-9Wheels and tires..............8-27Tire pressure
Low tire pressure warning light.....2-13Tire Pressure Monitoring System (TPMS). .5-5Top tether strap child restraint.......1-26Towing4-wheel drive models.......... .6-10All-wheel drive models...........6-9Flat towing...........10-28, 10-29Tow truck towing............. .6-8Towing load/specification.......10-23Trailer towing.............. .10-19Towing a trailer...............10-19Traffic Sign Recognition (TSR).......5-32Transceiver
HomeLink® Universal
Transceiver
.....2-70, 2-72, 2-73, 2-74TransmissionContinuously Variable Transmission (CVT)
fluid
.................... .8-10Driving with Continuously Variable
Transmission (CVT)............5-18Travel (See registering a vehicle in another
country)................... .10-10Trip odometer..................2-5Trunk light.................. .2-69Turn signal switch...............2-41
U
Uniform tire quality grading........10-29USB/iPod® Charging Ports.........4-42
V
Vanity mirror................. .3-33Variable voltage control system......8-14Vehicle dimensions and weights......10-9Vehicle Dynamic Control (VDC)
system.................... .5-154Vehicle identification............10-10Vehicle identification number (VIN). . .10-10Vehicle identification number (VIN)
(Chassis number)............. .10-10Vehicle identification number (VIN)
plate..................... .10-10Vehicle immobilizer system.........5-16Vehicle information display.........2-19Vehicle loading information........10-15Vehicle recovery................6-11Vehicle security system............2-29(INFINITI vehicle immobilizer system),
engine start..........2-30, 3-4, 5-16Vents..................... .4-33Visors......................3-32
W
Warning
Air bag warning light........1-61, 2-12
Anti-lock brake warning light. .2-10, 2-13Battery charge warning light.......2-11Brake warning light........... .2-10Distance Control Assist (DCA).....5-106Engine oil pressure warning light. . . .2-11Hazard warning flasher switch......6-2Loose fuel cap warning..........2-22Low fuel warning light. .2-12, 2-15, 2-22Low tire pressure warning light.....2-13Low windshield-washer fluid warning
light.................... .2-22Seat belt warning light.......1-14, 2-12Supplemental air bag warning
light..................1-61, 2-12TPMS.................... .2-4Vehicle security system..........2-29Warning labels (for SRS).........1-60Warning/indicator lights and audible
reminders...............2-9, 2-10Warning lights..............2-9, 2-10Warning lights, indicator lights and audible
reminders.................... .2-9Warning systems switch...........2-45Warning/indicator lights and audible
reminders................ .2-9, 2-10Audible reminders..........2-9, 2-10Indicator lights............2-9, 2-10Warning lights............2-9, 2-10Washer switch
Rear window wiper and washer
switches
.................. .2-34Weights (See dimensions and weights). .10-9Wheel/tire size................10-9Wheels and tires................8-27
11-7
