WARNING
Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the
ALR mode activated, the child can be seri-
ously injured or killed if the seat belt re-
tracts and becomes tight. This can occur
even if the vehicle is parked. Unbuckle the
seat belt to release the child. If the seat belt
cannot be unbuckled or is already unbuck-
led, release the child by cutting the seat
belt with a suitable tool (such as a knife or
scissors) to release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices,
and community organizations. Every child is
different, so be sure to learn the best way to
transport your child.
There are three basic types of child restraint
systems:
• Rear-facing child restraint • Forward-facing child restraint
• Booster seat
The proper restraint depends on the child's
size. Generally, infants up to about 1 year and
less than 20 lbs. (9 kg) should be placed in
rear-facing child restraints. Forward-facing
child restraints are available for children who
outgrow rear-facing child restraints and are
at least 1 year old. Booster seats are used to
help position a vehicle lap/shoulder belt on a
child who can no longer use a forward-facing
child restraint.
WARNING
Infants and children need special protec-
tion. The vehicle's seat belts may not fit
them properly. The shoulder belt may come
too close to the face or neck. The lap belt
may not fit over their small hip bones. In an
accident, an improperly fitting seat belt
could cause serious or fatal injury. Always
use appropriate child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. For
additional information, see “Child restraints”
(P. 1-22).
A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor and Tethers for CHildren) system or with the
vehicle seat belt. For additional information,
see “Child restraints” (P. 1-22).
INFINITI recommends that all pre-teens and
children be restrained in the rear seat. Stud-
ies show that children are safer when prop-
erly restrained in the rear seat than in the
front seat.
This is especially important because your ve-
hicle has a supplemental restraint system
(air bag system) for the front passenger. For
additional information, see “Supplemental
Restraint System (SRS)” (P. 1-41).INFANTS
Infants up to at least 1 year old should be
placed in a rear facing child restraint.
INFINITI recommends that infants and small
children be placed in child restraints. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer's
instructions for installation and use.
SMALL CHILDREN
Children that are over 1 year old and weigh at
least 9 kg (20 lbs.) should remain in a rear-
facing child restraint as long as possible up to
the height or weight limit of the child re-
straint. Children who outgrow the height or
weight limit of the rear-facing child restraint
CHILD SAFETY
1-20Safety-Seats, seat belts and supplemental restraint system

WARNING
• When sitting in the rear seat, do not hold
onto the seatback of the front seat. If the
side air bag inflates, you may be seriously
injured. Be especially careful with chil-
dren, who should always be properly re-
strained. Some examples of dangerous
riding positions are shown in the
illustrations.
• Do not use seat covers on the front seat-
backs. They may interfere with side air
bag inflation.
WRS0032SSS0159
Safety-Seats, seat belts and supplemental restraint system1-47

VARIABLE COMPRESSION
TURBO
Your engine is equipped with a variable com-
pression ratio system called “Variable Com-
pression Turbo”. This system can vary the
engine compression ratio continuously.
According to driving conditions, the system
applies optimum compression ratio auto-
matically to achieve both high output and
high fuel economy efficiency.This is not a physical gauge. It is a display
option in the vehicle information display that
can be selected. For additional information,
see “Vehicle information display” (P. 2-19).
1Compression ratio status display
Displays the status of compression ratio
controlled by Variable Compression
Turbo. The lowest compression ratio
(8:1) and the highest (14:1) are displayed
as “Power” and ”Eco” respectively.
2Turbo charger boost pressure gauge
Displays the turbo charger boost
pressure.
NOTE:
Under some conditions, the compression ra-
tio may not change. This is not a malfunction
of the system.
CAUTION
If the Variable Compression Turbo be-
comes faulty, the Malfunction Indicator
Light (MIL) may come on. For additional
information, see “Malfunction Indicator
Light (MIL)” (P. 2-15).
LIC3924
2-8Instruments and controls

Power steering warning
light
WARNING
• If the engine is not running or is turned
off while driving, the power assist for the
steering will not work. Steering will be
harder to operate.
• When the power steering warning light
illuminates with the engine running,
there will be no power assist for the
steering. You will still have control of the
vehicle, but the steering will be harder to
operate. Have the power steering sys-
tem checked. It is recommended that you
visit an INFINITI retailer for this service.
Models with Direct Adaptive Steering®:
When the ignition switch is in the ON posi-
tion, the power steering warning light illumi-
nates. After starting the engine, the power
steering warning light stays on for a few
seconds and turns off. This indicates that
Direct Adaptive Steering is operational. Drive
the vehicle after the power steering warning
light turns off.
If the power steering warning light illumi-
nates while driving, pull off the road to a safe
location and stop the vehicle. If the power
steering warning light turns off, you can drive again. If the power steering warning light
continues to illuminate, have the Direct
Adaptive Steering checked. It is recom-
mended that you visit an INFINITI retailer for
this service. For additional information, see
“Power Steering”. (P. 5-149).
Models with electric power steering:
When the ignition switch is in the ON posi-
tion, the power steering warning light illumi-
nates. After starting the engine, the power
steering warning light turns off. This indicates
the electric power steering is operational.
If the power steering warning light illumi-
nates while the engine is running, it may indi-
cate the electric power steering is not func-
tioning properly and may need servicing. It is
recommended that you have the electric
power steering checked by an INFINITI
retailer.
When the power steering warning light illu-
minates with the engine running, the power
assist to the steering will cease operation but
you will still have control of the vehicle. At this
time, greater steering efforts are required to
operate the steering wheel, especially in
sharp turns and at low speeds. For additional
information, see “Power Steering” (P. 5-149).
Rear Automatic Braking
(RAB) warning light
This light comes on when the ignition switch
is placed in the ON position. It turns off after
the engine is started.
This light illuminates when the RAB system is
turned off in the vehicle information display.
If the light illuminates when the RAB system
is on, it may indicate that the system is un-
available. For additional information, see
“Rear Automatic Braking (RAB)” (P. 5-118).
Slip indicator light
This indicator light will blink when the VDC
system is operating, thus alerting the driver to
the fact that the road surface is slippery and
the vehicle is nearing its traction limits.
You may feel or hear the system working; this
is normal.
The light will blink for a few seconds after the
VDC system stops limiting wheel spin.
2-16Instruments and controls

This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed. You can start the engine
from any position of the ignition switch.
Push Ignition to OFF
After the Push Ignition to OFF indicator ap-
pears, the warning will appear if the ignition
switch is placed in the AUTO ACC position
when the shift lever is moved to the P (Park)
position.
To turn off the Push warning, place the igni-
tion switch in the ON position and then in the
LOCK position.
Rear seat belt reminder
This rear seat belt reminder appears after
starting the engine.
If any of the rear passenger seat belts are not
fastened, the seat belt icon illuminates in red
to show which seat belt is not fastened.
When a rear passenger’s seat belt has been
securely fastened, the color of the corre-
sponding seat belt icon will change. The
warning will automatically turn off after ap-
proximately 35 seconds.
A chime will sound one time and the rear seat
belt warning will appear if a rear passenger’s
seat belt is unfastened. The chime will notsound when the vehicle speed exceeds 10
mph (15km/h). The seat belt icon illuminates
in red until the corresponding rear passen-
ger’s seat belt is fastened. The warning will
automatically turn off after approximately 35
seconds.
Release Parking Brake
This warning appears in the message area of
the vehicle information display when the
parking brake is set and the vehicle is driven.
Reminder: Turn OFF
Headlights
This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the OFF
or AUTO position. For additional informa-
tion, see “Headlight switch” (P. 2-36).
Shift system malfunction: Visit Dealer
This message appears when a malfunction
occurs in the electric shift control system at 6
mph (10 km/h) or higher.
Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Shift to Park
This warning appears only when all the fol-
lowing conditions are met:
• The ignition switch is in the ON position.
• The driver’s door is open.
• Vehicle is stopped (or vehicle speed is less
than 1.8 mph (3 km/h).
• Shift lever is in a position other than the P (Park) position.
If this warning appears, move the shift lever
to the P position.
Shift to P range
This warning appears when the driver’s door
is opened with the shift position in any posi-
tion other than the P (Park) position.
If this warning appears, move the shift lever
to the P position.
Shipping Mode On Push Storage Fuse
This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended stor-
age switch to turn off the warning. For addi-
tional information, see “Extended storage
switch” (P. 2-49).
Instruments and controls2-23

WARNING
When the high fluid temperature protec-
tion mode operation occurs, vehicle speed
may be gradually reduced. The reduced
speed may be lower than other traffic,
which could increase the chance of a colli-
sion. Be especially careful when driving. If
necessary, pull to the side of the road at a
safe place and allow the transmission to
return to normal operation; or have it re-
paired if necessary.Engine hot Power reduced
This engine has a high fluid temperature pro-
tection mode. If the fluid temperature be-
comes too high (for example, climbing steep
grades in high temperatures with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to re-
duce the chance of engine damage. Vehicle
speed can be controlled with the accelerator
pedal, but the engine and vehicle speed may
be reduced.
WARNING
When the high fluid temperature protec-
tion mode operation occurs, vehicle speed
may be gradually reduced. The reduced
speed may be lower than other traffic,
which could increase the chance of a colli-
sion. Be especially careful when driving. If
necessary, pull to the side of the road at a
safe place and allow the engine to return to
normal operation; or have it repaired if
necessary.
Engine Malfunction: Power Reduced
Service now
This warning appears when the engine is not
operating under normal conditions. If this
warning comes on, have the system checked. It is recommended that you visit an INFINITI
retailer for this service.
Engine Malfunction Service now
This warning appears when there is a prob-
lem with the engine. If this warning comes on,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Engine Stalled: Stop safely
This message appears 30 seconds before the
vehicle is shut down due to an above normal
operating exhaust temperature. The Mal-
function Indicator Light (MIL) and malfunc-
tion warning (red) will illuminate. Have the
system checked. It is recommended that you
visit an INFINITI retailer immediately for this
service.
Service CVT (AT) Power reduced
This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, climbing
steep grades in high temperatures with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to re-
duce the chance of transmission damage.
Vehicle speed can be controlled with the ac-
celerator pedal, but the engine and vehicle
speed may be reduced.
Instruments and controls2-25

WARNING
When the high fluid temperature protec-
tion mode operation occurs, vehicle speed
may be gradually reduced. The reduced
speed may be lower than other traffic,
which could increase the chance of a colli-
sion. Be especially careful when driving. If
necessary, pull to the side of the road at a
safe place and allow the transmission to
return to normal operation; or have it re-
paired if necessary.
Blind Spot Warning (BSW)
indicator
This indicator appears when the BSW system
is engaged.
For additional information, see “Blind Spot
Warning (BSW)” (P. 5-45) and “Blind Spot
Intervention® (BSI)” (P. 5-54).
Cruise control indicator
This indicator shows the cruise control sys-
tem status.
When cruise control is activated, a green
circle will appear to indicate it is set. The
vehicle information display will also display
the speed the cruise control was set at. If you
accelerate past the set speed, the speed will
blink until you either cancel cruise control or go back to the set speed. If cruise control is on
and canceled, the speed will be displayed to
show the speed the vehicle will return to if the
resume button is activated.
Currently not available
This message appears when the VDC system
is turned off. The following systems (if so
equipped) will be turned off automatically:
BSI system, DCA system, LDP system and
the ProPILOT Assist system.
For additional information, see “Vehicle Dy-
namic Control (VDC)” (P. 5-154), “Blind Spot
Intervention® (BSI)” (P. 5-54), “Distance
Control Assist (DCA)” (P. 5-106), “Lane De-
parture Prevention (LDP)” (P. 5-40) and/or
“ProPILOT Assist” (P. 5-77).
Distance Control Assist
(DCA) ON / Lane Departure
Prevention (LDP) ON / Blind
Spot Intervention® (BSI) ON
/ ProPILOT Assist status
indicator
This indicator shows when the DCA/LDP/
BSI/ProPILOT system is engaged.
For additional information, see “Distance
Control Assist (DCA)” (P. 5-106), Lane De-
parture Prevention (LDP) (P. 5-40), Blind
Spot Intervention® (BSI) (P. 5-54), ProPILOT
Assist (P. 5-77).
Lane Departure Warning
(LDW)/Lane Departure
Prevention (LDP) indicator
This indicator shows when the LDW/LDP
systems are engaged.
For additional information, see “Lane Depar-
ture Warning (LDW)” (P. 5-35) and “Lane
Departure Prevention (LDP) (P. 5-40).
Malfunction
This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly:
• Blind Spot Intervention® (BSI)
• Blind Spot Warning (BSW)
• Distance Control Assist (DCA)
• Forward Emergency Braking (FEB) with
Pedestrian Detection
• Lane Departure Warning (LDW)
• Lane Departure Prevention (LDP)
• Predictive Forward Collision Warning (PFCW)
• ProPilot Assist
• Rear Cross Traffic Alert (RCTA)
• Traffic Sign Recognition (TSR)
2-26Instruments and controls

Vehicle Immobilizer System key on a separate
key ring to avoid interference from other
devices.
FCC Notice:
For USA:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.Security indicator light
The security indicator light blinks whenever
the ignition switch is placed in the OFF or
LOCK position.
This function indicates the INFINITI Vehicle
Immobilizer System is operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, the light will remain on while
the ignition switch is placed in the ON
position.If the light still remains on and/or the engine
will not start, seek service for the INFINITI
Vehicle Immobilizer System service as soon
as possible. Please bring all registered keys
that you have. It is recommended that you
visit an INFINITI retailer for this service.
LIC0474
Instruments and controls2-31

CAUTION
• The battery could run down if the climate
control seat is operated while the engine
is not running.
• Do not use the climate control seat for
extended periods or when no one is using
the seat.
• Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
• Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.
• Any liquid spilled on the seat should be
removed immediately with a dry cloth.
• When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.
• If any malfunctions are found or the cli-
mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you
visit an INFINITI retailer for this service. The climate controlled seat cools down the
front seat by blowing cool air from under the
surface of the seat. The climate control
switch is located on the center console.
The climate controlled seat can be operated
as follows:
1. Place the ignition switch in the ON
position.
2. Push the climate controlled seat switches to cool the seat. The indicator light on the
corresponding switch will illuminate.
3. Adjust the desired amount of air by push- ing the switch again. The climate con-
trolled seat blower remains on low speed
for approximately 60 seconds after push-
ing the switch on.
4. When the vehicle's interior is warmed or cooled, or before you leave the vehicle, be
sure to turn off the climate controlled
seats. To turn off the climate controlled
seats, push the switch until the indicator
light does not illuminate.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.
LIC3906
HEATED SEATS (if so equipped)
Instruments and controls2-43

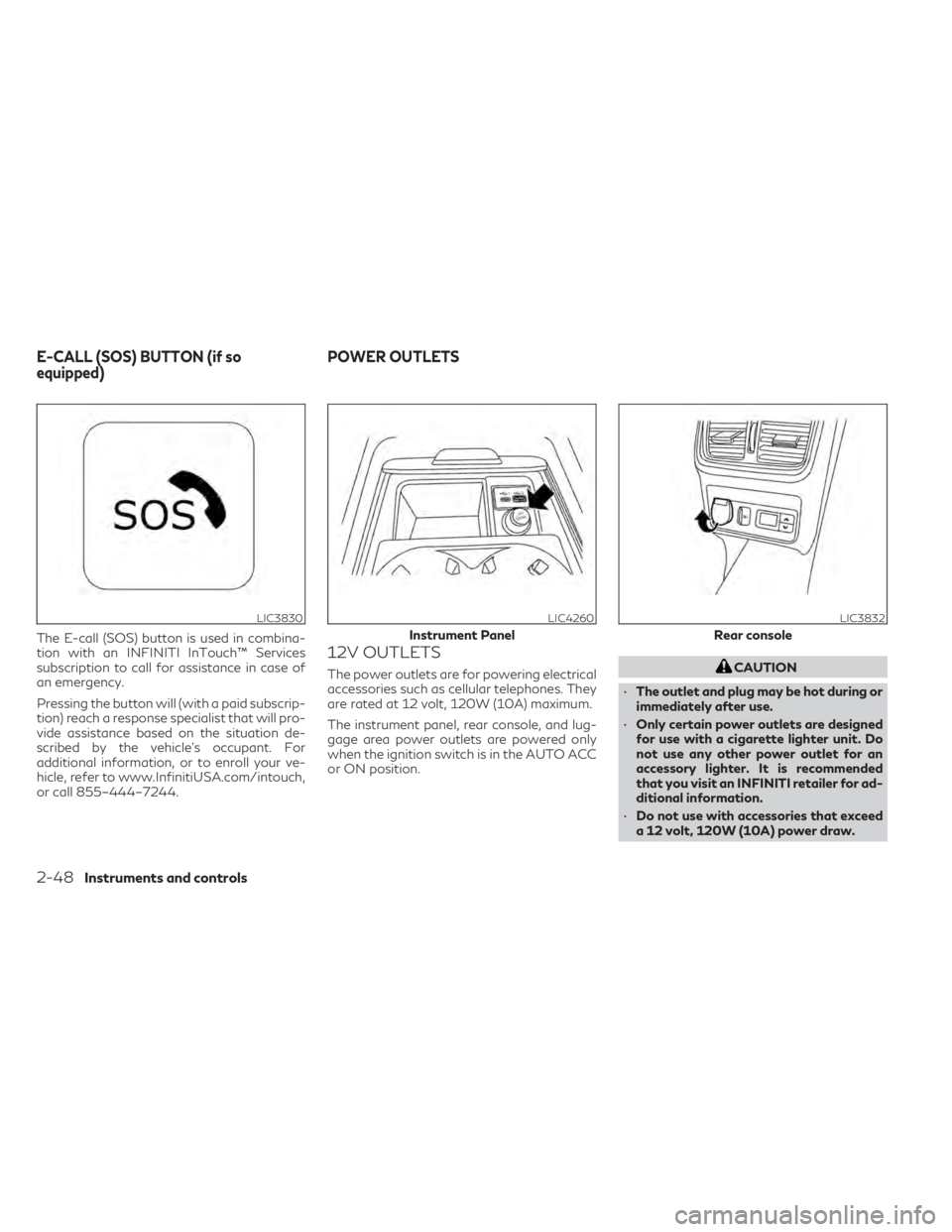

The E-call (SOS) button is used in combina-
tion with an INFINITI InTouch™ Services
subscription to call for assistance in case of
an emergency.
Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will pro-
vide assistance based on the situation de-
scribed by the vehicle’s occupant. For
additional information, or to enroll your ve-
hicle, refer to www.InfinitiUSA.com/intouch,
or call 855–444–7244.12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The instrument panel, rear console, and lug-
gage area power outlets are powered only
when the ignition switch is in the AUTO ACC
or ON position.CAUTION
• The outlet and plug may be hot during or
immediately after use.
• Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit an INFINITI retailer for ad-
ditional information.
• Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.
LIC3830LIC4260
Instrument Panel
LIC3832
Rear console
E-CALL (SOS) BUTTON (if so
equipped) POWER OUTLETS
2-48Instruments and controls
