INFINITI QX50 2022 Owners Manual

CAUTION
Be careful not to burn yourself, as the en-
gine oil is hot.
WARNING
• Prolonged and repeated contact with
used engine oil may cause skin cancer.
• Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
• Keep used engine oil out of reach of
children.
4. Loosen the oil filter with an oil filter wrench by turning it counterclockwise.
Remove the oil filter by turning it by hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old gasket material
remaining on the sealing surface of the en-
gine. Failure to do so could lead to an oil
leak and engine damage. •
The dipstick must be inserted in place to
prevent oil spillage from the dipstick hole
when filling the engine with oil.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten addi-
tionally more than 2/3 turn.
Oil filter tightening torque: 14.7 to 20.6 N·m (11 to 15 ft-lb)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.
Drain plug tightening torque: 29.4 to 39.2 N·m (22 to 29 ft-lb)
9. Refill the engine with the recommended oil through the oil filler opening, and install
the oil filler cap securely.
For additional information about drain and
refill capacity, see “Recommended fluids/
lubricants and capacities” (P. 10-2). The drain
and refill capacity depends on the oil tem-
perature and drain time. Use these specifica-
tions for reference only. Always use the dip-
stick to determine the proper amount of oil in
the engine. 10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required. Turn the engine off
and wait more than 15 minutes. Check
the oil level with the dipstick. Add engine
oil if necessary.
After the operation
1. Reinstall engine protectors in reverse or-der of removal.
2. Lower the vehicle carefully to the ground.
3. Reset the oil control system. For addi- tional information, see “Oil control sys-
tem” (P. 2-20)
• Dispose of waste oil and filter properly.
• Check your local regulations.
Do-it-yourself8-9

CAUTION
• INFINITI recommends using Genuine
NISSAN CVT Fluid NS-3 (or equivalent)
ONLY in INFINITI CVTs. Do not mix with
other fluids.
• Do not use Automatic Transmission
Fluid (ATF) or manual transmission fluid
in an INFINITI CVT, as it may damage the
CVT. Damage caused by the use of fluids
other than as recommended is not cov-
ered under INFINITI's New Vehicle Lim-
ited Warranty outlined in your Warranty
Information Booklet.
• Using fluids that are not equivalent to
Genuine NISSAN CVT Fluid NS-3 may
also damage the CVT. Damage caused by
the use of fluids other than as recom-
mended is not covered under INFINITI's
New Vehicle Limited Warranty outlined
in your Warranty Information Booklet.
When checking or replacement of CVT fluid is
required, it is recommended that you visit an
INFINITI retailer for this service.
WARNING
• Use only new fluid from a sealed con-
tainer. Old, inferior or contaminated
fluid may damage the brake system. The
use of improper fluids can damage the
brake system and affect the vehicle's
stopping ability.
• Clean the filler cap before removing.
• Brake fluid is poisonous and should be
stored carefully in marked containers
out of reach of children.
CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid is
spilled, immediately wash the surface with
water.
Check the fluid level in the reservoir. If the
brake fluid is below the MIN line
OB, the
brake warning light will illuminate. Add brake
fluid up to the MAX line
OA. For additional
information on the recommended type of
brake fluid, see “Recommended fluids/
lubricants and capacities” (P. 10-2).
If the brake fluid must be added frequently,
the brake system should be thoroughly
checked. It is recommended that you visit an
INFINITI retailer for this service.
For additional information on the location of
the brake fluid reservoir, see “Engine com-
partment check locations” (P. 8-3).
LDI3161
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) FLUID BRAKE FLUID
8-10Do-it-yourself

WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir pe-
riodically. Add windshield-washer fluid when
the “Low Washer Fluid” warning message
shows on the vehicle information display.To fill the windshield-washer fluid reservoir,
lift the cap off the reservoir and pour the
windshield-washer fluid into the reservoir
opening.
Add a washer solvent to the washer for bet-
ter cleaning. In the winter season, add a
windshield-washer antifreeze. Follow the
manufacturer's instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of windshield-washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.CAUTION
• Do not substitute engine antifreeze
coolant for windshield-washer fluid.
This may result in damage to the paint. •
Do not fill the windshield-washer fluid
reservoir with washer fluid concentrates
at full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the windshield-washer fluid
reservoir.
• Pre-mix washer fluid concentrates with
water to the manufacturer's recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water.
LDI3162
WINDSHIELD-WASHER FLUID
Do-it-yourself8-11

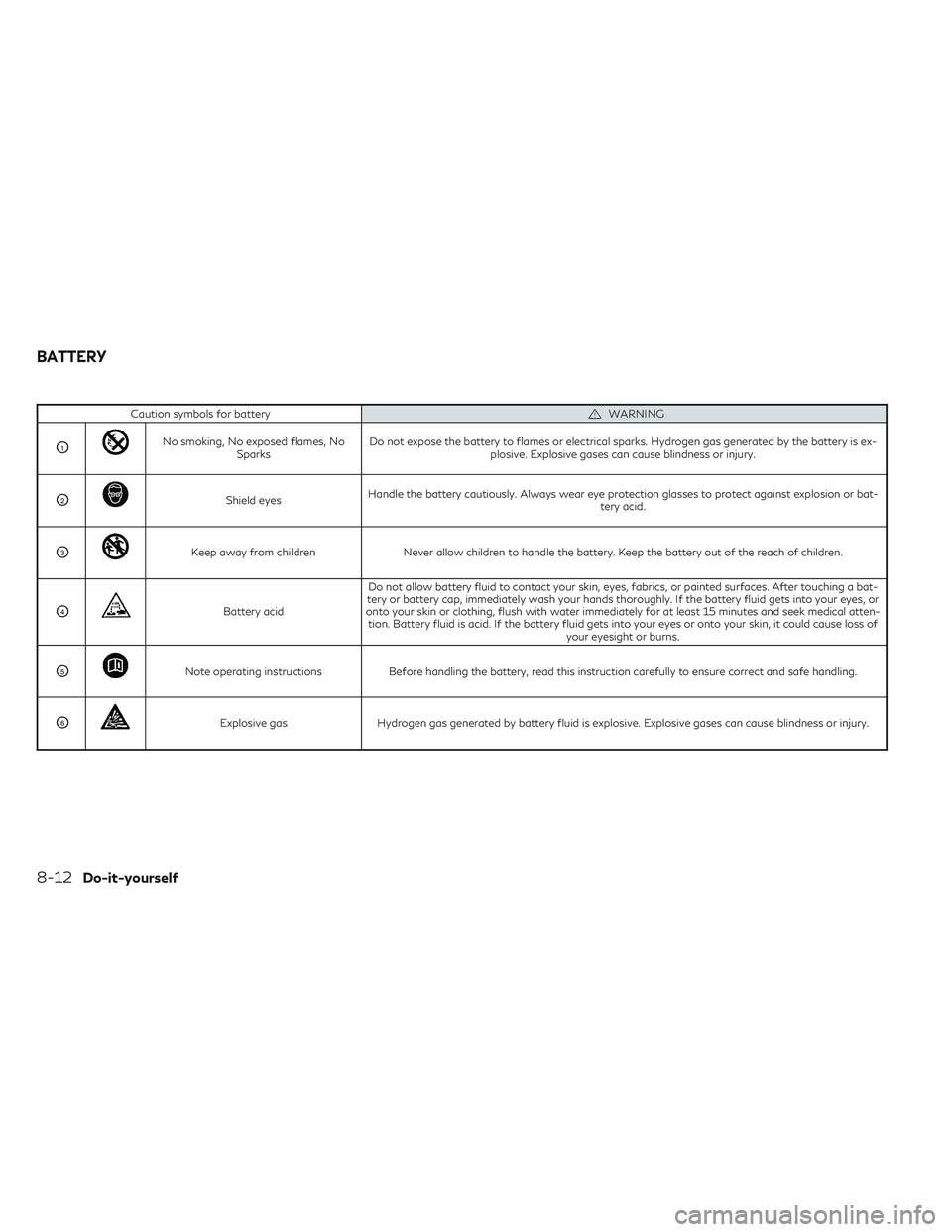

Caution symbols for batteryWARNING
O1No smoking, No exposed flames, NoSparks Do not expose the battery to flames or electrical sparks. Hydrogen gas generated by the battery is ex-
plosive. Explosive gases can cause blindness or injury.
O2Shield eyes Handle the battery cautiously. Always wear eye protection glasses to protect against explosion or bat-
tery acid.
O3Keep away from childrenNever allow children to handle the battery. Keep the battery out of the reach of children.
O4Battery acidDo not allow battery fluid to contact your skin, eyes, fabrics, or painted surfaces. After touching a bat-
tery or battery cap, immediately wash your hands thoroughly. If the battery fluid gets into your eyes, or
onto your skin or clothing, flush with water immediately for at least 15 minutes and seek medical atten- tion. Battery fluid is acid. If the battery fluid gets into your eyes or onto your skin, it could cause loss of your eyesight or burns.
O5Note operating instructions Before handling the battery, read this instruction carefully to ensure correct and safe handling.
O6Explosive gasHydrogen gas generated by battery fluid is explosive. Explosive gases can cause blindness or injury.
BATTERY
8-12Do-it-yourself

• If the battery is labeled "do not open" it ismaintenance free and battery fluid should
not be checked. It is recommended that you
visit an INFINITI retailer or a qualified spe-
cialist workshop to confirm the battery's
performance.
• Keep the battery surface clean and dry. Clean the battery with a solution of baking
soda and water.
• Make certain the terminal connections are clean and securely tightened.
• If the vehicle is not to be used for 30 days or longer, disconnect the negative (-) bat-
tery terminal cable to prevent discharge.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:
1. Installation or extended use of electronic accessories that consume battery power
when the engine is not running (Phone
chargers, GPS, DVD players, etc.)
2. Vehicle is not driven regularly and/or only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
WARNING
• Do not expose the battery to flames, an
electrical spark or a cigarette. Hydrogen
gas generated by the battery is explo-
sive. Explosive gases can cause blindness
or injury. Do not allow battery fluid to
contact your skin, eyes, fabrics or
painted surfaces. Sulfuric acid can cause
blindness or injury. After touching a bat-
tery or battery cap, do not touch or rub
your eyes. Thoroughly wash your hands.
If the acid contacts your eyes, skin or
clothing, immediately flush with water
for at least 15 minutes and seek medical
attention.
• When working on or near a battery, al-
ways wear suitable eye protection and
remove all jewelry.
• Battery posts, terminals and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.
• Keep battery out of the reach of children.
• Do not tip the battery.
NOTE:
Do not try to open the top of the battery.
This battery is not equipped with removable
vent caps.
Vehicles operated in high temperatures or
under severe conditions might present bat-
tery liquid loss. It is recommended that you
visit an INFINITI retailer for a proper battery
diagnosis and service in case of required.
LDI3595
Do-it-yourself8-13

JUMP STARTING
If jump starting is necessary, see “Jump start-
ing” (P. 6-5). If the engine does not start by
jump starting, the battery may have to be
replaced. It is recommended that you visit an
INFINITI retailer for this service.
CAUTION
• Do not ground accessories directly to the
battery terminal. Doing so will bypass
the variable voltage control system and
the vehicle battery may not charge
completely.
• Use electrical accessories with the en-
gine running to avoid discharging the ve-
hicle battery.
NOTE:
If the battery is completely drained the
transmission will not manually shift to other
positions.
Your vehicle is equipped with a variable volt-
age control system. This system measures
the amount of electrical discharge from the
battery and controls voltage generated by
the generator.
The current sensor
OAis located near the
battery along the negative battery cable. If
you add electrical accessories to your vehicle,
be sure to ground them to a suitable body
ground such as the frame or engine block
area.
LDI3589
VARIABLE VOLTAGE CONTROL
SYSTEM
8-14Do-it-yourself

1. Automatic tensioner pulley
2. Generator pulley
3. Water pump pulley
4. Air conditioner compressor pulley
5. Crankshaft pulley
WARNING
Be sure the ignition switch is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.
1. Visually inspect the belt for signs of un- usual wear, cuts, or fraying. If the belt is in
poor condition, have it replaced. It is rec-
ommended that you visit an INFINITI re-
tailer for this service. 2. Have the belt checked regularly for
condition.
REPLACING SPARK PLUGS
Iridium-tipped spark plugs
It is not necessary to replace iridium-tipped
OAspark plugs as frequently as conventional
type spark plugs because they last much lon-
ger. Follow the maintenance log shown in the
"Maintenance and schedules" section of this
manual. Do not service iridium-tipped spark
plugs by cleaning or regapping.
• Always replace spark plugs with recom-
mended or equivalent ones.
WDI0638SDI1895
DRIVE BELT SPARK PLUGS
Do-it-yourself8-15

WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs.
If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.
WARNING
• Operating the engine with the air cleaner
filter off can cause you or others to be
burned. The air cleaner filter not only
cleans the intake air, it also stops the
flame if the engine backfires. If the air
cleaner is not installed and the engine
backfires, you could be burned. Never
drive with the air cleaner filter off. Be
cautious working on the engine when the
air cleaner is off. •
Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result in
serious injury.
To remove the filter from the air cleaner, push
the clips
OAand pull the cover upward.
The viscous paper type filter element should
not be cleaned and reused. Replace it accord-
ing to the maintenance log shown in the
“Maintenance and schedules” section of this
manual.
When replacing the air filter, wipe the inside
of the air cleaner housing and the cover with
a damp cloth.
NOTE:
After installing a new air cleaner filter,
make sure the air cleaner cover is seated in
the housing and latch the clips
OA.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry of
airborne dust and pollen particles and re-
duces some objectionable outside odors. The
filter is located behind the glove box. For
additional information on change intervals,
see the "Maintenance and schedules" section
of this manual.
LDI3165
AIR CLEANER
8-16Do-it-yourself

If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.CLEANING
If your windshield is not clear after using the
windshield-washer or if a wiper blade chat-
ters when running, wax or other material may
be on the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blades with clear water.
If your windshield is still not clear after clean-
ing the blades and using the wiper, replace
the blades.
CAUTION
Worn windshield wiper blades can damage
the windshield and impair driver vision.
REPLACING
Replace the wiper blades if they are worn.
To replace the windshield wiper blades, fol-
low the procedure below:
1. When the ignition switch is ON or within 60 seconds after placing the ignition
switch from the ON to OFF position,
place the windshield wiper and washer
lever into the OFF position.
2. Rapidly lift the windshield wiper and washer lever
OAupwards twice within 0.5
seconds. This action will cause the wipers
to automatically take the service position.
LDI3250
WINDSHIELD WIPER BLADES
Do-it-yourself8-17

3. Once the wipers are in the service posi-tion, push the release tab
OC.
4. Move the wiper blade down
OBand
remove.
5. Insert the new wiper blade onto the wiper arm until it clicks into place.
6. Rotate the wiper blade so the dimple is in the groove. 7. Finally, lift the windshield wiper and
washer lever to the mist position
ODonce
and release. This action will cause the
wipers to resume the set position.
CAUTION
• After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
• Make sure the wiper blades contact the
glass; otherwise the arms may be dam-
aged from wind pressure. If you wax the surface of the hood, be careful
not to let wax get into the washer nozzle
OF.
This may cause clogging or improper
windshield-washer operation. If wax gets
into the nozzle, remove it with a needle or
small pin
OE.
LDI2785LDI3251
LDI3189
8-18Do-it-yourself
