Tire and Loading Information label
1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
2Original tire size: The size of the
tires originally installed on the ve-
hicle at the factory.
3Cold tire pressure: Inflate the tires
to this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate
speeds. The recommended cold
tire inflation is set by the manufac-
turer to provide the best balance
of tire wear, vehicle handling,
driveability, tire noise, etc., up to
the vehicle's GVWR.4Tire size - see “Tire labeling”
(P. 8-31).
5Spare tire size.
6Vehicle load limit: see “Vehicle
loading information” (P. 10-15).
LDI3172
Do-it-yourself8-29

Checking tire pressure
WARNING
• Driving at high speeds, 100 mph
(160 km/h) or higher sustained
where it is legal to do so, can cause
tires to have excessive heat build
up, which may result in a tire fail-
ure causing loss of control, crash,
injuries or even death. •
Some high-speed rated tires re-
quire inflation pressure adjust-
ment for high-speed operation.
When speed limits and road condi-
tions allow vehicle driving at high
speeds, make sure tires are rated
to support high speed operation,
tires are in optimal conditions and
pressure is adjusted to correct
cold inflation pressure for high
speed operation.
• If your vehicle is equipped with
P235/55RF19 or P255/45RF20
tire sizes, tires require adjustment
to the inflation pressure when
driving the vehicle at speeds of
100 mph (160 km/h) or higher
where it is legal to do so. Set the
cold inflation pressure to 36 psi
(250 kPa). •
After vehicle high speed operation
has ended, readjust the tire pres-
sure to the recommended cold in-
flation pressure. For additional in-
formation, see "Checking tire
pressure" (P. 8-30).
1. Remove the valve stem cap from the tire.
2. Press the pressure gauge squarely onto the valve stem. Do not press
too hard or force the valve stem
sideways, or air will escape. If the
hissing sound of air escaping from
the tire is heard while checking the
pressure, reposition the gauge to
eliminate this leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem and compare to the
specification shown on the Tire
and Loading Information label.
LDI0393
8-30Do-it-yourself

5. Add air to the tire as needed. If toomuch air is added, press the core of
the valve stem briefly with the tip
of the gauge stem to release pres-
sure. Recheck the pressure and add
or release air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, including the spare.
8. Check the pressure when driving the vehicle at speeds of 100 mph
(160 km/h) or higher where it is
legal to do so.
Size Cold Tire Infla-
tion Pressure
Front and Rear
Original Tire:
P235/55RF19 33 psi, 230 kPa
Front and Rear
Original Tire:
P255/45RF20 33 psi, 230 kPa
Spare Tire: noneRecommended tire inflation pres-
sures at speeds of 100 mph (160
km/h) or higher where it is legal to do
so.
Size
Cold Tire Infla-
tion Pressure
Front and Rear
Original Tire:
P235/55RF19 36 psi, 250 kPa
Front and Rear
Original Tire:
P255/45RF20 36 psi, 250 kPa
Spare Tire: none
TIRE LABELING
Federal law requires tire manufactur-
ers to place standardized information
on the sidewall of all tires. This infor-
mation identifies and describes the
fundamental characteristics of the tire
and also provides the Tire Identifica-
tion Number (TIN) for safety standard
certification. The TIN can be used to
identify the tire in case of a recall.
WDI0394
Example
Do-it-yourself8-31

O1Tire size (example: P215/65R15
95H)
1. P: The “P” indicates the tire is de- signed for passenger vehicles (not
all tires have this information).
2. Three-digit number (215): This number gives the width in millime-
ters of the tire from sidewall edge
to sidewall edge. 3. Two-digit number (65): This num-
ber, known as the aspect ratio,
gives the tire's ratio of height to
width.
4. R: The “R” stands for radial.
5. Two-digit number (15): This num- ber is the wheel or rim diameter in
inches. 6. Two- or three-digit number (95):
This number is the tire's load index.
It is a measurement of how much
weight each tire can support.
7. H: Tire speed rating. You should not drive the vehicle faster than the tire
speed rating.
WDI0395
Example
8-32Do-it-yourself

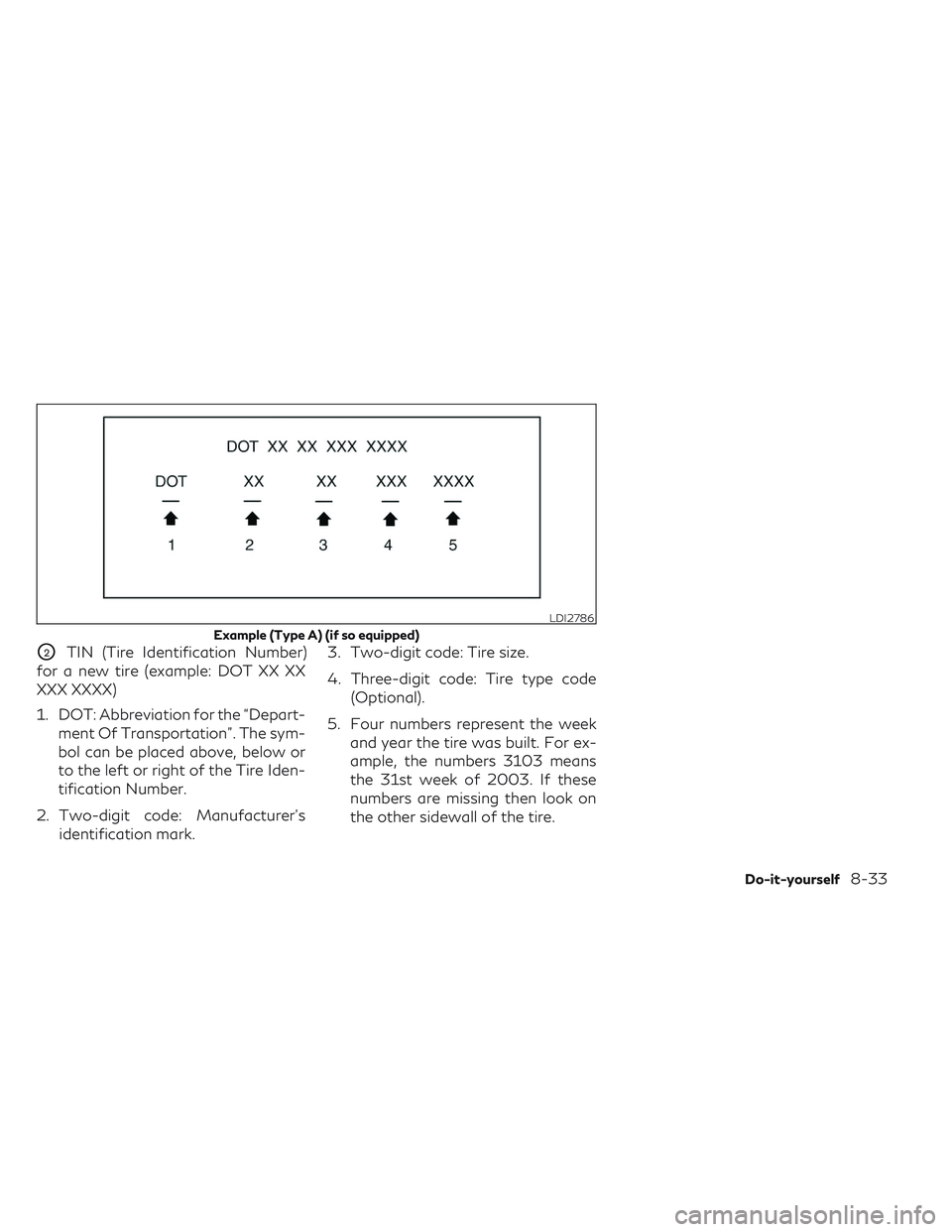

O2TIN (Tire Identification Number)
for a new tire (example: DOT XX XX
XXX XXXX)
1. DOT: Abbreviation for the “Depart- ment Of Transportation”. The sym-
bol can be placed above, below or
to the left or right of the Tire Iden-
tification Number.
2. Two-digit code: Manufacturer's identification mark. 3. Two-digit code: Tire size.
4. Three-digit code: Tire type code
(Optional).
5. Four numbers represent the week and year the tire was built. For ex-
ample, the numbers 3103 means
the 31st week of 2003. If these
numbers are missing then look on
the other sidewall of the tire.
LDI2786
Example (Type A) (if so equipped)
Do-it-yourself8-33

O2TIN (Tire Identification Number)
for a new tire (example: DOT XXX
XXXXXX XXXX)
1. DOT: Abbreviation for the “Depart- ment Of Transportation”. The sym-
bol can be placed above, below or
to the left of the Tire Identification
Number.
2. Three-digit code: Manufacturer's identification mark. 3. Six-digit code: Descriptive code
used to identify significant charac-
teristics of the tire.
4. Four numbers represent the week and year the tire was built. For ex-
ample, the numbers 3103 means
the 31st week of 2003.
O3Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester and others.
O4Maximum permissible inflation
pressure
This number is the greatest amount of
air pressure that should be put in the
tire. Do not exceed the maximum per-
missible inflation pressure.
O5Maximum load rating
This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.
LDI3639
Example (Type B) (if so equipped)
8-34Do-it-yourself

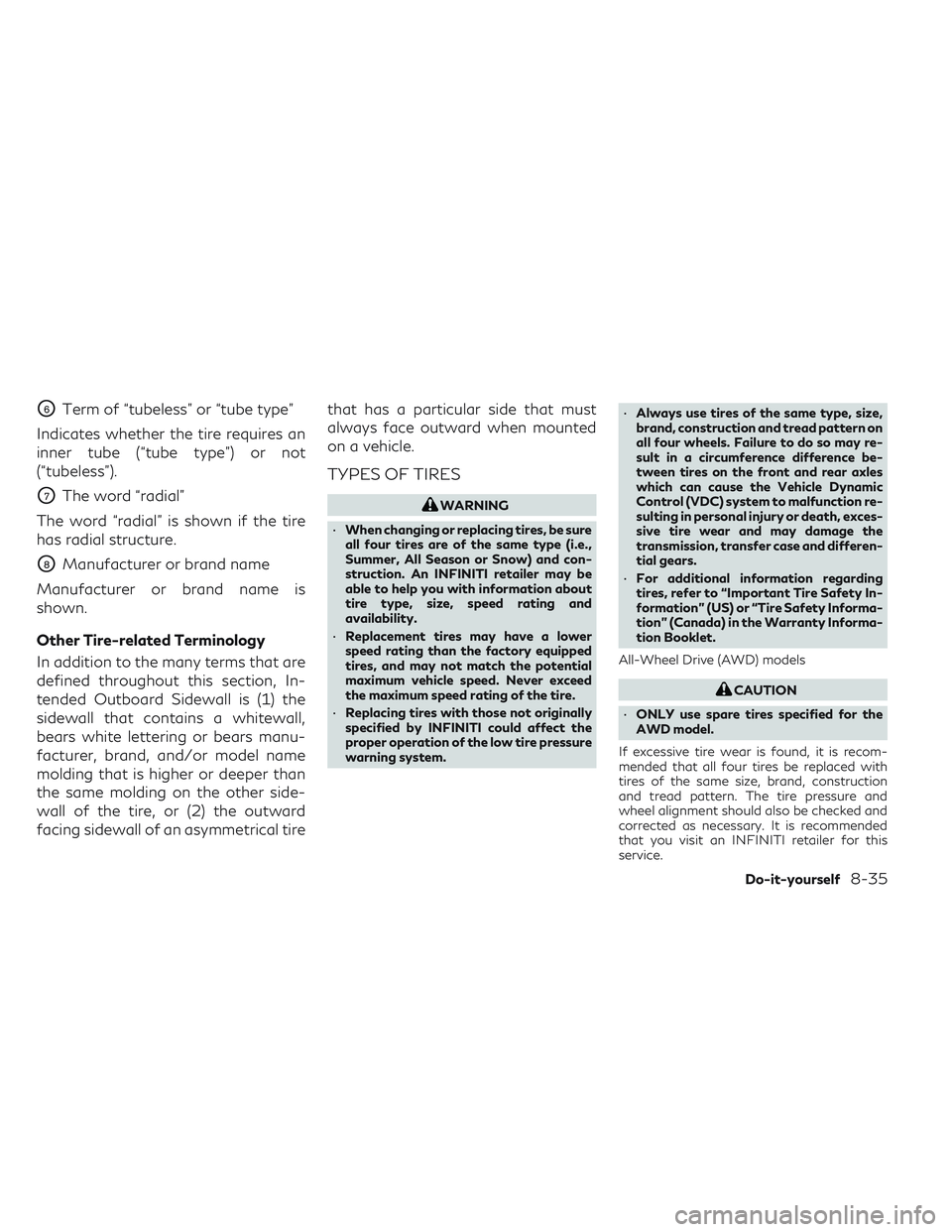

O6Term of “tubeless” or “tube type”
Indicates whether the tire requires an
inner tube (“tube type”) or not
(“tubeless”).
O7The word “radial”
The word “radial” is shown if the tire
has radial structure.
O8Manufacturer or brand name
Manufacturer or brand name is
shown.
Other Tire-related Terminology
In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manu-
facturer, brand, and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical tire that has a particular side that must
always face outward when mounted
on a vehicle.
TYPES OF TIRES
WARNING
• When changing or replacing tires, be sure
all four tires are of the same type (i.e.,
Summer, All Season or Snow) and con-
struction. An INFINITI retailer may be
able to help you with information about
tire type, size, speed rating and
availability.
• Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.
• Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the low tire pressure
warning system. •
Always use tires of the same type, size,
brand, construction and tread pattern on
all four wheels. Failure to do so may re-
sult in a circumference difference be-
tween tires on the front and rear axles
which can cause the Vehicle Dynamic
Control (VDC) system to malfunction re-
sulting in personal injury or death, exces-
sive tire wear and may damage the
transmission, transfer case and differen-
tial gears.
• For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
All-Wheel Drive (AWD) models
CAUTION
• ONLY use spare tires specified for the
AWD model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with
tires of the same size, brand, construction
and tread pattern. The tire pressure and
wheel alignment should also be checked and
corrected as necessary. It is recommended
that you visit an INFINITI retailer for this
service.
Do-it-yourself8-35

All season tires
INFINITI specifies All Season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S on the tire sidewall. Snow tires
have better snow traction than All Season
tires and may be more appropriate in some
areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is sub-
stantially reduced in snow and ice. Summer
tires do not have the tire traction rating
“M&S” on the tire sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use
of SNOW tires or ALL SEASON tires on all
four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating
to the original equipment tires. If you do not,
it can adversely affect the safety and han-
dling of your vehicle.Generally, snow tires have lower speed rat-
ings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of
the tire.
If you install snow tires, they must be the
same size, brand, construction and tread pat-
tern on all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction ca-
pabilities of studded snow tires on wet or dry
surfaces may be poorer than that of non-
studded snow tires.
Run–flat tires
Your vehicle is equipped with run-flat tires
and is not equipped with a spare tire, or a jack
and tool kit. The jack and tool kit may be
purchased at the dealer. Please consult an
INFINITI retailer for additional information.
You can continue driving to a safe location
even if the run-flat tires are punctured. Al-
ways use run-flat tires of the specified size on
all four wheels. Mixing tire sizes or construc-
tion may reduce vehicle handling stability. If
necessary, it is recommended that you visit an
INFINITI retailer for this service.Frequently check the tire pressure and adjust
pressure of each tire properly. The tire pres-
sure can be also checked in the vehicle infor-
mation display.
It can be difficult to tell if a run-flat tire is
under-inflated or flat. Check the tire pres-
sures as described in this section. If the tire
becomes under-inflated while driving, the
low tire pressure warning light will illuminate
and the “Tire Pressure Low – Add Air”
warning appears in the vehicle information
display. If the tire becomes flat while driving,
the low tire pressure warning light and the
“Flat Tire – Visit dealer" warning will appear.
Low tire pressure:
If the vehicle is being driven with low tire
pressure, the low tire pressure warning light
will illuminate and the “Tire Pressure Low –
Add Air” warning appears in the vehicle infor-
mation display.
Flat tire:
If the vehicle is being driven with one or more
flat tires, the low tire pressure warning light
will illuminate continuously and a chime will
sound for 10 seconds. A “Flat-Tire – Visit
dealer" warning also appears in the vehicle
information display.
8-36Do-it-yourself

The chime will only sound at the first indica-
tion of a flat tire and the warning light will
illuminate continuously. When the flat tire
warning is activated, have the system reset
and the tire checked and replaced if neces-
sary. It is recommended that you visit an
INFINITI retailer for this service. Even if the
tire is inflated to the specified COLD tire
pressure, the warning light will continue to
illuminate until the system is reset. It is recom-
mended that you visit an INFINITI retailer for
this service.
If the low tire pressure warning light illumi-
nates continuously and the “Flat Tire – Visit
dealer" warning appears in the vehicle infor-
mation display:
• Do not exceed 50 mph (80 km/h).
• Increase your following distance to allowfor increased stopping distances.
• Avoid sudden maneuvers, hard cornering and hard braking.
WARNING
• Although you can continue driving with a
punctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and per-
sonal injury. Also, driving a long distance
at high speeds may damage the tire. •
Do not drive at speeds above 50 mph (80
km/h) and do not drive more than ap-
proximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature, ve-
hicle load, read conditions and other
factors.
• Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the vehicle.
• If you detect any unusual sounds or vi-
brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.
CAUTION
• Never install tire chains on a punctured
run-flat tire, as this could damage your
vehicle.
• Avoid driving over any projection or pot-
hole, as the clearance between the ve-
hicle and the ground is smaller than
normal.
• Do not enter an automated car wash
with a punctured run-flat tire. •
Have the punctured tire inspected by an
INFINITI retailer or other authorized re-
pair shop. Replace the tire as soon as
possible if the tire is seriously damaged.
• Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may dam-
age the transmission, transfer case and
differential gears (AWD models).
• ONLY use spare tires specified for the
AWD model.
• If excessive tire wear is found, it is rec-
ommended that all four tires be replaced
with tires of the same size, brand, con-
struction and tread pattern. The tire
pressure and wheel alignment should
also be checked and corrected as neces-
sary. It is recommended that you visit an
INFINITI retailer for this service.
Do-it-yourself8-37

TIRE CHAINS
CAUTION
Tire chains/cables should not be installed
on P255/45RF20 size tires. Installation of
the tire chains/cables on P255/45RF20
size tires will cause damage to the vehicle.
If you plan to use tire chains/cables, you
should install P235/55RF19 size tires on
your vehicle.
Use of tire chains may be prohibited accord-
ing to location. Check the local laws before
installing tire chains. When installing tire
chains, make sure they are the proper size for
the tires on your vehicle and are installed
according to the chain manufacturer's sug-
gestions. Use only SAE class “S” chains. Class
“S” chains are used on vehicles with restricted
tire to vehicle clearance. Vehicles that can use
Class “S” chains are designed to meet the
minimum clearances between the tire and the
closest vehicle suspension or body compo-
nent required to accommodate the use of a
winter traction device (tire chains or cables).
The minimum clearances are determined us-
ing the factory equipped tire size. Other types
may damage your vehicle. Use chain tension-
ers when recommended by the tire chain
manufacturer to ensure a tight fit. Loose end
links of the tire chain must be secured or removed to prevent the possibility of whip-
ping action damage to the fenders or under-
body. If possible, avoid fully loading your ve-
hicle when using tire chains. In addition, drive
at a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling
and performance may be adversely affected.
Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.
CHANGING WHEELS AND TIRES
Tire rotation
INFINITI recommends rotating the
tires every 7,500 miles (12,000 km).
For additional information on tire re-
placing procedures, see “Flat tire”
(P. 6-3).
As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.
WDI0258
8-38Do-it-yourself
