INFINITI QX50 2023 Owners Manual

NOTE:
•The stop lights of the vehicle come on when
braking is performed by the ICC system.
• When the brake is applied by the system,a noise may be heard. This is not a
malfunction.
When the ICC system detects a vehicle
ahead, the vehicle ahead detection indicator
and the speed control status indicator (dis-
tance control mode) illuminates (solid green
).
Vehicle ahead stops
When the vehicle ahead decelerates to stop,
your vehicle decelerates to a standstill within
the system capability. Once your vehicle
stops, the ICC system automatically applies
the brakes to keep the vehicle stopped. When
your vehicle is at a standstill, the “(RES+)
Press to start” message is displayed on the
vehicle information display.
NOTE:
When your vehicle stops for less than 3 sec-
onds, your vehicle will automatically follow
the vehicle as it accelerates from a stop.
Vehicle ahead accelerates
When your vehicle is stopped and the vehicle
ahead begins to accelerate, push the RES+
switch or lightly depress the accelerator
pedal. The ICC system starts to follow the
vehicle ahead.
Vehicle ahead not detected
When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the set
speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator turns off
and speed control status indicator (maintain
speed control mode) illuminates (green out-
line
).
The ICC system gradually accelerates to the
set speed, but you can depress the accelera-
tor pedal to quickly accelerate. When a ve-
hicle is no longer detected and your vehicle
is traveling under approximately 15 mph
(25 km/h), the ICC system automatically
cancels. When passing another vehicle, the set speed
indicatorOBflashes when the vehicle speed
exceeds the set speed. The vehicle ahead
detection indicator turns off when the area
ahead of the vehicle is open. When the pedal
is released, the vehicle returns to the previ-
ously set speed. Even though your vehicle
speed is set in the ICC system, you can de-
press the accelerator pedal when it is neces-
sary to accelerate your vehicle rapidly.
LSD3620
Starting and driving5-87

Cut-in detection
If a vehicle moves into your traveling lane
near your vehicle, the ICC system may inform
the driver by flashing the vehicle ahead de-
tection indicator.
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and ICC sys-
tem display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:
• The chime sounds.
• The vehicle ahead detection indicator andset distance indicator blink.
• You judge it necessary to maintain a safe distance.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are:
• When the vehicles are traveling at the same speed and the distance between vehicles is
not changing. • When the vehicle ahead is traveling faster
and the distance between vehicles is
increasing.
• When a vehicle cuts in near your vehicle.
The warning chime will not sound when:
• Your vehicle approaches other vehicles that are parked or moving slowly.
• The accelerator pedal is depressed, over- riding the system.
NOTE:
The approach warning chime may sound and
the system display may flash when the radar
sensor detects objects on the side of the ve-
hicle or on the side of the road. This may cause
the ICC system to decelerate or accelerate the
vehicle. The radar sensor may detect these
objects when the vehicle is driven on winding,
narrow, or hilly roads or when the vehicle is
entering or exiting a curve. In these cases, you
will have to manually control the proper dis-
tance ahead of your vehicle.
Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or
vehicle conditions (for example, if a vehicle is
being driven with some damage).
Acceleration when passing
When the ICC system is engaged above 44
mph and following a slower vehicle (below
ICC set speed), and the turn signal is acti-
vated to the left, the ICC system will auto-
matically start to accelerate the vehicle to
help initiate passing on the left and will begin
to reduce the distance to vehicle directly
ahead. Only the left side turn signal operates
this feature. As the driver steers the vehicle
and moves into the passing lane, if no vehicle
is detected ahead the ICC system will con-
tinue to accelerate to the ICC system set
speed. If another vehicle is detected ahead,
then the vehicle will accelerate up to the fol-
lowing speed of that vehicle. If the vehicle is
not steered into the left lane to pass, the
acceleration will stop after a short time and
regain the set following distance. Accelera-
tion can be stopped at any point by depress-
ing the brake pedal or the CANCEL switch on
the steering wheel.
WARNING
In order to reduce the risk of a collision that
may result in serious injury or death, please
be aware of the following:
5-88Starting and driving

•This function is only activated with the
left turn signal and will briefly accelerate
the vehicle even if a lane change is not
initiated. This can include non-passing
situations such as left side exits.
• Ensure that when passing another ve-
hicle, the adjacent lane is clear before ini-
tiating the pass. Sudden changes in traf-
fic may occur while passing- always
manually steer or brake as needed- never
solely rely on the system.
ICC system limitations
WARNING
Listed below are the system limitations for
the ICC system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death:
• The ICC system is primarily intended for
use on straight, dry, open roads with
light traffic. It is not advisable to use the
ICC system in city traffic or congested
areas. •
The ICC system will not adapt automati-
cally to road conditions. This system
should be used in evenly flowing traffic.
Do not use the system on roads with
sharp curves or on icy roads, in heavy rain
or in fog.
• As there is a performance limit to the
distance control function, never rely
solely on the ICC system. This system
does not correct careless, inattentive or
absentminded driving or overcome poor
visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by
depressing the brake pedal, depending
on the distance to the vehicle ahead and
the surrounding circumstances in order
to maintain a safe distance between
vehicles.
• When the ICC system automatically
brings the car to a stop, your vehicle can
automatically accelerate if the vehicle
is stopped for less than approximately
3 seconds. Be prepared to stop your ve-
hicle if necessary.
• Always pay attention to the operation of
the vehicle and be ready to manually
control the proper following distance.
The ICC system may not be able to main- tain the selected distance between ve-
hicles (following distance) or selected
vehicle speed under some circumstances.
• The system may not detect the vehicle in
front of you in certain road or weather
conditions. To avoid accidents, never use
the ICC system under the following con-
ditions:
– On roads with heavy, high-speed
traffic or sharp curves
– On slippery road surfaces such as on
ice or snow, etc.
– During bad weather (rain, fog, snow,
etc.)
– When rain, snow or dirt adhere to the
bumper around the distance sensor
– On steep downhill roads (the vehicle
may go beyond the set vehicle speed
and frequent braking may result in
overheating the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it diffi-
cult to keep a proper distance be-
tween vehicles because of frequent
acceleration or deceleration
– Interference by other radar sources.
Starting and driving5-89

•Do not use the ICC system if you are
towing a trailer. The system may not de-
tect a vehicle ahead.
• I
n some road or traffic conditions, a ve-
hicle or object can unexpectedly come into
the sensor detection zone and cause auto-
matic braking. Always stay alert and avoid
using the ICC system where not recom-
mended in this warning section.
The ICC system will not detect the following
objects:
• Stationary or slow moving vehicles
• Pedestrians or objects in the roadway
• Oncoming vehicles in the same lane
• Motorcycles traveling offset in the travel lane
The following are some conditions in which
the radar sensor cannot properly detect a
vehicle ahead and the system may not oper-
ate properly:
• When the sensor detection is reduced (con- ditions such as rain, snow, fog, dust storms,
sandstorms, and road spray from other
vehicles)
• Driving on a steep downhill slope or roads with sharp curves • Driving on a bumpy road surface, such as
an uneven dirt road
• If dirt, ice, snow or other material is cover- ing the radar sensor area
• A complicated-shaped vehicle such as a car carrier trailer or flatbed truck/trailer is near
the vehicle ahead.
• Interference by other radar sources
• When your vehicle is towing a trailer, etc.
• When excessively heavy baggage is loaded in the rear seat or cargo area of your
vehicle.
The ICC system is designed to automatically
check the radar sensor’s operation within the
limitations of the system.
The detection zone of the radar sensor is
limited. A vehicle ahead must be in the detec-
tion zone for the ICC system to maintain the
selected distance from the vehicle ahead.
A vehicle ahead may move outside of the
detection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the center line of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane. If this occurs, the ICC system may warn you
by blinking the system indicator and sounding
the chime. The driver may have to manually
control the proper distance away from the
vehicle traveling ahead.
The ICC system (with ProPILOT Assist) uses
a multi-sensing front camera. The following
are some conditions in which the camera may
not properly detect a vehicle and detection of
a vehicle ahead may be delayed:
• Poor visibility (conditions such as rain,
snow, fog, dust storms, sandstorms, and
road spray from other vehicles)
• The camera area of the windshield is fogged up or covered with dirt, water
drops, ice, snow, etc.
• Strong light (for example, sunlight or high beams from oncoming vehicles) enters the
front camera
• A sudden change in brightness occurs (for example, when the vehicle enters or exits a
tunnel or shaded area or lightning flashes)
5-90Starting and driving

SSD0252
Starting and driving5-91

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar sen-
sor may detect vehicles in a different lane, or
may temporarily not detect a vehicle traveling
ahead. This may cause the radar system to
decelerate or accelerate the vehicle.
The detection of vehicles may also be af-
fected by vehicle operation (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition.If this occurs, the ICC system may warn you
by blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.
System Temporarily Unavailable
The following are conditions in which the ICC
system may be temporarily unavailable. In
these instances, the ICC system may not can-
cel and may not be able to maintain the se-
lected following distance from the vehicle
ahead.Condition A
Under the following conditions, the ICC sys-
tem is automatically canceled. A chime will
sound and the system will not be able to be
set:
• Any door is open.
• The driver’s seat belt is not fastened.
• The vehicle ahead is not detected and your
vehicle is traveling below the speed of
15 mph (25 km/h).
• Your vehicle has been stopped by the ICC system for approximately 3 minutes or
longer.
• The shift lever is not in the D (Drive) position or manual shift mode.
• The electronic parking brake is applied.
• The VDC system is turned off.
• The Forward Emergency Braking with Pe- destrian Detection applies harder braking.
• VDC (including the traction control system) operates.
• A wheel slips.
• When the radar signal is temporarily interrupted.
SSD0253
5-92Starting and driving

Action to take:
When the conditions listed above are no lon-
ger present, turn the system off using the
ProPILOT Assist switch. Turn the ProPILOT
Assist system back on to use the system.
NOTE:
When the ICC system is canceled under
the following conditions at a standstill,
the electronic parking brake is automati-
cally activated:
• Any door is open.
• The driver’s seat belt is not fastened.
•
Your vehicle has been stopped by the ICC
system for approximately 3 minutes or
longer.
• The shift lever is not in the D (Drive) posi-tion or manual shift mode.
• The VDC system is turned off.
• When distance measurement becomes im- paired due to adhesion of dirt or obstruc-
tion to the sensor.
• When the radar signal is temporarily interrupted. Condition B
When there is inclement weather (rain, fog,
snow, etc.) blocking the front radar sensor,
the ICC system will automatically be can-
celed, the chime will sound and the “Forward
Driving Aids temporarily disabled Front Sen-
sor blocked See Owner’s Manual” warning
message will appear in the vehicle informa-
tion display.
Action to take:
When the conditions listed above are no lon-
ger present, the warning message will no
longer be available in the vehicle information
display and the system will operate normally.
If the “Forward Driving Aids temporarily dis-
abled Front Sensor blocked See Owner’s
Manual” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Condition C
When the radar sensor of the front bumper is
covered with mud, dirt, snow, ice, etc., or is
obstructed, the ICC system will automatically
be canceled.
The chime will sound and the “Forward Driv-
ing Aids temporarily disabled Front Sensor blocked See Owner’s Manual” warning mes-
sage will appear in the vehicle information
display.
Action to take:
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Forward Driving Aids tempo-
rarily disabled Front Sensor blocked See
Owner’s Manual” warning message contin-
ues to be displayed, have the system checked.
It is recommended that you visit an INFINITI
retailer for this service.
Condition D
When driving on roads with limited road struc-
tures or buildings (for example, long bridges,
deserts, snow fields, driving next to long walls),
the system may illuminate the system warning
light and display the “Forward Driving Aids
temporarily disabled Front Sensor blocked See
Owner’s Manual” message.
Action to take:
When the above driving conditions no longer
exist, turn the system back on.
Starting and driving5-93

ICC system malfunction
If the ICC system malfunctions, it will be
turned off automatically, a chime will sound,
and the speed control status warning
(orange) will illuminate.
Action to take:
If the warning light comes on, stop the vehicle
in a safe place. Turn the engine off, restart
the engine and set the ICC system again. If it
is not possible to set the ICC system or the
indicator stays on, it may be a malfunction.
Although the normal driving can be contin-ued, the ICC system should be inspected. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the ICC system is temporarily unavailable,
the conventional cruise control mode may
still be used. For additional information, see
“Conventional (fixed speed) cruise control
mode” (P. 5-101).
ICC sensor maintenance
The radar sensor is located on the front of the
vehicle.
To keep the ICC system operating properly,
be sure to observe the following:
• Always keep the sensor area clean.
• Do not strike or damage the areas around
the sensor.
• Do not attach a sticker (including transpar- ent material) or install an accessory near
the sensor. This could cause failure or
malfunction.
• Do not attach metallic objects near the sensor area (brush guard, etc.). This could
cause failure or malfunction.
• Do not alter, remove, or paint the front bumper. Before customizing or restoring the front
bumper, it is recommended that you visit an
INFINITI retailer.
The camera sensor is located above the in-
side mirror.
To keep the proper operation of the systems
and prevent a system malfunction, be sure to
observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar-
ent material) or install an accessory near
the camera unit.
• Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.
• Do not strike or damage the areas around the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit.
If the camera unit is damaged due to an
accident, it is recommended that you visit an
INFINITI retailer.
LSD4087
5-94Starting and driving

STEERING ASSIST
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the Steering Assist
could result in serious injury or death.
• The Steering Assist is not a replacement
for proper driving procedures and is not
designed to correct careless, inattentive
or absent-minded driving. The Steering
Assist will not always steer the vehicle to
keep it in the lane. It is not designed to
prevent loss of control. It is the driver’s
responsibility to stay alert, drive safely,
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times.
• As there is a performance limit to the
Steering Assist’s capability, never rely
solely on the system. The Steering Assist
does not function in all driving, traffic,
weather, and road conditions. Always
drive safely, pay attention to the opera-
tion of the vehicle, and manually control
your vehicle appropriately.
• The Steering Assist is intended for use on
well-developed freeways or highways
with gentle (moderate) curves. To avoid
risk of an accident, do not use this system
on local or non-highway roads. •
The Steering Assist only steers the ve-
hicle to maintain its position in the center
of a lane. The vehicle will not steer to
avoid objects in the road in front of the
vehicle or to avoid a vehicle moving into
your lane.
• It is the driver’s responsibility to stay
alert, drive safely, keep the vehicle in the
traveling lane, and be in control of the
vehicle at all times. Never take your
hands off the steering wheel when driv-
ing. Always keep your hands on the
steering wheel and drive your vehicle
safely.
• Always drive carefully and attentively
when using the Steering Assist. Read
and understand the Owner’s Manual
thoroughly before using the Steering
Assist. To avoid serious injury or death,
do not rely on the system to prevent
accidents or to control the vehicle’s
speed in emergency situations. Do not
use the Steering Assist except in appro-
priate road and traffic conditions.Steering Assist operation
The Steering Assist controls the steering sys-
tem to help keep your vehicle near the center
of the lane when driving. The Steering Assist
is combined with the Intelligent Cruise Con-
trol (ICC) system. For additional information,
see “Intelligent Cruise Control (ICC) (for
vehicles with ProPILOT Assist)” (P. 5-84).
The Steering Assist can be activated when
the following conditions are met:
• The ICC system is activated.
• Lane markers on both sides are clearly detected.
• A vehicle ahead is detected (when the vehicle is driven at speeds under 37 mph
[60 km/h])
• The driver grips the steering wheel.
• The vehicle is driven at the center of the lane.
• The turn signals are not operated.
• The windshield wiper is not operated in the high (HI) speed operation (the steering
assist function is disabled after the wiper
operates for approximately 10 seconds).
Starting and driving5-95

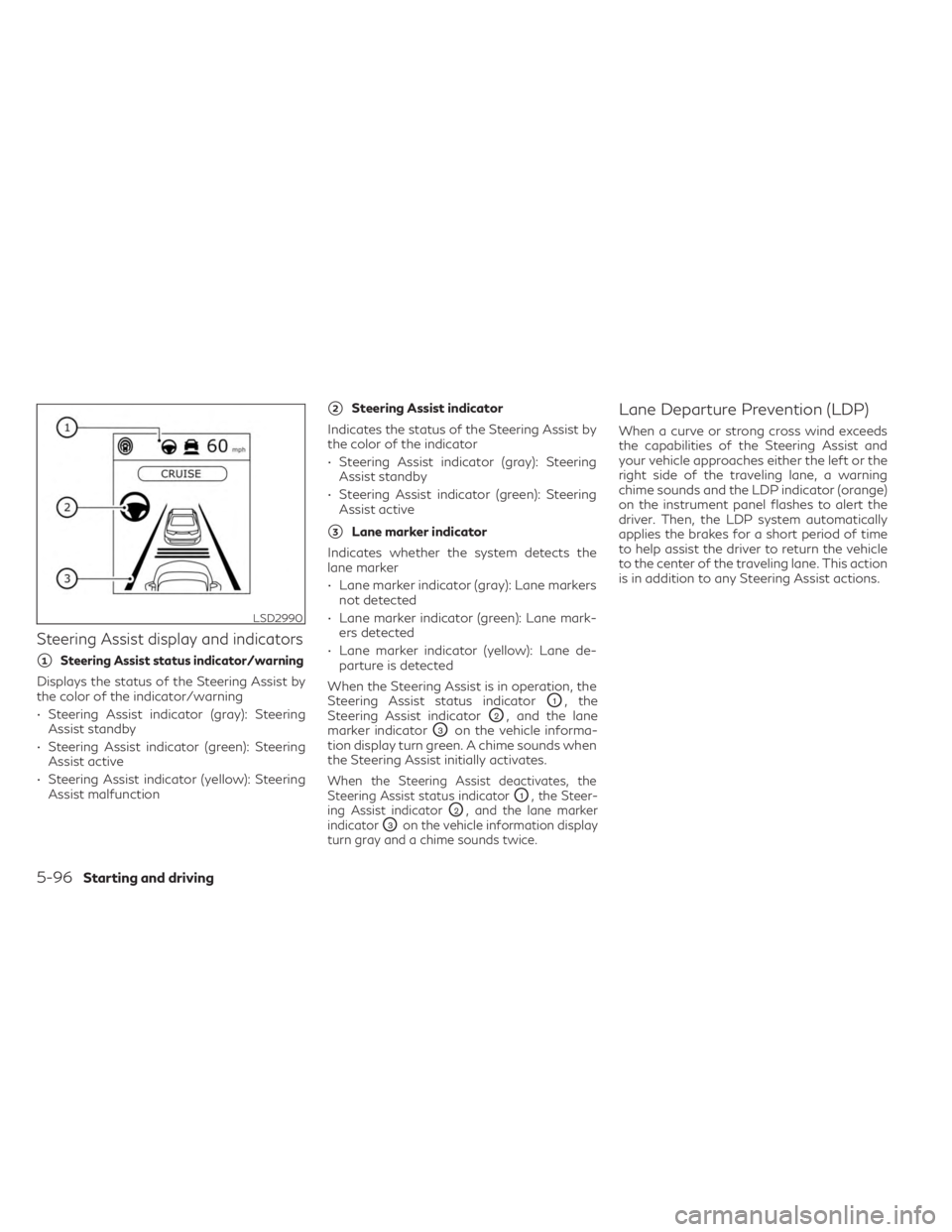

Steering Assist display and indicators
1Steering Assist status indicator/warning
Displays the status of the Steering Assist by
the color of the indicator/warning
• Steering Assist indicator (gray): SteeringAssist standby
• Steering Assist indicator (green): Steering Assist active
• Steering Assist indicator (yellow): Steering Assist malfunction
2Steering Assist indicator
Indicates the status of the Steering Assist by
the color of the indicator
• Steering Assist indicator (gray): Steering Assist standby
• Steering Assist indicator (green): Steering Assist active
3Lane marker indicator
Indicates whether the system detects the
lane marker
• Lane marker indicator (gray): Lane markers not detected
• Lane marker indicator (green): Lane mark- ers detected
• Lane marker indicator (yellow): Lane de- parture is detected
When the Steering Assist is in operation, the
Steering Assist status indicator
O1, the
Steering Assist indicator
O2, and the lane
marker indicator
O3on the vehicle informa-
tion display turn green. A chime sounds when
the Steering Assist initially activates.
When the Steering Assist deactivates, the
Steering Assist status indicator
O1, the Steer-
ing Assist indicator
O2, and the lane marker
indicator
O3on the vehicle information display
turn gray and a chime sounds twice.
Lane Departure Prevention (LDP)
When a curve or strong cross wind exceeds
the capabilities of the Steering Assist and
your vehicle approaches either the left or the
right side of the traveling lane, a warning
chime sounds and the LDP indicator (orange)
on the instrument panel flashes to alert the
driver. Then, the LDP system automatically
applies the brakes for a short period of time
to help assist the driver to return the vehicle
to the center of the traveling lane. This action
is in addition to any Steering Assist actions.
LSD2990
5-96Starting and driving
