AT-182
DTC P1845 ATF PRESSURE SWITCH 5
Revision: August 20072004 QX56
Diagnostic ProcedureUCS002I5
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “D” position (1st

2nd gear), and confirm
the ON/OFF actuation of the “ATF PRES SW 5”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK TCM
Perform TCM input/output signals inspection. Refer to AT- 9 0 , "
TCM Input/Output Signal Reference Values" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT-181, "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT-241, "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following items:

Power supply and ground circuit for TCM.

The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Item name Condition Display value (ON-
OFF display)
ATF PRES
SW 5Direct clutch egaged. Refer to AT-2 1
.ON
Direct clutch disegaged. Refer to AT-2 1
.OFFPCIA0067E

AT-184
DTC P1846 ATF PRESSURE SWITCH 6
Revision: August 20072004 QX56
DTC P1846 ATF PRESSURE SWITCH 6PFP:25240
DescriptionUCS002I6
Fail-safe function to detect high and low reverse clutch solenoid valve condition.
CONSULT-II Reference ValueUCS002I7
On Board Diagnosis LogicUCS002I8

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “ATF PRES SW 6/CIRC” with CONSULT-II is detected when TCM detects that
actual gear ratio is normal, and relation between gear position and condition of ATF pressure switch 6 is
irregular during depressing accelerator pedal. (Other than during shift change)
Possible CauseUCS002I9

ATF pressure switch 6

Harness or connectors
(The switch circuit is open or shorted.)
DTC Confirmation ProcedureUCS002IA
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 2nd

3rd Gear (HLR/C ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. Perform step “2” again.
4. Turn ignition switch “OFF”, then perform step “1” to “3” again.
5. Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
If DTC (P1846) is detected, go to AT- 1 8 5 , "
Diagnostic Procedure" .
If DTC (P1767) is detected, go to AT- 1 6 4 , "
Diagnostic Procedure" .
Item name Condition Display value (ON-OFF display)
ATF PRES SW 6High and low reverse clutch engaged. Refer to AT- 2 1
.ON
High and low reverse clutch disengaged. Refer to AT- 2 1
. OFF
BCIA0030E

DTC P1846 ATF PRESSURE SWITCH 6
AT-185
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
Diagnostic ProcedureUCS002IB
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start the engine.
2. Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “D” position (2nd

3rd gear), and confirm
the ON/OFF actuation of the “ATF PRES SW 6”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK TCM
Perform TCM input/output signals inspection. Refer to AT-90, "
TCM Input/Output Signal Reference Values" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 8 4 , "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT - 2 4 1 , "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following items:

Power supply and ground circuit for TCM.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Item name Condition Display value (ON-
OFF display)
ATF PRES
SW 6High and low reverse clutch engaged.
Refer to AT-2 1
.ON
High and low reverse clutch disengaged.
Refer to AT-2 1
.OFF
PCIA0067E

CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIR-
CUIT
AT-187
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIR-
CUIT
PFP:18002
CONSULT-II Reference ValueUCS002IC
Diagnostic ProcedureUCS002ID
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT - 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 3 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK THROTTLE POSITION SIGNAL CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Depress accelerator pedal and read out the value of “CLSD THL
POS” and “W/O THL POS”.
OK or NG
OK >>INSPECTION END
NG >> Check the following items. If NG, repair or replace damaged parts.

Perform the self-diagnosis for “ENGINE” with CONSULT-II.

Open circuit or short to ground or short to power in harness or connectors.

Pin terminals for damage or loose connection with harness connector.
Item name Condition Display value
CLSD THL POSReleased accelerator pedal. ON
Fully depressed accelerator pedal. OFF
W/O THL POSFully depressed accelerator pedal. ON
Released accelerator pedal. OFF
Accelerator Pedal OperationMonitor Item
CLSD THL POS W/O THL POS
Released ON OFF
Fully depressed OFF ON
PCIA0070E

AT-188
BRAKE SIGNAL CIRCUIT
Revision: August 20072004 QX56
BRAKE SIGNAL CIRCUITPFP:25320
CONSULT-II Reference ValueUCS002IE
Diagnostic ProcedureUCS002IF
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT-93, "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT-103, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector termi-
nals 3 and 4.
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >>INSPECTION END
NG >> Check the following items. If NG, repair or replace dam-
aged parts.

Harness for short or open between battery and stop lamp switch.

Harness for short or open between stop lamp switch and combination meter.
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
PCIA0070E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA2126E

TOW MODE SWITCH
AT-189
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
TOW MODE SWITCHPFP:25129
DescriptionUCS002IG
When tow mode switch is “ON”, tow mode switch signals are sent to TCM from combination meter by CAN
communication line.Then it`s a tow mode condition.
Diagnostic ProcedureUCS002IH
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT - 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 3 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK POWER SOURCE
1. Turn ignition switch “ON”. (Do not start engine.)
2. Check the voltage between tow mode switch connector terminal
1 and ground.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK TOW MODE SWITCH
1. Turn ignition switch “OFF”.
2. Disconnect tow mode switch connector.
3. Check continuity between tow mode switch connector M254 ter-
minals 1 and 2.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace tow mode switch.
4. DETECT MALFUNCTIONING ITEM
Check the following items. If any items are damaged, repair or replace damaged parts.

Harness for short or open between combination meter connector terminal 35 and tow mode switch con-
nector terminal 1.

Harness for short or open between tow mode switch connector terminal 2 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
ConditionTo w m o d e
switchData (Approx.)
When ignition switch is turned to “ON”ON 0V
OFF Battery voltage
SCIA5156E
Condition Continuity
To w m o d e s w i t c h “ O N ” Ye s
To w m o d e s w i t c h “ O F F ” N o
SCIA5157E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-191
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
AT CHECK Indicator Lamp Does Not Come OnUCS002II
SYMPTOM:
AT CHECK indicator lamp does not come on for about 2 seconds when turning ignition switch to
“ON”.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT - 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 3 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK TCM POWER SOURCE
1. Disconnect A/T assembly harness connector.
2. Turn ignition switch “ON”. (Do not start engine.)
3. Check voltage between A/T assembly harness connector (vehi-
cle side) and ground. Refer to AT- 5 2 , "
Wiring Diagram — AT —"
.
4. Turn ignition switch “OFF”.
5. Check voltage between A/T assembly harness connector (vehi-
cle side) and ground. Refer to AT- 5 2 , "
Wiring Diagram — AT —"
.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between battery and A/T assembly harnhess connector terminals 1, 2

Harness for short or open between ignition switch and TCM connector terminal 6

10A fuse (No. 3, located in the fuse block)

10A fuse (No. 49, located in the IPDM E/R)

Ignition switch, Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item Connector No.Te r m i n a l N o .
(Wire color)Vo ltag e
TCM F91 (P) - Ground
Battery voltage 2 (P) - Ground
6 (Y/R) - Ground
SCIA2105E
Item Connector No.Te r m i n a l N o .
(Wire color)Voltage
TCM F91 (P) - Ground
Battery voltage
2 (P) - Ground
6 (Y/R) - Ground 0V
SCIA2104E

AT-192
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: August 20072004 QX56
4. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect the A/T assembly harness connector.
3. Check the continuity between A/T assembly harness connector
(vehicle side) 5 (B), 10 (B) and ground. Refer to AT - 5 2 , "
Wiring
Diagram — AT —" .
4. If OK, check the harness for short-circuit to ground or the power
source.
OK or NG
OK >> GO TO 5.
NG >> Repair the open or short circuit in the harness or con-
nector.
5. CHECK AT CHECK INDICATOR LAMP CIRCUIT
1. Turn ignition switch “OFF”.
2. Check the combination meter.
Refer to DI-17, "
How to Proceed With Trouble Diagnosis" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Cannot Be Started In “P” or “N” PositionUCS002IJ
SYMPTOM:

Engine cannot be started with selector lever in “P” or “N” position.

Engine can be started with selector lever in “D”or “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT-109, "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL CABLE
Check the control cable.

Refer to AT-234, "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT-234, "
Adjustment of A/
T Position" .
SCIA2106E
LCIA0324E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-195
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
5. CHECK SYMPTOM
Check again. Refer to AT- 6 2 , "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT-90, "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Large Shock (“N” to “D” Position)UCS002IM
SYMPTOM:
A noticeable shock occurs when the selector lever is shifted from the “N” to “D” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate A/T fluid temperature sensor, engine speed signal, accelerator pedal
position sensor, ATF pressure switch 1, front brake solenoid valve, CAN communication line?
YES >> Check the malfunctioning system. Refer to AT-131, "DTC P1710 A/T FLUID TEMPERATURE
SENSOR CIRCUIT" , AT-115, "DTC P0725 ENGINE SPEED SIGNAL" ., AT- 1 2 9 , "DTC P1705
THROTTLE POSITION SENSOR" , AT-175, "DTC P1841 ATF PRESSURE SWITCH 1" , AT-
151, "DTC P1757 FRONT BRAKE SOLENOID VALVE" , AT- 1 0 3 , "DTC U1000 CAN COMMUNI-
CATION LINE" .
NO >> GO TO 2.
2. ENGINE IDLE SPEED
Check the engine idle speed. Refer to EC-32, "
Idle Speed and Ignition Timing Check" .
OK or NG
OK >> GO TO 3.
NG >> Repair.
3. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 3 4 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT-234, "
Adjustment of A/
T Position" .
LCIA0324E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-199
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56

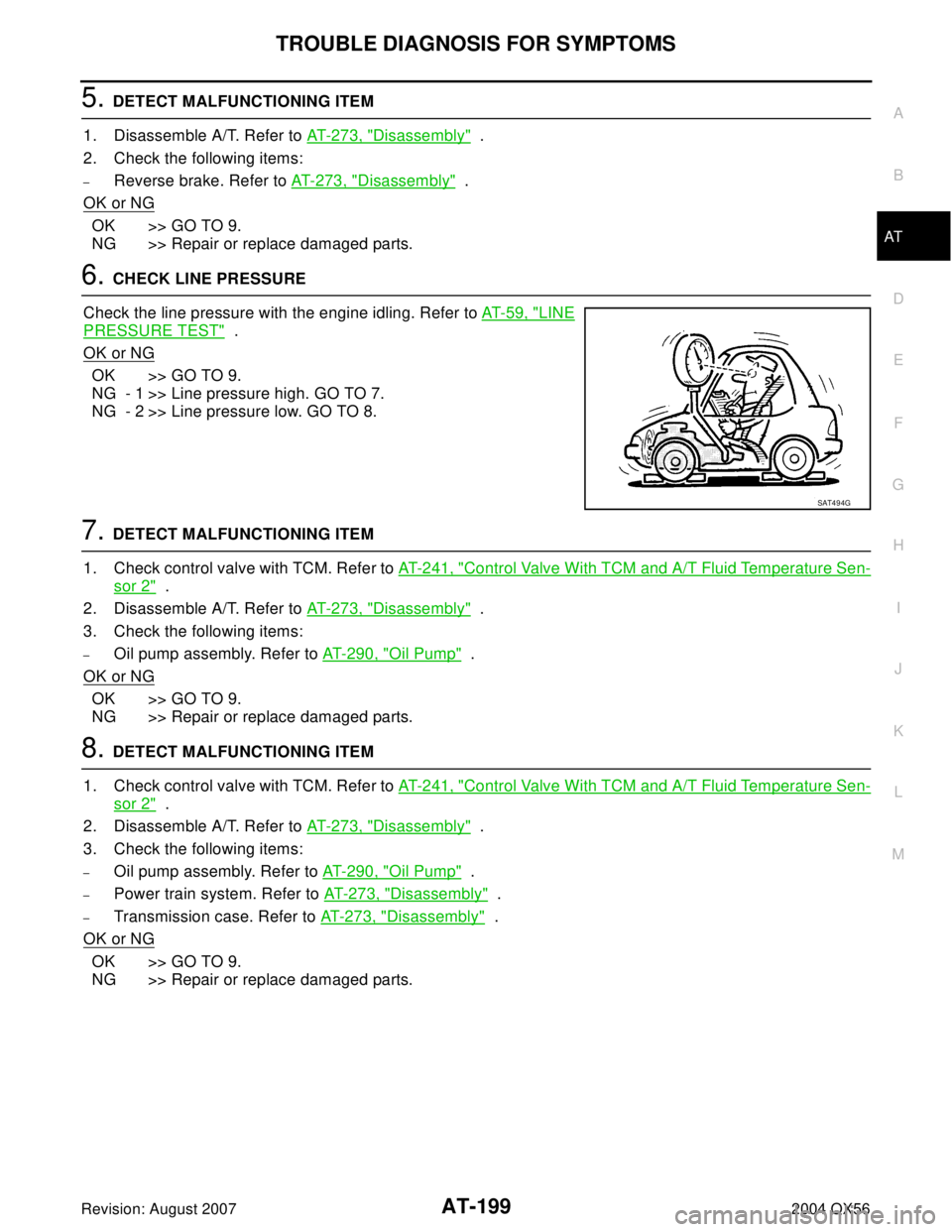

5. DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
2. Check the following items:
–Reverse brake. Refer to AT-273, "Disassembly" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
6. CHECK LINE PRESSURE
Check the line pressure with the engine idling. Refer to AT-59, "
LINE
PRESSURE TEST" .
OK or NG
OK >> GO TO 9.
NG - 1 >> Line pressure high. GO TO 7.
NG - 2 >> Line pressure low. GO TO 8.
7. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
8. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
–Power train system. Refer to AT- 2 7 3 , "Disassembly" .
–Transmission case. Refer to AT - 2 7 3 , "Disassembly" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
SAT4 9 4G
