diagram INFINITI QX56 2004 Factory Service Manual

EC-456Revision: August 2007
DTC P1274, P1284 A/F SENSOR 1
2004 QX56

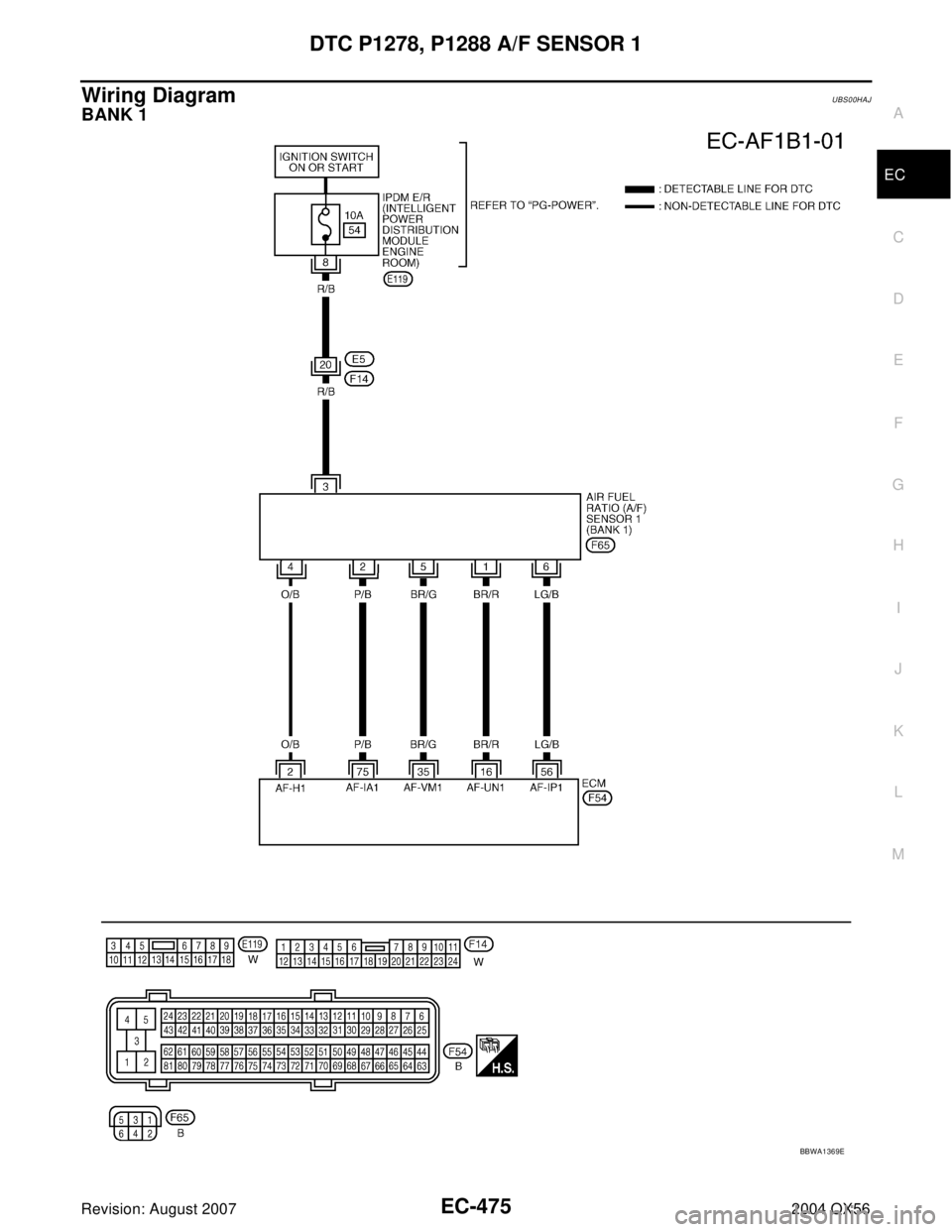

Wiring Diagram UBS00HA4
BANK 1
BBWA1369E

EC-462Revision: August 2007
DTC P1274, P1284 A/F SENSOR 1
2004 QX56
7. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK A/F SENSOR 1 HEATER
Refer to EC-360, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace A/F sensor 1.
9. CHECK INTERMITTENT INCIDENT
Perform EC-127, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace A/F sensor 1.
NG >> Repair or replace.
Removal and InstallationUBS00HA6
AIR FUEL RATIO (A/F) SENSOR 1
Refer to EM-19, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
A/F sensor 1 terminal ECM terminal
Bank1116
275
535
656
Bank 2176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
116176
275277
535557
656658
Continuity should not exist.

EC-466Revision: August 2007
DTC P1276, P1286 A/F SENSOR 1
2004 QX56
Wiring DiagramUBS00HAC
BANK 1
BBWA1369E

DTC P1276, P1286 A/F SENSOR 1
EC-471
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
4. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INTERMITTENT INCIDENT
Perform EC-127, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace A/F sensor 1.
NG >> Repair or replace.
Removal and InstallationUBS00HAE
AIR FUEL RATIO (A/F) SENSOR 1
Refer to EM-19, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
A/F sensor 1 terminal ECM terminal
Bank1116
275
535
656
Bank 2176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
116176
275277
535557
656658
Continuity should not exist.

DTC P1278, P1288 A/F SENSOR 1
EC-475
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Wiring DiagramUBS00HAJ
BANK 1
BBWA1369E

EC-482Revision: August 2007
DTC P1278, P1288 A/F SENSOR 1
2004 QX56
8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Refer to EC-360, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace A/F sensor 1.
10. CHECK MASS AIR FLOW SENSOR
Refer to EC-153, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace mass air flow sensor.
A/F sensor 1 terminal ECM terminal
Bank1116
275
535
656
Bank 2176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
116176
275277
535557
656658
Continuity should not exist.

DTC P1279, P1289 A/F SENSOR 1
EC-487
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Wiring DiagramUBS00HAQ
BANK 1
BBWA1369E

EC-494Revision: August 2007
DTC P1279, P1289 A/F SENSOR 1
2004 QX56
8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Refer to EC-360, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace A/F sensor 1.
10. CHECK MASS AIR FLOW SENSOR
Refer to EC-153, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace mass air flow sensor.
A/F sensor 1 terminal ECM terminal
Bank1116
275
535
656
Bank 2176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
116176
275277
535557
656658
Continuity should not exist.

EC-498Revision: August 2007
DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
2004 QX56
Wiring DiagramUBS00HAX
BBWA11 72 E

EC-500Revision: August 2007
DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
2004 QX56
Diagnostic ProcedureUBS00HAY
1. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIR-
CUIT
1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve
harness connector.
3. Turn ignition switch ON.
4. Check voltage between EVAP canister purge volume control
solenoid valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E2, F32

IPDM E/R harness connector E119

Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R

Harness for open or short between EVAP canister purge volume control solenoid valve and ECM
>> Repair harness or connectors.
3. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR-
CUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 45 and EVAP canister purge volume control solenoid
valve terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
BBIA0366E
Voltage: Battery voltage
PBIB2245E
Continuity should exist.
