Page 1844 of 3371
PRECAUTIONS
EI-3
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: August 20072004 QX56
PRECAUTIONSPFP:00001
Service NoticeEIS002X1
When removing or installing various parts, place a cloth or padding on the vehicle body to prevent
scratches.
Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil
or damage them.
Apply sealing compound where necessary when installing parts.
When applying sealing compound, be careful that the sealing compound does not protrude from parts.
When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS002X2
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WA RN ING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Page 1845 of 3371
EI-4
PREPARATION
Revision: August 20072004 QX56
PREPARATIONPFP:00002
Special Service ToolsEIS002X3
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEIS002X4
Tool number
(Kent-Moore No.)
Tool nameDescription
—
(J-39570)
Chassis earLocating the noise
—
(J-43980)
NISSAN Squeak and Rattle kitRepairing the cause of noise
SBT 8 39
SBT 8 40
Tool name
(Kent-Moore No.)Description
Engine ear
(J-39565)Locating the noise
SIIA0995E
Page 1846 of 3371
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
EI-5
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: August 20072004 QX56
SQUEAK AND RATTLE TROUBLE DIAGNOSISPFP:00000
Work FlowEIS0063A
CUSTOMER INTERVIEW
Interview the customer, if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to EI-9, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.
The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).
If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.
After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.
–Squeak — (Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces = higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.
–Creak — (Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.
–Rattle — (Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
–Knock — (Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.
–Tick — (Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.
–Thump — (Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.
–Buzz — (Like a bumblebee)
Buzz characteristics include high frequency rattle/firm contact.
Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.
Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT 8 42
Page 1847 of 3371
EI-6
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1. Close a door.
2. Tap or push/pull around the area where the noise appears to be coming from.
3. Rev the engine.
4. Use a floor jack to recreate vehicle “twist”.
5. At idle, apply engine load (electrical load, drive position on A/T model).
6. Raise the vehicle on a hoist and hit a tire with a rubber hammer.
Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear: J-39565 and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
Removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fasteners
can be broken or lost during the repair, resulting in the creation of new noise.
Tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be elimi-
nated only temporarily.
Feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing
the noise.
Placing a piece of paper between components that you suspect are causing the noise.
Looking for loose components and contact marks.
Refer to EI-7, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE
If the cause is a loose component, tighten the component securely.
If the cause is insufficient clearance between components:
–Separate components by repositioning or loosening and retightening the component, if possible.
–Insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN
Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 x 135 mm (3.94 x 5.31 in)/76884-71L01: 60 x 85 mm (2.36 x 3.35 in)/76884-71L02: 15 x 25
mm (0.59 x 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
Page 1884 of 3371
EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: August 20072004 QX56 PRECAUTIONS .......................................................... 3
Precautions for Drain Engine Coolant ...................... 3
Precautions for Disconnecting Fuel Piping .............. 3
Precautions for Removal and Disassembly ............. 3
Precautions for Inspection, Repair and Replace-
ment ......................................................................... 3
Precautions for Assembly and Installation ............... 3
Parts Requiring Angular Tightening ......................... 3
Precautions for Liquid Gasket .................................. 4
REMOVAL OF LIQUID GASKET SEALING .......... 4
LIQUID GASKET APPLICATION PROCEDURE ..... 4
PREPARATION ........................................................... 5
Special Service Tools ............................................... 5
Commercial Service Tools ........................................ 7
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 9
NVH Troubleshooting —Engine Noise ..................... 9
Use the Chart Below to Help You Find the Cause
of the Symptom. ..................................................... 10
ENGINE ROOM COVER ...........................................11
Removal and Installation .........................................11
REMOVAL ............................................................11
INSTALLATION ....................................................11
DRIVE BELTS ........................................................... 12
Checking Drive Belts .............................................. 12
Tension Adjustment ................................................ 12
Removal and Installation ........................................ 12
DRIVE BELT ....................................................... 12
INSTALLATION ................................................... 13
Drive Belt Auto Tensioner and Idler Pulley ............. 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
AIR CLEANER AND AIR DUCT ............................... 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 14
INSTALLATION ................................................... 14
CHANGING AIR CLEANER FILTER ................... 14INTAKE MANIFOLD ................................................. 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 17
INSPECTION AFTER INSTALLATION ................ 18
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST .......................................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSPECTION AFTER REMOVAL ....................... 20
INSTALLATION ................................................... 20
OIL PAN AND OIL STRAINER ................................. 22
Removal and Installation ........................................ 22
REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL ....................... 23
INSTALLATION ................................................... 24
INSPECTION AFTER INSTALLATION ................ 25
IGNITION COIL ......................................................... 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
SPARK PLUG (PLATINUM-TIPPED TYPE) ............. 27
Removal and Installation ........................................ 27
REMOVAL ........................................................... 27
INSPECTION AFTER REMOVAL ....................... 27
INSTALLATION ................................................... 28
FUEL INJECTOR AND FUEL TUBE ........................ 29
Removal and Installation ........................................ 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 30
INSPECTION AFTER INSTALLATION ................ 32
ROCKER COVER ..................................................... 33
Removal and Installation ........................................ 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 34
TIMING CHAIN .......................................................... 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 36
INSPECTION AFTER REMOVAL ....................... 39
INSTALLATION ................................................... 39
Page 1885 of 3371
EM-2Revision: August 20072004 QX56 CAMSHAFT ............................................................... 43
Removal and Installation ........................................ 43
REMOVAL ........................................................... 43
INSPECTION AFTER REMOVAL ........................ 47
INSTALLATION .................................................... 49
Valve Clearance ...................................................... 52
INSPECTION ....................................................... 52
ADJUSTMENT .................................................... 54
OIL SEAL .................................................................. 56
Removal and Installation of Valve Oil Seal ............. 56
REMOVAL ........................................................... 56
INSTALLATION .................................................... 56
Removal and Installation of Front Oil Seal ............. 57
REMOVAL ........................................................... 57
INSTALLATION .................................................... 57
Removal and Installation of Rear Oil Seal .............. 57
REMOVAL ........................................................... 57
INSTALLATION .................................................... 58
CYLINDER HEAD ..................................................... 59
On-Vehicle Service ................................................. 59
CHECKING COMPRESSION PRESSURE ......... 59
Removal and Installation ........................................ 60
REMOVAL ........................................................... 60
INSPECTION AFTER REMOVAL ........................ 61
INSTALLATION .................................................... 61
Disassembly and Assembly .................................... 62
DISASSEMBLY ................................................... 62
ASSEMBLY ......................................................... 63
Inspection After Disassembly ................................. 64
CYLINDER HEAD DISTORTION ........................ 64
VALVE DIMENSIONS .......................................... 65
VALVE GUIDE CLEARANCE .............................. 66
VALVE GUIDE REPLACEMENT ......................... 66
VALVE SEAT CONTACT ..................................... 68
VALVE SEAT REPLACEMENT ........................... 68
VALVE SPRING SQUARENESS ......................... 69
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................... 69
ENGINE ASSEMBLY ................................................ 70
Removal and Installation ........................................ 70
REMOVAL ........................................................... 70
INSTALLATION .................................................... 71
INSPECTION AFTER INSTALLATION ................ 72
CYLINDER BLOCK ................................................... 73
Disassembly and Assembly .................................... 73
DISASSEMBLY ................................................... 74ASSEMBLY ..........................................................77
How to Select Piston and Bearing ..........................82
DESCRIPTION ....................................................82
HOW TO SELECT PISTON .................................83
HOW TO SELECT CONNECTING ROD BEAR-
ING .......................................................................84
HOW TO SELECT MAIN BEARING ....................85
Inspection After Disassembly ..................................89
CRANKSHAFT END PLAY ..................................89
CONNECTING ROD SIDE CLEARANCE ...........89
PISTON AND PISTON PIN CLEARANCE ...........89
PISTON RING SIDE CLEARANCE .....................90
PISTON RING END GAP ....................................90
CONNECTING ROD BEND AND TORSION .......91
CONNECTING ROD BEARING (BIG END) ........91
CONNECTING ROD BUSHING OIL CLEAR-
ANCE (SMALL END) ...........................................91
CYLINDER BLOCK DISTORTION ......................92
MAIN BEARING HOUSING INSIDE DIAMETER ...93
PISTON TO CYLINDER BORE CLEARANCE ....93
CRANKSHAFT JOURNAL DIAMETER ...............94
CRANKSHAFT PIN DIAMETER ..........................95
OUT-OF-ROUND AND TAPER OF CRANK-
SHAFT .................................................................95
CRANKSHAFT RUNOUT ....................................95
CONNECTING ROD BEARING OIL CLEAR-
ANCE ...................................................................95
MAIN BEARING OIL CLEARANCE .....................96
CRUSH HEIGHT OF MAIN BEARING ................97
CRUSH HEIGHT OF CONNECTING ROD
BEARING .............................................................97
MAIN BEARING CAP BOLT DIAMETER .............97
CONNECTING ROD BOLT DIAMETER ..............98
SERVICE DATA AND SPECIFICATIONS (SDS) ......99
Standard and Limit ..................................................99
GENERAL SPECIFICATIONS .............................99
DRIVE BELTS ......................................................99
EXHAUST MANIFOLD ........................................99
CAMSHAFT AND CAMSHAFT BEARING ......... 100
CYLINDER HEAD .............................................. 102
CYLINDER BLOCK ............................................ 104
PISTON, PISTON RING AND PISTON PIN ...... 105
CONNECTING ROD .......................................... 105
CRANKSHAFT ................................................... 106
MAIN BEARING ................................................. 107
Page 1886 of 3371
PRECAUTIONS
EM-3
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
PRECAUTIONSPFP:00001
Precautions for Drain Engine CoolantEBS00IKY
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingEBS00IKZ
Before starting work, make sure no fire or spark producing items are in the work area.
Release fuel pressure before disconnecting and disassembly.
After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyEBS00IL0
When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.
Exercise maximum care to avoid damage to mating or sliding surfaces.
Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used where noted in the step.
Precautions for Inspection, Repair and ReplacementEBS00IL1
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationEBS00IL2
Use torque wrench to tighten bolts or nuts to specification.
When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.
Replace with new gasket, packing, oil seal or O-ring.
Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.
Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.
Release air within route when refilling after draining engine coolant.
Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine
stopped). Then make sure that there are no leaks at fuel line connections.
After repairing, start engine and increase engine speed to check engine coolant, fuel, oil, and exhaust
systems for leakage.
Parts Requiring Angular TighteningEBS00IL3
For final tightening of the following engine parts use Tool:
–Cylinder head bolts
–Main bearing cap bolts
–Connecting rod cap bolts
–Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angle
tightening)
Do not use a torque value for final tightening.
The torque value for these parts are for a preliminary step.
Ensure thread and seat surfaces are clean and lightly coated with engine oil. Tool number : KV10112100 (BT-8653-A)
Page 1888 of 3371
PREPARATION
EM-5
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
PREPARATIONPFP:00002

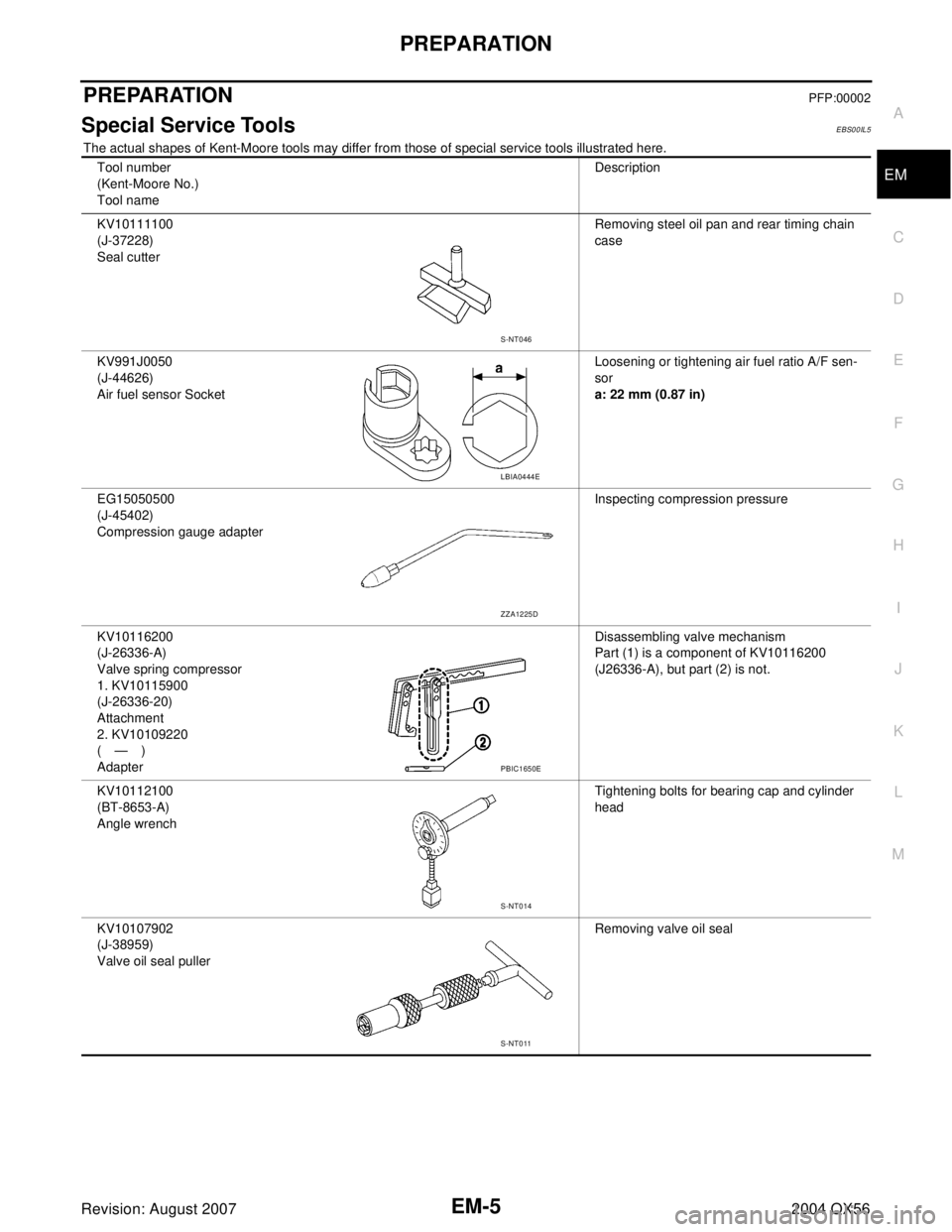

Special Service ToolsEBS00IL5
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool nameDescription
KV10111100
(J-37228)
Seal cutterRemoving steel oil pan and rear timing chain
case
KV991J0050
(J-44626)
Air fuel sensor SocketLoosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)
EG15050500
(J-45402)
Compression gauge adapterInspecting compression pressure
KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(—)
AdapterDisassembling valve mechanism
Part (1) is a component of KV10116200
(J26336-A), but part (2) is not.
KV10112100
(BT-8653-A)
Angle wrenchTightening bolts for bearing cap and cylinder
head
KV10107902
(J-38959)
Valve oil seal pullerRemoving valve oil seal
S-NT046
LBIA0444E
ZZA1225D
PBIC1650E
S-NT014
S-NT011
Page 1890 of 3371
PREPARATION
EM-7
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
Commercial Service ToolsEBS00IL6
(Kent-Moore No.)
Tool nameDescription
Power toolLoosening bolts and nuts
Spark plug wrench Removing and installing spark plug
(J-24239-01)
Cylinder head bolt wrenchLoosening and tightening cylinder head bolt,
and use with angle wrench [SST:
KV10112100 (BT-8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
Valve seat cutter set Finishing valve seat dimensions
Pulley pullerRemoving crankshaft pulley
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
PBIC0190E
S-NT047
NT583
S-NT048
ZZA0010D
S-NT030
S-NT015
Page 1942 of 3371
CYLINDER HEAD
EM-59
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00ILS
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then stop engine.
2. Release fuel pressure. Refer to EC-46, "
FUEL PRESSURE RELEASE" .
a. Remove fuel pump fuse, and start engine.
Refer to PG-78, "
FUSE AND RELAY BOX" or fuel pump fuse location.
Let fuel pump fuse removed until the end of step 7.
b. After engine stalls, crank it two or three times to release all fuel pressure.
3. Remove ignition coil and spark plug from each cylinder.
Refer to EM-27, "
REMOVAL" .
4. Connect engine tachometer (not required in use of CONSULT-II).
5. Install compression tester with Tool into spark plug hole.
6. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and engine rpm. Perform these steps to check each cyl-
inder.
Unit: kPa (kg/cm2 , psi) /rpm
CAUTION:
Always use a fully charged battery to obtain specified engine speed.
If the engine speed is out of specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.
If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure compression pressure again.
If some cylinders have low compression pressure, pour small amount of engine oil into the spark plug
hole of the cylinder to re-check it for compression.
–If the added engine oil improves the compression, the piston rings may be worn out or damaged. Check
the piston rings and replace if necessary.
–If the compression pressure remains at low level despite the addition of engine oil, the valves may be
malfunctioning. Check the valves for damage. Replace the valve or valve seat accordingly.
If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, the gaskets may be leaking, or valve in adjacent cylinders may
be damaged. Inspect and repair as required.
7. After inspection is complete, install removed parts. Installation is in the reverse order of removal.
8. Start engine, and confirm that engine runs smoothly.
9. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-71, "
TROUBLE DIAGNOSIS" . Tool number : EG15050500 (J-45402)
WBIA0605E
Standard MinimumDeference limit
between cylinders
1,520 (15.5, 220) / 200 1,324 (13.5, 192) / 200 98 (1.0, 14) / 300
