TRANSFER
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION TF
A
B
TF
Revision: August 20072004 QX56 PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 7
PRECAUTIONS .......................................................... 8
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 8
Precautions .............................................................. 8
Service Notice .......................................................... 9
Wiring Diagrams and Trouble Diagnosis .................. 9
ALL-MODE 4WD SYSTEM ...................................... 10
Cross-sectional View .............................................. 10
Control System ........................................................11
ALL-MODE 4WD TRANSFER BASIC CONTROL
... 12
HYDRAULIC CONTROL CIRCUITS ................... 12
OUTLINE ............................................................. 12
CONTROL SYSTEM DIAGRAM ......................... 13
INDICATIONS OF 4WD WARNING LAMP ......... 13
CAN Communication .............................................. 13
SYSTEM DESCRIPTION .................................... 13
Location of Electrical Parts ..................................... 14
Description of Electrical Parts ................................ 15
TRANSFER MOTOR .......................................... 15
WAIT DETECTION SWITCH .............................. 15
2-4WD SHIFT SOLENOID VALVE ...................... 15
LINE PRESSURE SWITCH ................................ 16
Circuit Diagram for Quick Pinpoint Check .............. 17
Wiring Diagram — T/F — ....................................... 18
ON BOARD DIAGNOSTIC SYSTEM DESCRIP-
TION .......................................................................... 27
Trouble Diagnosis without CONSULT-II ................. 27
DESCRIPTION .................................................... 27

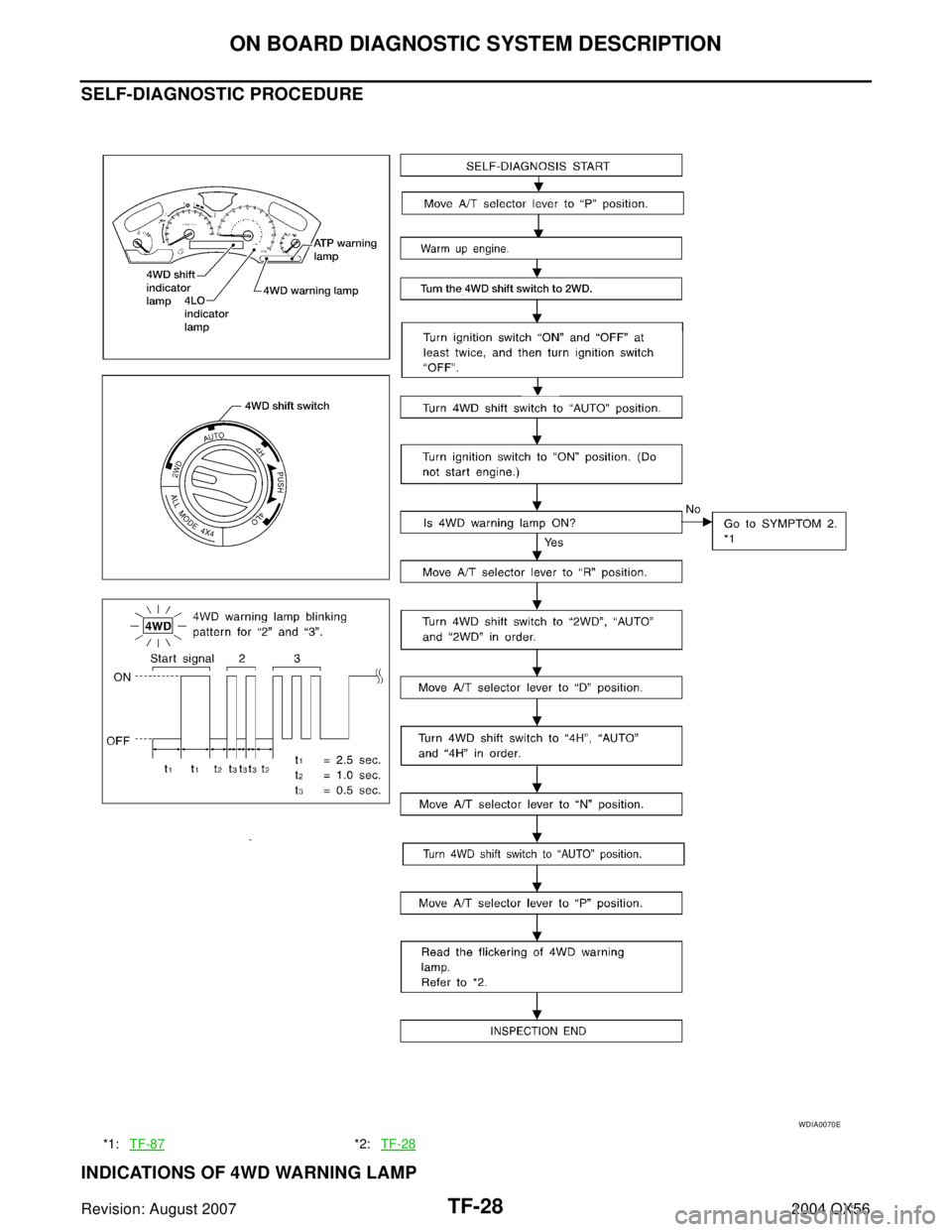

SELF-DIAGNOSTIC PROCEDURE .................... 28
INDICATIONS OF 4WD WARNING LAMP ......... 28CONSULT-II Function (ALL MODE AWD/4WD) ..... 31
Trouble Diagnosis with CONSULT-II ...................... 31
SELF-DIAGNOSIS .............................................. 31
SELF-DIAGNOSTIC ITEMS ................................ 32
DATA MONITOR ................................................. 34
DATA MONITOR ITEMS ..................................... 35
REFERENCE VALUE IN DATA MONITOR MODE
... 38
WORK SUPPORT ............................................... 41
CLUTCH FORCE RELEASE LIMIT ADJUST-
MENT .................................................................. 42
TROUBLE DIAGNOSIS — INTRODUCTION ........... 44
Introduction ............................................................. 44
DESCRIPTION .................................................... 44
DIAGNOSTIC WORKSHEET .............................. 44
Work Flow ............................................................... 46
HOW TO PERFORM TROUBLE DIAGNOSES
FOR QUICK AND ACCURATE REPAIR ............. 46
TROUBLE DIAGNOSIS — BASIC INSPECTION .... 47
Listen to Customer Complaints .............................. 47
Transfer Fluid Check .............................................. 47
Road Test ............................................................... 47
PREPARATION FOR ROAD TEST ..................... 47
1. CHECK BEFORE ENGINE IS STARTED ....... 48
2. CHECK AT IDLE .............................................. 49
3. CRUISE TEST ................................................. 53
TROUBLE DIAGNOSIS — GENERAL DESCRIP-
TION .......................................................................... 55
Transfer Control Unit Terminals and Reference
Value ....................................................................... 55
TRANSFER CONTROL UNIT HARNESS CON-
NECTOR LAYOUT .............................................. 55
TRANSFER CONTROL UNIT INSPECTION
TABLE ................................................................. 55
DTC U1000, U1001 CAN COMMUNICATION LINE ... 59
CAN Communication System Inspection ................ 59
4WD SOLENOID VALVE .......................................... 60
Diagnostic Procedure ............................................. 60
2-4WD SHIFT SOLENOID VALVE AND 4WD SHIFT

TF-2Revision: August 20072004 QX56 SWITCH ..................................................................... 62
Diagnostic Procedure ............................................. 62
TRANSFER MOTOR AND TRANSFER MOTOR
RELAY ....................................................................... 64
Diagnostic Procedure ............................................. 64
TRANSFER FLUID TEMPERATURE SENSOR ....... 66
Diagnostic Procedure ............................................. 66
ATP SWITCH, WAIT DETECTION SWITCH AND
NEUTRAL-4LO SWITCH .......................................... 69
Diagnostic Procedure ............................................. 69
CLUTCH PRESSURE SWITCH ................................ 72
Diagnostic Procedure ............................................. 72
LINE PRESSURE SWITCH ....................................... 74
Diagnostic Procedure ............................................. 74
DATA ERASE/DISPLAY ............................................ 76
Diagnostic Procedure ............................................. 76
SHIFT ACTUATOR ................................................... 77
Diagnostic Procedure ............................................. 77
SHIFT ACTUATOR POSITION SWITCH .................. 80
Diagnostic Procedure ............................................. 80
SHIFT ACTUATOR CIRCUIT .................................... 82
Diagnostic Procedure ............................................. 82
TROUBLE DIAGNOSES FOR SYMPTOMS ............. 85
Symptom 1. 4WD Shift Indicator Lamp Does Not
Turn ON (Although the ignition switch is turned ON,
all the 4WD indicator lamps do not turn ON for 1
second) ................................................................... 85
Symptom 2. 4WD Warning Lamp Does Not Turn ON
(Although the ignition switch is turned ON, the 4WD
warning lamp does not turn ON) ............................. 87
Symptom 3. 4WD Shift Indicator Lamp Does Not
Turn OFF (When 4WD shift switch is set from 4H
to 4LO, all the 4WD shift indicator lamps do not turn
off) ........................................................................... 88
Symptom 4. ATP Warning Lamp Does Not Turn ON
(When 4WD shift switch is set from 4H to 4LO with
the A/T selector lever in P position, the ATP warning
lamp does not turn on) ............................................ 89
Symptom 5. 4LO Indicator Lamp Does Not Turn ON
(When 4WD shift switch is set from 4H to 4LO posi-
tion, 4LO indicator lamp does not turn ON) ............ 90
Symptom 6. 4WD Shift Indicator Lamp Does Not
Indicate “LOCK” (When 4WD shift switch is set to
“4H”, 4WD shift indicator lamp does not indicate
“LOCK”) .................................................................. 91
Symptom 7. 4WD Shift Indicator Lamp Repeats
Flickering (4WD Shift Indicator Lamp Keeps Flick-
ering) ...................................................................... 92
Symptom 8. Tight Corner Braking Symptom (Tight
Corner Braking Symptom Occurs-Hydraulic Sys-
tem Failure) ............................................................ 93
Symptom 9. 4WD System Does Not Operate (The
Vehicle Cannot Be Put Into 4WD Mode-Hydraulic
System Failure) ...................................................... 94
Component Inspection ............................................ 95
4WD SHIFT SWITCH .......................................... 95
2-4WD SHIFT SOLENOID VALVE AND TRANS-
FER FLUID TEMPERATURE SENSOR .............. 95
4WD SOLENOID VALVE, CLUTCH PRESSURE SWITCH AND LINE PRESSURE SWITCH .........95
TRANSFER DROPPING RESISTOR ..................96
ATP SWITCH, NEUTRAL-4LO SWITCH AND
WAIT DETECTION SWITCH ...............................96
TRANSFER MOTOR ...........................................96
TRANSFER MOTOR RELAY ...............................97
TRANSFER SHIFT RELAY (HIGH & LOW) .........97
ACTUATOR AND ACTUATOR POSITION
SWITCH ...............................................................97
TRANSFER CONTROL UNIT ...................................98
Removal and Installation .........................................98
REMOVAL ............................................................98
INSTALLATION ....................................................98
FRONT OIL SEAL .....................................................99
Removal and Installation .........................................99
REMOVAL ............................................................99
INSTALLATION .................................................. 100
REAR OIL SEAL ..................................................... 101
Removal and Installation ....................................... 101
REMOVAL .......................................................... 101
INSTALLATION .................................................. 101
SIDE OIL SEAL ....................................................... 103
Removal and Installation ....................................... 103
REMOVAL .......................................................... 103
INSTALLATION .................................................. 103
TRANSFER CONTROL DEVICE ............................ 104
Removal and Installation ....................................... 104
AIR BREATHER HOSE ........................................... 105
Removal and Installation ....................................... 105
TRANSFER MOTOR ............................................... 106
Removal and Installation ....................................... 106
REMOVAL .......................................................... 106
INSTALLATION ..................................................... 106
TRANSFER OIL FILTER ......................................... 107
Removal and Installation ....................................... 107
REMOVAL .......................................................... 107
INSTALLATION .................................................. 107
REMOVAL AND INSTALLATION ............................ 109
Removal ................................................................ 109
Installation ............................................................. 109
OVERHAUL .............................................................110
Transfer Components ...........................................110
REAR CASE ............................................................112
Disassembly ..........................................................112
CENTER CASE .......................................................113
Disassembly ..........................................................113
FRONT DRIVE SHAFT AND DRIVE CHAIN .....115
MAINSHAFT AND CLUTCH DRUM ..................116
CLUTCH PISTON ..............................................118
CONTROL VALVE .............................................119
MAINSHAFT REAR BEARING .......................... 122
MAIN OIL PUMP ................................................ 122
SUB OIL PUMP ................................................. 123
OIL FILTER ........................................................ 124
FRONT CASE .......................................................... 125
Disassembly .......................................................... 125
SHIFT ROD COMPONENTS ............................. 125
PLANETARY CARRIER, SUN GEAR AND
INTERNAL GEAR .............................................. 127

TF-12
ALL-MODE 4WD SYSTEM
Revision: August 20072004 QX56
ALL-MODE 4WD TRANSFER BASIC CONTROL
HYDRAULIC CONTROL CIRCUITS
OUTLINE
All-mode 4WD transfer is controlled by the transfer control unit and sensors.
If a malfunction occurs in the all-mode 4WD system, the 4WD warning lamp lights up to indicate the system
malfunction. There are two ways to identify the cause of the malfunction.
1. Performing the self-diagnosis. (The 4WD warning lamp will indicate what kind of malfunction has occurred
by flickering.)
2. Performing diagnosis using CONSULT-II.
LDIA0055E
WDIA0056E

ALL-MODE 4WD SYSTEM
TF-13
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
CONTROL SYSTEM DIAGRAM
INDICATIONS OF 4WD WARNING LAMP
*: When 4WD warning lamp is ON, all the 4WD shift indicator lamps turn OFF.
CAN CommunicationEDS0017P
SYSTEM DESCRIPTION
Refer to LAN-5, "CAN COMMUNICATION" .
WDIA0075E
Condition Content 4WD warning lamp
During self-diagnosis Indicates the malfunction position by number of flickers. Flickers at malfunction mode.
Lamp check*Checks the lamp by turning ON during engine starting. After
engine starts, it turns OFF if there are no malfunctions.ON
Malfunction in 4WD system*Turns ON to indicate malfunction. When ignition switch is
turned to “OFF” or the malfunction is corrected, it turns OFF.ON
When vehicle is driven with different
diameters of front and rear tiresFlickers once every 2 seconds.
Turns OFF when ignition switch is “OFF”.Flickers once every 2 sec-
onds.
High fluid temperature in transfer unitWhen fluid temperature is high or fluid temperature sensor cir-
cuit is shorted, it flickers twice every second.
It turns OFF when fluid temperature becomes normal.Flickers twice a second.
Other than above (System is nor-
mal.)Lamp is OFF. OFF

TF-16
ALL-MODE 4WD SYSTEM
Revision: August 20072004 QX56
LINE PRESSURE SWITCH
1. With the transfer system design, control of the oil pressure provides the transmission of drive torque to the
front wheels. The main pressure to control the oil pressure is referred to as the line pressure.
The line pressure switch determines whether or not adequate line pressure has built up under different
operating conditions.
2. The line pressure switch turns ON when line pressure is produced.
3. The line pressure switch senses line pressure abnormalities and turns the 4WD warning lamp ON.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
TF-27
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
Trouble Diagnosis without CONSULT-IIEDS0017U
DESCRIPTION
If the engine starts when there is something wrong with the all-mode 4WD system, the 4WD warning lamp
turns ON or flickers in the combination meter. When the system functions properly, the warning lamp turns ON
when the ignition switch is turned to ON, and it turns OFF after engine starts.
To locate the cause of a problem, start the self-diagnosis function. The 4WD warning lamp in the combination
meter will indicate the problem area by flickering according to the self-diagnostic results. As for the details of
the 4WD warning lamp flickering patterns, refer to TF-28
.

TF-28
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Revision: August 20072004 QX56
SELF-DIAGNOSTIC PROCEDURE
INDICATIONS OF 4WD WARNING LAMP
*1:TF-87*2:TF-28
WDIA0070E

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
TF-33
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
Note 1: When a malfunction occurs, it is only displayed and not stored in the memory.
Note 2: When the wait detection switch has been properly fixed, malfunction information is erased from the memory.
Note 3: If 4WD shift switch is left between 4H and 4LO for a while, this indication may be displayed.
(*1): If the malfunction is detected only while driving in reverse, check the continuity of “R” position on A/T PNP switch. When there is
nothing wrong with the electrical system, check the hydraulic system.
(*2): If a revolution sensor malfunction is detected at the same time, check the revolution sensor circuit first.
Note 4: When this malfunction is detected with the ABS warning lamp off, first check for disconnection or shorting in the harness
between the transfer control unit and the ABS control unit.
Note 5: When several systems including CAN communication system indicate malfunctions, perform diagnosis of the CAN communica-
tion first.Shift actuator abnormal
(SHIFT ACT)Transfer control device actuator motor is malfunctioning.
(Malfunctions are detected when actuator motor fails to
operate while shifting from “4H” to “4LO” or vice versa.) Refer to TF-77, "
Diagnostic Proce-
dure" or TF-82, "Diagnostic Pro-
cedure" .
Shift actuator position switch
abnormal
(SHIFT ACT P/S)Transfer control device actuator motor arm position sens-
ing switch is malfunctioning.Refer to TF-80, "
Diagnostic Proce-
dure" or TF-82, "Diagnostic Pro-
cedure" .
Shift actuator circuit abnormal
(SHIFT ACT CIR)Transfer control device actuator circuit is shorted or open.
(Malfunctions are detected when motor relay circuit is
open/shorted or relay monitor circuit is open/shorted.)Refer to TF-77, "
Diagnostic Proce-
dure" , TF-80, "Diagnostic Proce-
dure"TF-82, "Diagnostic
Procedure" .
Memory power supply stop

Due to removal of battery which cuts off power supply to
transfer control unit, self-diagnosis memory function is
suspended.Refer to TF-76, "Diagnostic Proce-
dure" .
Transfer control unit (RAM)
[CONTROL UNIT (RAM)]

Malfunction is detected in the memory (RAM) system of
transfer control unit.—
Transfer control unit (ROM)
[CONTROL UNIT (ROM)]

Malfunction is detected in the memory (ROM) system of
transfer control unit.—
Transfer control unit (EEPROM)
[CONTROL UNIT (EEPROM)]

Malfunction is detected in the memory (EEPROM) sys-
tem of transfer control unit.—
Longitudinal G-sensor Displayed, but do not use. —
ABS VHL SPD SEN

ABS vehicle speed sensor signal is not input due to an
open circuit.

An unexpected signal is input when vehicle is being
driven.Refer to ABS vehicle speed sensor
diagnosis.
STEERING ANGLE SENSOR Displayed, but do not use. —
VDC OPER SIGIf VDC operation signal is being input because of VDC
malfunction or communication error within the vehicle.Refer to BRC-40, "
ABS/TCS/VDC
Control Unit Inspection" .
TCS OPER SIGIf TCS operation signal is being input because of TCS mal-
function or communication error within the vehicle.Refer to BRC-40, "
ABS/TCS/VDC
Control Unit Inspection" .
CAN COMM (Note 5) Malfunction is detected in CAN communication.Refer to LAN-5, "
CAN COMMUNI-
CATION" .
A/T POSITION SIGNALWhen AT PNP switch circuit is malfunction or communica-
tion error between the vehiclesRefer to AT-109, "
DTC P0705
PARK/NEUTRAL POSITION
SWITCH" . Detected items
(Screen terms for CONSULT-II,
“SELF-DIAG RESULT” mode)Malfunction is detected when... Check items

TF-36
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Revision: August 20072004 QX56
N position switch TF [ON-OFF] N position switch of transfer
Line pressure switch [ON-OFF] Line pressure switch
Clutch pressure switch [ON-OFF] Clutch pressure switch
ATP switch [ON-OFF]—
N position switch AT [ON-OFF] “N” position on A/T PNP switch
R position switch AT [ON-OFF] “R” position on A/T PNP switch
P position switch AT [ON-OFF] “P” position on A/T PNP switch
ABS operation switch [ON-OFF] ABS operation switch
Wait detection switch [ON-OFF] —
Throttle positionThrottle opening recognized by transfer
control unit
4WD-mode4WD-mode recognized by transfer control
unit (2WD, AUTO, 4H & 4LO)
Vehicle speed comp [km/h (MPH)]Vehicle speed recognized by transfer con-
trol unit
*Control torque [N·m (kg-m, ft.-lb.)]Calculated torque recognized by transfer
control unit
Duty solenoid valve [%]
(Transfer 4WD solenoid valve)—
2-4WD shift solenoid valve [ON-
OFF]
Control signal outputs of transfer control
unit Transfer motor relay [ON-OFF]
Shift activating 1 [ON-OFF]
Shift activating 2 [ON-OFF]
2-4WD shift solenoid valve monitor
[ON-OFF]
Check signal (re-input signal) of transfer
control unit control signal output is dis-
played. If circuit is shorted or open, ON/OFF
state does not change. Transfer motor relay monitor [ON-
OFF]
Shift activating monitor 1 [ON-OFF]
Shift activating monitor 2 [ON-OFF]
4WD fail lamp [ON-OFF]Transfer control unit control signal output for
4WD warning lamp (left)
Shift position switch 1 [ON-OFF] —
Shift position switch 2 [ON-OFF] —
2WD indicator lamp [ON-OFF]Transfer control unit control signal output for
4WD shift indicator lamp (rear)
AUTO indicator lamp [ON-OFF]Transfer control unit control signal output for
4WD shift indicator lamp (front & rear)
LOCK indicator lamp [ON-OFF]Transfer control unit control signal output for
4WD shift indicator lamp (center)
4LO indicator lamp [ON-OFF]Transfer control unit control signal output for
4WD shift indicator lamp (right) Item [Unit]Monitor item
Remarks ECU
INPUT
SIGNALSMAIN
SIGNALSSELEC-
TION
FROM
MENU

TF-44
TROUBLE DIAGNOSIS — INTRODUCTION
Revision: August 20072004 QX56
TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionEDS0017W
DESCRIPTION
When a malfunction (indicated by the 4WD warning lamp illumination) occurs, collect information first from the
customer about how the malfunction occurs. Then, proceed with the diagnosis presuming it is the cause. Also
inspect the electrical system, paying close attention to other possibilities such as fluid level and leaks.
All-mode 4WD transfer is controlled by transfer control unit and sensors.
If a malfunction occurs in the all-mode 4WD system, the 4WD warning lamp lights up to inform of the system
malfunction. There are two ways to identify the cause of the malfunction.
1. Performing the self-diagnosis. (The 4WD warning lamp will indicate what kind of malfunction has occurred
by flickering.)
2. Performing diagnosis using CONSULT-II.
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS

WHAT ..... Vehicle model

WHEN..... Date, Frequencies

WHERE..... Road conditions

HOW..... Operating conditions, Symptoms
Diagnostic Worksheet
Information sheet from customer
Customer name MR/MS Model & Year VIN
Transfer model
AT X 1 4 BEngine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous ❏ Intermittent ( times a day)
Symptoms❏ 4WD shift indicator lamp does not turn on.
❏ 4WD warning lamp does not turn on.
❏ 4WD shift indicator lamp does not turn off.
❏ ATP warning lamp does not turn on.
❏ 4LO indicator lamp does not turn on.
❏ 4WD shift indicator lamp does not indicate “4H”.
❏ 4WD shift indicator lamp repeats flicking.
❏ Tight corner braking symptom occurs.
❏ 4WD system does not operate.
❏ Others.
4WD warning lamp❏ Continuously lit❏ Not lit
1.❏ Listen to customer complaints.TF-47
2.❏ Check transfer fluid.TF-47
❏ Leakage
❏ Fluid condition
❏ Fluid level
3.❏ Road testingTF-47
❏ 1. Check before engine is started.
❏ 2. Check at idle.
❏ 3. Cruise test
4.❏ Perform self-diagnosis NG items (with CONSULT-II and without CONSULT-II).TF-31
, TF-28
