Page 2331 of 3371
LAN-68
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
Case 10
Check driver seat control unit circuit. Refer to LAN-84, "Driver Seat Control Unit Circuit Check" .
PKIA8098E
PKIA8809E
Page 2332 of 3371
CAN SYSTEM (TYPE 2)
LAN-69
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 11
Check combination meter circuit. Refer to LAN-84, "Combination Meter Circuit Check" .
PKIA8099E
PKIA8810E
Page 2333 of 3371
LAN-70
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
Case 12
Check display control unit circuit. Refer to LAN-85, "Display Control Unit Circuit Check" .
PKIA8100E
PKIA88 11 E
Page 2334 of 3371
CAN SYSTEM (TYPE 2)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56

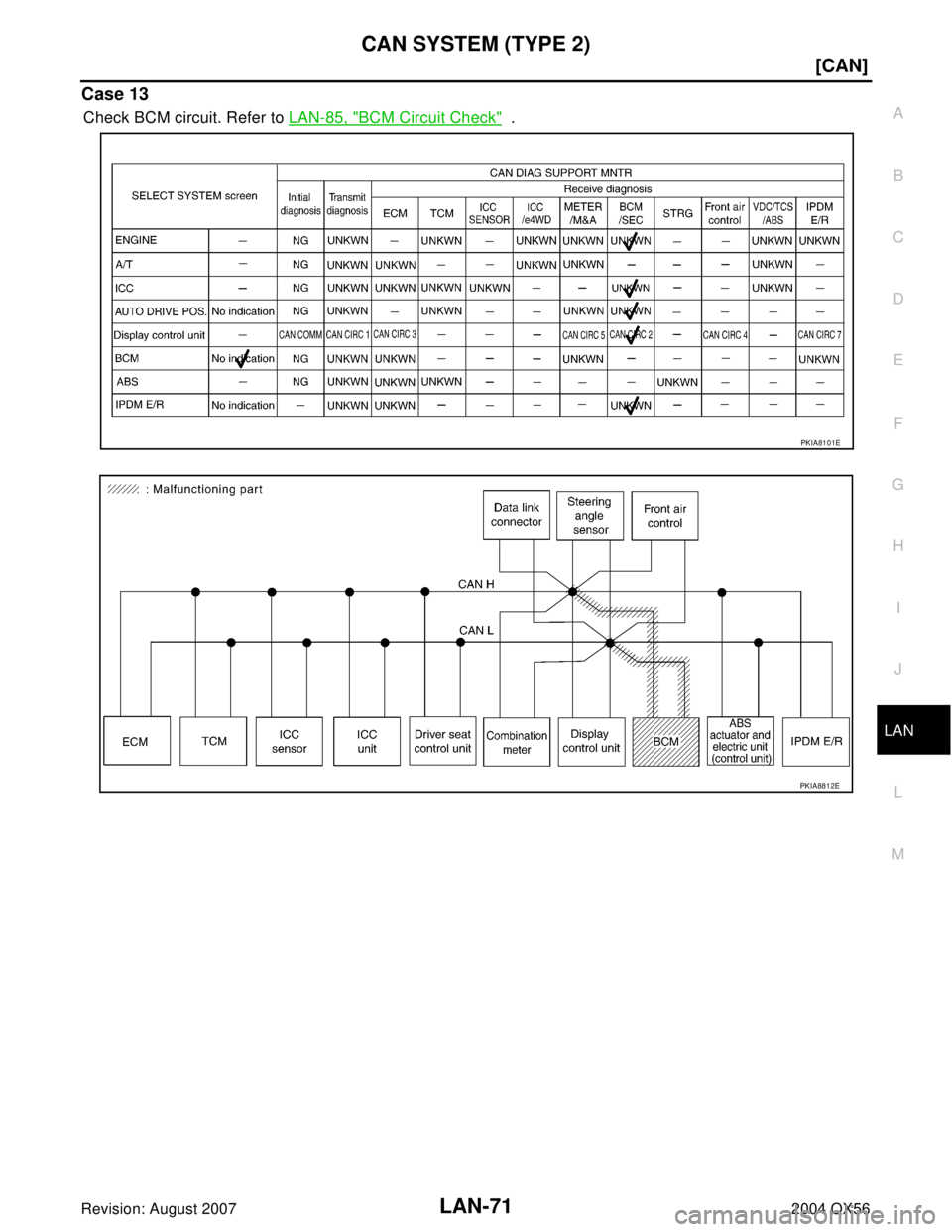

Case 13
Check BCM circuit. Refer to LAN-85, "BCM Circuit Check" .
PKIA8101E
PKIA8812E
Page 2335 of 3371
LAN-72
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56

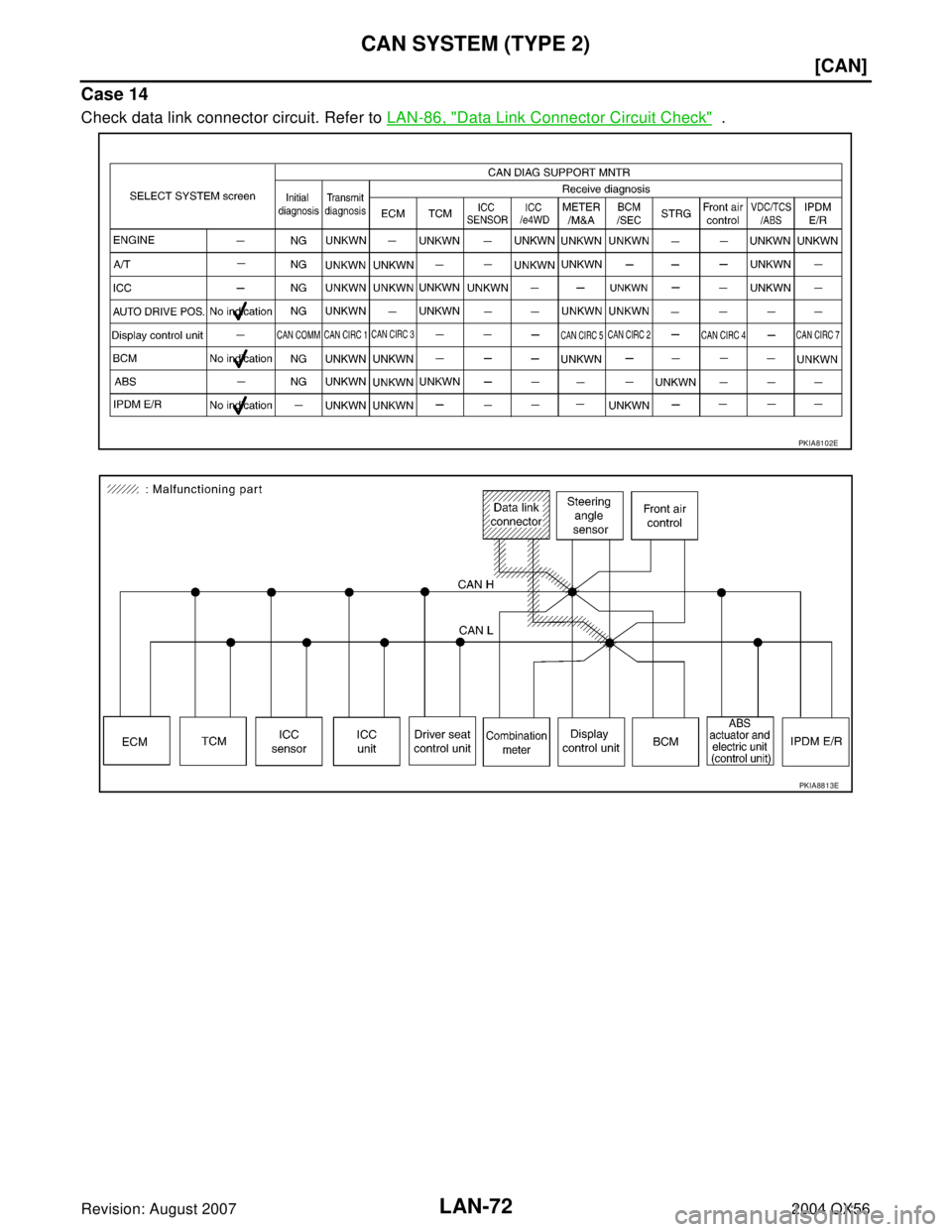

Case 14
Check data link connector circuit. Refer to LAN-86, "Data Link Connector Circuit Check" .
PKIA8102E
PKIA8813E
Page 2336 of 3371
CAN SYSTEM (TYPE 2)
LAN-73
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 15
Check steering angle sensor circuit. Refer to LAN-86, "Steering Angle Sensor Circuit Check" .
PKIA8103E
PKIA8814E
Page 2337 of 3371
LAN-74
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
Case 16
Check front air control circuit. Refer to LAN-87, "Front Air Control Circuit Check" .
PKIA8104E
PKIA8815E
Page 2338 of 3371
CAN SYSTEM (TYPE 2)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 17
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-87, "ABS Actuator and Electric Unit
(Control Unit) Circuit Check" .
PKIA8105E
PKIA8816E
Page 2339 of 3371
LAN-76
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56

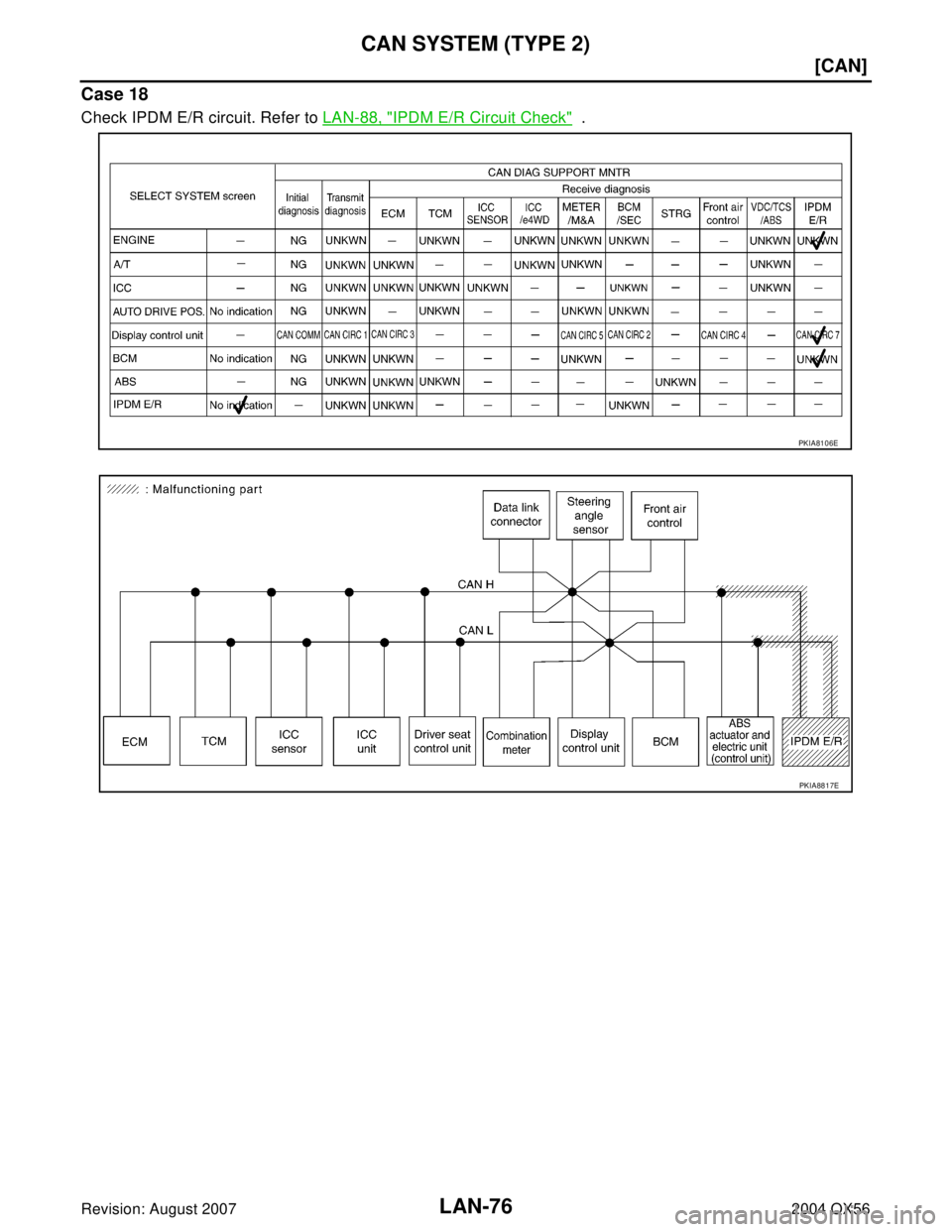

Case 18
Check IPDM E/R circuit. Refer to LAN-88, "IPDM E/R Circuit Check" .
PKIA8106E
PKIA8817E
Page 2340 of 3371
CAN SYSTEM (TYPE 2)
LAN-77
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 19
Check CAN communication circuit. Refer to LAN-88, "CAN Communication Circuit Check" .
Case 20
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-89, "IPDM E/R Ignition Relay
Circuit Check" .
PKIA8107E
PKIA8108E
