ignition INFINITI QX56 2004 Factory Service Manual

BL-142
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
Terminals and Reference Value for BCMEIS002TQ
CONSULT-IIEIS002TR
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Turn ignition switch OFF.
2. Insert IVIS (NATS) program card into CONSULT-II.
3. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.
4. Turn ignition switch ON.
5. Touch “START”.
Terminal Wire
ColorItem ConditionVoltage (V)
(Approx.)
21 G NATS antenna amp. Ignition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should move.
23 G/O Security indicator lampGoes OFF → illuminates (Every 2.4
seconds)Battery voltage → 0
25 BR NATS antenna amp. Ignition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should move.
38 W/L Ignition switch (ON or START)Ignition switch (ON or START posi-
tion)Battery voltage
39 W CAN-H — —
40 R CAN-L — —
57 Y/R Battery power supply — Battery voltage
67 B Ground — 0
70 W/B Battery power supply — Battery voltage
Program card : NATS (AEN04A-1) or later
BBIA0369E
PBR4 55 D

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-143
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
6. Touch "JA60" and "OK" on "VEHICLE SELECT" screen. For cancelling touch "CANCEL" on "VEHICLE
SELECT" screen.
NOTE:
Confirm vehicle model on IDENTIFICATION PLATE. Refer to
GI-46, "
Model Variation"
7. Select “NATS V.5.0”.
If “NATS V5.0” is not indicated, go to GI-39, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
8. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual
NATS-IVIS/NVIS.
CONSULT-II DIAGNOSTIC TEST MODE FUNCTION
NOTE:

When any initialization is performed, all IDs previously registered will be erased and all NATS ignition keys
must be registered again.

The engine cannot be started with an unregistered key. In this case, the system will show “DIFFERENCE
OF KEY” or “LOCK MODE” as a self-diagnostic result on the CONSULT-II screen.

In rare case, “CHAIN OF ECM-IMMU” might be stored as a self-diagnostic result during key registration
procedure, even if the system is not malfunctioning.
LKIA0606E
SEL027X
SEL150X
CONSULT-II DIAGNOSTIC TEST
MODEDescription
C/U INITIALIZATIONWhen replacing any of the following components, C/U initialization and re-registration of all
NATS ignition keys are necessary.
[(NATS ignition key/ BCM/ ECM]
SELF-DIAG RESULTSDetected items (screen terms) are as shown in the chart.
Refer to BL-144, "
IVIS (NATS) SELF-DIAGNOSTIC RESULTS ITEM CHART" .

BL-144
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
HOW TO READ SELF-DIAGNOSTIC RESULTS
IVIS (NATS) SELF-DIAGNOSTIC RESULTS ITEM CHART
PIIA1124E
Detected items
[IVIS (NATS) program card screen
terms]P No. Code
(Self-diagnostic
result of
“ENGINE”)Malfunction is detected when.....Reference
page
CHAIN OF ECM-IMMU
[P1612]NATS MAL-
FUNCTION
P1612Communication impossible between ECM and BCM
In rare case, “CHAIN OF ECM-IMMU” might be stored
during key registration procedure, even if the system is
not malfunctioning.Refer to
BL-148
.
DIFFERENCE OF KEY
[P1615]NATS MAL-
FUNCTION
P1615BCM can receive the key ID signal but the result of ID
verification between key ID and BCM is NG.Refer to
BL-149
.
CHAIN OF IMMU-KEY
[P1614]NATS MAL-
FUNCTION
P1614BCM cannot receive the key ID signal.Refer to
BL-152
.
ID DISCORD, IMM-ECM
[P1611]NATS MAL-
FUNCTION
P1611The result of ID verification between BCM and ECM is
NG. System initialization is required.Refer to
BL-150
.
LOCK MODE
[P1610]NATS MAL-
FUNCTION
P1610When the starting operation is carried out five or more
times consecutively under the following conditions, IVIS
(NATS) will shift the mode to one which prevents the
engine from being started.

Unregistered ignition key is used.

BCM or ECM malfunctioning.Refer to
BL-151
.
DON'T ERASE BEFORE CHECK-
ING ENG DIAG—All engine trouble codes except IVIS (NATS) trouble code
has been detected in ECM.Refer to
BL-145
.

BL-146
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
Trouble DiagnosesEIS002TT
SYMPTOM MATRIX CHART 1
Self-diagnosis related item
*: When IVIS (NATS) detects trouble, the security indicator lights up while ignition key is in the “ON” position.SymptomDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.Diagnostic Procedure
(Reference page)System
(Malfunctioning part or
mode)Reference Part No. Of
Illustration On System
Diagram

Security indicator
lighting up*

Engine cannot be
startedCHAIN OF ECM-IMMU
[P1612]PROCEDURE 1
(BL-148
)In rare case, “CHAIN OF
ECM-IMMU” might be
stored during key regis-
tration procedure, even if
the system is not mal-
functioning.—
Open circuit in battery
voltage line of BCM cir-
cuitC1
Open circuit in ignition
line of BCM circuitC2
Open circuit in ground
line of BCM circuitC3
Open or short circuit
between BCM and ECM
communication lineC4
ECM B
BCM A
DIFFERENCE OF KEY
[P1615]PROCEDURE 2
(BL-149
)Unregistered key D
BCM A
CHAIN OF IMMU-KEY
[P1614]PROCEDURE 5
(BL-152
)Malfunction of key ID
chipE5
Communication line
between ANT/ AMP and
BCM:
Open circuit or short cir-
cuit of battery voltage
line or ground lineE1
E2
Open circuit in power
source line of ANT/ AMP
circuitE3
Open circuit in ground
line of ANT/ AMP circuitE4
NATS antenna amp. E6
BCM A
ID DISCORD, IMM-ECM
[P1611]PROCEDURE 3
(BL-150
)System initialization has
not yet been completed.F
ECM B
LOCK MODE
[P1610]PROCEDURE 4
(BL-151
)LOCK MODE D
Security indicator light-
ing up*DON'T ERASE
BEFORE CHECKING
ENG DIAGWORK FLOW
(BL-145
)Engine trouble data and
IVIS (NATS) trouble data
have been detected in
ECM—

BL-148
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
Diagnostic Procedure 1EIS002TU
Self-diagnostic results:
“CHAIN OF ECM-IMMU” displayed on CONSULT-II screen
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, then perform the trouble diagno-
sis of malfunction system indicated “SELF-DIAG RESULTS” of “BCM”. Refer to BL-142, "
CONSULT-II"
.
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “CHAIN OF ECM-IMMU”
displayed on CONSULT-II screen.
NOTE:
In rare case, “CHAIN OF ECM-IMMU” might be stored during key
registration procedure, even if the system is not malfunctioning.
Is CONSULT-II screen displayed as above?
Yes >> GO TO 2.
No >> GO TO BL-146, "
SYMPTOM MATRIX CHART 1" .
2. CHECK POWER SUPPLY CIRCUIT FOR BCM
1. Disconnect BCM.
2. Check voltage between BCM connector M20 terminal 70 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check the following:

50A fusible link (letter f , located in fuse and fusible
link box)

Harness for open or short between fuse and BCM
connector
Ref. Part No. C1
3. CHECK IGN SW. ON SIGNAL
1. Turn ignition switch ON.
2. Check voltage between BCM connector M18 terminal 38 and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following:

10A fuse [No. 59, located in the fuse and relay box]

Harness for open or short between fuse and BCM
connector
Ref. part No. C2
PIIA1260E
70 (W/B) - Ground : Battery voltage
LIIA1071E
38 (W/L) - Ground : Battery voltage
LIIA0527E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-149
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
4. CHECK GROUND CIRCUIT FOR BCM
1. Turn ignition switch OFF.
2. Check continuity between BCM connector M18 terminal 67 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness. Ref. part No. C3
5. REPLACE BCM
1. Replace BCM. Ref. part No. A
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
Does the engine start?
Yes >> BCM is malfunctioning.
No >> ECM is malfunctioning.

Replace ECM. Ref. part No. B

Perform initialization or re-communicating function.

For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.

For re-communicating function, refer to BL-140, "ECM Re-communicating Function" .
Diagnostic Procedure 2EIS002TV
Self-diagnostic results:
“DIFFERENCE OF KEY” displayed on CONSULT-II screen
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “DIFFERENCE OF KEY”
displayed on CONSULT-II screen.
Is CONSULT-II screen displayed as above?
Yes >> GO TO 2.
No >> GO TO BL-146, "
SYMPTOM MATRIX CHART 1" . 67 (B) - Ground : Continuity should exist.
LIIA1040E
PIIA1261E

BL-150
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
2. PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.
For initialization and registration of NATS ignition key IDs, refer to “CONSULT-II Operation Manual NATS-IVIS/
NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows message on the screen.
Can the system be initialized and can the engine be started with re-
registered NATS ignition key?
Yes >> Ignition key ID was unregistered. Ref. part No. D
No >> BCM is malfunctioning.

Replace BCM. Ref. part No. A

Perform initialization with CONSULT-II.

For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”.
Diagnostic Procedure 3EIS002TW
Self-diagnostic results:
“ID DISCORD, IMM-ECM” displayed on CONSULT-II screen
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “ID DISCORD, IMM-ECM” displayed on CONSULT-II screen.
NOTE:
“ID DISCORD IMM-ECM”:
Registered ID of BCM is in discord with that of ECM.
Is CONSULT-II screen displayed as above?
Yes >> GO TO 2.
No >> GO TO BL-146, "
SYMPTOM MATRIX CHART 1" .
2. PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.
For initialization, refer to “CONSULT-II Operation Manual NATS-
IVIS/NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows message on the screen.
Can the system be initialized?
Ye s > >
Start engine. (END)

(System initialization had not been completed. Ref.
part No. F )
No >> ECM is malfunctioning.

Replace ECM. Ref. part No. B

Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
SEL297W
PIIA1262E
SEL297W

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-151
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Diagnostic Procedure 4EIS002TX
Self-diagnostic results:
“LOCK MODE” displayed on CONSULT-II screen
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “LOCK MODE” is displayed
on CONSULT-II screen.
Is CONSULT-II screen displayed as above?
Yes >> GO TO 2.
No >> GO TO BL-146, "
SYMPTOM MATRIX CHART 1" .
2. ESCAPE FROM LOCK MODE
1. Turn ignition switch OFF.
2. Turn ignition switch ON with registered key. (Do not start engine.) Wait 5 seconds.
3. Return the key to OFF position. Wait 5 seconds.
4. Repeat steps 2 and 3 twice (total of three cycles).
5. Start the engine.
Does engine start?
Yes >> System is OK (Now system is escaped from “LOCK MODE”). Clear all codes.
No >> GO TO 3.
3. PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-
IVIS/NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows the message on the screen.
Can the system be initialized?
Yes >> System is OK.
No >> GO TO 4.
PIIA1264E
SEL297W

BL-152
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: August 20072004 QX56
4. PERFORM INITIALIZATION WITH CONSULT-II AGAIN
1. Replace BCM.
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-
IVIS/NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows the message on the screen.
Can the system be initialized?
Yes >> System is OK. BCM is malfunctioning. Ref. part No. A
No >> ECM is malfunctioning.

Replace ECM. Ref. part No. B

Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”.
Diagnostic Procedure 5EIS0 02 TY
Self-diagnostic results:
“CHAIN OF IMMU-KEY” displayed on CONSULT-II screen
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “CHAIN OF IMMU-KEY”
displayed on CONSULT-II screen.
Is CONSULT-II screen displayed as above?
Yes >> GO TO 2.
No >> GO TO BL-146, "
SYMPTOM MATRIX CHART 1" .
2. CHECK NATS ANTENNA AMP. INSTALLATION
Check NATS antenna amp. installation. Refer to BL-156, "
How to Replace NATS Antenna Amp." .
OK or NG
OK >> GO TO 3.
NG >> Reinstall NATS antenna amp. correctly.
3. CHECK IVIS (NATS) IGNITION KEY ID CHIP
Start engine with another registered NATS ignition key.
Does the engine start?
Yes >> Ignition key ID chip is malfunctioning.

Replace the ignition key.
Ref. part No. E5

Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
No >> GO TO 4.
SEL297W
PIIA1263E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-153
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56

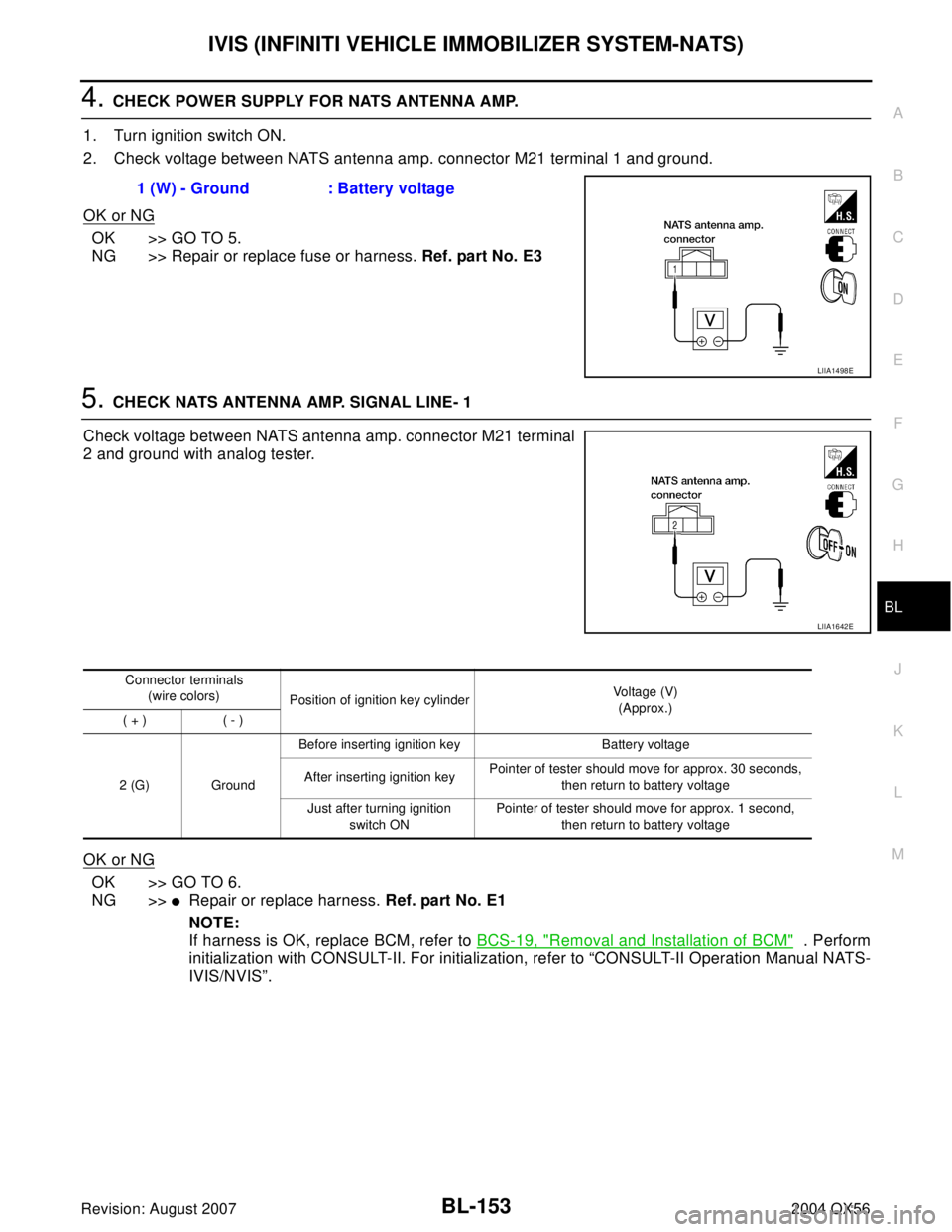

4. CHECK POWER SUPPLY FOR NATS ANTENNA AMP.
1. Turn ignition switch ON.
2. Check voltage between NATS antenna amp. connector M21 terminal 1 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace fuse or harness. Ref. part No. E3
5. CHECK NATS ANTENNA AMP. SIGNAL LINE- 1
Check voltage between NATS antenna amp. connector M21 terminal
2 and ground with analog tester.
OK or NG
OK >> GO TO 6.
NG >>

Repair or replace harness. Ref. part No. E1
NOTE:
If harness is OK, replace BCM, refer to BCS-19, "
Removal and Installation of BCM" . Perform
initialization with CONSULT-II. For initialization, refer to “CONSULT-II Operation Manual NATS-
IVIS/NVIS”. 1 (W) - Ground : Battery voltage
LIIA1498E
LIIA1642E
Connector terminals
(wire colors)
Position of ignition key cylinderVoltage (V)
(Approx.)
( + ) ( - )
2 (G) GroundBefore inserting ignition key Battery voltage
After inserting ignition keyPointer of tester should move for approx. 30 seconds,
then return to battery voltage
Just after turning ignition
switch ONPointer of tester should move for approx. 1 second,
then return to battery voltage
