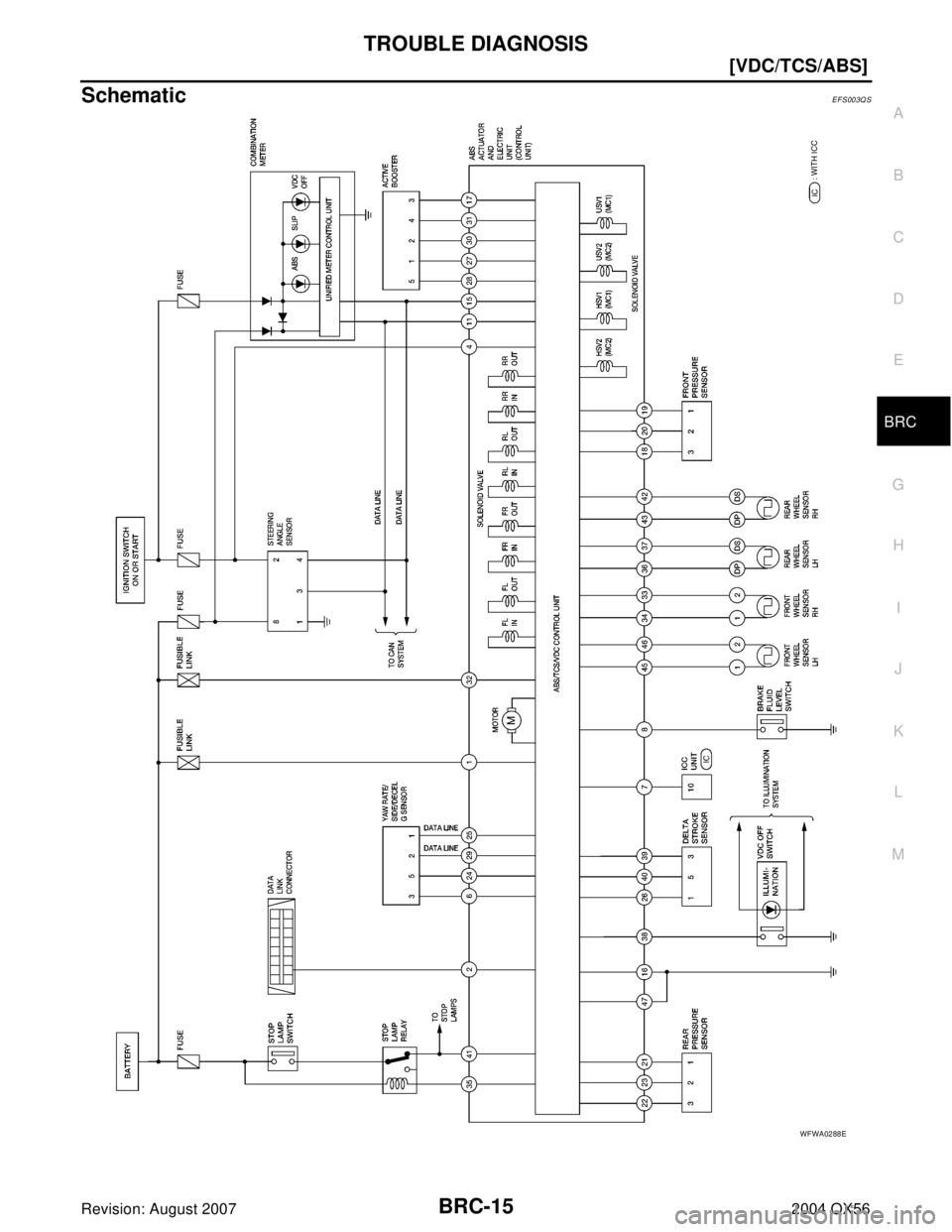

SchematicEFS003QS
WFWA0288E

BRC-16
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56

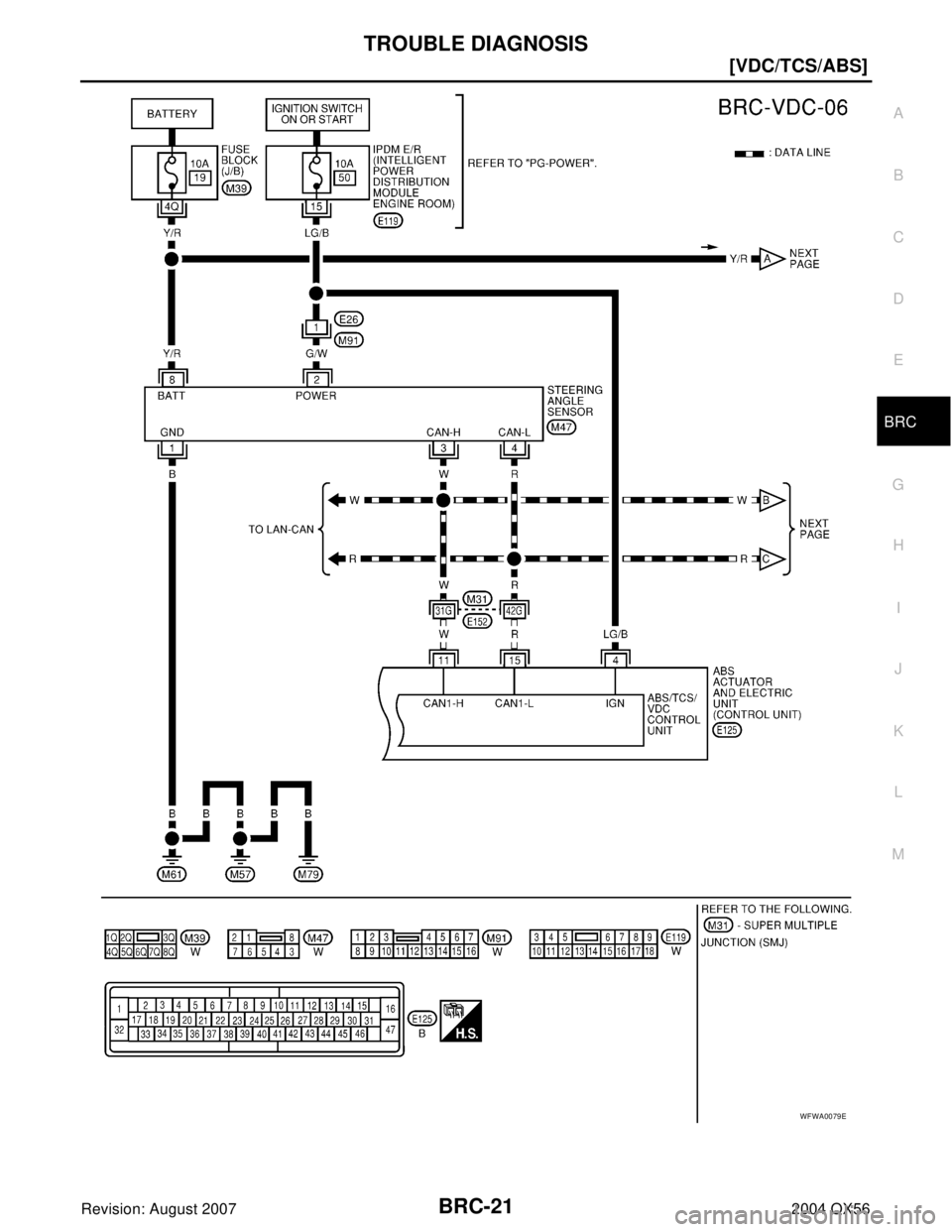

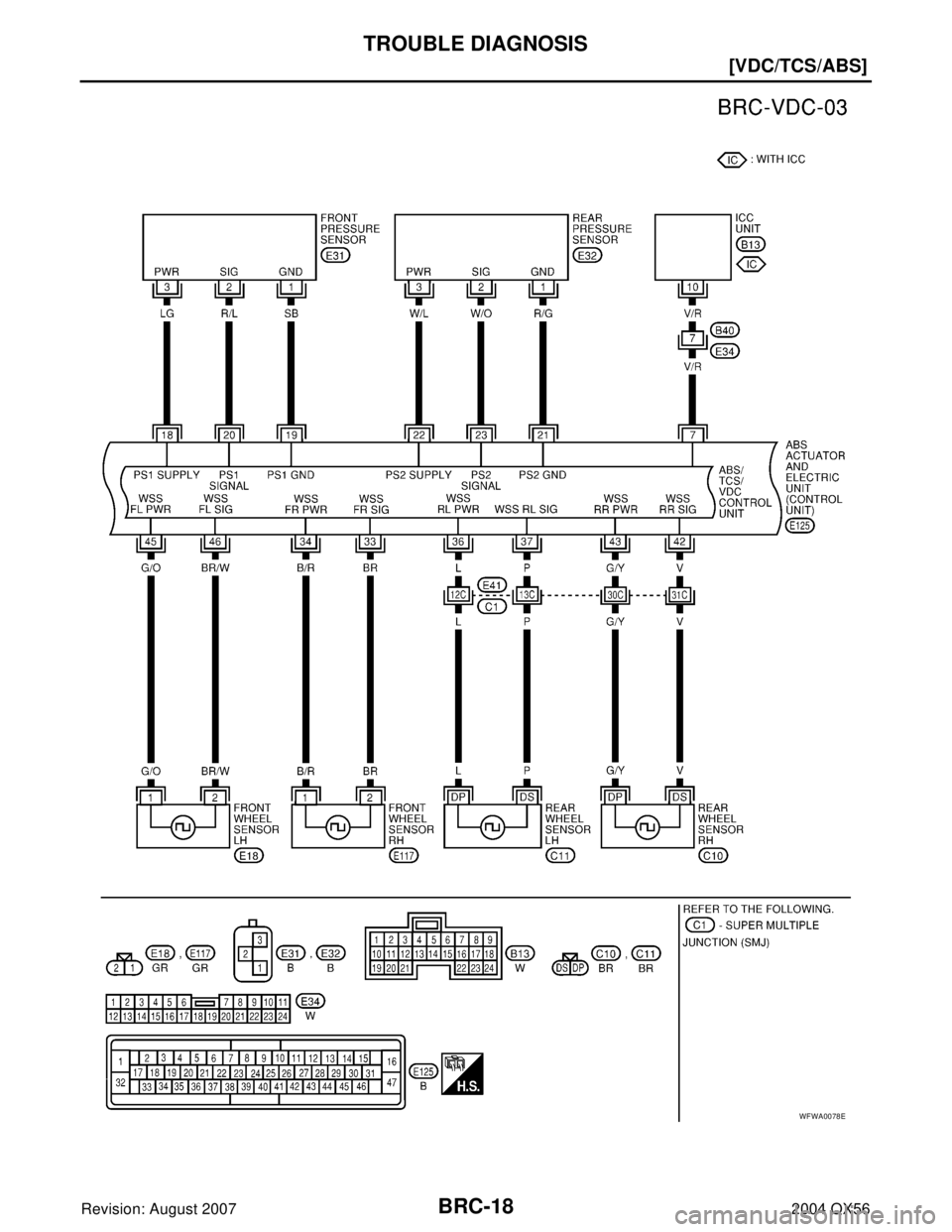

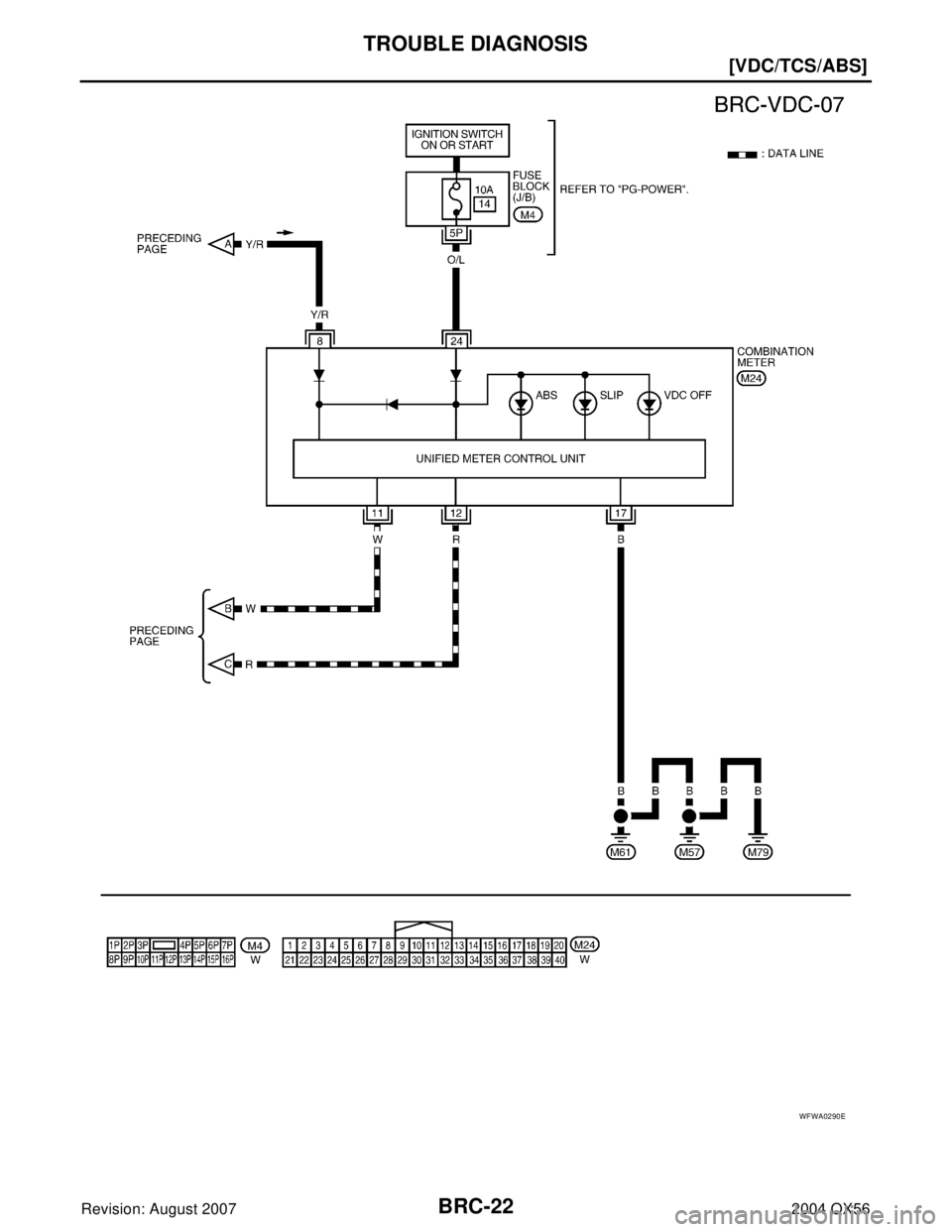

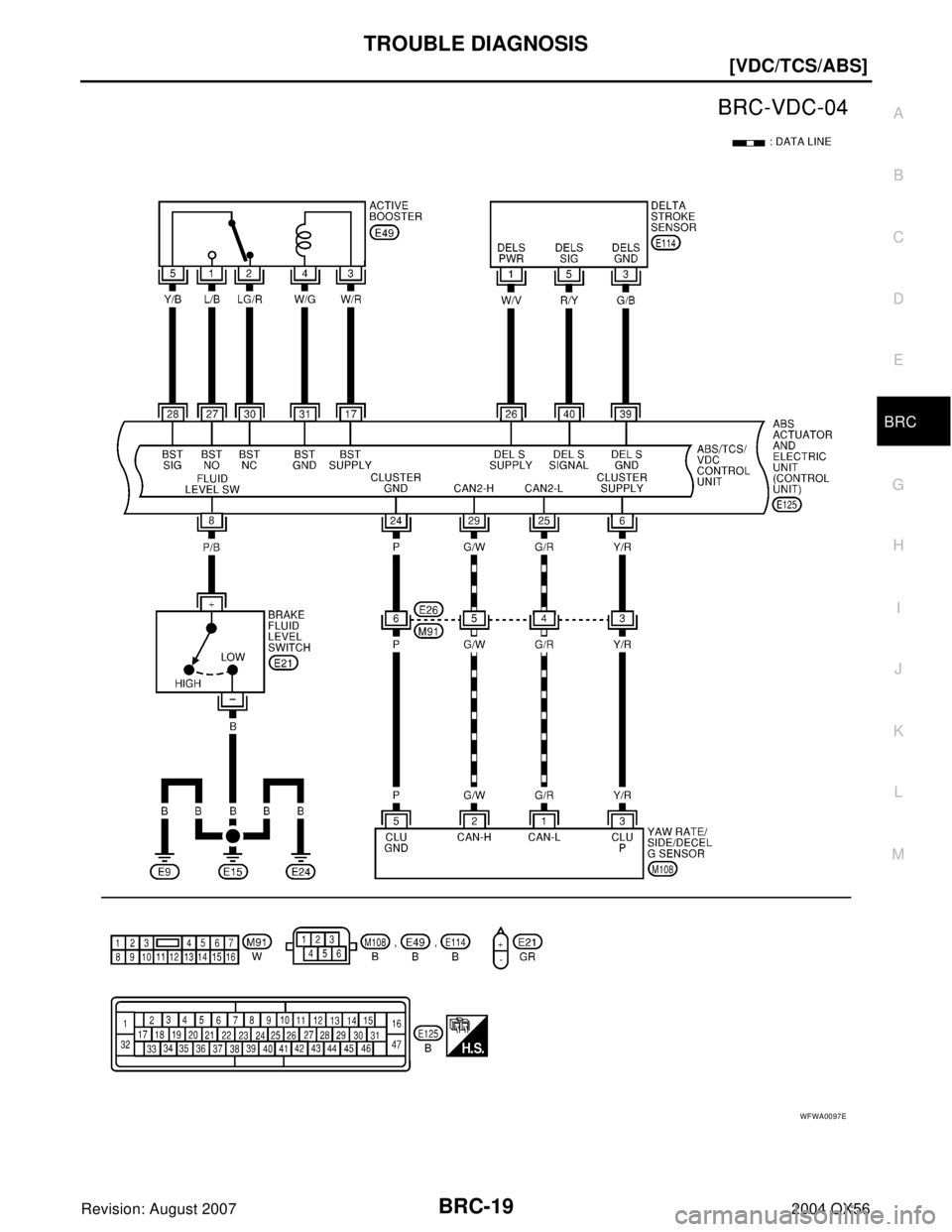

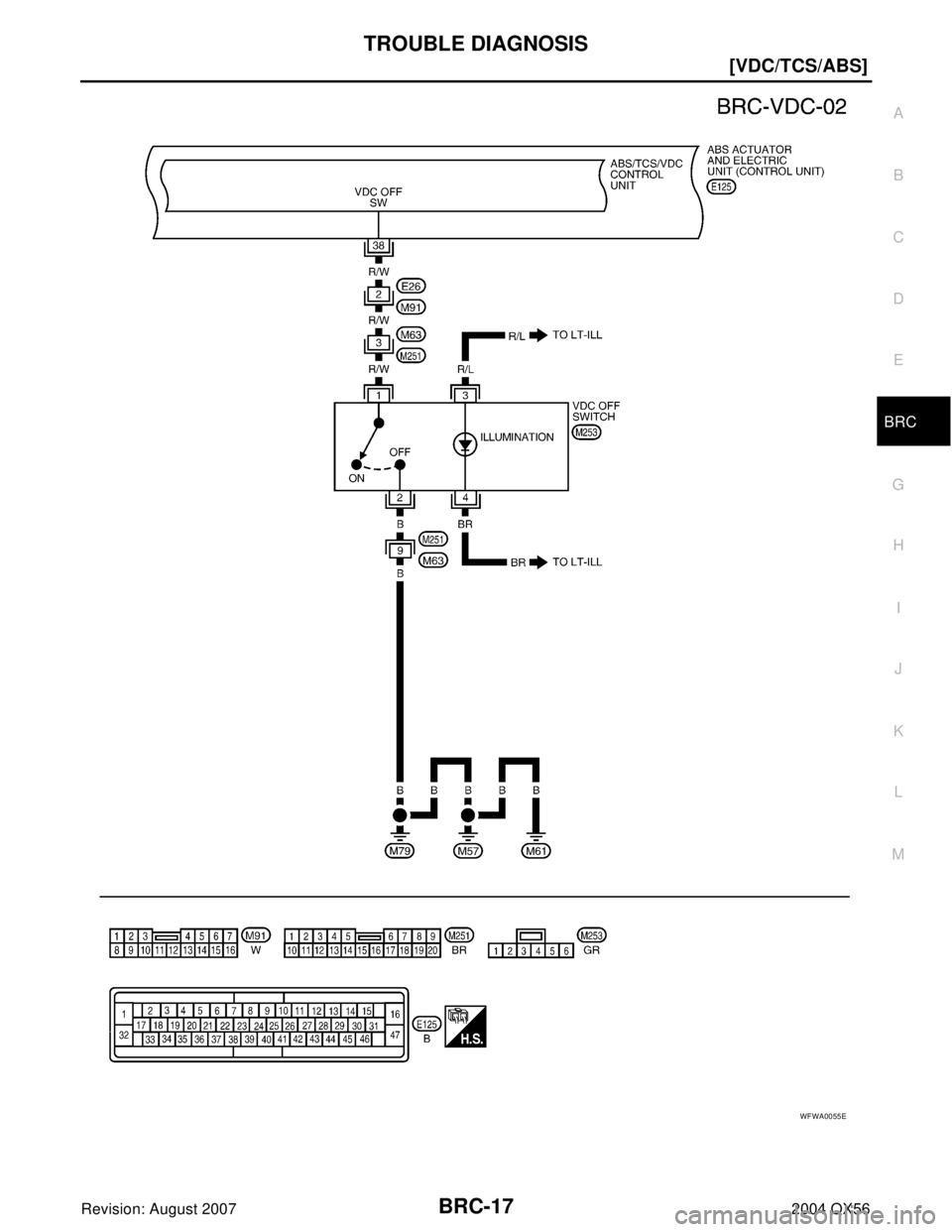

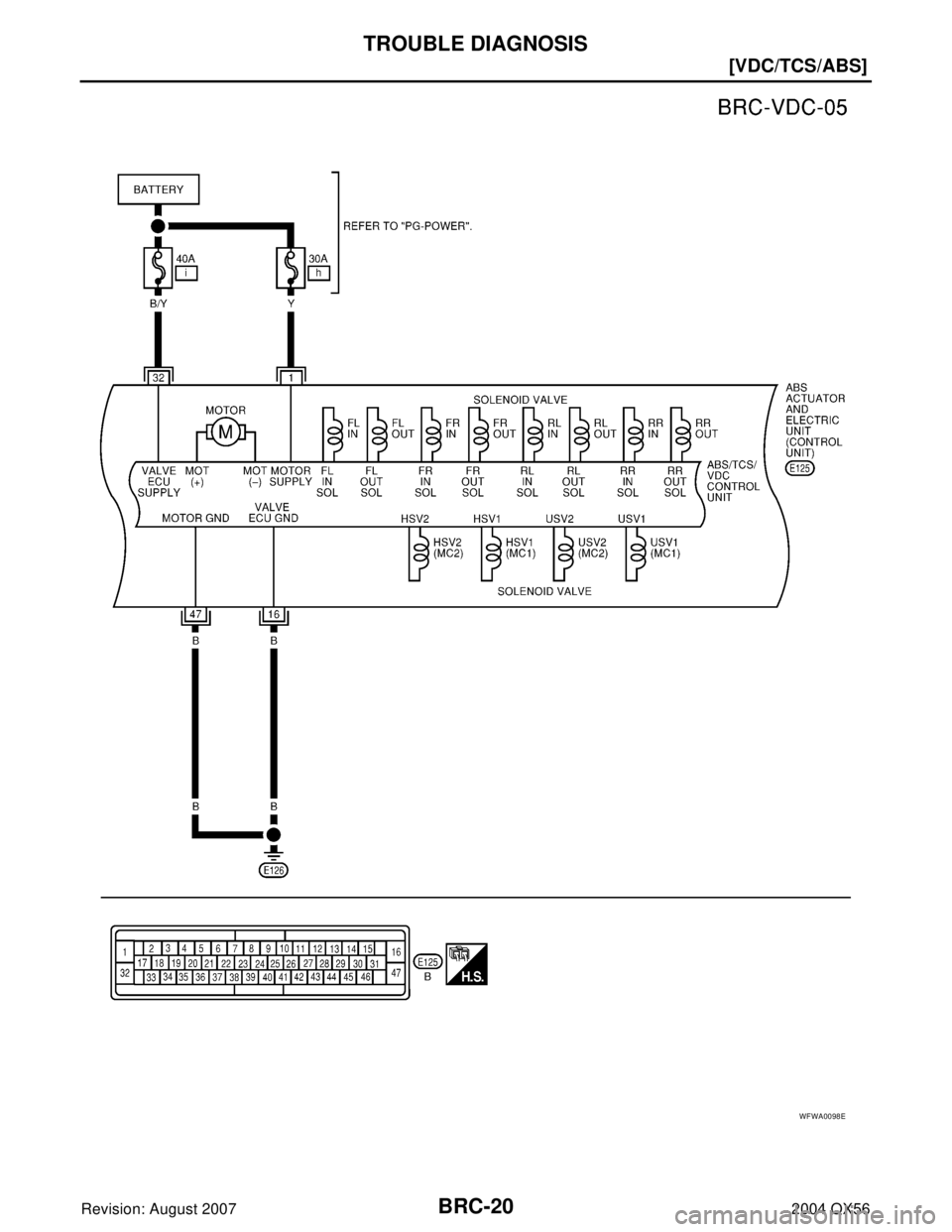

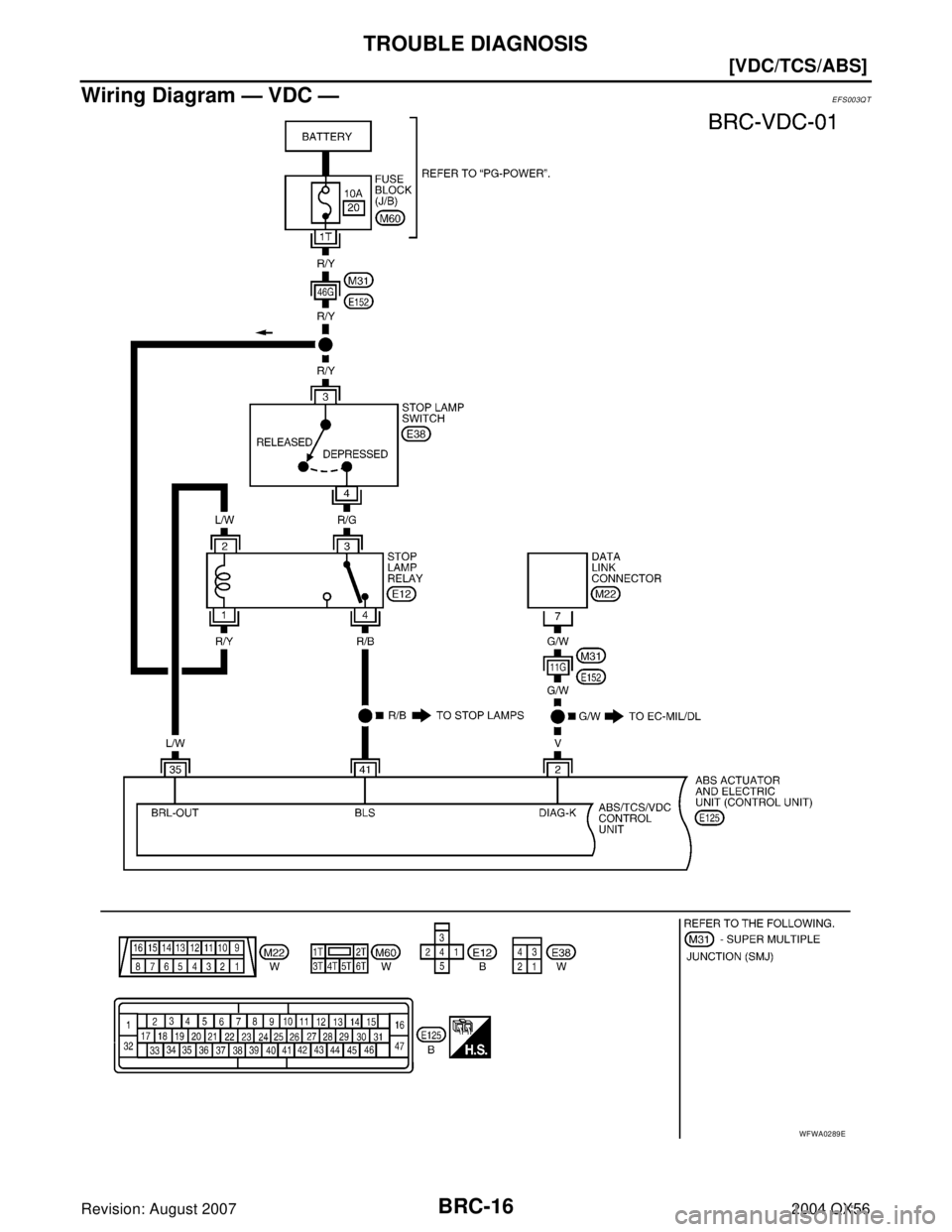

Wiring Diagram — VDC —EFS003QT
WFWA0289E

TROUBLE DIAGNOSIS
BRC-17
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
WFWA0055E

BRC-18
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
WFWA0078E

TROUBLE DIAGNOSIS
BRC-19
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
WFWA0097E

BRC-20
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
WFWA0098E

TROUBLE DIAGNOSIS
BRC-21
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
WFWA0079E

BRC-22
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
WFWA0290E

TROUBLE DIAGNOSIS
BRC-23
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Basic InspectionEFS003QU
BRAKE FLUID LEVEL, FLUID LEAK, AND BRAKE PAD INSPECTION
1. Check fluid level in the brake fluid reservoir. If fluid level is low, add fluid.
2. Check the brake piping and around the ABS actuator and electric unit (control unit) for leaks. If there is
leaking or seeping fluid, check the following items.

If ABS actuator and electric unit (control unit) connection is loose, tighten the piping to the specified
torque and recheck for leaks.

If there is damage to the connection flare nut or ABS actuator and electric unit (control unit) threads,
replace the damaged part and recheck for leaks.

When there is fluid leaking or seeping from a fluid connection, use a clean cloth to wipe off the fluid and
recheck for leaks. If fluid is still seeping out, replace the damaged part. If the fluid is leaking at the ABS
actuator and electric unit (control unit), replace the ABS actuator and electric unit (control unit) assem-
bly.
CAUTION:
The ABS actuator and electric unit (control unit) cannot be disassembled and must be replaced
as an assembly.
3. Check the brake pads for excessive wear.
POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION
Make sure the battery positive cable, negative cable and ground connection are not loose. In addition, make
sure the battery is sufficiently charged.
ABS WARNING LAMP, SLIP INDICATOR LAMP AND VDC OFF INDICATOR LAMP INSPECTION
1. Make sure ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp (when VDC OFF switch
is off), turn on for approximately 2 seconds when the ignition switch is turned ON. If they do not, check the
VDC OFF indicator lamp and the VDC OFF switch. Refer to BRC-56, "
VDC OFF SWITCH" . Check CAN
communications. If there are no errors with the VDC OFF switch or CAN communication system, check
combination meter. Refer to DI-5, "
COMBINATION METERS" .
2. Make sure the lamps turn off approximately 2 seconds after the ignition switch is turned ON. If the lamp
does not turn off, conduct self-diagnosis.
3. With the engine running, make sure the VDC OFF indicator lamp turns on and off when the VDC OFF
switch is turned on and off. If the indicator lamp status does not correspond to switch operation, check the
VDC OFF switch. Refer to BRC-56, "
VDC OFF SWITCH" .
4. Make sure ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp turn off approximately 2
seconds after the engine is started. If ABS warning lamp, SLIP indicator lamp or VDC OFF indicator lamp
have not turned off 10 seconds after the engine has been started, conduct self-diagnosis of the ABS actu-
ator and electric unit (control unit).
5. After conducting the self-diagnosis, be sure to erase the error memory. Refer to BRC-28, "
CONSULT-II
Function (ABS)" .

BRC-24
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: August 20072004 QX56
Warning Lamp and Indicator TimingEFS003QV
X: ON
—: OFF
Control Unit Input/Output Signal StandardEFS003QW
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the
event the output circuit (harness) is open or short circuited.
ConditionABS
warning lampVDC OFF
indicator lampSLIP
indicator lampRemarks
When the ignition switch is OFF — — — —
After the ignition switch is turned
ON for approx. 1 second×××—
After the ignition switch is turned
ON for approx. 2 seconds———Lamp goes off approx. 2 seconds
after the engine is started.
When the VDC OFF switch is
pressed (VDC function OFF)—×——
ABS/TCS/VDC malfunction×××—
××—When the ABS actuator and elec-
tric unit (control unit) is malfunc-
tioning (power supply or ground
malfunction).
When the VDC is malfunctioning —××—
Monitor item Display contentData monitor
Note: Error inspection
checklist
ConditionReference value in
normal operation
N POSI SIGPNP switch signal ON/
OFF conditionA/T shift position = N position ON
BRC-54, "
CAN Commu-
nication System Inspec-
tion"A/T shift position = other than
N positionsOFF
P POSI SIGPNP switch signal ON/
OFF conditionA/T shift position P position ON
BRC-54, "
CAN Commu-
nication System Inspec-
tion"A/T shift position = other than
P positionsOFF
GEAR A/T gear position1st gear 1
— 2nd gear 2
3rd gear 3
4th gear 4
5th gear 5
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSORWheel speedVehicle stopped 0 [km/h (MPH)]
BRC-38, "
Wheel Sensor
System Inspection"Vehicle running (Note 1)Almost in accor-
dance with speed-
ometer display
(within ±10%)
ACCEL POS SIG Open/close condition
of throttle valve (linked
with accelerator pedal).Accelerator pedal not
depressed (ignition switch is
ON)0%
BRC-54, "
CAN Commu-
nication System Inspec-
tion"Depress accelerator pedal
(ignition switch is ON)0 to 100%
ENGINE SPEED With engine runningWith engine stopped 0 rpm
BRC-39, "
Engine System
Inspection"Engine runningAlmost in accor-
dance with
tachometer display
