TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-193
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
3. CHECK STARTING SYSTEM
Check the starting system. Refer to SC-10, "
STARTING SYSTEM" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
In “P” Position, Vehicle Moves When PushedUCS002IK
SYMPTOM:
Even though the selector lever is set in the “P” position, the parking mechanism is not actuated,
allowing the vehicle to be moved when it is pushed.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT-109, "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL CABLE
Check the control cable.
Refer to AT- 2 3 4 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT-234, "
Adjustment of A/
T Position" .
3. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fiuid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.58).
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
LCIA0324E
SCIA5199E
Page 265 of 3371

AT-194
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: August 20072004 QX56
In “N” Position, Vehicle MovesUCS002IL
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT-109, "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL CABLE
Check the control cable.
Refer to AT-234, "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT-234, "
Adjustment of A/
T Position" .
3. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT-13, "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunction items. If any items are damaged,
repair or replace damaged parts. Refer to AT - 6 8 , "
Symp-
tom Chart" (Symptom No.60).
LCIA0324E
SAT6 3 8A
SCIA5199E
Page 268 of 3371

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-197
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
8. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.1).
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
10. CHECK SYMPTOM
Check again. Refer to AT- 6 2 , "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 11.
11 . PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT-90, "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
SCIA5199E
Page 271 of 3371

AT-200
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: August 20072004 QX56
9. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 13.
10. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.43).
OK or NG
OK >> GO TO 11.
NG >> Repair or replace damaged parts.
11 . CHECK SYMPTOM
Check again. Refer to AT-62, "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
12. PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT- 9 0 , "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
13. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.43).
OK or NG
OK >> GO TO 11.
NG >> Repair or replace damaged parts.
SCIA5199E
Page 273 of 3371

AT-202
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: August 20072004 QX56
5. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT - 5 9 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 8.
NG - 1 >> Line pressure high. GO TO 6.
NG - 2 >> Line pressure low. GO TO 7.
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 4 1 , "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT-273, "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
7. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 4 1 , "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT-273, "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
–Power train system. Refer to AT-273, "Disassembly" .
–Transmission case. Refer to AT-273, "Disassembly" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 9.
NG >> GO TO 12.
SAT4 9 4G
SCIA5199E
Page 276 of 3371

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-205
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56

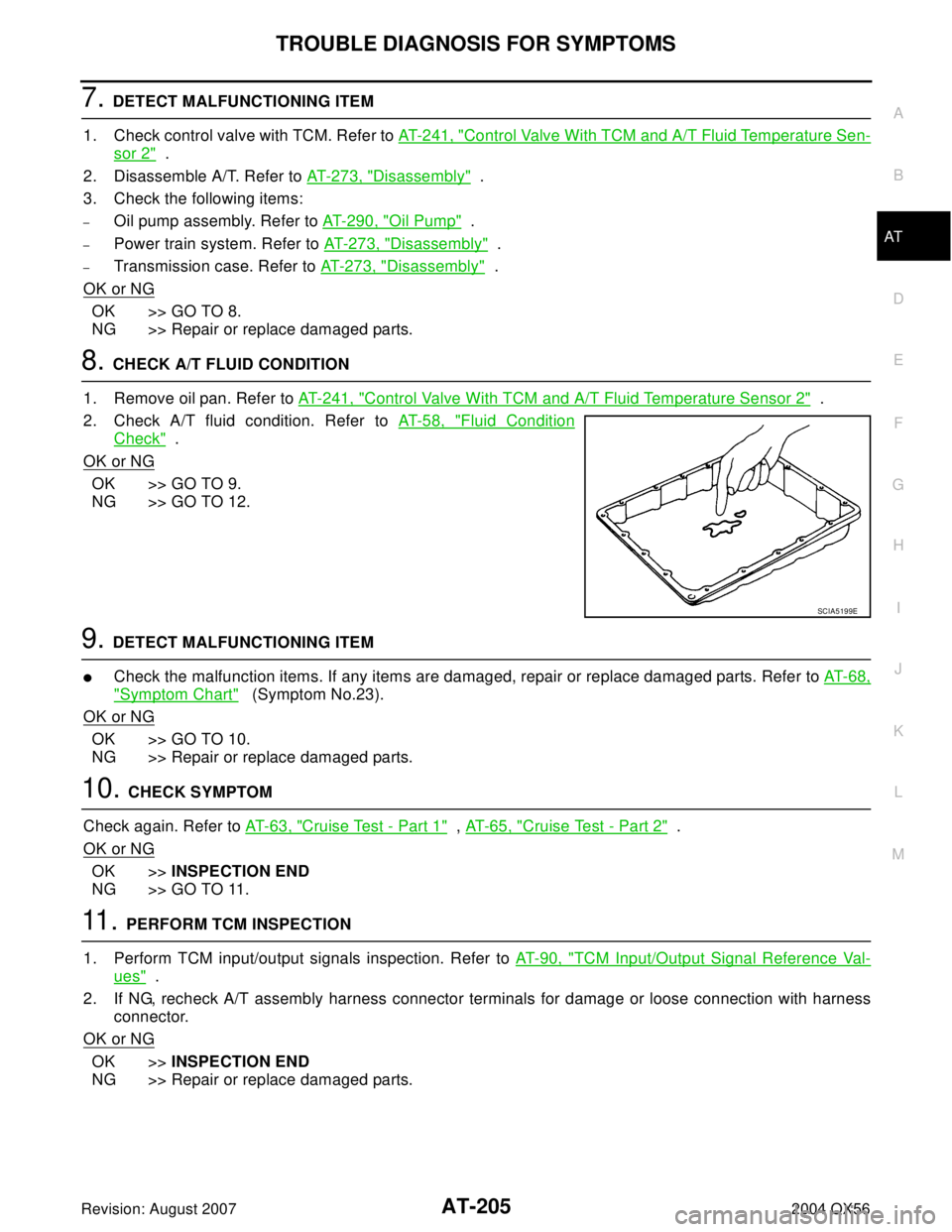

7. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
–Power train system. Refer to AT- 2 7 3 , "Disassembly" .
–Transmission case. Refer to AT - 2 7 3 , "Disassembly" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 9.
NG >> GO TO 12.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.23).
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
10. CHECK SYMPTOM
Check again. Refer to AT- 6 3 , "
Cruise Test - Part 1" , AT - 6 5 , "Cruise Test - Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 11.
11 . PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT-90, "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
SCIA5199E
Page 278 of 3371

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-207
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
5. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
–Power train system. Refer to AT- 2 7 3 , "Disassembly" .
–Transmission case. Refer to AT - 2 7 3 , "Disassembly" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 11.
8. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.10).
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
9. CHECK SYMPTOM
Check again. Refer to AT- 6 3 , "
Cruise Test - Part 1" , AT - 6 5 , "Cruise Test - Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 10.
SCIA5199E
Page 280 of 3371

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-209
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
4. CHECK LINE PRESSURE
Check line pressure at the engine stall point. Refer to AT-59, "
LINE
PRESSURE TEST" .
OK or NG
OK >> GO TO 7.
NG - 1 >> Line pressure high. GO TO 5.
NG - 2 >> Line pressure low. GO TO 6.
5. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 7 3 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
–Power train system. Refer to AT- 2 7 3 , "Disassembly" .
–Transmission case. Refer to AT - 2 7 3 , "Disassembly" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 11.
SAT4 9 4G
SCIA5199E
Page 283 of 3371

AT-212
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: August 20072004 QX56
7. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 11.
8. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.12).
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
9. CHECK SYMPTOM
Check again. Refer to AT-63, "
Cruise Test - Part 1" , AT-65, "Cruise Test - Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 10.
10. PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT- 9 0 , "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
11 . DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.12).
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
SCIA5199E
Page 285 of 3371

AT-214
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: August 20072004 QX56
5. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 4 1 , "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT-273, "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 4 1 , "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT-273, "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT-290, "Oil Pump" .
–Power train system. Refer to AT-273, "Disassembly" .
–Transmission case. Refer to AT-273, "Disassembly" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-241, "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 8 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 11.
8. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-68,
"Symptom Chart" (Symptom No.13).
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
9. CHECK SYMPTOM
Check again. Refer to AT-63, "
Cruise Test - Part 1" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 10.
SCIA5199E
