Component Parts and Harness Connector LocationEFS004XK
WFIA0370E

TROUBLE DIAGNOSISBRC-15
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56

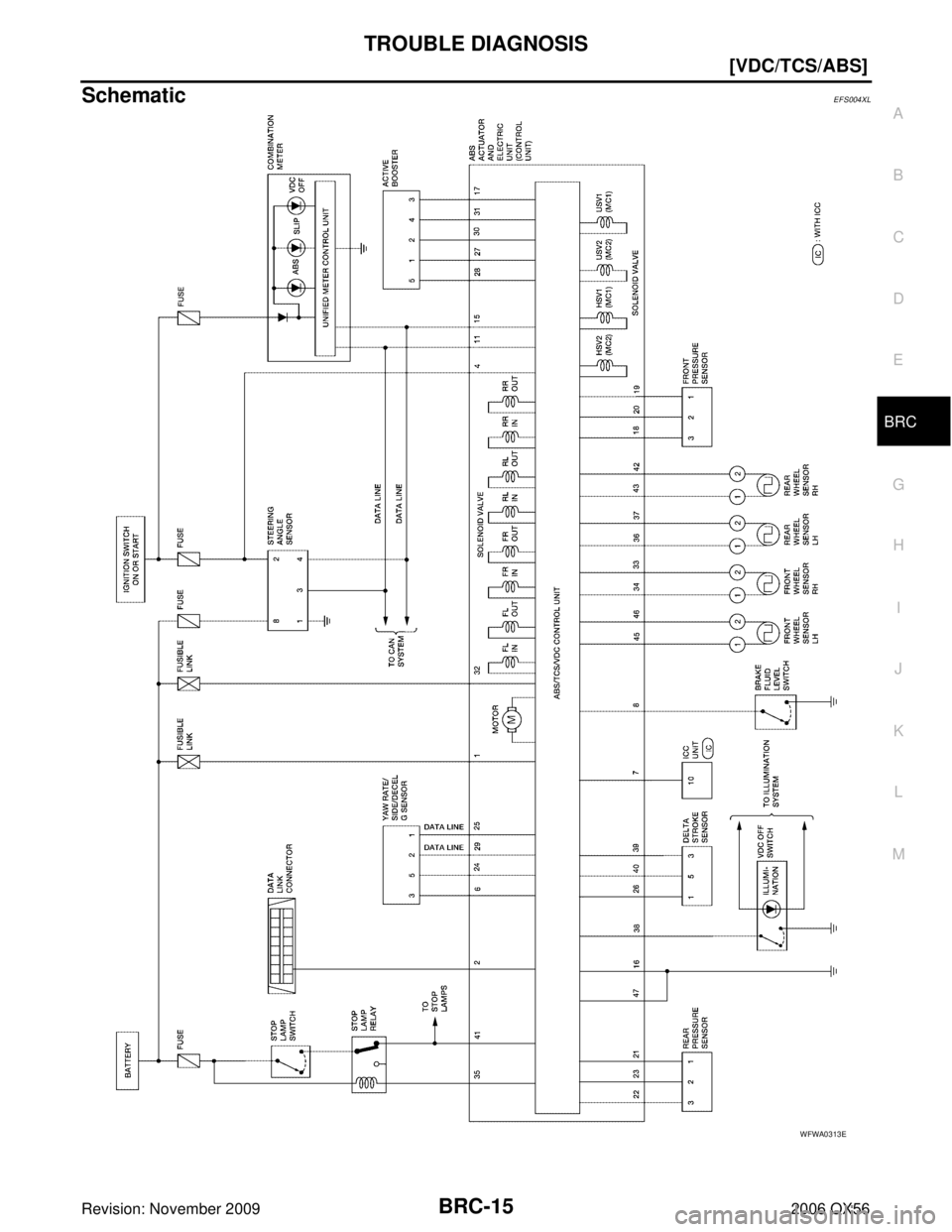

SchematicEFS004XL
WFWA0313E

BRC-16
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

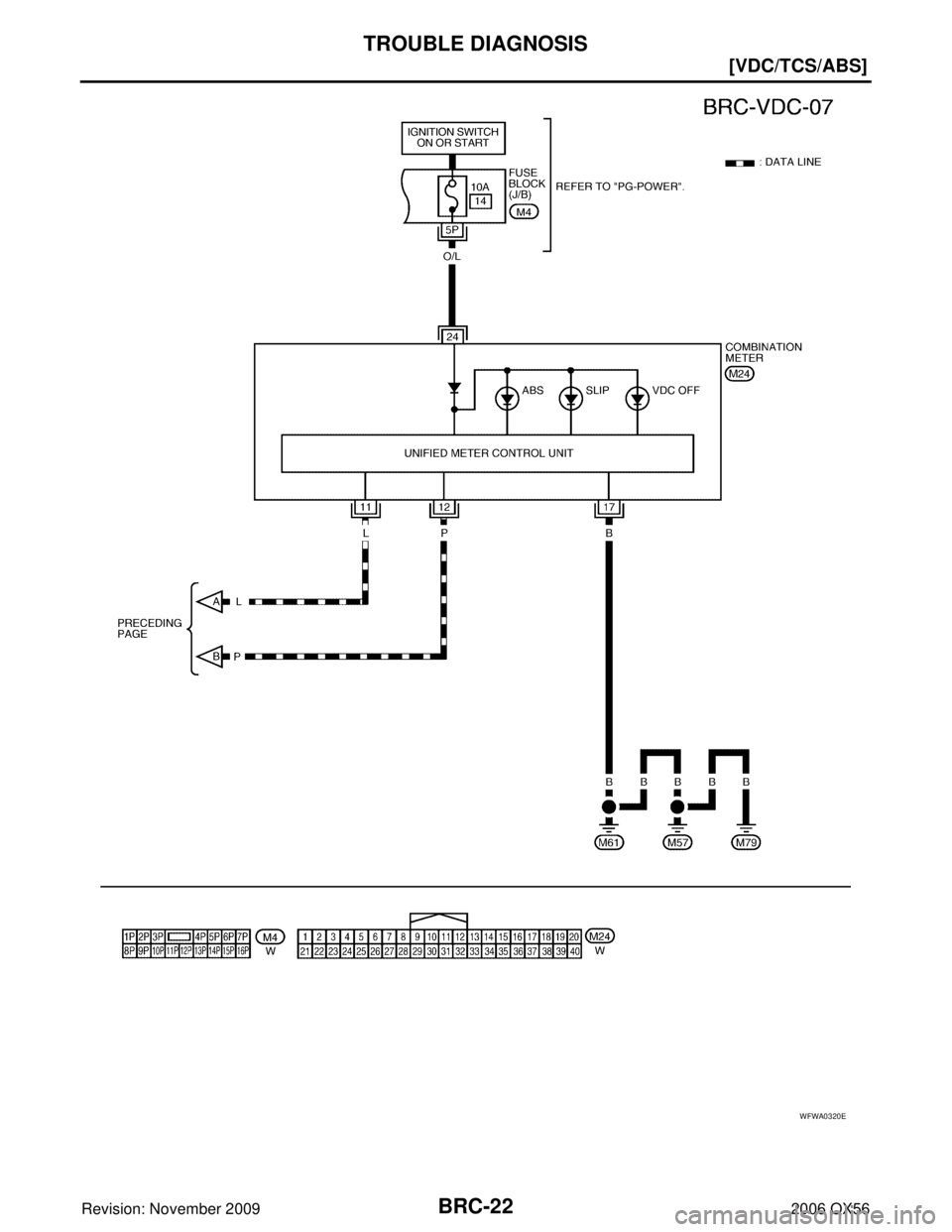

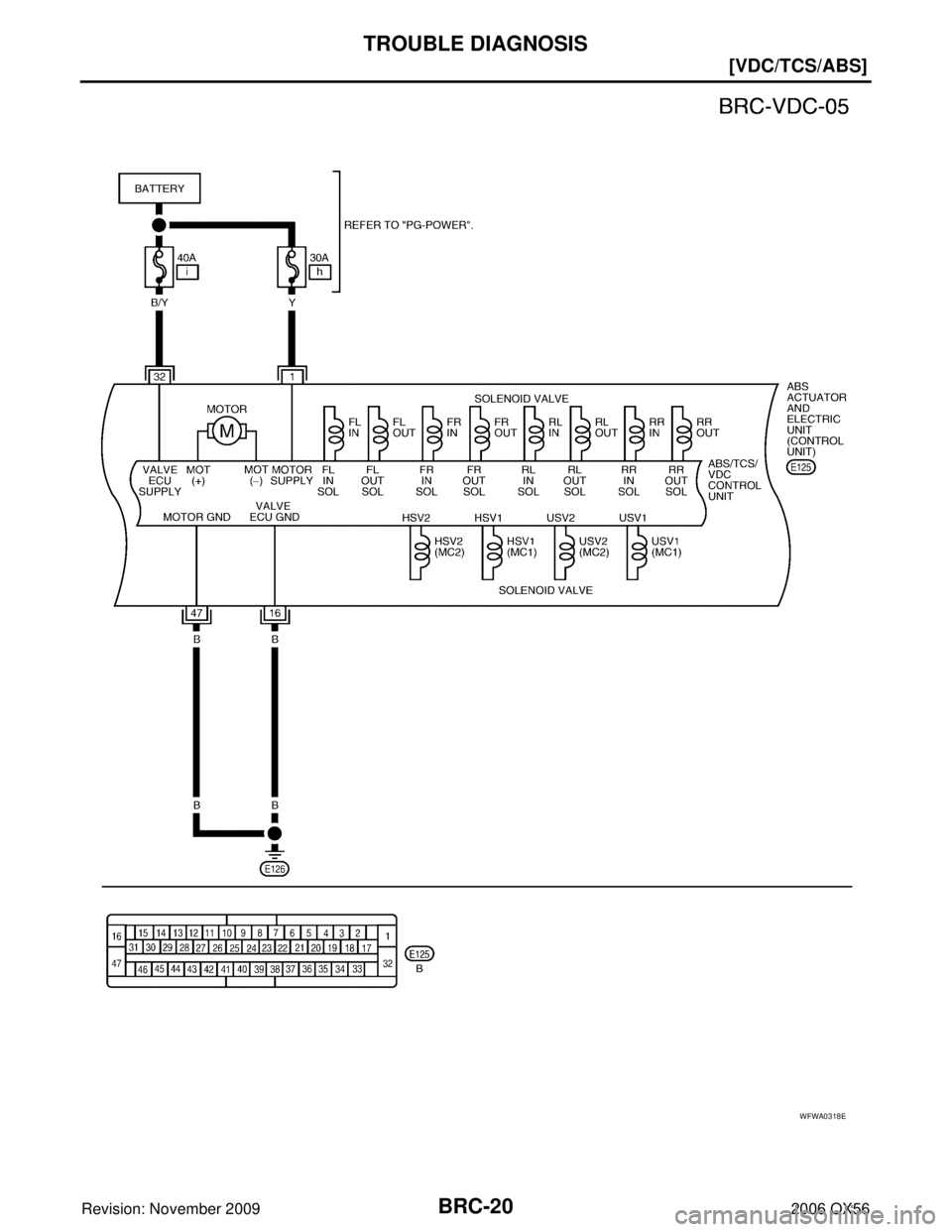

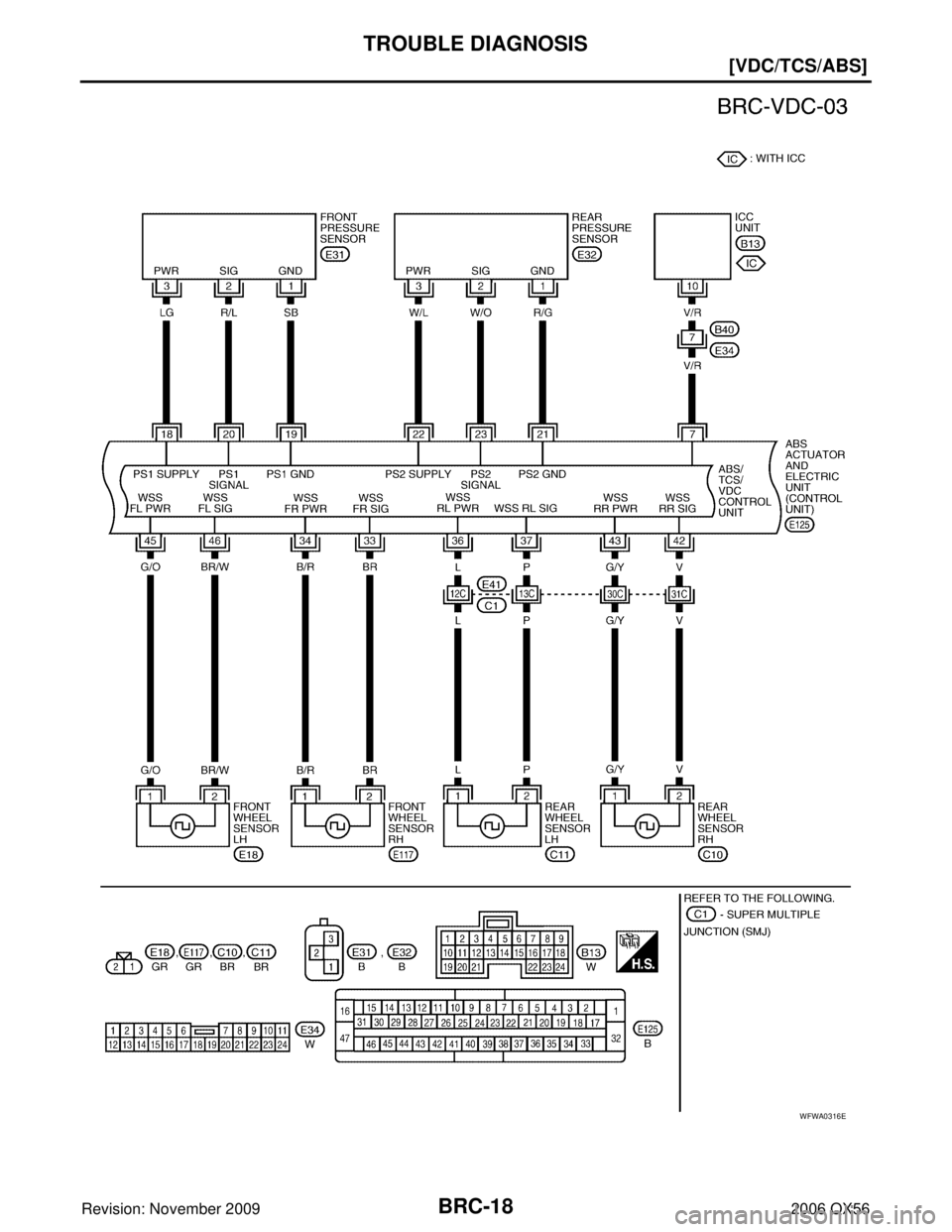

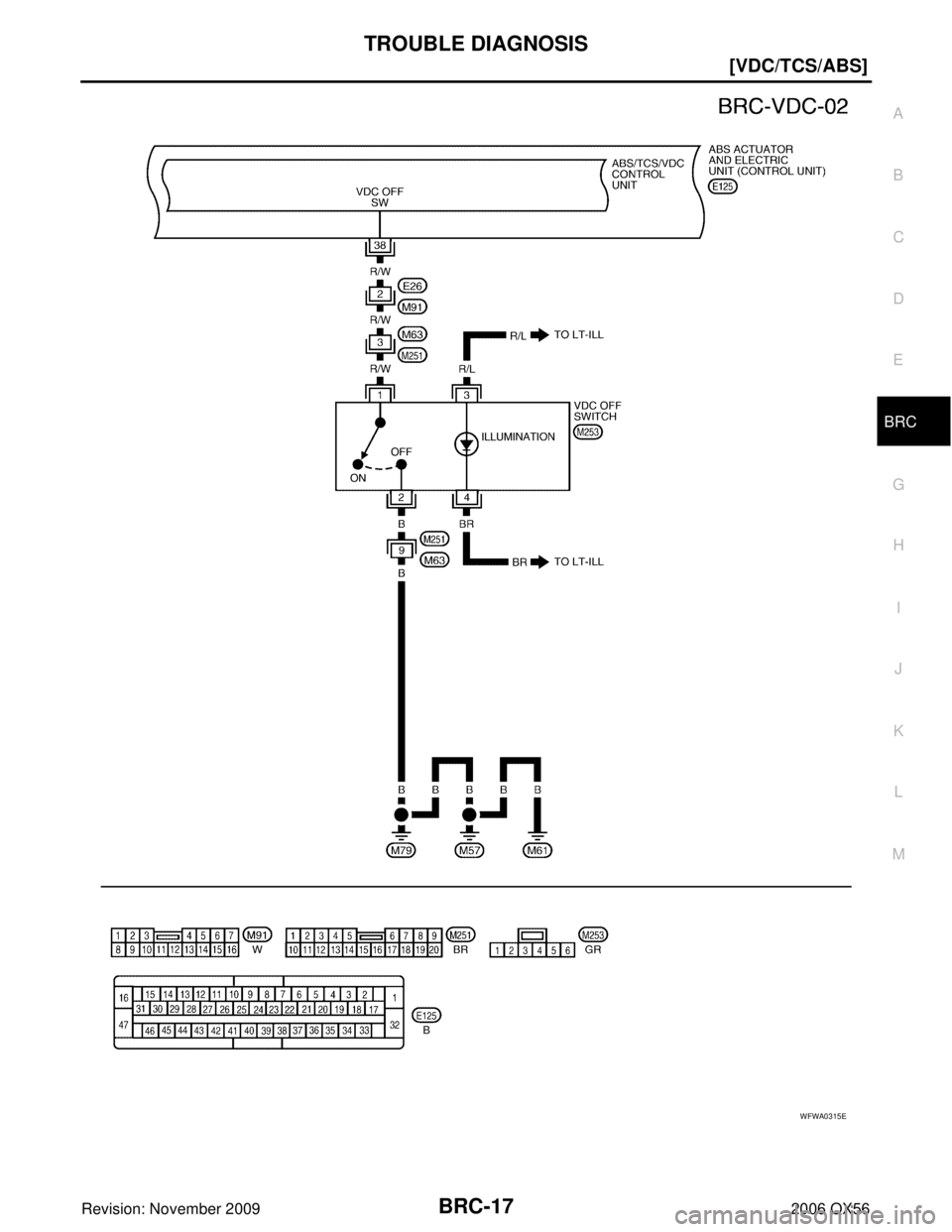

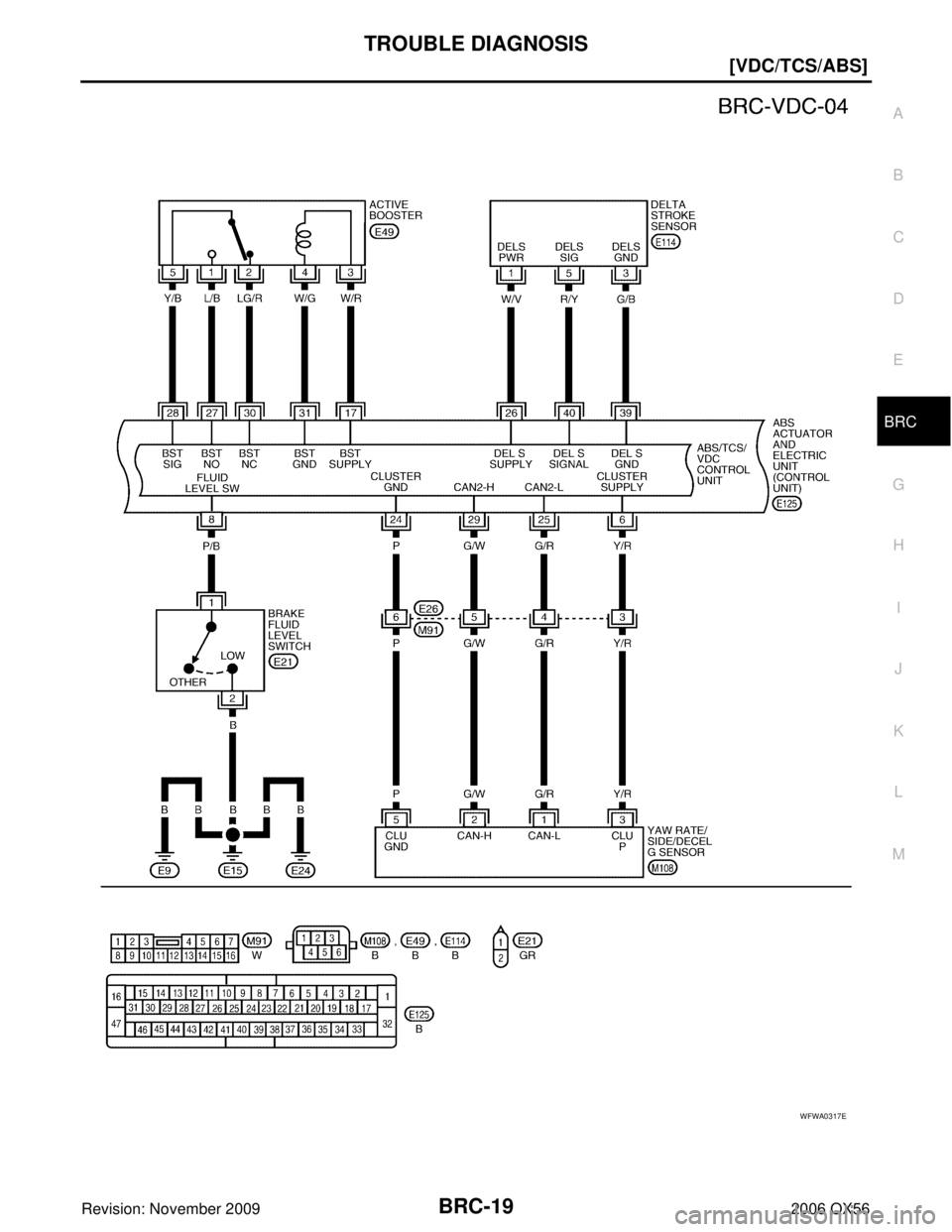

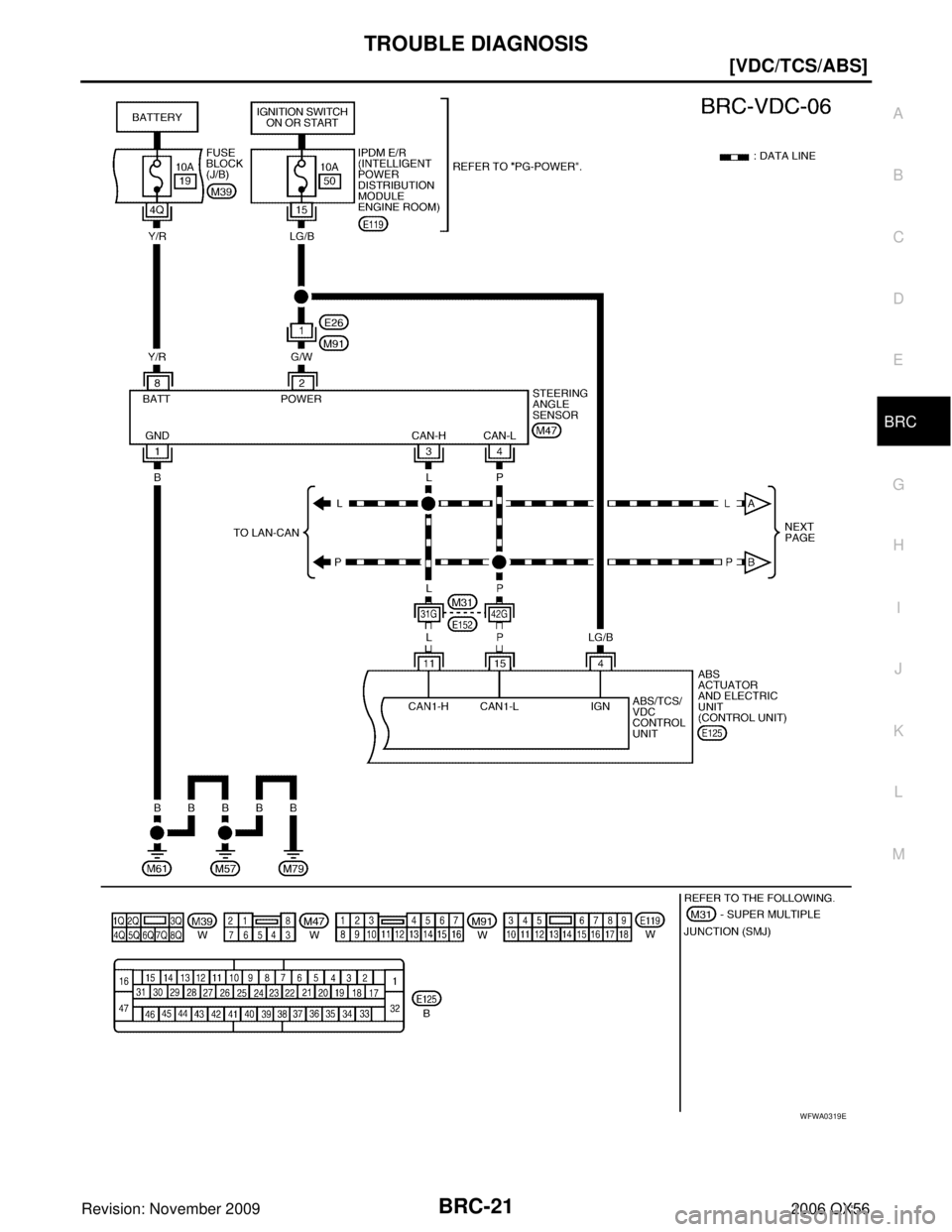

Wiring Diagram — VDC —EFS004XM
WFWA0314E

TROUBLE DIAGNOSISBRC-17
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
WFWA0315E

BRC-18
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
WFWA0316E

TROUBLE DIAGNOSISBRC-19
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
WFWA0317E

BRC-20
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
WFWA0318E

TROUBLE DIAGNOSISBRC-21
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
WFWA0319E

BRC-22
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
WFWA0320E

TROUBLE DIAGNOSISBRC-23
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Basic InspectionEFS004XN
BRAKE FLUID LEVEL, FLUID LEAK, AND BRAKE PAD INSPECTION
1. Check fluid level in the brake fluid reservoir. If fluid level is low, add fluid.
2. Check the brake piping and around the ABS actuator and electric unit (control unit) for leaks. If there is
leaking or seeping fluid, check the following items.

If ABS actuator and electric unit (control unit) connection is loose, tighten the piping to the specified
torque and recheck for leaks.

If there is damage to the connection flare nut or ABS actuator and electric unit (control unit) threads,
replace the damaged part and recheck for leaks.

When there is fluid leaking or seeping from a fluid connection, use a clean cloth to wipe off the fluid and
recheck for leaks. If fluid is still seeping out, replace the damaged part. If the fluid is leaking at the ABS
actuator and electric unit (control unit), replace the ABS actuator and electric unit (control unit) assem-
bly.
CAUTION:
The ABS actuator and electric unit (control unit) cannot be disassembled and must be replaced
as an assembly.
3. Check the brake pads for excessive wear.
POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION
Make sure the battery positive cable, negative cable and ground connection are not loose. In addition, make
sure the battery is sufficiently charged.
ABS WARNING LAMP, SLIP INDICATOR LAMP AND VDC OFF INDICATOR LAMP INSPECTION
1. Make sure ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp (when VDC OFF switch is off), turn on for approximately 2 seconds when the ignition switch is turned ON. If they do not, check the
VDC OFF indicator lamp and the VDC OFF switch. Refer to BRC-56, "
VDC OFF SWITCH" . Check CAN
communications. If there are no errors with the VDC OFF switch or CAN communication system, check
combination meter. Refer to DI-5, "
COMBINATION METERS" .
2. Make sure the lamps turn off approximately 2 seconds after the ignition switch is turned ON. If the lamp does not turn off, conduct self-diagnosis.
3. With the engine running, make sure the VDC OFF indicator lamp turns on and off when the VDC OFF switch is turned on and off. If the indicator lamp status does not correspond to switch operation, check the
VDC OFF switch. Refer to BRC-56, "
VDC OFF SWITCH" .
4. Make sure ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp turn off approximately 2 seconds after the engine is started. If ABS warning lamp, SLIP indicator lamp or VDC OFF indicator lamp
have not turned off 10 seconds after the engine has been started, conduct self-diagnosis of the ABS actu-
ator and electric unit (control unit).
5. After conducting the self-diagnosis, be sure to erase the error memory. Refer to BRC-28, "
CONSULT-II
Function (ABS)" .
