INFINITI QX56 2006 Factory Service Manual

WW-54
POWER SOCKET
Revision: November 20092006 QX56
Front Power Socket LH, Rear Cargo Power SocketEKS00BEX
REMOVAL AND INSTALLATION
Removal
1. Disconnect battery negative terminal.
2. Remove inner socket from the ring, while pressing the hook on
the ring out from square hole.
3. Disconnect power socket connector.
4. Remove ring from power socket finisher while pressing pawls.
INSTALLATION
Installation is in the reverse order of removal.
Front Power Socket RH (For Cigarette Lighter), Console Power SocketEKS00GBK
REMOVAL
1. Remove inner socket from the ring, while pressing the hook on the ring out from square hole.
2. Disconnect power socket connector.
3. Remove ring from power socket finisher while pressing pawls.
INSTALLATION
Installation is in the reverse order of removal.
WKIA1035E
WKIA1035E

HORN
WW-55
C
D E
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
HORNPFP:25610

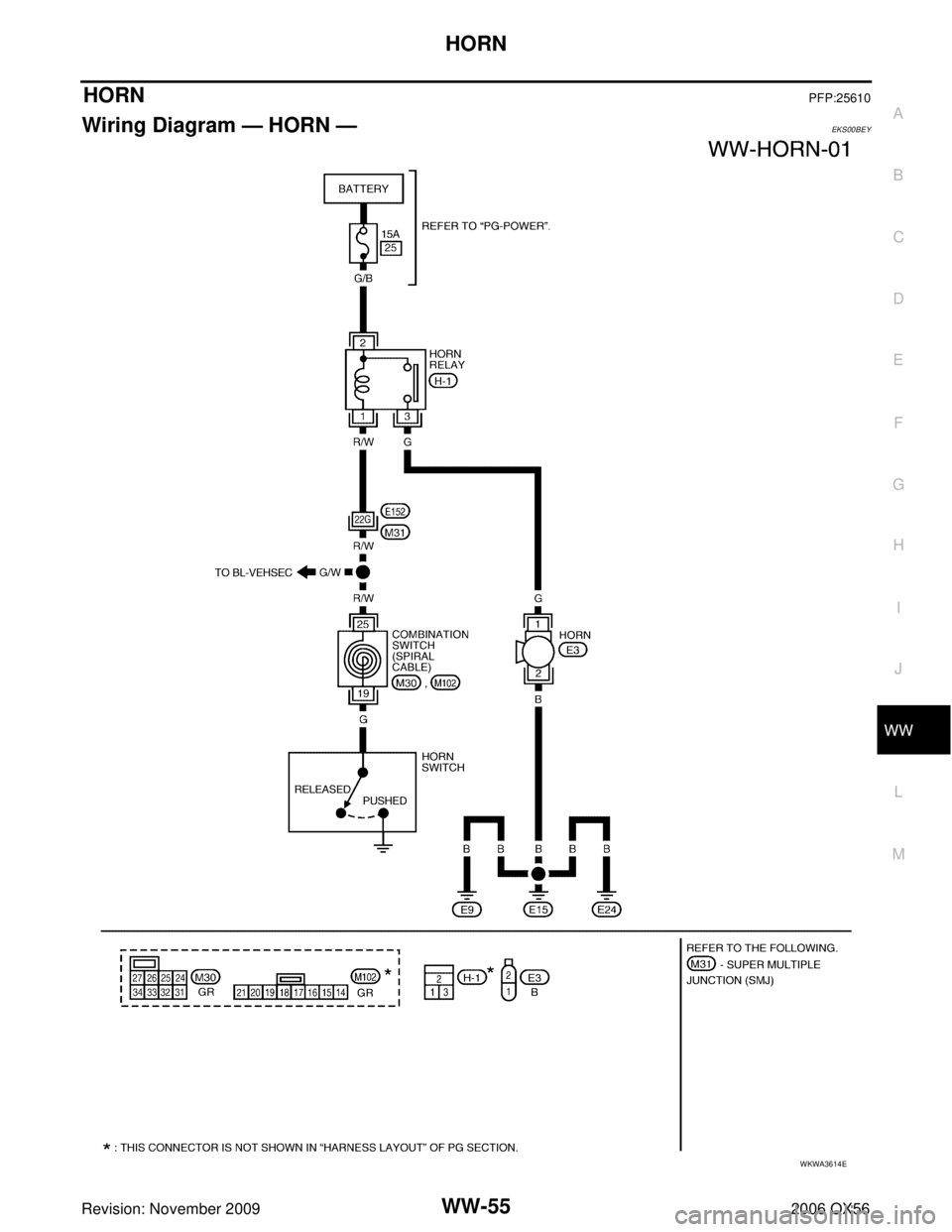

Wiring Diagram — HORN — EKS00BEY
WKWA3614E

WW-56
HORN
Revision: November 20092006 QX56
Removal and InstallationEKS00BEZ
REMOVAL
1. Disconnect horn connector.
2. Remove horn bolt and remove horn from vehicle.
INSTALLATION
Installation is in the reverse order of removal.
LKIA0419E
