14. Repair the system as outlined by the “Repair order” in “Intermittent Malfunction Diagnostic Code Chart ”,
that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to the
Removal and Installation procedure for the appropriate component.
15. Go to SRS-28, "
DIAGNOSTIC PROCEDURE 3" , for final checking.
CONSULT-II Diagnostic Code Chart ("SELF-DIAG [PAST]" or "TROUBLE DIAG RECORD")
Diagnostic item Explanation Repair order
Recheck SRS at each replacement
NO DTC IS DETECTED When malfunction is
indicated by the “
AIR
BAG ” warning lamp in
User mode.

Low battery voltage (Less than
9V)
Go to SRS-28, "DIAGNOSTIC PRO-
CEDURE 3" .

Self-diagnostic result “SELF-DIAG
[PAST] ” (previously stored in the
memory) might not be erased
after repair.

Intermittent malfunction has been
detected in the past.

Go to SRS-31, "DIAGNOSTIC PRO-
CEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)" .

Go to SRS-31, "DIAGNOSTIC PRO-
CEDURE 5" .

No malfunction is detected. —
DRIVER AIRBAG MODULE [OPEN]
[B1049] or [B1054]

Driver air bag module circuit is open (including the spiral
cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace driver air bag module.
4. Replace the spiral cable.
5. Replace the air bag diagnosis sen- sor unit.
6. Replace the related harness.
DRIVER AIRBAG MODULE
[VB-SHORT]
[B1050] or [B1055]

Driver air bag module circuit is shorted to some power sup-
ply circuit (including the spiral cable).
DRIVER AIRBAG MODULE [GND-SHORT]
[B1051] or [B1056]

Driver air bag module circuit is shorted to ground (including
the spiral cable).
DRIVER AIRBAG MODULE [SHORT]
[B1052] or [B1057]

Driver air bag module circuits are shorted to each other.
ASSIST A/B MODULE [OPEN]
[B1065] or [B1070]

Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace front passenger air bag module.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.
ASSIST A/B MODULE
[VB-SHORT]
[B1066] or [B1071]

Front passenger air bag module circuit is shorted to some
power supply circuit.
ASSIST A/B MODULE [GND-SHORT]
[B1067] or [B1072]

Front passenger air bag module circuit is shorted to
ground.
ASSIST A/B MODULE [SHORT]
[B1068] or [B1073]

Front passenger air bag module circuits are shorted to
each other.
CRASH ZONE SEN [UNIT FAIL]
[B1033] or [B1034]
CRASH ZONE SEN [COMM FAIL]
[B1035]

Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the crash zone sensor.
4. Replace the air bag diagnosis sen- sor unit.
5. Replace the related harness.

TROUBLE DIAGNOSISTF-37
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
P POSI SW AT [ON/
OFF]Input condition from A/T
PNP switch
Vehicle stopped

Engine running

Brake pedal depressed A/T selector lever posi-
tion: P
ON
Except the above OFF
ABS OPER SW [ON/
OFF] Condition of ABS operat-
ing ABS is operating.
ON
ABS is not operating. OFF
VDC OPER SW [ON/
OFF] Condition of VDC operat-
ing VDC is operating.
ON
VDC is not operating. OFF
TCS OPER SW [ON/
OFF] Condition of TCS operat-
ing TCS is operating.
ON
TCS is not operating. OFF
THROTTLE POSI [0.0/8] Condition of throttle
opening When depressing accelerator pedal
(Value rises gradually in response to throttle position.)
0.0/8 - 8.0/8
4WD MODE [AUTO/
LOCK/2WD/4L] Control status of 4WD
(Output condition of
4WD shift indicator lamp
and 4LO indicator lamp)

Vehicle stopped

Engine running

A/T selector lever “
N” posi-
tion

Brake pedal depressed 4WD shift switch: 2WD
2WD
4WD shift switch: AUTO AUTO
4WD shift switch: 4H LOCK
4WD shift switch: 4LO 4L
VHCL/S COMP [km/h] or
[mph] Vehicle speed Vehicle stopped
0 km/h (0 MPH)
Vehicle running
CAUTION:
Check air pressure of tire under standard condition. Approximately
equal to the indi-
cation on speed-
ometer (Inside of
±
10%)
COMP CL TORQ [kgm] Condition of control
torque

Vehicle stopped

Engine running

A/T selector lever “
N” posi-
tion

Brake pedal depressed 4WD shift switch: 2WD 0 kg-m
4WD shift switch: AUTO
39 - 1,353 N
·m
(4 - 138 kg-m, 29 - 998 ft-lb)
4WD shift switch: 4H or
4LO 1,353 N
·m
(138 kg-m, 998 ft- lb)
DUTY SOLENOID [%] Condition of clutch pres-
sure solenoid

Vehicle stopped

Engine running

A/T selector lever “
N” posi-
tion

Brake pedal depressed 4WD shift switch: 2WD
4%
4WD shift switch: AUTO 96 - 4%
4WD shift switch: 4H or
4LO 4%
2-4WD SOL [ON/OFF] Condition of 2-4WD shift
solenoid valve

Vehicle stopped

Engine running

A/T selector lever “
N” posi-
tion

Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO ON
4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
( “ Wait ” function is operat-
ing.) OFF
4WD shift switch: 4H
( “ Wait ” function is operat-
ing.) OFF
Monitored item [Unit]
Content ConditionDisplay value

TRANSFER ASSEMBLYTF-151
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56

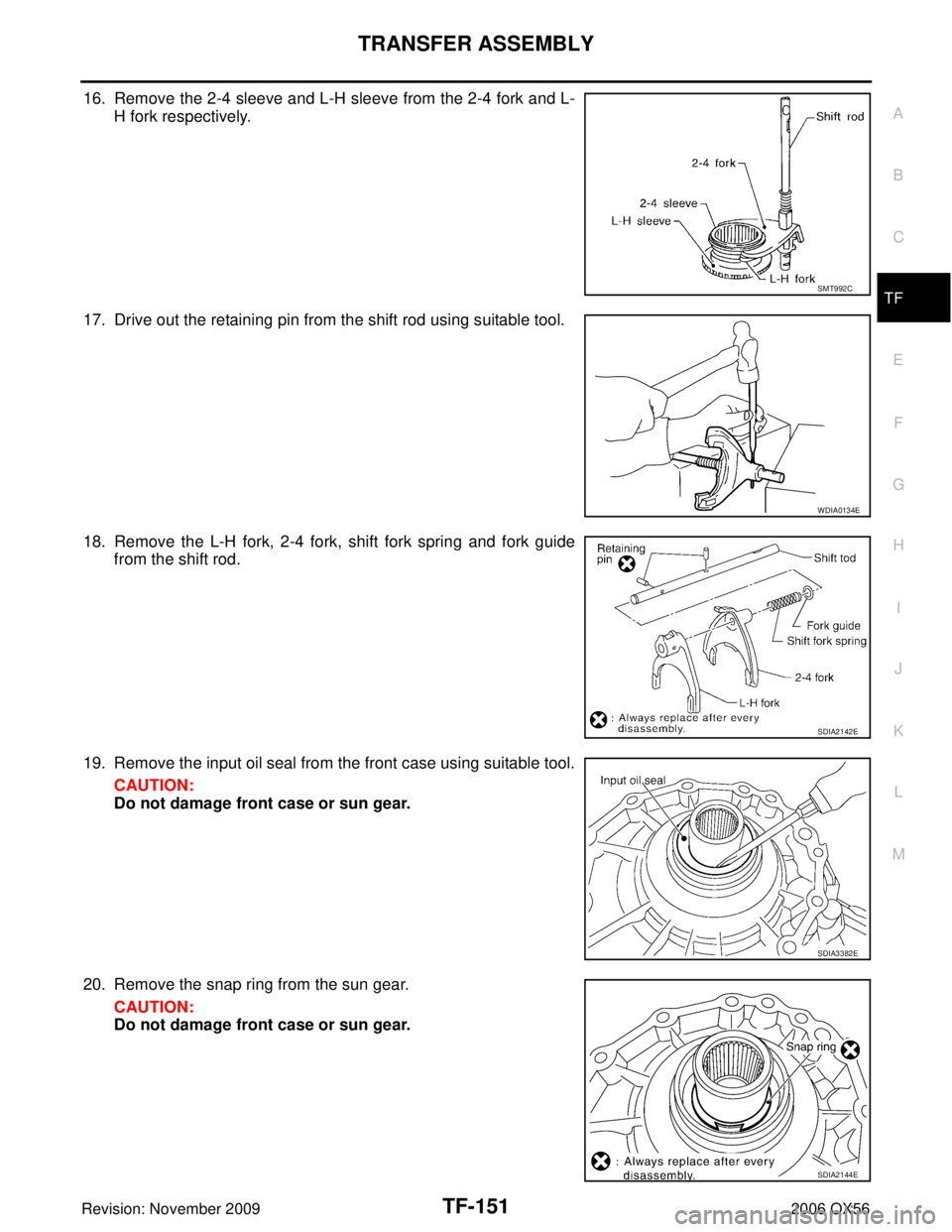

16. Remove the 2-4 sleeve and L-H sleeve from the 2-4 fork and L-
H fork respectively.
17. Drive out the retaining pin from the shift rod using suitable tool.
18. Remove the L-H fork, 2-4 fork, shift fork spring and fork guide from the shift rod.
19. Remove the input oil seal from the front case using suitable tool. CAUTION:
Do not damage front case or sun gear.
20. Remove the snap ring from the sun gear. CAUTION:
Do not damage front case or sun gear.
SMT992C
WDIA0134E
SDIA2142E
SDIA3382E
SDIA2144E
