AIR CLEANER AND AIR DUCTEM-15
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
AIR CLEANER AND AIR DUCTPFP:16500
Removal and InstallationEBS00REY
REMOVAL
1. Remove the engine room cover using power tool. Refer to EM-12, "REMOVAL" .
2. Disconnect the harness connector from air cleaner case (upper).
3. Remove the air duct and resonator assembly and air cleaner case.
4. Remove air cleaner filter and air cleaner case (lower)
Add marks as necessary for easier installation.
INSTALLATION
Installation is in the reverse order of removal.

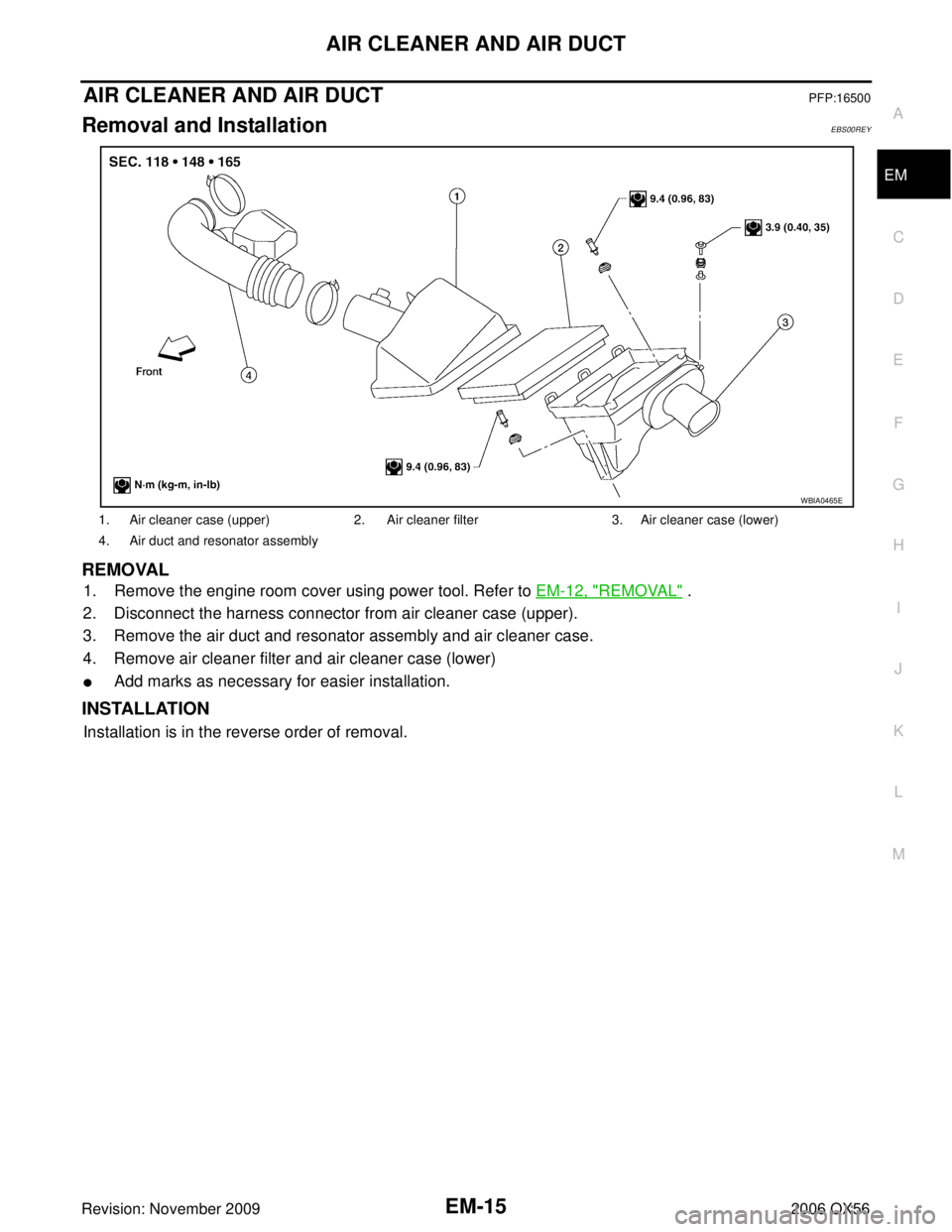

1. Air cleaner case (upper) 2. Air cleaner filter 3. Air cleaner case (lower)
4. Air duct and resonator assembly
WBIA0465E
Page 1907 of 3383
EM-16Revision: November 2009
AIR CLEANER AND AIR DUCT
2006 QX56
Removal and Installation (Viscous paper type)EBS00REZ
REMOVAL
NOTE:
The viscous paper type filter does not need cleaning between replacement intervals.
Replace the air filter as necessary for periodic maintenance. Refer to MA-16, "VISCOUS PAPER TYPE" .
1. Remove the air duct and resonator assembly.
2. Remove the air cleaner case (upper).
3. Remove the air cleaner filter from the air cleaner case (lower).
INSTALLATION
1. Install the new air cleaner filter in the air cleaner case (lower).
2. Install the air cleaner case (upper).
3. Install the air duct and resonator assembly (inlet).
1. Air cleaner case (upper) 2. Air cleaner filter3. Air cleaner case (lower)
4. Air duct and resonator assembly
LBIA0394E
Page 2056 of 3383
FL-1
FUEL SYSTEM
B ENGINE
CONTENTS
C
DE
F
G H
I
J
K L
M
SECTION
A
FL
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tool .................................... ..... 3
FUEL SYSTEM ........................................................... 4 Checking Fuel Lines ................................................. 4
General Precautions ........................................... ..... 4
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY ......................................
..... 6
Removal and Installation ..................................... ..... 6
REMOVAL ........................................................ ..... 6
INSTALLATION ................................................ ..... 9
INSPECTION AFTER INSTALLATION ............. ..... 9
FUEL TANK ........................................................... ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 11
INSTALLATION ................................................ ... 14
INSPECTION AFTER INSTALLATION ............. ... 14
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 15
Standard and Limit ............................................... ... 15
Page 2243 of 3383
