HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
SYMBOLS
How to Follow Trouble DiagnosesEAS001FJ
NOTICE:
Trouble diagnoses indicates work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
1.Before performing trouble diagnoses, read the “Preliminary Check”, the “Symptom Chart” or the
“Work Flow”.
2. After repairs, re-check that the problem has been completely eliminated.
1. Union bolt 2. Copper washer 3. Brake hose
4. Cap 5. Bleed valve 6. Sliding pin bolt
7. Piston seal 8. Piston 9. Piston boot
10. Cylinder body 11. Sliding pin 12. Torque member mounting bolt
13. Washer 14. Sliding pin boot 15. Bushing
16. Torque member 17. Inner shim cover 18. Inner shim
19. Inner pad 20. Pad retainer 21. Pad wear sensor
22. Outer pad 23. Outer shim 24. Outer shim cover
1: PBC (Poly Butyl Cuprysil) grease
or silicone-based grease 2: Rubber grease
: Brake fluid
Refer to GI section for additional symbol definitions.
SFIA2959E
SAIA0749E

HOW TO USE THIS MANUALGI-11
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
3.Refer to Component Parts and Harness Connector Location for the Systems described in each
section for identification/location of components and harness connectors.
4. Refer to the Circuit Diagram for quick pinpoint check.
If you need to check circuit continuity between harness connectors in more detail, such as when a
sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in EL
section for identification of harness connectors.
5. When checking circuit continuity, ignition switch should be OFF.
6. Before checking voltage at connectors, check battery voltage.
7. After accomplishing the Diagnostic Procedures and Electrical Components Inspection, make sure
that all harness connectors are reconnected as they were.
DESCRIPTION
NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
1.Before performing trouble diagnoses, read the “Preliminary Check”, the “Symptom Chart” or the
“Work Flow”.
2. After repairs, re-check that the problem has been completely eliminated.
3. Refer to Component Parts and Harness Connector Location for the Systems described in each
section for identification/location of components and harness connectors.
4. Refer to the Circuit Diagram for quick pinpoint check.
If you need to check circuit continuity between harness connectors in more detail, such as when a
sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG
section for identification of harness connectors.
5. When checking circuit continuity, ignition switch should be OFF.
6. Before checking voltage at connectors, check battery voltage.
7. After accomplishing the Diagnostic Procedures and Electrical Components Inspection, make sure
that all harness connectors are reconnected as they were.

GI-12
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56

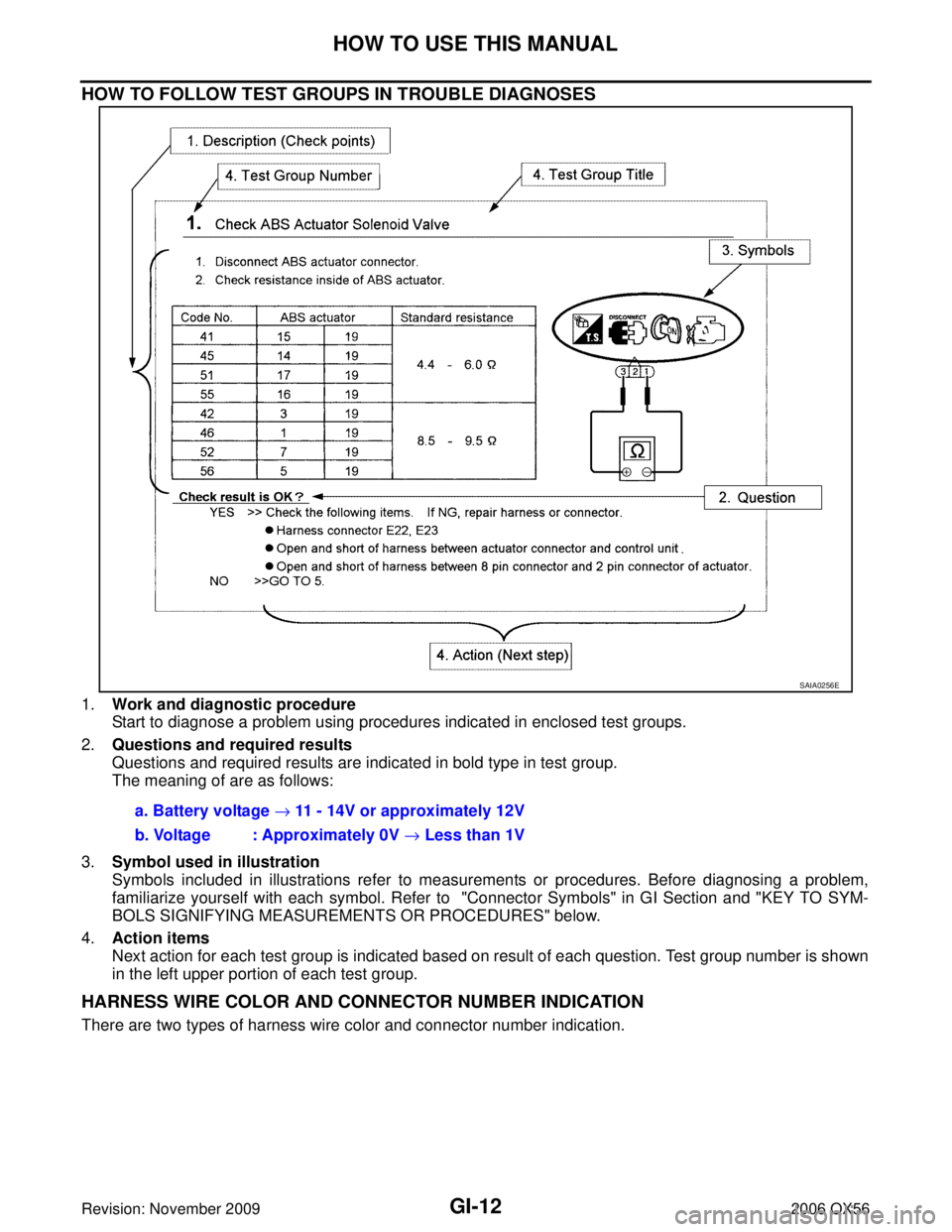

HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES
1.Work and diagnostic procedure
Start to diagnose a problem using procedures indicated in enclosed test groups.
2. Questions and required results
Questions and required results are indicated in bold type in test group.
The meaning of are as follows:
3. Symbol used in illustration
Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem,
familiarize yourself with each symbol. Refer to "Connector Symbols" in GI Section and "KEY TO SYM-
BOLS SIGNIFYING MEASUREMENTS OR PROCEDURES" below.
4. Action items
Next action for each test group is indicated based on result of each question. Test group number is shown
in the left upper portion of each test group.
HARNESS WIRE COLOR AND CONNECTOR NUMBER INDICATION
There are two types of harness wire color and connector number indication.
SAIA0256E
a. Battery voltage → 11 - 14V or approximately 12V
b. Voltage : Approximately 0V → Less than 1V

HOW TO USE THIS MANUALGI-13
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56

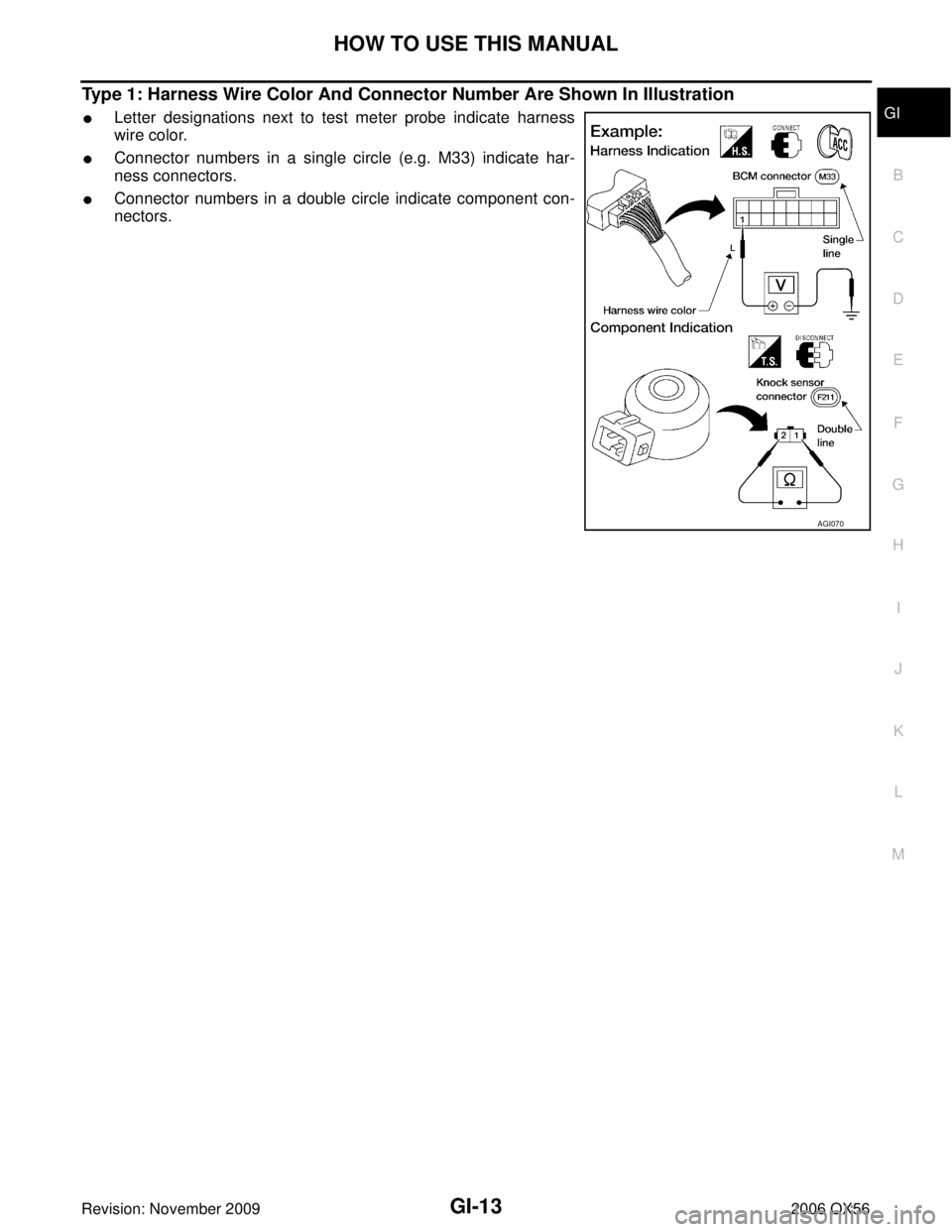

Type 1: Harness Wire Color And Connector Number Are Shown In Illustration

Letter designations next to test meter probe indicate harness
wire color.

Connector numbers in a single circle (e.g. M33) indicate har-
ness connectors.

Connector numbers in a double circle indicate component con-
nectors.
AGI070

GI-14
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
Type 2: Harness Wire Color And Connector Number Are Shown In Text

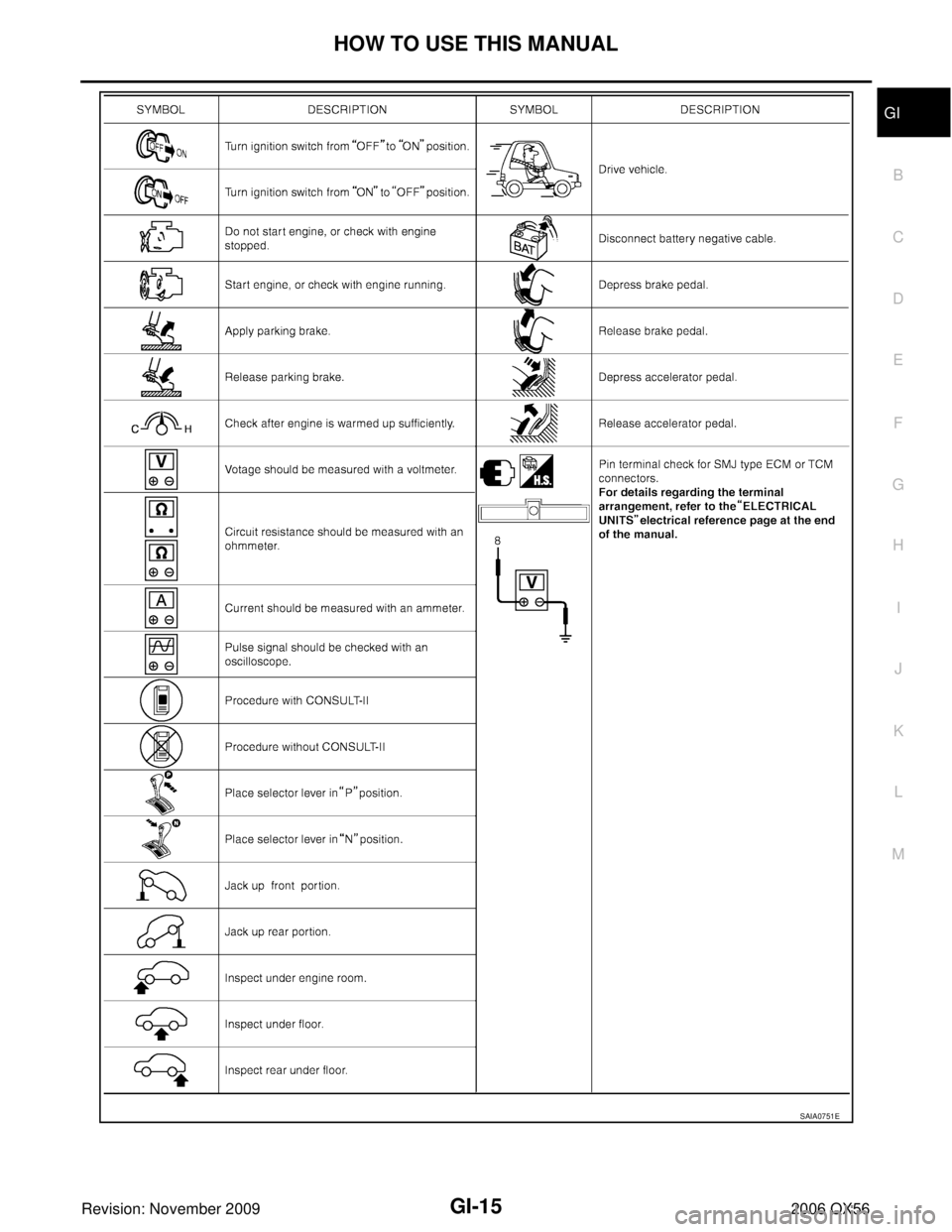

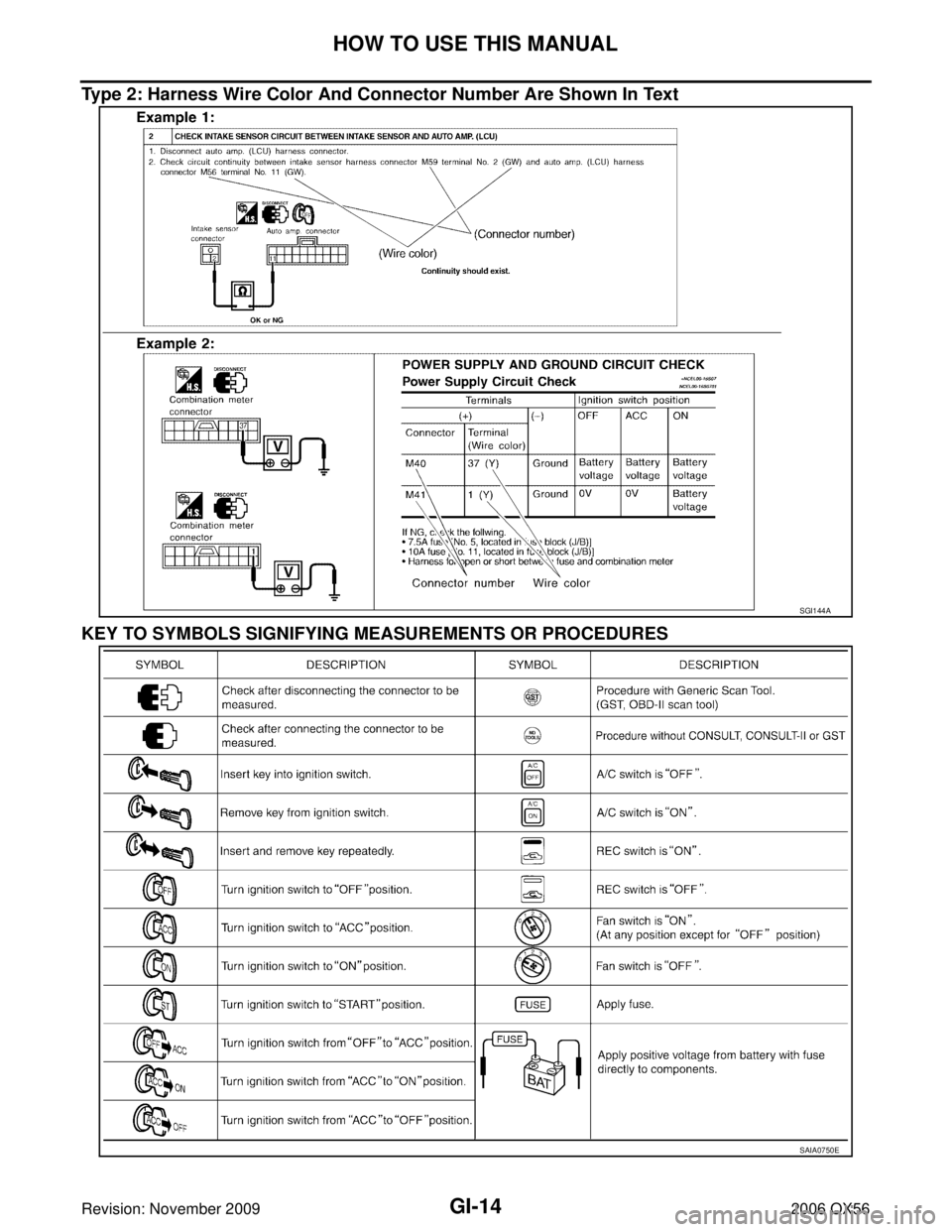

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES
SGI144A
SAIA0750E

HOW TO USE THIS MANUALGI-15
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
SAIA0751E

GI-16
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
How to Read Wiring DiagramsEAS001FK
CONNECTOR SYMBOLS
Most of connector symbols in wiring diagrams are shown from the
terminal side.

Connector symbols shown from the terminal side are enclosed
by a single line and followed by the direction mark.

Connector symbols shown from the harness side are enclosed
by a double line and followed by the direction mark.

Certain systems and components, especially related to OBD,
may use a new style slide-locking type harness connector. For
description and how to disconnect, refer to PG-68, "
HARNESS
CONNECTOR" .

Male and female terminals
Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.
SGI364
SGI363

HOW TO USE THIS MANUALGI-17
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
SAMPLE/WIRING DIAGRAM - EXAMPL -

For detail, refer to following “DESCRIPTION”.
SGI091A

GI-18
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
Optional Splice
DESCRIPTION
SGI942
Num-
ber Item
Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3 Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8 Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

HOW TO USE THIS MANUALGI-19
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
14 Wire color

This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description

This shows a description of the option abbreviation used on the page.
16 Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch

This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line

The line enclosed by broken line circle shows shield wire.
23 Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name

This shows the name of a component.
25 Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout ”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views

This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31 Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details.
Num-
ber Item
Description
