Page 1572 of 3383
DTC P0441 EVAP CONTROL SYSTEMEC-361
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 70 seconds.
4. Select “PURG FLOW P0441 ” of “EVAPORATIVE SYSTEM ” in “DTC CONFIRMATION ” mode with CON-
SULT-II.
5. Touch “START”.
If “COMPLETED” is displayed, go to step 7.
6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-II screen. Maintain
the conditions continuously until “TESTING” changes to “COMPLETED ”. (It will take at least 35 seconds.)
If “TESTING” is not changed for a long time, retry from step 2.
7. Make sure that “OK ” is displayed after touching “SELF-DIAG RESULTS ”. If “NG” is displayed, refer to EC-
362, "Diagnostic Procedure" .
Overall Function CheckUBS00H4M
Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring.
During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Lift up drive wheels.
2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Start engine and wait at least 70 seconds.
5. Set voltmeter probes to ECM terminals 32 (EVAP control system
pressure sensor signal) and ground.
6. Check EVAP control system pressure sensor value at idle speed and note it.
7. Establish and maintain the following conditions for at least 1 minute.
8. Verify that EVAP control system pressure sensor value stays 0.1V less than the value at idle speed (mea- sured at step 6) for at least 1 second.
Selector lever Suitable position
VHCL SPEED SE 32 - 120 km/h (20 - 75 MPH)
ENG SPEED 500 - 3,000 rpm
B/FUEL SCHDL 1.0 - 12.0 msec
COOLAN TEMP/S 70 - 100°C (158 - 212° F)
PBIB0826E
Air conditioner switch ON
Headlamp switch ON
Rear window defogger switch ON
Engine speed Approx. 3,000 rpm
Gear position Any position other than P, N or R
PBIB1109E
Page 1807 of 3383
EC-596Revision: November 2009
ELECTRICAL LOAD SIGNAL
2006 QX56
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionUBS00HDL
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.
CONSULT-II Reference Value in Data Monitor ModeUBS00HDM
Specification data are reference values.
Diagnostic ProcedureUBS00HDN
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select “DATA MONITOR ” mode.
3. Select “LOAD SIGNAL ” and check indication under the following
conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL ” indication under the following conditions.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
Ignition switch: ON Rear window defogger switch is ON
and/or lighting switch is in 2nd.
ON
Rear window defogger switch is OFF
and lighting switch is OFF. OFF
HEATER FAN SW
Engine: After warming up, idle
the engine Heater fan control switch: ON
ON
Heater fan control switch: OFF OFF
Condition Indication
Rear window defogger switch: ON ON
Rear window defogger switch: OFF OFF
PBIB0103E
ConditionIndication
Lighting switch: ON at 2nd position ON
Lighting switch: OFF OFF
PBIB0103E
Page 1808 of 3383
ELECTRICAL LOAD SIGNALEC-597
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
3. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Select “HEATER FAN SW ” and check indication under the following
conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
4. CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to GW-74, "
REAR WINDOW DEFOGGER" .
>> INSPECTION END
5. CHECK HEADLAMP SYSTEM
Refer to LT- 5 , "
HEADLAMP (FOR USA)" , or LT- 3 3 , "HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYS-
TEM -" .
>> INSPECTION END
6. CHECK HEATER FAN CONTROL SYSTEM
Refer to GW-74, "
REAR WINDOW DEFOGGER" .
>> INSPECTION END
Condition Indication
Heater fan control switch: ON ON
Heater fan control switch: OFF OFF
PBIB0103E
Page 1862 of 3383
FRONT BUMPEREI-13
C
DE
F
G H
J
K L
M A
B
EI
Revision: November 2009 2006 QX56
FRONT BUMPERPFP:F2022
Removal and InstallationEIS004WD
REMOVAL
1. Disconnect the negative battery cable.
2. Remove side screws from front fascia assembly.

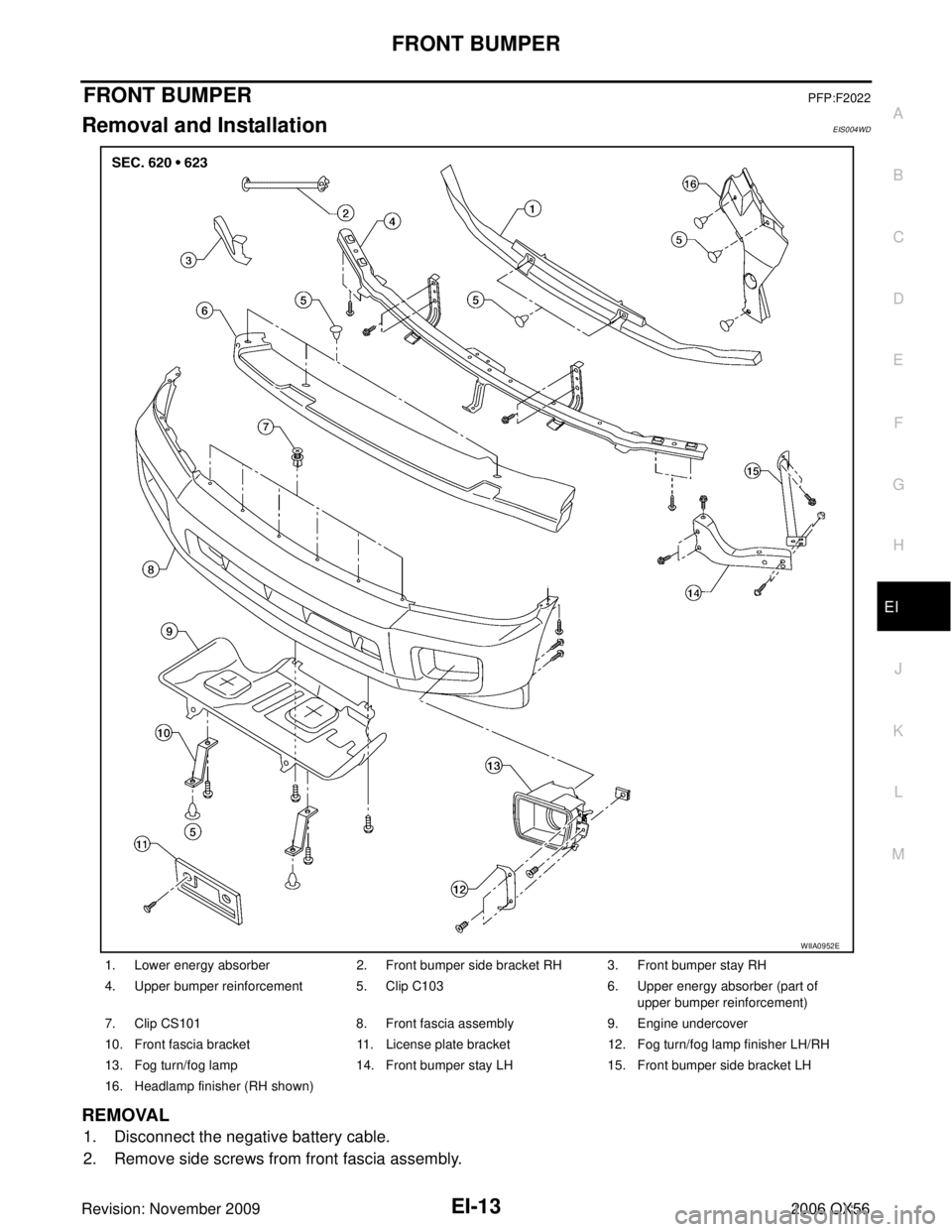

1. Lower energy absorber2. Front bumper side bracket RH 3. Front bumper stay RH
4. Upper bumper reinforcement 5. Clip C103 6. Upper energy absorber (part of
upper bumper reinforcement)
7. Clip CS101 8. Front fascia assembly9. Engine undercover
10. Front fascia bracket 11. License plate bracket12. Fog turn/fog lamp finisher LH/RH
13. Fog turn/fog lamp 14. Front bumper stay LH15. Front bumper side bracket LH
16. Headlamp finisher (RH shown)
WIIA0952E
Page 1869 of 3383
EI-20
FRONT FENDER
Revision: November 20092006 QX56
FRONT FENDERPFP:63100
Removal and InstallationEIS004WH
REMOVAL
1. Remove headlamp assembly. Refer to LT- 3 1 , "Removal and Installation" .
2. Remove over fender. Refer to EI-21, "
OVER FENDER" .
3. Remove fender protector. Refer to EI-23, "
FENDER PROTECTOR" .
4. Remove hood stay. Refer to BL-12, "
HOOD" .
5. Remove front fender.
INSTALLATION
Installation is in the reverse order of removal.
1. Front fender 2. Over fender 3. Headlamp assembly
4. Fender protector
WIIA0956E
Page 2246 of 3383
IDX-5
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
H
H/AIM - Wiring diagram ...................................... LT-66
H/LAMP - Wiring diagram .................................... LT-9
Handling precautions for plastics ..................... BL-187
Harness connector ............................................ PG-68
Harness layout .................................................. PG-41
Hazard warning lamp ......................................... LT-80
Headlamp ............................................................. LT-5
Headlamp aiming control ................................... LT-66
Headlamp leveler - See Headlamp aiming control . LT-
66
Headlamp removal and installation .................... LT-31
Heated oxygen sensor 2 (bank 1) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 (bank 2) .... EC-253, EC-264,
EC-277
Heated oxygen sensor 2 heater (bank 1) ........ EC-163
Heated oxygen sensor 2 heater (bank 2) ........ EC-163
Heated seat ....................................................... SE-84
Heater and cooling unit (Heater core) . ATC-153, ATC-
156
Heater unit (heater core) ............... ATC-153, ATC-156
Height (Dimensions) ........................................... GI-50
HFC134a (R134a) system identification ........... ATC-6
HFC134a (R134a) system precaution ............... ATC-5
HFC134a (R134a) system service procedure ATC-171
HFC134a (R134a) system service tools ......... ATC-14
HFC134a system service equipment precaution ATC-
11
High and low reverse clutch solenoid valve .... AT-151,
AT-153
Homelink universal transceiver ........................ BL-156
Horn ................................................................ WW-55
HORN - Wiring diagram .................................. WW-55
How to erase DTC for OBD system .................. EC-61
HSEAT - Wiring diagram ................................... SE-86
I
IATS - Wiring diagram ..................................... EC-189
ICC - Wiring diagram ....................................... ACS-20
ICC/BS - Wiring diagram ................................. EC-504
ICC/SW - Wiring diagram ................................ EC-489
ICCBOF - Wiring diagram ............................... EC-611
Identification plate .............................................. GI-48
Idle air volume learning ..................................... EC-78
Idle speed .............................................. EC-71, EC-76
Idle speed control (ISC) .................... EC-444, EC-446
Ignition coil .......................................... EM-28, EC-618
Ignition control system .................................... EC-618
Ignition key hole illumination ............................ LT-134
Ignition timing ........................................ EC-71, EC-76
IGNSYS - Wiring diagram ............................... EC-619
ILL - Wiring diagram ......................................... LT-163
Illumination ....................................................... LT-157
In vehicle sensor ........................... ATC-137, ATC-146
In-cabin Microfilter ............................................. MA-21
INJECT - Wiring diagram ................................ EC-599
Injector ............................................................. EC-598
Input clutch solenoid valve ................. AT-139, AT-141
Instrument panel .................................................. IP-10
Intake air temperature sensor ............ EC-188, EC-208
Intake door control linkage adjustment . ATC-85, ATC-
88
Intake door motor ........................... ATC-83, ATC-160
Intake manifold .................................................. EM-17
Intake sensor ................................ ATC-142, ATC-148
Integrated homelink transmitter - See Homelink univer-
sal tranceiver .................................................... BL-156
Intelligent cruise control (ICC) system ............... ACS-6
Interior ................................................................. EI-35
Interior lamp ...................................................... LT-134
Interior lamp on-off control ................................ LT-135
Internal gear (Transfer) ....................... TF-149, TF-176
IPDM (Intelligent power distribution module engine
room) ................................................................. PG-18
IVIS (Infiniti vehicle immobilizer system) .......... BL-137
IVIS (Infiniti vehicle immobilizer system) precautions ...
GI-3
J
Jacking points ..................................................... GI-41
Junction box (J/B) .............................................. PG-76
K
Key illumination ................................................ LT-135
KEYLES - Wiring diagram .................................. BL-49
Knock sensor (KS) ........................................... EC-335
KS - Wiring diagram ........................................ EC-336
L
Laser beam aiming adjustment ....................... ACS-12
Length (Dimensions) .......................................... GI-50
License lamp .................................................... LT-111
Lifting points ....................................................... GI-42
Line pressure solenoid valve ........................... AT-122
Line pressure switch (Transfer) .......... TF-154, TF-167
Line pressure test (A/T) ..................................... AT-52
Location of electrical units ................................. PG-65
Low coast brake solenoid valve .......... AT-155, AT-157
Low tire pressure warning system ...................... WT-8
Low tire pressure warning system - trouble diagnoses
WT-11
Low tire pressure warning system - Wiring diagram .....
WT-11
Lubricant (R134a) A/C ..................................... ATC-22
Lubricants .......................................................... MA-11
Lubrication circuit (engine) .................................. LU-5
Lubrication oil A/C ........................................... ATC-22
Lubrication-locks, hinges and hood latches ....... MA-31
M
MAFS - Wiring diagram ..................... EC-174
, EC-182
Page 2408 of 3383
LT-1
LIGHTING SYSTEM
K ELECTRICAL
CONTENTS
C
DE
F
G H
I
J
L
M
SECTION
A
B
LT
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
General precautions for service operations ........ ..... 4
HEADLAMP (FOR USA) ....................................... ..... 5
Component Parts and Harness Connector Location ..... 5
System Description ............................................. ..... 5
OUTLINE .......................................................... ..... 5
XENON HEADLAMP ........................................ ..... 6
BATTERY SAVER CONTROL ......................... ..... 7
AUTO LIGHT OPERATION .............................. ..... 7
VEHICLE SECURITY SYSTEM (PANIC ALARM) ..... 7
CAN Communication System Description ........... ..... 7
Schematic ........................................................... ..... 8
Wiring Diagram — H/LAMP — ............................ ..... 9
Terminals and Reference Values for BCM .......... ... 13
Terminals and Reference Values for IPDM E/R .. ... 14
How to Proceed With Trouble Diagnosis ............. ... 14
Preliminary Check ............................................... ... 14
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. ... 14
CONSULT-II Function (BCM) .............................. ... 16
CONSULT-II OPERATION ............................... ... 16
WORK SUPPORT ............................................ ... 17
DATA MONITOR .............................................. ... 17
ACTIVE TEST .................................................. ... 18
SELF-DIAGNOSTIC RESULTS ....................... ... 18
CONSULT-II Function (IPDM E/R) ...................... ... 19
CONSULT-II OPERATION ............................... ... 19
DATA MONITOR .............................................. ... 20
ACTIVE TEST .................................................. ... 20
Headlamp HI Does Not Illuminate (Both Sides) .. ... 21
Headlamp HI Does Not Illuminate (One Side) .... ... 23
High Beam Indicator Lamp Does Not Illuminate . ... 24
Headlamp LO Does Not Illuminate (Both Sides) . ... 24
Headlamp LO Does Not Illuminate (One Side) ... ... 26
Headlamps Do Not Turn OFF ............................. ... 27
Aiming Adjustment .............................................. ... 29
HEADLAMP AIMING ........................................ ... 29Bulb Replacement ...............................................
... 30
HEADLAMP (OUTER SIDE), FOR LOW BEAM ... 30
HEADLAMP (INNER SIDE), FOR HIGH BEAM ... 31
FRONT PARKING LAMP (INNER OR OUTER) ... 31
SIDE MARKER LAMP (FRONT) ......................... 31
Removal and Installation ..................................... ... 31
FRONT COMBINATION LAMP ASSEMBLY .... ... 31
INSTALLATION ................................................ ... 32
Disassembly and Assembly ................................. ... 32
FRONT COMBINATION LAMP ASSEMBLY .... ... 32
DISASSEMBLY ................................................ ... 32
ASSEMBLY ...................................................... ... 32
HEADLAMP (FOR CANADA) - DAYTIME LIGHT
SYSTEM - ............................................................... ... 33
Component Parts and Harness Connector Location ... 33
System Description .............................................. ... 34
OUTLINE .......................................................... ... 34
DAYTIME LIGHT OPERATION ........................ ... 34
COMBINATION SWITCH READING FUNCTION ... 34
AUTO LIGHT OPERATION .............................. ... 35
CAN Communication System Description ........... ... 35
Schematic ............................................................ ... 36
Wiring Diagram — DTRL — ................................ ... 37
Terminals and Reference Values for BCM ........... ... 41
How to Proceed With Trouble Diagnosis ............. ... 42
Preliminary Check ............................................... ... 42
CHECK BCM CONFIGURATION ..................... ... 42
INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT .......................................... ... 42
INSPECTION PARKING BRAKE SWITCH CIR-
CUIT ................................................................. ... 43
CONSULT-II Functions ........................................ ... 44
Daytime Light Control Does Not Operate Properly
(Normal Headlamps Operate Properly) ............... ... 44
Aiming Adjustment ............................................... ... 46
Bulb Replacement ............................................... ... 46
Removal and Installation ..................................... ... 46
Disassembly and Assembly ................................. ... 46
AUTO LIGHT SYSTEM .......................................... ... 47
Component Parts and Harness Connector Location ... 47
Page 2409 of 3383
LT-2Revision: November 20092006 QX56
System Description ..............................................
... 48
OUTLINE .......................................................... ... 48
COMBINATION SWITCH READING FUNCTION ... 48
EXTERIOR LAMP BATTERY SAVER CONTROL ... 48
DELAY TIMER FUNCTION .............................. ... 48
CAN Communication System Description ........... ... 48
Major Components and Functions ....................... ... 48
Schematic ............................................................ ... 49
Wiring Diagram — AUTO/L — ............................. ... 50
Terminals and Reference Values for BCM ........... ... 53
Terminals and Reference Values for IPDM E/R ... ... 54
How to Proceed With Trouble Diagnosis ............. ... 55
Preliminary Check ............................................... ... 55
SETTING CHANGE FUNCTIONS .................... ... 55
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. ... 55
CONSULT-II Function (BCM) ............................... ... 57
CONSULT-II OPERATION ................................ ... 57
WORK SUPPORT ............................................ ... 58
DATA MONITOR ............................................... ... 58
ACTIVE TEST .................................................. ... 59
SELF-DIAGNOSTIC RESULTS ........................ ... 59
CONSULT-II Function (IPDM E/R) ....................... ... 60
CONSULT-II OPERATION ................................ ... 60
DATA MONITOR ............................................... ... 61
ACTIVE TEST .................................................. ... 61
Trouble Diagnosis Chart by Symptom ................. ... 62
Lighting Switch Inspection ................................... ... 62
Optical Sensor System Inspection ....................... ... 63
Optical Sensor ..................................................... ... 64
REMOVAL AND INSTALLATION ...................... ... 64
HEADLAMP AIMING CONTROL ........................... ... 65
System Description .............................................. ... 65
Wiring Diagram — H/AIM — ................................ ... 66
Headlamp Aiming Switch ..................................... ... 68
REMOVAL AND INSTALLATION ...................... ... 68
Switch Circuit Inspection ..................................... ... 68
FRONT FOG LAMP ............................................... ... 69
Component Parts and Harness Connector Location ... 69
System Description .............................................. ... 69
OUTLINE .......................................................... ... 69
COMBINATION SWITCH READING FUNCTION ... 70
EXTERIOR LAMP BATTERY SAVER CONTROL ... 70
CAN Communication System Description ........... ... 70
Wiring Diagram — F/FOG — ............................... ... 71
Terminals and Reference Values for BCM ........... ... 73
Terminals and Reference Values for IPDM E/R ... ... 74
How to Proceed With Trouble Diagnosis ............. ... 74
Preliminary Check ............................................... ... 75
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. ... 75
CONSULT-II Functions ........................................ ... 76
Front Fog Lamps Do Not Illuminate (Both Sides) ... 76
Front Fog Lamp Does Not Illuminate (One Side) ... 77
Aiming Adjustment ............................................... ... 78
Bulb Replacement ............................................... ... 79
FRONT FOG LAMP .......................................... ... 79INSTALLATION ................................................
... 79
Removal and Installation ...................................... ... 79
FRONT FOG LAMP .......................................... ... 79
INSTALLATION ................................................ ... 79
TURN SIGNAL AND HAZARD WARNING LAMPS ... 80
Component Parts and Harness Connector Location ... 80
System Description .............................................. ... 80
OUTLINE .......................................................... ... 80
TURN SIGNAL OPERATION ............................ ... 80
HAZARD LAMP OPERATION .......................... ... 81
REMOTE KEYLESS ENTRY SYSTEM OPERA-
TION ................................................................. ... 82
COMBINATION SWITCH READING FUNCTION ... 82
CAN Communication System Description ........... ... 82
Schematic ............................................................ ... 83
Wiring Diagram — TURN — ................................ ... 84
Terminals and Reference Values for BCM ........... ... 87
How to Proceed With Trouble Diagnosis ............. ... 88
Preliminary Check ................................................ ... 89
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................. ... 89
CONSULT-II Function (BCM) ............................... ... 90
CONSULT-II OPERATION ................................ ... 90
DATA MONITOR ............................................... ... 91
ACTIVE TEST ................................................... ... 91
Front Turn Signal Lamp Does Not Operate ......... ... 92
Door Mirror Turn Signal Lamp Does Not Operate ... 93
Rear Turn Signal Lamp Does Not Operate .......... ... 94
Hazard Warning Lamp Does Not Operate But Turn
Signal Lamps Operate ......................................... ... 95
Turn Signal Indicator Lamp Does Not Operate .... ... 96
Bulb Replacement ................................................ ... 97
TURN SIGNAL LAMP (FRONT) ....................... ... 97
TURN SIGNAL LAMP (REAR) .......................... ... 97
Removal and Installation ...................................... ... 97
FRONT TURN SIGNAL LAMP .......................... ... 97
REAR TURN SIGNAL LAMP ............................ ... 97
LIGHTING AND TURN SIGNAL SWITCH ............. ... 98
Removal and Installation ...................................... ... 98
REMOVAL ........................................................ ... 98
INSTALLATION ................................................ ... 98
HAZARD SWITCH .................................................. ... 99
Removal and Installation ...................................... ... 99
REMOVAL ........................................................ ... 99
INSTALLATION ................................................ ... 99
COMBINATION SWITCH ....................................... .100
Wiring Diagram — COMBSW — ......................... .100
Combination Switch Reading Function ................ .101
CONSULT-II Function (BCM) ............................... .101
CONSULT-II OPERATION ................................ .101
DATA MONITOR ............................................... .102
Combination Switch Inspection ............................ .103
Removal and Installation ...................................... .105
Switch Circuit Inspection ...................................... .105
STOP LAMP ........................................................... .106
System Description .............................................. .106
Wiring Diagram — STOP/L — ............................. .107
Bulb Replacement ................................................ .108
HIGH-MOUNTED STOP LAMP ........................ .108
Page 2410 of 3383
LT-3
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
STOP LAMP .....................................................
. 108
Removal and Installation ..................................... . 108
HIGH_MOUNTED STOP LAMP ...................... . 108
STOP LAMP ..................................................... . 108
BACK-UP LAMP ................................................... . 109
Wiring Diagram — BACK/L — ............................ . 109
Bulb Replacement ............................................... .. 110
BACK-UP LAMP .............................................. .. 110
INSTALLATION ................................................ .. 110
Removal and Installation ..................................... .. 110
BACK-UP LAMP .............................................. .. 110
PARKING, LICENSE PLATE AND TAIL LAMPS .. .. 111
Component Parts and Harness Connector Location . . 111
System Description ............................................. . . 111
OPERATION BY LIGHTING SWITCH ............. .. 112
COMBINATION SWITCH READING FUNCTION .. 112
EXTERIOR LAMP BATTERY SAVER CONTROL .. 112
CAN Communication System Description ........... .. 112
Schematic ........................................................... .. 113
Wiring Diagram — TAIL/L — ................................. 114
Terminals and Reference Values for BCM .......... .. 117
Terminals and Reference Values for IPDM E/R .. .. 118
How to Proceed With Trouble Diagnosis ............. .. 118
Preliminary Check ............................................... .. 118
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. .. 118
CONSULT-II Functions ........................................ .. 119
Parking, License Plate and/or Tail Lamps Do Not
Illuminate ............................................................. . 120
Parking, License Plate and Tail Lamps Do Not Turn
OFF (After Approx. 10 Minutes) .......................... . 123
Bulb Replacement ............................................... . 124
FRONT PARKING LAMP ................................. . 124
LICENSE PLATE LAMP ................................... . 124
SIDE MARKER LAMP (FRONT) ...................... . 124
TAIL LAMP ....................................................... . 124
Removal and Installation ..................................... . 124
FRONT PARKING LAMP ................................. . 124
LICENSE PLATE LAMP ................................... . 124
INSTALLATION ................................................ . 124
SIDE MARKER LAMP (REAR) ........................ . 124
TAIL LAMP ....................................................... . 124
REAR COMBINATION LAMP ............................... . 125
Bulb Replacement ............................................... . 125
SIDE MARKER LAMP (REAR) ........................ . 125
TAIL LAMP ....................................................... . 125
TURN SIGNAL ................................................. . 125
STOP LAMP ..................................................... . 125
INSTALLATION ................................................ . 125
Removal and Installation ..................................... . 125
REAR COMBINATION LAMP .......................... . 125
TRAILER TOW ...................................................... . 126Component Parts and Harness Connector Location
.126
System Description .............................................. .126
TRAILER TAIL LAMP OPERATION ................. .127
TRAILER BRAKE, TURN SIGNAL AND HAZARD
LAMP OPERATION .......................................... .127
TRAILER BRAKE OPERATION ....................... .128
TRAILER POWER SUPPLY OPERATION ....... .128
Schematic ............................................................ .129
Wiring Diagram — T/TOW — .............................. .130
INTERIOR ROOM LAMP ....................................... .134
Component Parts and Harness Connector Location .134
System Description .............................................. .135
POWER SUPPLY AND GROUND ................... .135
SWITCH OPERATION ..................................... .136
ROOM LAMP TIMER OPERATION ................. .136
INTERIOR LAMP BATTERY SAVER CONTROL .137
Schematic ............................................................ .138
Wiring Diagram — INT/L — ................................. .140
Terminals and Reference Values for BCM ........... .147
How to Proceed With Trouble Diagnosis ............. .148
Preliminary Check ............................................... .148
INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT .......................................... .148
CONSULT-II Function (BCM) .............................. .149
CONSULT-II OPERATION ................................ .149
WORK SUPPORT ............................................ .150
DATA MONITOR .............................................. .150
ACTIVE TEST .................................................. .151
Room/Map Lamp Control Does Not Operate ...... .151
Personal Lamp Control Does Not Operate (Room/
Map Lamps Operate) ........................................... .153
All Step/Foot/Puddle Lamps Do Not Operate ...... .154
All Interior Room Lamps Do Not Operate ............ .155
Ignition Keyhole Illumination Control Does Not
Operate ................................................................ .155
ILLUMINATION ...................................................... .157
Component Parts and Harness Connector Location .157
System Description .............................................. .157
ILLUMINATION OPERATION BY LIGHTING
SWITCH ........................................................... .158
EXTERIOR LAMP BATTERY SAVER CONTROL .159
CAN Communication System Description ........... .159
Schematic ............................................................ .160
Wiring Diagram — ILL — ..................................... .163
Removal and Installation of Illumination Control
Switch .................................................................. .174
REMOVAL ........................................................ .174
INSTALLATION ................................................ .174
BULB SPECIFICATIONS ....................................... .175
Headlamp ............................................................ .175
Exterior Lamp ...................................................... .175
Interior Lamp/Illumination .................................... .175
Page 2411 of 3383
LT-4
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00B7P
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
General precautions for service operationsEKS00B7Q
Never work with wet hands.
Xenon headlamp includes high voltage generating part. Be sure
to disconnect battery negative cable (negative terminal) or
power fuse before removing, installing, or touching the xenon
headlamp (including lamp bulb).
Turn the lighting switch OFF before disconnecting and connect-
ing the connector.
When turning the xenon headlamp on and while it is illuminated,
never touch the harness, bulb, and socket of the headlamp.
When checking the headlamp on/off operation, check it on vehi-
cle and with the power connected to the vehicle-side connector.
Do not touch the headlamp bulb glass surface with bare hands or allow oil or grease to get on it. Do not
touch the headlamp bulb just after the headlamp is turned off, because it is very hot.
Install the xenon headlamp bulb socket correctly. If it is installed
improperly, high-voltage leak or corona discharge may occur
that can melt the bulb, connector, and housing. Do not illuminate
the xenon headlamp bulb out of the headlamp housing. Doing
so can cause fire and harm your eyes.
When the bulb has burned out, wrap it in a thick vinyl bag and
discard. Do not break the bulb.
Leaving the bulb removed from the headlamp housing for a long
period of time can deteriorate the performance of the lens and
reflector (dirt, clouding). Always prepare a new bulb and have it
on hand when replacing the bulb.
Do not use organic solvent (paint thinner or gasoline) to clean
lamps and to remove old sealant.
WKIA0460E
EL-3422D
