TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
SRS Components Parts LocationEHS0016N
1. Side curtain air bag modules 2. Front RH side air bag module 3. Belt tension sensor
4. RH side air bag (satellite) sensor 5. Front RH seat belt pre-ten-
sioner6. Seat belt buckle pre-tensioner assembly
RH
7. Occupant classification system sen- sor 8. Occupant classification system
control unit 9. Front passenger air bag off indicator
10. Front passenger air bag module 11. Crash zone sensor 12. Air bag warning lamp
13. Spiral cable 14. Driver air bag module15. LH side air bag (satellite) sensor
16. Front LH seat belt pre-tensioner 17. Air bag diagnosis sensor unit 18. Front LH side air bag module
WHIA0216E

TROUBLE DIAGNOSISSRS-11
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56

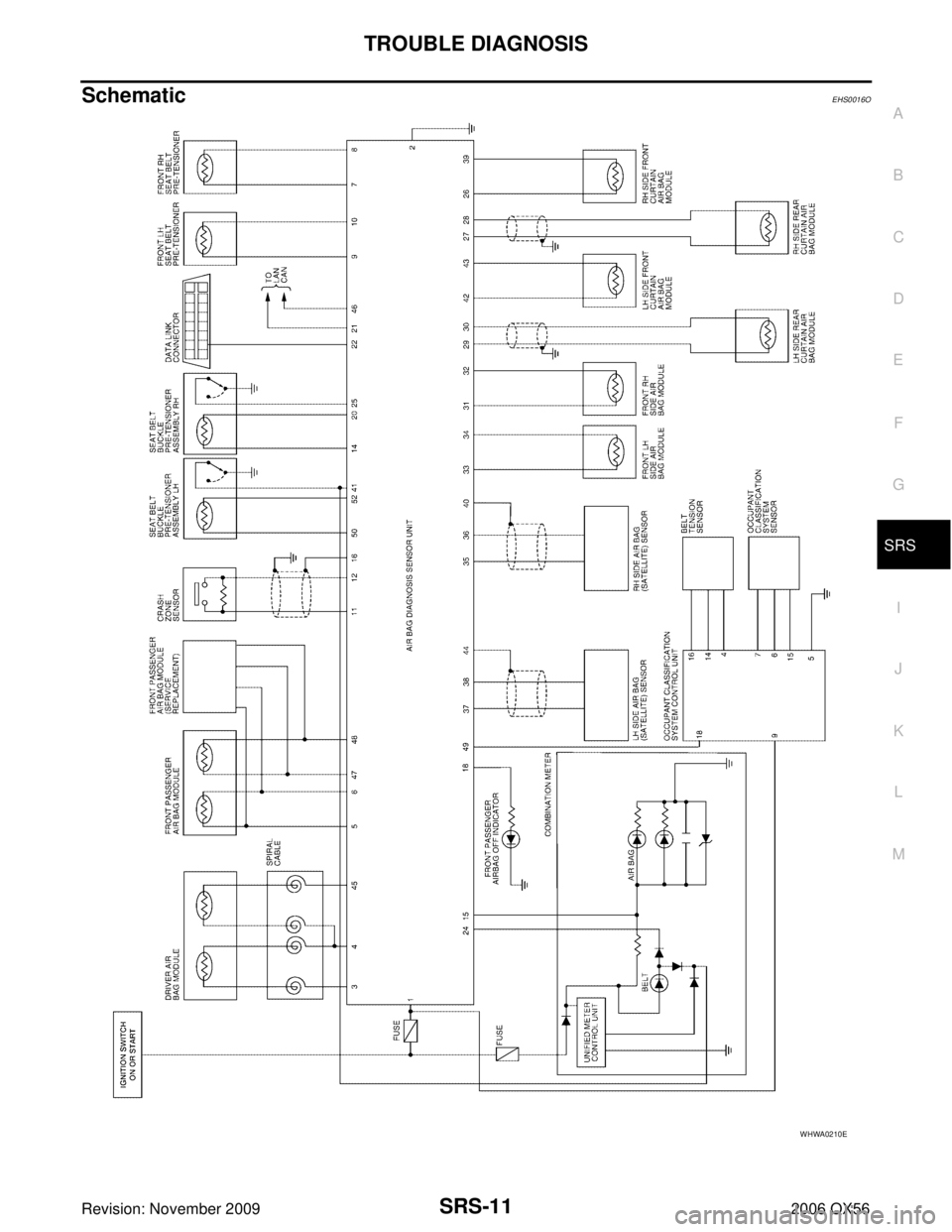

SchematicEHS0016O
WHWA0210E

SRS-12
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

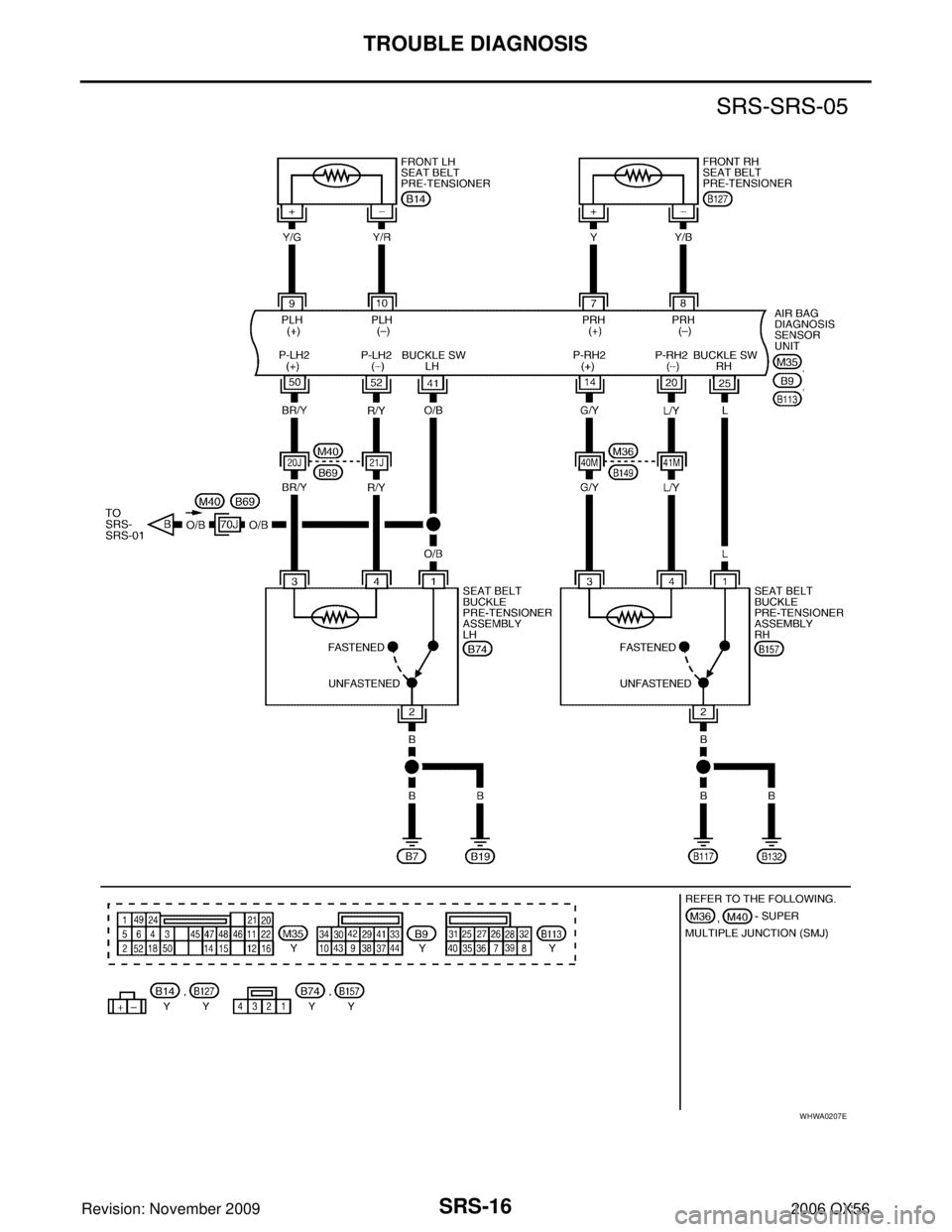

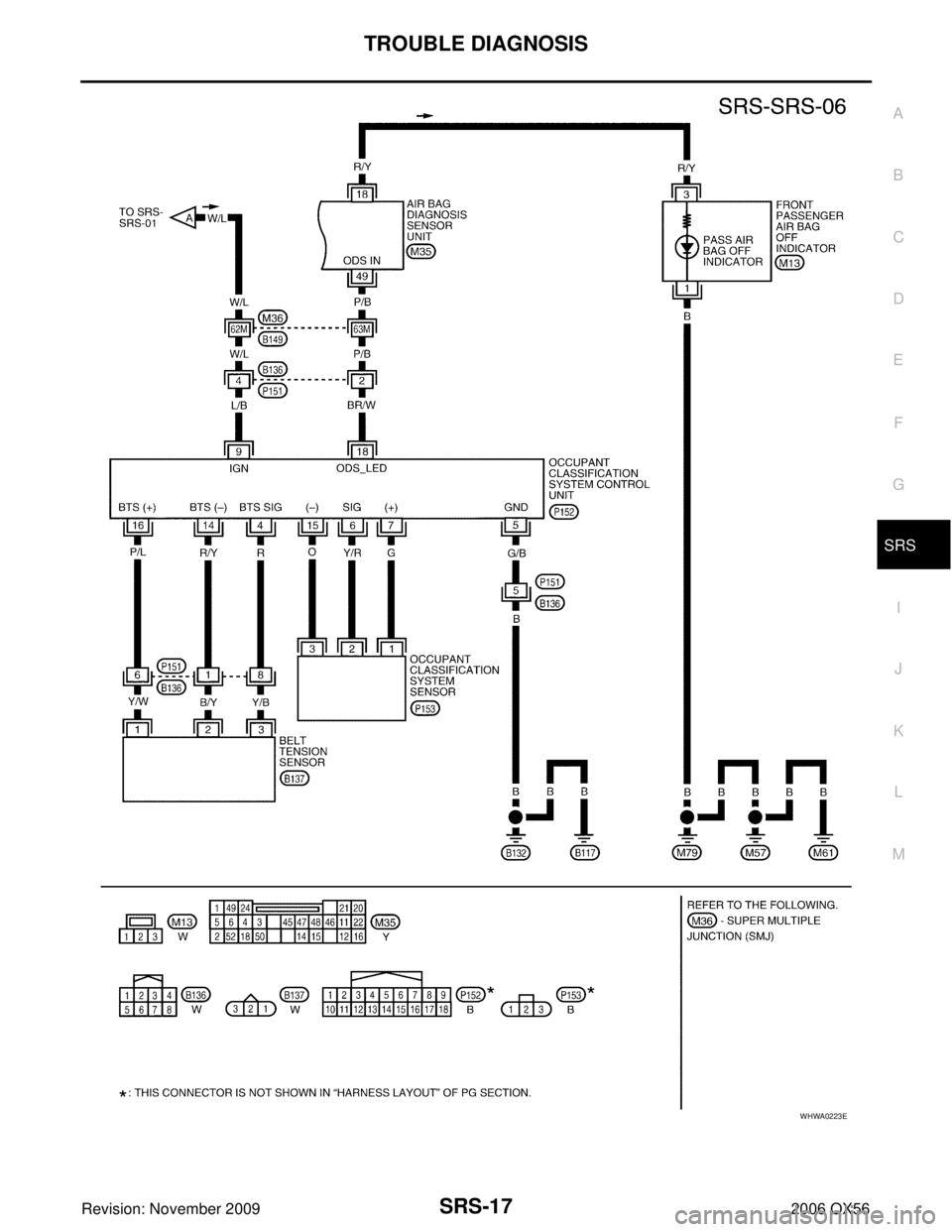

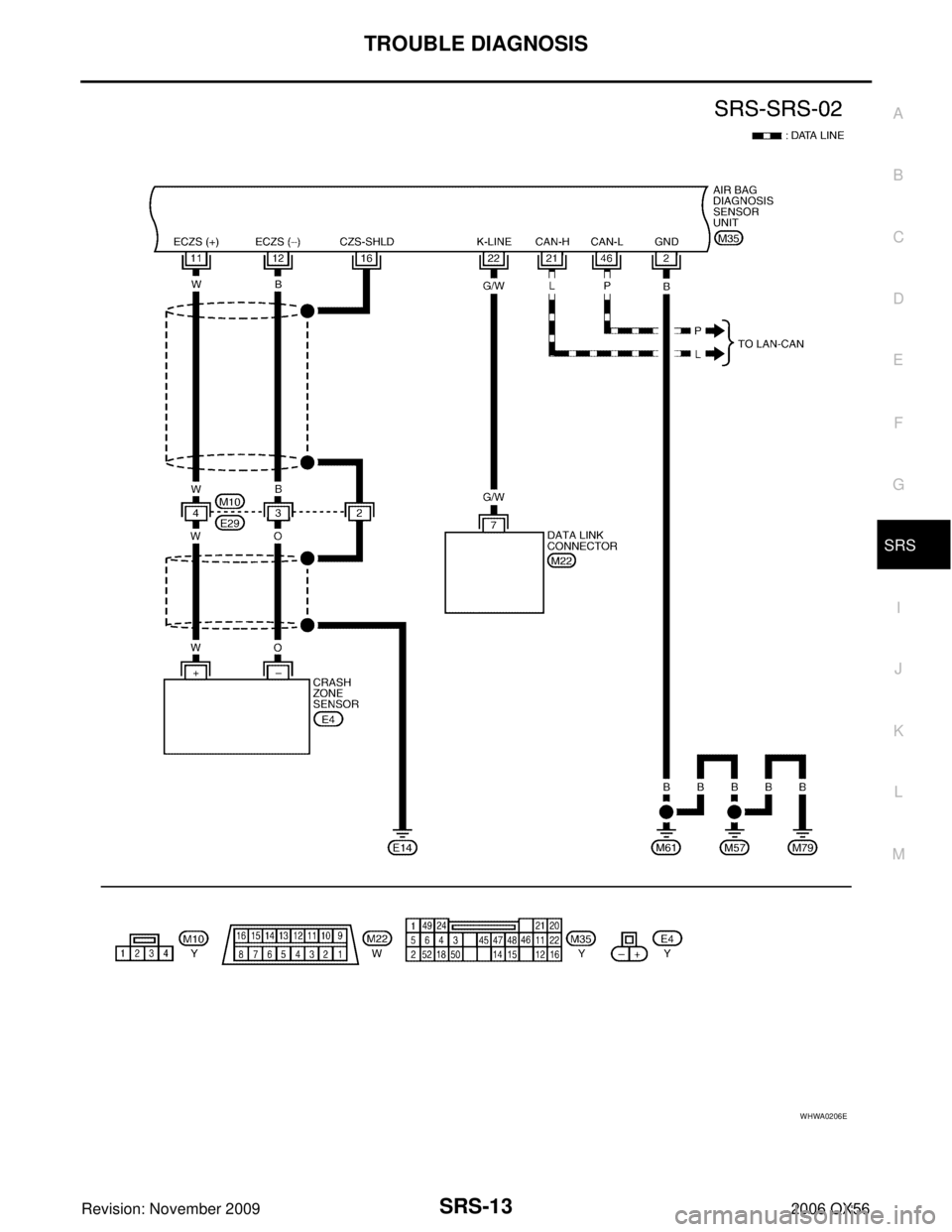

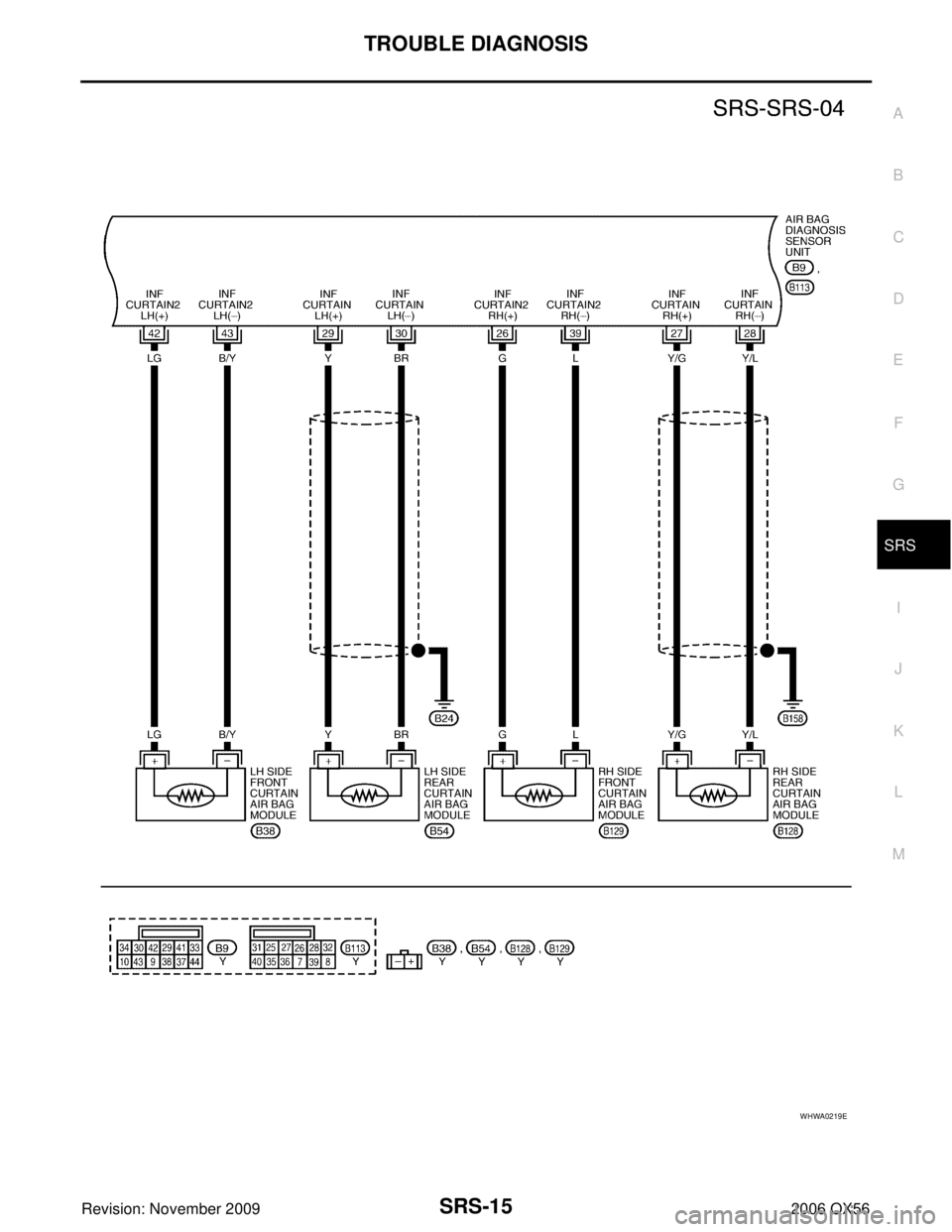

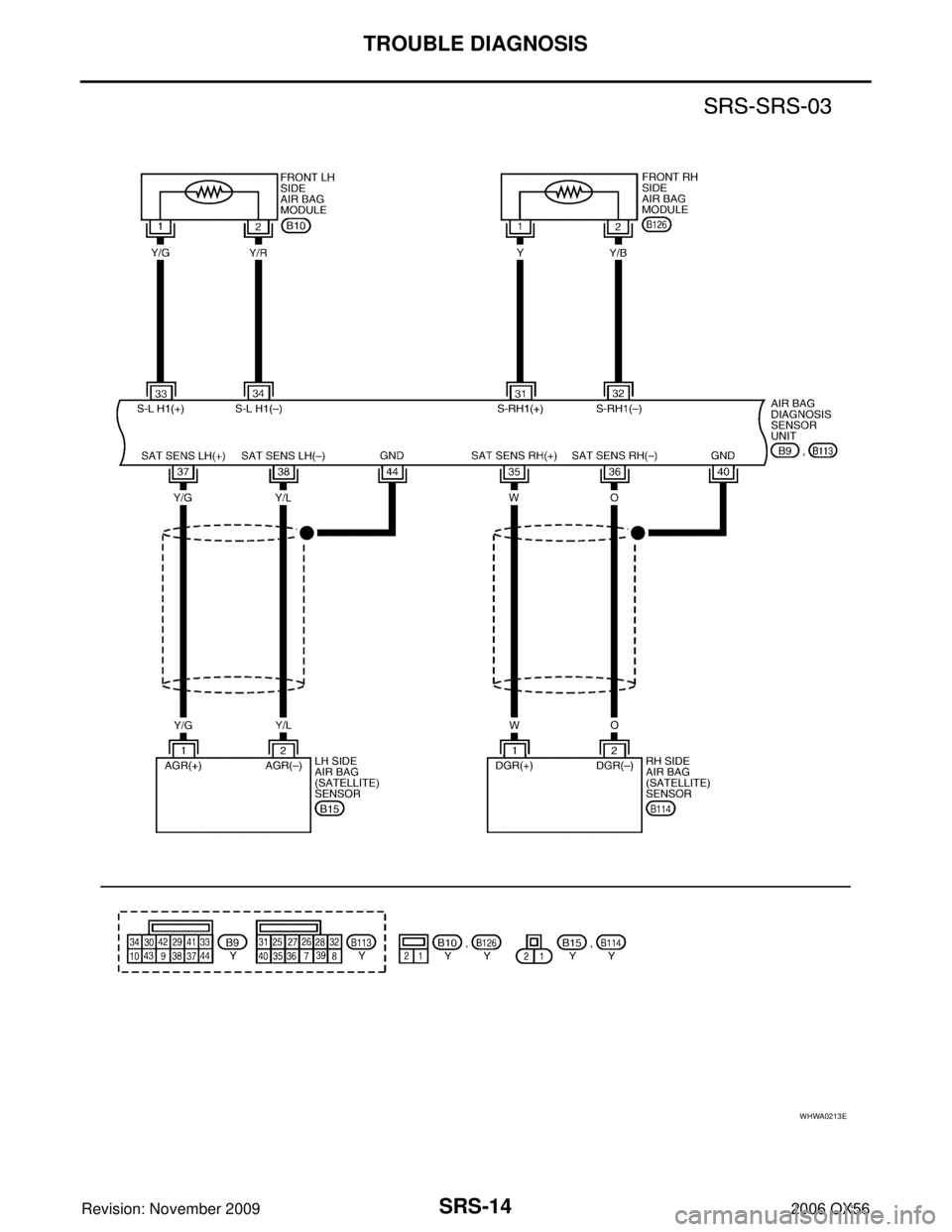

Wiring Diagram— SRS —EHS0016P
WHWA0328E

TROUBLE DIAGNOSISSRS-13
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
WHWA0206E

SRS-14
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
WHWA0213E

TROUBLE DIAGNOSISSRS-15
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
WHWA0219E

SRS-16
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
WHWA0207E

TROUBLE DIAGNOSISSRS-17
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
WHWA0223E

SRS-18
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
CONSULT-II Function (AIR BAG)EHS001BA
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II FunctionEHS0016Q
HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II
From User Mode to Diagnosis Mode
After selecting “AIR BAG ” on the “SELECT SYSTEM ” screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis Mode to User Mode
To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.
AIR BAG diagnostic mode Description
SELF-DIAG [CURRENT] A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requir-
ing repairs.
SELF-DIAG [PAST] Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The
stored results will remain until memory erasing is executed.
TROUBLE DIAG RECORD With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.
ECU DISCRIMINATED NO. The air bag diagnosis sensor unit for each vehicle
model is assigned with its own, individual classifi-
cation number. This number will be displayed on
the CONSULT-II screen, as shown. When replac-
ing the air bag diagnosis sensor unit, refer to the
part number for the compatibility. After installation,
replacement with a correct unit can be checked by
confirming this classification number on the CON-
SULT-II screen.
The air bag diagnosis sensor unit discrimi-
nated number assigned is F62F.
PASSENGER AIR BAG The STATUS (readiness) of the front passenger air
bag module is displayed. The STATUS displayed
(ON/OFF) depends on the signals supplied to the
occupant classification system control module and
air bag diagnosis sensor unit. Refer to
SRS-6,
"Occupant Classification System (OCS)" for more
information.
ARS366
WHIA0290E
SRS803

TROUBLE DIAGNOSISSRS-19
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
HOW TO ERASE SELF-DIAGNOSIS RESULTS

“SELF-DIAG [CURRENT]”
A current self-diagnosis result is displayed on the CONSULT-II
screen in real time.
After the malfunction is repaired completely, no malfunction is
detected on “SELF-DIAG [CURRENT] ”.

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT] ” CONSULT-II screen by
touching “BACK” key of CONSULT-II and select “SELF-DIAG
[PAST] ” in SELECT DIAG MODE. Touch “ERASE” in “SELF-
DIAG [PAST] ” mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is
not erased, the User mode will continue to show the system
malfunction by the operation of the warning lamp even if
the malfunction is repaired completely.

“TROUBLE DIAG RECORD ”
The memory of “TROUBLE DIAG RECORD ” cannot be erased.
Self-Diagnosis Function (Without CONSULT-II)EHS0016R

The reading of these results is accomplished using one of two modes — “User mode” and “Diagnosis
mode ”.

After a malfunction is repaired, turn the ignition switch OFF for at least one second, then back ON. Diag-
nosis mode returns to the User mode. At that time, the self-diagnostic result is cleared.
SRS804
SRS701
SRS702
