INFINITI QX56 2006 Factory Service Manual

SE-100
SECOND SEAT
Revision: November 20092006 QX56
1. Headrest 2. Seatback pad 3. Seatback frame
4. Rear seat bezel 5. RH Headrest guide 6. LH Headrest guide
7. Seat back panel 8. Seat actuator assembly 9. Reclining device inner cover
10. Reclining device inner mid cover 11. Armrest assembly 12. Armrest bolt cover
13. Armrest trim cover 14. Latch assembly 15. Seat cushion mat springs
16. Seat cushion mat 17. Seat cushion frame assembly 18. Seat support trim cover
19. Seat support pad assembly 20. Lower rear seat cover 21. Lower rear seat cover inner
22. Outboard cushion floor latch 23. Seat cushion support frame assem- bly24. Lower rear seat cover outer
25. Seat cushion pad 26. Inner inboard reclining device cover 27. Outer inboard reclining device cover
28. Seat latch and recliner release 29. Reclining device outer mid cover 30. Reclining device lever
31. Reclining device outer cover 32. Seatback trim cover 33. Seat cushion trim cover
34. Seat cushion heating element

SECOND SEATSE-101
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Second Row Center
WIIA1366E
1. Seatback pad2. Armrest finisher 3. Headrest
4. Seat belt retractor cover 5. Seat belt bezel 6. RH headrest guide locking

SE-102
SECOND SEAT
Revision: November 20092006 QX56
7. LH headrest guide free8. Seatback board 9. Seat bracket cover
10. Armrest pivot bracket cover 11. Seatback frame 12. Seat cushion frame
13. Latch assembly 14. Lower rear pivot bracket support 15. Outer hinge cover
16. Center seat base assembly 17. Link and pivot bracket apron 18. Seat cushion pad
19. Seat cushion trim cover 20. Cushion stop bumper 21. Inner lever cover
22. Seat hinge assembly 23. Seat lever assembly 24 Outer lever cover
25. Seat lock cover 26 Armrest cover 27 Armrest bracket
28 Armrest pad 29 Cup holder 30 Seatback trim cover
31. Seat belt retractor and belt assembly A. Refer to SB-6, "
Removal and Installation of Second Row Seat Belt"

SECOND SEATSE-103
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Second row LH
WIIA1015E
1. Seat back panel2. RH headrest guide 3. LH headrest guide
4. Rear seat bezel 5. Seatback pad 6. Seatback trim cover

SE-104
SECOND SEAT
Revision: November 20092006 QX56
7. Headrest8. Seat latch and recliner release 9. Reclining device outer cover
10. Reclining device lever 11. Reclining device outer mid cover 12. Outer inboard reclining device cover
13. Inner inboard reclining device cover 14. Seat cushion trim cover 15. Seat cushion pad
16. Seat cushion frame assembly 17. Lower rear seat cover outer 18. Outboard cushion floor latch
19. Seat cushion support frame assem- bly 20. Inboard cushion floor latch
21. Lower rear seat cover inner
22. Lower rear seat cover 23. Seat support pad assembly 24. Seat support trim cover
25. Seat cushion mat 26. Seat cushion mat springs 27. Latch assembly
28. Armrest assembly 29. Armrest trim cover 30. Reclining device outer cover
31. Reclining device inner mid cover 32. Seatback frame 33. Seat actuator assembly
34. Seat cushion heating element

THIRD SEATSE-105
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
THIRD SEATPFP:88000
LH Side SeatEIS007WZ
REMOVAL
1. Remove the storage bin. Refer to EI-40, "LUGGAGE FLOOR TRIM" .
2. Remove the lower base trim covers.
3. Remove front link nuts and the LH hinge front bolt.
4. Remove push pin (2) and release elastic ban (3) from seat frame (1).

⇐: Vehicle front
5. Partially lift seatback upright, then remove seat belt buckle (2) from between hinge cover (1) and seat cushion side facing (3).

⇐: Vehicle front
6. Retract the seat into the cargo floor position.
7. Remove the (A) seat hinge rear bolt and (B) seat belt buckle bolt from the seat assembly.
8. Remove the seat assembly.
INSTALLATION
Installation is in the reverse order of removal. Front link nuts : 45 N·m (4.6 Kg-m, 33 ft-lb)
LH hinge front bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
LIIA2324E
LIIA2370E
LIIA2371E
Seat hinge rear bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
Seat belt buckle bolt : 50 N·m (5.1 Kg-m, 37 ft-lb)
LIIA2325E

SE-106
THIRD SEAT
Revision: November 20092006 QX56
DISASSEMBLY AND ASSEMBLY
Third seat LH
LIIA2322E

THIRD SEATSE-107
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
RH Side SeatEIS007X0
REMOVAL
1. Remove the storage bin. Refer to EI-40, "LUGGAGE FLOOR TRIM" .
2. Remove the lower base trim covers.
3. Remove (A) front link nuts and (B) RH hinge front bolt.
4. Remove push pin (2) and release elastic ban (3) from seat frame (1).

⇐: Vehicle front
5. Partially lift seatback upright, then remove seat belt buckle (2) from between hinge cover (1) and seat cushion side facing (3).

⇐: Vehicle front
6. Retract the seat into the cargo floor position.
7. Remove the rear bolts from the seat assembly.
8. Remove the seat assembly.
1. LH 3rd seat assembly 2. Seatback assembly 3. Seatback trim cover
4. Seat cushion assembly 5. Seat cushion pad 6. Seat cushion trim cover
7. Flex mat springs 8. Flex mat 9. Front link covers
10. RH hinge cover 11. Seat cushion frame 12. LH hinge cover
13. Seatback frame assembly 14. Seatback cable assembly 15. Release handle bezel
16. Seatback board 17. Seatback pad 18. Headrest holder, locking
19. Headrest holder, free 20. Headrest
Front link nuts : 45 N·m (4.6 Kg-m, 33 ft-lb)
RH hinge front bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
LIIA2326E
LHIA0105E
Seat hinge rear bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
LHIA0106E
LIIA2327E

SE-108
THIRD SEAT
Revision: November 20092006 QX56
INSTALLATION
Installation is in the reverse order of removal.

THIRD SEATSE-109
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

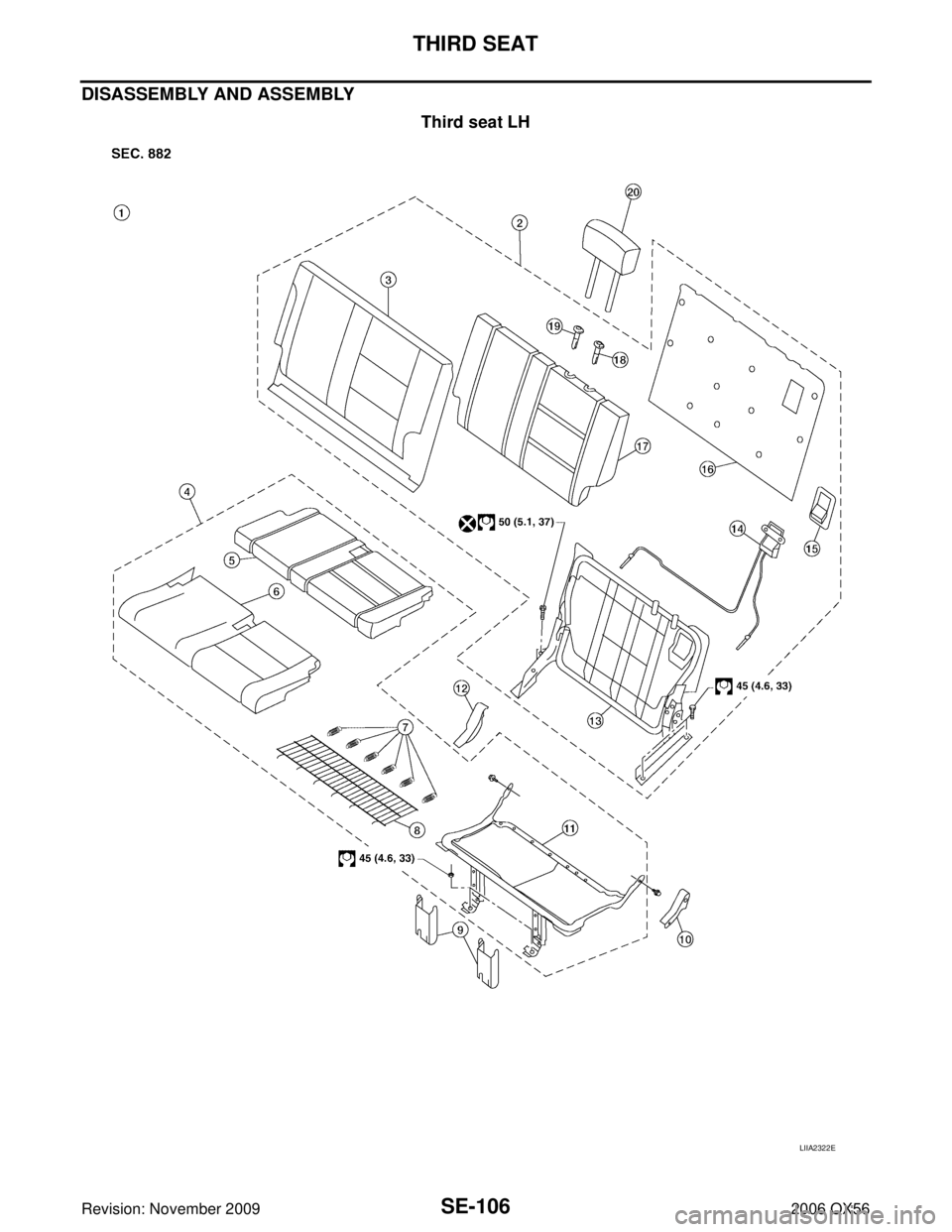

DISASSEMBLY AND ASSEMBLY
Third seat RH
LIIA2323E
