wiring INFINITI QX56 2006 Factory Service Manual

LT-140
INTERIOR ROOM LAMP
Revision: November 20092006 QX56

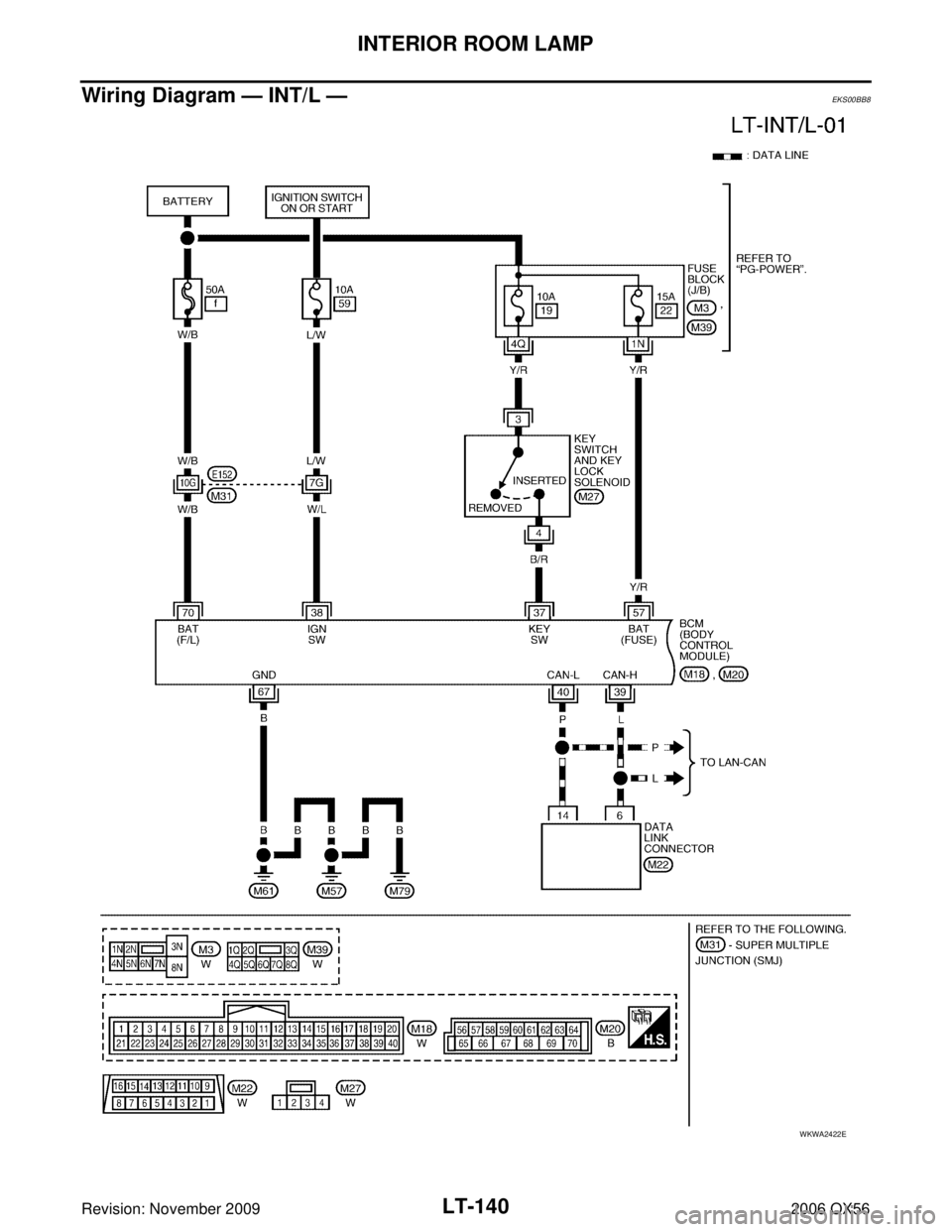

Wiring Diagram — INT/L —EKS00BB8
WKWA2422E

LT-148
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
How to Proceed With Trouble DiagnosisEKS00BBA
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 1 3 5 , "
System Description" .
3. Carry out the Preliminary Check. Refer to LT- 1 4 8 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the interior room lamp operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary CheckEKS00BBB
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown BCM fuses or fusible link.
Refer to LT- 1 4 0 , "
Wiring Diagram — INT/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fusible link.
3. CHECK GROUND CIRCUIT
Check continuity between BCM and ground.
OK or NG
OK >> Inspection End.
NG >> Check harness ground circuit.
Unit Power sourceFuse and fusible link No.
BCM Battery f
22
Ignition switch ON or START position 59
TerminalsIgnition switch position
(+) (– )O FF O N
Connector Terminal
M20 57
Ground Battery voltage Battery voltage
70 Battery voltage Battery voltage
M18 38 0V Battery voltage
WKIA1478E
Terminals
Continuity
Connector Terminal
M20 67Ground Yes
LIIA0915E

LT-158
ILLUMINATION
Revision: November 20092006 QX56

to combination meter terminal 8
With the ignition switch in the ON or START position, power is supplied

to ignition relay, located in the IPDM E/R, and

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38, and

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 24.
Ground is supplied

to BCM terminal 67 and

to combination meter terminal 17

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59

through grounds E9, E15 and E24.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The CPU of the IPDM E/R controls the tail lamp relay coil, which, when
energized, directs power

through 10A fuse (No. 36, located in the IPDM E/R)

through IPDM E/R terminal 49

to illumination control switch terminal 1

to power liftgate switch terminal 3

to front room/map lamp assembly (console box illumination) terminal 7

to hazard switch terminal 3

to rear sonar system OFF switch terminal 3

to glove box lamp terminal 1

to display control unit terminal 14

to 4WD shift switch terminal 7 (with 4-wheel drive)

to front air control terminal 23

to rear power vent window switch terminal 5

to DVD player terminal 12 (with DVD entertainment system)

to NAVI control unit terminal 61

to pedal adjusting switch terminal 5

to electric brake (pre-wiring) terminal 4 (with trailer tow)

to front and rear heated seat switch LH and RH terminal 5

to A/T device terminal 11

to VDC OFF switch terminal 3

to tow mode switch terminal 3

to headlamp aiming switch terminal 3

to clock terminal 3, and

through 10A fuse (No. 37, located in the IPDM E/R)

through IPDM E/R terminal 57

to AV switch terminal 3

to audio unit terminal 8

to rear air control terminal 1 and

to rear audio remote control unit terminal 6.
Illumination is controlled

through illumination control switch terminal 2

to power liftgate switch terminal 4

ILLUMINATIONLT-159
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

to front room/map lamp assembly (console box illumination) terminal 8

to AV switch terminal 4

to hazard switch terminal 4

to audio unit terminal 7

to rear sonar system OFF switch terminal 4

to 4WD switch terminal 8 (with 4-wheel drive)

to front air control terminal 24

to rear power vent window switch terminal 6

to DVD player terminal 10 (with DVD entertainment system)

to pedal adjusting switch terminal 6

to A/T device terminal 12

to front heated seat switch LH and RH terminal 6

to VDC OFF switch terminal 4

to tow mode switch terminal 4

to headlamp aiming switch terminal 4

to clock terminal 4 and

to combination meter terminal 18.
Ground is supplied

to illumination control switch terminal 3

to glove box lamp terminal 2

to display control unit terminal 3

to rear heated seat switches terminal 6

to electric brake (pre-wiring) terminal 1 (with trailer tow) and

to compass and thermometer terminal 7

through grounds M57, M61 and M79, and

to NAVI control unit terminal 1

to rear air control terminal 3 and

to rear audio remote control unit terminal 15

through grounds B117 and B132.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, the illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00BBK
Refer to LAN-26, "CAN COMMUNICATION" .

ILLUMINATIONLT-163
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

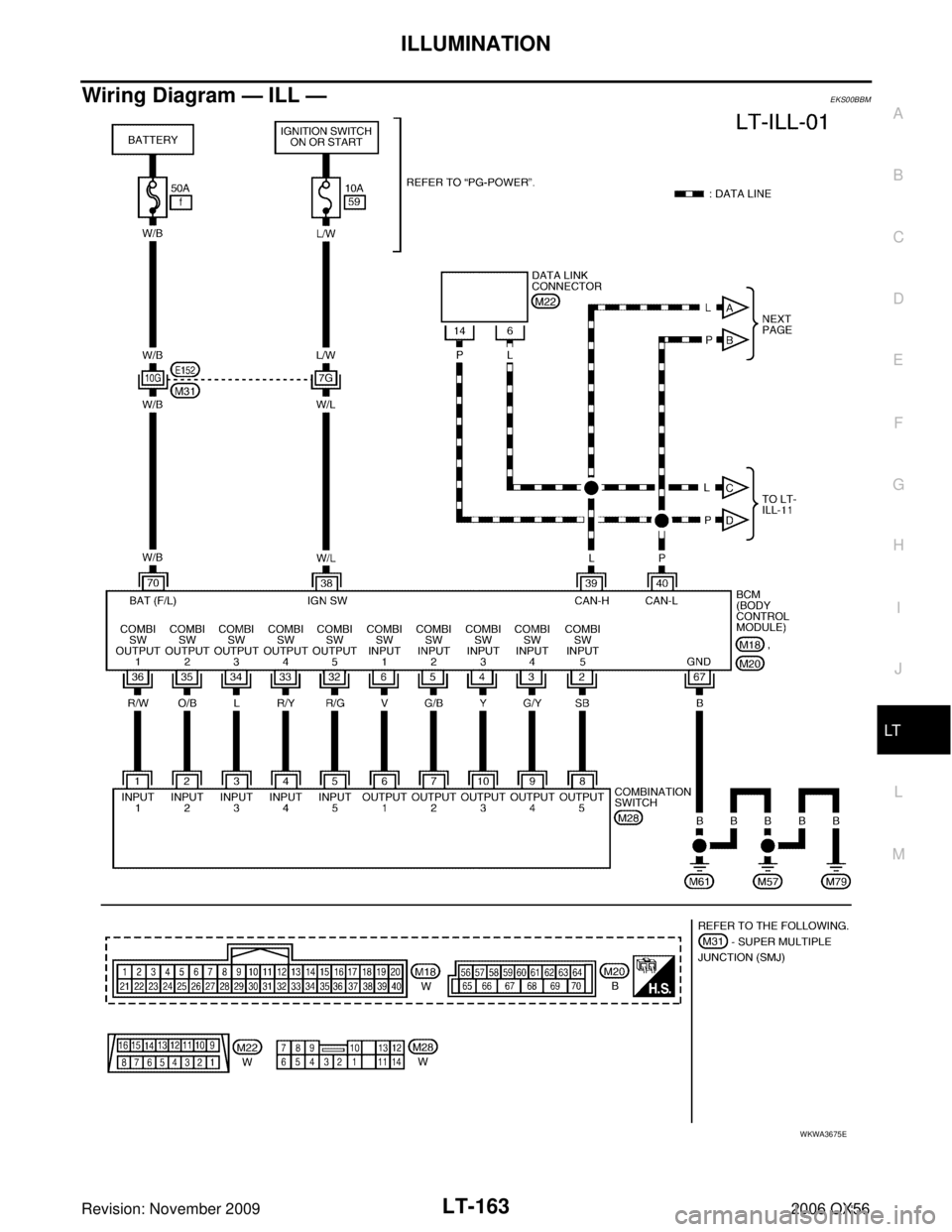

Wiring Diagram — ILL —EKS00BBM
WKWA3675E

PRECAUTIONSMA-3
C
DE
F
G H
I
J
K
M A
B
MA
Revision: November 2009 2006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
ELS001BF
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
DE
F
G H
I
J
L
M
SECTION
A
B
PG
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
POWER SUPPLY ROUTING CIRCUIT ................. ..... 4
Schematic ........................................................... ..... 4
Wiring Diagram — POWER — ................................. 6 BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 6
ACCESSORY POWER SUPPLY — IGNITION
SW. IN ACC OR ON ............................................. 11
IGNITION POWER SUPPLY — IGNITION SW.
IN ON ............................................................... ... 12
IGNITION POWER SUPPLY — IGNITION SW.
IN ON AND/OR START .................................... ... 13
Fuse .................................................................... ... 17
Fusible Link ......................................................... ... 17
Circuit Breaker (Built Into BCM) .......................... ... 17
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ................................... ... 18
System Description ............................................. ... 18
SYSTEMS CONTROLLED BY IPDM E/R ........ ... 18
CAN COMMUNICATION LINE CONTROL ...... ... 18
IPDM E/R STATUS CONTROL ........................ ... 19
CAN Communication System Description ........... ... 19
Function of Detecting Ignition Relay Malfunction ... 19
CONSULT-II Function IPDM E/R ......................... ... 20
CONSULT-II BASIC OPERATION ................... ... 20
SELF-DIAGNOSTIC RESULTS ....................... ... 21
DATA MONITOR .............................................. ... 21
ACTIVE TEST .................................................. ... 23
Auto Active Test .................................................. ... 24
DESCRIPTION ................................................. ... 24
OPERATION PROCEDURE ............................ ... 24
INSPECTION IN AUTO ACTIVE TEST MODE ... 24
Schematic ........................................................... ... 26
IPDM E/R Terminal Arrangement ........................ ... 27
IPDM E/R Power/Ground Circuit Inspection ....... ... 28Inspection with CONSULT-II (Self-Diagnosis) .....
... 29
Removal and Installation of IPDM E/R ................ ... 30
REMOVAL ........................................................ ... 30
INSTALLATION ................................................ ... 30
GROUND CIRCUIT ................................................ ... 31
Ground Distribution ................................................. 31 MAIN HARNESS ................................................. 31
ENGINE ROOM HARNESS ............................. ... 34
ENGINE CONTROL HARNESS ....................... ... 37
BODY HARNESS ............................................. ... 38
BODY NO. 2 HARNESS .................................. ... 39
BACK DOOR NO. 2 RH HARNESS ................. ... 40
HARNESS .............................................................. ... 41
Harness Layout ...................................................... 41 HOW TO READ HARNESS LAYOUT .............. ... 41
OUTLINE .......................................................... ... 42
MAIN HARNESS ................................................. 43
ENGINE ROOM HARNESS (LH VIEW) ........... ... 45
ENGINE ROOM HARNESS (RH VIEW) .......... ... 48
ENGINE CONTROL HARNESS ....................... ... 50
CHASSIS HARNESS ....................................... ... 52
BODY HARNESS ............................................. ... 54
BODY NO. 2 HARNESS .................................. ... 56
ROOM LAMP HARNESS ................................. ... 58
FRONT DOOR LH HARNESS ......................... ... 59
FRONT DOOR RH HARNESS ......................... ... 59
REAR DOOR LH HARNESS ............................ ... 60
REAR DOOR RH HARNESS ........................... ... 60
BACK DOOR HARNESS ................................. ... 61
Wiring Diagram Codes (Cell Codes) ................... ... 62
ELECTRICAL UNITS LOCATION ......................... ... 65
Electrical Units Location ...................................... ... 65
ENGINE COMPARTMENT ............................... ... 65
PASSENGER COMPARTMENT ...................... ... 66
HARNESS CONNECTOR ...................................... ... 68
Description ........................................................... ... 68
HARNESS CONNECTOR (TAB-LOCKING
TYPE) ............................................................... ... 68
HARNESS CONNECTOR (SLIDE-LOCKING

PRECAUTIONSPG-3
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00BMY
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

PG-6
POWER SUPPLY ROUTING CIRCUIT
Revision: November 20092006 QX56
Wiring Diagram — POWER —EKS00BN1
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
WKWA3820E

POWER SUPPLY ROUTING CIRCUITPG-17
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
Fuse EKS00GKH

If fuse is blown, be sure to eliminate cause of incident before
installing new fuse.

Use fuse of specified rating. Never use fuse of more than speci-
fied rating.

Do not partially install fuse; always insert it into fuse holder prop-
erly.

Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not
used for a long period of time.
Fusible Link EKS00GKI
A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.
CAUTION:

If fusible link should melt, it is possible that critical circuit (power supply or large current carrying
circuit) is shorted. In such a case, carefully check and eliminate cause of incident.

Never wrap outside of fusible link with vinyl tape.

Never let fusible link touch any other wiring harness, vinyl or rubber parts.
Circuit Breaker (Built Into BCM)EKS00GKJ
For example, when current is 30A, the circuit is broken within 8 to 20
seconds.
A circuit breaker is used for the following systems:

Power windows

Power door locks

Remote keyless entry system

Power sunroof

Rear window wiper
CEL083
SBF284E
