Page 2243 of 3383
IDX-2
ALPHABETICAL INDEX
Numerics
2-4WD shift solenoid valve ..... TF-94
, TF-154, TF-167
4WD - Wiring diagram ....................................... TF-24
4WD shift switch ................................................ TF-66
4WD solenoid valve ................ TF-90, TF-154, TF-167
4WD system description .................................... TF-15
4WD system diagram ........................................ TF-19
A
A/C air flow ...................................................... ATC-30
A/C compressor clutch removal and installation .. ATC-
176
A/C compressor mounting ............................. ATC-175
A/C compressor precaution ............................. ATC-11
A/C compressor special service tool ................ ATC-14
A/C control operation (auto A/C) ...................... ATC-27
A/C diagnostic work flow (auto A/C) .............. ATC-130
A/C evaporator ............................................... ATC-184
A/C HFC134a (R134a) system identification ..... ATC-6
A/C HFC134a (R134a) system precaution ........ ATC-5
A/C HFC134a (R134a) system service procedure ATC-
171
A/C HFC134a (R134a) system service tools ... ATC-14
A/C HFC134a system service equipment precaution ...
ATC-11
A/C lubricant (R134a) ...................................... ATC-22
A/C lubrication oil ............................................. ATC-22
A/C operational check ....................... ATC-58, ATC-60
A/C self-diagnoses (auto A/C) ........ ATC-56, ATC-130
A/C service data specification ........................ ATC-191
A/C trouble diagnoses (auto A/C) .................... ATC-34
A/C, A - Wiring diagram ................................... ATC-44
A/T fluid checking ...................... AT-12, AT-51, MA-22
A/T fluid cooler cleaning .................................... AT-14
A/T fluid replacement ............................. AT-12, MA-24
A/T fluid temperature sensor ........................... AT-127
A/T IND - Wiring diagram .................................... DI-41
A/T indicator ........................................................ DI-41
A/T shift lock system ........................................ AT-221
A/T trouble diagnoses ........................................ AT-42
ABS - Wiring diagram ..................................... BRC-16
ABS (anti-lock brake system) ........................... BRC-7
Accelerator control system ............................... ACC-3
Accelerator pedal position (APP) sensor . EC-547, EC-
553, EC-567
Accelerator pedal released position learning ..... EC-78
AF1B1-Wiring diagram EC-216, EC-225, EC-234, EC-
244, EC-577
AF1B2-Wiring diagram EC-218, EC-227, EC-236, EC-
246, EC-579
AF1HB1-Wiring diagram .................................. EC-157
AF1HB2-Wiring diagram .................................. EC-159
Aiming adjustment .................................. LT-29, LT-78
Air bag .............................................................. SRS-3
Air bag precautions .............................................. AV-4
Air cleaner and air duct ..................................... EM-15
Air cleaner filter replacement ................ EM-16, MA-16
Air conditioner cut control ................................. EC-28
Air flow meter - See Mass air flow sensor EC-171, EC-
180
Air fuel ratio sensor 1 .. EC-213, EC-223, EC-232, EC-
241, EC-575
Air fuel ratio sensor 1 heater ........................... EC-156
Air mix. door motor .......................................... ATC-70
Ambient sensor ............................. ATC-134, ATC-145
Angular tightening application ............................. EM-4
Antenna .............................................................. AV-60
APPS1 - Wiring diagram ................................. EC-549
APPS2 - Wiring diagram ................................. EC-555
APPS3 - Wiring diagram ................................. EC-569
ASC/BS - Wiring diagram ............................... EC-513
ASC/SW - Wiring diagram .............................. EC-496
ASCBOF - Wiring diagram .............................. EC-587
ASCD ................................................................ EC-29
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch ........................... EC-511, EC-586
ASCD indicator lamp ....................................... EC-593
ASCD steering switch ..................................... EC-494
ASCIND - Wiring diagram ............................... EC-594
ATP switch ............................ TF-107, TF-110, TF-115
Audio .................................................................... AV-6
AUDIO - Wiring diagram .................................... AV-11
AUT/DP - Wiring diagram .................................. SE-16
Auto air conditioner - Wiring diagram .............. ATC-44
Auto anti-dazzling inside mirror ........... GW-72, GW-73
Autolamp ............................................................ LT-47
Automatic amplifier ......................................... ATC-61
Automatic drive positioner .................................. SE-11
Automatic transmission number .......................... GI-49
B
Back door ........................................................... BL-99
Back door trim ..................................................... EI-32
Back sonar .......................................................... DI-60
BACK/L - Wiring diagram ................................. LT-109
Back-up lamp ................................................... LT-109
Ball joint (front) ................................................ FSU-15
Basic inspection ................................................ EC-71
Battery ................................................................. SC-4
Battery/Starting/Charging System Tester SC-6, SC-12,
SC-19
BCM (Body control module) ................ BCS-3, AV-109
Block heater ...................................................... EM-78
Blower motor ................................... ATC-93, ATC-149
Body alignment ................................................ BL-172
Body component parts ..................................... BL-161
Body construction ............................................ BL-171
Body exterior paint color .................................. BL-160
Body mounting ................................................. BL-159
Body repair ....................................................... BL-160
Body sealing .................................................... BL-168
Bose speaker amp. .............................................. AV-8
Brake booster .................................................... BR-17
Brake fluid level ................................................. MA-28
Brake hydraulic line ........................................... BR-12
Page 2253 of 3383
IP-4
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
SQUEAK AND RATTLE TROUBLE DIAGNOSISPFP:00000
Work FlowEIS004WZ
CUSTOMER INTERVIEW
Interview the customer, if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to IP-8, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.
The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).
If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.
After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.
–Squeak — (Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces = higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.
–Creak — (Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.
–Rattle — (Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
–Knock — (Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.
–Tick — (Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.
–Thump — (Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.
–Buzz — (Like a bumblebee)
Buzz characteristics include high frequency rattle/firm contact.
Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.
Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842
Page 2254 of 3383
SQUEAK AND RATTLE TROUBLE DIAGNOSISIP-5
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1. Close a door.
2. Tap or push/pull around the area where the noise appears to be coming from.
3. Rev the engine.
4. Use a floor jack to recreate vehicle “twist”.
5. At idle, apply engine load (electrical load, drive position on A/T model).
6. Raise the vehicle on a hoist and hit a tire with a rubber hammer.
Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool (Chassis Ear: J-39570, Engine Ear: J-39565 and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
Removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fasteners
can be broken or lost during the repair, resulting in the creation of new noise.
Tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be elimi-
nated only temporarily.
Feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing
the noise.
Placing a piece of paper between components that you suspect are causing the noise.
Looking for loose components and contact marks.
Refer to IP-6, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE
If the cause is a loose component, tighten the component securely.
If the cause is insufficient clearance between components:
–Separate components by repositioning or loosening and retightening the component, if possible.
–Insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN
Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 x 135 mm (3.94 x 5.31 in)/76884-71L01: 60 x 85 mm (2.36 x 3.35 in)/76884-71L02: 15 x 25
mm (0.59 x 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
Page 2255 of 3383
IP-6
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
73982-9E000: 45 mm (1.77 in) thick, 50 x 50 mm (1.97 x 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick, 50 x 50
mm (1.97 x 1.97 in)
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 x 50 mm (1.18 x 1.97 in)
FELT CLOTH TAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 x 25 mm (0.59 x 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingEIS0062R
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Page 2256 of 3383
SQUEAK AND RATTLE TROUBLE DIAGNOSISIP-7
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-43980) to repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid bumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun visor shaft shaking in the holder
3. Front or rear windshield touching headliner and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
OVERHEAD CONSOLE (FRONT AND REAR)
Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the console at the clip locations until the clips engage.
In addition look for:
1. Loose harness or harness connectors.
2. Front console map/reading lamp lens loose.
3. Loose screws at console attachment points.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rearseat back lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
Page 2290 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-21
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR FRONT AIR CONTROL
Display Results (Present)](/img/42/57028/w960_57028-2289.png "INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-21
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR FRONT AIR CONTROL
Display Results (Present)")
TROUBLE DIAGNOSES WORK FLOWLAN-21
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR FRONT AIR CONTROL
Display Results (Present)
OK: Normal
UNKWN: The diagnosed unit does not transmit or receive the applicable data normally.
–: There is no received unit or the unit is not in the condition that reception diagnosis is performed.
Display Results (Past)
OK: Normal
0: There is malfunction now.
1 ~ 39: Displays when it is normal at present and finds malfunction in the past. It increases like 0 →1→ 2...38 →39 after returning to the
normal condition whenever IGN OFF →ON. If it is over 39, it is fixed to 39 until the self-diagnostic results are erased. It returns to 0
when malfunction is detected again in the process.
– : Undiagnosed
PKIC4721E
“SELECT SYSTEM ”
screen “
CAN DIAG SUPPORT
MNTR ” screen Description
Present Past
HVAC TRANSMIT DIAG Make sure of normal transmission.
OK/UNKWN/–
OK/0/1~39/ –
ECM
Make sure of normal reception from ECM. OK/UNKWN/ –
TCM TCM is not diagnosed. –
BCM/SEC Make sure of normal reception from BCM. OK/UNKWN/ –
VDC/TCS/ABS Make sure of normal reception from ABS actua-
tor and electric unit (control unit). OK/UNKWN/
–
IPDM E/R IPDM E/R is not diagnosed. –
DISPLAY Make sure of normal reception from display con-
trol unit.
OK/UNKWN/
–
I-KEY I-KEY is not diagnosed. –
EPS EPS is not diagnosed. –
AWD/4WD AWD/4WD is not diagnosed. –
e4WD e4WD is not diagnosed. –
ICC ICC is not diagnosed. –
LANE KEEP LANE KEEP is not diagnosed. –
TIRE-P TIRE-P is not diagnosed. –
Page 2294 of 3383
![INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-25
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN
FOR DISPLAY CONTROL UNIT
Display Results (Presen](/img/42/57028/w960_57028-2293.png "INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSES WORK FLOWLAN-25
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN
FOR DISPLAY CONTROL UNIT
Display Results (Presen")
TROUBLE DIAGNOSES WORK FLOWLAN-25
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN
FOR DISPLAY CONTROL UNIT
Display Results (Present)
OK : Normal
NG : Malfunction
UNKWN : The diagnosed unit does not transmit or receive the applicable data normally.
Display Results : Error Counter (Reference)
0 : It is normal now.
1 ~ 50 : Displays when it finds malfunction in the past even if it is normal or there is a malfunction at present. Also, displa ys when
diagnosis is not performed. It increase like 0→ 1→ 2...49 →50 after returning to the normal condition whenever IGN OFF →ON. If it is
over 50, it is fixed to 50 until the self-diagnostic results are erased. Keep this condition until resetting it.
SKIB0645E
Unit name Diagnosis item Description“
CAN DIAG
SUPPORT
MONITOR”
screen Error counter
(Reference)
Display control unit CAN COMM Make sure that microcomputer in ECU works normally. OK/NG
0/1~50
CAN CIRC 1 Make sure of normal transmission.
OK/UNKWN
CAN CIRC 2 Make sure of normal reception from BCM. OK/UNKWN
CAN CIRC 3 Make sure of normal reception from ECM. OK/UNKWN
CAN CIRC 4 Make sure of normal reception from front air control. OK/UNKWN
CAN CIRC 5 Make sure of normal reception from combination meter. OK/UNKWN
CAN CIRC 6 CAN CIRC 6 is not diagnosed. UNKWN
CAN CIRC 7 Make sure of normal reception from IPDM E/R. OK/UNKWN
CAN CIRC 8 CAN CIRC 8 is not diagnosed. UNKWN
CAN CIRC 9 CAN CIRC 9 is not diagnosed. UNKWN
Page 2405 of 3383

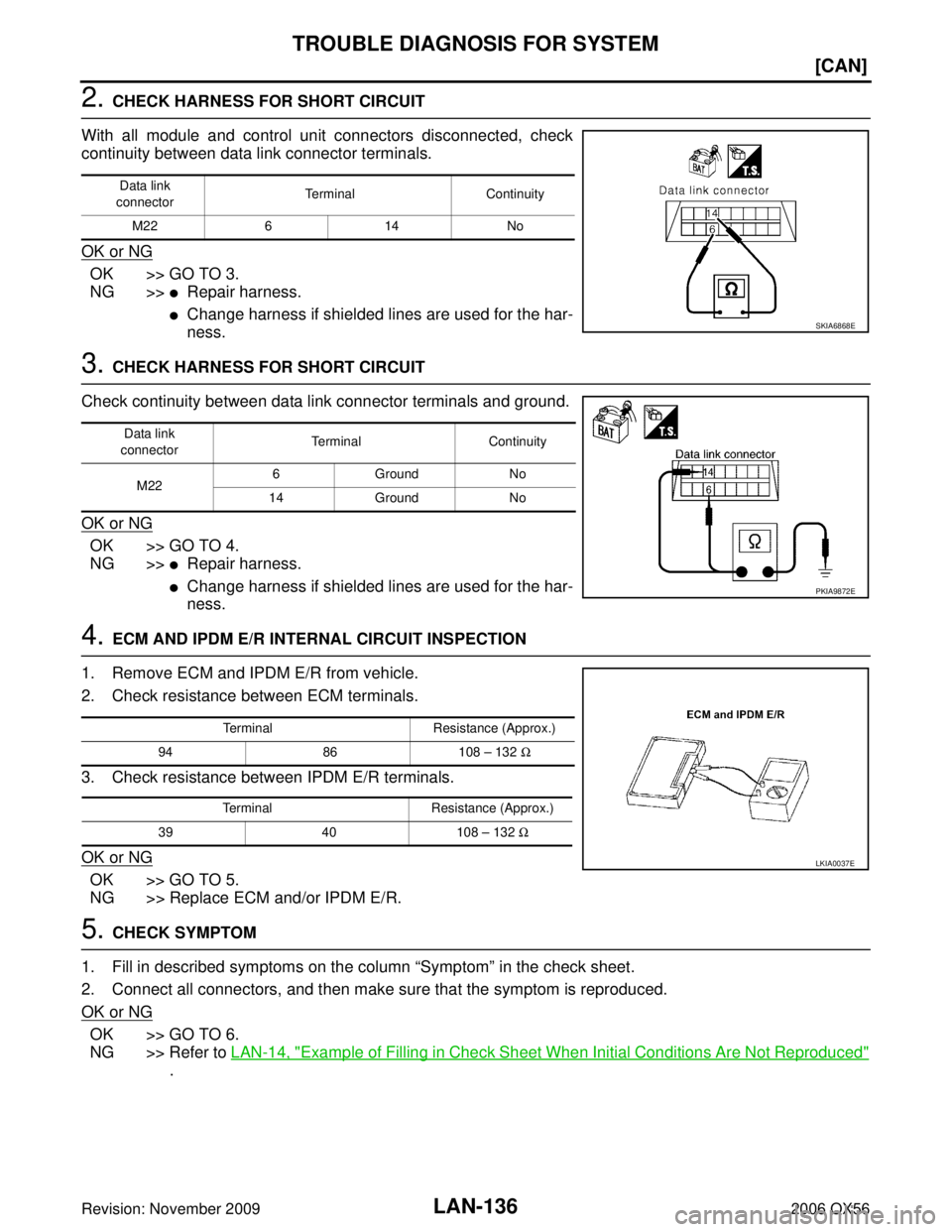

![INFINITI QX56 2006 Factory Service Manual LAN-136
[CAN]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data l](/img/42/57028/w960_57028-2404.png "INFINITI QX56 2006 Factory Service Manual LAN-136
[CAN]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data l")
LAN-136
[CAN]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data link connector terminals.
OK or NG
OK >> GO TO 3.
NG >>
Repair harness.
Change harness if shielded lines are used for the har-
ness.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector terminals and ground.
OK or NG
OK >> GO TO 4.
NG >>
Repair harness.
Change harness if shielded lines are used for the har-
ness.
4. ECM AND IPDM E/R INTERNAL CIRCUIT INSPECTION
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals.
3. Check resistance between IPDM E/R terminals.
OK or NG
OK >> GO TO 5.
NG >> Replace ECM and/or IPDM E/R.
5. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 6.
NG >> Refer to LAN-14, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
Data link
connector Terminal
Continuity
M22 614 No
SKIA6868E
Data link
connector Terminal
Continuity
M22 6
Ground No
14 Ground No
PKIA9872E
Terminal Resistance (Approx.)
94 86108 – 132 Ω
Terminal Resistance (Approx.)
39 40108 – 132 Ω
LKIA0037E
Page 2421 of 3383
LT-14
HEADLAMP (FOR USA)
Revision: November 20092006 QX56
Terminals and Reference Values for IPDM E/REKS00B7Y
How to Proceed With Trouble DiagnosisEKS00B7Z
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 5 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 1 4 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the headlamp operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary CheckEKS00B80
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown fuses or fusible link.
35 O/B Combination switch output 2
ONLighting, turn, wiper OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON— Battery voltage
39 L CAN-H ———
40 P CAN-L ———
67 B Ground ON— 0V
70 W/B Battery power supply (fusible link) OFF —Battery voltage
Terminal
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
SKIA5292E
Terminal
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
38 B Ground ON— 0V
39 L CAN-H ———
40 P CAN-L ———
52 L Headlamp low (LH) ONLighting switch
2ND position OFF
0V
ON Battery voltage
54 R/Y Headlamp low (RH) ONLighting switch
2ND position OFF
0V
ON Battery voltage
55 G Headlamp high (LH) ONLighting switch
HIGH or PASS
position OFF
0V
ON Battery voltage
56 L/W Headlamp high (RH) ONLighting switch
HIGH or PASS
position OFF
0V
ON Battery voltage
59 B Ground ON— 0V
Unit Power sourceFuse and fusible link No.
BCM Battery
f
Ignition switch ON or START position 59
Page 2449 of 3383
LT-42
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: November 20092006 QX56
How to Proceed With Trouble DiagnosisEKS00B8J
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 3 4 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 4 2 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the headlamp operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary CheckEKS00B8K
CHECK BCM CONFIGURATION
1. CHECK BCM CONFIGURATION
Confirm BCM configuration for "DTRL" is set to "WITH". Refer to BCS-14, "
READ CONFIGURATION PROCE-
DURE" .
OK or NG
OK >> Continue preliminary check. Refer to LT- 4 2 , "INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT" .
NG >> Change BCM configuration for "DTRL" to "WITH". Refer to BCS-16, "
WRITE CONFIGURATION
PROCEDURE" .
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses or fusible link.
Refer to LT- 3 7 , "
Wiring Diagram — DTRL —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
35 O/B Combination switch output 2
ONLighting, turn, wiper OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON— Battery voltage
39 L CAN-H ———
40 P CAN-L ———
67 B Ground ON— 0V
70 W/B Battery power supply (fusible link) OFF —Battery voltage
Terminal
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
SKIA5292E
Unit
Power sourceFuse and fusible link No.
BCM Battery
f
Ignition switch ON or START position 59
Daytime light relay Battery45
