SE-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: November 20092006 QX56
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid bumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun visor shaft shaking in the holder
3. Front or rear windshield touching headliner and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
OVERHEAD CONSOLE (FRONT AND REAR)
Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the console at the clip locations until the clips engage.
In addition look for:
1. Loose harness or harness connectors.
2. Front console map/reading lamp lense loose.
3. Loose screws at console attachment points.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

SE-12
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
System DescriptionEIS004XE

Refer to Owner's Manual for Automatic Drive Positioner system operating instructions.

The settings (ON/OFF) of the automatic sliding seat (Entry/Exiting operation) at entry/exit can be changed
as desired, using the display unit in the center of the instrument panel. The set content is transmitted by
CAN communication, from display control unit to driver seat control unit.

Using CONSULT-ll, the seat slide amount at entry/exit setting can be changed.
NOTE:

Disconnecting the battery erases the stored memory.

After connecting the battery, insert the key into the ignition cylinder and turn the front door switch LH ON (open) →OFF (close) →ON
(open), the Entry/Exiting function becomes possible.

After Exiting operation is carried out, return operation can be operated.
NOTE:
During automatic operation, if the ignition switch is turned ON →START, the automatic operation is suspended. When the ignition switch
returns to ON, it resumes.
FAIL-SAFE MODE
When any manual and automatic operations are not performed, if any motor operations of seats or pedals are
detected for T2 or more, status is judged “Output error ”.
7. Pedal adjusting switch M96 8. A. Door mirrror LH D4, RH D107
B. Front door switch LH B8
C. Front door lock assembly LH (key
cylinder switch) D149. A. A/T selector lever
B. A/T device (park position switch)
M203
10. A. Sliding motor LH P4 (driver seat view), reclining motor LH P5, lifting
motor (front) P6, lifting motor (rear)
P7
B. Driver seat control unit P2, P3
C. Power seat switch LH P8 11. A. ADP steering switch M16
B.Tilt motor M68, M69
Function Description
Memory operation The front seat LH, steering wheel, pedals (accelerator, brake) and door mirrors move
to the stored driving position by pushing seat memory switch (1 or 2).
Entry/Exit-
ing function Exiting operation
At exit, the seat moves backward and the steering wheel raises. (Exiting position)
Entry operation At entry, the seat and steering wheel return from Exiting position to the previous driv-
ing position before the Exiting operation.
Keyfob interlock operation Perform memory operation, turnout operation and return operation by pressing key-
fob unlock button.
Auto operation temporary stop
conditions. When ignition switch is turned to START during seat memory switch operation and return
operation, seat memory switch operation and return operation is stopped.
Auto operation stop conditions.

When the vehicle speed becomes 7 km/h (4 MPH) or higher (memory switch operation
and entry operation).

When the setting switch, seat memory switch 1, or 2 are pressed.

When A/T selector lever is in any position other than P.

When the door mirror remote control switch is operated (when ignition switch turned to
ON).

When power seat switch turned ON.

When pedal adjusting switch turned ON.

When front seat sliding Entry/Exiting setting is OFF (entry/exiting operation).
OPERATED PORTION T2
Seat sliding Approx. 0.1 sec.
Seat reclining Same as above
Seat lifting (Front) Same as above
Seat lifting (Rear) Same as above

POWER SEATSE-83
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
POWER SEATPFP:87016
Wiring Diagram — SEAT — for Passenger SeatEIS004YO
WIWA1406E

HEATED SEATSE-85
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

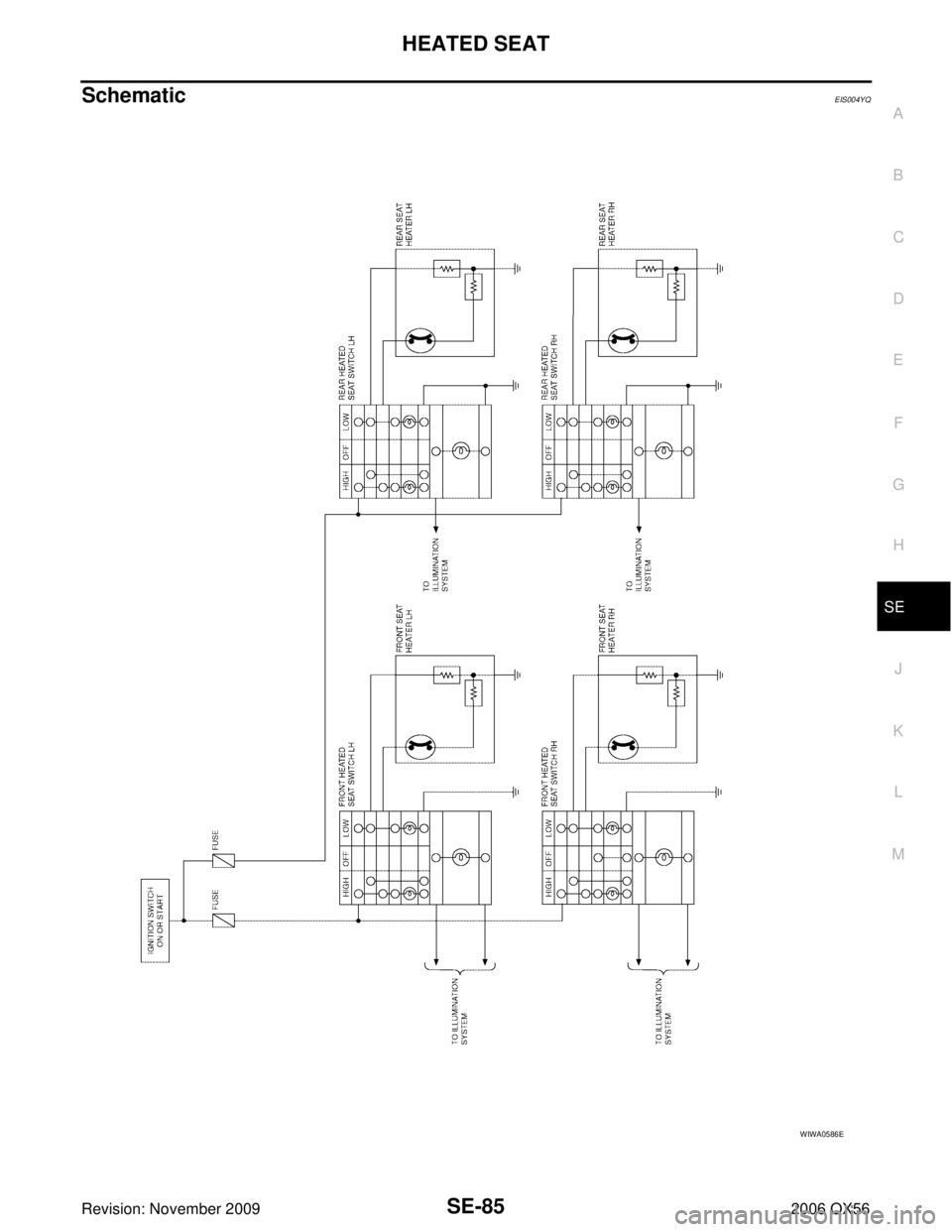

SchematicEIS004YQ
WIWA0586E

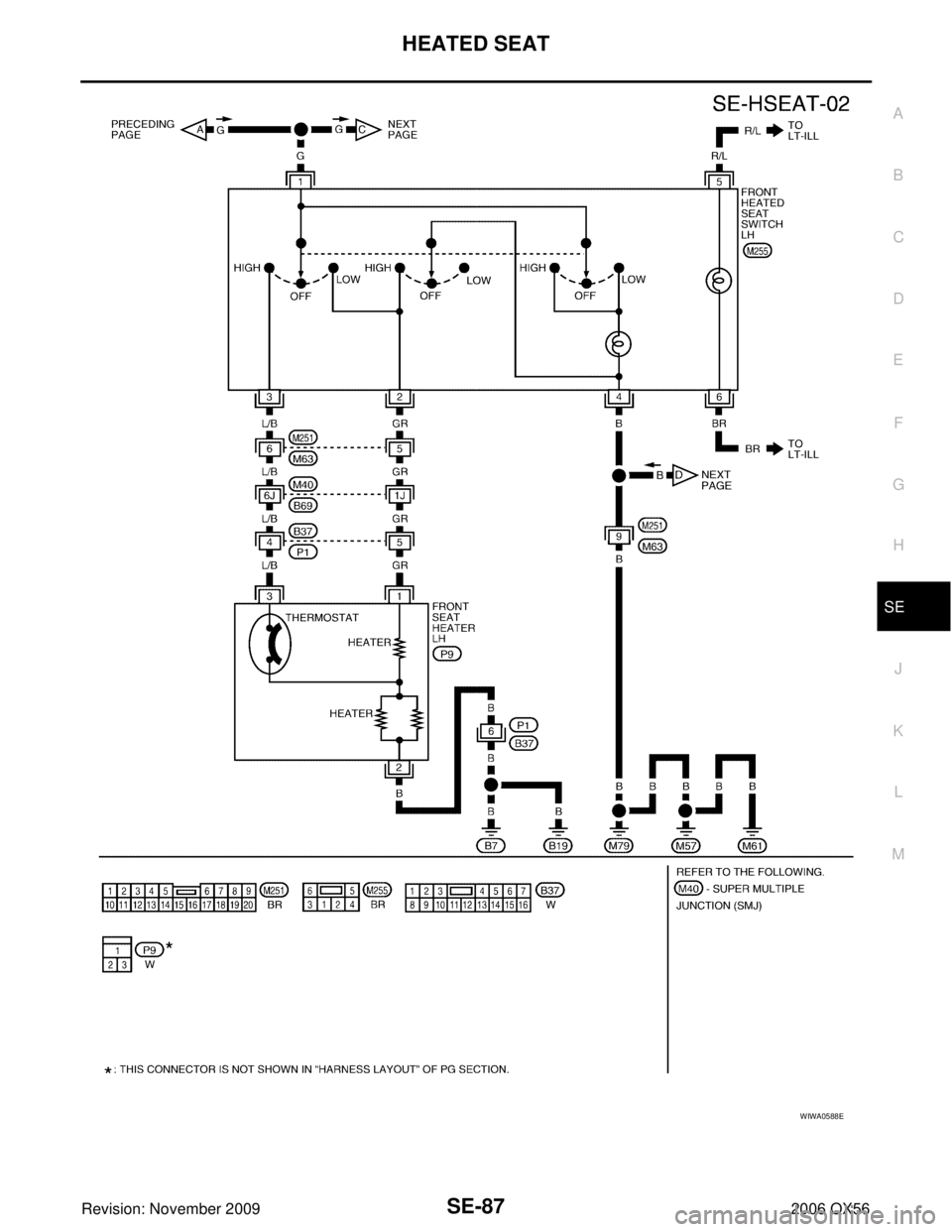

HEATED SEATSE-87
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
WIWA0588E

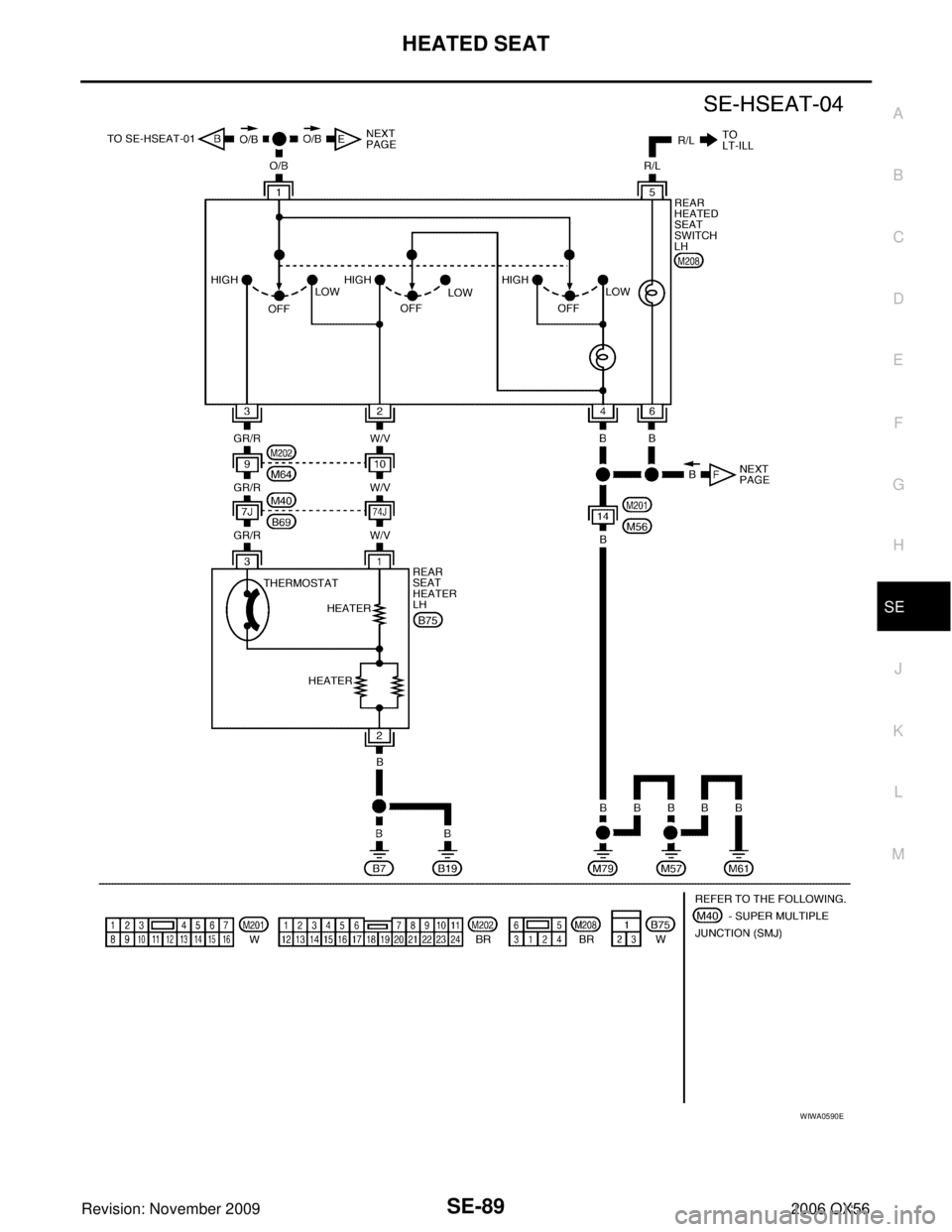

HEATED SEATSE-89
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
WIWA0590E

FRONT SEATSE-91
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
FRONT SEATPFP:87000
Removal and Installation EIS004YS

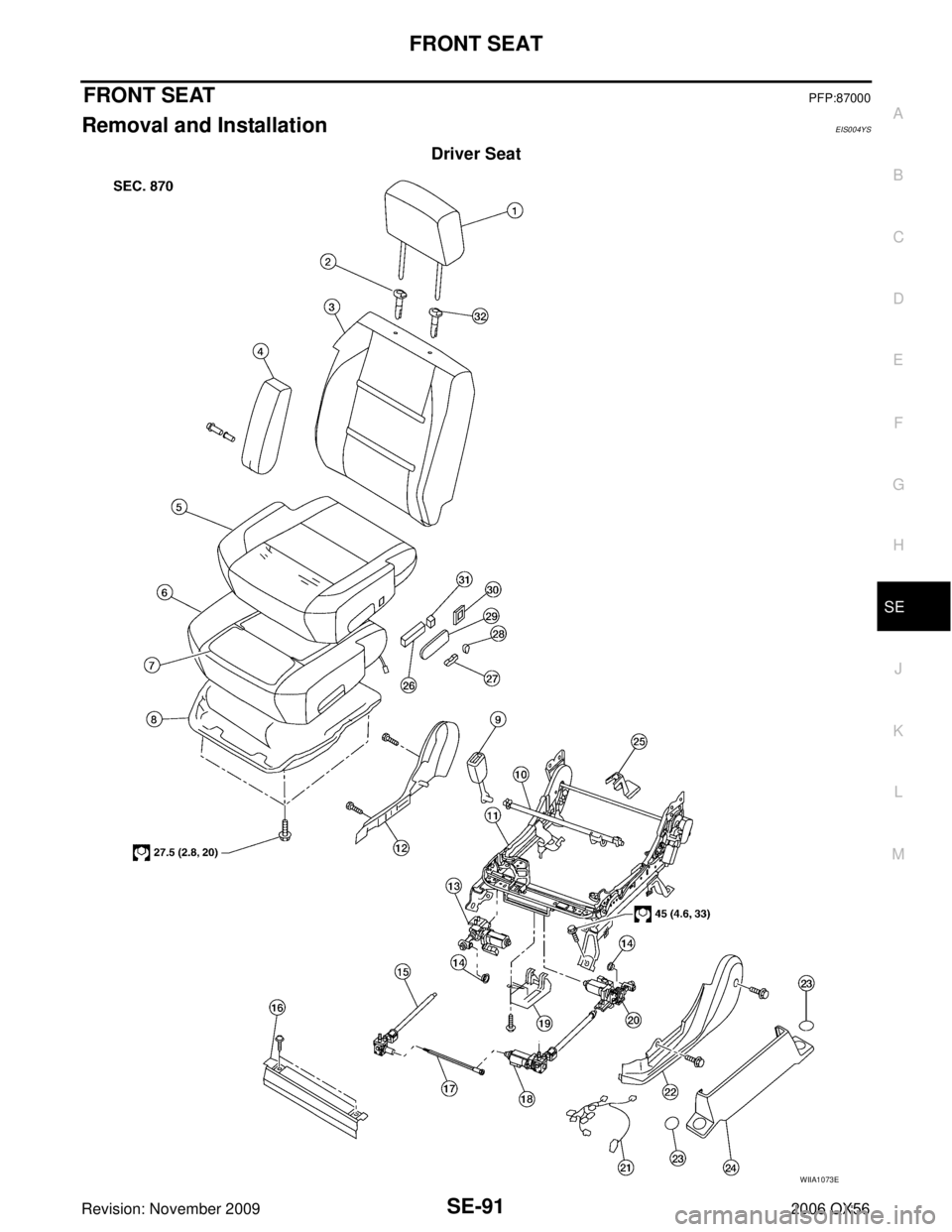

Driver Seat
WIIA1073E

FRONT SEATSE-93
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Passenger Seat
WIIA0476E
1. Headrest2. Headrest holder with multi-position
lock 3. Seatback board
4. Armrest assembly 5. Lumbar switch bezel 6. Fold flat link bar

FRONT SEATSE-95
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
2. Unhook the j-channel.
3. From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).
Passenger Seat
1. Remove the headrest.
2. Remove the seatback board from the back of the seatback.
3. Remove the retainer.
LIIA1580E
LRS023
PIIA0163E
SIIA0113E

FRONT SEATSE-97
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
3. Remove four bolts and the seat cushion assembly.
4. Remove the retainer on the seat cushion frame, then remove the harness connector for the seat heater.
5. Remove the front seat cushion finisher (inner).
6. On the drivers seat only, after removing the seat cushion trim and pad, remove the hog rings to separate
the trim cover from the pad and seat cushion heater unit.
SIIA0503E
LIIA0285E
