seats INFINITI QX56 2006 Factory Workshop Manual

SECOND SEATSE-99
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Disassembly and AssemblyEIS007X2

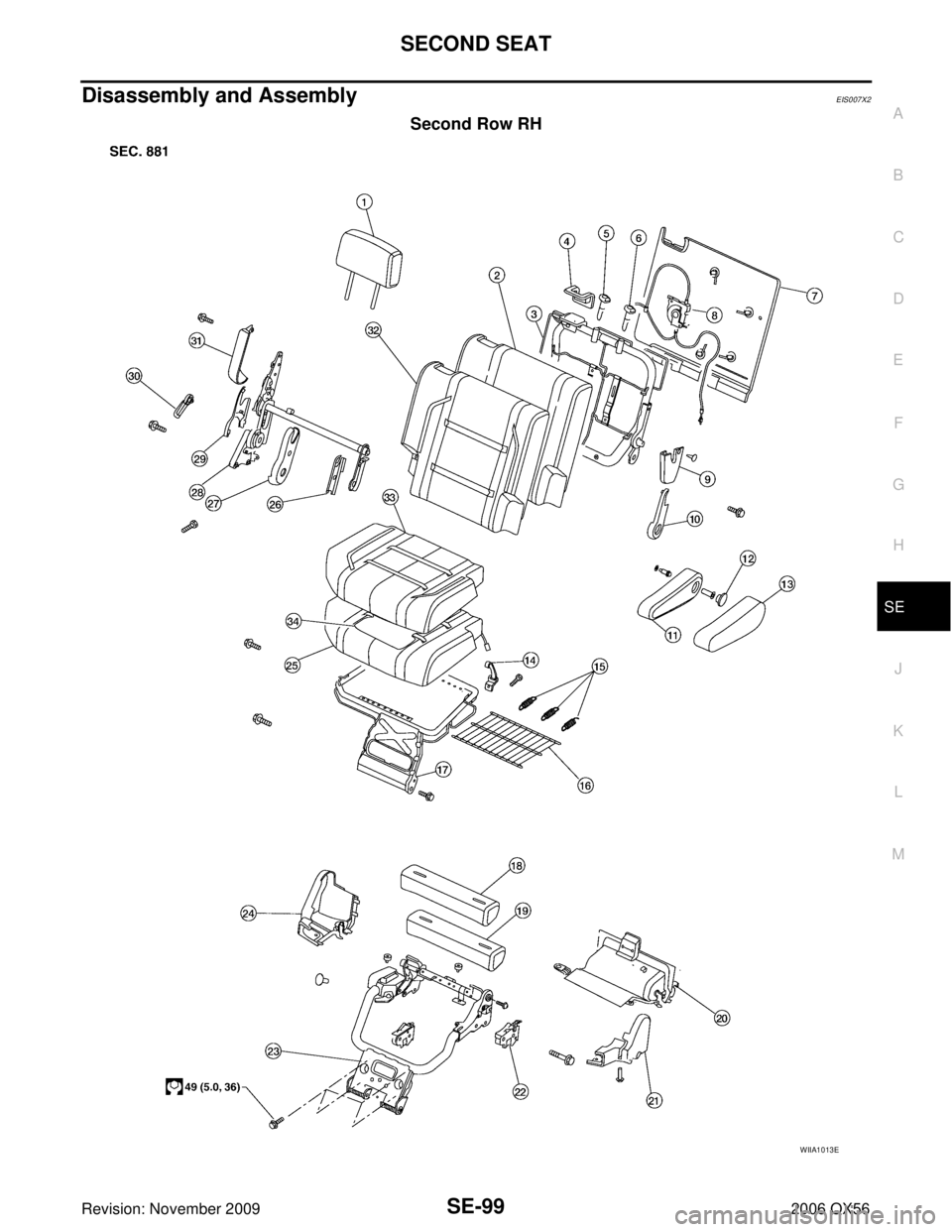

Second Row RH
WIIA1013E

SECOND SEATSE-101
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Second Row Center
WIIA1366E
1. Seatback pad2. Armrest finisher 3. Headrest
4. Seat belt retractor cover 5. Seat belt bezel 6. RH headrest guide locking

SECOND SEATSE-103
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

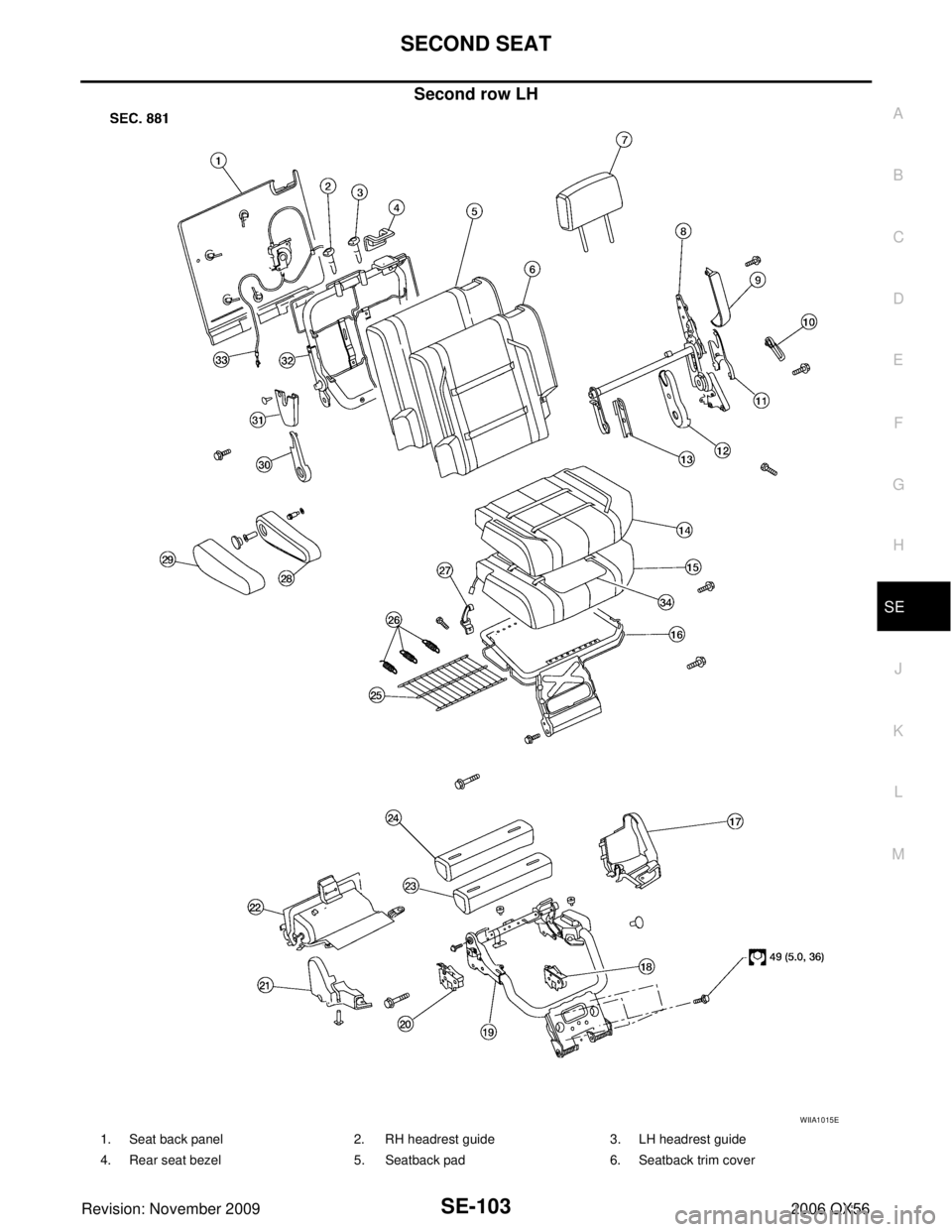

Second row LH
WIIA1015E
1. Seat back panel2. RH headrest guide 3. LH headrest guide
4. Rear seat bezel 5. Seatback pad 6. Seatback trim cover

THIRD SEATSE-105
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
THIRD SEATPFP:88000
LH Side SeatEIS007WZ
REMOVAL
1. Remove the storage bin. Refer to EI-40, "LUGGAGE FLOOR TRIM" .
2. Remove the lower base trim covers.
3. Remove front link nuts and the LH hinge front bolt.
4. Remove push pin (2) and release elastic ban (3) from seat frame (1).

⇐: Vehicle front
5. Partially lift seatback upright, then remove seat belt buckle (2) from between hinge cover (1) and seat cushion side facing (3).

⇐: Vehicle front
6. Retract the seat into the cargo floor position.
7. Remove the (A) seat hinge rear bolt and (B) seat belt buckle bolt from the seat assembly.
8. Remove the seat assembly.
INSTALLATION
Installation is in the reverse order of removal. Front link nuts : 45 N·m (4.6 Kg-m, 33 ft-lb)
LH hinge front bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
LIIA2324E
LIIA2370E
LIIA2371E
Seat hinge rear bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
Seat belt buckle bolt : 50 N·m (5.1 Kg-m, 37 ft-lb)
LIIA2325E

THIRD SEATSE-107
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
RH Side SeatEIS007X0
REMOVAL
1. Remove the storage bin. Refer to EI-40, "LUGGAGE FLOOR TRIM" .
2. Remove the lower base trim covers.
3. Remove (A) front link nuts and (B) RH hinge front bolt.
4. Remove push pin (2) and release elastic ban (3) from seat frame (1).

⇐: Vehicle front
5. Partially lift seatback upright, then remove seat belt buckle (2) from between hinge cover (1) and seat cushion side facing (3).

⇐: Vehicle front
6. Retract the seat into the cargo floor position.
7. Remove the rear bolts from the seat assembly.
8. Remove the seat assembly.
1. LH 3rd seat assembly 2. Seatback assembly 3. Seatback trim cover
4. Seat cushion assembly 5. Seat cushion pad 6. Seat cushion trim cover
7. Flex mat springs 8. Flex mat 9. Front link covers
10. RH hinge cover 11. Seat cushion frame 12. LH hinge cover
13. Seatback frame assembly 14. Seatback cable assembly 15. Release handle bezel
16. Seatback board 17. Seatback pad 18. Headrest holder, locking
19. Headrest holder, free 20. Headrest
Front link nuts : 45 N·m (4.6 Kg-m, 33 ft-lb)
RH hinge front bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
LIIA2326E
LHIA0105E
Seat hinge rear bolt : 45 N·m (4.6 Kg-m, 33 ft-lb)
LHIA0106E
LIIA2327E

THIRD SEATSE-109
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
DISASSEMBLY AND ASSEMBLY

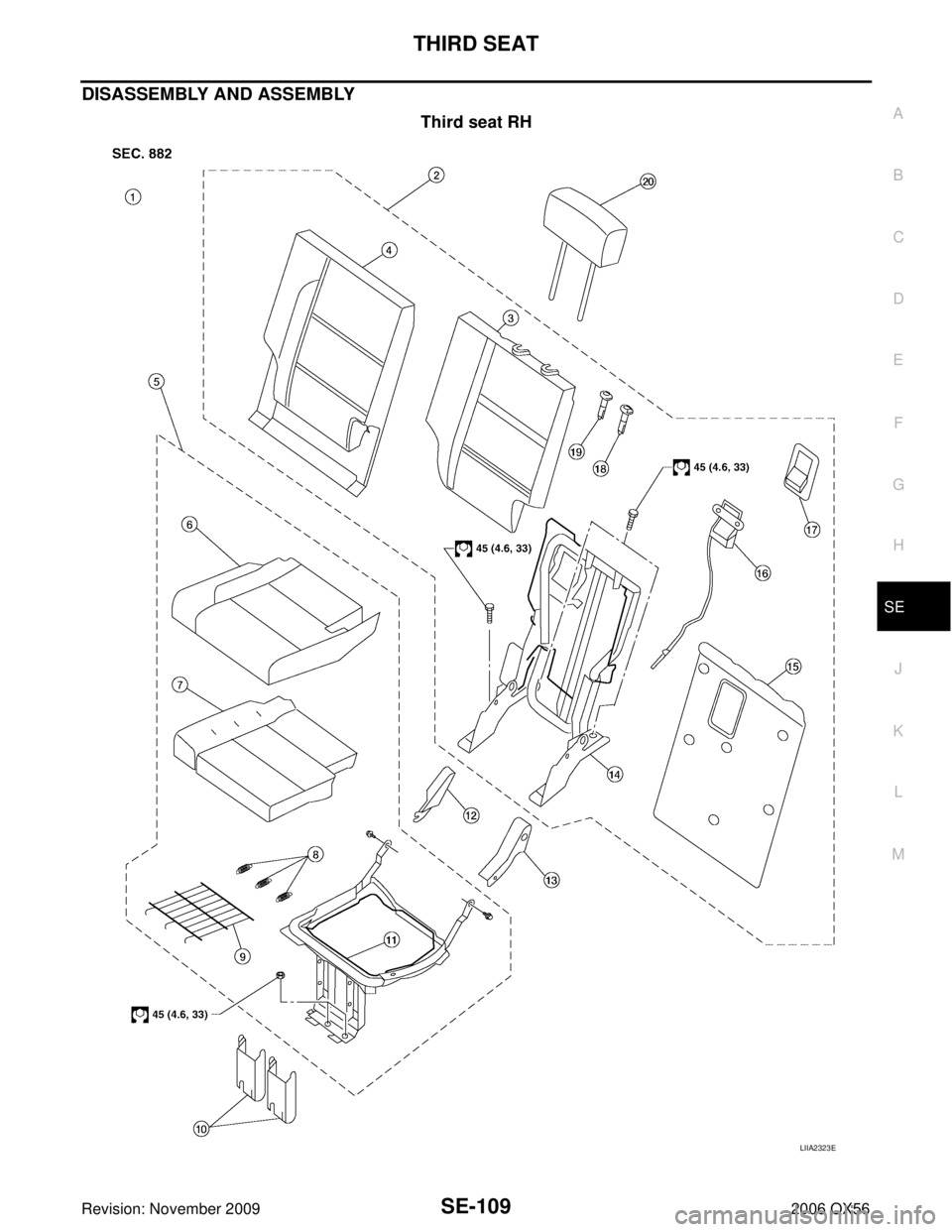

Third seat RH
LIIA2323E
