diagram INFINITI QX56 2006 Factory Workshop Manual

BL-80
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: November 20092006 QX56
Wiring Diagram — VEHSEC —EIS0060I
WIWA1227E

BL-106

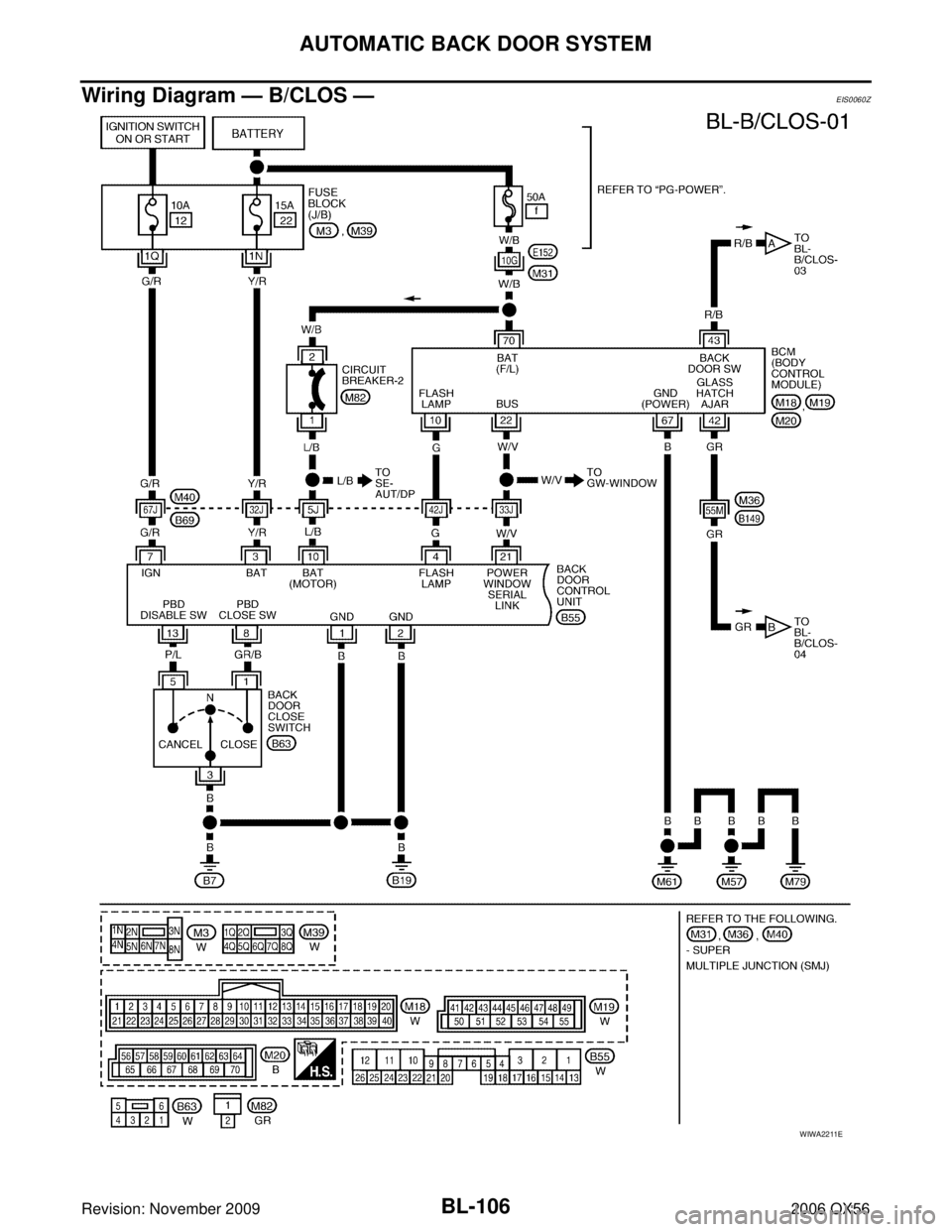

AUTOMATIC BACK DOOR SYSTEM
Revision: November 20092006 QX56
Wiring Diagram — B/CLOS —EIS0060Z
WIWA2211E

BL-140
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: November 20092006 QX56
Wiring Diagram — NATS —EIS0061K
WIWA1548E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)BL-145
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
Trouble DiagnosesEIS0061O
SYMPTOM MATRIX CHART 1
Self-diagnosis related item
*: When IVIS (NATS) detects a malfunction, the security indicator lights up while ignition key is in the “ON” position.
Symptom
Displayed
“SELF-DIAG
RESULTS ” on CON-
SULT-II screen. Diagnostic Procedure
(Reference page) System
(Malfunctioning part or
mode) Reference Part No. Of
Illustration On System
Diagram

Security indicator
lighting up*

Engine cannot be
started CHAIN OF ECM-IMMU
[P1612] PROCEDURE 1
(BL-147
) In rare case,
“CHAIN OF
ECM-IMMU ” might be
stored during key regis-
tration procedure, even if
the system is not mal-
functioning. —
Open circuit in battery
voltage line of BCM cir-
cuit C1
Open circuit in ignition
line of BCM circuit C2
Open circuit in ground
line of BCM circuit C3
Open or short circuit
between BCM and ECM
communication line C4
ECM B
BCM A
DIFFERENCE OF KEY [P1615] PROCEDURE 2
(BL-148
) Unregistered key D
BCM A
CHAIN OF IMMU-KEY [P1614] PROCEDURE 5
(BL-151
) Malfunction of key ID
chip
E5
Communication line
between ANT/ AMP and
BCM:
Open circuit or short cir-
cuit of battery voltage
line or ground line E1
E2
Open circuit in power
source line of ANT/ AMP
circuit E3
Open circuit in ground
line of ANT/ AMP circuit E4
NATS antenna amp. E6
BCM A
ID DISCORD, IMM-ECM [P1611] PROCEDURE 3
(BL-149
) System initialization has
not yet been completed.
F
ECM B
LOCK MODE [P1610] PROCEDURE 4
(BL-150
) LOCK MODE
D
Security indicator light-
ing up* DON'T ERASE
BEFORE CHECKING ENG DIAG WORK FLOW
(BL-144
) Engine trouble data and
IVIS (NATS) trouble data
have been detected in
ECM
—

BL-146
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: November 20092006 QX56
SYMPTOM MATRIX CHART 2
Non self-diagnosis related item
*: CONSULT-II self-diagnostic results display screen “no malfunction is detected ”.
DIAGNOSTIC SYSTEM DIAGRAM
Symptom Diagnostic Procedure
(Reference page) System
(Malfunctioning part or mode) Reference Part No. Of Illustra-
tion On System Diagram
Security indicator does not light
up*. PROCEDURE 6
(BL-154
) Combination meter (security
indictor lamp)
—
Open circuit between fuse and
BCM —
BCM A
WIIA0550E

BL-156
HOMELINK UNIVERSAL TRANSCEIVER
Revision: November 20092006 QX56
HOMELINK UNIVERSAL TRANSCEIVERPFP:96401
Wiring Diagram — TRNSCV —EIS0061W
WIWA0759E

BRC-1
BRAKE CONTROL SYSTEM
F BRAKES
CONTENTS
C
DE
G H
I
J
K L
M
SECTION
A
B
BRC
Revision: November 2009 2006 QX56VDC/TCS/ABS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Brake System ............................. ..... 3
Precautions When Using CONSULT-II ................ ..... 3
CHECK POINTS FOR USING CONSULT-II .... ..... 3
Precautions for Brake Control ............................. ..... 4
Precautions for CAN System .............................. ..... 4
PREPARATION ...................................................... ..... 6
Special Service Tool ............................................ ..... 6
Commercial Service Tools ................................... ..... 6
SYSTEM DESCRIPTION ............................................ 7 System Components ........................................... ..... 7
ABS Function ........................................................... 8
EBD Function ...................................................... ..... 8
TCS Function ...................................................... ..... 8
VDC Function ...................................................... ..... 8
Fail-Safe Function .................................................... 8 ABS/EBD SYSTEM .......................................... ..... 9
VDC/TCS SYSTEM .......................................... ..... 9
ACTIVE BOOSTER .......................................... ..... 9
Hydraulic Circuit Diagram ................................... ..... 9
CAN COMMUNICATION ....................................... ... 10
System Description ............................................. ... 10
TROUBLE DIAGNOSIS ......................................... ....11
How to Perform Trouble Diagnoses for Quick and
Accurate Repair .................................................. .... 11
INTRODUCTION .............................................. .... 11
WORK FLOW ................................................... ... 12
CLARIFY CONCERN ....................................... ... 13
EXAMPLE OF DIAGNOSIS SHEET ................ ... 13
Component Parts and Harness Connector Location ... 14
Schematic ........................................................... ... 15
Wiring Diagram — VDC — .................................. ... 16
Basic Inspection .................................................. ... 23
BRAKE FLUID LEVEL, FLUID LEAK, AND
BRAKE PAD INSPECTION .............................. ... 23
POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION ..........................
... 23
ABS WARNING LAMP, SLIP INDICATOR LAMP
AND VDC OFF INDICATOR LAMP INSPECTION ... 23
Warning Lamp and Indicator Timing .................... ... 24
Control Unit Input/Output Signal Standard .......... ... 24
REFERENCE VALUE FROM CONSULT-II ...... ... 24
CONSULT-II Function (ABS) ............................... ... 28
CONSULT-II BASIC OPERATION PROCEDURE ... 28
SELF-DIAGNOSIS ........................................... ... 29
DATA MONITOR .............................................. ... 32
ACTIVE TEST ..................................................... 35
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ..................................................................... ... 38
Wheel Sensor System Inspection ........................ ... 38
Engine System Inspection ................................... ... 39
ABS/TCS/VDC Control Unit Inspection ............... ... 40
Steering Angle Sensor System ............................ ... 40
Yaw Rate/Side/Decel G Sensor System Inspection ... 41
Solenoid and VDC Change-Over Valve System
Inspection ............................................................ ... 43
Actuator Motor, Motor Relay, and Circuit Inspection ... 44
Stop Lamp Switch System Inspection ................. ... 45
ABS/TCS/VDC Control Unit Power and Ground
Systems Inspection ............................................. ... 46
Brake Fluid Level Switch System Inspection ....... ... 47
Active Booster System Inspection ....................... ... 48
Delta Stroke Sensor System Inspection .............. ... 49
Pressure Sensor System Inspection ................... ... 51
Steering Angle Sensor Safe Mode Inspection ..... ... 53
CAN Communication System Inspection ............. ... 54
ICC System Inspection ........................................ ... 54
Inspection For Self-diagnosis Result "ST ANG SEN
SIGNAL" .............................................................. ... 55
Inspection For Self-diagnosis Result "DECEL G
SEN SET" ............................................................ ... 55
VDC OFF Indicator lamp Does Not Illuminate ..... ... 56
Component Inspection ......................................... ... 56
VDC OFF SWITCH .......................................... ... 56

SYSTEM DESCRIPTIONBRC-9
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
ABS/EBD SYSTEM
In case of an electrical malfunction with the ABS, the ABS warning lamp, VDC OFF indicator lamp and SLIP
indicator lamp will turn on. In case of an electrical malfunction with the EBD system, the BRAKE warning lamp,
ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp will turn on.
The system will revert to one of the following conditions of the Fail-Safe function.
1. For ABS malfunction, only the EBD is operative and the condition of the vehicle is the same condition of
vehicles without ABS/TCS/VDC system.
2. For EBD malfunction, the EBD and ABS become inoperative, and the condition of the vehicle is the same as the condition of vehicles without ABS/TCS/VDC or EBD system.
VDC/TCS SYSTEM
In case of TCS/VDC system malfunction, the VDC OFF indicator lamp and SLIP indicator lamp are turned on
and the condition of the vehicle is the same as the condition of vehicles without TCS/VDC system. In case of
an electrical malfunction with the TCS/VDC system, the ABS control continues to operate normally without
TCS/VDC control.
ACTIVE BOOSTER
The active brake booster consists of a vacuum booster, an active booster control group and a delta stroke
sensor. In case of brake booster system malfunction due to loss of vacuum, the delta stroke sensor will signal
the ABS actuator and electric unit (control unit) that a booster failure has occurred. The active booster then
applies supplemental force to the master cylinder relative to the amount of force exerted on the brake pedal.
Hydraulic Circuit DiagramEFS004XH
WFIA0187E

BRC-16
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
Wiring Diagram — VDC —EFS004XM
WFWA0314E

DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
DE
F
G H
I
J
L
M
SECTION
A
B
DI
Revision: November 2009 2006 QX56
PRECAUTION .......................................................
..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
PREPARATION ...................................................... ..... 4
Commercial Service Tool .................................... ..... 4
COMBINATION METERS ...................................... ..... 5
System Description ............................................. ..... 5
UNIFIED METER CONTROL UNIT ................. ..... 5
POWER SUPPLY AND GROUND CIRCUIT ... ..... 6
WATER TEMPERATURE GAUGE ................... ..... 6
ENGINE OIL PRESSURE GAUGE .................. ..... 6
A/T OIL TEMPERATURE GAUGE ................... ..... 6
VOLTAGE GAUGE ........................................... ..... 6
TACHOMETER ................................................ ..... 6
FUEL GAUGE ....................................................... 6
SPEEDOMETER .............................................. ..... 6
CAN COMMUNICATION SYSTEM DESCRIP-
TION ................................................................. ..... 6
Component Parts and Harness Connector Location ..... 7
Combination Meter .............................................. ..... 8
CHECK ............................................................. ..... 8
Schematic ........................................................... ..... 9
Wiring Diagram — METER — ............................. ... 10
Terminals and Reference Value for Combination
Meter ................................................................... ... 12
Meter/Gauge Operation and Odo/Trip Meter ...... ... 13
SELF-DIAGNOSIS FUNCTION ....................... ... 13
HOW TO INITIATE COMBINATION METER
SELF- DIAGNOSIS MODE .............................. ... 13
COMBINATION METER SELF-DIAGNOSIS
MODE FUNCTIONS ........................................ ... 13
How to Proceed With Trouble Diagnosis ............. ... 17
Diagnosis Flow .................................................... ... 17
Power Supply and Ground Circuit Inspection ..... ... 18
Symptom Chart ................................................... ... 19
Vehicle Speed Signal Inspection ......................... ... 19
Engine Oil Pressure Signal Inspection ................ ... 19
Water Temperature Signal Inspection ................. ... 21
Engine Speed Signal Inspection ......................... ... 21Fuel Level Sensor Unit Inspection .......................
... 22
FUEL LEVEL SENSOR UNIT .......................... ... 22
LOW-FUEL WARNING LAMP .......................... ... 22
Fuel Gauge Fluctuates, Indicates Wrong Value, or
Varies ................................................................... ... 24
Fuel Gauge Does Not Move to Full-position ........ ... 24
Electrical Components Inspection ....................... ... 25
FUEL LEVEL SENSOR UNIT CHECK ............. ... 25
Removal and Installation of Combination Meter .. ... 25
COMPASS AND THERMOMETER ........................ ... 26
System Description .............................................. ... 26
OUTSIDE TEMPERATURE DISPLAY .............. ... 26
DIRECTION DISPLAY ...................................... ... 26
Wiring Diagram — COMPAS — .......................... ... 27
Trouble Diagnoses .............................................. ... 28
PRELIMINARY CHECK FOR THERMOMETER ... 28
INSPECTION/COMPASS AND THERMOME-
TER .................................................................. ... 28
Calibration Procedure for Compass .................... ... 29
CORRECTION FUNCTIONS OF COMPASS ... ... 29
INITIAL CORRECTION PROCEDURE FOR
COMPASS ........................................................ ... 30
WARNING LAMPS ................................................. ... 31
Schematic ............................................................ ... 31
Wiring Diagram — WARN — ............................... ... 32
Oil Pressure Warning Lamp Stays Off (Ignition
Switch ON) .......................................................... ... 38
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ............................................. ... 40
A/T INDICATOR ..................................................... ... 41
Wiring Diagram — AT/IND — .............................. ... 41
A/T Indicator Does Not Illuminate ........................... 42
WARNING CHIME .................................................. ... 43
Component Parts and Harness Connector Location ... 43
System Description .............................................. ... 44
FUNCTION ....................................................... ... 44
IGNITION KEY WARNING CHIME .................. ... 44
LIGHT WARNING CHIME ................................ ... 44
SEAT BELT WARNING CHIME ........................ ... 44
CAN Communication System Description ........... ... 45
