AV-78
DVD ENTERTAINMENT SYSTEM
Revision: November 20092006 QX56

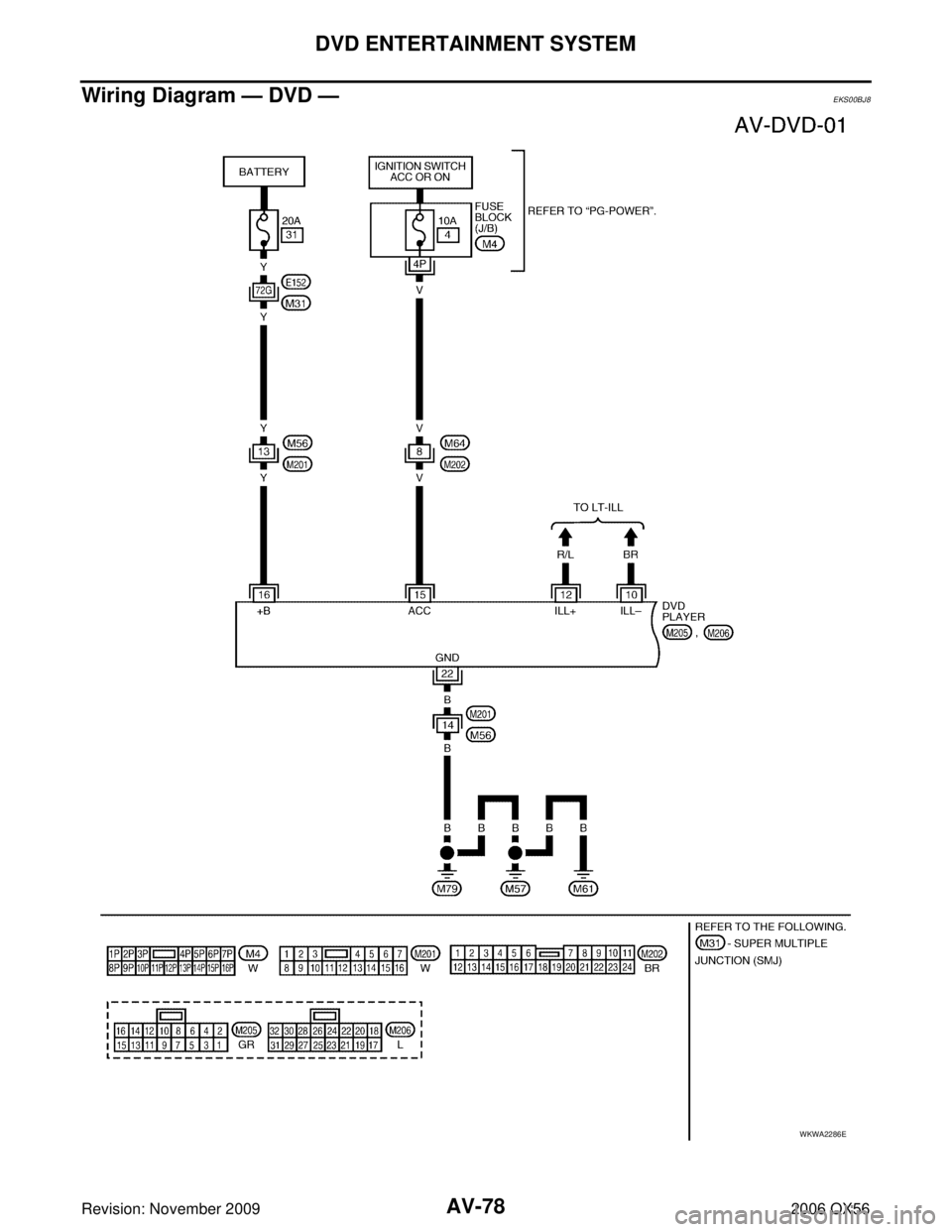

Wiring Diagram — DVD —EKS00BJ8
WKWA2286E

NAVIGATION SYSTEMAV-89
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
Wiring Diagram — NAVI —EKS00BJH
WKWA3592E

NAVIGATION SYSTEMAV-97
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
Wiring Diagram — COMM —EKS00BJJ
WKWA3600E

NAVIGATION SYSTEMAV-113
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
6. When the self-diagnosis completes, optional part confirmation
screen will be shown.

When connection of an optional part is judged error, a screen
to check if the optional part is actually fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “End”. Then the “SELF DIAGNOSIS”
screen will be shown.

When the optional part is connected normally, the switch for
the part will not appear on the screen.
7. On the “SELF DIAGNOSIS ” screen, each unit name will be col-
ored according to the diagnosis result, as follows.

If several malfunctions are present in a unit, color of its switch
on the screen will be either red, yellow, or gray, determined by
the malfunction of the highest priority.
8. Select a switch on the “SELF DIAGNOSIS ” screen and com-
ments for the diagnosis results will be shown.

When the switch is green, the following comment will be
shown. “Self-diagnosis was successful. Further diagnosis and
adjustments are recommended. Follow the “confirmation/
adjustment ” menu or refer to the service manual. ”

When the switch is yellow, the following comment will be
shown. “Connection to the following unit is abnormal. See the
service manual for further details ”.

When the switch is red, the following comment will be shown.
“DCU is abnormal”.
SELF–DIAGNOSIS RESULT
Quick reference table
1. Select a malfunctioning diagnosis No. in the diagnosis result quick reference table.
2. Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to AV- 9 7 ,
"Wiring Diagram — COMM —" .
3. Turn the ignition switch OFF and perform self-diagnosis again.
*: DCU = Display control unit
CAUTION:

When AV switch has a malfunction, you cannot start. Refer to AV- 1 5 5 , "Unable to Operate All of AV
Switches (Unable to Start Self-Diagnosis)" .

When display unit has a malfunction, you cannot start. Refer to AV- 1 5 3 , "Screen is Not Shown" .
SKIA4209E
Green : Not malfunctioning.
Yellow : Cannot be judged by self-diagnosis results.
Red : Unit is malfunctioning.
Gray : Diagnosis has not been done.
WKIA1189E
SKIA4211E
Screen switch
Diagnosis No.
Switch color DCU* DISPLAY Audio unit Navigation GPS
antenna
Red × 1
Gray ×
x2
xx 3
×× ×4

NAVIGATION SYSTEMAV-115
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
5. Perform self-diagnosis by selecting the “Self-diagnosis (NAVI)”.

Self-diagnosis subdivision screen will be shown and the oper-
ation enters the self-diagnosis mode.

A bar graph will be shown on the screen to indicate progress
of the diagnosis.
6. On the “SELF DIAGNOSIS ” screen, each unit name will be col-
ored according to the diagnosis result, as follows.

If several malfunctions are present in a unit, color of its switch
on the screen will be either red, yellow, or gray, determined by
the malfunction of the highest priority.
7. Select a switch on the “SELF DIAGNOSIS ” screen and com-
ments for the diagnosis results will be shown.

When the switch is green, the following comment will be
shown. “Connection is normal. Please refer to the Confirma-
tion / Adjustment function or service manual for more detailed
diagnosis information."

When the switch is yellow, the following comment will be
shown. “Connection to the following unit is abnormal. See the
service manual for further details ”.

When the switch is red, the following comment will be shown.
“Center Control Unit is abnormal”.

When the switch is gray, the following comment will be shown. “Self-diagnosis for DVD-ROM DRIVER
of NAVI was not conducted because no DVD-ROM was available. ”
SELF–DIAGNOSIS RESULT
Quick reference table
1. Select an malfunctioning diagnosis No. in the diagnosis result quick reference table.
2. Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to AV- 9 7 ,
"Wiring Diagram — COMM —" .
3. Turn the ignition switch OFF and perform self-diagnosis again.
*: Center Control unit = NAVI control unit
CAUTION:

When AV switch has a malfunction, you cannot start. Refer to AV- 1 5 5 , "Unable to Operate All of AV
Switches (Unable to Start Self-Diagnosis)" .
WKIA4440E
Green : Not malfunctioning.
Yellow : Cannot be judged by self-diagnosis results.
Red : Unit is malfunctioning.
Gray : Diagnosis has not been done.
WKIA4441E
WKIA4442E
Screen switch Diagnosis No.
Switch color Center control unit* GPS antenna
Red × 1
Gray × 2
Yellow ×
3
× 4
×× 5

BL-1
BODY, LOCK & SECURITY SYSTEM
I BODY
CONTENTS
C
DE
F
G H
J
K L
M
SECTION
A
B
BL
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
Precautions for work ................................................ 4
PREPARATION ...................................................... ..... 5
Special service tool ............................................. ..... 5
Commercial Service Tool .................................... ..... 5
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 6
Work Flow ................................................................ 6 CUSTOMER INTERVIEW ................................ ..... 6
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 7
CHECK RELATED SERVICE BULLETINS ...... ..... 7
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 7
REPAIR THE CAUSE ...................................... ..... 7
CONFIRM THE REPAIR .................................. ..... 8
Generic Squeak and Rattle Troubleshooting ...... ..... 8
INSTRUMENT PANEL ..................................... ..... 8
CENTER CONSOLE ........................................ ..... 8
DOORS ............................................................ ..... 8
TRUNK ............................................................. ..... 9
SUNROOF/HEADLINING ................................ ..... 9
OVERHEAD CONSOLE (FRONT AND REAR) ..... 9
SEATS .............................................................. ..... 9
UNDERHOOD .................................................. ..... 9
Diagnostic Worksheet ......................................... ... 10
HOOD .................................................................... ... 12
Fitting Adjustment ............................................... ... 12
CLEARANCE AND SURFACE HEIGHT
ADJUSTMENT ................................................. ... 13
HOOD LOCK ADJUSTMENT .......................... ... 13
Removal and Installation of Hood Assembly ....... ... 13
Removal and Installation of Hood Lock Control .. ... 14
REMOVAL ........................................................ ... 14
INSTALLATION ................................................ ... 15
Hood Lock Control Inspection ............................. ... 15
POWER DOOR LOCK SYSTEM ........................... ... 16
Component Parts and Harness Connector Location ... 16
System Description ............................................. ... 17OUTLINE ..........................................................
... 18
Schematic ............................................................ ... 19
Wiring Diagram — D/LOCK — ............................ ... 20
Terminals and Reference Value for BCM ............ ... 25
Work Flow ............................................................... 25
CONSULT–II Function (BCM) ............................. ... 26
CONSULT–II INSPECTION PROCEDURE ...... ... 26
DATA MONITOR .............................................. ... 27
ACTIVE TEST ..................................................... 28
Trouble Diagnoses Symptom Chart .................... ... 29
BCM Power Supply and Ground Circuit Check ... ... 29
Door Switch Check ................................................. 31
Key Switch (Insert) Check ................................... ... 33
Door Lock/Unlock Switch Check ............................ 34
Glass Hatch Switch Circuit Inspection ................. ... 36
Front Door Lock Assembly LH (Actuator) Check . ... 38
Front Door Lock Actuator RH Check ................... ... 39
Rear Door Lock Actuator RH/LH Check .............. ... 40
Glass Hatch Lock Actuator Check .......................... 41
Front Door Lock Assembly LH (Key Cylinder Switch)
Check .................................................................. ... 42
REMOTE KEYLESS ENTRY SYSTEM .................. ... 44
Component Parts and Harness Connector Location ... 44
System Description .............................................. ... 45
INPUTS ............................................................ ... 45
OPERATING PROCEDURE ............................. ... 46
CAN Communication System Description ........... ... 48
Schematic ............................................................ ... 49
Wiring Diagram — KEYLES — ............................ ... 50
......................................................................... ... 50
......................................................................... ... 51
......................................................................... ... 52
Terminals and Reference Value for BCM ............ ... 53
Terminals and Reference Value for IPDM E/R .... ... 54
CONSULT-II Function (BCM) .............................. ... 55
CONSULT-II Inspection Procedure ...................... ... 55
“MULTI REMOTE ENT” .................................... ... 55
CONSULT-II Application Items ............................ ... 56
“MULTI REMOTE ENT” .................................... ... 56
Trouble Diagnosis Procedure .............................. ... 59

BL-2Revision: November 20092006 QX56
BCM Power Supply and Ground Circuit Check ...
... 59
Trouble Diagnoses ............................................... ... 60
SYMPTOM CHART ............................................. 60
Key Switch (Insert) Check ...................................... 62
Door Switch Check .............................................. ... 63
Keyfob Battery and Function Check .................... ... 65
Remote Keyless Entry Receiver System Check .. ... 66
ACC Power Check ............................................... ... 68
IPDM E/R Operation Check ................................. ... 68
Check Hazard Function ....................................... ... 70
Check Horn Function ........................................... ... 70
Check Headlamp Function .................................. ... 70
Check Map Lamp Illumination Function .............. ... 70
ID Code Entry Procedure .................................... ... 71
KEYFOB ID SET UP WITH CONSULT-II ......... ... 71
KEYFOB ID SET UP WITHOUT CONSULT-II .. ... 73
Keyfob Battery Replacement ............................... ... 74
VEHICLE SECURITY (THEFT WARNING) SYSTEM ... 75
Component Parts and Harness Connector Location ... 75
System Description .............................................. ... 76
DESCRIPTION ................................................. ... 76
POWER SUPPLY AND GROUND CIRCUIT .... ... 77
INITIAL CONDITION TO ACTIVATE THE SYS-
TEM .................................................................. ... 77
VEHICLE SECURITY SYSTEM ALARM OPER-
ATION ............................................................... ... 77
VEHICLE SECURITY SYSTEM DEACTIVATION ... 78
PANIC ALARM OPERATION ............................ ... 78
CAN Communication System Description ........... ... 78
Schematic ............................................................ ... 79
Wiring Diagram — VEHSEC — ........................... ... 80
.......................................................................... ... 80
.......................................................................... ... 81
.......................................................................... ... 82
.......................................................................... ... 83
.......................................................................... ... 84
Terminals and Reference Value for BCM ............. ... 85
Terminals and Reference Value for IPDM E/R ..... ... 86
CONSULT-II Function (BCM) ............................... ... 86
CONSULT-II INSPECTION PROCEDURE ....... ... 86
CONSULT-II APPLICATION ITEM .................... ... 88
Trouble Diagnosis ................................................ ... 89
WORK FLOW ................................................... ... 89
Preliminary Check ............................................... ... 90
Symptom Chart ....................................................... 91
Door Switch Check .............................................. ... 92
Hood Switch Check ............................................. ... 94
Combination Meter (Security Indicator Lamp)
Check .................................................................. ... 95
Front Door Lock Assembly LH (Key Cylinder Switch)
Check .................................................................. ... 96
Vehicle Security Horn Alarm Check ..................... ... 98
Vehicle Security Headlamp Alarm Check ............ ... 98
Door Lock/Unlock Switch Check ............................ 98
AUTOMATIC BACK DOOR SYSTEM .................... ... 99
Component Parts and Harness Connector Location ... 99
System Description .............................................. .100
OPERATION DESCRIPTION ........................... .100
Schematic ............................................................ .105Wiring Diagram — B/CLOS — .............................
.106
Terminals and Reference Value for Back Door Con-
trol Unit ................................................................. . 111
Terminals and Reference Value for BCM ............. .112
Trouble Diagnosis Procedure ............................... .113
Self-Diagnosis Procedures .................................. .113
INPUT SIGNAL CHECK MODE ........................ .113
OPERATING CHECK MODE ............................ .113
Diagnosis Chart ................................................... .114
Back Door Power Supply and Ground Circuit
Inspection ............................................................. .115
Power Liftgate Switch System Inspection ............ .116
GLASS HATCH AJAR SWITCH CHECK .......... .117
Back Door Close (Close) Switch System Inspection .118
Back Door Close (Cancel) Switch System Inspec-
tion ....................................................................... .119
Pinch Strip System Inspection ............................. .121
Back Door Warning Chime System Inspection .... .122
Half-Latch Switch System Inspection ................... .122
Open Switch System Inspection .......................... .123
Close Switch System Inspection .......................... .124
Back Door Handle Switch System Inspection ...... .125
Cinch Latch Motor System Inspection ................. .126
DOOR ..................................................................... .128
Fitting Adjustment ................................................ .128
FRONT DOOR .................................................. .128
REAR DOOR .................................................... .128
STRIKER ADJUSTMENT ................................. .128
Removal and Installation ...................................... .129
FRONT DOOR .................................................. .129
REAR DOOR .................................................... .129
BACK DOOR .................................................... .130
FRONT DOOR LOCK ............................................. .131
Component Structure ........................................... .131
Removal and Installation ...................................... .131
REMOVAL ......................................................... .131
INSTALLATION ................................................. .133
Disassembly and Assembly ................................. .133
DOOR KEY CYLINDER ASSEMBLY ................ .133
REAR DOOR LOCK ............................................... .134
Component Structure ........................................... .134
Removal and Installation ...................................... .134
REMOVAL ......................................................... .134
INSTALLATION ................................................. .134
BACK DOOR LOCK ............................................... .135
Power Back Door Opener .................................... .135
REMOVAL ........................................................ .135
INSTALLATION ................................................ .135
Door Lock Assembly ............................................ .136
REMOVAL ........................................................ .136
INSTALLATION ................................................ .136
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-
NATS) ..................................................................... .137
Component Parts and Harness Connector Location .137
System Description .............................................. .138
System Composition ............................................ .138
ECM Re-communicating Function ....................... .139
Wiring Diagram — NATS — ................................. .140
Terminals and Reference Value for BCM ............. .141

BL-3
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
CONSULT-II ........................................................
. 141
CONSULT-II INSPECTION PROCEDURE ...... . 141
CONSULT-II DIAGNOSTIC TEST MODE FUNC-
TION ................................................................. . 142
HOW TO READ SELF-DIAGNOSTIC RESULTS . 143
IVIS (NATS) SELF-DIAGNOSTIC RESULTS
ITEM CHART ................................................... . 143
Work Flow ........................................................... . 144
Trouble Diagnoses .............................................. . 145
SYMPTOM MATRIX CHART 1 ........................ . 145
SYMPTOM MATRIX CHART 2 ........................ . 146
DIAGNOSTIC SYSTEM DIAGRAM ................. . 146
Diagnostic Procedure 1 ....................................... . 147
Diagnostic Procedure 2 ....................................... . 148
Diagnostic Procedure 3 ....................................... . 149
Diagnostic Procedure 4 ....................................... . 150
Diagnostic Procedure 5 ....................................... . 151
Diagnostic Procedure 6 ....................................... . 154
How to Replace NATS Antenna Amp. ................. . 155
HOMELINK UNIVERSAL TRANSCEIVER ............ . 156
Wiring Diagram — TRNSCV — .......................... . 156
Trouble Diagnoses .............................................. . 157
DIAGNOSTIC PROCEDURE ........................... . 157
CAB AND REAR BODY ........................................ . 159
Body Mounting .................................................... . 159
BODY REPAIR ....................................................... . 160
Body Exterior Paint Color .................................... . 160
Body Component Parts ....................................... . 161
UNDERBODY COMPONENT PARTS ............. . 161
BODY COMPONENT PARTS .......................... . 163
Corrosion Protection ........................................... . 165
DESCRIPTION ................................................. . 165
ANTI-CORROSIVE WAX ................................. . 166UNDERCOATING .............................................
.167
Body Sealing ....................................................... .168
DESCRIPTION ................................................. .168
Body Construction ............................................... .171
BODY CONSTRUCTION ................................. .171
Body Alignment ................................................... .172
BODY CENTER MARKS .................................. .172
PANEL PARTS MATCHING MARKS ................ .173
DESCRIPTION ................................................. .174
ENGINE COMPARTMENT ............................... .175
UNDERBODY .................................................. .177
PASSENGER COMPARTMENT ...................... .180
REAR BODY .................................................... .185
Handling Precautions for Plastics ........................ .187
HANDLING PRECAUTIONS FOR PLASTICS . .187
LOCATION OF PLASTIC PARTS ..................... .188
Precautions in Repairing High Strength Steel ...... .190
HIGH STRENGTH STEEL (HSS) USED IN NIS-
SAN VEHICLES ............................................... .190
Foam Repair ........................................................ .192
URETHANE FOAM APPLICATIONS ............... .192
FILL PROCEDURES ........................................ .192
Replacement Operations ..................................... .193
DESCRIPTION ................................................. .193
HOODLEDGE .................................................. .196
FRONT PILLAR ................................................ .197
CENTER PILLAR ............................................. .200
OUTER SILL .................................................... .202
REAR FENDER ................................................ .203
REAR SIDE MEMBER ..................................... .205
REAR FLOOR REAR ....................................... .206
CRUSH HORN ................................................. .207

BL-20
POWER DOOR LOCK SYSTEM
Revision: November 20092006 QX56
Wiring Diagram — D/LOCK —EIS005ZA
WIWA0742E

BL-50
REMOTE KEYLESS ENTRY SYSTEM
Revision: November 20092006 QX56
Wiring Diagram — KEYLES —EIS005ZT
WIWA1308E
