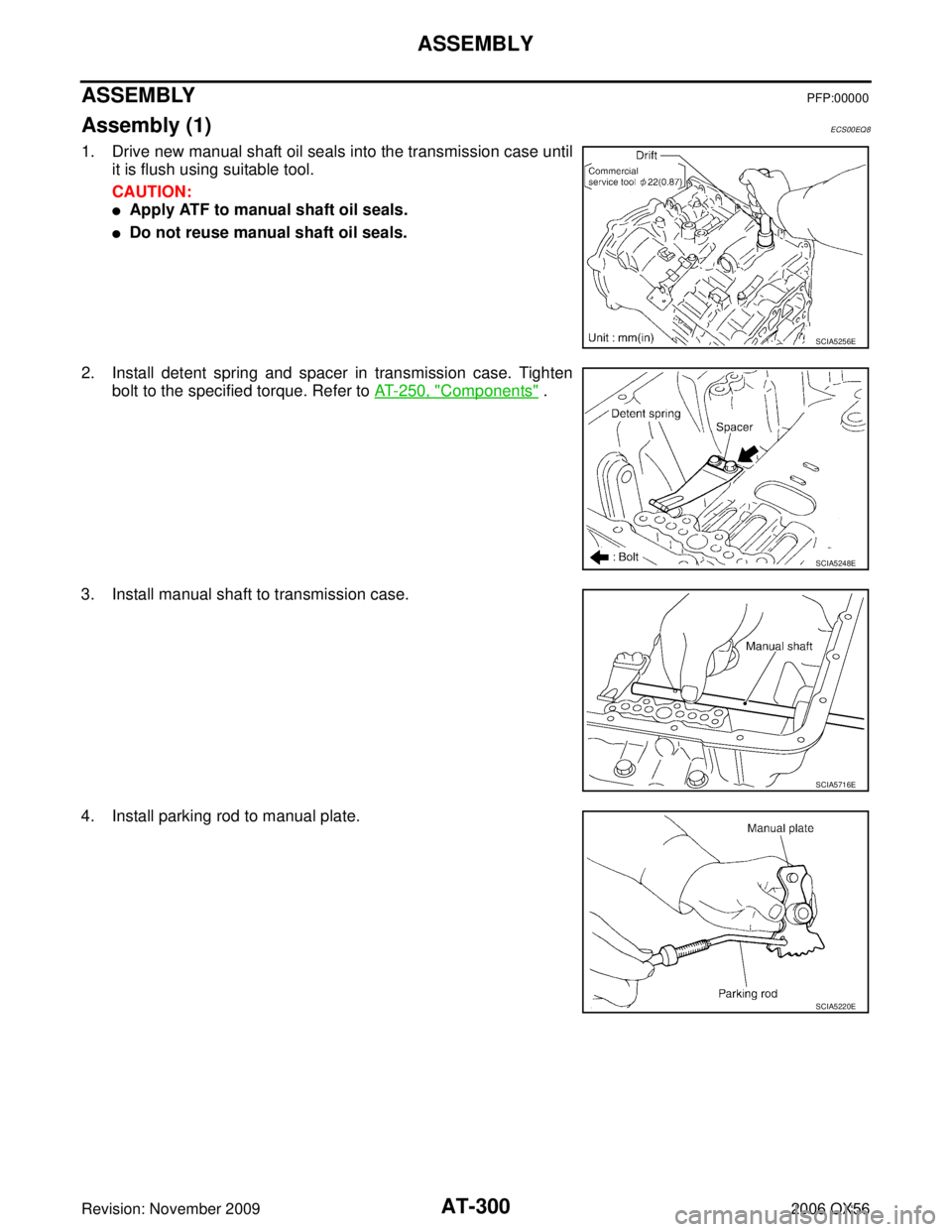

1. Drive new manual shaft oil seals into the transmission case until
it is flush using suitable tool.
CAUTION:

Apply ATF to manual shaft oil seals.

Do not reuse manual shaft oil seals.
2. Install detent spring and spacer in transmission case. Tighten bolt to the specified torque. Refer to AT- 2 5 0 , "
Components" .
3. Install manual shaft to transmission case.
4. Install parking rod to manual plate.
SCIA5256E
SCIA5248E
SCIA5716E
SCIA5220E

ASSEMBLYAT-305
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
22. Measure clearance between retaining plate and snap ring. If not
within specified clearance, select proper retaining plate.
23. Install needle bearing to transmission case. CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 6 0 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
24. Install revolution sensor to transmission case. Tighten revolution sensor bolt to the specified torque. Refer to AT- 2 5 0 , "
Compo-
nents" .
CAUTION:

Do not subject it to impact by dropping or hitting it.

Be careful not to damage harness with the edge of case.

Do not allow metal filings or foreign material to get on the
sensor front edge magnetic area.

Do not place in an area affected by magnetism.
25. Install new rear oil seal until it is flush into the rear extension (2WD models) using Tool or adapter case (4WD models) using
suitable tool.
CAUTION:

Apply ATF to rear oil seal.

Do not reuse rear oil seal.Specified clearance “A” : Standard: 0.7 - 1.1mm
(0.028 - 0.043 in)
Retaining plate : Refer to AT- 3 2 5 , "
Reverse
brake" .
SCIA5341E
SCIA5213E
SCIA2320E
Tool number : ST33400001 (J-26082)
SCIA5581E

AT-308
ASSEMBLY
Revision: November 20092006 QX56

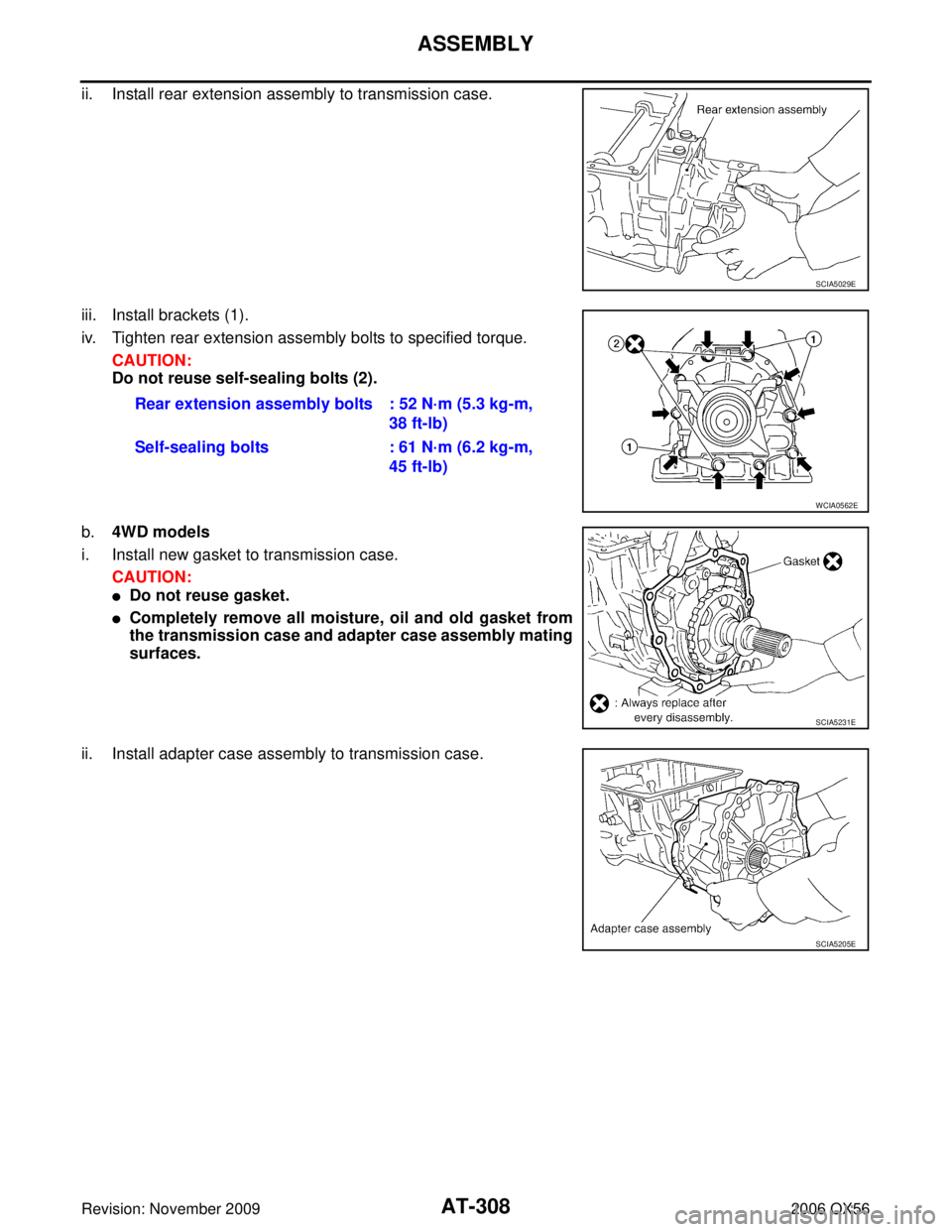

ii. Install rear extension assembly to transmission case.
iii. Install brackets (1).
iv. Tighten rear extension assembly bolts to specified torque.
CAUTION:
Do not reuse self-sealing bolts (2).
b. 4WD models
i. Install new gasket to transmission case. CAUTION:

Do not reuse gasket.

Completely remove all moisture, oil and old gasket from
the transmission case and adapter case assembly mating
surfaces.
ii. Install adapter case assembly to transmission case.
SCIA5029E
Rear extension assembly bolts : 52 N·m (5.3 kg-m, 38 ft-lb)
Self-sealing bolts : 61 N·m (6.2 kg-m, 45 ft-lb)
WCIA0562E
SCIA5231E
SCIA5205E

ASSEMBLYAT-309
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56

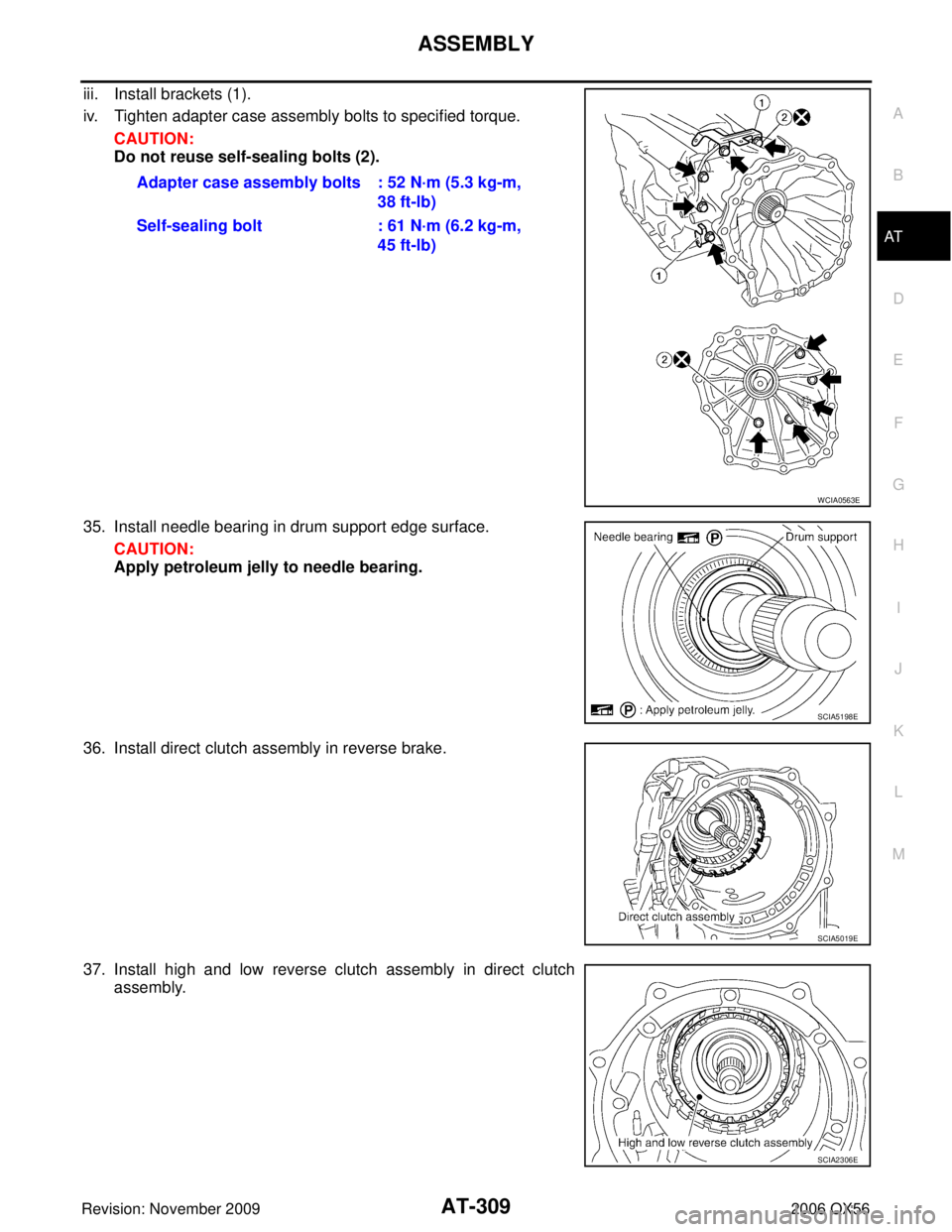

iii. Install brackets (1).
iv. Tighten adapter case assembly bolts to specified torque.
CAUTION:
Do not reuse self-sealing bolts (2).
35. Install needle bearing in drum support edge surface. CAUTION:
Apply petroleum jelly to needle bearing.
36. Install direct clutch assembly in reverse brake.
37. Install high and low reverse clutch assembly in direct clutch assembly.Adapter case assembly bolts : 52 N·m (5.3 kg-m,
38 ft-lb)
Self-sealing bolt : 61 N·m (6.2 kg-m,
45 ft-lb)
WCIA0563E
SCIA5198E
SCIA5019E
SCIA2306E

ASSEMBLYAT-313
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
51. Install needle bearing in front sun gear assembly.
CAUTION:
Apply petroleum jelly to needle bearing.
52. Adjust brake band tilting using clips so that brake band contacts front sun gear drum evenly.
53. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to specified torque.
c. Back off band servo anchor end pin three turns.
d. Holding band servo anchor end pin, tighten lock nut to specified torque. Refer to AT- 2 5 0 , "
Components" .
AdjustmentECS00EQ9
TOTAL END PLAY

Measure clearance between front sun gear and bearing race for
oil pump cover.

Select proper thickness of bearing race so that end play is within
specifications.
SCIA2808E
SCIA5033E
Band servo anchor end pin : 5.0 N·m (0.51 kg-m,
44 in-lb)
SCIA5498E
SCIA2810E

ASSEMBLYAT-317
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
5. Tighten oil pump bolts to specified torque. Refer to AT- 2 5 0 ,
"Components" .
CAUTION:
Apply ATF to oil pump bushing.
6. Install new O-ring to input clutch assembly. CAUTION:

Do not reuse O-ring.

Apply ATF to O-ring.
7. Install converter housing to transmission case. CAUTION:
Do not reuse self-sealing bolt.
8. Make sure that brake band does not close turbine revolution sensor hole.
9. Install control valve with TCM.
a. Install A/T fluid temperature sensor 2 to bracket.
SCIA2300E
SCIA5011E
Converter housing bolt : 52 N·m (5.3 kg-m, 38 ft-lb)
Self-sealing bolt : 61 N·m (6.2 kg-m, 45 ft-lb)
SCIA5171E
SCIA5034E
SCIA5264E

AT-318
ASSEMBLY
Revision: November 20092006 QX56

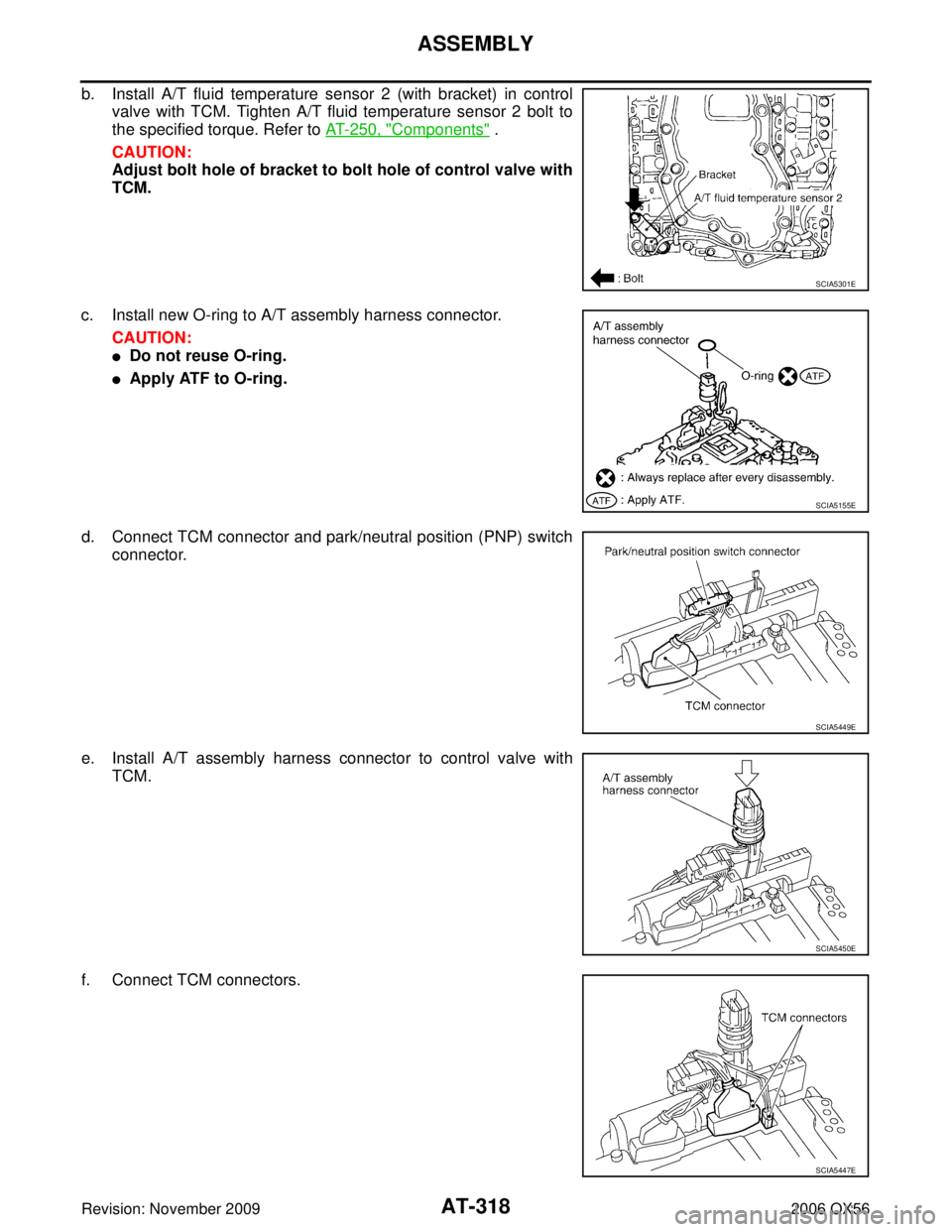

b. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to
the specified torque. Refer to AT- 2 5 0 , "
Components" .
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with
TCM.
c. Install new O-ring to A/T assembly harness connector. CAUTION:

Do not reuse O-ring.

Apply ATF to O-ring.
d. Connect TCM connector and park/neutral position (PNP) switch connector.
e. Install A/T assembly harness connector to control valve with TCM.
f. Connect TCM connectors.
SCIA5301E
SCIA5155E
SCIA5449E
SCIA5450E
SCIA5447E

ASSEMBLYAT-319
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
g. Install control valve with TCM in transmission case.
CAUTION:

Make sure that turbine revolution sensor securely installs
into turbine revolution sensor hole.

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

Assemble it so that manual valve cutout is engaged with
manual plate projection.
h. Install bolts A, B and C to control valve with TCM.
i. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. Then tighten them in order (1 → 2 → 3), and then tighten other bolts.
j. Tighten control valve with TCM bolts to the specified torque. Refer to AT- 2 5 0 , "
Components" .
10. Connect A/T fluid temperature sensor 2 connector.
SCIA5034E
SCIA5035E
Bolt symbol Length: mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA5025E
SCIA5037E
SCIA5023E

ASSEMBLYAT-321
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
16. Install the oil pan magnets as shown.
17. Install the oil pan and new oil pan gasket.
CAUTION:

Do not reuse the oil pan gasket.

Completely remove all moisture, oil and old gasket from
the oil pan gasket mating surfaces and holes.

Always replace the oil pan bolts as they are self-sealing.

Be sure the oil pan drain plug hole is located to the rear
of the transmission assembly.

Partially install the oil pan bolts in a criss-cross pattern to
prevent dislocation of the gasket.

Be careful not to pinch harnesses.
18. Tighten new oil pan bolts in numerical order as shown.
19. Install drain plug in oil pan with new gasket. CAUTION:
Do not reuse the drain plug gasket.
20. Install torque converter.
a. Pour ATF into torque converter.

Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of fluid is
required for a new torque converter.

When reusing old torque converter, add the same amount
of fluid as was drained.
SCIA5200E
SCIA2308E
Oil pan bolts : 7.9 N·m (0.81 kg-m, 70 in-lb)
SCIA4113E
Drain plug : 34 N·m (3.5 kg-m, 25 ft-lb)
SAT428DA

AT-322
ASSEMBLY
Revision: November 20092006 QX56
b. Install torque converter while aligning notches of torque con-
verter with notches of oil pump.
CAUTION:
Install torque converter while rotating it.
c. Measure distance “A” to check that torque converter is in proper position.
SCIA5010E
Distance “A” : 24.0 mm (0.94 in) or more
