INFINITI QX56 2006 Factory Service Manual

BL-200
BODY REPAIR
Revision: November 20092006 QX56

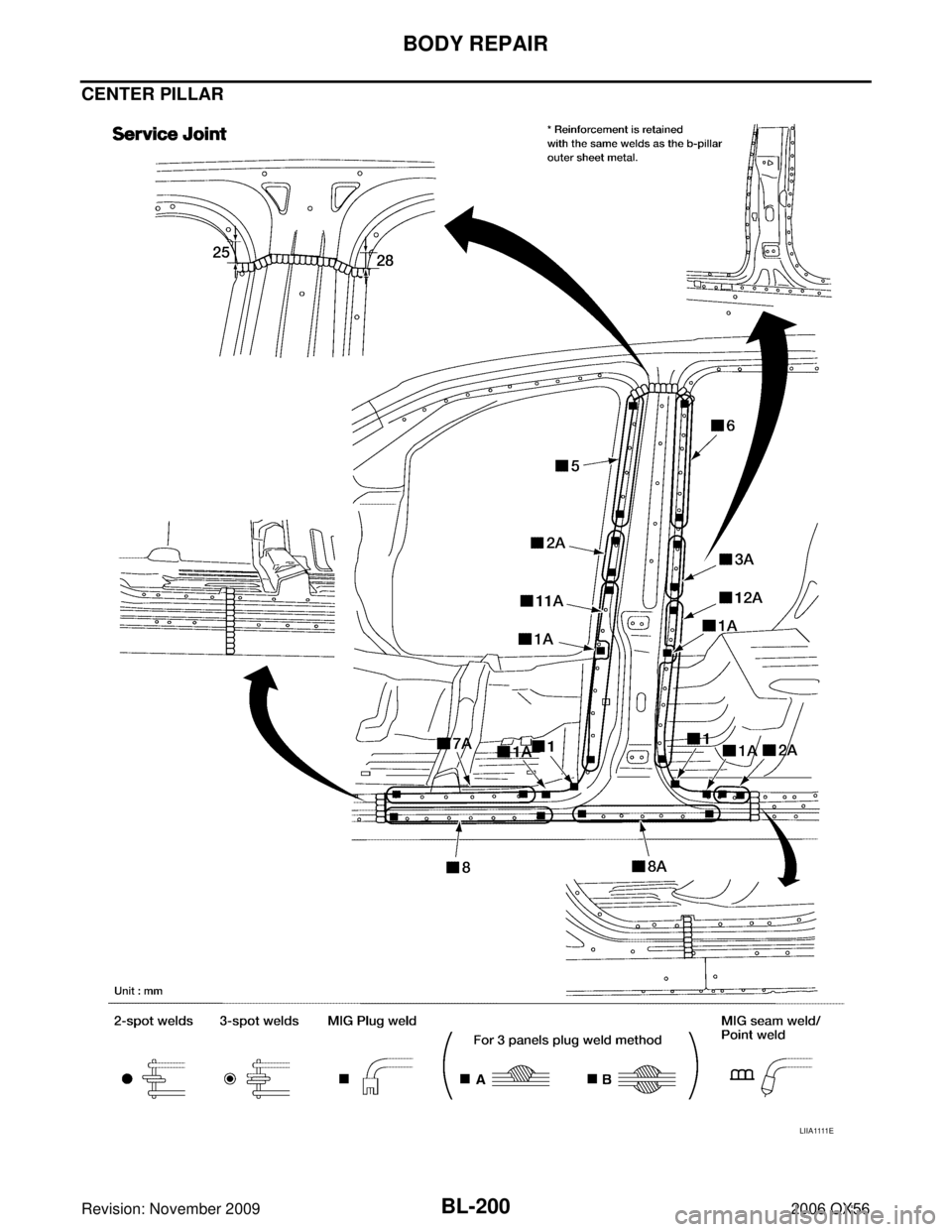

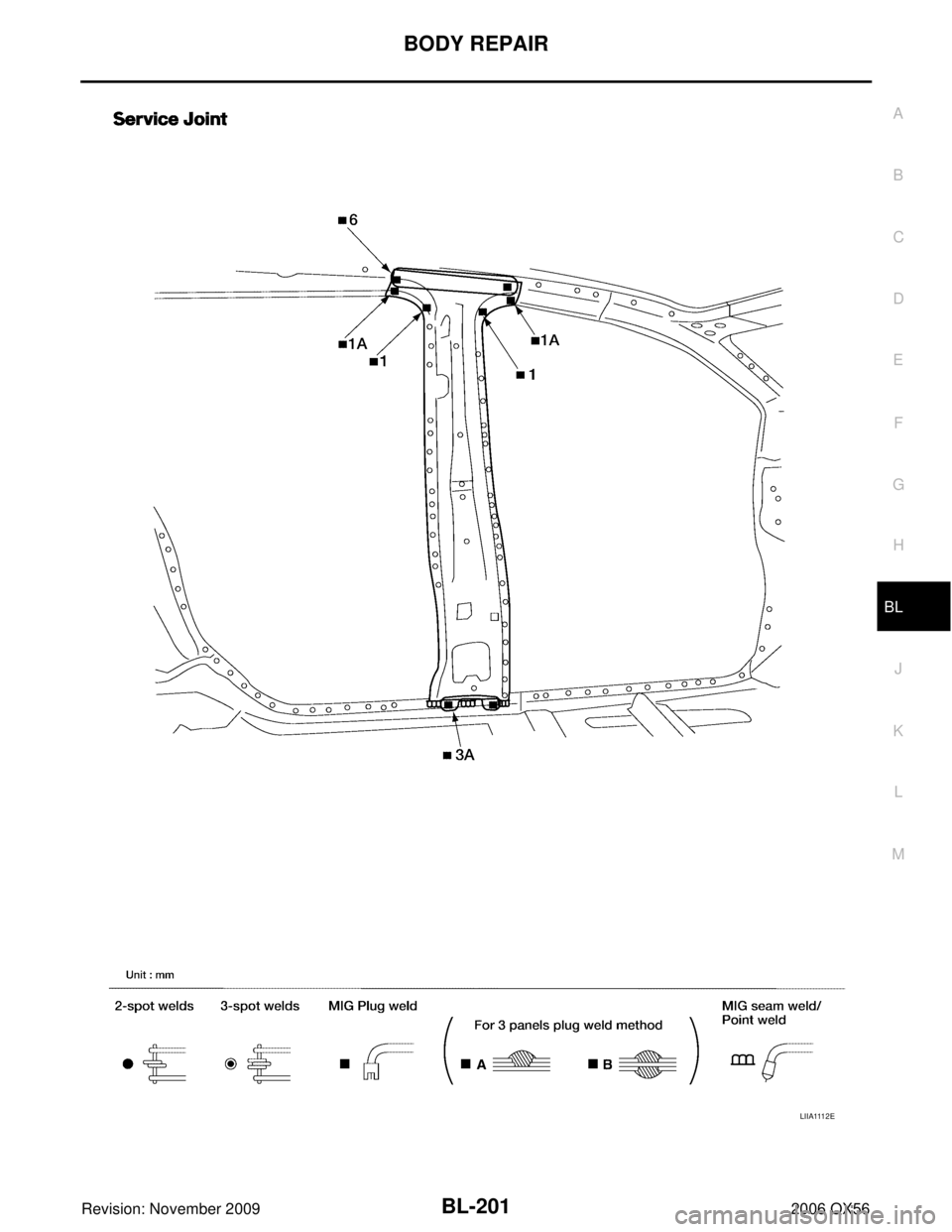

CENTER PILLAR
L I I A 1111 E

BODY REPAIRBL-201
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
LIIA1112E

BL-202
BODY REPAIR
Revision: November 20092006 QX56

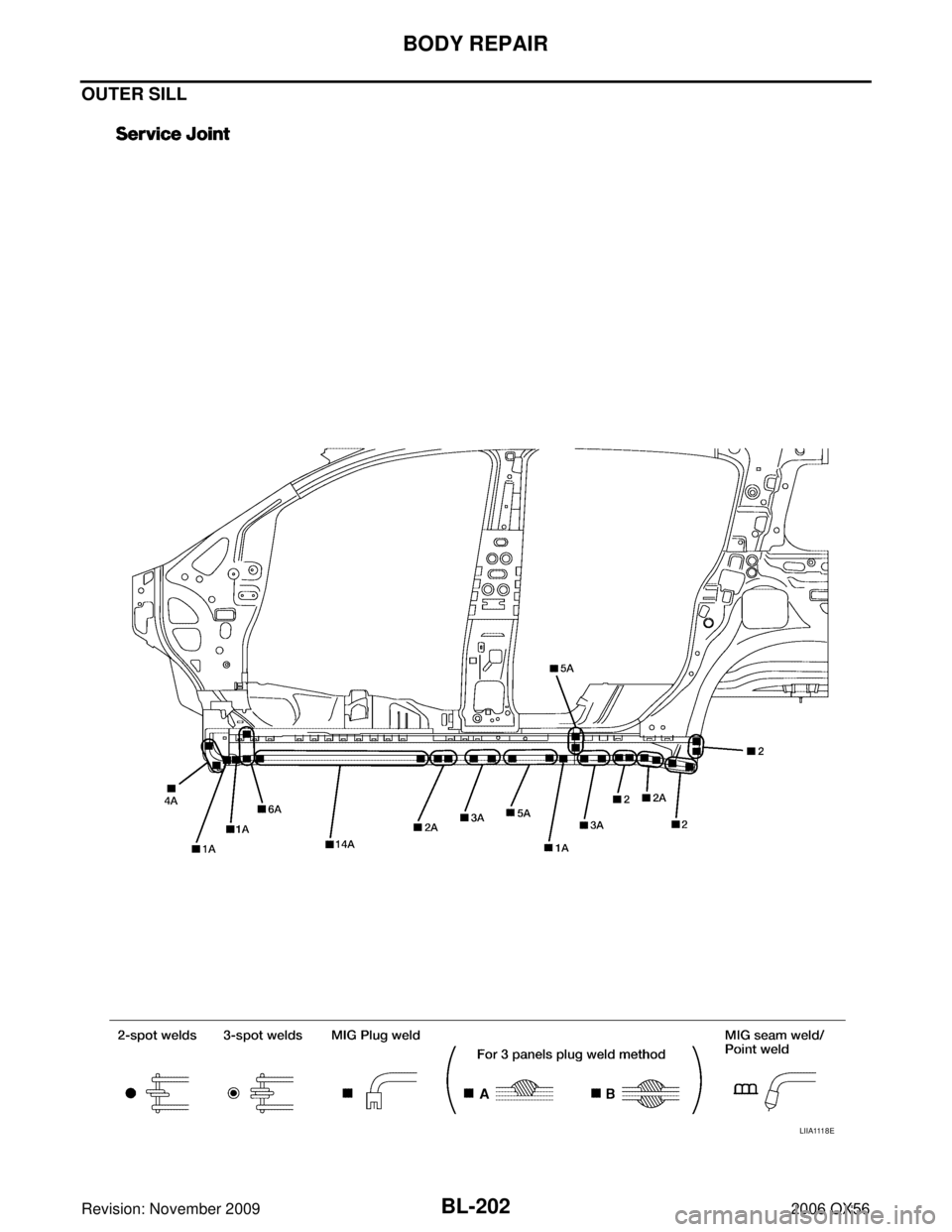

OUTER SILL
LIIA1118E

BODY REPAIRBL-203
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56

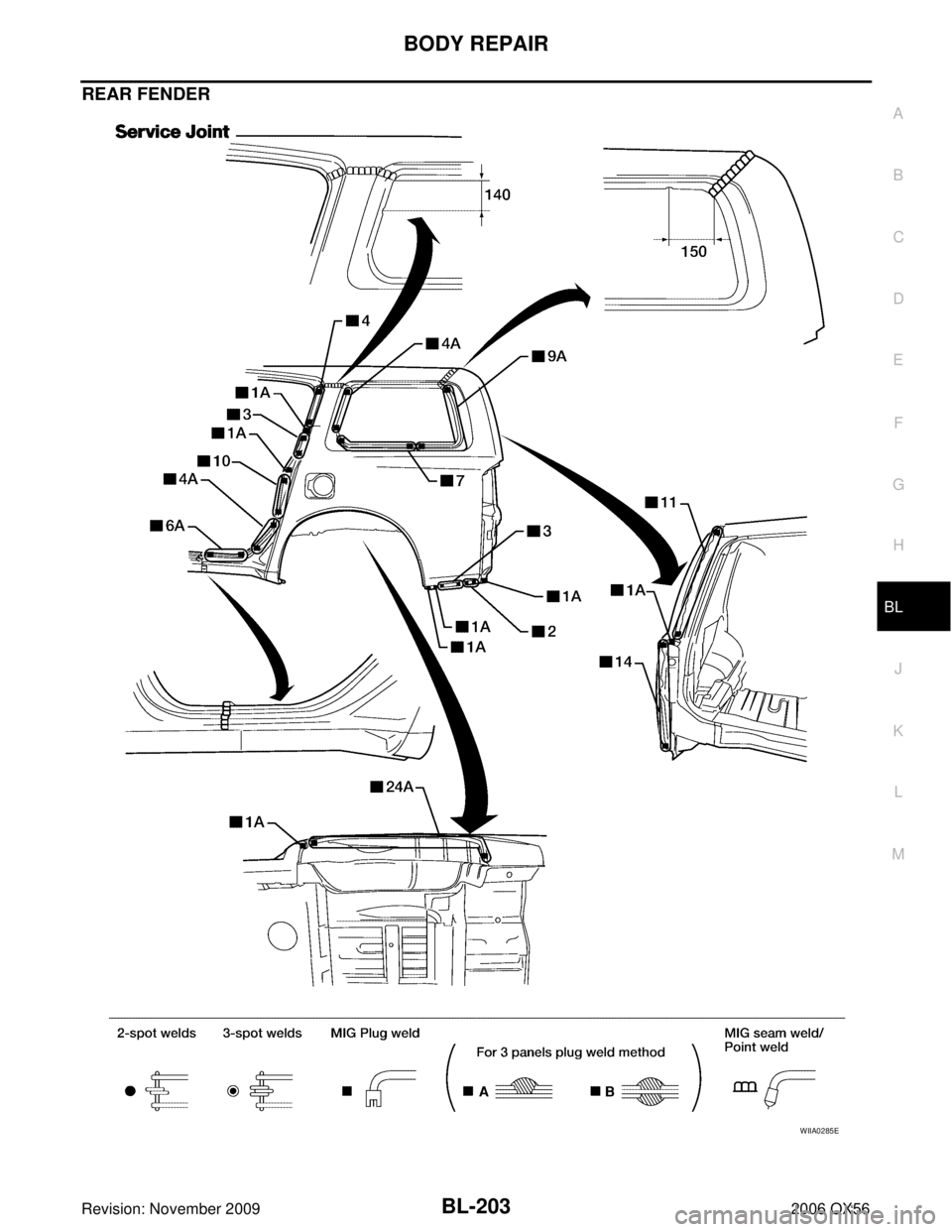

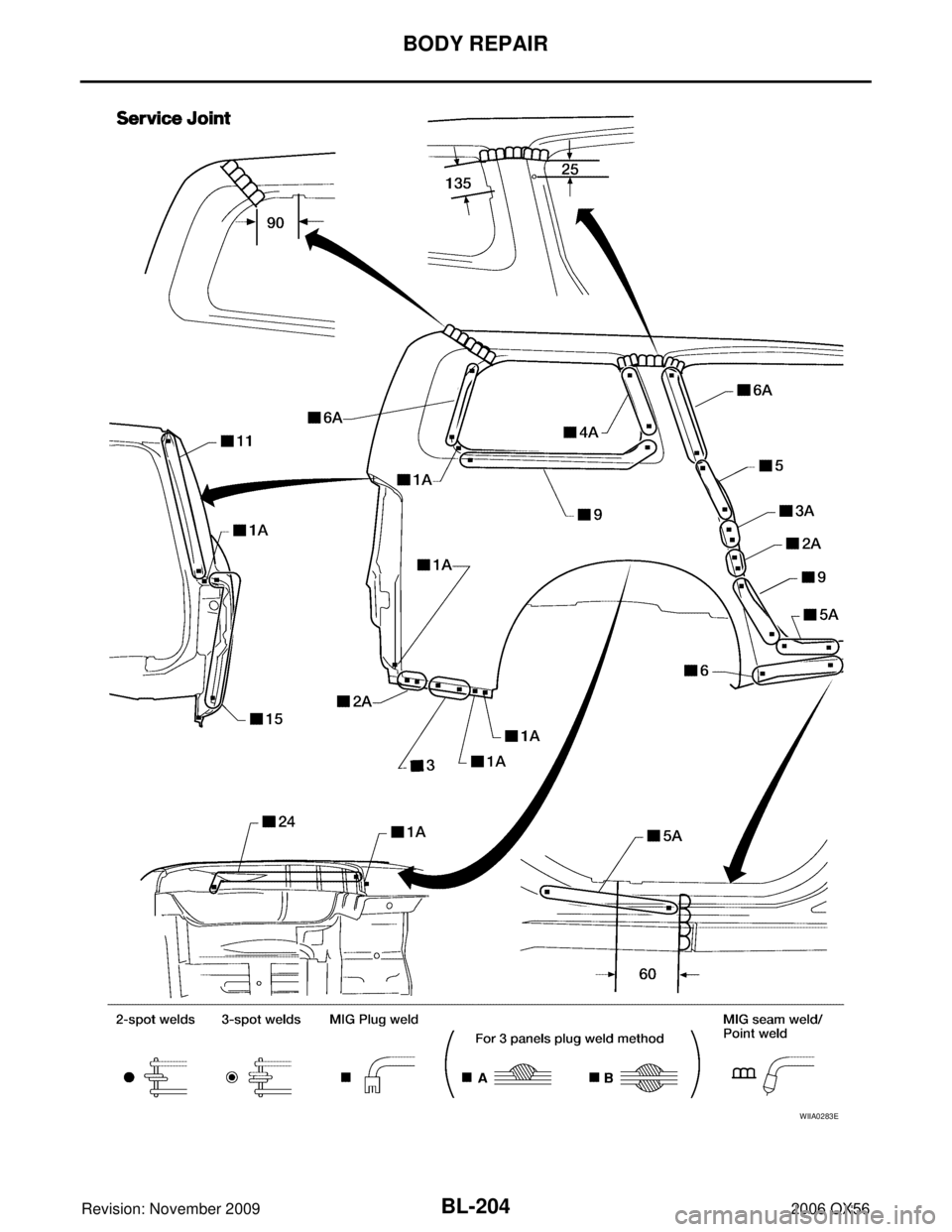

REAR FENDER
WIIA0285E

BL-204
BODY REPAIR
Revision: November 20092006 QX56
WIIA0283E

BODY REPAIRBL-205
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
REAR SIDE MEMBER
WIIA0281E

BL-206
BODY REPAIR
Revision: November 20092006 QX56

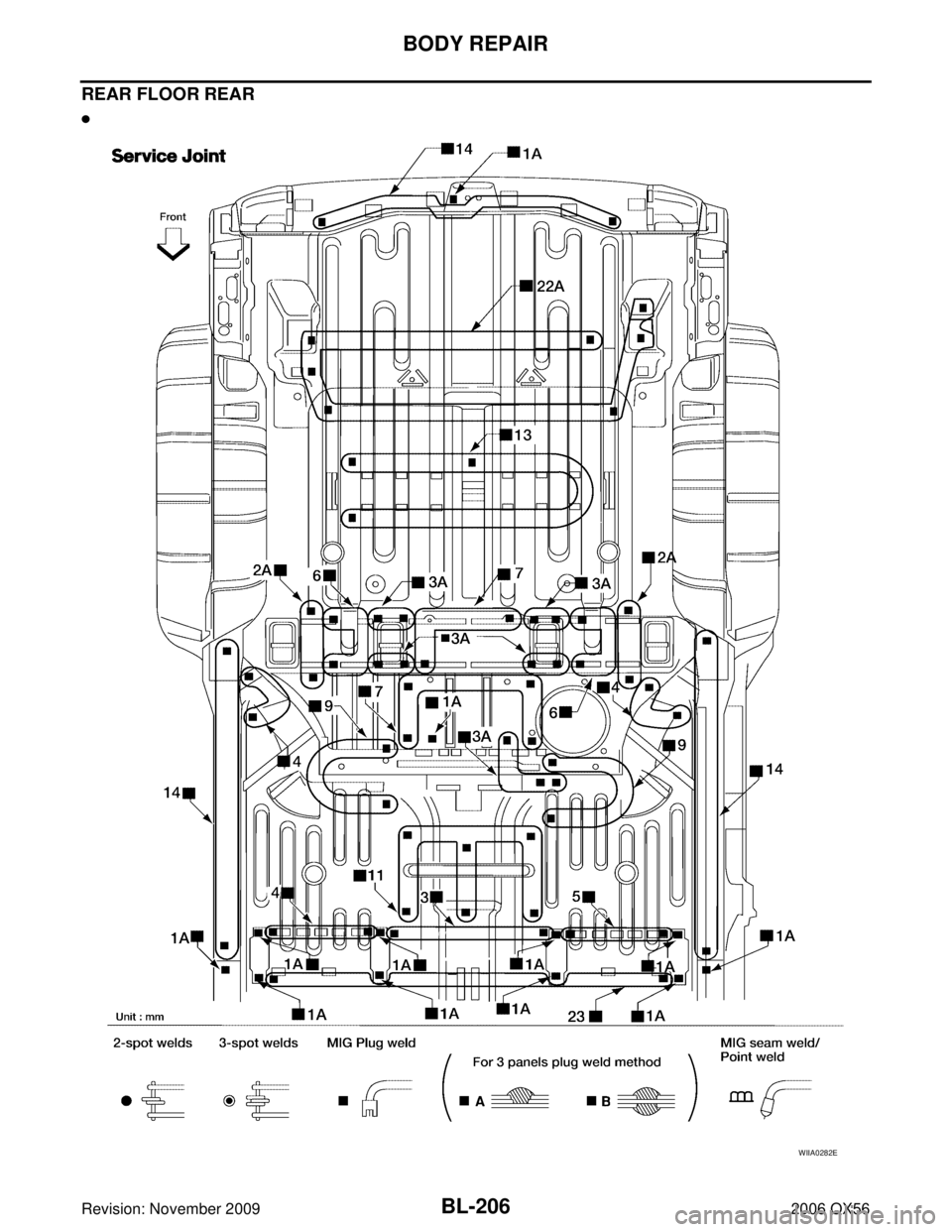

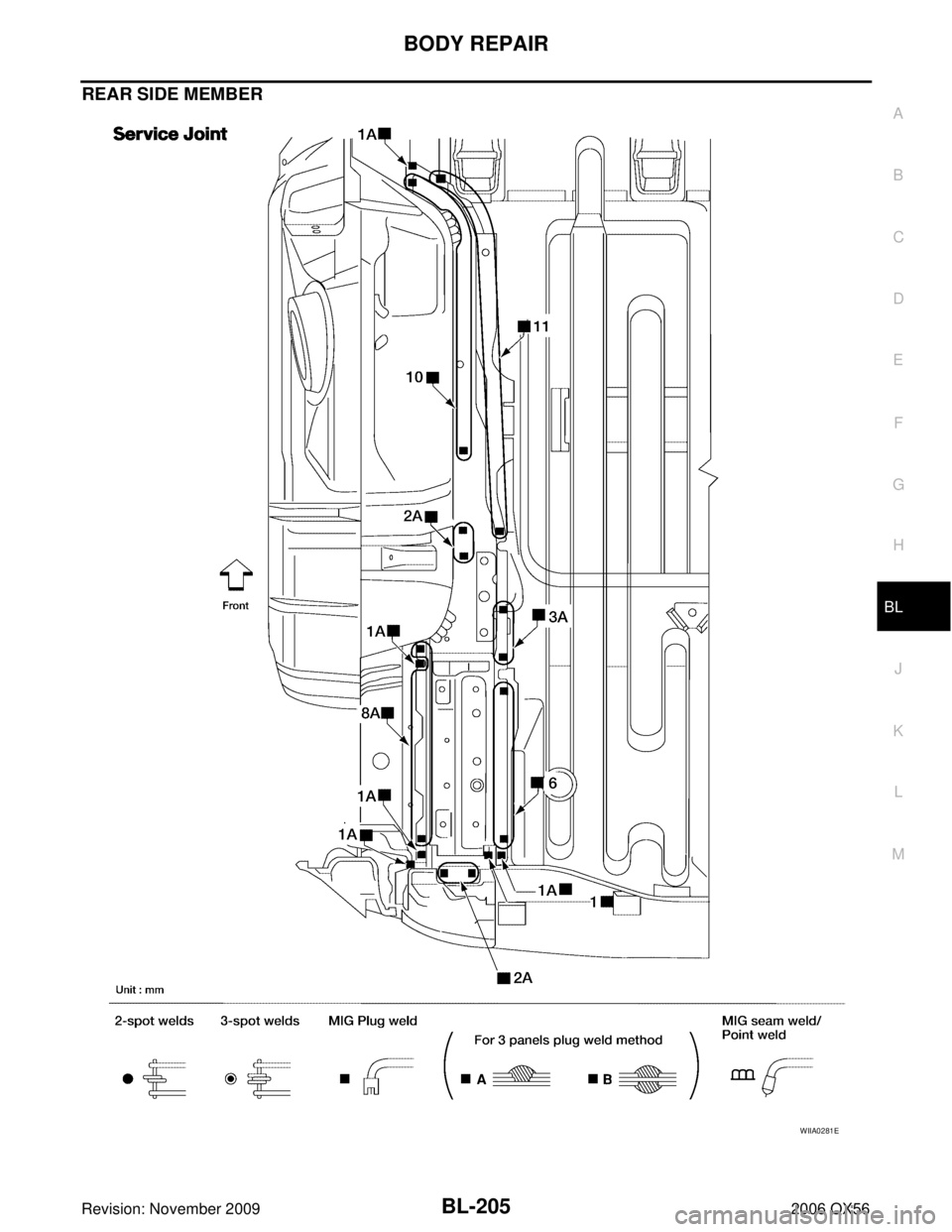

REAR FLOOR REAR


WIIA0282E

BODY REPAIRBL-207
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56

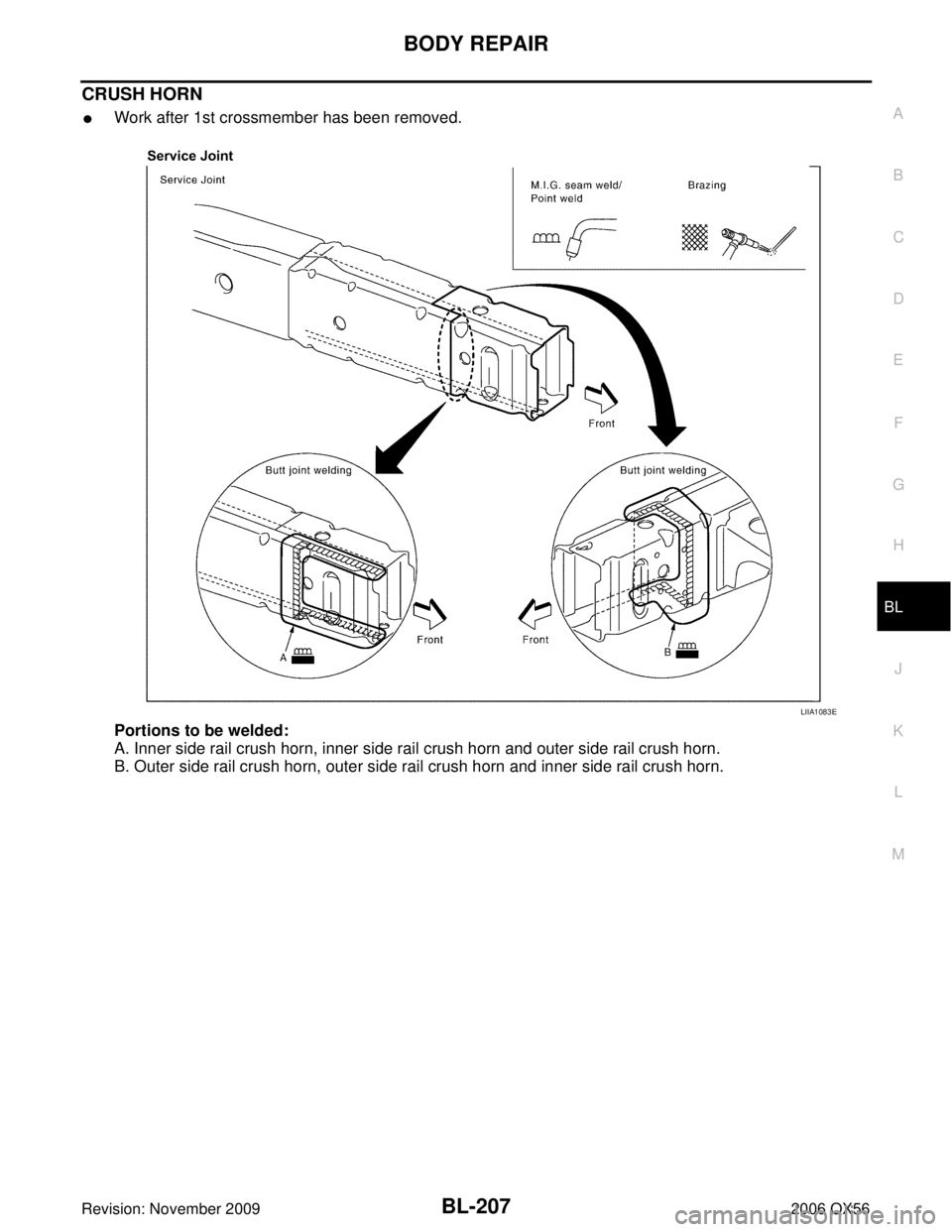

CRUSH HORN

Work after 1st crossmember has been removed.
Portions to be welded:
A. Inner side rail crush horn, inner side rail crush horn and outer side rail crush horn.
B. Outer side rail crush horn, outer side rail crush horn and inner side rail crush horn.
LIIA1083E

BL-208
BODY REPAIR
Revision: November 20092006 QX56
Removal Notes

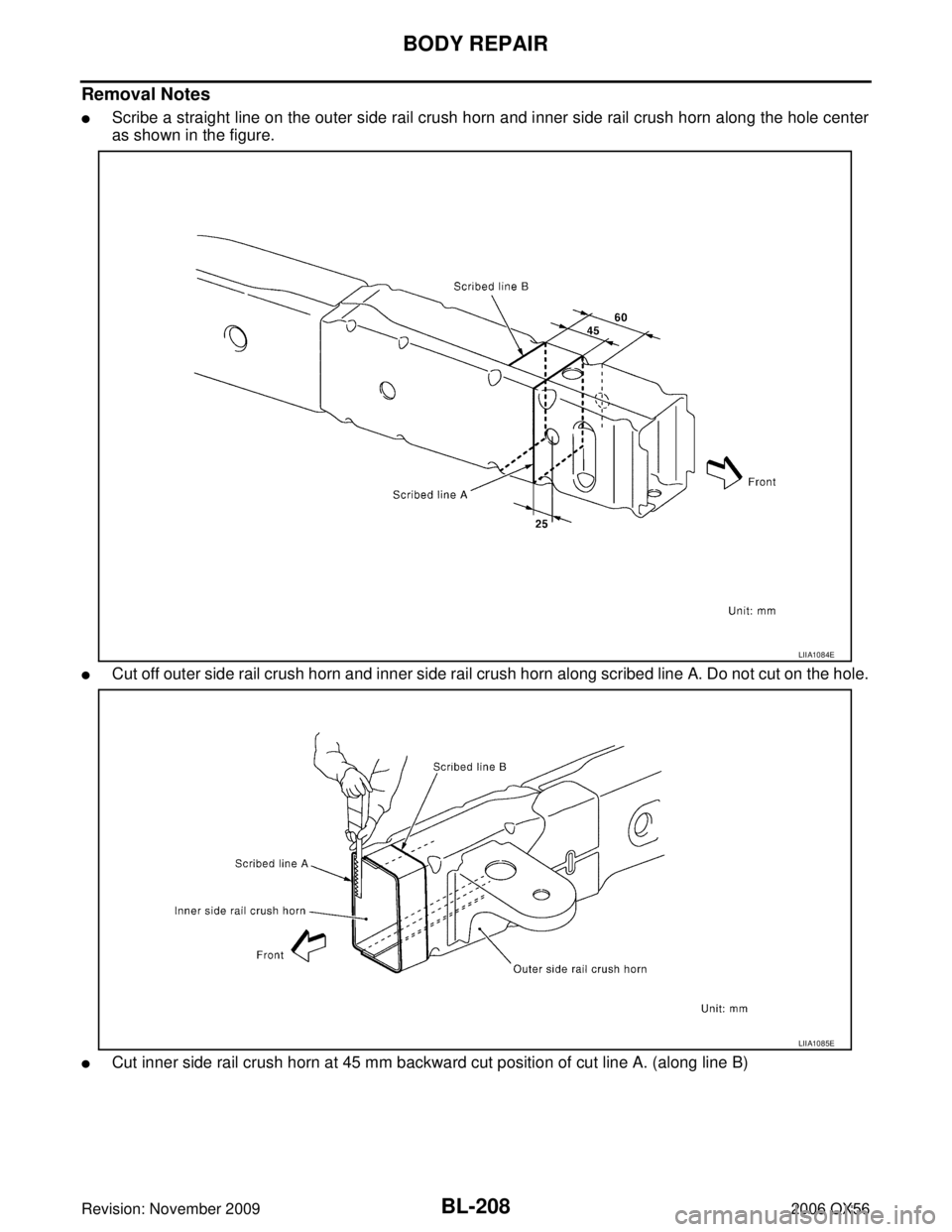

Scribe a straight line on the outer side rail crush horn and inner side rail crush horn along the hole center
as shown in the figure.

Cut off outer side rail crush horn and inner side rail crush horn along scribed line A. Do not cut on the hole.

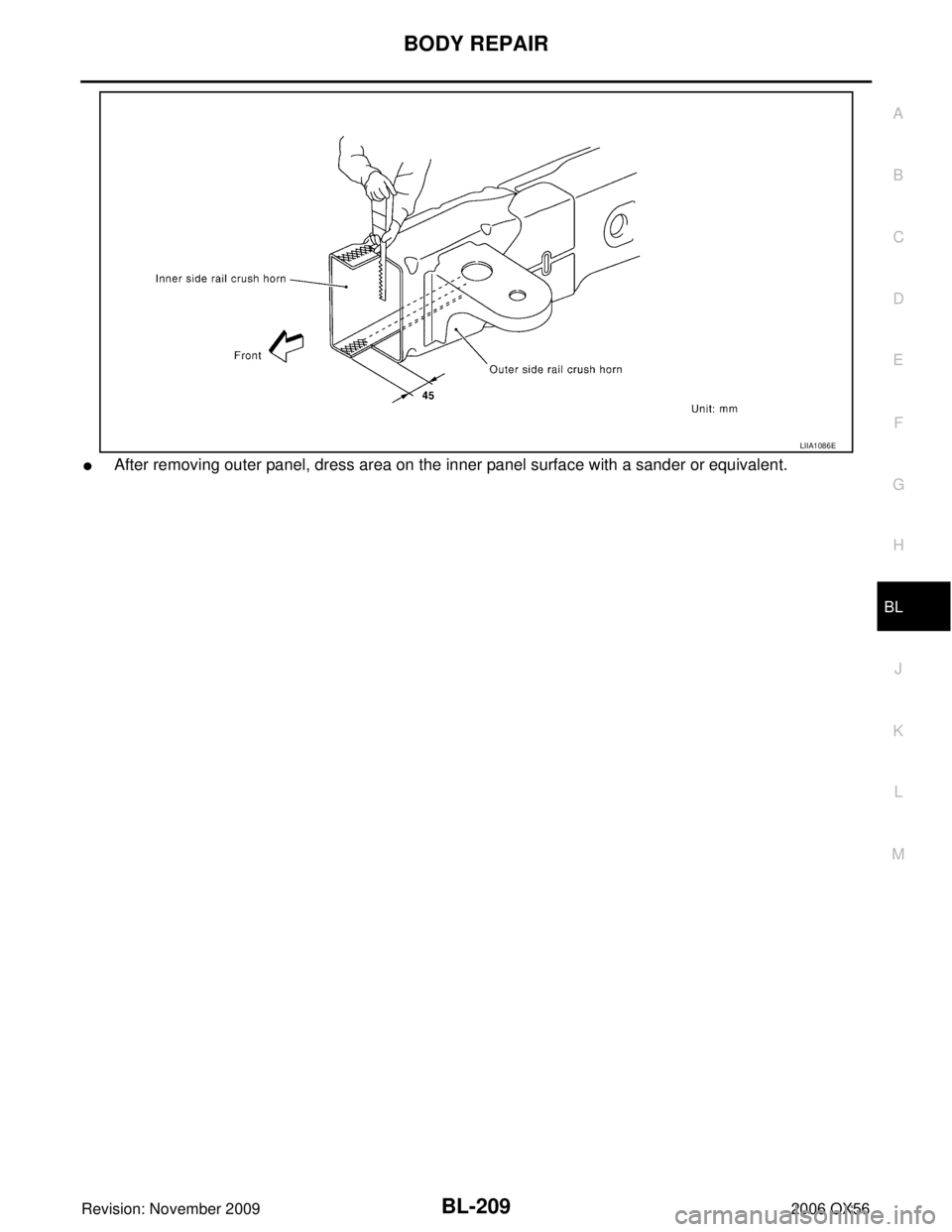

Cut inner side rail crush horn at 45 mm backward cut position of cut line A. (along line B)
LIIA1084E
LIIA1085E

BODY REPAIRBL-209
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56

After removing outer panel, dress area on the inner panel surface with a sander or equivalent.
LIIA1086E
