BODY REPAIRPFP:60100
Body Exterior Paint ColorEIS004T8
M: Metallic; 2S: 2-Coat Solid, 2P: 2-Coat Pearl; 3P: 3-Coat Pearl; t: New Cross Linking Clear Coat
LIIA1437E
ComponentColor code B18 EY2 G10 J20 K11 K12 Q11
Description
Cobalt
Blue Kashmir Liquid
Onyx Jade Silver
Graphite Silver
Indulgence Tuscan
Pearl
Clear coat t t t t ttt
1 Outside
mirror Body
Chromium
plate Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
Base Black KH3 KH3 KH3 KH3 KH3 KH3 KH3
2 Radiator
grille Center
and
emblemChromium
plate
Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
3 Bumpers Fascias Body color B18 EY2 G10 J20 K11 K12 Q11
4 Valance BlackKH3 KH3 KH3 KH3 KH3 KH3 KH3
5 Running
Boards Body Body color B18 EY2 G10 J20 K11 K12 Q11
Step pad Black
KH3 KH3 KH3 KH3 KH3 KH3 KH3
6 Outside
handles Chromium
plate
Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
7 Side
Guard
Molding Base Body color B18 EY2 G10 J20 K11 BK12 BQ10
To p T r i m
Chromium
plate Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
8 License
plate fin-
isher Base Body color B18 EY2 G10 J20 K11 K12 Q11
Top and
bottom
trim
Chromium
plate
Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
9 Cowl top
cover Body color B18 EY2 G10 J20 K11 K12 Q11
10 Rear
spoiler Body color B18 EY2 G10 J20 K11 K12 Q11

BODY REPAIRBL-161
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
Body Component PartsEIS004T9
UNDERBODY COMPONENT PARTS
LIIA0908E

BL-162
BODY REPAIR
Revision: November 20092006 QX56
1. Hoodledge assembly (RH, LH)
2. Hoodledge reinforcement (RH, LH)
3. Body mounting bracket (RH, LH)
4. Hoodledge front brace (RH), Battery mounting bracket (LH)
5. Harness connector bracket
6. Rear floor reinforcement
7. Rear floor
8. Rear floor reinforcement
9. Rear floor side (RH, LH)
10. Crossmember
11. Second seat rear crossmember
12. Second seat front crossmember
13. Rear front seat crossmember
14. Second Body crossmember
15. Front floor
16. Front seat front crossmember
17. Front floor reinforcement
18. Outer sill (RH, LH)
19. Second crossmember extension
20. Rear crossmember end
21. Rear lower crossmember end
22. Rear crossmember end (RH, LH)
23. Rear side member rear reinforcement (RH, LH)
24. Rear side member (RH, LH)
25. Rear side member reinforcement (RH, LH)
26. Inner sill extension (RH, LH)
27. Rear crossmember
28. Upper dash top
29. Upper dash bottom
30. Cowl top
31. Lower dash
32. Lower dash insulator (RH)
33. Lower dash reinforcement
34. Side dash (RH, LH)
35. Lower dash insulator

BODY REPAIRBL-163
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
BODY COMPONENT PARTS
LIIA1438E

BL-164
BODY REPAIR
Revision: November 20092006 QX56
1. Front fender (RH, LH)
2. Hood assembly
3. Rear hoodledge reinforcement (RH, LH)
4. Outer sill reinforcement (RH, LH)
5. Front pillar hinge brace (RH, LH)
6. Center pillar hinge brace
7. Outer front pillar reinforcement (RH, LH)
8. Center inner pillar (RH, LH)
9. Front inner pillar upper (RH, LH)
10. Inner roof side rail (RH, LH)
11. Roof with sunroof opening
12. Roof
13. Front roof rail
14. Sunroof reinforcement
15. Roof 1st bow
16. Roof 2nd bow
17. Roof 3rd bow
18. Roof 4th bow
19. Rear roof rail
20. Main back pillar (RH, LH)
21. Back pillar reinforcement (RH, LH)
22. Rear inner side panel (RH, LH)
23. Rear wheel housing (RH, LH)
24. Rear body side outer (RH, LH)
25. Front body side outer (RH, LH)
26. Front door assembly (RH, LH)
27. Rear door assembly (RH, LH)
28. Lift gate assembly

BODY REPAIRBL-165
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
Corrosion ProtectionEIS004TA
DESCRIPTION
To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.
ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)
To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet has been adopted replacing conven-
tional zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrode position primer.
Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that
GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-
mance built into the vehicle at the factory.
PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER
A phosphate coating treatment and a cationic electrode position primer, which provide excellent corrosion pro-
tection, are employed on all body components.
CAUTION:
Confine paint removal during welding operations to an absolute
minimum.
Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-
INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built
into the vehicle at the factory.
PIIA0093E
PIIA0095E

BL-166
BODY REPAIR
Revision: November 20092006 QX56

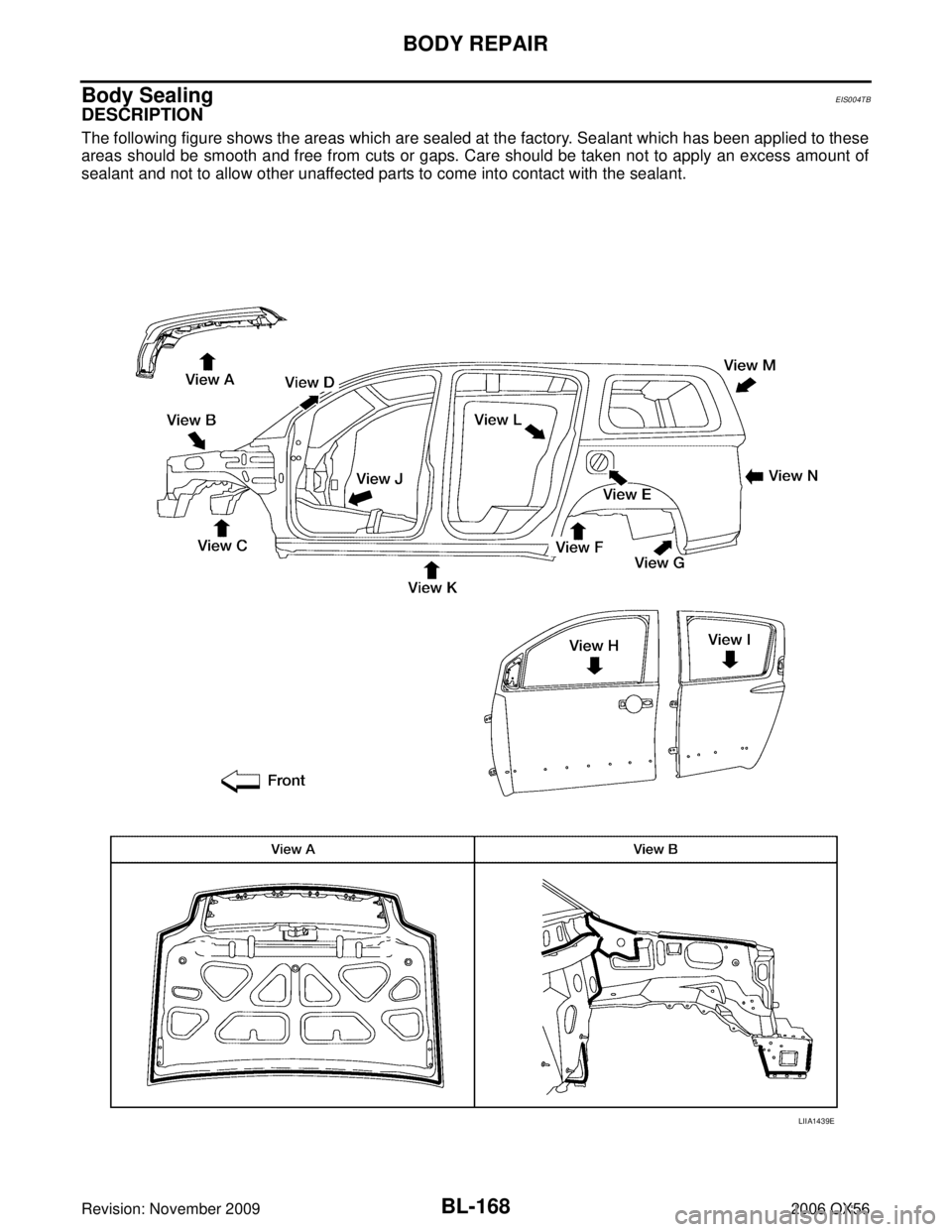

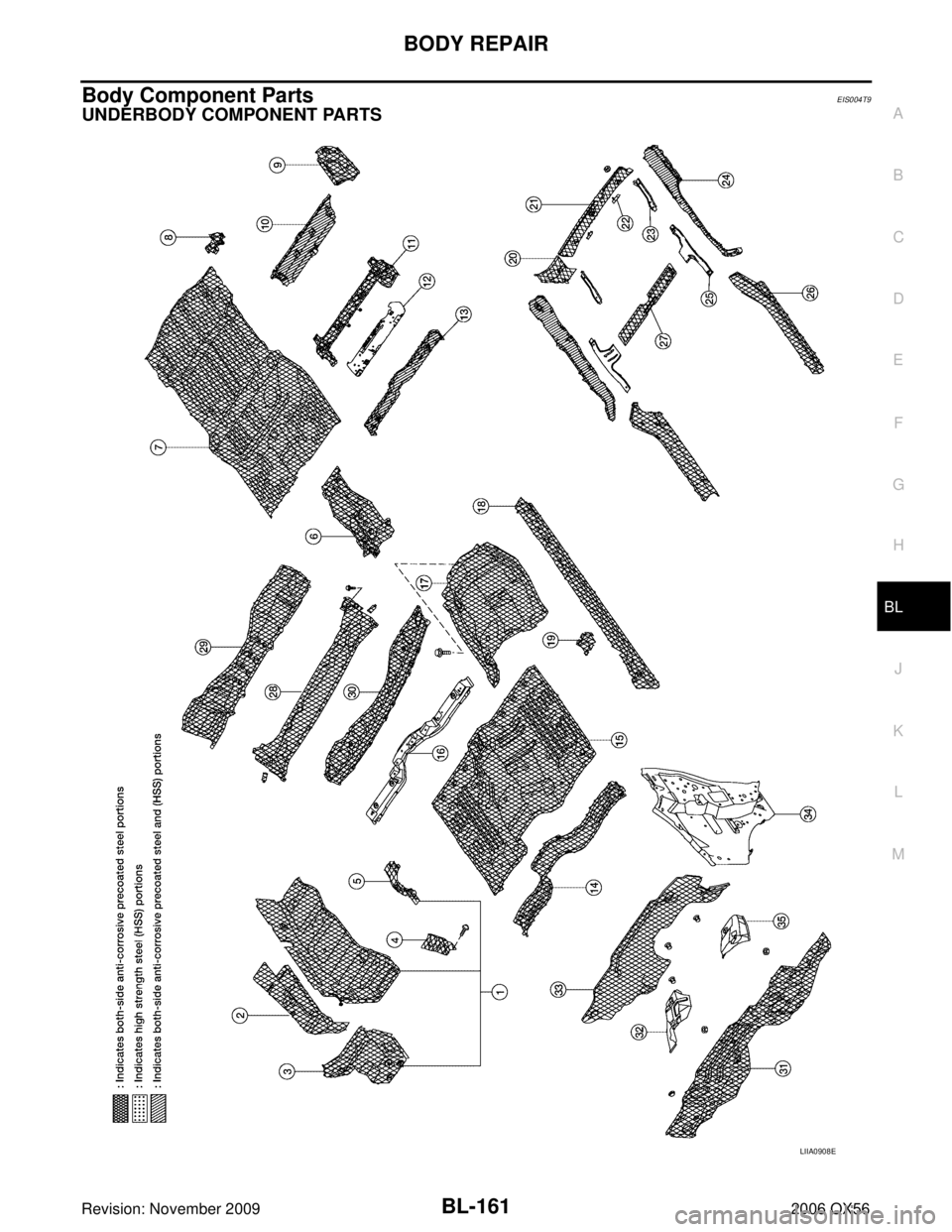

ANTI-CORROSIVE WAX
To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.
LIIA0905E

BODY REPAIRBL-167
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56

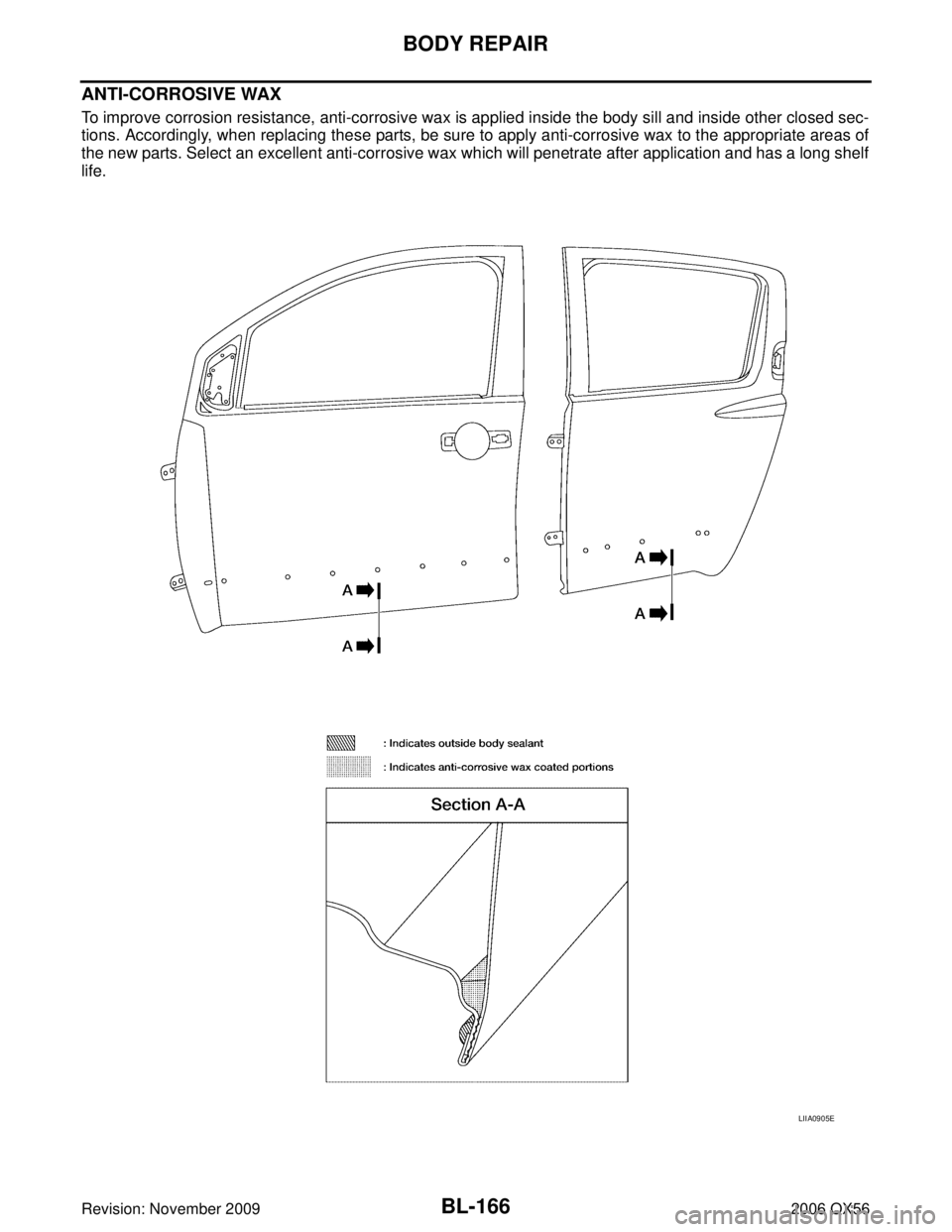

UNDERCOATING
The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.
Precautions in undercoating
1. Do not apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst which are subjected to heat).
2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
LIIA0129E

BL-168
BODY REPAIR
Revision: November 20092006 QX56
Body SealingEIS004TB

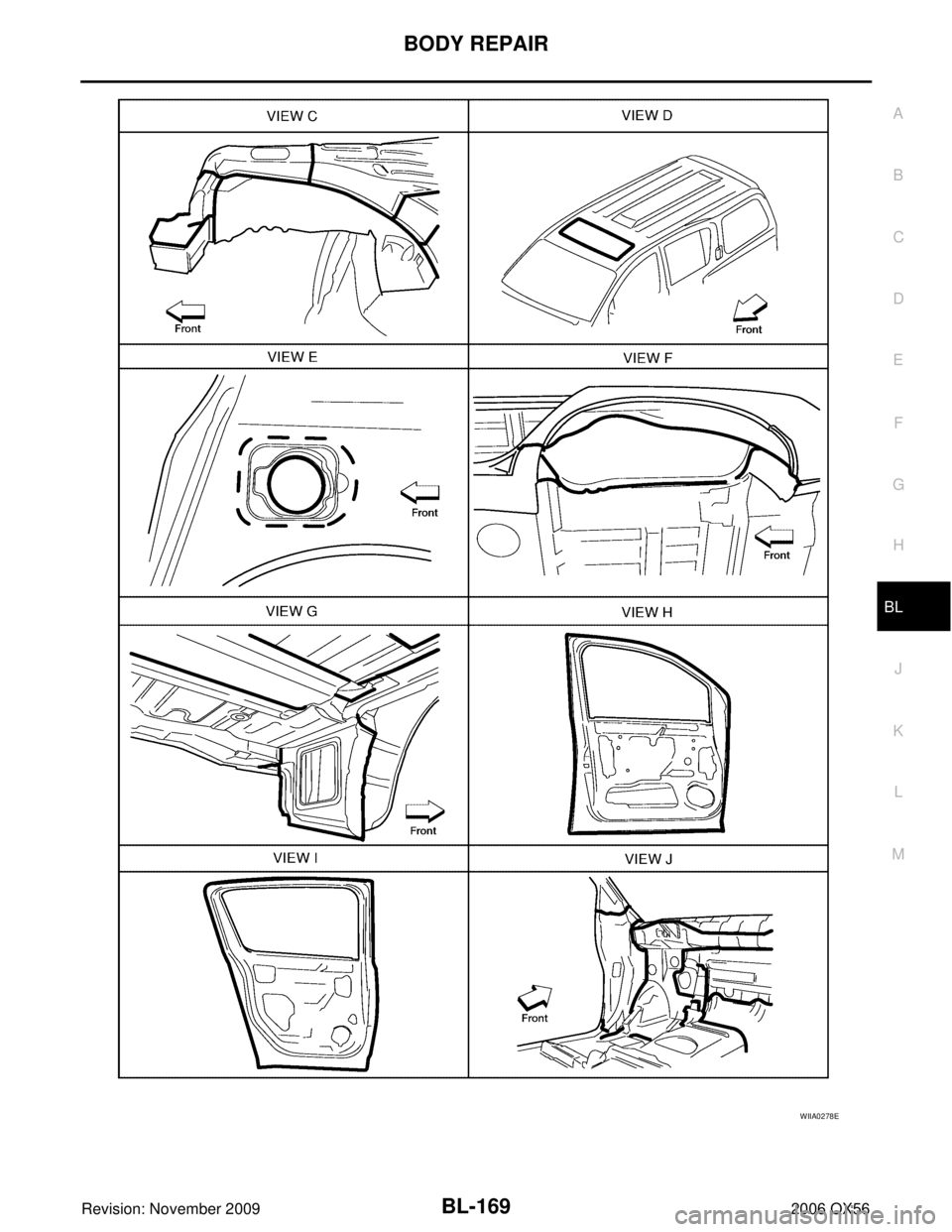

DESCRIPTION
The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected parts to come into contact with the sealant.
LIIA1439E

BODY REPAIRBL-169
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
WIIA0278E
