horn INFINITI QX56 2007 Factory User Guide

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-61
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
System DescriptionINFOID:0000000003532939
DESCRIPTION
Operation Flow

Setting the vehicle security system
Initial condition• Ignition switch is in OFF position.
Disarmed phase
• When the vehicle is being driven or when doors or glass hatch is open, the vehicle security system is set in
the disarmed phase on the assumption that the owner is inside or near the vehicle.
Pre-armed phase and armed phase
• The vehicle security system turns into the "pre-armed" phase when hood, glass hatch and all doors are
closed and locked by keyfob. The security indicator lamp illuminates for 30 seconds, then the system auto-
matically shifts into the "armed" phase.
Canceling the set vehicle security system
When one of the following operations is performed, the armed phase is canceled.
1. Unlock the doors with the key or the keyfob.
2. Open the power back door with the keyfob. When the power back door is closed after opening the power
back door with the keyfob, the system returns to the armed phase.
Activating the alarm operation of the vehicle security system
Make sure the system is in the armed phase.
When one of the following operations is performed, the system sounds the horns and flashes the headlamps
for about 50 seconds.
1. Engine hood, glass hatch or any door is opened before unlocking door with key or keyfob.
2. Door is unlocked without using key or keyfob.
3. Power back door is opened without using the keyfob.
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times
10. Main power window and door lock/un-
lock switch D7, D8
Power window and door lock/unlock
switch RH D10511. Front door switch
LH B8
RH B10812. Rear door switch
LH B18
RH B116
13. Back door latch (door ajar switch) D503
Glass hatch ajar switch D70714. Combination meter M24 15. Hood switch E8
16. RH headlamp
PIIA1367E

BL-62
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM
• through 10A fuse [No.19, located in the fuse block (J/B)]
• to combination meter (security indicator lamp) terminal 8 and
• through 50A fusible link (letter f , located in the fuse and fusible link box)
• to BCM terminal 70
• through 15A fuse [No. 22, located in the fuse block (J/B)]
• to BCM terminal 57
• through 15A fuse (No. 25, located in the fuse and fusible link box)
• to horn relay terminal 2
• through 20A fuse (No. 52, located in the IPDM E/R) and
• through 20A fuse (No. 53, located in the IPDM E/R),
• to IPDM E/R internal CPU.
With the ignition switch in the ACC or ON position, power is supplied• through 10A fuse [No. 4, located in the fuse block (J/B)]
• to BCM terminal 11.
Ground is supplied
• to BCM terminal 67
• through body grounds M57, M61 and M79 and
• to IPDM E/R terminals 38 and 59
• through body ground E9, E15 and E24.
INITIAL CONDITION TO ACTIVATE THE SYSTEM
The operation of the vehicle security system is controlled by the doors, hood and glass hatch.
To activate the vehicle security system, BCM must receive signals indicating the doors, hood and glass hatch
are closed and the doors are locked.
When a door is open, BCM terminal 12, 13, 42, 47 or 48 receives a ground signal from each door switch.
When front door LH is unlocked, BCM terminal 22 receives a signal from terminal 14 of main power window
and door lock/unlock switch.
When front door RH is unlocked, BCM terminal 22 receives a signal from terminal 16 of power window and
door lock/unlock switch RH or the rear power window switch LH or RH.
When the back door is open, BCM terminal 43 receives a ground signal
• from terminal 7 of the back door latch (door ajar switch)
• through body grounds B7 and B19.
When the glass hatch is open, BCM terminal 42 receives a ground signal
• from terminal + of the glass hatch ajar switch
• through glass hatch ajar switch case ground.
VEHICLE SECURITY SYSTEM ALARM OPERATION
The vehicle security system is triggered by
• opening a door
• opening the hood
• opening the glass hatch
• unlocking door without using the key or keyfob.
The vehicle security system will be triggered once the system is in armed phase,
• when BCM receives a ground signal at terminals 12, 13, 47, 48 (door switch), terminal 42 (glass hatch ajar
switch) or terminal 43 [back door latch (door ajar switch)], or IPDM E/R terminal 41 (hood switch) receives a
ground signal.
Power is supplied at all times
• to horn relay terminal 2
• through 15A fuse (No. 25, located in fuse and fusible link box).
When the vehicle security system is triggered, ground is supplied intermittently
• from IPDM E/R terminal 45
• to headlamp high relay and
• to horn relay terminal 1.
The headlamps flash and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds, but will reactivate if the vehicle is tampered with again.
VEHICLE SECURITY SYSTEM DEACTIVATION
To deactivate the vehicle security system, a door must be unlocked with the key or keyfob.
When the key is used to unlock the front door LH, BCM terminal 22 receives signal
• from terminal 14 of the main power window and door lock/unlock switch.

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-63
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
When the BCM receives this signal or unlock signal from keyfob, the vehicle security system is deactivated.
(Disarmed phase)
PANIC ALARM OPERATION
Remote keyless entry system may or may not operate vehicle security system (horn and headlamps) as
required.
When the remote keyless entry system is triggered, ground is supplied intermittently
• from IPDM E/R terminal 45
• to headlamp high relay and
• to horn relay terminal 1.
The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.
CAN Communication System DescriptionINFOID:0000000003532940
Refer to LAN-4.

BL-70
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM
CONSULT-II Function (BCM)
INFOID:0000000003532945
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-36, "CONSULT-II Start Procedure".
CONSULT-II APPLICATION ITEM
Data Monitor
Active Test
Work Support
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Monitored Item Description
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door latch.
TRNK OPN MNTR Indicates [ON/OFF] condition of glass hatch ajar switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from keyfob.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from keyfob.
KEY CYL LK-SW Indicates [ON/OFF] condition of lock signal from door key cylinder switch.
KEY CYL UN-SW Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.
KEYLESS PBD Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from lock/unlock switch.
HOOD SW Indicates [ON/OFF] condition of hood switch.
Test Item Description
THEFT INDThis test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-II screen is touched.
HEADLAMP (HI)This test is able to check vehicle security lamp operation. The high beam headlamps will be acti-
vated for 0.5 seconds after “ON” on CONSULT-II screen is touched.
VEHICLE SECURITY HORNThis test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-II screen is touched.

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-73
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
*1: Make sure the system is in the armed phase.
Door Switch CheckINFOID:0000000003532949
1.CHECK DOOR SWITCHES INPUT SIGNAL
With CONSULT-II
Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR", "BACK DOOR
SW", "TRNK OPN MNTR") in DATA MONITOR mode with CONSULT–II.Refer to BL-70, "
CONSULT-II Func-
tion (BCM)".
• When doors are open:
• When doors are closed:
Without CONSULT-II
3*1 Vehicle security
system does not
alarm when ····Any door, hood or glass hatch is
opened.Refer to BL-73, "
Door Switch Check".
Refer to BL-75, "
Hood Switch Check".
If the above systems are “OK”, replace BCM. Refer to BCS-24, "
BCM".
4Vehicle security
alarm does not ac-
tivate.Horn alarmRefer to BL-79, "
Vehicle Security Horn Alarm Check" .
If the above systems are “OK”, check horn system.
Refer to WW-43
.
Headlamp alarmRefer to BL-79, "
Vehicle Security Headlamp Alarm Check".
If the above systems are “OK”, replace BCM. Refer to BCS-24, "
BCM".
5Vehicle security
system cannot be
canceled by ····Door outside keyRefer to BL-77, "
Front Door Lock Assembly LH (Key Cylinder Switch)
Check" .
If the above systems are “OK”, check main power window and door lock/
unlock switch.
KeyfobCheck remote keyless entry function. Refer to BL-52, "
Keyfob Battery and
Function Check".
If the above systems are “OK”, replace BCM. Refer to BCS-24, "
BCM" . SYMPTOM PROCEDURE Diagnostic procedure
DOOR SW-DR : ON
DOOR SW-AS : ON
DOOR SW-RL : ON
DOOR SW-RR : ON
BACK DOOR SW : ON
TRNK OPN MNTR : ON
DOOR SW-DR : OFF
DOOR SW-AS : OFF
DOOR SW-RL : OFF
DOOR SW-RR : OFF
BACK DOOR SW : OFF
TRNK OPN MNTR : OFF
WIIA0466E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-79
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
Check continuity between main power window and door lock/unlock
switch connector (A) D7 terminals 4, 6 and front door lock assembly
LH (key cylinder switch) connector (B) D14 terminals 1, 6 and body
ground.
OK or NG
OK >> Replace main power window and door lock/unlock switch.
NG >> Repair or replace harness.
Vehicle Security Horn Alarm CheckINFOID:0000000003532953
1.CHECK HORN OPERATION
Check if horn sounds with horn switch.
Does horn operate?
YES >> Check harness for open or short between IPDM E/R and horn relay.
NO >> Check horn circuit. Refer to WW-43
.
Vehicle Security Headlamp Alarm CheckINFOID:0000000003532954
1.CHECK VEHICLE SECURITY HEADLAMP ALARM OPERATION
Check if headlamps operate with lighting switch.
Do headlamps come on when turning switch ON?
YES >> Headlamp alarm is OK.
NO >> Check headlamp system. Refer to LT- 5
or LT- 2 4.
Door Lock/Unlock Switch CheckINFOID:0000000003532955
1.CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
Check if power door lock operates with door lock/unlock switch.
Do doors lock/unlock when using each door lock/unlock switch?
YES >> Door lock/unlock switch is OK.
NO >> Refer to "Door Lock/Unlock Switch Check ".
Connector Terminals Connector Terminals Continuity
A: Main
power win-
dow and
door lock/
unlock
switch4 B: Front
door lock
assembly
LH (key
cylinder
switch)1Yes
66Yes
4, 6 Ground No
WIIA0756E

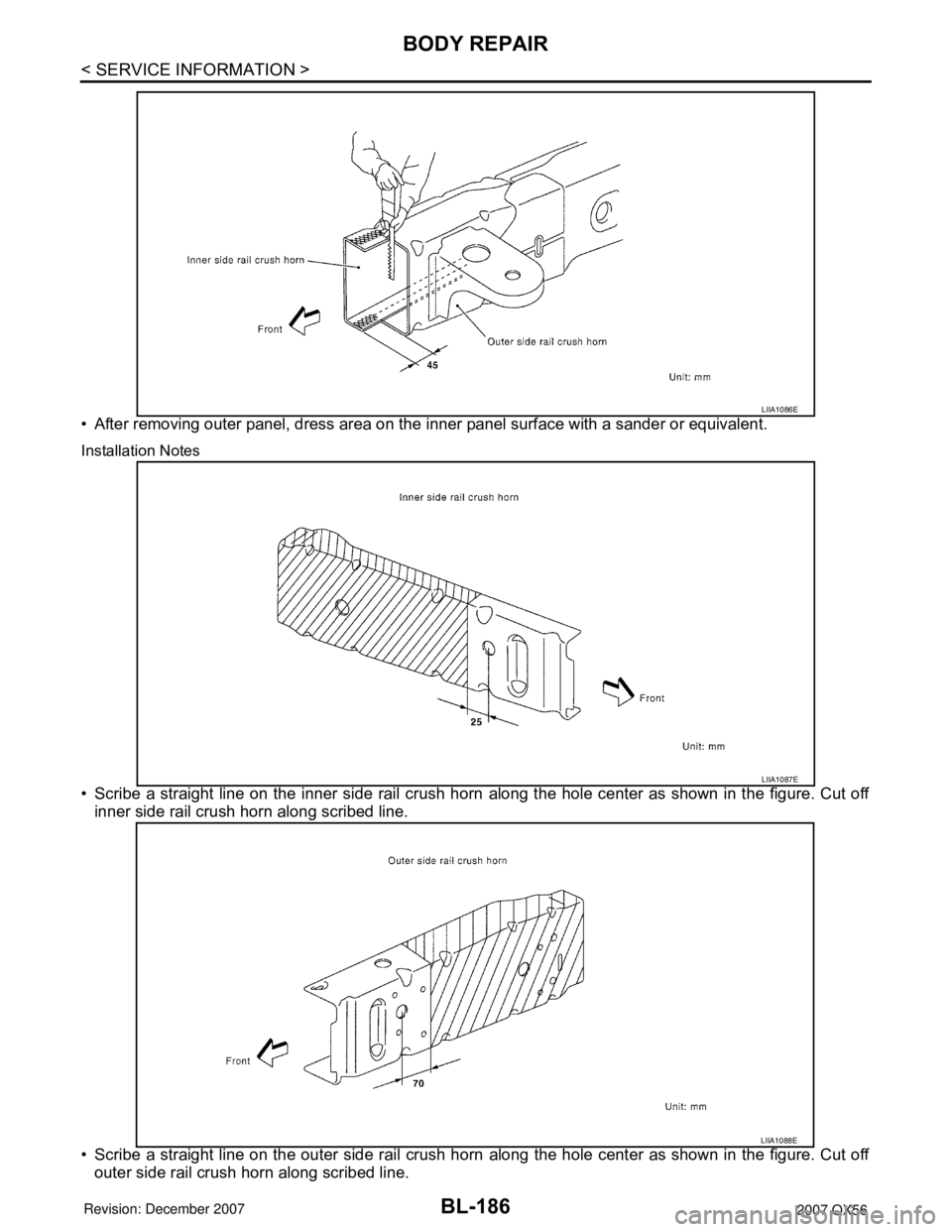

BODY REPAIR
BL-183
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
•
CRUSH HORN
WIIA0282E

BL-184
< SERVICE INFORMATION >
BODY REPAIR
• Work after 1st crossmember has been removed.
Portions to be welded:
A. Inner side rail crush horn, inner side rail crush horn and outer side rail crush horn.
B. Outer side rail crush horn, outer side rail crush horn and inner side rail crush horn.
Removal Notes
LIIA1083E

BODY REPAIR
BL-185
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
• Scribe a straight line on the outer side rail crush horn and inner side rail crush horn along the hole center as
shown in the figure.
• Cut off outer side rail crush horn and inner side rail crush horn along scribed line A. Do not cut on the hole.
• Cut inner side rail crush horn at 45 mm backward cut position of cut line A. (along line B)
LIIA1084E
LIIA1085E

BL-186
< SERVICE INFORMATION >
BODY REPAIR
• After removing outer panel, dress area on the inner panel surface with a sander or equivalent.
Installation Notes
• Scribe a straight line on the inner side rail crush horn along the hole center as shown in the figure. Cut off
inner side rail crush horn along scribed line.
• Scribe a straight line on the outer side rail crush horn along the hole center as shown in the figure. Cut off
outer side rail crush horn along scribed line.
LIIA1086E
LIIA1087E
LIIA1088E
