AUTOMATIC DRIVE POSITIONER
Check that when the A/T selector lever is in P position, “DETENT
SW” on the DATA MONITOR becomes OFF.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> A/T device (park position switch) circuit is OK.
NG >> GO TO 2.
2.CHECK A/T DEVICE (PARK POSITION SWITCH) HARNESS
1. Turn ignition switch OFF.
2. Disconnect A/T device and driver seat control unit.
3. Check continuity between A/T device connector M203 terminal 6
and driver seat control unit connector P2 terminal 21.
4. Check continuity between A/T device connector M203 terminal 6
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK PARK POSITION SWITCH
Check continuity between A/T device (park position switch) terminals
as follows.
OK or NG
OK >> A/T device is OK.
NG >> Replace A/T device.
Steering Wheel Tilt Switch Circuit InspectionINFOID:0000000003533202
1.CHECK FUNCTION
With CONSULT-II
With “TILT SW-UP, TILT SW-DOWN” on the DATA MONITOR, oper-
ate the ADP steering wheel tilt switch to check ON/OFF operation.
Monitor item
[OPERATION or UNIT]Contents
DETENT SW“ON/
OFF”The A/T selector lever position “P position (OFF)/other
than P position (ON)” judged from the park position switch
signal is displayed.
PIIA0291E
6 - 21 : Continuity should exist.
6 - Ground : Continuity should not exist.
LIIA1024E
Terminals Condition Continuity
56P position No
Other than P position Yes
LIIA1491E
Monitor item [OPERATION or
UNIT]Contents
TILT SW-UP “ON/OFF”Operation (ON)/open (OFF) status
judged from the tilt switch (FR) signal is
displayed.
TILT SW-DOWN “ON/OFF”Operation (ON)/open (OFF) status
judged from the tilt switch (RR) signal is
displayed.
PIIA0315E

AUTOMATIC DRIVE POSITIONER
SE-71
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> ADP steering wheel tilt switch circuit is OK.
NG >> GO TO 2.
2.CHECK ADP STEERING WHEEL TILT SWITCH HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector
and ADP steering wheel tilt switch.
2. Check continuity between automatic drive positioner control unit
connector M33 terminals 1, 17 and ADP steering wheel tilt
switch connector M16 terminals 2, 3.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 1, 17 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK ADP STEERING WHEEL TILT SWITCH
Check continuity between ADP steering wheel tilt switch terminals
as follows.
OK or NG
OK >> GO TO 4.
NG >> Replace ADP steering wheel tilt switch.
4.CHECK ADP STEERING WHEEL TILT SWITCH GROUND CIRCUIT
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M331
GroundTilt switch ON (UP operation) 0
Other than above 5
17Tilt switch ON (DOWN opera-
tion)0
Other than above 5
LIIA0491E
1 - 2 : Continuity should exist.
17 - 3 : Continuity should exist.
1 - Ground : Continuity should not exist.
17 - Ground : Continuity should not exist.
LIIA1434E
Terminals Condition Continuity
2
1Tilt switch ON (UP operation) Yes
Other than above No
3Tilt switch ON (DOWN operation) Yes
Other than above No
LIIA1435E

SE-72
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
Check continuity between ADP steering wheel tilt switch connector
M16 terminal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness.
Front Door Switch LH Circuit InspectionINFOID:0000000003533203
1.CHECK FUNCTION
With CONSULT-II
Touch "BCM" with “DOOR SW-DR” on the DATA MONITOR, check
ON/OFF operation when the front door is open and closed.
*:Refer to SE-32, "CONSULT-II Function (AUTO DRIVE POS.)".
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> GO TO 2.
2.CHECK FRONT DOOR SWITCH LH
1. Turn ignition switch OFF.
2. Disconnect front door switch LH.
3. Check continuity between front door switch LH terminal 2 and
exposed metal of switch while pressing and releasing switch.
OK or NG
OK >> GO TO 3.
NG >> Replace front door switch LH.
3.CHECK HARNESS CONTINUITY
1. Disconnect BCM.
2. Check continuity between BCM connector M19 terminal 47 and
front door switch LH connector B8 terminal 2.
3. Check continuity between BCM connector M19 terminal 47 and
ground.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> Repair or replace harness.1 - Ground : Continuity should exist.
LIIA0490E
Monitor item [OPERATION
or UNIT]Contents
DOOR SW DR*“ON/
OFF”Door open (ON)/door closed (OFF) status judged
from the front door switch is displayed.
PIIA0291E
Terminals Condition Continuity
2GroundWith the front door switch LH pressed No
With the front door switch LH released Yes
LIIA2377E
47 - 2 : Continuity should exist.
47 - Ground : Continuity should not exist.
LIIA1027E

AUTOMATIC DRIVE POSITIONER
SE-73
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
UART Communication Line Circuit InspectionINFOID:0000000003533204
1.CHECK UART LINE INPUT/OUTPUT SIGNAL 1
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and
ground, with oscilloscope.
OK or NG
OK >> GO TO 2.
NG >> Check the following.
• When voltage wave form does not appear with a constant voltage (approx. 5V), replace driver
seat control unit.
• When voltage wave form does not appear with a constant voltage (approx. 0V), replace auto-
matic driver seat control unit.
2.CHECK UART LINE INPUT/OUTPUT SIGNAL 2
Check signal between automatic drive positioner control unit con-
nector ground, with oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Check the following.
• When voltage wave form does not appear with a constant voltage (approx. 5V), replace auto-
matic drive positioner control unit.
• When voltage wave form does not appear with a constant voltage (approx. 0V), replace driver
seat control unit.
3.CHECK UART LINE HARNESS
ConnectorTe r m i n a l s
Condition Signal
(+) (-)
P2 17 GroundPedal ad-
justing
switch ON
(FOR-
WARD or
BACK-
WARD op-
eration)
PIIA4599E
PIIA4814E
ConnectorTe r m i n a l s
Condition Signal
(+) (-)
M33 10 GroundPedal ad-
justing
switch ON
(FOR-
WARD or
BACK-
WARD op-
eration)
PIIA4816E
PIIA4813E

SE-74
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
1. Disconnect driver seat control unit and automatic drive posi-
tioner control unit.
2. Check continuity between driver seat control unit connector P2
terminals 1, 17, and automatic drive positioner connector M33
terminals 10, 26.
3. Check continuity between driver seat control unit connector P2
terminals 1, 17 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4.CHECK DRIVER SEAT CONTROL UNIT
Does the automatic drive positioner operate when the driver seat control unit is exchanged?
OK or NG
OK >> Replace driver seat control unit.
NG >> Replace automatic drive positioner control unit.
Removal and InstallationINFOID:0000000003533205
Refer to ACC-3 and BR-5 . 1 - 10 : Continuity should exist.
17 - 26 : Continuity should exist.
1 - Ground : Continuity should not exist.
17 - Ground : Continuity should not exist.
PIIA4598E

POWER SEAT
SE-75
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
POWER SEAT
Wiring Diagram - SEAT - for Passenger SeatINFOID:0000000003533206
WIWA1406E

SE-76
< SERVICE INFORMATION >
HEATED SEAT
HEATED SEAT
DescriptionINFOID:0000000003533207
• When handling seat, be extremely careful not to scratch heating unit.
• Front passenger seat cushion and seatbacks equipped with airbags cannot be disassembled. They are
replaced as assemblies only.
• Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.
WIIA0031E

HEATED SEAT
SE-77
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
SchematicINFOID:0000000003533208
WIWA0586E

SE-78
< SERVICE INFORMATION >
HEATED SEAT

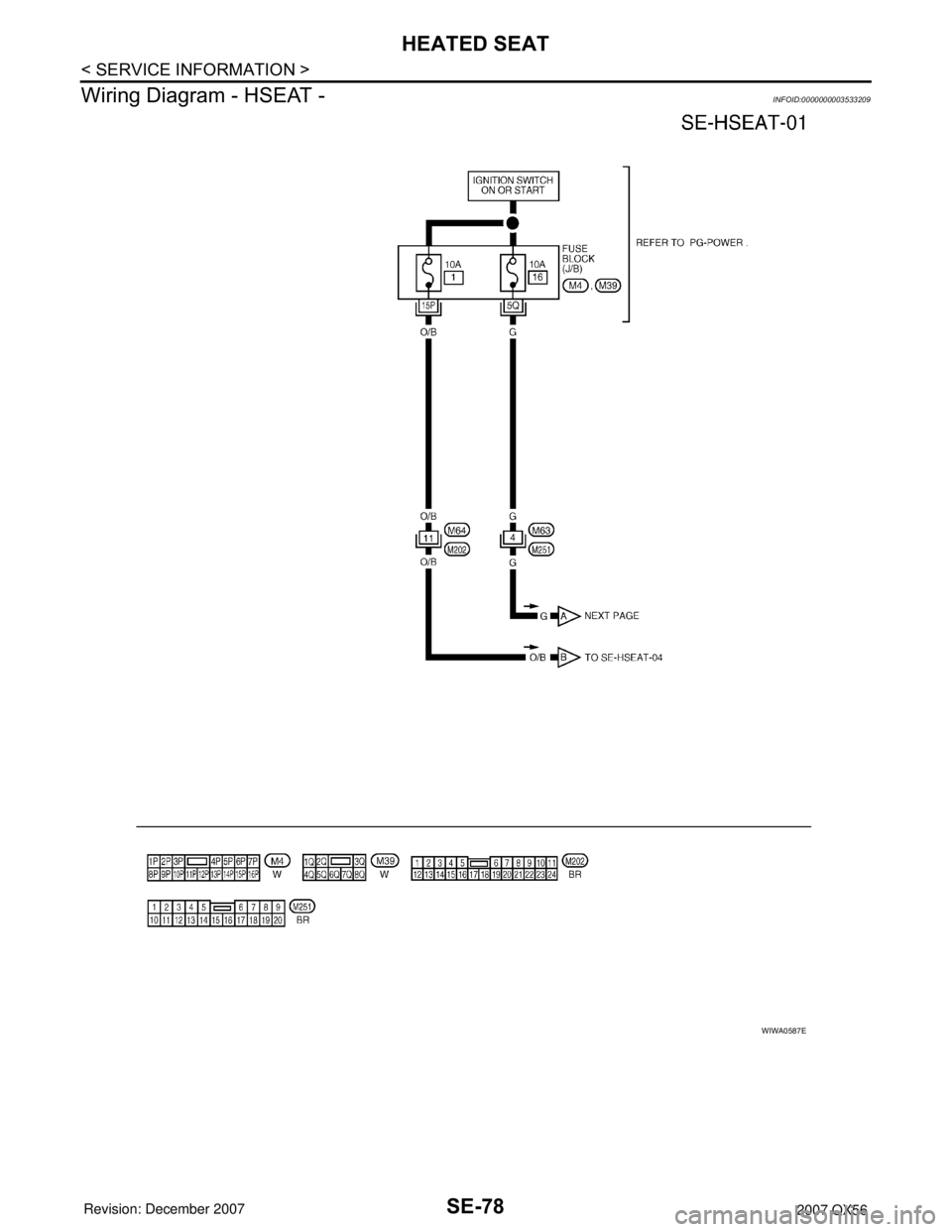

Wiring Diagram - HSEAT -
INFOID:0000000003533209
WIWA0587E

HEATED SEAT
SE-79
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
WIWA0588E
