BRC-12
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

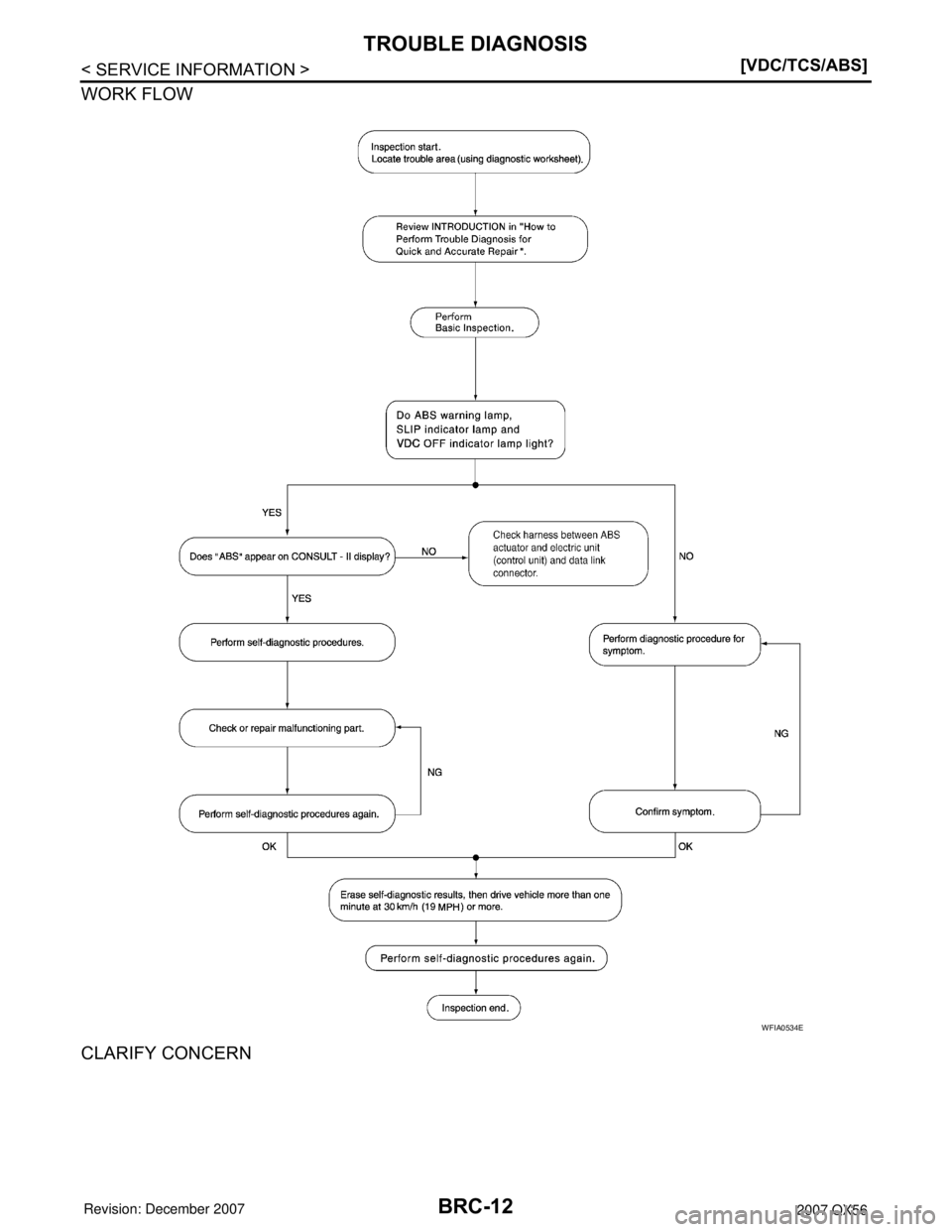

WORK FLOW
CLARIFY CONCERN
WFIA0534E

TROUBLE DIAGNOSIS
BRC-13
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
• A customer's description of a vehicle concern may vary depending
on the individual. It is important to clarify the customer's concern.
• Ask the customer about what symptoms are present under what
conditions. Use this information to reproduce the symptom while
driving.
• It is also important to use the diagnosis sheet to understand what
type of trouble the customer is having.

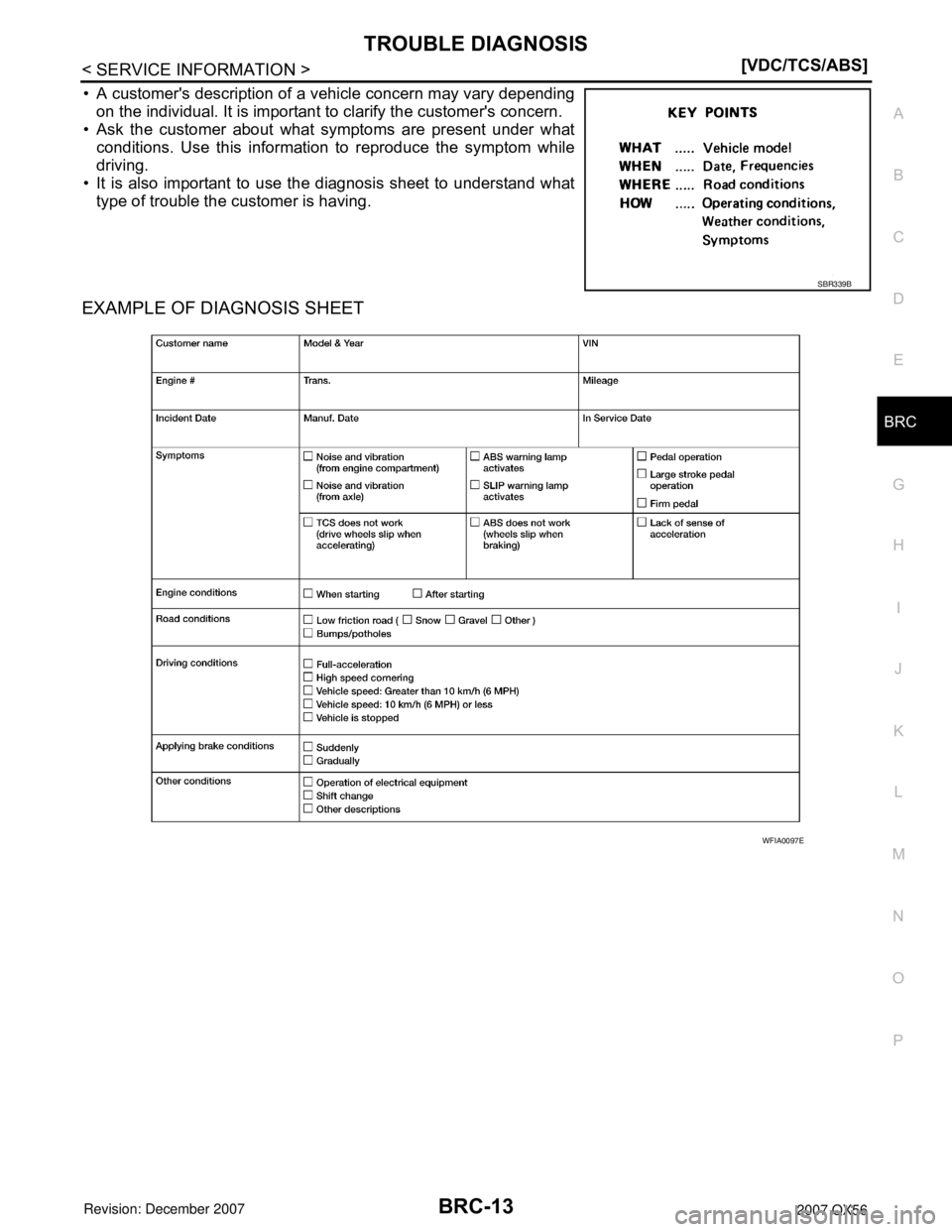

EXAMPLE OF DIAGNOSIS SHEET
SBR339B
WFIA0097E

BRC-14
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

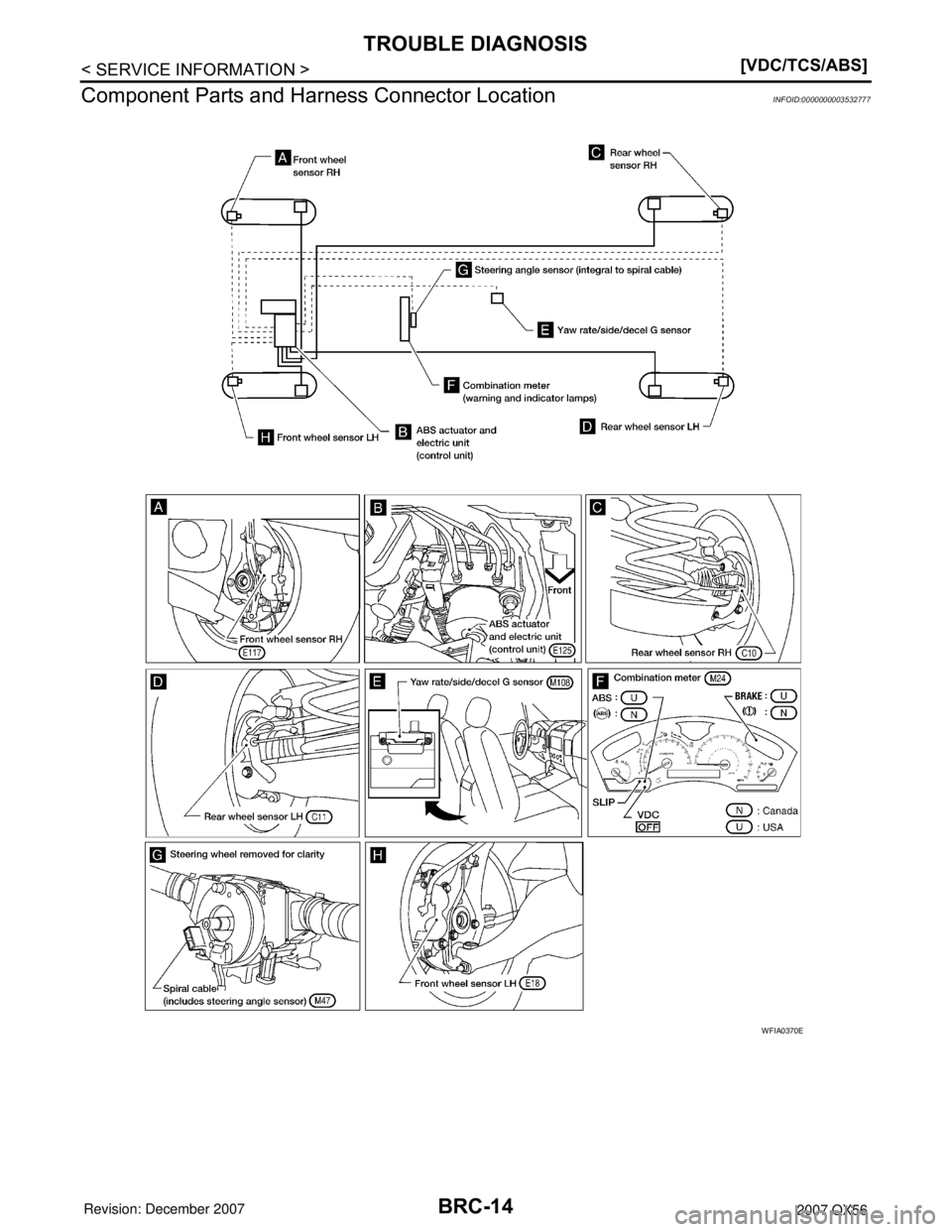

Component Parts and Harness Connector Location
INFOID:0000000003532777
WFIA0370E

TROUBLE DIAGNOSIS
BRC-15
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P

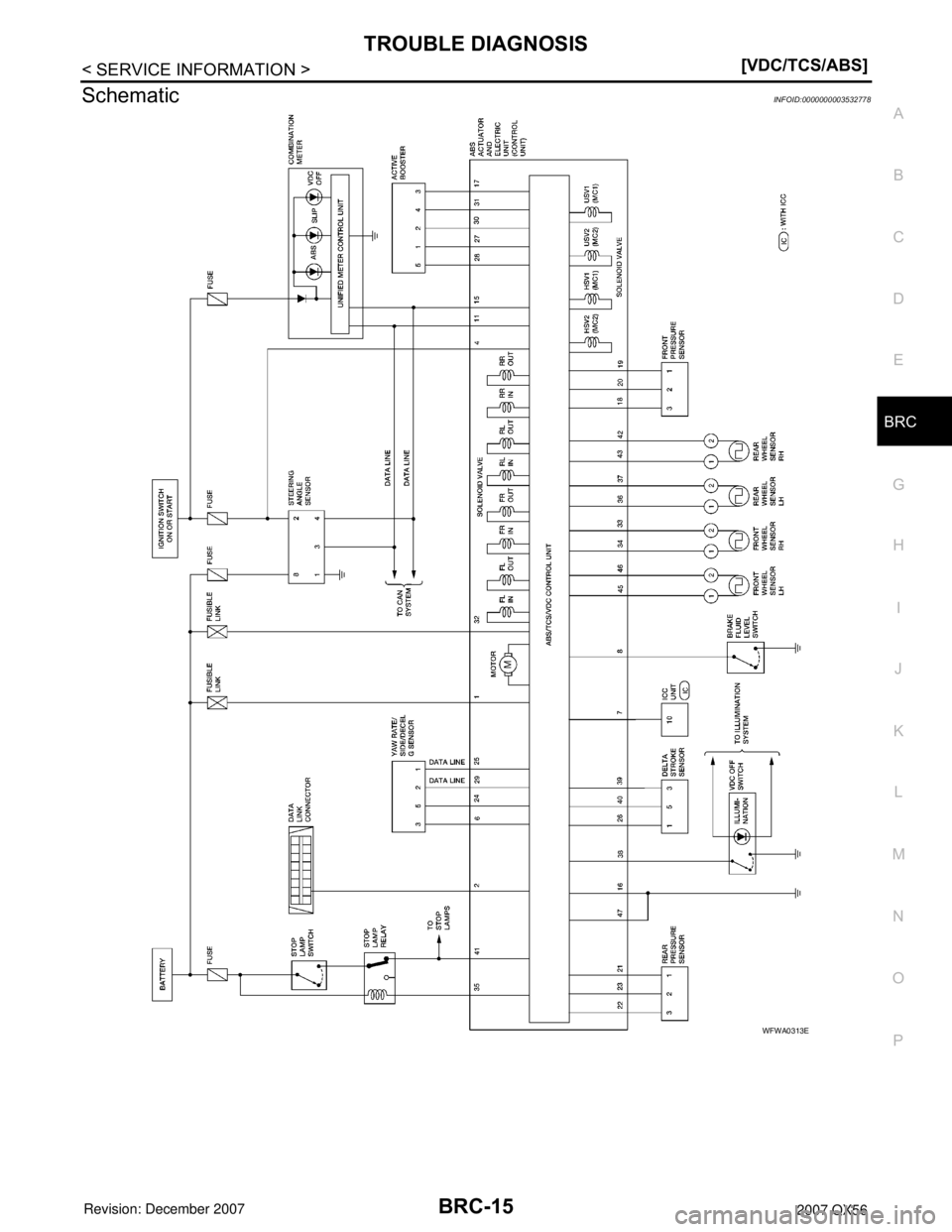

SchematicINFOID:0000000003532778
WFWA0313E

BRC-16
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Wiring Diagram - VDC -
INFOID:0000000003532779
WFWA0314E

TROUBLE DIAGNOSIS
BRC-17
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P

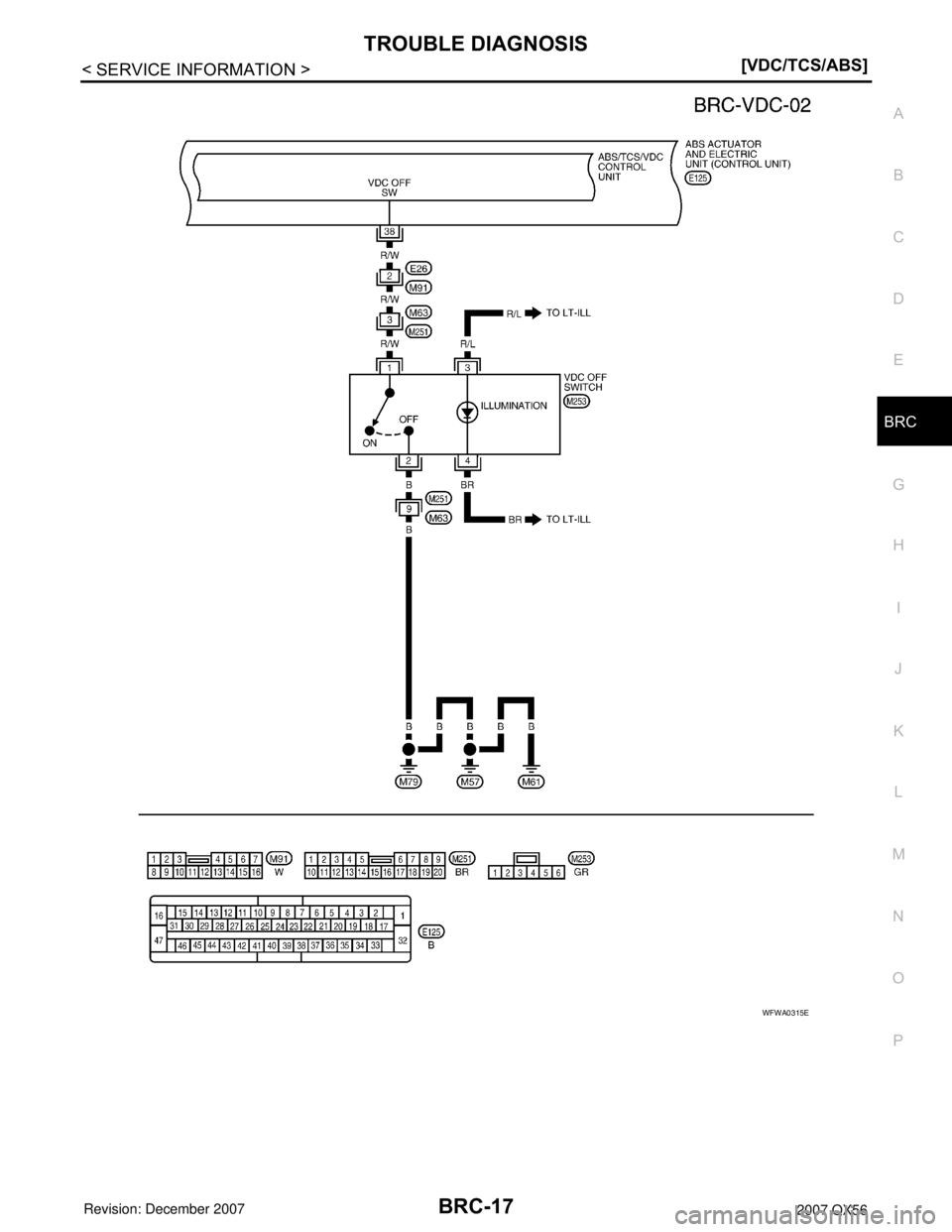

WFWA0315E

BRC-18
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
WFWA0316E

TROUBLE DIAGNOSIS
BRC-19
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P

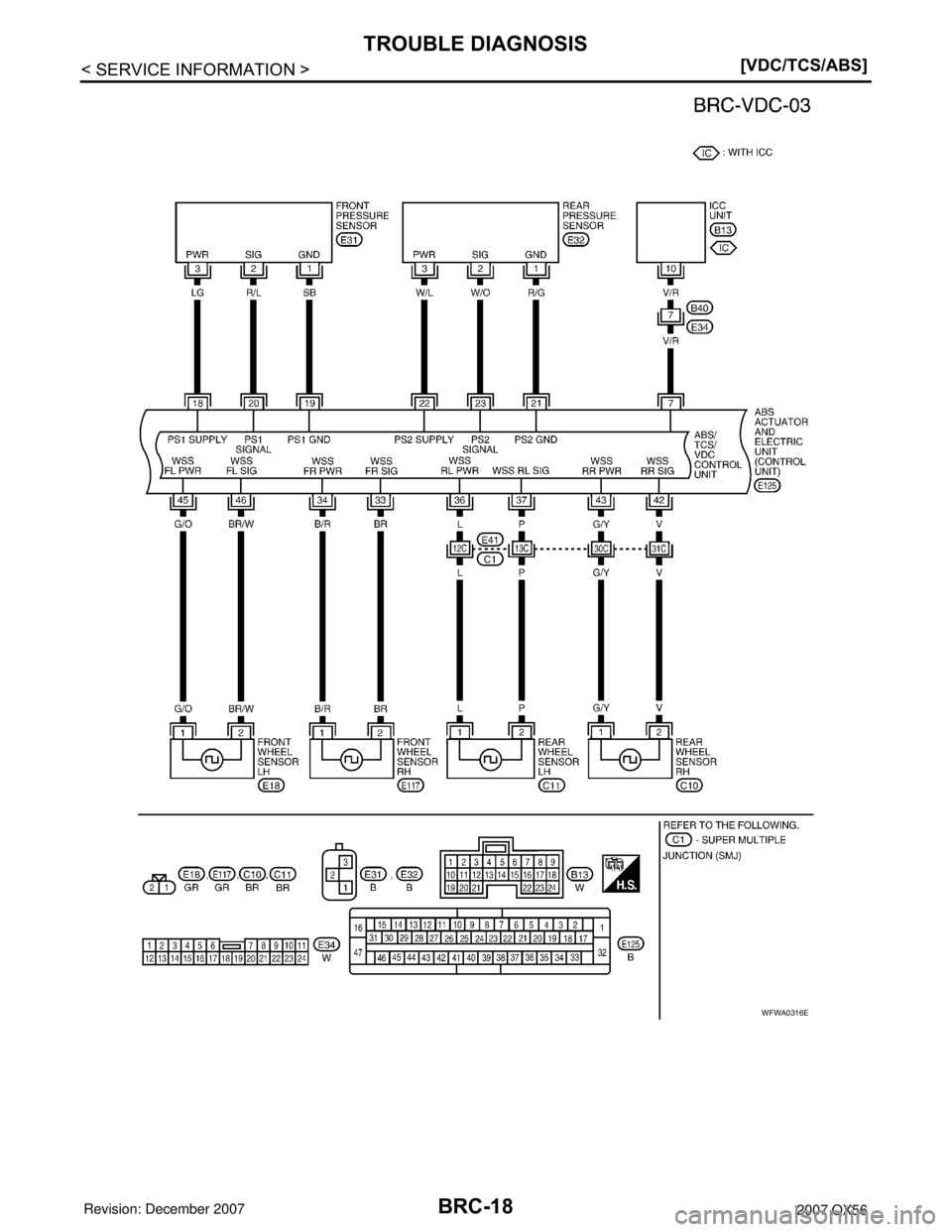

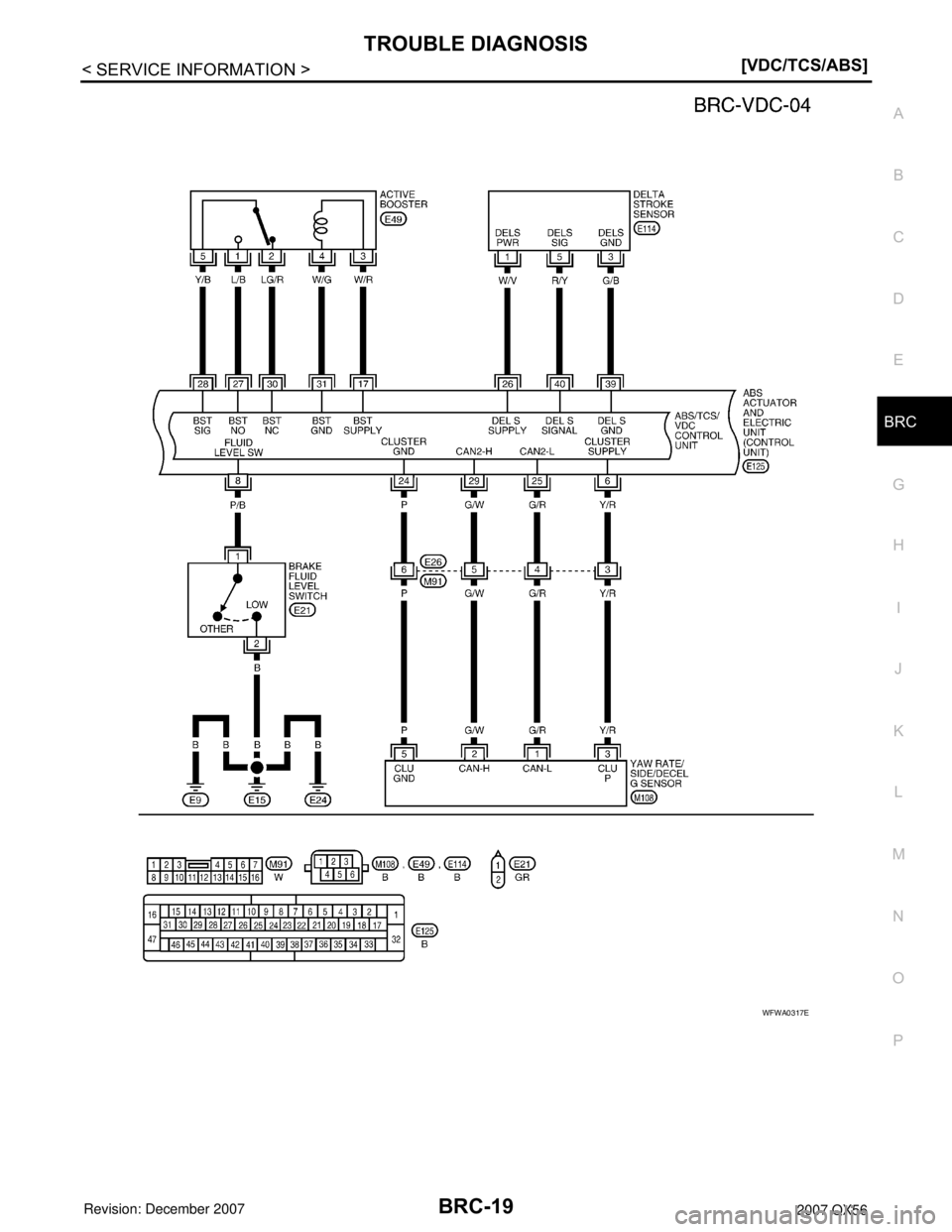

WFWA0317E

BRC-20
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

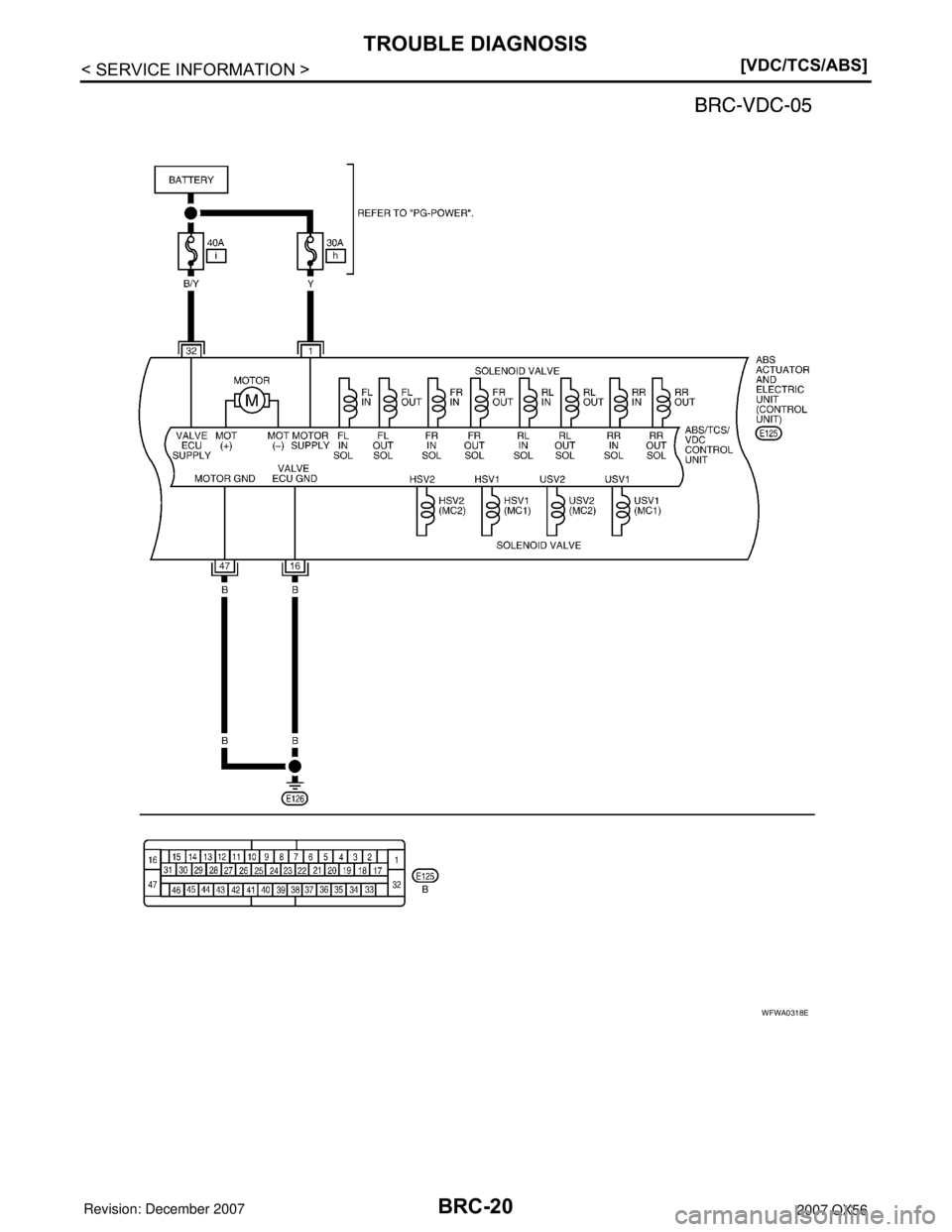

WFWA0318E

TROUBLE DIAGNOSIS
BRC-21
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P

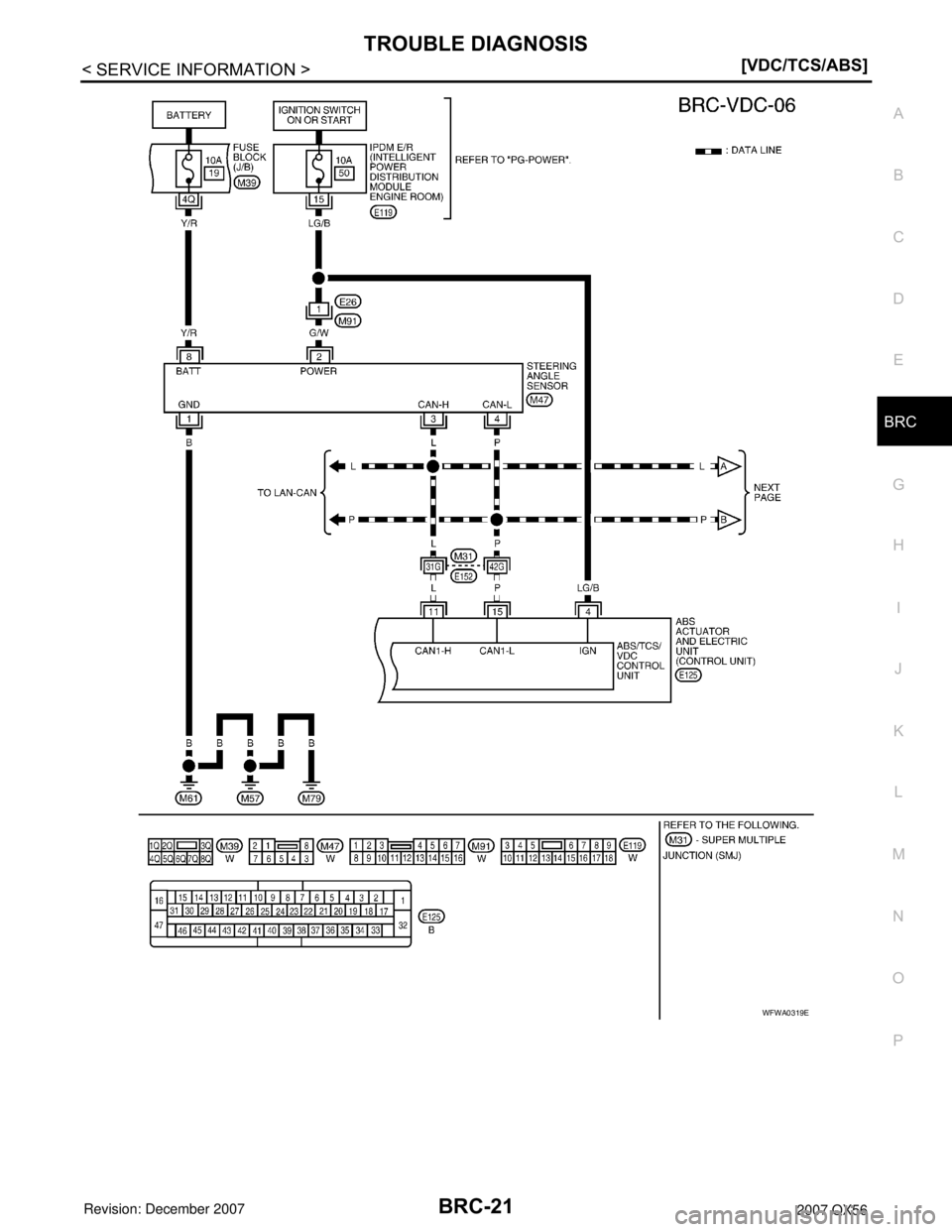

WFWA0319E
