BRC-32
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
×: Applicable
–: Not applicable
ACTIVE TEST
CAUTION:
• Do not perform active test while driving.
• Make sure to completely bleed air from the brake system.
• The ABS and brake (EBD) warning lamps turn on during the active test.
Solenoid Valve Operation Chart
BST OPER SIG – –×Active booster operation (ON/OFF)
status is displayed.
PRESS SENSOR×–×Brake pressure detected by pres-
sure sensor is displayed.
CRANKING SIG – –×The input state of the key SW
START position signal is displayed.
PRESS SEN 2 – –×Brake pressure detected by pres-
sure sensor is displayed.
DELTA S SEN – –×The amount of stroke sensor move-
ments in the active booster detected
by DELTA S SEN is displayed.
RELEASE SW NO – –×Release switch signal (ON/OFF)
status is displayed. "ON" indicates
that the brake pedal is depressed.
"OFF" is that the brake pedal is re-
leased.
RELEASE SW NC – –×Release switch signal (ON/OFF)
status is displayed. "OFF" indicates
that the brake pedal is depressed
on. "ON" is that the brake pedal is
released.
OHB FAIL – –×OHB fail status is displayed.
HBA FAIL – –×HBA fail status is displayed.
OHB SIG – –×OHB operation (ON/OFF) status is
displayed.
HBA SIG – –×HBA operation (ON/OFF) status is
displayed.
PRES CTRL ACC – –×Pressure control state (ON/OFF) is
displayed. It is applied only to an
ICC vehicle.
PRES FAIL ACC – –×Pressure control fail state (ON/OFF)
is displayed. It is applied only to an
ICC vehicle.
STP OFF RLY – –×Stop lamp relay signal (ON/OFF)
status is displayed. Item
(Unit)Data monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
OperationABS solenoid valve ABS solenoid valve (ACT)
UP KEEP DOWN UPACTUA-
TOR UPACTUA-
TOR KEEP
FR RH SOL
FR RH ABS SOLE-
NOID (ACT)FR RH IN SOL OFF ON ON OFF OFF OFF
FR RH OUT SOL OFF OFF ON* OFF OFF OFF

TROUBLE DIAGNOSIS
BRC-33
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P*: ON for 1 to 2 seconds after the touch, and then OFF
NOTE:
• If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
• “TEST IS STOPPED” is displayed approximately 10 seconds after operation starts.
• After “TEST IS STOPPED” is displayed, to perform test again, repeat Step 6.
ABS Motor
Touch “ON” and “OFF” on the screen. Check that ABS motor relay
operates as shown in table below.
NOTE:
• If active test is performed with brake pedal depressed, pedal
stroke may change. This is normal.
• “TEST IS STOPPED” is displayed approximately 10 seconds after
operation starts.
Booster Drive
CAUTION:
Perform active test subject to the conditions below.
• Do not operate brake pedal during active test.
• Make sure the engine revolution is over 500 rpm.
• Make sure the vehicle is not moving.
Touch "UP" and "DOWN" on the screen. Check that booster drive
operates as shown in table below.
NOTE:
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
FR LH SOL
FR LH ABS SOLE-
NOID (ACT)FR LH IN SOL OFF ON ON OFF OFF OFF
FR LH OUT SOL OFF OFF ON* OFF OFF OFF
RR RH SOL
RR RH ABS SOLE-
NOID (ACT)RR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH SOL
RR LH ABS SOLE-
NOID (ACT)RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF
REAR SOLRR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF OperationABS solenoid valve ABS solenoid valve (ACT)
UP KEEP DOWN UPACTUA-
TOR UPACTUA-
TOR KEEP
Operation ON OFF
ABS actuator relay ON ON
ABS motor relay ON OFF
SFIA0593E
Operation UP DOWN
STOP LAMP SW ON OFF
BST OPER SIG ON OFF
PRESS SENSOR 50 ± 5 bar 0 bar
PRESS SEN 2 50 ± 5 bar 0 bar
STP OFF RLY OFF OFF
WFIA0350E

BRC-34
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Wheel Sensor System InspectionINFOID:0000000003532784
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit (control unit) connector E125 and wheel sensor of malfunction-
ing code.
Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2.CHECK WHEEL SENSOR OUTPUT SIGNAL
1. Connect ABS active wheel sensor tester (J-45741) to wheel sensor using appropriate adapter.
2. Turn on the ABS active wheel sensor tester power switch.
NOTE:
The green POWER indicator should illuminate. If the POWER indicator does not illuminate, replace the
battery in the ABS active wheel sensor tester before proceeding.
3. Spin the wheel of the vehicle by hand and observe the red SENSOR indicator on the ABS active wheel
sensor tester. The red SENSOR indicator should flash on and off to indicate an output signal.
NOTE:
If the red SENSOR indicator illuminates but does not flash, reverse the polarity of the tester leads and
retest.
Does the ABS active wheel sensor tester detect a signal?
YES >> GO TO 3.
NO >> Replace the wheel sensor. Refer to BRC-56, "
Removal and Installation".
3.CHECK TIRES
Check for inflation pressure, wear and size of each tire.
Are tire pressure and size correct and is tire wear within specifications?
YES >> GO TO 4.
NO >> Adjust tire pressure or replace tire(s).
4.CHECK WHEEL BEARINGS
Check wheel bearing axial end play. Refer to FAX-5, "
On-Vehicle Inspection and Service" (front) or RAX-5,
"On-Vehicle Inspection and Service" (rear).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace as necessary. Refer to FAX-5, "
On-Vehicle Inspection and Service" (front) or
RAX-5, "
On-Vehicle Inspection and Service" (rear).
5.CHECK WIRING HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connec-
tor and wheel sensor connector of malfunction code No.
2. Check continuity between wheel sensor harness connector ter-
minals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair the circuit.
6.CHECK WIRING HARNESS FOR OPEN CIRCUITContinuity should not exist.
WFIA0343E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-35
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
1. Check continuity between ABS actuator and electric unit (control unit) harness connector E125 and the
malfunctioning wheel sensor harness connector E18, E117, C10, or C11.
OK or NG
OK >> Replace the ABS actuator and electric unit (control unit). Refer to BRC-58, "Removal and Installa-
tion".
NG >> Repair the circuit.
Engine System InspectionINFOID:0000000003532785
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.ENGINE SYSTEM INSPECTION
1. Perform ECM self-diagnosis and repair as necessary. Refer to E C - 111 , "
CONSULT-II Function
(ENGINE)".
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Inspection End.
NG >> Repair or replace as necessary.
ABS/TCS/VDC Control Unit InspectionINFOID:0000000003532786
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Wheel sensorABS actuator and
electric unit (control unit)Wheel sensor
Continuity
Connector Terminal Connector Terminal
Front LH
E12545
E181
Ye s 46 2
Front RH34
E1171
33 2
Rear LH37
C112
36 1
Rear RH42
C102
43 1
Self-diagnosis results
ENGINE SIGNAL 1
ENGINE SIGNAL 2
ENGINE SIGNAL 3
ENGINE SIGNAL 4
ENGINE SIGNAL 6

BRC-36
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Is the above displayed in the self-diagnosis display items?
YES >> Replace ABS actuator and electric unit (control unit). Refer to BRC-58, "Removal and Installa-
tion".
NO >> Inspection End.
Steering Angle Sensor SystemINFOID:0000000003532787
INSPECTION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULT
Check self-diagnosis results.
Is above displayed in self-diagnosis item?
YES >> GO TO 2.
NO >> Inspection End.
2.CHECK CONNECTOR
1. Disconnect steering angle sensor connector M47 and ABS actuator and electric unit (control unit) connec-
tor E125 and check terminals for deformation, disconnection, looseness, or damage. Repair or replace as
necessary.
2. Reconnect connectors and repeat ABS actuator and electric unit (control unit) self-diagnosis.
Is "ST ANG SEN CIRCUIT" or "ST ANG SEN COM CIR" displayed?
YES >> GO TO 3.
NO >> Inspection End.
3.CHECK STEERING ANGLE SENSOR HARNESS
1. Check CAN communication system. Refer to LAN-7
.
2. Turn ignition switch OFF and disconnect steering angle sensor
connector M47 and ABS actuator and electric unit (control unit)
connector E125.
3. Check continuity between ABS actuator and electric unit (control
unit) connector E125 and steering angle sensor connector M47.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4.CHECK DATA MONITOR
1. Connect steering angle sensor and ABS actuator and electric unit (control unit) connectors.
2. Use “DATA MONITOR” to check if the status of "STR ANGLE SIG" is normal.
Self-diagnosis results
CONTROLLER FAILURE
VARIANT CODING
Self-diagnosis results
ST ANG SEN CIRCUIT
ST ANG SEN COM CIR
ABS actuator and
electric unit (con-
trol unit) harness
connector E125Steering angle
sensor harness
connector M47Continuity
11 3 Ye s
15 4 Yes
WFIA0224E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-37
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Replace spiral cable (steering angle sensor) and adjust neutral position of steering angle sensor.
Refer to BRC-54, "
Adjustment of Steering Angle Sensor Neutral Position".
Yaw Rate/Side/Decel G Sensor System InspectionINFOID:0000000003532788
CAUTION:
Sudden turns (such as spin turns, acceleration turns), drifting, etc. when VDC function is OFF may
cause the yaw rate/side/decel G sensor system to indicate a problem. This is not a problem if normal
operation can be resumed after restarting the engine.
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
CAUTION:
If vehicle is on turn table at entrance to parking garage, or on other moving surface, VDC OFF indica-
tor lamp may illuminate and CONSULT-II self-diagnosis may indicate yaw rate sensor system malfunc-
tion. However, in this case there is no malfunction in yaw rate sensor system. Take vehicle off of turn
table or other moving surface, and start engine. Results will return to normal.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit (control unit) connector E125 and yaw rate/side/decel G sensor
connector M108.
Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3.YAW RATE/SIDE/DECEL G SENSOR HARNESS INSPECTION
1. Turn off the ignition switch and disconnect yaw rate/side/decel G sensor connector M108 and ABS actua-
tor and electric unit (control unit) connector E125.
2. Check continuity between the ABS actuator and electric unit (control unit) connector E125 and the yaw
rate/side/decel G sensor connector M108.
Steering condition Data monitor
Straight-ahead –3.5 deg to +3.5 deg
Turn wheel to the right by 90°Approx. - 90deg
Turn wheel to the left by 90°Approx. + 90deg
Self-diagnosis results
YAW R AT E S E N S O R
G-SENSOR
SIDE G-SEN CIRCUIT
ABS actuator and electric unit (control
unit) harness connector E125Yaw rate/side/decel G sensor
harness connector M108Continuity

BRC-38
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
OK or NG
OK >> GO TO 4.
NG >> Repair or replace as necessary.
4.YAW RATE/SIDE/DECEL G SENSOR INSPECTION
1. Connect the yaw rate/side/decel G sensor connector M108 and ABS actuator and electric unit (control
unit) connector E125.
2. Use “DATA MONITOR” to check if the yaw rate/side/decel G sensor signals are normal.
OK or NG
OK >> Inspection End.
NG >> Replace the yaw rate/side/decel G sensor. Refer to BRC-61, "
Removal and Installation".
Solenoid and VDC Change-Over Valve System InspectionINFOID:0000000003532789
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.CONNECTOR INSPECTION63
Ye s 24 5
25 1
29 2
Vehicle statusYaw rate sensor
(Data monitor standard)Side G sensor
(Data monitor standard)Decel G Sensor
(Data monitor standard)
When stopped -4 to +4 deg/s -1.1 to +1.1 m/s -0.11 G to +0.11 G
Right turn Negative value Negative value -
Left turn Positive value Positive value -
Speed up - - Negative value
Speed down - - Positive value
Self-diagnosis results
FR LH IN ABS SOL
FR LH OUT ABS SOL
RR RH IN ABS SOL
RR RH OUT ABS SOL
FR RH IN ABS SOL
FR RH OUT ABS SOL
RR LH IN ABS SOL
RR LH OUT ABS SOL
CV 1
CV 2
SV 1
SV 2

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-39
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
1. Disconnect ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.

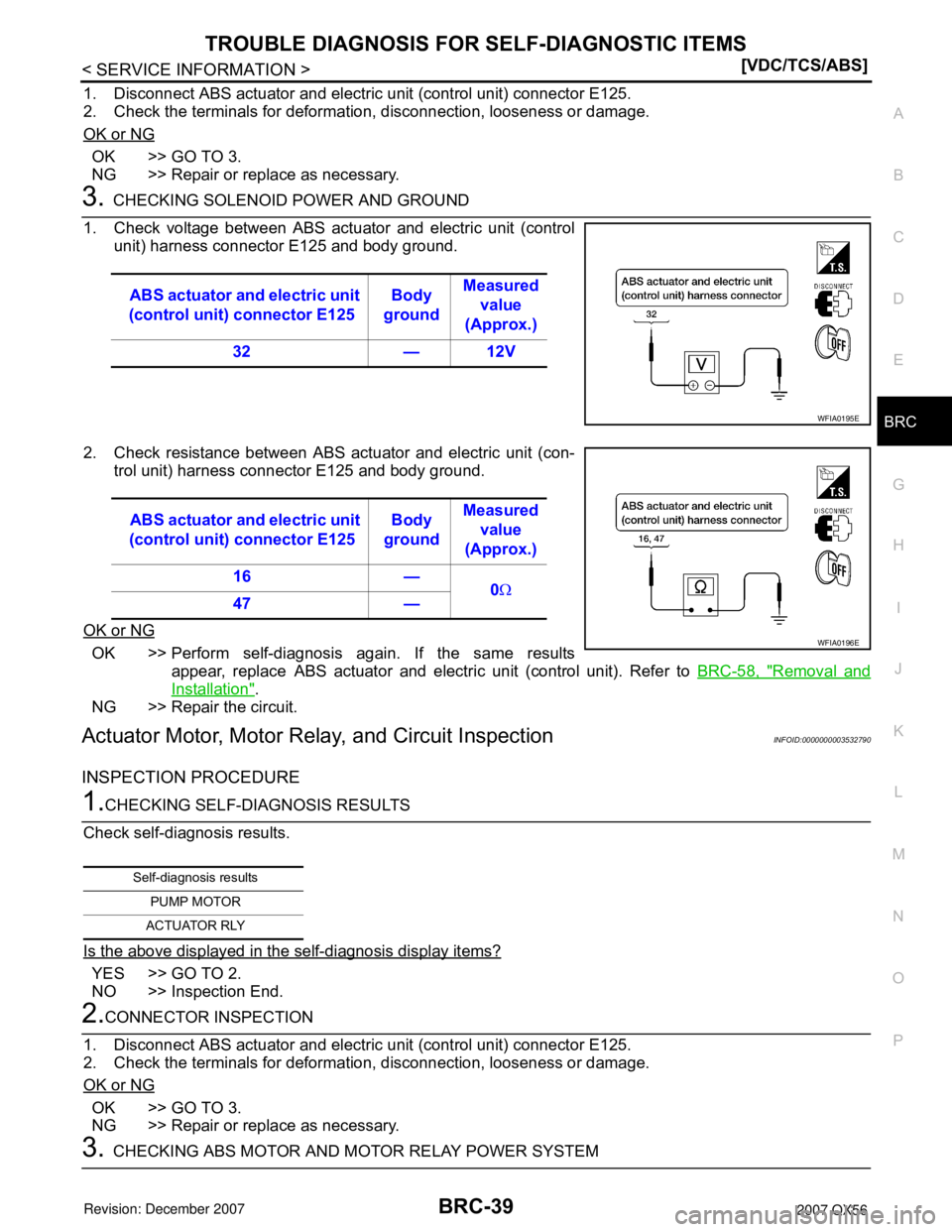

3.CHECKING SOLENOID POWER AND GROUND

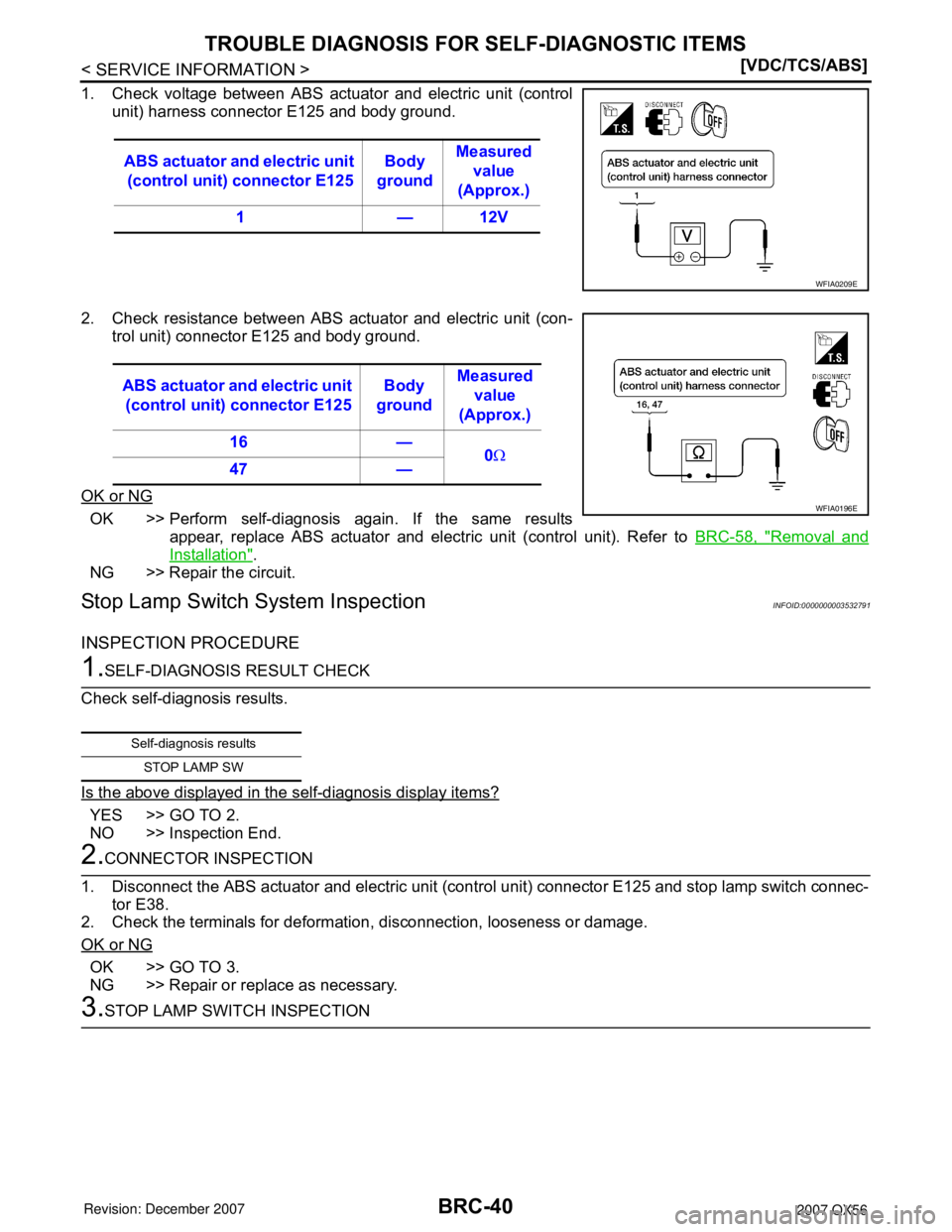

1. Check voltage between ABS actuator and electric unit (control
unit) harness connector E125 and body ground.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector E125 and body ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control unit). Refer to BRC-58, "
Removal and
Installation".
NG >> Repair the circuit.
Actuator Motor, Motor Relay, and Circuit InspectionINFOID:0000000003532790
INSPECTION PROCEDURE
1.CHECKING SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.CONNECTOR INSPECTION
1. Disconnect ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3.CHECKING ABS MOTOR AND MOTOR RELAY POWER SYSTEMABS actuator and electric unit
(control unit) connector E125Body
groundMeasured
value
(Approx.)
32 — 12V
WFIA0195E
ABS actuator and electric unit
(control unit) connector E125Body
groundMeasured
value
(Approx.)
16 —
0Ω
47 —
WFIA0196E
Self-diagnosis results
PUMP MOTOR
ACTUATOR RLY

BRC-40
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
1. Check voltage between ABS actuator and electric unit (control
unit) harness connector E125 and body ground.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) connector E125 and body ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control unit). Refer to BRC-58, "
Removal and
Installation".
NG >> Repair the circuit.
Stop Lamp Switch System InspectionINFOID:0000000003532791
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125 and stop lamp switch connec-
tor E38.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3.STOP LAMP SWITCH INSPECTIONABS actuator and electric unit
(control unit) connector E125Body
groundMeasured
value
(Approx.)
1 — 12V
WFIA0209E
ABS actuator and electric unit
(control unit) connector E125Body
groundMeasured
value
(Approx.)
16 —
0Ω
47 —
WFIA0196E
Self-diagnosis results
STOP LAMP SW

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-41
< SERVICE INFORMATION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Check the voltage between the ABS actuator and electric unit (con-
trol unit) harness connector E125 terminal 41 and body ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control
unit). Refer to BRC-58, "
Removal and Installation".
NG >> GO TO 4.
4.STOP LAMP RELAY CIRCUIT INSPECTION
1. Disconnect the stop lamp relay harness connector E12.
2. Check the continuity between the ABS actuator and electric unit
(control unit) harness connector E125 (B) terminal 41 and stop
lamp relay harness connector E12 (A) terminal 4.
OK or NG
OK >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control
unit). Refer to BRC-58, "
Removal and Installation"BRC-
58, "Removal and Installation".
NG >> Refer to "Stop Lamp Switch System Inspection".
ABS/TCS/VDC Control Unit Power and Ground Systems InspectionINFOID:0000000003532792
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3.ABS/TCS/VDC CONTROL UNIT POWER AND GROUND CIRCUIT INSPECTION
Measure the voltage and continuity between the ABS actuator and electric unit (control unit) harness connec-
tor E125 and body ground.Brake pedal depressed : Battery voltage
(approx. 12V)
Brake pedal not depressed : Approx. 0V
WFIA0198E
Continuity should exist
WFIA0431E
Self-diagnosis results
BATTERY VOLTAGE
Signal nameABS actuator and electric unit
(control unit) connector E125Body
groundMeasured value
Power supply1
— Battery voltage (Approx. 12V)
32
