INFINITI QX56 2008 Factory Service Manual

HORN
HRN-5
< COMPONENT DIAGNOSIS >
C
D E
F
G H
I
J
K
M A
B
HRN
N
O P
ALLIA0304GB
Revision: March 2010 2008 QX56

HRN-6
< COMPONENT DIAGNOSIS >
HORN
ALLIA0305GB
Revision: March 20102008 QX56

HORN
HRN-7
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
K
M A
B
HRN
N
O P
REMOVAL AND INSTALLATION
HORN
Removal and InstallationINFOID:0000000001608203
REMOVAL
1. Disconnect horn connector.
2. Remove horn bolt and remove horn from vehicle.
INSTALLATION
Installation is in the reverse order of removal.
LKIA0419E
Revision: March 2010 2008 QX56

INL-1
DRIVER CONTROLS
C
DE
F
G H
I
J
K
M
SECTION INL
A
B
INL
N
O P
CONTENTS
INTERIOR LIGHTING SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
FUNCTION DIAGNOSIS ...............................6
INTERIOR ROOM LAMP CONTROL SYSTEM
.....
6
System Diagram .................................................. ......6
System Description ...................................................6
Component Parts Location ........................................7
Component Description .............................................8
ILLUMINATION CONTROL SYSTEM .................9
System Diagram .................................................. ......9
System Description ...................................................9
Component Parts Location ........................................9
Component Description ...........................................10
DIAGNOSIS SYSTEM (BCM) ............................11
COMMON ITEM ..................................................... ....11
COMMON ITEM : CONSULT-III Function ...............11
INT LAMP .............................................................. ....11
INT LAMP : CONSULT-III Function ........................11
BATTERY SAVER ................................................. ....13
BATTERY SAVER : CONSULT-III Function ...........13
COMPONENT DIAGNOSIS .........................14
POWER SUPPLY AND GROUND CIRCUIT .. ....14
BCM ....................................................................... ....14
BCM : Inspection Procedure ...................................14
INTERIOR ROOM LAMP POWER SUPPLY
CIRCUIT ......................................................... ....
15
Description .......................................................... ....15
Component Function Check ....................................15
Diagnosis Procedure ...............................................15
INTERIOR ROOM LAMP CONTROL CIRCUIT
...
17
Description ........................................................... ....17
Component Function Check ....................................17
Diagnosis Procedure ...............................................17
STEP LAMP CIRCUIT .......................................19
Description ........................................................... ....19
Component Function Check ....................................19
Diagnosis Procedure ...............................................19
CARGO LAMP CONTROL CIRCUIT ................21
Description ...............................................................21
Component Function Check ....................................21
Diagnosis Procedure ...............................................21
IGNITION KEYHOLE ILLUMINATION CON-
TROL CIRCUIT .................................................
23
Description ...............................................................23
Component Function Check ....................................23
Diagnosis Procedure ...............................................23
INTERIOR ROOM LAMP CONTROL SYSTEM
...
25
Wiring Diagram .................................................... ....25
ILLUMINATION .................................................41
Wiring Diagram ........................................................41
ECU DIAGNOSIS .........................................55
BCM (BODY CONTROL MODULE) .................55
Description ........................................................... ....55
SYMPTOM DIAGNOSIS ..............................56
INTERIOR LIGHTING SYSTEM SYMPTOMS ...56
Symptom Table ................................................... ....56
PRECAUTION ..............................................57
PRECAUTIONS .................................................57
Revision: March 2010 2008 QX56

INL-2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
57
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ..................................
57
General precautions for service operations ............58
ON-VEHICLE REPAIR .... ............................59
INTERIOR ROOM LAMP ................................ ...59
Removal and Installation .........................................59
ILLUMINATION .............................................. ...64
Removal and Installation .........................................64
SERVICE DATA AND SPECIFICATIONS
(SDS) .......... ................................. ...............
66
BULB SPECIFICATIONS ............................... ...66
Interior Lamp/Illumination ........................................66
Revision: March 2010 2008 QX56

DIAGNOSIS AND REPAIR WORKFLOWINL-3
< BASIC INSPECTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001601374

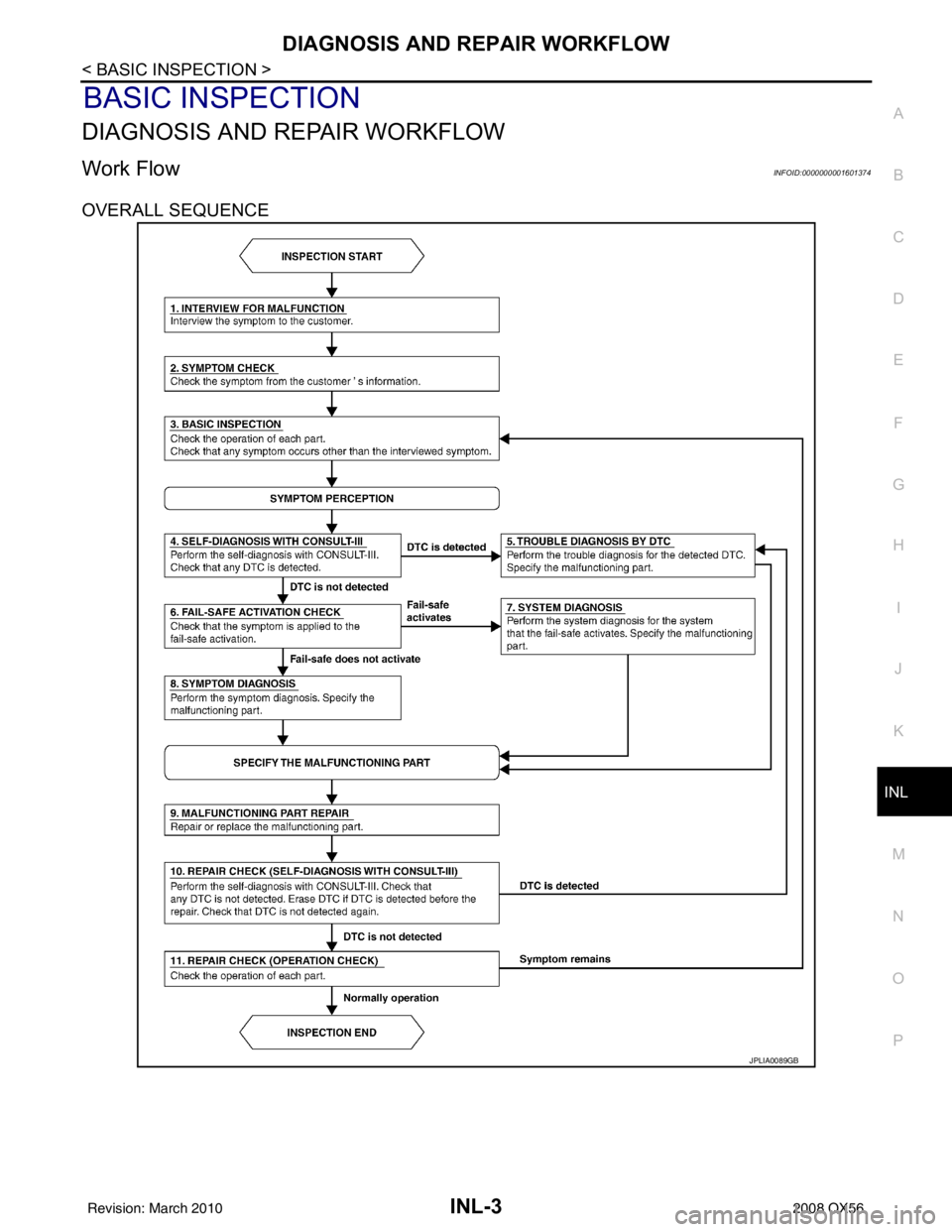

OVERALL SEQUENCE
