INFINITI QX56 2008 Factory Service Manual

INL-38
< COMPONENT DIAGNOSIS >
INTERIOR ROOM LAMP CONTROL SYSTEM

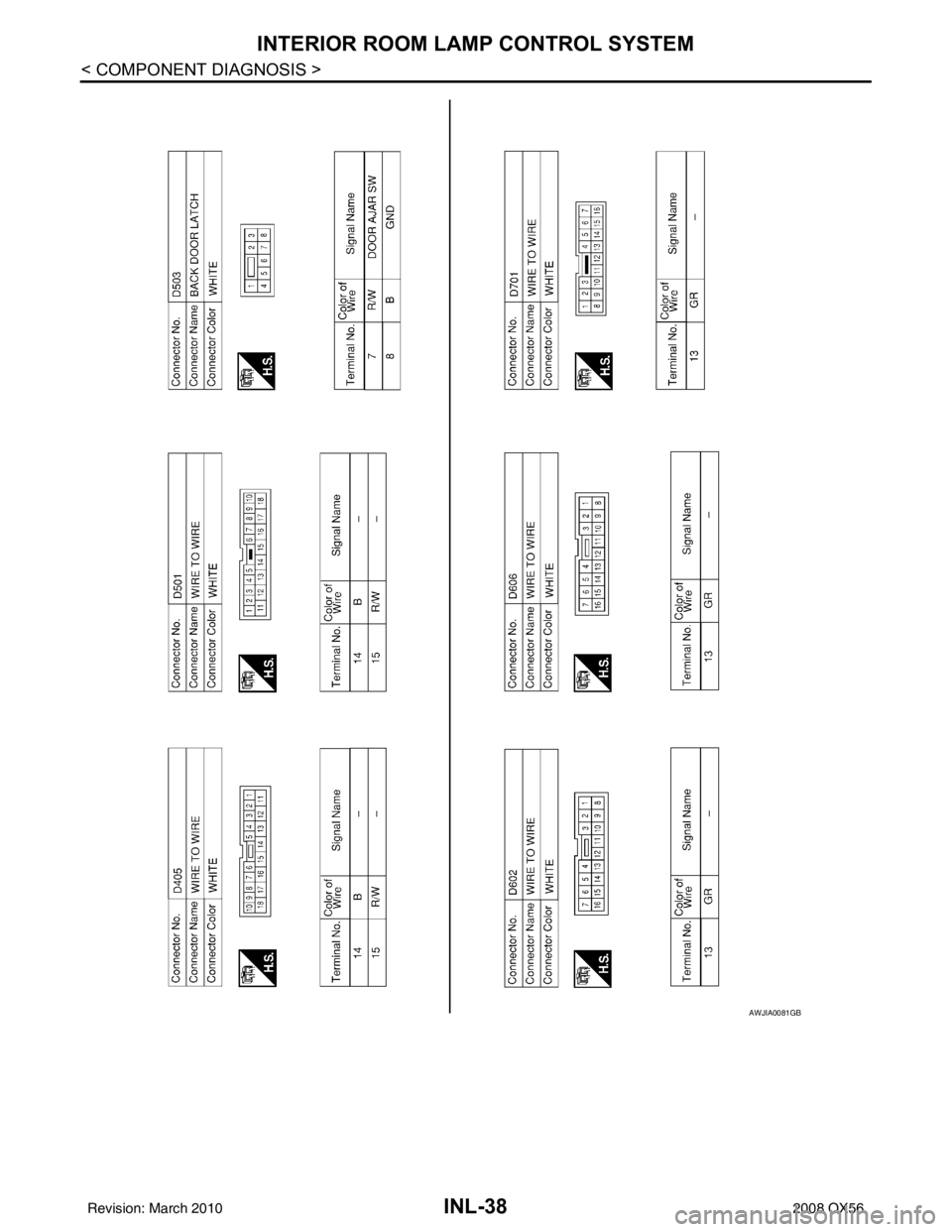

AWJIA0081GB
Revision: March 20102008 QX56

INTERIOR ROOM LAMP CONTROL SYSTEMINL-39
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
AWJIA0082GB
Revision: March 2010 2008 QX56

INL-40
< COMPONENT DIAGNOSIS >
INTERIOR ROOM LAMP CONTROL SYSTEM

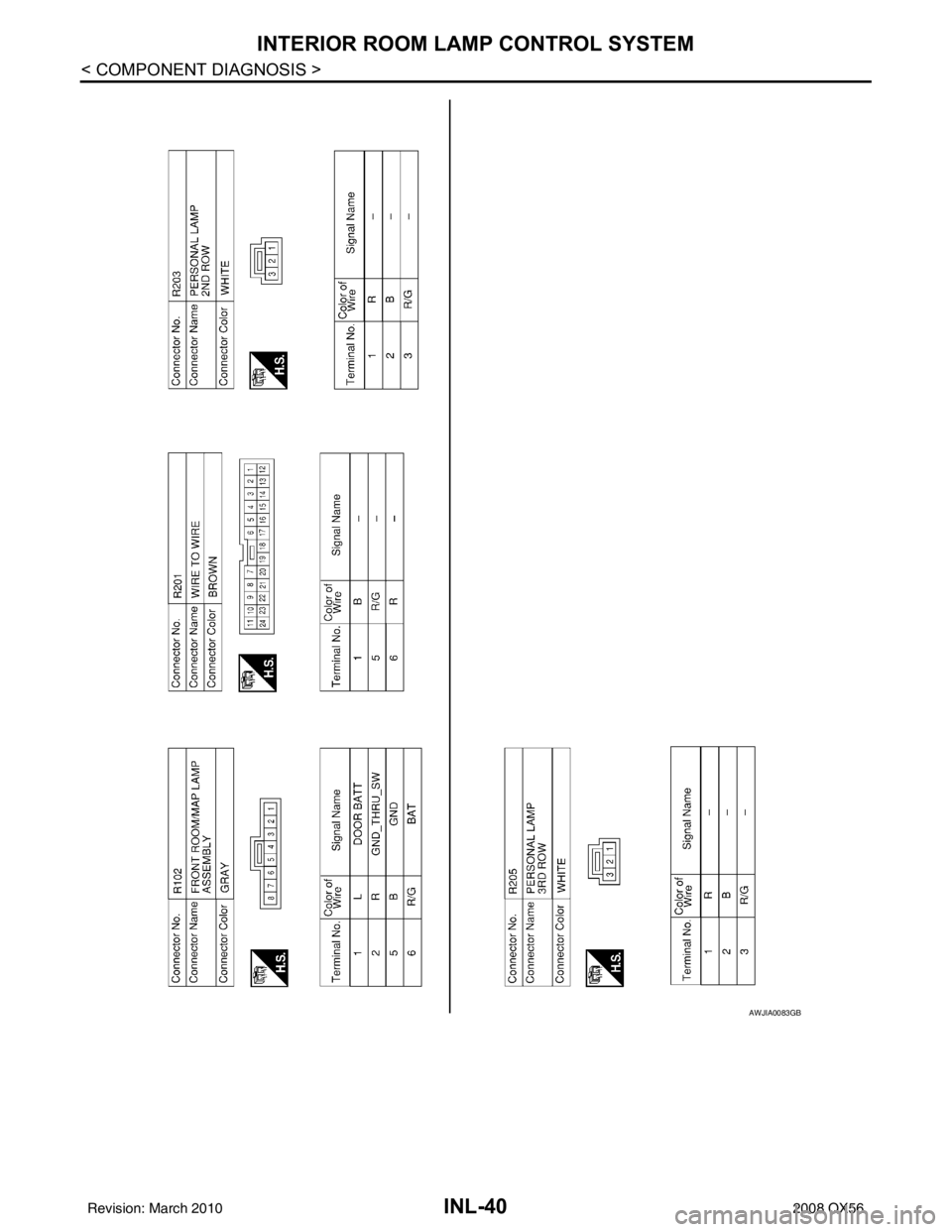

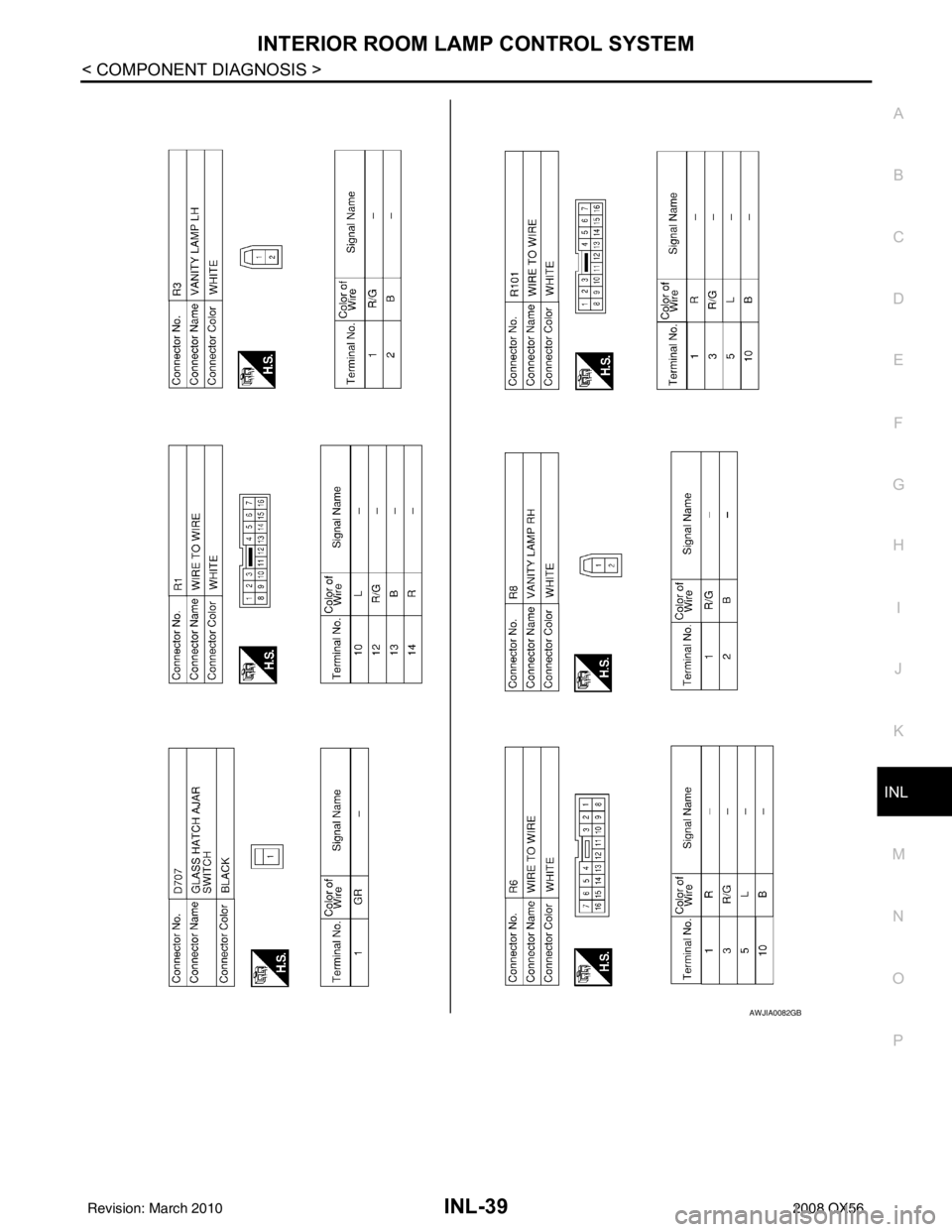

AWJIA0083GB
Revision: March 20102008 QX56

ILLUMINATIONINL-41
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
ILLUMINATION
Wiring DiagramINFOID:0000000001601403
AALWA0094GB
Revision: March 2010 2008 QX56

INL-42
< COMPONENT DIAGNOSIS >
ILLUMINATION

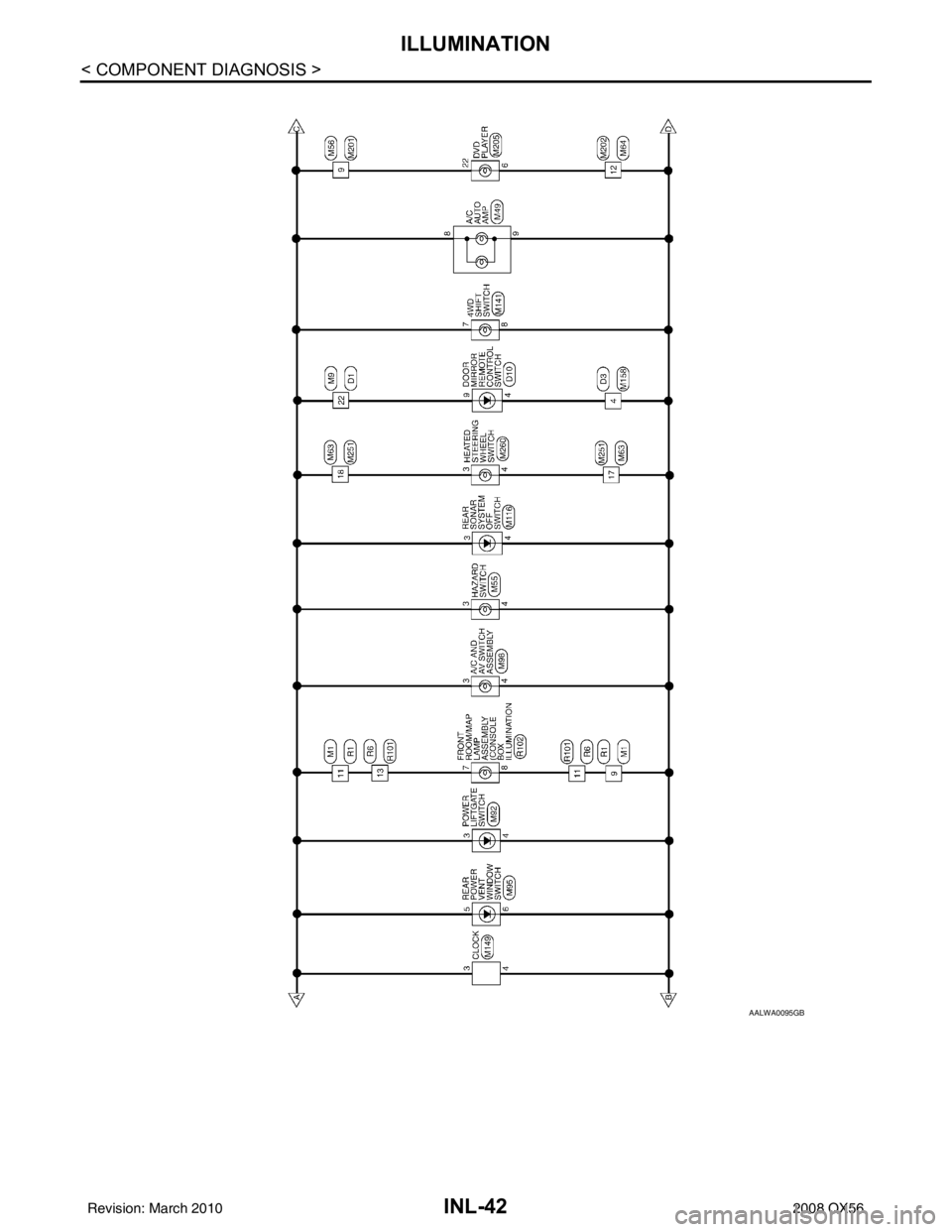

AALWA0095GB
Revision: March 20102008 QX56

ILLUMINATIONINL-43
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

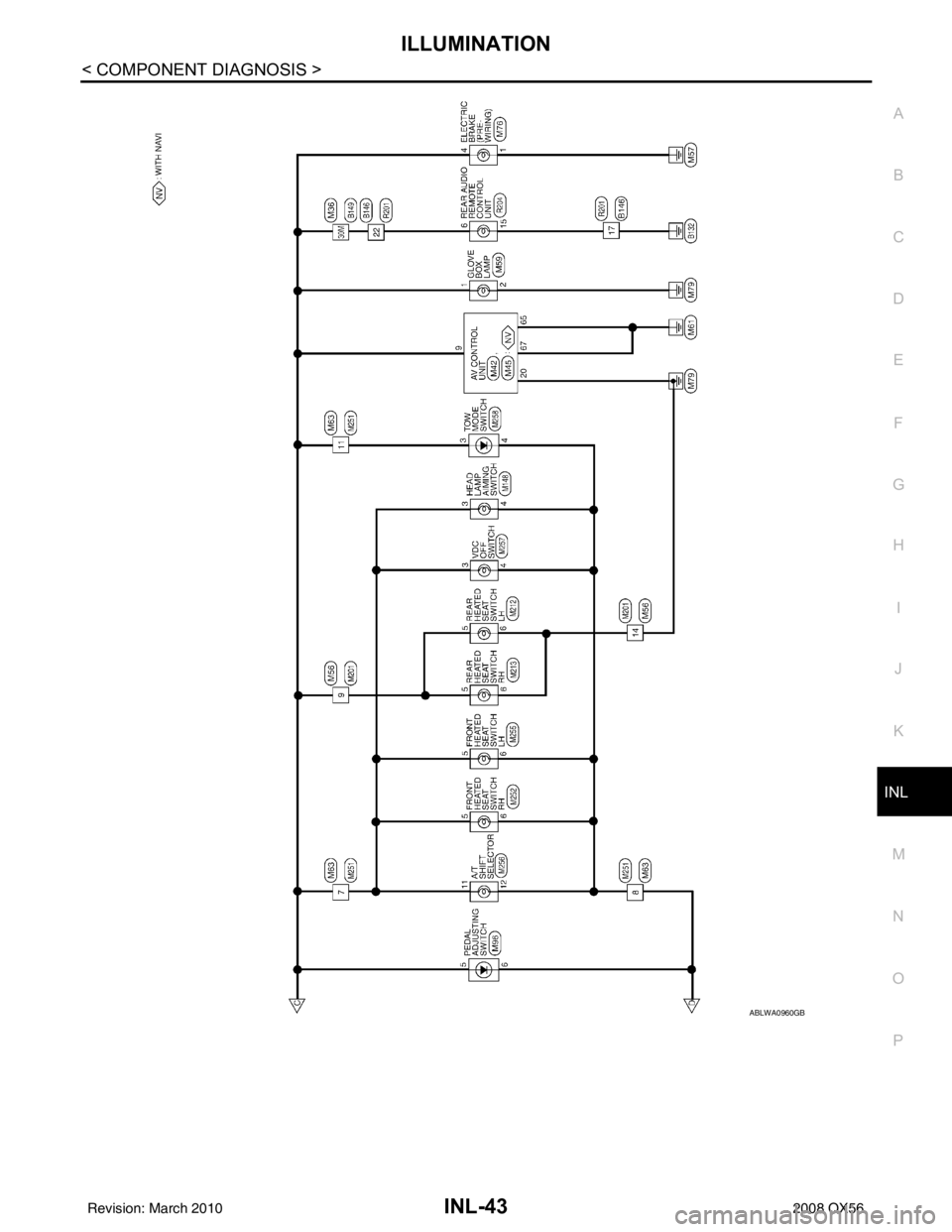

ABLWA0960GB
Revision: March 2010 2008 QX56

INL-44
< COMPONENT DIAGNOSIS >
ILLUMINATION

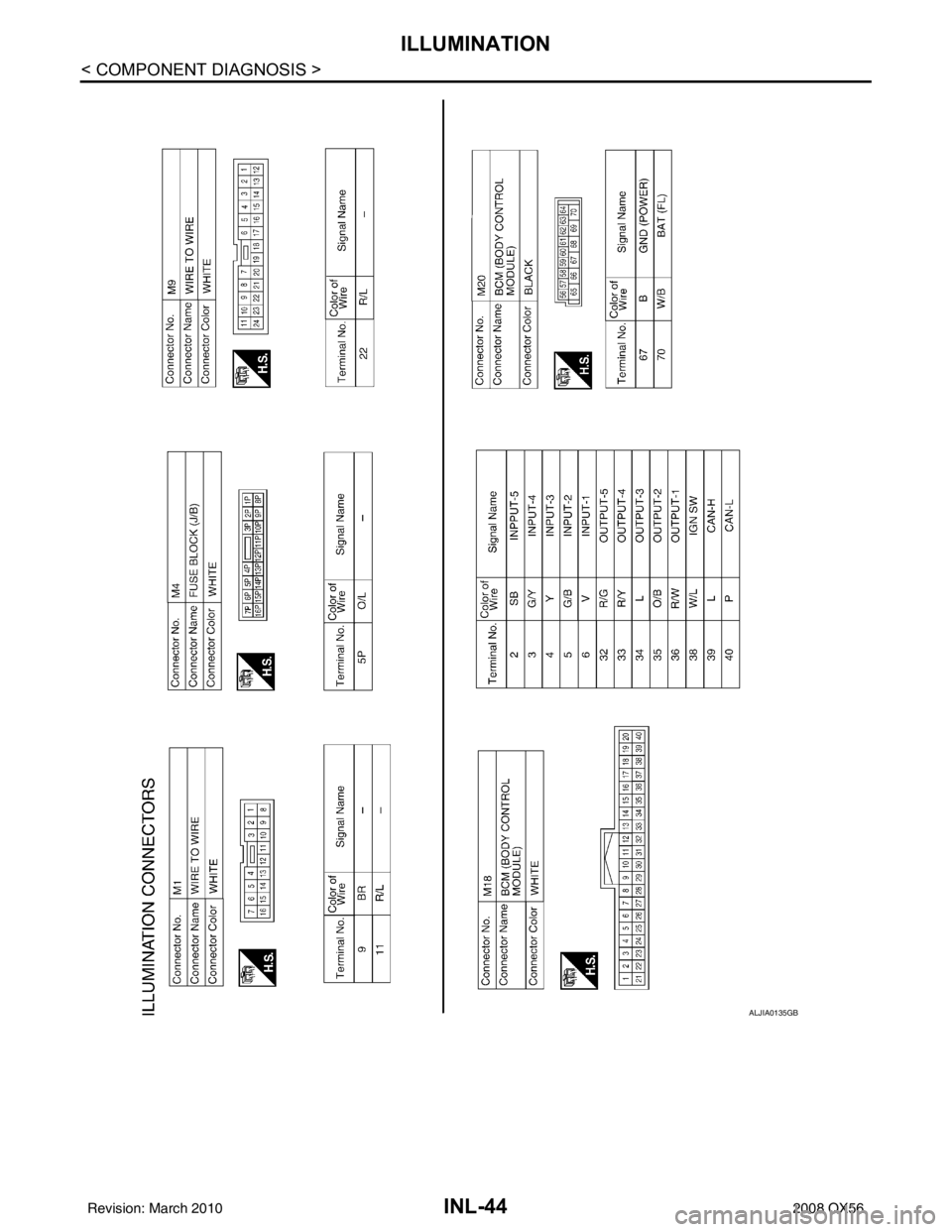

ALJIA0135GB
Revision: March 20102008 QX56

ILLUMINATIONINL-45
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

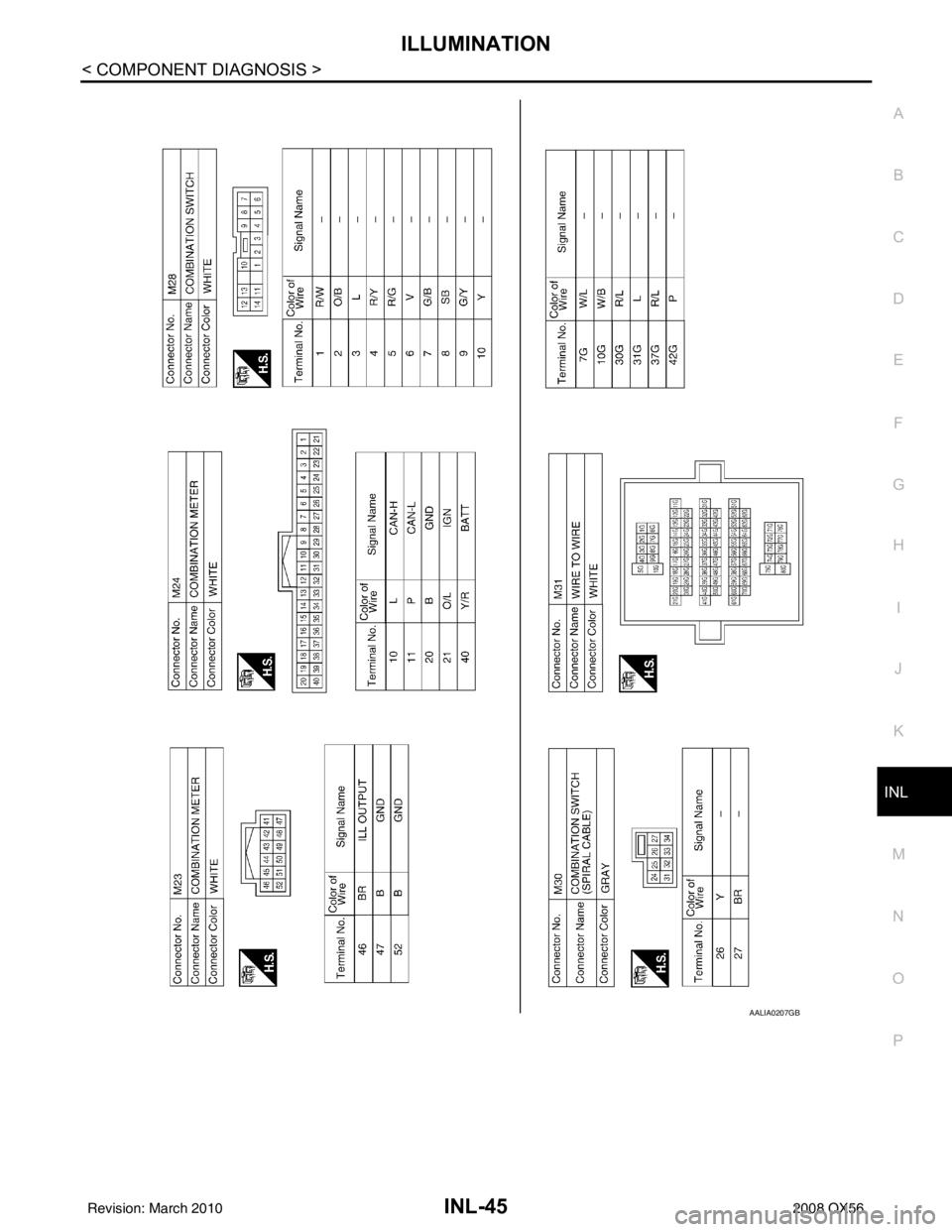

AALIA0207GB
Revision: March 2010 2008 QX56

INL-46
< COMPONENT DIAGNOSIS >
ILLUMINATION

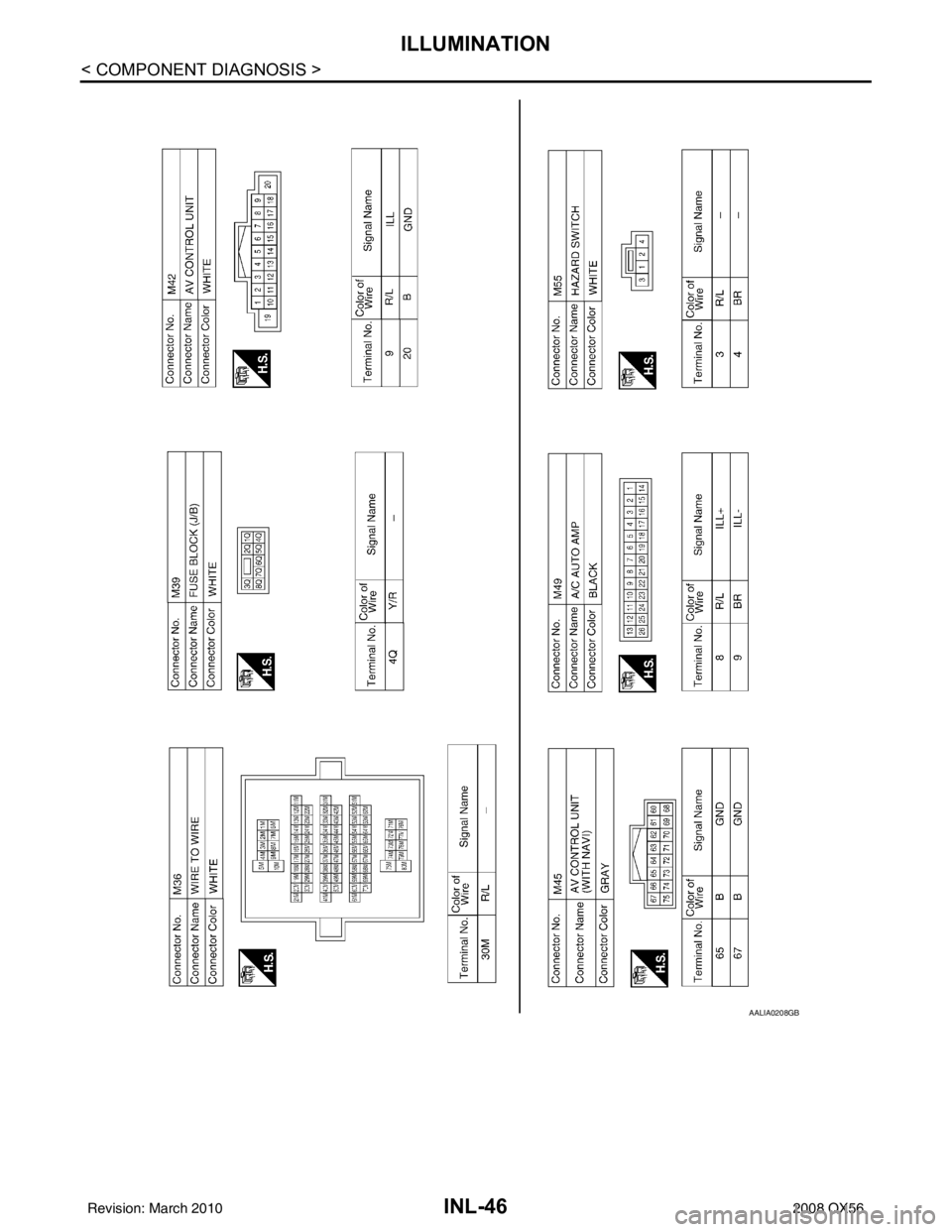

AALIA0208GB
Revision: March 20102008 QX56

ILLUMINATIONINL-47
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

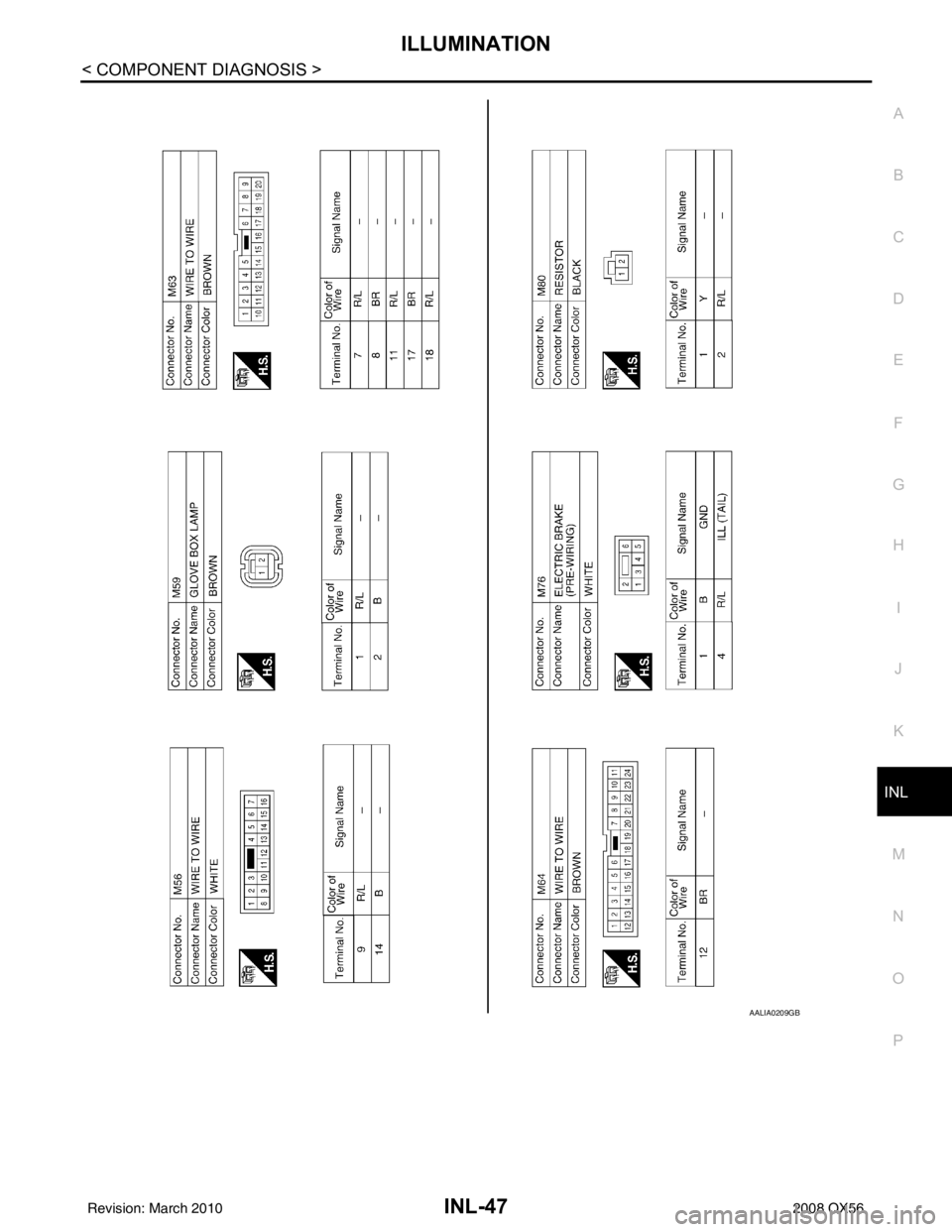

AALIA0209GB
Revision: March 2010 2008 QX56
