DLN-140
< ON-VEHICLE REPAIR >[ATX14B]
TRANSFER MOTOR
TRANSFER MOTOR
Removal and InstallationINFOID:0000000004193531
REMOVAL
1. Disconnect the transfer motor connector.
2. Remove the transfer motor air breather hose from the transfer
motor. Refer to DLN-137, "Removal and Installation"
.
3. Remove the transfer motor bolts.
4. Remove the transfer motor.
INSTALLATION
1. Apply ATF to the new O-ring and install it to the transfer motor. CAUTION:
Do not reuse O-rings.
2. Fit the double-flat end of the transfer motor shaft into the slot of the sub-oil pump assembly. Then tighten to the specified torque.
Refer to DLN-140, "Removal and Installation"
.
CAUTION:
Be sure to install connector bracket.
3. Install the transfer motor air breather hose to the transfer motor. Refer to DLN-137, "Removal and Installation"
.
4. Connect the transfer motor connector.
5. Check the transfer fluid. Refer to DLN-129, "Replacement"
.
6. Start the engine for one minute. Then stop the engine and recheck the transfer fluid. Refer to DLN-129,
"Inspection".
SDIA2133E
SDIA2787E
Revision: December 20092009 QX56

TRANSFER ASSEMBLYDLN-141
< REMOVAL AND INSTALLATION > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
REMOVAL AND INSTALLATION
TRANSFER ASSEMBLY
Removal and InstallationINFOID:0000000005874982
REMOVAL
1. Set transfer state as 2WD when 4WD shift switch is at 2WD.
2. Remove the undercovers using power tool.
3. Drain the transfer fluid. Refer to DLN-129, "Replacement"
.
4. Remove the center exhaust tube and main muffler. Refer to EX-6, "Removal and Installation"
.
5. Remove the front and rear propeller shafts. Refer to DLN-186, "Removal and Installation"
(front), DLN-
196, "Removal and Installation" (rear).
CAUTION:
Do not damage spline, sleeve yoke and rear oi l seal when removing rear propeller shaft.
NOTE:
Insert a plug into the rear oil seal after removing the rear propeller shaft.
6. Remove the A/T nuts from the A/T crossmember. Refer to TM-216, "Removal and Installation (4WD)"
.
7. Position two suitable jacks under the A/T and transfer assembly.
8. Remove the crossmember. Refer to TM-216, "Removal and Installation (4WD)"
.
WARNING:
Support A/T and transfer assembly using two suitable jacks while removing crossmember.
9. Disconnect the electrical c onnectors from the following:
 ATP switch
 Neutral 4LO switch
 Wait detection switch
 Transfer motor
 Transfer control device
 Transfer terminal cord assembly
10. Disconnect each air breather hose from the following. Refer to DLN-137, "Removal and Installation"
.
 Actuator
 Breather tube (transfer)
 Transfer motor
11. Remove the transfer control dev ice from the extension housing.
12. Remove the transfer to A/T and A/T to transfer bolts.
13. Remove the transfer assembly. WARNING:
Support transfer assembly with su itable jack while removing it.
CAUTION:
Do not damage rear oil seal (A/T).
INSTALLATION
Installation is in the reverse order of removal.
 Tighten the bolts to specification.
 Fill the transfer with new fluid and check for fluid leakage and fluid level. Refer to DLN-129, "Replacement"
.
 Start the engine for one minute. Then stop the engine and recheck the transfer fluid. Refer to DLN-129, "Inspection"
.
Transfer bolt torque : 36 N·m (3.7 kg-m, 27 ft-lb)
SMT872C
Revision: December 20092009 QX56

DIFFERENTIAL GEAR OILDLN-209
< ON-VEHICLE MAINTENANCE > [FRONT FINAL DRIVE: M205]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
ON-VEHICLE MAINTENANCE
DIFFERENTIAL GEAR OIL
Changing Differential Gear OilINFOID:0000000004193540
DRAINING
1. Stop the engine.
2. Remove the drain plug from the front final drive assembly to drain the differential gear oil.
3. Install the drain plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer to DLN-217, "Disassembly and Assembly"
.
 Use High Performance Thread Sealant or equivalent. Refer to GI-15, "Recommended Chemical Prod-
ucts and Sealants".
FILLING
1. Remove the filler plug from the front final drive assembly.
2. Fill the front final drive assembly with new differential gear oil
until the level reaches the specified level near the filler plug hole.
3. Install the filler plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer
to DLN-217, "Disassembly and Assembly"
.
 Use High Performance Thread Sealant or equivalent. Refer to GI-15, "Recommended Chemical Products and Sealants"
.
Checking Differential Gear OilINFOID:0000000004193541
DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL
1. Make sure that differential gear oil is not leaki ng from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as shown.
CAUTION:
Do not start engine while checki ng differential gear oil level.
3. Install the filler plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer
to DLN-217, "Disassembly and Assembly"
.
 Use High Performance Thread Sealant or equivalent. Refer to GI-15, "Recommended Chemical Products and Sealants"
.
Differential gear oil
grade and capacity
: Refer to
MA-12, "Fluids
and Lubricants".
LDIA0176E
LDIA0176E
Revision: December 20092009 QX56

DLN-244
< ON-VEHICLE MAINTENANCE >[REAR FINAL DRIVE: R230]
DIFFERENTIAL GEAR OIL
ON-VEHICLE MAINTENANCE
DIFFERENTIAL GEAR OIL
Changing Differential Gear OilINFOID:0000000004193554
DRAINING
1. Stop the engine.
2. Remove the drain plug and gasket from the rear final drive
assembly to drain the differential gear oil.
3. Install the drain plug with a new gasket to the rear final drive assembly. Tighten to the specified torque. Refer to DLN-253,
"Disassembly and Assembly".
CAUTION:
Do not reuse gasket.
FILLING
1. Remove the filler plug and gasket from the rear final drive assembly.
2. Fill the rear final drive assembly with new differential gear oil until the level reaches the specified level near the filler plug hole.
3. Install the filler plug with a new gasket on it to the rear final drive assembly. Tighten to the specified torque. Refer to DLN-253,
"Disassembly and Assembly".
CAUTION:
Do not reuse gasket.
Checking Differential Gear OilINFOID:0000000004193555
OIL LEAKAGE AND OIL LEVEL
1. Make sure that differential gear oil is not leaki ng from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as shown.
CAUTION:
Do not start engine while checki ng differential gear oil level.
3. Install the filler plug with a new gasket on it to the rear final drive assembly. Tighten to the specified torque. Refer to DLN-253,
"Disassembly and Assembly".
CAUTION:
Do not reuse gasket.
LLIA0068E
Differential gear oil
grade and capacity : Refer to
MA-12, "Fluids and
Lubricants".
LLIA0068E
LLIA0068E
Revision: December 20092009 QX56

EC-22
< FUNCTION DIAGNOSIS >[VK56DE]
ENGINE CONTROL SYSTEM
Engine Control Comp onent Parts Location
INFOID:0000000003771302
1. ECM 2. Battery current sensor 3. Power steering pressure sensor
4. Ignition coil (with power transistor)
and spark plug (bank 2) 5. Refrigerant pressure sensor 6. Intake valve timing control position
sensor (bank 2)
7. Intake valve timing control solenoid valve (bank 2) 8. Engine coolant temperature sensor 9. Electric throttle control actuator
10. Intake valve timing control position sensor (bank 1) 11. Intake valve timing control solenoid
valve (bank 1) 12. Cooling fan motor
13. Camshaft position sensor (PHASE) 14. I gnition coil (with power transistor)
and spark plug (bank 1) 15. Mass air flow sensor (with intake air
temperature sensor)
16. A/F sensor 1 (bank 1) 17. EVAP service port 18. Fuel injector (bank 1)
19. Knock sensor (bank 1) 20. EVAP canister purge volume control solenoid valve21. Knock sensor (bank 2)
22. Fuel injector (bank 2) 23. A/F sensor 1 (bank 2) 24. IPDM E/R
BBIA0743E
Revision: December 20092009 QX56

ENGINE CONTROL SYSTEMEC-23
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Body ground (view with battery re-
moved) 2. Body ground (view with battery re-
moved) 3. Body ground
4. No. 1 ignition coil 5. Engine ground 6. Mass air flow sensor (with intake air temperature sensor)
7. IPDM E/R 8. Battery 9. Radiator hose
BBIA0778E
Revision: December 20092009 QX56

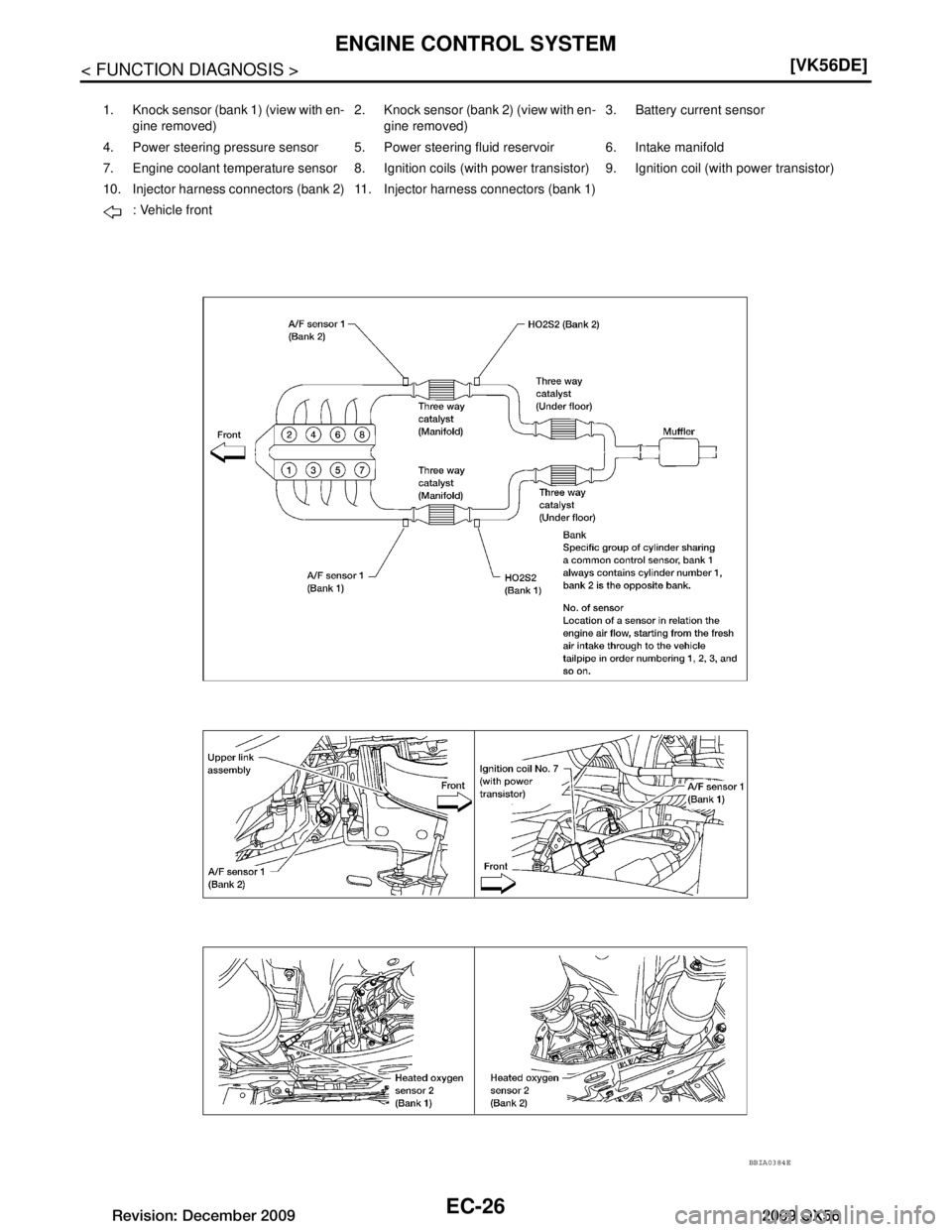

ENGINE CONTROL SYSTEMEC-25
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. EVAP canister purge volume control
solenoid valve (view with engine
cover removed) 2. EVAP service port (view with engine
cover removed) 3. Crankshaft position sensor (POS)
(view from under the vehicle)
4. Engine oil pan (view from under the vehicle) 5. Condenser-1 6. Brake fluid reservoir
7. EVAP canister (view with fuel tank removed) 8. EVAP control system pressure sen-
sor (view with fuel tank removed) 9. EVAP canister vent control valve
(view with fuel tank removed)
10. Rear suspension member (view with fuel tank removed) 11. Refrigerant pressure sensor (view
with front grille removed) 12. Intake valve timing control position
sensor (bank 2) (view with engine
cover and intake air duct removed)
13. Intake valve timing control position sensor (bank 1) (view with engine
cover and intake air duct removed) 14. Intake valve timing control solenoid
valve (bank 2) (view with engine cov-
er and intake air duct removed) 15. Drive belt (view with engine cover
and intake air duct removed)
16. Radiator hose (view with engine cov- er and intake air duct removed) 17. Intake valve timing control solenoid
valve (bank 1) (view with engine cov-
er and intake air duct removed)
: Vehicle front
BBIA0774E
Revision: December 20092009 QX56

EC-26
< FUNCTION DIAGNOSIS >[VK56DE]
ENGINE CONTROL SYSTEM
1. Knock sensor (bank 1) (view with en-
gine removed) 2. Knock sensor (bank 2) (view with en-
gine removed) 3. Battery current sensor
4. Power steering pressure sensor 5. Power steering fluid reservoir 6. Intake manifold
7. Engine coolant temperature sensor 8. Ignition coils (with power transistor) 9. Ignition coil (with power transistor)
10. Injector harness connectors (bank 2) 11. Injector harness connectors (bank 1) : Vehicle front
BBIA0384E
Revision: December 20092009 QX56

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-71
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: Leaving cooling fan OFF with CONSULT-III while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to
EC-456, "DTC Index".
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
DTC WORK SUPPORT Mode
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION  Engine: Return to the original
trouble condition
 Change the amount of fuel injec-
tion using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Harness and connectors
 Fuel injector
 Air fuel ratio (A/F) sensor 1
IGNITION TIM-
ING  Engine: Return to the original
trouble condition
 Timing light: Set
 Retard the ignition timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Perform Idle Air Volume Learning.
POWER BAL-
ANCE  Engine: After warming up, idle the
engine.
 A/C switch: OFF
 Selector lever: P or N
 Cut off each injector signal one at a time using CONSULT-III. Engine runs rough or dies.
 Harness and connectors
 Compression
 Fuel injector
 Power transistor
Spark plug
 Ignition coil
COOLING FAN*  Ignition switch: ON
 Turn the cooling fan HI and OFF
using CONSULT-III. Cooling fan moves and stops.  Harness and connectors
 Cooling fan motor
IPDM E/R
ENG COOLANT
TEMP  Engine: Return to the original
trouble condition
 Change the engine coolant tem- perature using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.  Harness and connectors
 Engine coolant temperature sen-
sor
 Fuel injector
FUEL PUMP RE-
LAY  Ignition switch: ON
(Engine stopped)
 Turn the fuel pump relay ON and OFF using CONSULT-III and lis-
ten to operating sound. Fuel pump relay makes the operat-
ing sound.
 Harness and connectors
 Fuel pump relay
PURG VOL
CONT/V  Engine: After warming up, run en-
gine at 1,500 rpm.
 Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-III. Engine speed changes according to
the opening percent.
 Harness and connectors
 Solenoid valve
FUEL/T TEMP
SEN  Change the fuel tank temperature using CONSULT-III.
VENT CON-
TROL/V  Ignition switch: ON
(Engine stopped)
 Turn solenoid valve ON and OFF with the CONSULT-III and listen
to operating sound. Solenoid valve makes an operating
sound.
 Harness and connectors
 Solenoid valve
V/T ASSIGN AN-
GLE  Engine: Return to the original
trouble condition
 Change intake valve timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Harness and connectors
 Intake valve timing control sole-
noid valve
ALTERNATOR
DUTY  Engine: Idle
 Change duty ratio using CON-
SULT-III. Battery voltage changes.  Harness and connectors
IPDM E/R
 Alternator
Revision: December 20092009 QX56

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-77
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximat
ely 1 minute because they may fluctuate. It is NG
if the indication is out of the SP value even a little.
OK or NG
OK >> GO TO 17.
NG (Less than the SP value)>>GO TO 2.
NG (More than the SP value)>>GO TO 3.
2.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” m ode, and make sure that the indication is within the
SP value.
OK or NG
OK >> GO TO 4.
NG (More than the SP value)>>GO TO 19.
3.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” m ode, and make sure that the indication is within the
SP value.
OK or NG
OK >> GO TO 6.
NG (More than the SP value)>>GO TO 6.
NG (Less than the SP value)>>GO TO 25.
4.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Stop the engine.
2. Disconnect PCV hose, and then plug it.
3. Start engine.
4. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5.CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil. NOTE:
This symptom may occur when a large amount of gas oline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detect ed after changing engine oil or changing driving con-
dition.
>>INSPECTION END
6.CHECK FUEL PRESSURE
Check fuel pressure. (Refer to EC-487, "Fuel Pressure Check"
.)
OK or NG
OK >> GO TO 9.
NG (Fuel pressure is too high)>>Replace fuel pressure regulator, refer to EC-487, "Fuel Pressure Check"
.
GO TO 8.
NG (Fuel pressure is too low)>>GO TO 7.
7.DETECT MALFUNCTIONING PART
1. Check the following.
- Clogged and bent fuel hose and fuel tube
- Clogged fuel filter
- Fuel pump and its circuit (Refer to EC-487, "Fuel Pressure Check"
.)
2. If NG, repair or replace the malfunctioning part. (Refer to EC-487, "Fuel Pressure Check"
.)
If OK, replace fuel pressure regulator.
Revision: December 20092009 QX56
